Dexter Trailer Axle Beam with Standard Spindles - 72" Long - 2,000 lbs

Item # T20BTR-7258

lowest price pledge

Retail:$110.59

Our Price: $92.43

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

dexter axle trailer axles standard spindles only
dexter axle trailer axles leaf spring suspension 72 inch long beam with standard spindles - 2 000 lbs
dexter axle trailer axles spindles only 72 inch long t20btr-7258
dexter axle trailer axles leaf spring suspension standard spindles
dexter axle trailer axles standard spindles 72 inch long t20btr-7258
dexter axle trailer axles leaf spring suspension 72 inch long

Videos


  • 2000 lbs
  • 72 Inch Long
  • Leaf Spring Suspension
  • Dexter Axle
  • No Hubs
  • Spindles Only
  • 58 Inch
  • Standard Spindles
Trailer axle beam measures 72" from hub face to hub face (when hubs - sold separately - are mounted) and 58" from spring center to spring center. Lowest Prices for the best trailer axles from Dexter Axle. Dexter Trailer Axle Beam with Standard Spindles - 72" Long - 2,000 lbs part number T20BTR-7258 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Dexter Axle Trailer Axles - T20BTR-7258

Trailer axle beam measures 72" from hub face to hub face (when hubs - sold separately - are mounted) and 58" from spring center to spring center.


Features:

  • Axle beam acts as part of your trailer's suspension system
    • Replace an axle on your trailer
    • Fabricate a suspension to fit your application
  • High-strength steel construction
  • Bend in axle creates zero camber angle for even road-to-tread contact across the width of your trailer's tires
    • Best for straight-line acceleration and steady, controlled towing
  • Underslung design - spring seats welded to underside of axle for mounting leaf springs (sold separately)
    • Low ride height makes it easier to load and unload your trailer
  • Straight spindles - no drop
    • Standard grease application
  • Spring seats and spindles are welded on
  • Limited 2-year warranty


Specs:

  • Weight capacity: 2,000 lbs
  • Hub-face-to-hub-face length: 72"
  • Spring-center-to-spring-center length: 58"
  • Tubing outer diameter: 1-3/4"
  • Spindle size: 1-1/16"
    • Spindle washer sold separately
  • Bearings (sold separately):
    • Inner bearing: L44649
    • Outer bearing: L44649


Axle Dimensions

Hub Face and Spring Center Measurements on Standard Trailer Axle

There are multiple ways to measure the length of an axle beam, but the hub-face-to-hub-face and spring-center-to-spring-center lengths are the most accurate. Hub face (A) refers to the length of the axle measured from the base of one wheel stud to the base of the wheel stud on the opposite side of the axle (when hubs are mounted on the beam).


The spring center (B) is the approximate width of your trailer. It is measured from the center of the spring seat on one side of the axle to the center of the seat on the other. This axle beam comes with the spring seats welded on.


If you are replacing your trailer's axle, you should be able to figure out which type you need by determining your trailer's capacity, the bolt pattern of your wheels, the brake type and the aforementioned lengths.


Dexter Axles

Dexter axles are made of high-strength steel and come with spindles and spring seats welded on. The spring seats are attached to the underside of the axle so that the leaf springs (sold separately) can mount beneath the axle. The result of this underslung design is a trailer that rides a bit lower for quick and easy loading and unloading.


Each axle is manufactured to create a certain camber angle. This ensures that the angle of the wheels is correct for your towing needs. Because the primary concern when towing is maintaining controlled, in-line movement, each axle is made so that your trailer's tires will run along the pavement evenly, with contact across the width of the tread. The result is excellent straight-line acceleration for steady, in-line tracking. You might notice the bend near the center of the axle; this is what ensures the proper camber angle. Having the center ride a bit higher and the sides of the axle bent lower allows the axle to give just enough to compensate for the load.



7488186 Dexter Replacement Axle Beam - 60" Hub Face - 48" Spring Center - 2,000 lbs

Replaces T20BTR-7258







Economy - This item

Dexter Trailer Axle Beam with Standard Spindles - 72" Long - 2,000 lbs


Dexter Trailer Axle Beam with Standard Spindles - 72" Long - 2,000 lbs
Dexter Axle Trailer Axles

1 reviews

Code: T20BTR-7258

In Stock

Retail:$110.59

Our Price: $92.43


  • Trailer Axles
  • Leaf Spring Suspension
  • Standard Spindles
  • No Hubs
  • 2000 lbs
  • Spindles Only
  • 58 Inch
  • 72 Inch Long
  • Dexter Axle


Trailer axle beam measures 72" from hub face to hub face (when hubs - sold separately - are mounted) and 58" from spring center to spring center.

more information →
Compare Similar Products
Economy
Price: $107.20
$14.77 More

Dexter Trailer Idler Axle Beam with EZ-Lube Spindles - 72" Long - 2,200 lbs


Dexter Trailer Idler Axle Beam with EZ-Lube Spindles - 72" Long - 2,200 lbs
Dexter Axle Trailer Axles

10 reviews

Code: T20BTR-EZ-7258

In Stock

Retail:$124.45

Our Price: $107.20


  • EZ-Lube Spindles
  • 2200 lbs


Trailer axle beam measures 72" from hub face to hub face (when hubs - sold separately - are mounted) and 58" from spring center to spring center. EZ-Lube spindles make it easy to lubricate bearings (sold separately).

more information →
Value
Price: $204.96
$112.53 More

Dexter Trailer Axle w/ Idler Hubs - EZ-Lube - 5 on 4-1/2 Bolt Pattern - 72" Long - 2,000 lbs


Dexter Trailer Axle w/ Idler Hubs - EZ-Lube - 5 on 4-1/2 Bolt Pattern - 72" Long - 2,000 lbs
Dexter Trailer Axles

10 reviews

Code: 20545I-EZ-72-15

In Stock

Retail:$241.80

Our Price: $204.96


  • EZ-Lube Spindles
  • Idler Hubs
  • 5 on 4-1/2


Straight trailer axle measures 72" from hub face to hub face and 58" from spring center to spring center. Includes idler hubs - with bearings, races, and seals - for 13" to 15" wheels. EZ-Lube spindles for simple lubrication.

more information →
Premium
Price: $219.02
$126.59 More

Dexter Trailer Axle w/ Idler Hubs - EZ-Lube - 5 on 4-1/2 Bolt Pattern - 89" Long - 3,500 lbs


Dexter Trailer Axle w/ Idler Hubs - EZ-Lube - 5 on 4-1/2 Bolt Pattern - 89" Long - 3,500 lbs
Dexter Trailer Axles

32 reviews

Code: 35545I-EZ-89

In Stock

Our Price: $219.02


  • EZ-Lube Spindles
  • Idler Hubs
  • 3500 lbs
  • 5 on 4-1/2
  • 74 Inch
  • 89 Inch Long


Straight trailer axle measures 89" from hub face to hub face and 74" from spring center to spring center. Includes idler hubs - with bearings, races, and seals - for 13" to 17-1/2" wheels. EZ-Lube spindles for simple lubrication.

more information →

Related Products



Customers compare T20BTR-7258 to these similar products





Customers Who Purchased This Trailer Axles Also Bought...

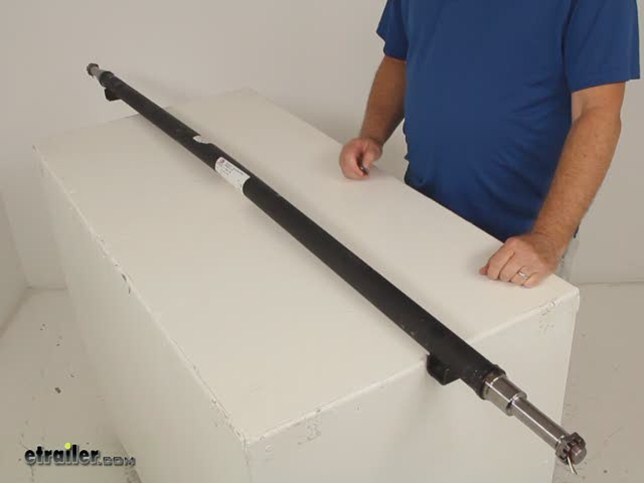

Video of Dexter Trailer Axle Beam with Standard Spindles - 72" Long - 2,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexter Trailer Axles T20BTR-7258 Review

Today were going to review Part Number T20BTR-7258. This is the Dexter Trailer Axle Beam with the standard spindles, 72 inches long, and a 2,000 pound weight capacity. This axle beam will act as part of your trailer suspension system. You can use this to replace an axle on your trailer or you can also use it to fabricate a suspension to fit your application. Its made of a high strength steel construction. Also its probably hard to see in the video, but it actually is raised in the center.

It will actually rise up and go down. The reason they do that when you mount it this way this will ensure the proper camber angle for your tires and wheels. Basically it will ensure that the angle of the wheels is correct for your towing needs. The bend will be raised up so when the trailer is loaded down and the weight is put on it it will actually force down and sort of straighten the axle out. What that will do is the bend will create a zero camber angle for even road to tread contact across the width of your trailer tires.

It is designed best for straight line acceleration and steady controlled towing. Right here these spring seat which theres one on each end, its designed with an under slung design, meaning this seats are welded to the underside of the axle. This is where your leaf springs would mount to. When they do that it gives you a low ride height which makes it easier to load and unload your trailer. The spindles they are a straight spindle. There is no drop to them. It is a standard grease application.

It does include when we ship these the castle nut and the cotter pin. When we do ship them they actually protect it because you dont want to ship them bare like this. They would actually have grease around them, and then a bubble wrap, and then over that they would put a corrugated tube and wrap that on there to protect the ends of the spindles so they dont get damaged in shipping. The spring seats and the spindles are all welded onto the axle. Specs on this has a weight capacity of 2,000 pounds. The tubing outer diameter right here is 1- inches.

The spindle diameter right down here is 1-1/16 inches. Basically there are multiple ways when you measure the length of an axle beam but the two most accurate ways are going to be the hub face to hub face and spring center to spring center. Basically on the hub face to hub face, this axle doesnt have any hubs on it right now, but when you would put your hubs on there on each end when youre measuring the hub face to hub face length thats actually measured from the base of one wheel stud on a hub to the base on the opposite end of the wheel stud on that hub of the opposite end. Basically if you did that, just to give you an idea Im going to try to show you the hub face to hub face on this axle is going to be right at 72 inches. The other one is the spring center to spring center which you can measure because its the measuring from the center of this spring mount to the center of that one over there. That base to this measurement will actually get you the approximate width of your trailer. Basically you measure from the center of that spring seat to the center of this one. You can see it's right at 58 inches. Basically if you're going to replace your trailers axle you should be able to figure out which type you need by determining the trailer's capacity, the bolt pattern of the wheels, the brake type and then the two lengths I mentioned, the hub face and spring center lines. With that information should be able to get you the correct axle. That should do it for the review on Part Number T20BTR-7258. It's the Dexter Trailer Axle Beam with the standard spindles, 72 inches long and a 2,000 pound weight capacity. .


Customer Reviews

Dexter Trailer Axle Beam with Standard Spindles - 72" Long - 2,000 lbs - T20BTR-7258

Average Customer Rating:  5.0 out of 5 stars   (1 Customer Reviews)

Trailer axle beam measures 72" from hub face to hub face (when hubs - sold separately - are mounted) and 58" from spring center to spring center.

- T20BTR-7258

by: Terry05/24/2015


I was happy with the Product 195245


1
1

Ask the Experts about this Dexter Axle Trailer Axles
Do you have a question about this Trailer Axle?


  • Replacement Axle for 2,000 Pound Dexter Axle on a Pop-Up Camper
  • We have straight axles that are close to the measurements you have provided, see link, but the spring seats would have to be moved and none of them have brake mounting flanges. I propose a different approach by using a Timbren axle-less system # ASR2KHDS01. This system will provide the "axle" as well as the suspension in one unit plus the suspension part will not wear out nearly as quickly as traditional leaf springs because the rubber won't corrode. They are also set up for electric...
    view full answer...

  • Spindle Washer Needed For 2000 LB Axle With Standard Spindle
  • The washer that would fit the Dexter Trailer Axle Beam with Standard Spindles, part # T20BTR-7258, is part # SW1000. This has a 1 inch inside diameter. I have attached a product review video for this washer.
    view full answer...

  • Bearing Kit for Dexter Trailer Axle with Standard Spindles
  • The bearing kit that fits the Dexter trailer axle # T20BTR-7258 is part # BK1-150. This includes two bearings, two races, a 10-60 seal, EZ Lube spindle washer, and cotter pin. The bearings included in this kit are a match for the inner and outer bearings for the # T20BTR-7258 axle. You will want to make sure that the races and seal will fit inside the hub you will be using. The seal has an outer diameter of 1.987 inches and the races have an outer diameter of 1.980 inches. If...
    view full answer...
