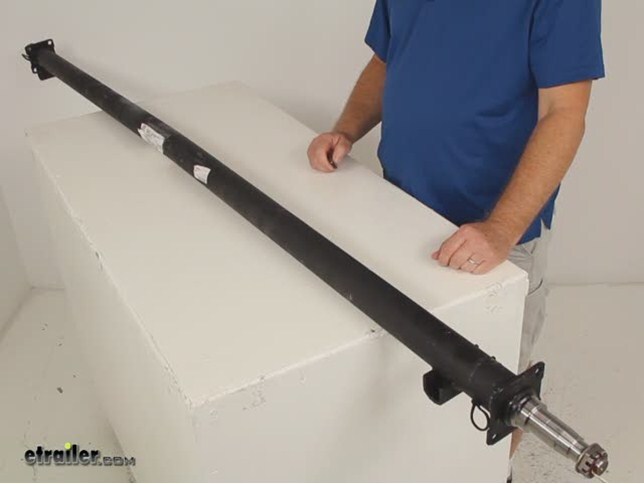

Dexter Trailer Axle Beam with Standard Spindles - 89" Long - 3,500 lbs
Dexter

Dexter Trailer Axle Beam with Standard Spindles - 89" Long - 3,500 lbs

Part Number: T3584F-8974
In Stock
ChristmasTree SantaHat Arrives before Christmas SantaHat ChristmasTree
$190.84
Trailer Axles
Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Round trailer axle beam measures 89" from hub face to hub face (when hubs - sold separately - are mounted) and 74" from spring center to spring center. Great Prices for the best trailer axles from Dexter. Dexter Trailer Axle Beam with Standard Spindles - 89" Long - 3,500 lbs part number T3584F-8974 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (142)
  • Q & A (0)
  • Photos

Dexter Trailer Axles - T3584F-8974

  • 3500 lbs
  • 89 Inch Hub Face
  • Spindles Only
  • 74 Inch Spring Center
  • No Drop or Lift
  • No Hubs
  • Leaf Spring Suspension
  • Dexter
  • Standard Spindles

Round trailer axle beam measures 89" from hub face to hub face (when hubs - sold separately - are mounted) and 74" from spring center to spring center.


Features:

  • Round axle beam acts as part of your trailer's suspension system
    • Replace an axle on your trailer
    • Fabricate a suspension to fit your application
  • High-strength steel construction
  • Bend in axle creates zero camber angle for even road-to-tread contact across the width of your trailer's tires
    • Best for straight-line acceleration and steady, controlled towing
  • Underslung design - spring seats welded to underside of axle for mounting leaf springs (sold separately)
    • Low ride height makes it easier to load and unload your trailer
  • Straight spindles - no drop
    • Standard grease application
  • Spring seats, brake flanges, and spindles are welded on
  • Limited 2-year warranty


Specs:

  • Weight capacity: 3,500 lbs
  • Hub-face-to-hub-face length: 89"
  • Spring-center-to-spring-center length: 74"
  • Flange-to-flange length: 82-5/8"
  • Tubing outer diameter: 2-3/8"
  • Spindle size: 1-1/16"
  • Bearings (sold separately):
    • Inner bearing: L68149
    • Outer bearing: L44649
  • Grease seal: 10-19 double lip
    • Outer diameter: 2.565"
    • Inner diameter: 1.719"
  • Brake flange configuration: 4 bolt


Axle Dimensions

Hub Face and Spring Center Measurements on Standard Trailer Axle

There are multiple ways to measure the length of an axle beam, but the hub-face-to-hub-face and spring-center-to-spring-center lengths are the most accurate. Hub face (A) refers to the length of the axle measured from the base of one wheel stud to the base of the wheel stud on the opposite side of the axle (when hubs are mounted on the beam).


The spring center (B) is the approximate width of your trailer. It is measured from the center of the spring seat on one side of the axle to the center of the seat on the other. This axle beam comes with the spring seats welded on.


Hub Face and Spring Center Measurements on Standard Trailer Axle

Another helpful measurement to have is the flange-to-flange (C) length, which is measured from the outside of one brake flange to the outside of the one opposite. This length may be easy to obtain if you are replacing an axle, but it's important to note that this measurement is not the preferred method for determining which axle will best fit your trailer.


If you are replacing your trailer's axle, you should be able to figure out which type you need by determining your trailer's capacity, the bolt pattern of your wheels, the brake type and the aforementioned lengths.


Dexters

Dexters are made of high-strength steel and come with spindles and spring seats welded on. The spring seats are attached to the underside of the axle so that the leaf springs (sold separately) can mount beneath the axle. The result of this underslung design is a trailer that rides a bit lower for quick and easy loading and unloading.


Each axle is manufactured to create a certain camber angle. This ensures that the angle of the wheels is correct for your towing needs. Because the primary concern when towing is maintaining controlled, in-line movement, each axle is made so that your trailer's tires will run along the pavement evenly, with contact across the width of the tread. The result is excellent straight-line acceleration for steady, in-line tracking. You might notice the bend near the center of the axle; this is what ensures the proper camber angle. Having the center ride a bit higher and the sides of the axle bent lower allows the axle to give just enough to compensate for the load.



T3584F-8974 Dexter Replacement Axle Beam - 89" Hub Face - 74" Spring Center - 3,500 lbs





Customer Satisfaction Score:


Customer Reviews

Dexter Trailer Axle Beam with Standard Spindles - 89" Long - 3,500 lbs - T3584F-8974

Average Customer Rating:  4.8 out of 5 stars   (142 Customer Reviews)

Round trailer axle beam measures 89" from hub face to hub face (when hubs - sold separately - are mounted) and 74" from spring center to spring center.

by:

I am happy for the promopt delivery and packaging. The price was my deciding factor on buying these to fix my worn outdated axles

David D. profile picture

David D.

7/31/2024

axles are everything that I expected



by:

Excellent price and service

Robert profile picture

Robert

8/12/2024

Work great so far



by:

I replaced both axles and tough lock and I also put a Jack on my trailer i purchased theses parts from etrailer they were a perfect fit i really like the parts it was easy to order from etrailer the people i dealt with were really helpful if i had any questions i will use etrailer in the future for my trailer needs I would suggest to anyone working on a trailer weather it is yours or not use etariler for your patrs



by:

Great replacement axel for my home built trailer! Very knowledgeable sales staff, great help.



by:

Unbelievable how much a different changing to this axle has made with my 12 utility trailer. Rolls better than when it was new. Great product from a great company to do business with.



by:

The axle did not quit line up with the leaf spring had to use a come along to pull the spring together to get them to line up



by:

It fit right in no issue



by:

It was a perfect replacement for my trailer. The axle bolted right up to my springs and the brakes even bolted up without problems.



by:

I needed to replace a bent axle on my 16 ft dual axle utility trailer. The axle from etrailer.com was OEM and was a perfect fit. I've bought from etrailer.com before and will continue to do so. They offer great products at competitive price points with fast shipping and great customer service.

Tony H. profile picture

Tony H.

3/11/2018

Thanks for the follow up.....just another example of etrailer.coms outstanding customer service. And, what a coincidence,......I was just on your website in the last couple of days looking at stuff for another trailer I plan to purchase in the next few weeks.BTW....I stand by my initial reviews....outstanding products, fair pricing, fast shipping, and outstanding customer service.



by:

Good product. Installed easily and fit perfect. I was amazed how fast the axle was delivered. Made it easy to get my trailer back on the road.
Thanks for your fast service and great product.

Al J. profile picture

Al J.

7/4/2022

Working great!! No problems with it at all. Very good product.



by:

Part was shipped and delivered in a very timely manner. Axle was an exact replacement for what I needed. Great service, quality product. Will definitely use etrailer again when the need arises.

Mike M. profile picture

Mike M.

7/17/2018

The axle I purchased is still getting the job done !! Thanks for making a quality product.



by:

The axle was great, but I SCREWED UP the leaf springs.They understood my deli ma and sent out the springs I should have ordered. Most pleasant people I have ever dealt with.
Everything ships quick

Gerard profile picture

Gerard

12/4/2019

How sweet it is



by:

Axles are great. The perches were welded 3/4 inch to narrow than what I ordered.



by:

Super easy to swap out with the old axle, the bearings fit the spindles perfect. The spring perches and the axle itself were straight, would and will purchase from again!



by:

excellent as always



by:

The spring center spacing was 74" as advertised. However, the information page made it sound like using this for my 74.5" spring spacing would be no big deal. I did manage to get it to fit but I will be watching this closely. There should be a statement on all trailer axles that stresses the importance of proper spring center distance or explain what is all involved in changing the spring mounting seat location.



by:

Great service! Axle was a perfect fit! Best store for trailer parts. I'm looking for fenders now. Guess where I'm going to buy them. That's right, right here. I suggest everyone do the same and save yourself the headaches of other stores backorder and bad customer service!



by:

Great axle. Very pleased with it. I was shipped the wrong axle butt etrailer sent the correct one and I was able to ship the wrong one back later. Got me on the road a little quicker.
Other than that mishap,Ian pleased with the axle and would consider buying from etrailer in the future.



by:

The axle I ordered worked great and after it was installed pulls even better than the one that was previously installed. Thanks to etrailer my old trailer is back on the road and the price was great. Thanks Again



by:

Appreciate all the personal service and being able to talk to technical help.



by:

I was surprised at how easy this whole process was through etrailer. I was looking around locally for the same axle and found several of the same axle but all were around $200. I decided the next morning I would go get one locally, but then checked here and found axle a lot cheaper here. It was a Sunday night when I placed order and didn’t expect any response on my order till Monday but to my surprise about 1 hour later I got a email saying my order was processing and then a little while later another email saying was ready to ship, all on Sunday night. Order cane in the exact day they said it would. Will definitely be using etrailer for all my trailer items now. Easier than amazon. Thank you etrailer.



by:

The products are first quality manufacturers and service after the sale is always very good. The staff is interested and considerate when helping to solve any technical or installation issues.
They will also work with integrity to help you choose the correct equipment application for your needs instead of trying to sell you something that you don't need.
I have recommended etrailer.com to several of my friends.



by:

Both the axle and u-bolt kit installed on my trailer with no hassle at all. This is the first time I’ve order from etrailer. My order came way before the estimated delivery date, which is great for all the DIY’ers. The only complaint/suggestion that I have is to put the torque specs with the u-bolt kits. Over all the product is great.



by:

I have no problem with etrailer great service fast shipping Great communication but the dexter axle I purchased had poor weld job on one side dexter needs better Final assembly inspection practices Again I have no problem with etrailer



by:

Fast delivery & well packaged. Great customer service!


25
142
Show More Reviews

See what our Experts say about this Dexter Trailer Axles

  • Replacement Bearing Kit For A 3,500 Pound Axle With Dexter Vault System
    Hi Danny, Evangeline asked if I could get you helped out as she is climbing around the roof of an RV at the moment and couldn't get to a computer, so here I am. Let's get into it. Since you have a 3,500 pound axle with Dexter's Vault system, you are going to need our # BK2-100 bearing kit. This is specifically comprised of bearings, races, a tang washer, and a cotter pin, and a seal for your size axle/spindle. However, the Vault System does throw a small wrench in the preverbal spokes. The...
    view full answer...
  • Wall Thickness of 3,500, 5,200 and 6,000 lb Trailer Axles
    3,500 lb trailer axles like the # T3584F-8974 and # e38GR have a wall thickness of .16 inch whereas 5,200 lb axles like part # 8327820 and # e55GR have a wall thickness of .18 inch. 6k axles like the part # 8327830 also have a wall thickness of .18 inch.
    view full answer...
  • Correct Idler Hubs for Dexter Trailer Axle Beam with Standard Spindles - 3,500 Lbs
    Yes, the Trailer Idler Hub Assembly for 3,500-lb Axles part # AKIHUB-550-35-K will fit the Dexter Trailer Axle Beam with Standard Spindles part # T3584F-8974.
    view full answer...
  • 89 inch 3,500 lb Trailer Axle with 5 on 5 inch Bolt Pattern Trailer Hubs
    Since we don't have a kit that includes the hubs you are in need of what you'd want is the hubless axle part # T3584F-8974 which matches what you are needing in that regard and then the hubs with the correct bolt pattern you need Easy Grease Trailer Idler Hub Assembly for 3.5K Axles - 5 on 5 - Pre-Greased # AKIHUB-550-35-EZ-K and you'd be set.
    view full answer...
  • Availability of the Dexter Axle # 35545I-ST-89 Without Hubs
    Sounds like you don't need the hubs that come with the Dexter Axle part # 35545I-ST-89 and you just want the axle. For that you would just want the part # T3584F-EZ-8974 that you referenced.
    view full answer...
  • Option For 3,500 lb Dexter Axle Replacement
    The hub you have is the Dexter Trailer Hub and Drum Assembly # 84557UC3, which is for 3,500 lb axles. The closest option we have to the measurements you mentioned is a 3,500 lb axle that is 74 inches from spring center to spring center, 82-5/8 inches from brake flange to brake flange, and 89 inches from hub face to hub face. This axle - which your hub does fit - is available with either standard or EZ Lube spindles: - Standard Spindle: Dexter Trailer Axle Beam with Standard Spindles -...
    view full answer...
  • Accuracy Of Axle Spring Center Measurements For Dexter Axles
    In my experience these spring center measurements have always been spot on from Dexter. You can be assured that the 74" spring center measurement on the Dexter Trailer Axle Beam with Standard Spindles # T3584F-8974 will be accurate. You can have the Spring Seat # TRSS238 moved to match your spring mounts or if able to move your spring mounts to match the spring center measurement of the axle. If you need help selecting brakes or hubs for this axle please let me know your application...
    view full answer...
  • How to Determine Correct Replacement Axle & Leaf Springs For Enclosed Trailer
    We can help you determine how to find the correct replacement axle and leaf springs for your enclosed trailer, but there aren't specs for a 2005 6x12 trailer that we can offer. So let's start with the axle, and in order to choose the correct replacement axle for your trailer you will need to know the dimensions of your current axle's hub face to hub face and spring center to spring center as in the diagram I have added; the other thing you need to know is the weight capacity of the axle...
    view full answer...
  • Replacement 3500-lb Trailer Axle for 2007 Spree by KZ Tandem Trailer
    If your KZ Spree trailer's 3500-lb-rated axles are bent from damage or from overloading them beyond their weight capacity then they should be replaced. This will not only restore the trailer's handling but it will also prevent continued issues with uneven tire wear. Usually an axle that was bent from being overloaded will result in more wear on the inside edges of the tires. A new axle has a light upward bend that levels out under load. Our two 3500-lb-rated axles without hubs are displayed...
    view full answer...
    Image 1 for
  • Difference Between Dexter 3,500 lb Trailer Axles, EZ Lube vs. non EZ Lube
    Brake flanges on 3,500 lb axles are going to be the exact same between a Dexter axle and Lippert but sometimes the Al Ko options are different. I believe you are asking about the price difference between the Dexter 3,500 lb axles part # T3584F-8974 and # T3584F-EZ-8974 though which that comes down to the spindle style. The more expensive EZ lube spindle axle has a grease fitting on the end of it that allows you to easily pump grease into it whereas the other option does not and requires...
    view full answer...
  • Picking Out Replacement Axle for Trailer
    If only the axle is bent then you can go with just a new axle and reuse all of the other components like the hubs, bearings, brake assemblies, etc. To pick out the correct replacement axle you will need to get the hub face to hub face dimension of your axle as well as the spring seat center to spring seat center and the axle weight capacity. I don't have a way to look that up so you'd have to get me that info and I can see if it's an axle we carry or one that you'd have to order locally....
    view full answer...
  • Replacing 68.31 Inch 3,000 Pound Lippert Axle With 3,500 Pound Axle
    The main issue you are going to run into when trying to switch to a 3,500 lb Dexter Axle like the # T3584F-8974 is the length. The Lippert axle you have is 68.31" long with a 53" spring center length which is not at all common. It is important to pick an axle that is the same length when you choose a replacement. Assuming you matched the length, this uses the same bearings as most 3,500 lb axles with a # L44649 outer and # L68149 inner bearing. Based on that information, your existing...
    view full answer...
  • Can a Trailer Rated for 2,990 Pounds be Upgraded to 3,500 Pounds
    Yes, you can replace the axle on your trailer with one that is rated higher. This will ensure that the axle is rated for more than enough weight. But you will also need to upgrade the suspension, tires, and possibly the wheels and the trailer coupler depending on what they are rated for now. But we can start with the axle. I have included a link to the axle options we carry. If you want to go with a 3,500 pound straight axle beam all the ones we carry are 89 inches long such as # T3584F-8974....
    view full answer...
    Image 1 for
  • Replacement Axle for 1968 Shasta Camper
    I assume this is a replacement axle, so in order to choose the correct one, you will need to know the dimensions of your current axle's hub-face to hub-face and spring center to spring center as in the diagram I have added, with A being the hub face dimensions and B the spring center dimensions. For example, the Dexter Trailer Axle Beam # T3584F-8974 is 89" hub face to hub face and 74" spring center to spring center with a weight capacity of 3,500 lbs. Additionally, the axle may not be...
    view full answer...
    Image 1 for
  • Is There A Direct 5 On 4.75 Bolt Pattern Drum To Replace An Older Dexter 8-147 Drum
    I have had a few of the older Dexter 8-147 hubs pop up recently and we definitely have all the parts needed to do an overhauling of the internal parts. I have all these listed below, but with this having a unique bearing combination, there will not be a direct replacement hub available. In order to switch to a hub/drum with the 5 on 4-3/4 bolt pattern, like the # AKHD-5475-35-K, you will either need to replace the axle, or cut off your current spindles and replace them with the TruRyde...
    view full answer...
  • Can Wires on Replacement Axle be Used for Electric Brakes
    The brown wires on the axle # T3584F-8974 can be used to cross your electric brake power from one side to the other. You'll need to get power and ground from the trailer's 7-way to one brake assembly and then splice in the brown wires on the axle, one to power and one to ground. Then connect each of the wires to the brake on the other side of the axle. The brown wires can also be used for brake lights instead of the brakes themselves in the same fashion but not both.
    view full answer...
  • Replacing A Dexter P-29 Axle Made Around 1999
    I reached out to my contact at Dexter for more information on this axle. I was told that the axle tag is too old, and they no longer have information available on these axles. I very well may have an axle that will replace yours. I would need to confirm a few specs with you first. Since we do not carry any 2,800 lb axles, I would be looking at a 3,500 lb axle as a replacement. We would want to know the overall length of the current axle, measured across from hub face to hub face. The...
    view full answer...
  • How To Determine The Correct Axle To Replace Mobile Home Axles On Trailer
    I would be happy to help you find the correct axles to replace the mobile home axles on your trailer, but you will actually need to know the hub face to hub face measurement to determine the correct axle length. The spring center measurement is for connecting the axle to your leaf springs, and as long as the hub face to hub face measurement is correct you can remove the preinstalled spring seats and weld new ones in the correct location. For example the Dexter Trailer Axle Beam with Standard...
    view full answer...
    Image 1 for
  • Will Tire Clear Spring Seats on 89 Inch Long Axle
    Although I am a little confused as to what you are asking, it sounds like you want to know about the tire clearance on a 3,500 lb axle that is 89" from hub face to hub face and 74" from spring center to spring center, like the Dexter Axle # T3584F-EZ-8974 (EZ-Lube Spindle) or # T3584F-8974. The tire is going to be well past the clearance of 6 feet (72 inches) you mentioned, as it will sit on the hub. I have added some links to help articles on trailer suspension which I highly recommend...
    view full answer...
  • Dimensions of Spindle on 3,500 Pound Dexter Trailer Axle
    The spindles on the Dexter Axle # T3584F-8974 has the following measurements: A 1.75 inches B 1.719 inches C 1.378 inches D 1.063 inches E 1 inch
    view full answer...
    Image 1 for
  • How To Find Correct Replacement Axle for Forest River Surveyor
    I don't know what axle your trailer uses either unfortunately but if you can take a bit of time to measure the exact spring center length, hub face length, and note the weight capacity on the axle tag you can determine fit for yourself matching the above up with an option below such as the Dexter Trailer Axle Beam part # T3584F-8974 which has a 3,500 lb capacity and measures 89" at the hub face and 74" at the spring center.
    view full answer...
  • Replacement Axle Spindle for Dexter P21-SLR with 76 Inch Spring Seats and 44649 and 68149 Bearings
    I reached out to Dexter and they no longer make that axle. I can confirm based on the bearing sizes you gave that you have a 3,500 lb capacity. If you determine you just want to replace the hub, I recommend the Trailer Hub and Drum Assembly for 3,500-lb Axles - 10" Diameter - 5 on 4-1/2 # 84546UC3 or # AKHD-545-35-EZ-K if you have the grease zerk integrated in the spindle. Since we can't match the spring seat to spring seat dimensions if you want to replace your axle I recommend using...
    view full answer...
  • How To Choose the Correct Replacement Axle for a Trail-Lite by R-Vision
    In order to choose the correct replacement axle for a trailer you'll first want to start with the weight capacity. The weight capacity can be found on the axle tag in the center of the beam. Then, you'll need to measure the hub face (center of hub face to center of hub face) and spring center (center of spring center to center of spring center). This will then give you the info needed to pick out the correct replacement axle for your trailer. I have also attached a video I did to help others...
    view full answer...
  • Can I Upgrade 3,500 lb Axles to 5,200 lb Axles on a Budget
    Thank you for reaching out! The best thing for your situation is to go with the 3,500 lb Dexter Axle # T3584F-8974 you are looking at. While you can upgrade your axles to the 5,200 lb # e55GR, you won't really see a benefit from it unless you also upgrade your trailer suspension and then reinforce the frame so it can safely handle the extra weight of your cargo. When you toss in the fact that you're wanting to use the same equipment from your old axles that also helps clear things up...
    view full answer...
    Image 1 for Image 2 for
