Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,500 lbs

Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,500 lbs

Item # AKEBRK-35

lowest price pledge

Our Price: $100.07

Trailer Brakes

This item qualifies for Free Shipping

Shipping Weight: 20 lbs

Arrives before Christmas with Ground or Free Shipping.
Quantity:
In Stock, Ships Today
etrailer Electric Drum Brakes - AKEBRK-35
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Driver's-side and passenger's-side electric brakes measure 10" x 2-1/4". Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 13" to 15" wheels. Lowest Prices for the best trailer brakes from etrailer. Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,500 lbs part number AKEBRK-35 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (189)
  • Q & A (71)
  • Videos (2)
  • Photos
  • Why etrailer?

etrailer by AxleTek Trailer Brakes - AKEBRK-35

  • Electric Drum Brakes
  • 3500 lbs Axle
  • 10 x 2-1/4 Inch Drum
  • 13 Inch Wheel
  • 14 Inch Wheel
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • etrailer
  • Manual Adjust
  • Brake Set

Driver's-side and passenger's-side electric brakes measure 10" x 2-1/4". Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 13" to 15" wheels.


Features:

  • Electric brakes are easier to install and offer more user control than hydraulic brakes
    • Require only an electric brake controller (sold separately) - no actuator or hydraulic lines necessary
  • Automotive-grade friction material is molded to brake shoes
    • Pads are fully bonded - not riveted - to shoes for long life and more braking torque
    • Less chance of cracking and crumbling that can lead to mechanical lockup, thanks to tapered edge and circular grinding
  • Periodic manual adjustment required
    • Fine-tooth brake adjustment gears allow for a more precise setting
  • E-coated backing plates resist wear and corrosion
  • Adjuster plugs (included) cover access holes to keep dirt and grime out of the assemblies and off of the shoes
  • Left-hand (driver's-side) brake assembly, right-hand (passenger's-side) brake assembly, and mounting bolts included
    • Nuts and lock washers (BRKH10B) sold separately
  • QAI and CSA certified


Specs:

  • Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO
  • Dimensions: 10" diameter x 2-1/4" wide
  • Mounting flange bolt pattern: 4 bolt
  • Wheel size: 13", 14", and 15"
  • Axle rating: 3,500 lbs
  • Limited 1-year warranty


Manual-Adjust Brakes

With repeated use of these brake assemblies, the brake shoes may move out of alignment, causing less efficient braking performance. To keep the brake shoes aligned and the brake assemblies performing correctly, you should perform routine maintenance.


These brake assemblies should be adjusted after installation and then as needed for the life of the brakes. To adjust the brakes, use a brake adjustment screw tool (sold separately) to turn the adjustment gear on the inside of the assemblies. Continue to turn the gear until the drum surrounding the brake catches on the brake pads enough so that the hub can no longer be turned easily by hand. Then reverse the gear by about 10 clicks. A properly adjusted brake should drag slightly on the brake drum.


Thoroughly Tested for Safety

These brake assemblies meet the requirements for certification by the Canadian Standards Association (CSA). The CSA creates standards, which when complied with ensure a safe and quality product. These brake assemblies underwent extensive testing to measure stopping distances when braking. These brakes have also been tested by QAI for braking performance in a complete automotive setup and under real-world conditions to provide the most realistic scenario for the everyday driver.


Automotive-Grade Friction Material

Each shoe on these brake assemblies is lined with automotive-grade friction material for improved stopping performance and longevity. The friction material is fully bonded onto the surface of the brake shoe. This lining is custom-molded for a perfect fit. The edges are tapered to ensure long-lasting performance. This taper, along with the circular grinding that the lining undergoes, helps to prevent cracking and crumbling. This durability helps to prevent mechanical lockup, which can occur when brake shoes are excessively worn or broken.


The friction material is also SAE-N certified, which means that it is an environmentally safe product that complies with California and Washington regulations regarding the composition of brake pads. As a result, this material not only provides high-performance braking that can endure the test of time, but it is also environmentally friendly and safe for use throughout the United States and Canada.



B10E-21 AxleTek 10" x 2 1/4" LH Electric Brake Assembly - Drivers Side - 3.5K Axles

B10E-22 AxleTek 10" x 2 1/4" RH Electric Brake Assembly - Passengers Side - 3.5K Axles

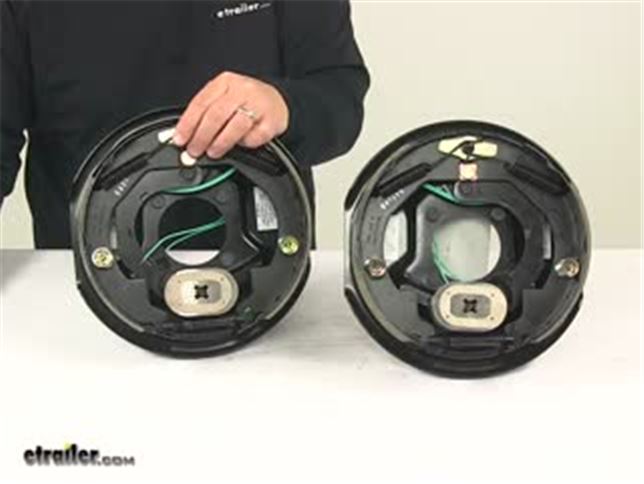

Video of Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for etrailer Trailer Brakes - Electric Drum Brakes - AKEBRK-35 Review


Customer Reviews

Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,500 lbs - AKEBRK-35

Average Customer Rating:  4.8 out of 5 stars   (189 Customer Reviews)

Driver's-side and passenger's-side electric brakes measure 10" x 2-1/4". Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 13" to 15" wheels.

- AKEBRK-35
by:

Brakes function as would be expected. 610828



- AKEBRK-35
by:

Well hello, I dont do many reviews but I will have to say that the people at etrailer are very nice and very easy to deal with and they know there business for sure , I havent installed my parts yet and they arrived dead on time and I knew every step the parts made along the way to me . So far I am very pleased and that is hard to do with me as 99 percent of the time nothing is ever the way suppliers say it going to be until now with etrailer , very nice job guys and thank you and I will be installing everything this weekend and will do another review and will have some pics along the way, And by the way thank ou for keeping the prices affordable for us out here in the field trying to keep our equipment rolling and safe , with your prices no reason to be able to do just that , again great job guys . 484854



- AKEBRK-35
by:

Purchased 4 electric brake backing plates, good quality, good price, fast shipping. Here is the trailer that the plates are on. 543907



- AKEBRK-35
by:

Got a pair of electronic brakes looks great product got it to replace my old hydraulic brake system that was not working . Product came ready to install no missing pieces. 467531



- AKEBRK-35
by:

Great fit easy to replace and excellent communications with e-trailer following placing my order. Big thumbs up. Saved nearly $200 over local parts shop for parts alone. 560354



- AKEBRK-35
by:

Good quality - item/s do not come with any install hardware - although you can purchase a separate hardware kit for more $$ though - and thats somewhat annoying......other then that they work as advertised 617438



- AKEBRK-35
by:

Two of the brake assemblies were knocked out a whack when I receive them. I would have expected nuts to come with them to bolt them on. They came quickly. 496370


Comments

Occasionally during shipping/handling, the brake shoe actuating arm that the magnet is attached to can get moved out of position. Usually, it can be pretty easily moved back into place, it you havent been able to do this, please let us know. The mounting hardware nuts and lock washers are sold separately as part # BRKH10B
Mounting Hardware for 10" Brake Assemblies
$6.14
as is mentioned in the brake kits product description.

-- Mike L - 04/15/2018

37293

- AKEBRK-35
by:

E every fit except one of beari g race didnt fit but bearing good 516071



- AKEBRK-35
by:

Products were shipped in a timely way, arrived in perfect condition; thanks to etrailer staff I was able to have some guidance on which products I needed for my application and I received all the correct parts. Installation was also made much easier thanks to videos and literature from etrailer. It's now been a year since I've installed these brake assemblies; as far as functionality is concerned, they seem to be braking effectively. The only issue I have is that they squeal like no tomorrow, mostly during low-speed braking. From what I've read this is often caused by dust gathering along the shoes, and could also be caused by glazing of the surface of the shoes from excessive heat. To be honest I'm a bit surprised though that they are squealing as much as they are, considering I've only put 1,000-1,500km on them. I will have to pull the drums off and have a look to see if I can blow out the dust and/or scuff up the shoes a bit to remove any glazing. Disappointed though because my old shoes which I replaced never squealed. Time will tell how they hold up in the long run, but for now it's 3/5 621597


Comments

Other than the brake dust you mentioned, poor contact between the brake magnet and the armature surface of the brake drum can cause squealing. When brake assemblies are replaced, the armature surface of the drum should be closely examined for grooves, pitting or discoloration. Any of these can prevent good contact between the magnet and the drum. Even if the drums and assemblies are replaced at the same time, its recommended that the trailer brakes be burnished-in. This can be done during a test drive by applying the brakes 20 to 30 times to decrease the speed by 20 mph. For example, once reaching 40 mph use the manual override to slow down to 20 mph. Once at 20 mph, release the manual override and travel about a mile to allow ample time for brakes to cool and repeat the process again. You will need to repeat this process 20 to 30 times. This allows the brake shoes and magnets to slightly wear-in to the drum surface.

-- Mike L - 04/12/2019

52848

- AKEBRK-35
by:

I love etrailer . how to directions . thumbs up all the way. Thanks etrailer 425163



- AKEBRK-35
by:

Received product in very timely manner. However, one of the assemblies was in pieces. Had to assemble the brake adjuster and spring. Every thing else satisfactory. Took a lot of time for me to get assembly together. etrailer is a good place to buy trailer parts. 433207



- AKEBRK-35
by:

Perfect form, fit and function on my old box trailer. 435840


Comments

Everything is great! Just had our Band Boosters order new wheels and tires from etrailer!

Darrell M - 09/24/2018

43943

- AKEBRK-35
by:

Normally I buy Dexter parts for my trailer which have always been of high quality. This product was disappointing to say the least. The mounting studs on the backing plate were not seated and the bearings appear to be of poor quality. Really wish I had invested more and stuck with Dexter. 372417



- AKEBRK-35
by:

Products arrived quickly after ordering, products were packaged for shipping very well all parts went in to trailer perfictly. Price and customer service outstanding. Would order from etrailer again 563404



- AKEBRK-35
by:

I bought a used 16 ft flat bed trailer and the trailer brakes never worked right. I took them apart several times and checked all connections. Found no real problems. Finally ordered a pair of new brake kits for under $$ and now they work like a charm. I should have done this right away 360714



- AKEBRK-35
by:

Brake adjuster was not assembled on the Ebrake assembly. I did have to take time to assembly this is why I give the order three stars. Received the order fast. Overall the product seems to be good quality. etrailer has great customer service. 461527



- AKEBRK-35
by:

I'm surprised with how fast my products arrived. The packaging was very good also. Everything fit perfectly and I look forward to doing business with etrailer again. Thank you very much. 541593



- AKEBRK-35
by:

I don't have any problem with the brakes they seem to be of good quality. the problem is with the packaging and shipping. when I opened the box the brake shoes, springs and adjusters were all loose and scattered inside the box. luckily all the parts to reassemble the brakes were there. Not what I expected. I think you should find a better way to package heavy parts 552280



- AKEBRK-35
by:

Easy to install good quality a lot better than the surge brakes that were on it 425432



- AKEBRK-35
by:

The product was timely sent and received. The brake apparatus appears suitable for my repair efforts. 726273



- AKEBRK-35
by:

Worked great to turn a old hydraulic drum brake to an electric brake system on an old boat trailer that was converted to an ATV trailer. I’ve had them on for over a year now with about 2000 miles on the conversion, everything is great. Good stopping power and they install was easy. etrailer helped me measure to get the correct drum and bearing since they were an oddball size. 725209



- AKEBRK-35
by:

Exact fit, quality product, all-in-one assembly. Best deal anywhere! Cost savings. My original setup was 27 years old all rusty and not working properly. Easy to replace, so thankful for etrailer.com for having all 4 units at a low price. etrailer.com has all you need and more. 722452



- AKEBRK-35
by:

It has been a year since the brakes were replaced and they are still working well. My only beef is a general trailer brake complaint, trying to adjust the shoes with the drum on is nearly impossible with a drop axle, the adjustment hole is right behind the upright for the axle. Installation was easy, equipment has held up well and was a good value. etrailer keeps providing excellent customer support. It is nice to deal with a company that has employees with great attitudes and who are knowledgeable about the products they sell. I'll be back when one of my other trailers needs repair. 719938



- AKEBRK-35
by:

Great quality shoe and backing place set even though I had to reassemble one due to poor packaging in a box loosely thrown in with 2 new brake drums! 716423



- AKEBRK-35
by:

MUCH BETTER THAN TRYING TO REPAIR BRA KES 715788



- AKEBRK-35
by:

direct replacement easy to install works great 715705



- AKEBRK-35
by:

Easy to install have preformed perfect 715045



- AKEBRK-35
by:

Brake assembly work great. Easy to inst all. 714363



- AKEBRK-35
by:

brakes. I wish they would of have some basic instruction but, I was able to install them and will be able to check how they work this weekend. I do like the web site, it easy to navigate and does have assistance with some basic information about my trailer. When buy brake it would have been helpful if the site would notify that drum seals are recommend because you have to remove the drum or notification things to buy with brakes. 708120



- AKEBRK-35
by:

Stuff fit and everything was in the box. Got to me in less than 3 business days with regular shipping. 714467



- AKEBRK-35
by:

Exact fit 705971



- AKEBRK-35
by:

Gr8 product 705385



- AKEBRK-35
by:

Everything worked great and still does. Thanks 705257



- AKEBRK-35
by:

amazing quality for price - very happy !!!! 703104



- AKEBRK-35
by:

Great service. Quick shipment on brake assemblies and tires. Competitive pricing. Found myself a new supplier. 699591



- AKEBRK-35
by:

Good product at a good price. Easy to install and work as they should!! 698816



- AKEBRK-35
by:

Easy install, direct replacement on a Forest River Wolfpup 688417



- AKEBRK-35
by:

These brakes are of excellent quality and have functioned perfectly since installation. Highly recommend. 683988



- AKEBRK-35
by:

Fast Service and Correct Parts. Thankyou 682637



- AKEBRK-35
by:

fast shipping. parts were correct. hard thing to find. thanks for the great service 681045



- AKEBRK-35
by:

Great product and great people I would recommend you to others. 678845



- AKEBRK-35
by:

Product as described. Easy install!! I would buy from etrailer again. Also fast shipping!!! 676959



- AKEBRK-35
by:

great product very easy to install. 673740



- AKEBRK-35
by:

GOOD SERVICE, FAST SHIPING! 673054



- AKEBRK-35
by:

Very prompt delivery . Parts are just as described and a perfect replacement. I will order from etrailer anytime I need parts in future. 662328



- AKEBRK-35
by:

Easy to assemble and adjust. 651121



- AKEBRK-35
by:

all good, no problems, no complaints 646390



- AKEBRK-35
by:

All is good...excellent Value. 644680



- AKEBRK-35
by:

Great product. Works as it should. 637372



- AKEBRK-35
by:

Arrived in perfect condition and shipping was in a very timely manner. Great company to do business with 633605


58
197
Show More Reviews

Ask the Experts about this etrailer Trailer Brakes

Do you have a question about this Trailer Brake?


  • 10 x 2-1/4 Inch Trailer Brakes to Replace Dexter Electric Brakes
  • The brakes you have now are 10 x 2-1/4 inch brakes with a 4-bolt pattern. For a left and right replacement I recommend our house brand # AKEBRK-35-SA. These are also self-adjusting brakes so after the initial manual adjustment they will not have to be adjusted again. I have included a link to a video review of these brakes for you. The Dexter version for the set is # 23-468-469. For manually adjusted brakes the etrailer set is # AKEBRK-35 and the Dexter set is # 23-26-27. One of...
    view full answer...

  • 4 Hole Brake Mounting Flange Dimensions for 10 Inch Brake Assembly
  • The Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKEBRK-35 will bolt onto the standard brake flange like # 4-35 that is 2-7/8 inches on center and 4 inches diagonal on center. I've attached a photo to assist. The bolts will be 7/16"-20 and the Mounting Hardware for 10" Brake Assemblies # BRKH10B will give you the necessary lock washers and nuts compatible. The holes range from 15/32 to 1/2 inch.
    view full answer...

  • Replacement for AL-KO 1530116 and 1530117 Brakes
  • I do have an option for you but we don't carry any braking assemblies that are 10" diameter x 1-3/4" wide. These are an oddball size and would be best replaced with something more modern so you can access replacement parts if needed. There would also be an upgrade in regards to braking power. For this, I recommend using the Electric Trailer Brake Kit part # AKEBRK-35-SA for self-adjust or part # AKEBRK-35 for manual adjust. These will be a direct replacement, no drilling or cutting required....
    view full answer...

  • Replacement Drum Assemblies for AL-KO 8490 Hubs
  • According to my research, AL-KO 8490 references an AL-KO hub for 3,500 lb axles with a 10 x 2-1/4" drum and a 5 on 4-1/2" bolt pattern. For a drum assembly that will work with these hubs I recommend taking a look at the Electric Trailer Brake Kit part # AKEBRK-35-SA for self-adjust or part # AKEBRK-35 for manual adjust. If you would also like to replace the hub then as long as your existing AL-KO hub uses an L68149 inner bearing and an L44649 outer bearing, the Trailer Hub and Drum Assembly...
    view full answer...

  • 10 Inch Electric Trailer Brakes with Parking Brake Feature
  • There are only a handful of brake assemblies that have the provisions to add a parking brake and # AKEBRK-35 or # AKEBRK-35-SA do not have that feature. Dexter electric brake assembly kit # K23-086-087-00 does have the ability to add a parking brake feature. I have linked a video review of this set for you. The parking brake levers are at the backs of the assemblies. You can attach cables to those and run the cables to a lever to engage/disengage the brakes manually. I have also included...
    view full answer...

  • Parts Needed To Install Brakes On Haulmark 8 Foot V Nose Trailer
  • I did some research and it looks like most Haulmark trailers like yours have a 3,500-lb single axle. If you have different axles then let me know and I can make the correct recommendation.  Your axle must have brake mounting flanges attached behind the existing hub assembly on each side for brakes. If there are no brake mounting flanges then you will either have to replace your axle or purchase brake mounting flanges that can be welded to your axle by a qualified welder.  A common...
    view full answer...

  • Replacement Brake Assemblies for Hayes Old Style 10 x 2-1/4 Electric Trailer Brakes
  • The Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKEBRK-35 will be great replacements for your Hayes assemblies. They will not require new hubs/drums. For a similar self-adjusting assembly that requires less maintenance, you may want to consider the # AKEBRK-35-SA that will also be perfect replacements. These require adjusting only at install and will self-adjust after that to keep your brake shoes working at their best.
    view full answer...

  • What are the Replacement Brake Shoe for the Etrailer 10 Inch Brake Assemblies
  • For the Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,500 lbs, # AKEBRK-35, the replacement shoes will be the Replacement Shoe and Lining Kit for Manual Adjusting 10" Electric Brake Assembly - 3,500 lbs, # AKBRKR-S-10. The replacement shoe kit will replace one brake assembly. Two kits will replace on axle.
    view full answer...

  • Replacement Drum Brakes For A 89 Tandem Car Hauler
  • The axle part numbers are generally placed on a sticker located at the center point of the axle shaft. The part # 8-247 stamped into the hubs tell me that you have a 3,500 lb axle. To replace the drum brakes on your 3,500 lb Dexter axle you will have a few options. The two options entail the use of self-adjusting or manual brakes. The self-adjusting brakes will move the adjuster screw outward as the pads wear down to ensure optimal wearing and performance of the trailer's brakes, whereas...
    view full answer...

  • Brake Mounting Flange Recommendation for Dexter 3,500 lb Axle
  • Looks like you have a 3,500 lb Dexter axle without brake flanges. The correct brake flanges for that style of axle is the part # 4-35. Welding a mounting flange, possible item # 4-35, is a very precise installation. The flanges need to be installed square and concentric to the hub and drum assembly and each other. If the flange is installed incorrectly rapid brake lining wear, improper braking, trailer dog legging, bearing failure, rapid tire wear and, worst of all, weakening of the axle...
    view full answer...

  • How to Find Replacement Electric Drum Brakes for a Trailer
  • If you need to find the size of the correct replacement braking assembly for your boat trailer you will need to remove the trailer hub and measure the inside contact patch with the shoes which you can see in the attached photo. You will also want to make note of how many bolts hold the braking assembly to the axle. The most common two are the Electric Trailer Brake Kit part # AKEBRK-35 for 3,500 lb axles with a four bolt brake mounting flange or the Electric Trailer Brake Kit part # AKEBRK-6...
    view full answer...

  • Nuts and Lockwashers for Mounting Etrailer.com Electric Trailer Brake Kit # AKEBRK-35
  • The etrailer.com Electric Trailer Brake Kit # AKEBRK-35 referenced in your question does not include the nuts and lockwashers for mounting the assemblies to the trailer. For this hardware kit, you can use part # BRKH10B. This kit includes 8 nuts and 8 lockwashers for mounting two brake assemblies. I have attached a short video demonstration on the kit that you can also check out.
    view full answer...

  • Recommendation For Brakes And Drums For WT20GAB Boat Trailer
  • Based on the information you sent, it looks like your inner bearings are Item # L68149 and outer bearings are Item # L44649 which are common for 3,500 lb trailer axles. I did not see in part descriptions the bolt pattern of your wheels but the most common patterns are 5 on 4-1/2, 5 on 5-1/2, and 6 on 5-1/2. I will make recommendations for all based on these bearings sizes. I have attached an article on "how to measure bolt patterns" in case you need it. For a 5 on 4-1/2 bolt pattern,...
    view full answer...

  • Recommended Brake Assemblies and Hubs for 3500 lb Axle
  • The Trailer Hub and Drum Assembly - 5 on 5-1/2 inch bolt pattern # AKHD-555-35-EZ-K is my recommendation over the Dexter # 84557UC3-EZ. They are basically the same assembly made by different manufacturers and the Dexter assembly simply has the price difference you noted for their name. The products will both work well with a brake assembly like the Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKEBRK-35 or the self-adjusting # AKEBRK-35-SA. My recommendation...
    view full answer...

  • Installing Electric Trailer Brakes To Replace Hydraulic Brakes
  • To convert your hydraulic brakes to electric, you will start with the hub/drum diameter. Your brakes will either be 7 inch or 10 inch for that capacity. You can reuse your hubs if they are in good shape just use some brake cleaner to make sure they are really clean before installing your new brake assemblies. For 10 x 2-1/4 inch hubs, I recommend the Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKEBRK-35 or the self-adjusting # AKEBRK-35-SA. If...
    view full answer...

  • Parts Needed To Add Electric Brakes to an AutoFlex 3,750 Axle
  • I spoke with Knott AutoFlex Inc. and was able to get the needed information using the axle tag in order for you to add electric brakes to your trailer. I have attached a list of these parts below. Electric Trailer Brake Kit part # AKEBRK-35 Trailer Hub and Drum Assembly part # AKHD-545-35-K (2) Trailer Wiring 7-Way Upgrade Kit part # ET7WK If you don't already have a brake controller on your 2013 Toyota Tundra, I recommend the Draw-Tite I-Command Trailer Brake Controller part #...
    view full answer...

  • Can 7 Inch Hubs/Drums Be Used with 13 Inch Diameter Wheels
  • The recommended hub/drum size for a 13" diameter wheel is one that is for 10" diameter brakes. The wheel will still fit on the hub/drum assuming the bolt pattern matches there is just less surface area on the hub for the wheel. However, you are only 1" off of the recommended specification so you would more than likely be fine with either 7" or 10" braking assemblies but there would obviously be an increase in stopping power with the larger assembly. The brake mounting flange is the same...
    view full answer...

  • Replacement Trailer Hub and Brake Assemblies for AL-KO 8500 Hub/Drum
  • For a 3,500 lb hub/drum replacement that will work well to replace your AL-KO 8500 you'd want the hub part # 84546UC3-EZ which fits the spindle and has the 5 on 4-1/2 inch bolt pattern you need. For brake assemblies then the Electric Brake Assembly kit part # AKEBRK-35 would be what you need.
    view full answer...

  • Troubleshooting Trailer Brakes Locking Up Without Applying Vehicle Brakes
  • The brakes on your new RV trailer can be activated either by the brake controller or the trailer's own on-board emergency breakaway system. I have not heard of an issue with the Echo # C51180 before now, and while it is possible the unit has an internal malfunction I suspect the problem is more likely to be in either the trailer's breakaway system or within the 7-way wiring on the Audi or the trailer. For the trailer brakes to lock up without you pressing the brake pedal they would need...
    view full answer...

  • Mounting Bolt Pattern of Brake Assembly AKEBRK-35
  • The mounting bolt pattern of the brake assembly part # AKEBRK-35 that you referenced is 2-7/8 inch by 2-7/8 inch like what you see in the picture I attached.
    view full answer...

  • Adding Electric Drum Brakes to a Shelby Tandem Axle Trailer
  • In order to recommend the correct electric drum brakes for your trailer, I would need to know the bearing numbers or the measurements of the bearing seats on the spindle, the wheel size, and the bolt pattern. Once you determine the correct bearings for you trailer and wheel size I would then be able to help you add electric brakes. I have also attached two help article that would be of use to you.
    view full answer...

  • How to Determine the Correct Electric Trailer Brake Shoes for a 2002 Jayco Kiwi 23B Hybrid Camper
  • I did some research online and it looks like your 2002 Jayco Kiwi 23B hybrid camper will have 2 torsion axles with 4 bolt brake mounting flanges and 10 by 2-1/4 inch brake assemblies. You should remove one of the wheels and a hub and check to be sure before ordering parts. You will also need to determine the manufacturer of the brake assemblies on your axles before ordering replacement parts to determine the correct parts that will fit the brake assemblies. I added a photo showing how...
    view full answer...

  • Why Aren't Trailer Brake Assemblies and Hub/Drums Sold Together
  • We offer the brake assemblies separate from the hub/drums. Reason being there are a few different brake assembly brands and styles as well as bolt patterns of hubs so this allows you to pick the best components for your setup. I attached a help article that will walk you through the process of adding brakes to your trailer for you to check out.
    view full answer...

  • Replacement Leaf Springs, Electric Brakes and Wheel Bolts for Boat Trailer
  • Since your trailer axle rating is 3420-lbs you will want to use new double-eye leaf springs rated for a 3500-lb axle. You can use 25-1/8-inch 4-leaf spring # SP-212275. Do note that a well-worn spring's length dimension can grow as it flattens from years of use. Removing the springs to measure them as you did is the right way to go. Usually trailer axles will be mounted on top of the springs but it is possible for the axles to be mounted under the leaf springs when raising the trailer...
    view full answer...

  • Parts Needed to Add Electric Brakes to a Utility Trailer with a 3500 Lbs Axle and Brake Flanges
  • You will need several items to add electric brakes to your Carry-On Utility trailer. Starting with the trailer you will need a hub and drum that matches the bearings and seal on your trailer spindle and your wheel bolt pattern. The only way to be sure is to check the bearing part numbers and seal part number, but with a 3,500 lbs Dexter axle that has brake mounting flanges you will most likely have the # L44649 Outer and # L68149 inner bearings and # 58846 seal. If these are the correct...
    view full answer...

  • How to Measure Hub/Drum to Determine Size of Replacement Brake Assembly for Jayco Tent Trailer
  • My research into the specs for your 1996 Jayco J-1007 tent trailer suggests that unit had electric drum brakes rather than hydraulic brakes. Certainly it is possible that at some point the coupler was changed from a standard a-frame coupler to a surge coupler for hydraulic drum brakes. For a smaller cozy single-axle trailer like the J-1007 that would be a lot of work for not much payoff since electric brakes typically cost less and are easier to work on. The brake you referenced, # AKEBRK-35,...
    view full answer...

  • 10 Inch Brakes Will not fit in hub of 1962 Shasta Camper
  • Your new electric trailer brakes # AKEBRK-35 should not fit in the way you are describing; it sit inside the groove. On a vintage trailer such as yours there can be fit issues so I recommend replacing your hubs. In order to choose the correct replacement hub and drum assembly, you will need to know both the inner and outer bearing numbers. These numbers can be found on stamped on the bearings themselves. You will also need to know your wheel's bolt pattern; I've added a link to a help article...
    view full answer...

  • Troubleshooting Electric Brakes That Do Not Work
  • It sounds like you may not have wired everything like it should be, particularly the ground wires. Each brake assembly is going to need to have a pair of wires coming out of it, with both having ground wires that are attached to bare metal surfaces on your trailer frame. Then run a power wire to your trailer brakes and connect it to the wire which was not grounded (on either of the brakes) and run another wire from the power wire on that brake to the brake on the other side of the axle....
    view full answer...

  • Troubleshooting Electric Brakes that Wont Fully Disengage and Heat Up Drum Assemblies
  • There are a couple of things that may cause what you are stating. If you have checked the power draw with a multimeter like # BTMT15 and see the brake power isn't fully disengaging, then I recommend cleaning the ground connection to the magnet and cleaning the connection between the trailer and the vehicle with sand paper or steel wool. Those pins can have corrosion that causes power to jump pins and may give you that constant draw. Once clean use dielectric grease # 11755 to keep moisture...
    view full answer...

  • Parts Needed to Add Electric Drum Brakes to 3500-lb Axle on Pace Cargo Trailer
  • We can help you with the parts and information needed to add electric drum brakes to your 2007 Pace 6 x 12-foot cargo trailer that has a 3500-lb axle. A good place to start is the linked article that explains the parts needed to make this addition to your trailer. The article has a table that lists the parts and that includes links to each. If your axle already has brake flanges welded on to the spindles then this will be a big advantage. If you need to add them we offer them, but this...
    view full answer...


Do you have a question about this Trailer Brake?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer brakes for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer brake information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Edited by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jameson C
Expert Research:
Adam R
Expert Research:
Jeffrey L
Video Edited:
Jacob T
Installed by:
Cole B
Installed by:
Randy B
Updated by:
Sarah W
Written by:
Alexander C
Video by:
Zach D

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!

Call 800-298-8924
