Optronics Thinline LED Trailer Fender Light w/ Bracket - Submersible - 10 Diodes - Amber/Red Lens
Optronics

Optronics Thinline LED Trailer Fender Light w/ Bracket - Submersible - 10 Diodes - Amber/Red Lens

Part Number: MCL67ARB
In Stock
$8.58
Retail:$23.41
You Save: 63%
Trailer Lights
Add to cart
MCL67ARB - Surface Mount Optronics Clearance Lights
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

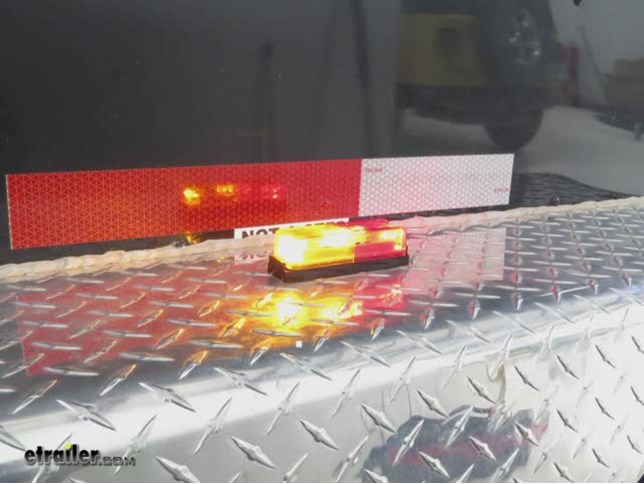

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
3-15/16" x 1-1/4". Waterproof LED marker light can be installed on your trailer fender. Amber light faces front, and red light faces rear. Surface mount to trailer with bracket. Hardwired with 1-prong plug. P2 rated. Great Prices for the best trailer lights from Optronics. Optronics Thinline LED Trailer Fender Light w/ Bracket - Submersible - 10 Diodes - Amber/Red Lens part number MCL67ARB can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (770)
  • Q & A (0)
  • Photos

Optronics Trailer Lights - MCL67ARB

  • Clearance Lights
  • Rectangle
  • LED Light
  • Red and Amber
  • 4L x 1W Inch
  • Surface Mount
  • Rear Clearance
  • Submersible Lights
  • Optronics

3-15/16" x 1-1/4". Waterproof LED marker light can be installed on your trailer fender. Amber light faces front, and red light faces rear. Surface mount to trailer with bracket. Hardwired with 1-prong plug. P2 rated.


Features:

  • Dual-face LED trailer light installs on your trailer fender
  • Thinline Series has a low profile so that light can fit in tight spaces
  • Sonically sealed, waterproof housing and lens unit is submersible
  • LEDs make great replacements for incandescent lights
    • Last 50 times longer
    • More efficient - provide brighter light with less power output
    • No bulbs to replace - no brittle filaments
  • Durable polycarbonate housing and lens
  • Red and amber lens over white LEDs
  • Compatible with 12V DC systems
  • Surface mount on trailer with included bracket
  • Hardwired with industry standard 1-prong plug
  • P2 rated


Specs:

  • Quantity: 1 fender light
  • Dimensions with bracket: 4-1/16" long x 1-1/4" tall x 1-1/8" thick
    • Light dimensions: 3-15/16" long x 1-1/4" tall x 7/8" thick
  • Distance between mounting holes (center on center): 3"
  • Diodes: 10
  • Power draw at 12.8V: 0.048 amps
  • Lifetime warranty on LEDs


Optronics MCL65 Series LED Fender Light with Bracket Dimensions

Sonically Sealed, Waterproof Trailer Light

The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The housing and lens are sonically sealed together to create a single unit, which means that water will not get into the light and damage the diodes or circuit board.


P2-Rated Lights

Diagram of light spread for P2 rated light

A P2-rated light produces a 45-degree angle of light to either side of its centerline for a total of 90 degrees of coverage. This beam pattern can be seen straight on, but it cannot be seen clearly from the side. So this type of light can be used as either a side marker light or a clearance light, but it cannot function as both. If you need both functions, then you must install 2 separate lights on your trailer - one as a front or rear clearance light and one as a side marker light.



MCL67ARB Optronics Thinline LED Trailer Fender Light w/ Bracket and Plug - Submersible - 10 Diodes - Amber/Red Lens - P2 Rated

Alternate part number: MCL-67ARB




California residents: click here


Customer Satisfaction Score:


Customer Reviews

Optronics Thinline LED Trailer Fender Light w/ Bracket - Submersible - 10 Diodes - Amber/Red Lens - MCL67ARB

Average Customer Rating:  4.9 out of 5 stars   (770 Customer Reviews)

3-15/16" x 1-1/4". Waterproof LED marker light can be installed on your trailer fender. Amber light faces front, and red light faces rear. Surface mount to trailer with bracket. Hardwired with 1-prong plug. P2 rated.

by:

Good quality Good fit Easy to install



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:


25
751
Show More Reviews

See what our Experts say about this Optronics Trailer Lights

  • What Reflector and Clearance Lights do I Need for My 6 x 12 Dump Trailer?
    Hello Kurt, I can definitely help you out with the right clearance and side markers for your 6 x 12 dump trailer. I attached an image to reference for the lights/reflectors, these are the DOT requirements: - Rear reflector (#4 on diagram) 2 of the # PE72ER - Rear-side marker light/reflector (#6a/6b) 2 of the # MCL32RB - Front Side marker light/reflector (#7a/7b) 2 of the # MCL32AB You will want to use at least 16 gauge wire and some butt connectors like # DW05744-10. Don't forget...
    view full answer...
  • Availability Of Optronics Thinline LED Trailer Fender Light MCL67ARB
    Good morning Jeff, we have exactly what you are looking for. Take a look at the following: Optronics Thinline LED Trailer Fender Light w/ Bracket - Submersible - 10 Diodes - Amber/Red Lens # MCL67ARB
    view full answer...
  • Looking For Replacement For Fender Clearance Light P2 05 S90
    Hello Mark; we do offer a variety of fender lights, so we very well may have a replacement for you. We do not have a direct replacement for the P2 05 S90 light that you mentioned though. After searching for a few pictures of these lights, what I saw looks similar to the LED Trailer Fender Clearance Light # MCL180ARB that you mentioned. This light measures 8-1/2" long x 1-11/16" tall x 13/16" deep and it has mounting holes 1" apart. Please measure one of your lights and verify that this...
    view full answer...
  • Availability of Single Wire Plug for Optronics Clearance Light MCL67ARB
    If you are looking for the center section of the bracket that is in the picture you submitted of the # MCL67ARB that you referenced the correct part number you need is the # A65P that you referenced.
    view full answer...
    Image 1 for
  • How To Install the Optronics Thinline LED Trailer Fender Light
    The Optronics Thinline LED Trailer Fender Light part # MCL67ARB comes with a mounting bracket so as long as the surface you will be installing it on is metal then yes, it will work for you. All you would need to do to install the light is use two self tapping screws like part # 1131832 to mount the base and then once this is done you can attach the light to the base. To complete the process you will then need to attach the black wire to the running light circuit on your trailer which is...
    view full answer...
  • Replacement Optronics Fender-Mount Red/Amber Tail/Clearance Light for Charmac Cargo Trailer
    I reviewed quite a few photos of various Charmac cargo trailers and while I found some with external fenders I did not find any shown with lights installed. However, we do offer a lot of combination red/amber trailer lights and all are shown on the page I linked for you. Among these are fender-mount lights # MCL67ARB, # MCL12ARLB, # BA44FNR and # BA44FNL. There are others too on the linked page. If none of these is a correct replacement you can submit a photo .
    view full answer...
  • Recommended LED Clearance Light that is Red and Amber
    The Optronics LED clearance light that is similar to # MC65RB, but will be amber and red, is the Optronics LED clearance light # MCL65ARB. This light is sealed, waterproof and is a surface mount. The dimensions are 3-15/16 inch length by 1-1/4 inch width by 7/8 inch deep. You will need a bracket and plug like # A65PB to complete the installation of the Optronics LED trailer light # MCL65ARB. Another option you may like is the LED clearance/marker light with a bracket and wire # MCL67ARB....
    view full answer...
  • Recommendations For Adding LED Marker Lights To A 20 Foot Cargo Mate Trailer
    You are correct. Red lights should always be as close to the rear of the trailer as possible. With that also said, if you wanted to use something like the Optronics Thinline LED Trailer Fender Light w/ Bracket # MCL67ARB on the fender, you will want the red light pointed towards the rear of the trailer and the amber light pointed towards the front of the trailer. If you do not already have the lights picked out, the Optronics Thinline LED Clearance and Side Marker Light # AL91RB (Red)...
    view full answer...
    Image 1 for Image 2 for
  • Looking for Optronics MCL61AR26BK Trailer Fender Clearance/Marker Lamp
    We do indeed have that particular fender clearance/marker light, we refer to it by our part number, which is # OPT36FR.
    view full answer...
  • Replacement Rectangular LED Light Combination Amber/Red
    I have a couple options for you that are going to be a close match to the Peterson Piranha LED Clearance Light # M161R . # MCL65ARB is 3-15/16" long and a 10 diode LED light that is amber on the left and red on the right. This is a surface mount light and does not come with a mounting bracket. # MCL67ARB is the same light that comes with a mounting bracket included. If you were looking for a 2 diode light you can use # MCL61ARB which does not come with a mounting bracket. If you're looking...
    view full answer...
  • Mounting Hole Dimensions of Optronics Thinline LED Trailer Fender Light
    The bracket of the Optronics Thinline LED Trailer Fender Light w/ Bracket # MCL67ARB has mounting holes that are 3/16" in diameter; the mounting holes are also 3" apart on center. I have added a couple of video reviews of this light and bracket for you to take a look at.
    view full answer...
    Image 1 for
  • Boat Trailer LED Clearance Light With Red And Amber Lens
    We do have an LED clearance light that has both the Red and Amber lens. Part # MCL67ARB is a fender mount light that measures 4-1/8 inches long x 1-3/8 inches wide x 1-1/4 inch tall. This light is grounded through the mounting hole and has one wire for power.
    view full answer...
  • How to Connect a Clearance Light with a Single Wire to a Trailer with Two Wires
    You can definitely wire a clearance light with a single wire to a trailer that has two wires. The first thing to know is that the two wires from the trailer are not positive and negative. Rather, they are the running light wire and the grounding wire. The running light wire (usually brown or black, but sometimes another color) is the wire that you connect to the wire coming from the light. To do this, use a butt connector like part # DW05744-5. The ground wire (usually white) from your...
    view full answer...
  • Availability Of Optronics MCL61AR26BK Amber/Red Fender Light
    I have a complete replacement option for you, but just the lens portion of your light is not available by itself. Based on the model number on the rear of your light you will need the Optronics Thinline LED Trailer Fender Light - Submersible # OPT36FR which will be an exact replacement. With this you can reuse your current base, and just keep the new base on hand in case you need it in the future. I included a video of the # OPT36FR for you to take a look at.
    view full answer...
    Image 1 for Image 2 for
  • How Does the Bracket # A67CB and Clearance Light # MCL67ARB Wire to Trailer
    The reason the # A67CB bracket uses a single wire is because the light will ground through the mounting hardware. If you needed to run a second ground wire to the assembly you would only need to run the stripped ground wire around the mounting screw that attaches to the side of the base with the ground strap. See picture I attached to see which side has the ground strap. The # MCL67ARB uses a similar setup and also grounds through the mounting hardware. The single wire coming from the...
    view full answer...
    Image 1 for
  • Recommended Amber and Red LED Trailer Light
    The closest comparable red and amber LED option is the Optronics Thinline LED Trailer Fender Light w/ Bracket Amber/Red Lens item # MCL67ARB. It measures 4-1/16" long x 1-1/4" tall x 1-1/8" thick. You would run the power wire from your trailer to the light and the ground wire would be ran to the hardware attaching the base to your trailer.
    view full answer...
