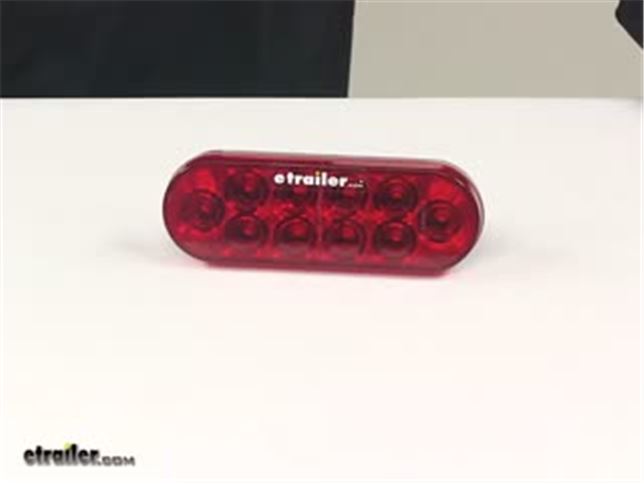

Optronics LED Trailer Tail Light - Stop, Tail, Turn - Submersible - 10 Diodes - Red Lens

Optronics LED Trailer Tail Light - Stop, Tail, Turn - Submersible - 10 Diodes - Red Lens

Item # STL72RB
lowest price pledge
Retail:$19.54
Our Price: $14.30
You Save: 27%
Trailer Lights
Orders above $99 qualify for Free Shipping
Shipping Weight: 0.27 lbs
Quantity:
Optronics Tail Lights - STL72RB
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
6-7/16" x 2-1/8" Oval. Waterproof LED trailer tail light functions as a stop, tail, and turn signal light. Durable polycarbonate housing and lens. Recessed mount with grommet (sold separately). Accepts standard 3-prong plug (not included). Lowest Prices for the best trailer lights from Optronics. Optronics LED Trailer Tail Light - Stop, Tail, Turn - Submersible - 10 Diodes - Red Lens part number STL72RB can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (403)
  • Q & A (80)
  • Photos
  • Why etrailer?

Optronics Trailer Lights - STL72RB

  • Tail Lights
  • Oval
  • LED Light
  • Red
  • 6-1/2L x 2W Inch
  • Recessed Mount
  • Stop/Turn/Tail
  • Submersible Lights
  • Optronics

6-7/16" x 2-1/8" Oval. Waterproof LED trailer tail light functions as a stop, tail, and turn signal light. Durable polycarbonate housing and lens. Recessed mount with grommet (sold separately). Accepts standard 3-prong plug (not included).


Features:

  • Oval trailer light serves 3 functions on trailers less than 80" wide
    • Stop light
    • Tail light
    • Turn signal light
  • Sonically sealed, waterproof housing and lens unit is submersible
  • LEDs make great replacements for incandescent lights
    • Last 50 times longer
    • More efficient - provide brighter light with less power output
    • No bulbs to replace - no brittle filaments
  • Durable polycarbonate lens and housing
  • Red lens over white LEDs
  • Recessed mounts with grommet (A70GB - sold separately)
    • Mounts in any 360-degree position
  • Accepts industry standard 3-prong plug (A45PB or A47PB - both sold separately)
  • DOT compliant


Specs:

  • Overall dimensions: 6-7/16" long x 2-1/8" tall x 1-3/4" thick
  • Diodes: 10
  • Powerdraw at 12.8V:
    • Stop/Turn: 0.243 amps
    • Tail: 0.046 amps
  • Lifetimes warranty on LEDs


Manufacturer Cross Reference:
Light will work as an exact replacement for:

  • Uni bond # LED2238-13R
  • Grote # 53962
  • Peterson # M420R-2
Optronics STL72RB Oval Sealed LED Tail Light Diagram

Sonically Sealed, Waterproof Trailer Light

The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The housing and lens are sonically sealed together to create a single unit, which means that water will not get into the light and damage the diodes or circuit board.


Recessed-Mount Light

Recessed mount light

Recessed-mount trailer lights install underneath a grommet (A70GB - sold separately). These lights will extend into the mounting surface and require that a hole be cut into your trailer.



STL72RB Optronics LED Trailer Tail light - Stop, Tail, Turn - Submersible - 10 LEDs - Red Lens

Alternate part number: STL-72RB




California residents: click here



Customer Reviews

Optronics LED Trailer Tail Light - Stop, Tail, Turn - Submersible - 10 Diodes - Red Lens - STL72RB

Average Customer Rating:  4.8 out of 5 stars   (403 Customer Reviews)

6-7/16" x 2-1/8" Oval. Waterproof LED trailer tail light functions as a stop, tail, and turn signal light. Durable polycarbonate housing and lens. Recessed mount with grommet (sold separately). Accepts standard 3-prong plug (not included).

- STL72RB
by:

These LED lights are fantastic. I bought the gasket that goes with them as I have a small utility trailer that had rectangular inserts for an older style light. With a few custom modifications I was able to make it work. These lights are super bright and do a fantastic job.



- STL72RB
by:

I have a Haulmark utility trailer. One tail light was giving me trouble and I tried fixing it but decided to just replace it with these. They are brighter and fit right in to the old grommet. They were a bit loose so I wrapped some e-tape around them and they are staying in place just fine. I also ordered the pigtails and soldered and heat-shrinked the connections - the factory connecting were "scotch-locks", which I hate. After I did this, I looked closely at the old lights and realized that there was a 3 prong plug which I might have been able to use rather than doing new connections and soldering them, but by doing what I did, I now have tight connections and I can easily replace the light if I ever have to (I got rid of the scotch locks). Yes, I could maybe have soldered the old connections and used the old plug, but it was constructed in such a way that I didn't realize it was there (I thought it was part of the light body). My picture shows the old light and the old plug disconnected from it and the new LED in place on my trailer. It works great - glad I did this. It's much brighter than the old light.



- STL72RB
by:

Easy to install. Fits. Bright. As expec ted. :-)



- STL72RB
by:

Bright and work well so far, have not yet submerged into the lake. But a word of warning.. I was surprised the lights were just tossed loose into a shipping box. No packaging, no rubber grommets, no pigtails. Luckily both the old rubber grommets and electrical connectors were in good shape on my trailer, and the new lights didn’t get too banged up in the shipping box.



- STL72RB
by:

One of the simplest online purchases I’ve made. Good service, good tracking, fair price and there you go.



- STL72RB
by:

I changed out my original Wesbar incandescent trailer running lights to LED. The thin line series snapped right into the original base. Looks great and they are water proof.



- STL72RB
by:

Needed to replace 18 year old incandescent lights on boat trailer. Wow these things are BRIGHT. I don't know why they still sell incandescent ones...Buy THESE LEDs. I bought them because they said they had 10 LED's...and yes, they are bright. Fixture seems well made and even comes with grease preloaded in the contact sockets to minimize corrosion. These look and feel way better than the price point would have you believe.



- STL72RB
by:

91 Dodge dually had the old bulb red marker lights put the new LED red marker lights on have attached a picture so you can see what the lights look like and we are pressing the break so that's why they're bright Good price, fast shipping, makes yo girl look new again



- STL72RB
by:

Replaced all 4 lights on back of trailer and it looks great. Easy to order, fast delivery and communication every step of the way. They were incredibly easy to replace. Mrs. Striker



- STL72RB
by:

Glad I forgot to order tail light from manufacturer for my tow dolly when I ordered replacement fender. Yours is perfect fit, much better price and best value for shipping of all sites I checked.



- STL72RB
by:

Google led me to etrailer.com for an exact parts match and a record time delivery. Thanks.



- STL72RB
by:

Still working as they should after a year Great product and e-trailer is a great company



- STL72RB
by:

OEM replacement for 12 year old enclosed cargo trailer. Same quality as original-very pleased!



- STL72RB
by:

I upgraded from bulbs to led. Much safer for the traffic behind me and my trailer. All 10 individuals leds within each light are still working. easy to install...play-in-go!



- STL72RB
by:

Very nice and exactly what I needed for the task at hand. Nice fit, great look and affordable price!



- STL72RB
by:

Needed these lights for one of our cargo trailers. I had a rear light go out, and these units are sealed... You can't buy just a replacement bulb. They fit perfectly, and are bright and reliable. Customer service was amazing, quick delivery. I'm a contractor, with 6 of these large cargo trailers, and using these LED replacement lights is the only way to go. They never burn out! Love Etrailer.


Comments
One year later, the trailer lights are doing great. Thanks for checking in. That rig is used every day in our business, and they are performing fine.
Bob B - 06/09/2018



- STL72RB
by:

Excellent replacements for my cargo tra iler.



- STL72RB
by:

Nice, bright and easy to install. A much needed upgrade from the incandescent bulbs. Makes my boat trailer look great!



- STL72RB
by:

Just what the doctor ordered very bright quick delivery easy installation I would definitely recommend them to anyone that pulls the trailer



- STL72RB
by:

well not knowing what the part number and how to find it it was a great job that yhe girl that help me in getting the wright one she is an asset to your company i thank her so much



- STL72RB
by:

A good product at a great price. But I will be drilling two holes, to loop a zip tie around it, so it doesn't fall out again



- STL72RB
by:

Perfect fit! Fast delivery! Great customer service.



- STL72RB
by:

Perfect fit and still working a year la ter



- STL72RB
by:

The light function is still working, but they are inconsistent. Sometimes the lights are dim and then they will eventually go back to normal. I am constantly getting alerts in my truck to check the lights. I may just throw them out and get better ones.



- STL72RB
by:

Perfect replacement for my OEM incandescent lights on my cargo trailer, I pried the old ones out of their grommets, these LED's used the same electrical connectors so I just plugged them in and pressed the lights back into the grommet, 4 lamps replaced in less than 15 minutes. These are a great improvement over the old bulbs.


25
406
Show More Reviews

Ask the Experts about this Optronics Trailer Lights

  • Cutout Dimensions Needed for Flush Mount Oval LED Trailer Lights
    The Optronics LED Trailer Tail light - Stop, Tail, Turn - Submersible - 10 Diodes - Red Lens # STL72RB will use the PVC Grommet for 6-1/2" Oval Trailer Tail Lights # A70GB for mounting. With this combination the opening you need to cut is a 6-11/16" long x 2-5/8" wide hole like you can find on the mounting bracket # BK70BB. You may want to get the bracket as a stencil to give you the perfect fit. You will also need the wiring pigtail # A45PB for each light. The kit you mentioned #...
    view full answer...
  • Wiring Pigtail Functions for Optronics LED Trailer Tail Light
    I'm not 100 percent sure what you are referring to in regards to the wire, but it sounds like maybe you need to know the functions of the pigtail harness that is needed for the Optronics LED Trailer Tail Light # STL72RB. This light uses a 3-wire pigtail, either 3-Wire Pigtail # A45PB or Right Angle 3-Wire Pigtail # A47PB. This pigtail has three wires, a white, black, and red. The white wire is ground, the black wire is the power, and the red wire is the brake/turn signal, which is...
    view full answer...
  • How To Measure and Replace Oval Flush Mount Trailer Lights
    Great question! For oval trailer lights you want to measure the lens width and length from edge to edge. For example, Optronics LED Trailer Tail Light - Stop, Tail, Turn - Submersible - 10 Diodes - Red Lens Item # STL72RB. The most common flush mount trailer lights are 6 1/2" x 2" I also recommend PVC Grommet for 6-1/2" Oval Trailer Tail Lights Item # a70gb I added a video link to help walk you through the instillation
    view full answer...
  • Replacement LED Lights for a 1998 Ranger Boat Trailer
    We have a large selection of LED trailer lights which I have attached for you. You will need to go through these and pick the one that best matches your existing lights. You could also provide me with a dimensional photo to which I could then search our selection and find the best match for you but these would be your only options as we do not have information about what lights your trailer came with.
    view full answer...
  • Trailer Stop, Turn, Tail Light With Clear Lens
    I may have an option for you but there is not a tail light available with a clear lens or housing that is exactly the same as the Optronics LED Trailer Tail light part # STL72RB. The department of transportation does require brake lights to be red so it is uncommon for the lens to be clear on the stop, tail and turn lights.There is the Optronics LED Trailer Turn Signal and Parking Light part # STL72CAB with clear lens but it lights up amber for turn signal and parking. You will need the...
    view full answer...
  • Locating Replacement Tail Light for 2010 Q5i SF Tahoe Boat Trailer
    We likely have trailer tail lights that will work well to replace the stolen units on your Q5i SF Tahoe Boat Trailer. I was unable to find that model light that is used on your trailer, but you can take a look at the still present left side assembly to see if you can find a part number on the light itself. If you can tell me the part number for the light, I will be happy to see if we have a replacement assembly available. Otherwise, if you can take a couple measurements on the light...
    view full answer...
    Image 1 for
  • Would Optronics Light STL72RB Fit as Replacement for Command Electronic 003-5400
    The Optronics light part # STL72RB is made to fit a standard trailer light dimension so it makes sense that it would fit and work for your setup. I attached a picture that has the light dimensions for you to check to see if they match.
    view full answer...
    Image 1 for
  • Installing Optronics # STL72RB LED Trailer Stop, Turn and Taillight
    The Optronics # STL72RB is designed to mount into an oblong hole in either the trailer or a bracket like # BK70BB. A grommet like # A70GB would push into the 6-11/16 x 2-5/8 inch hole in the trailer or bracket, and the # STL72RB lamp would push into the grommet. If you'd care to send me a photo or two of your old lamps, I'd he happy to recommend replacement lamps that would easily install on your boat trailer.
    view full answer...
  • Best LED Replacement Light for a Truck-Lite Model 60
    We have had some other customers inquire about replacing Truck-Lite model 60 lights before and have found that the Optronics Trailer Tail Light # STL72RB is a great LED replacement. For a grommet use part # A70GB and for a pigtail use part # A45PB. This tail light has the following dimensions 6-7/16" L x 2-5/16" W x 1-3/4" D which you can see in the attached photo. I have also linked an installation video for you to reference.
    view full answer...
    Image 1 for
  • Locating Replacement Lights for 2008 Featherlite Horse Trailer
    We do have a large selection of trailer lights available. In order to choose replacements for your existing assemblies, I first recommend checking to see if you can find a model number or manufacturer information listed somewhere on the assembly itself. If you cannot locate this, then you will want to measure the unit in order to pick out a compatible replacement. Unfortunately, trailer manufacturers do not often maintain a record of smaller parts that they install on their trailers,...
    view full answer...
  • Replacement Tail Lights for a 2008 Marine Master Trailer
    The most amount of diodes we have in a light that is a direct replacement for the Trailer Tail Light part # STL72RB is going to be the Trailer Tail Light part # STL572RB for red or part # STL572AB for amber. All three of the above lights have the same mounting dimension and use the same wiring harness. The only difference between them is that your current trailer lights have 10 diodes and the new trailer lights have 12 diodes. I have attached a review and installation video of the new lights...
    view full answer...
  • Replacement Tail Light for Karavan Snowmobile Trailer
    We offer oval trailer tail lights in both standard bulb and high-efficiency LED types that you can see on the linked page. The lights shown are all recessed-mount types and most of them have dimensions of 6-1/2 x 2-inches. I also linked our main page for trailer tail lights of all shapes. LEDs are popular because they need less power, offer brighter light output and do not require periodic bulb replacement. For instance, part # STL72RB is a waterproof LED stop/turn/tail light assembly...
    view full answer...
  • Replacement Tail/Stop/Turn LED Light for BRI MAR Dump Trailer
    I wasn't able to find any size info for the Glo Brite trailer light you have, but the part # STL72RB that you referenced is a 6-1/2 inch by 2-1/4 inch LED light assembly that can do stop/turn/tail functions that would work great on nearly every trailer. For a grommet to install it you would want part # A70GB, for a bracket instead you would want the # BK70BB, and then for a wiring pig tail you would want the # A45PB.
    view full answer...
  • Marine Masters Boat Trailer Replacement LED Trailer Tail Light Recommendation
    You can pretty easily swap your trailer's taillights to LED style lights as it's basically just a matter of swapping the assemblies. You wouldn't need any special wiring harnesses or anything. You'd just need to find the best fitting assemblies and wire them in and mount them. I couldn't find any clean shots of the rear of your trailer but I believe the kit you'd want is the part # TLL16RK which gives you two standard style of trailer LED taillights. If you have a need for something different...
    view full answer...
    Image 1 for
  • LED Trailer Light Replacement for Truk-Lite 60202R
    Yes, I pulled up some dimension pictures of your truk-lite 60202R and it matches the # STL72RB which is an LED like you want so it would work well.
    view full answer...
  • Flush Mounted LED Lights for Flatbed Trailer
    Thank you for the photos; based on what you showed, you would want oval LED lights that are in the 6-1/2" x 2" range, though you would need exact dimensions to ensure the right fit. For example, # STL72RB is a red oval light that measures 6-7/16" x 2-5/16" x 1-3/4" deep while # STL70RB is another red oval light but with dimensions of 6-1/2" x 2-1/4" x 1-1/8" deep. The same will apply for your white oval lights, such as the 6-1/2" L x 2-1/8" W x 1" # BUL72CB. The other lights look to...
    view full answer...
    Image 1 for Image 2 for
  • Replacement Multi-Function LED Trailer Light for Glo-Brite 9852-88
    I have a solution for you, but we do not carry Glo-Brite lights, so replacing it with the same brand will not be something I can offer you. Instead, to replace your Glo-Brite 9852-88, I recommend using the Optronics LED Trailer Tail Light # STL72RB. This is also a 10 diode LED light with stop, turn and tail light functions like the light you're replacing and also measures 6-7/16" long and 2-1/8" wide like your Glo-Brite light. The Optronics brand is synonymous with high quality craftsmanship...
    view full answer...
  • Looking for 24 Inch Long 1 Inch Tall LED Tail/Turn/Stop Light
    The longest tail/turn/stop led light bar that we have that is similar to the Optronics # STL2RB that you referenced is the Optronics # STL79RB, which is 17 inches long and 1 inch wide. This unit is sealed so it is waterproof and contains 11 LEDs. Past the 17 inch point, you get into 48 inch running lights that go on the tailgate of a truck. I have attached a brief video demonstrating the 17 inch bar.
    view full answer...
  • Can I Upgrade The Lights On Trailer To Optronics Trailer LED Light # STL72RB And Use Existing Plug
    You can upgrade and use the existing plug if the Kaper lights are the same size as the Optronics Sealed, 6-1/2 Inch Oval LED Trailer Stop, Turn and Tail Light, part # STL72RB and will use a three prong plug like the Optronics Straight 3-Wire Pigtail for Sealed Trailer Stop, Turn and Tail Lights, part # A45PB. The Optronics light will also use the Optronics Rubber Grommet for 6-1/2 Inch Oval Trailer Tail Lights, part # A70GB, for a flush mounted application.
    view full answer...
  • Turn Signals on Trailer are Dim and Not Work with Running Lights On
    There are a couple of possible reasons why the directional lights on your trailer are dim and do not work at all when the running lights are turned on. The most common cause for this type of issue is a weak ground. A weak ground connection will usually allow enough current through for some lights to pass, but not enough for all of them. Considering that the running lights will remain continuously on when activated, unlike the brake or turn signals, they will require more power and there...
    view full answer...
  • Rubber Grommet Recommendation for Optronics STL72RB LED Trailer Light
    The correct grommet you need for use with the trailer LED light part # STL72RB that you have is the part # A70GB. And if you need to wire the light or replace the connector you can use the right angle pigtail, item # A47PB, or the straight pigtail, item # A45PB.
    view full answer...
  • Troubleshooting Left Turn Signal Light on Trailer that Is Dim But Not With Brake Lights
    It is most likely a ground issue that is causing the problems you described on your trailer. Since several lights are behaving strange I would first check to make sure the main ground for the trailer is connected to a clean metal surface. You can also try running the ground wire of each light back to the main trailer ground and that will help as well. If the lights ground through the mounting hardware you also will want to make sure that they are attached to a clean metal surface.
    view full answer...
  • Replacement LED Trailer Lights for a 2000 Ranger R71 Boat Trailer
    I would love to help you upgrade to LED lights on your trailer but unfortunately, trailer manufacturers don't just give us a list with every light on the trailer for situations like this. If you can provide me with your full 17 digit VIN I would be more than glad to call on your behalf and see if we have the correct replacements for you.
    view full answer...
  • Stop/Turn/Tail Wiring Connection to Side Clearance Marker Light
    For your Trailer Tail Light - Stop, Tail, Turn - LED - Waterproof - 10 Diodes - Red Lens # STL72RB and Thinline LED Clearance and Side Marker Light - Submersible - 3 Diodes - Rectangle - Red # AL91RB, you will need the Wiring harness # A45PB as well as # A46PB. If you want the side marker light to only be a running light you will connect to the black wire. If you want it to be turn only, you will need to use the Vehicle to Vehicle Tail Light Converter # 118158 to isolate that function.
    view full answer...
  • Recommended Replacement Lights for Truck Lite Stop/Tail/Turn Lights on a Featherlite Trailer
    Good news, I can help find you replacement lights for your Featherlite Trailer. I was able to find LED stop/tail/turn lights that will be compatible with your Truck Lite weathertight plug. I have attached them to this page for your convenience. If you are in need of a replacement grommet as well the # A70GB will be the for you.
    view full answer...
  • LED Trailer Light Recommendation to Replace a Truck Lite Model 60
    I looked up the dimensions for the Truck Lite Model 60 that you have and it matches the Trailer Tail Light # STL72RB perfectly so this light would work great as a replacement for you.
    view full answer...
  • Troubleshooting Excessive Trailer Tire Wear
    The first place I would look is at the suspension components of your trailer. Worn out suspension can cause tires to wear strange. You could jack up your trailer (use jackstands) and get underneath your trailer and see if you can find any movement in your suspension components. While the trailer is jacked up also try and spin the wheels of the trailer. They should spin freely by hand but you should feel a light drag from the brake assemblies. If this drag isn't present the assemblies...
    view full answer...
  • Option for Towing Trailer with 12 Volt Lights with 24 Volt Tow Vehicle
    I think your only real option would be to replace the trailer lights on your trailer with lights that are compatible with 24 volt systems since there isn't an adapter available that we offer that would work for converting your 24 volt system to work with a 12 volt lighting system. Right now, we have a few select 24 volt tail lights. We have # STL23R24B and # STL90R24B. For turn/marker lights we have # STL90A24B and # STL23A24B. And for reverse lights we have # BUL23C24B and # BUL90C24B.
    view full answer...
  • Tail Lights and Clearance Lights that Can be Used on Both a 12 Volt System and 24 Volt System
    For a tail light that can run off of 12 volt or 24 volt systems you can use Transit tail light # STL90R24B. For clearance lights you can use # MCL55A1224B for an amber light that works with 12 and 24 volt systems or # MCL55R1224B for a red light. For these lights use pigtail # A46PB and grommet # A54GB. Or for surface mount clearance/marker lights that are 12-24 volt compatible you can use # MCL66A24B for amber and # MCL66R24B for red.
    view full answer...

Do you have a question about this Trailer Light?




  • Why etrailer.com?

    At etrailer.com we guarantee:
  • Highest quality trailer lights for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer light information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Employee Mike L
Expert Research:
Mike L
Employee Sarah L
Expert Research:
Sarah L
Employee Robert G
Expert Research:
Robert G
Employee Michael H
Expert Research:
Michael H
Employee Jeff D
Expert Research:
Jeff D
Employee Jameson C
Expert Research:
Jameson C
Employee Adam R
Expert Research:
Adam R
Employee Lori W
Expert Research:
Lori W
Employee Jeffrey L
Expert Research:
Jeffrey L
Employee Jacob T
Video Edited:
Jacob T
Employee Laura H
Updated by:
Laura H
Employee Amy B
Updated by:
Amy B
Employee Wilson B
Updated by:
Wilson B
Employee Brian T
Updated by:
Brian T
Employee Hannah L
Updated by:
Hannah L
Employee Matthew E
Updated by:
Matthew E
Employee Dustin K
Video by:
Dustin K
Employee Cole B
Installed by:
Cole B
Employee Hayden R
Installed by:
Hayden R

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
