Red and AmberItem # BA44FNR
Retail:$8.56
Our Price: $8.01
You Save: 6%Orders above $99 qualify for Free Shipping
8-1/4" x 3-1/4". Incandescent marker light mounts on your trailer fender. Built-in reflex reflector. Amber light faces front, and red light faces rear. Surface mount to trailer with bracket. Pre-wired design. (2) 194 bulbs.
Features:
Specs:
A P2-rated light produces a 45-degree angle of light to either side of its centerline for a total of 90 degrees of coverage. This beam pattern can be seen straight on, but it cannot be seen clearly from the side. So this type of light can be used as either a side marker light or a clearance light, but it cannot function as both. If you need both functions, then you must install 2 separate lights on your trailer - one as a front or rear clearance light and one as a side marker light.
California residents: click here
Video of Incandescent Trailer Fender Light w/ Reflector - 2 Bulbs - Red and Amber Lens - Passenger Side
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

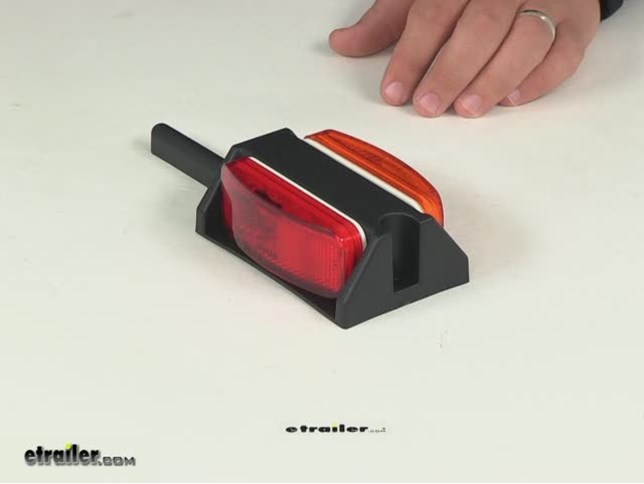

Speaker 1: Today we're gonna take a look at and also show you how to install the Optronics 00:00:02 right side fender clearance trailer light, part number BA44FNR.For the left or driver's side, you'll want to use part number FA44FNL.Now, this fender light from Optronics is pretty much the standard that you're gonna see on a lot of trailers out there. It's gonna offer two separate lights attached to the base that then attaches to the trailer.These are incandescent bulbs on the front and on the rear. We're gonna want yellow in the front, red in the rear. Now, something offered in this light that we don't see on a lot of the other fender lights are the reflectorized lenses. This is gonna be DOT compliant and eliminates the need for an additional reflector. Also, when your trailer is parked somewhere where it's dark, as you're pulling up to it, these are gonna shine with your headlights, so you'll be able to identify where it's at.Now, over all, our light's gonna be 8 1/2 inches long.
It's gonna be 3 1/4 inches wide, and it'll stick up off of your fender by about 2 1/4 inches.But when you're going with incandescents like this, if you're using it as a replacement, this is gonna be a really good match. If you are just putting lights on a new trailer, if you want to add some additional visibility, you might want to consider one of the LEDs for lower maintenance.Now, to get your light installed, we've got a preset connections here. It makes it pretty easy. Gonna have our two power wires. That means we go to our running lights signal, which we have here on our trailer.
And then we've got our two grounds. Those already have a ring terminal on them. We're gonna use a screw to ground that right to the fender of the trailer. If you have a two-wire setup, meaning you have a power and also a ground wire coming off, you can take the ring terminal off, strip these back, and then just attach those to that butt 00:01:45 connector, to make that connection. So it will kind of work both ways.We're gonna strip back our running light wire here, and we're gonna twist it and fold it over.
That yellow butt connector's designed for a little bit larger gauge wire, so by doing that, we're gonna give it something to hold onto, and we'll get it crimped down. And now for our ground wire, just gonna use a 1/4 inch self-tapping screw.All right, we got that installed. You want to tuck your wires. We see the slots here. Get those tucked right in there so we can keep them nice and hidden.
And since our light doesn't come with any hardware, you'll want to reuse what you had on your trailer, or provide your own.Now, to test it out, you can simply hook up to your towing vehicle, turn on the running lights. Here you can see it looks like everything's working properly.And that's gonna complete our look at the Optronics fender clearance trailer light, part number BA44FNR.
