Replacement Door Switch for Lippert Electric Coach Step

Replacement Door Switch for Lippert Electric Coach Step

Item # LC301694
Retail:$45.95
Our Price: $38.76
You Save: 16%
Accessories and Parts
Shipping Weight: 0.06 lbs
Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Videos

Need help with installation?
Locate installers near me
Replace the damaged door switch that came with your single, double, or triple electric Lippert Coach Step or Stromberg Carlson sliding step. This 2-piece switch installs on your RV's door and its frame with the included hardware. 1-800-940-8924 to order Lippert accessories and parts part number LC301694 or order online at etrailer.com. Free expert support on all Lippert products. Great prices and Fastest Shipping for Replacement Door Switch for Lippert Electric Coach Step. Accessories and Parts reviews from real customers.
  • All Info
  • Reviews (48)
  • Q & A (0)
  • Videos (1)
  • Photos

Lippert Accessories and Parts - LC301694

  • RV and Camper Steps
  • Switches
  • Lippert

Replace the damaged door switch that came with your single, double, or triple electric Lippert Coach Step or Stromberg Carlson sliding step. This 2-piece switch installs on your RV's door and its frame with the included hardware.


Features:

  • Replaces the door switch that came standard with your single, double, or triple electric Lippert Coach Step or Stromberg Carlson sliding step
  • Allows your steps to extend or retract automatically when you open or close your RV door
  • Connects to step's wiring harness with lead wires
  • Mounts on your RV door and its frame with included hardware or double-sided tape


301694 Lippert Components (LCI) Door Switch for RV Motorized Steps

SP-165041 Stromberg Carlson Door Switch (Magnets) for Electric Steps





Video of Replacement Door Switch for Lippert Electric Coach Step

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Lippert Electric Coach Step Replacement Door Switch Installation

Speaker 1: Today, we're going to be taking a look at the replacement door switch from Lippert Electric Coach Steps, part number LC301694.Now whether your switch is starting to go out or completely broke, our door switch is going to allow our stairs to come out and retract when we close the door automatically. Then, we won't have to worry about tripping or stepping up too far when we're getting in or out of our RV. One side of our switch is going to mount right here against the door. Then, the other side, we mounted ours right at the bottom of our screen door. That way whenever the screen door closes, the two sensors will meet and it'll cause the stairs to retract.Now, our switch is going to replace the door switch that came standard on the single, double or triple electric Lippert Coach Steps, or your Stromba Colson 00:00:50 sliding steps. If you're tired of the stairs not extending out or not retracting back in when you close or open the door, our door switch is going to be a great solution to get your motorized stairs working again.To begin our installation, we're going to have to make sure that our steps are working properly and that the problem is our switch.

Right now, I'm going to go ahead and switch the steps on. As you can see, the steps do come out. We can go ahead and close the door, and we can see that they're not retracting. We can tell that the motor is working perfectly fine, but the sensor or the switch right here on the door is not.The first step of our installation is going to be removing the old switch. Now, the one that's attached to the inside of the doorframe here, this one was broken off.

The wires are still attached, but the glue had let go a long time ago. To make it a little bit easier on myself, I'm going to cut my wires right here. If we follow the wires down, it'll lead to the floor and they're going to come out right here. I can go ahead and pull my wires out. One of them is going to be attached to the frame here with a self-tapping screw for our ground.

The other one's going to be connected into our harness that connects to the motor for our steps.We can take our new switch. We're going to find the end of the wires, and we're going to feed them down through the same hole that we got the other ones out. Once the wires come through, we're going to pull the excess out and get about how much we need for our switch. Now where my old wire went into my connector here, I'm going to go ahead and cut that wire back just right behind the connector. I'm going to strip it back.Now, on the end of the wire, I'm going to take a heat shrink butt connector inaudible 00:02:43 staying on the outside of the vehicle at all times.

I'm going to crimp it into place. Now, if you need some of these, you can pick some up on our website. These are just going to help from corrosion building up and moisture getting inside the connector.Now, we're going to take the longer of the two wires from our switch. I'm going to bring it towards the butt connector, and I'm going to insert it into the end and crimp it in place. Now, as far as the original ground goes, I'm going to go ahead and get rid of that bolt and pull my wire out and start afresh.I'm going to take a ring terminal, it's not in the kit but you can pick some up on our website, couple of different sizes that we carry. I'm going to take my wire, I'm actually going to fold it a couple of times to make it a little bit thicker, so I can crimp on my ring terminal. I'm going to take a self-tapping screw. Again, these aren't provided in the kit, but I'm going to attach it to the inside of the frame right here.We can go ahead and mount half our switch now. Now, there's two different ways that we can mount it. On the back, we have some double-sided tape. Just peel the backing off, and we can apply it directly to whatever surface we want. We also have two spots where we can put a couple of screws into place. I'm going to take mine and I'm just going to use the double-sided tape for now. I'm going to put it right against the door here so that when the other door closes, the other magnet will be right here next to it.Now, the other half of our sensor is going to be going on our screen door in our application. It's going to mount the same way. We're going to have some double-sided tape on the back. We're just going to adhere it to the bottom of the door so that when I close it, it'll line up with the other magnet. Now, they do provide us with some screws in our kit, but they are just a tad bit longer than the ones we took out. I'm going to be replacing the screws with the same ones that I took out.Now, as I mentioned before, the connector I was using is a heat shrink connector. I'm going to be using a heat gun to shrink it down. Now where that hole we had, where it came out to the floor in the entryway there, I'm going to take a little bit of silicone. I'm going to fill it up. We won't have to worry about any moisture building up or water leaking in there.With all the connections made and everything tidied up, we can go ahead and test out our steps. We can close the door and see that they go back up. Now if we open the door, they're going to extend out. Looks like that switch went ahead and fixed the problem. That'll finish up our look at the replacement door switch for Lippert Electric Coach Steps, part number LC301694.

Customer Satisfaction Score:


Customer Reviews

Replacement Door Switch for Lippert Electric Coach Step - LC301694

Average Customer Rating:  4.9 out of 5 stars   (48 Customer Reviews)

Replace the damaged door switch that came with your single, double, or triple electric Lippert Coach Step or Stromberg Carlson sliding step. This 2-piece switch installs on your RV's door and its frame with the included hardware.

by:

Worked good excellent replacement



by:

Love etrailer! You take the guess work out of ordering some very complex equipment. Christian is great!



by:

The Part arrived very quickly and was exactly what I needed. The switch is the correct one for my steps and now I can keep the steps out when the door is closed and the power switch is turned off. The switch that I replaced was for the other manufacturers steps. The two switches work opposite. Door closed, switch open. the other one is door closed, switch closed.

I have heard about other people with the same issue. You have to make sure you have the right switch for you manufactures steps.

Thanks for the right part that helped me fix my steps.



by:

Exactly part needed after carpet installer broke the original.
Service from etrailer.com was excellent.

Jo A.

3/16/2019

One year latter, no issues



by:

Exactly what I needed



by:

Easy fix! Step wouldn't deploy/retract w/the door opening/closing. Turns out, the wire to the door sensor has been snagged. This kit fixed it after just a few minutes of install time.



by:

Could not locate the replacement switch locally. etrailer came through with the correct switch and installation was a breeze.

Reuben

11/10/2021

The switch has worked perfectly.



by:

I placed an order for a magnet door switch for my motet home, with a three day delevery. Item was at my door on the third day. I was called by John to confirm my shipping address.
I was vary pleased with the service.

Ron L.

4/8/2018

Just like it is made to do, no problems with product.



by:

Great product, perfect fit, with easy installation, and helped solve my issues.

Bruce L.

10/9/2021

a year later the steps still work properly. Thank you etrailer!



by:

Tried other RV door switches from other dealers that did not work. Because etrailer had the actual brand of my switch, it worked perfectly. Wish I had bought from them in the first place; would have saved me a lot of time and money.



by:

Good communication and service. Switch a perfect replacement



by:

I ordered the wrong step switch. RV tech had the right one,i did not try to return it because it was 3 month before RV tech worked on my coach. I am good with the service and will use you again. Thank you



by:

Received item in good time. Had no trouble installing the switch. One great thing with entrailer is the how to install videos. This is the second item I have bought and will buy from this company again if I need another part. Thanks again Jim B



by:

Works just like the original. Great price and quick delivery.
Will buy all my RV parts here.



by:

Worked perfectly fine as a replacement.

Stephen

4/29/2019

Still working.



by:

Received the item very quickly. Have not installed it yet as the temperature here in No is in the teens with wind chill in single digits.



by:

Great service, the etrailer representative was able to tell me exactly what I needed with my description.



by:

Installation went smoothly, steps open and close just like new.



by:

Worked well. Never have any problems with etrailer.



by:

Works exactly as listed. Shipped and received as promised.



by:

As described on internet



by:

Exactly what I need to replace on my 2007 RV

Pierre P.

1/25/2021

Perfectly



by:

Replacement part worked great. Received it quickly.



by:

I haven’t had a chance to install the parts I purchased because they are for my motor home which has been put in storage. I have no worries that they are what I need.



by:

Willie

11/14/2022

The switch is still working great.


25
48
Show More Reviews

See what our Experts say about this Lippert Accessories and Parts

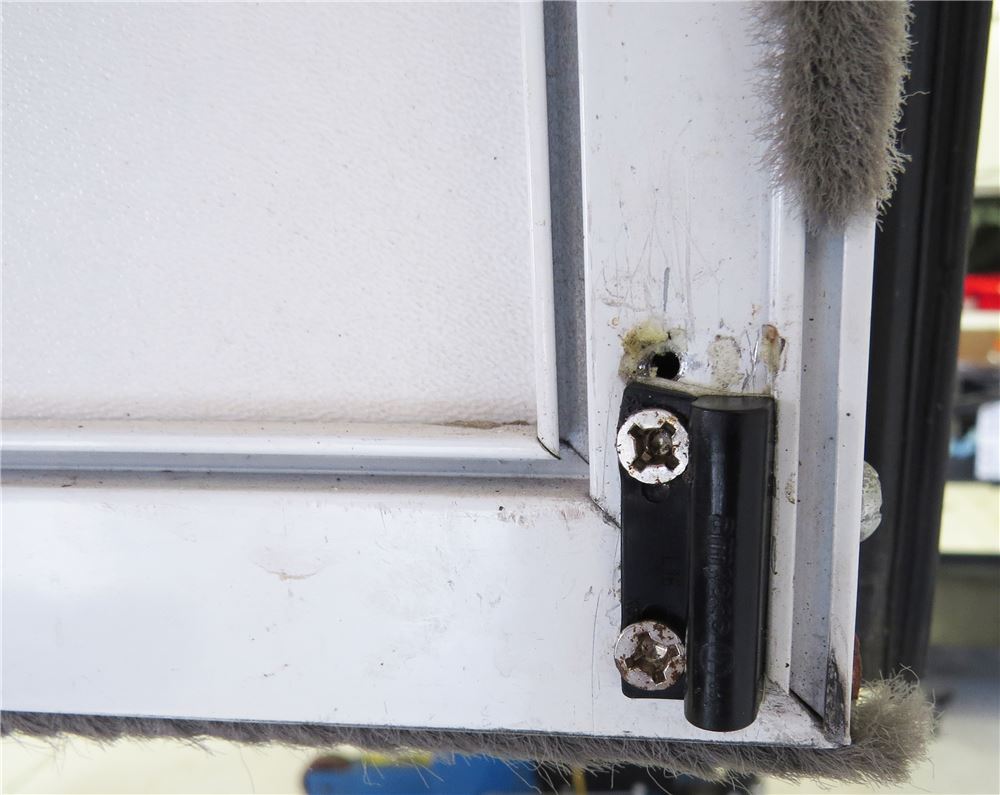

  • Where Does Replacement Lippert Magnet Door Switch # LC301694 Install on RV Door
    I attached a picture that shows how the Lippert Magnet Kit part # LC301694 installs on a door that you can use as a guide.
    view full answer...
    Image 1 for
  • Troubleshooting Installation of Lippert Electric Step Switch
    It sounds like you simply installed the switch, like part # LC301694, incorrectly. All you need to do is swap the wires that you have connected and it should work perfectly. I am not sure why you have a different color but that shouldn't matter especially if it is operating.
    view full answer...
  • Recommendation For Replacement Door Switch For 2007 Forest River Georgetown RV
    If the manufacturer of your steps is Lippert Components or Stromberg Carlson then the Replacement Door Switch for Lippert Electric Coach Step, Item # LC301694, is what you need. Lippert Components and Stromberg Carlson manufacture most of the OEM parts for RVs so high probability this will work for you. This Lippert switch replaces the door switch that comes with single, double, or triple electric Lippert Coach Step or Stromberg Carlson sliding step. All hardware needed for installation...
    view full answer...
  • Correct Door Magnet for HappiJac Tread Lite RV Steps
    It sounds like you need a normally closed magnet then and in which case I recommend the Replacement Door Switch for Lippert Electric Coach Step part # LC301694.
    view full answer...
  • Recommendation Of Replacement Part For Magnetic Door Switch For Item # LC3723383
    I contacted the manufacturer and they confirmed that a replacement door switch for Lippert electric coach step is Item # LC301694. This item replaces the door switch that comes with single, double, or triple electric Lippert Coach Step or Stromberg Carlson sliding step. All hardware needed for installation is included. Additional information attached.
    view full answer...
  • Replacement Door Switch for Lippert Tread Lite Steps on 2015 Coachman Mirada
    What you're looking for is the Replacement Door Switch for Lippert Electric Coach Step # LC301694. This will replace your existing sensor so the steps will automatically extend and retract when you open and close the door.
    view full answer...
  • Troubleshooting Coach Steps That Won't Stay Open When The RV Door Is Closed
    I spoke with a Lippert Tech and the most likely cause is the switch but there is also a possibility that the control module is the issue. The wire and/or the magnets of the switch could be worn out enough to cause intermittent function like you've been experiencing. Even though the light is still working I recommend replacing the switch # LC301694 first as it's a quarter of the price of the module # LC301702. If that does not solve the issue then it is the control module causing the malfunction.
    view full answer...
  • Solution for Lippert CouchStep that When New Module Was Installed Steps Work in Reverse
    Sounds like you replaced the module on your RV steps with a newer style which uses the opposite door magnet/sensor setup and is why your steps now operate in reverse. The newer style magnets you need then are the part # LC301694 which I attached an install video for. I attached a diagram that shows how the purple wire connects to the steps.
    view full answer...
    Image 1 for
  • Why Are My Kwikee 32 Series Steps Working In Reverse?
    This is a fairly common occurrence for motorhomes that are wired to work with a normally open circuit and the steps being used are designed to work with a closed circuit. To fix this issue, you'd just need to swap out your door magnet with the Replacement Door Switch for Lippert Electric Coach Step # LC301694. It also wouldn't hurt to go over your wiring and ensure everything is appropriately connected. Make sure the green is grounded to the chassis, the white is connected to the power...
    view full answer...
  • Troubleshooting New Lippert RV Step Switch that Works Door Opposite
    I am not totally sure why but Lippert has two different types of magnetic door switches that work opposite of each other. One switch setup completes a circuit when they are connected magnetically and the other setup opens a circuit when they are connected magnetically. So what that ends up doing if you order the wrong set is the steps work opposite of the way you'd like them to. I am not sure which switch you ordered but if you have the # LC301694 now you'd instead need the # LC369299...
    view full answer...
  • Replacement Door Switch For Lippert Electric Steps
    We carry a few choices the Replacement Door Switch for Lippert Electric Coach Step # LC301694 and the Replacement Magnetic Door Sensor for Kwikee Electric RV Steps # LC369299 that you may need depending on if your circuit needs to be open or closed. # LC301694 is an open circuit that completes when the door is closed, while # LC369299 is a complete circuit that opens when opened, tells the steps to retract. Depending on what your sensor looks like will dictate which one you need.
    view full answer...
  • Replacement Step Controller and Magnet Sensor For SCS/Fridget Controller
    The Replacement Control Module for Lippert Electric Coach Step # LC301702 is the correct control module to replace your SCS/Fridget controller. Generally it is not required to replace the magnetic sensors when replacing the controller. But the Replacement Door Switch for Lippert Electric Coach Step # LC301694 is compatible with the replacement control module.
    view full answer...
  • Solution for Replacement RV Door Magnet Switch Where Door Operates Steps Backwards
    I was able to determine that the switch you have now is the # LC369299 which is normally an open circuit so for the opposite configuration to allow your step to operate like it needs to you'd want the # LC301694.
    view full answer...
  • Replacement Normally Open Door Magnet Switch for SCS/Coach Steps
    The correct replacement door magnet for a set of Coach Steps is the Replacement Door Switch for Lippert Electric Coach Step part # LC301694 which is a normally open switch. In order to confirm you need a normally open switch, touch the two magnet wires together, if the steps retract then you know you need a normally open switch like the above.
    view full answer...
  • Troubleshooting A Coach Step That Only Works Periodically
    I spoke with Lippert and they at first weren't getting anything off of the 733-0001 number but just got back to me stating that the Replacement Door Switch for Lippert Electric Coach Step # LC301694 would be the correct door magnet for your Coach Step. That being said, if the light comes on every time even when it doesn't want to extend then the issue is most likely with the motor itself and not actually the door magnet. If you could send me a picture of the tag on the mounting bracket...
    view full answer...
  • Magnetic Door Switch Works Opposite Of What It Is Supposed To
    If you ordered and tested the Replacement Magnetic Door Sensor for Kwikee Electric RV Steps # LC369299 and they work backwards, then you need the Replacement Door Switch for Lippert for Lippert Electric Coach Step # LC301694. Lippert makes two switches that work opposite of each other, one completes the circuit when they are connected, and the other opens when they are connected.
    view full answer...
  • Will Replacement Door Switch for Lippert Electric Coach Step Work For My Steps
    while yes the Replacement Door Switch for Lippert Electric Coach Step, # LC301694 that you refer to can possibly be made to work another brand, I highly recommend you identify what steps you have so we can provide the best option in replacement part.
    view full answer...
  • Replacement Kwikee Step Switch with Normally Closed Circuit
    The original steps all came with the open switch originally so I would assume that it's the original configuration and that nothing has been previously replaced. If you just want to swap out the magnets, the opposite magnets that are normally closed are available with the Replacement Door Switch for Lippert Electric Coach Step # LC301694. This would reverse the functioning of the steps as they currently work.
    view full answer...
  • Coach Step Door Switch Replacement and Circuit Function
    The Replacement Door Switch for Lippert Electric Coach Step # LC301694 is an open circuit that completes the circuit when the door is closed. There isn't a positive or negative designation that you need to worry about when replacing the magnetic switch.
    view full answer...
  • Replacement Door Switch Magnets for Lippert Trailer or Coach Steps
    Since you replaced the controller and it worked fine and then stopped, I assume that you have a door switch that has gone bad due to magnet failure. If you have the coach steps, you want the Replacement Door Switch for Lippert Electric Coach Step # LC301694. If you have the Kwikee steps, you want # LC369299. Obviously the motor and the linkage are not the issue as you have them functioning with the switch. You can check the controller by reconnecting it and using the switch as you...
    view full answer...
  • Correct Replacement Black Rectangular Door Switch for Kwikee Door Steps
    The correct replacement magnetic door switch for your Kwikee Electric RV Steps is the Replacement Magnetic Door Sensor for Kwikee Electric RV Steps part # LC369299. The switches are only sold as a complete assembly with both the door and trailer side but if you only need one you can just simply take the one you need from the kit and use the other as backup.
    view full answer...
    Image 1 for Image 2 for
  • Recommended Electric RV Double Step To Replace Manual Step On 1997 Jayco Eagle
    I reached out to my contact at Lippert and the Lippert Components Kwikee 32 Series Double Electric Step # LC372261 is what you need. They said you can just drill holes in the base to match your current bolt pattern. If you want to add the door switch, you can use the Replacement Door Switch for Lippert Electric Coach Step # LC301694.
    view full answer...
  • Replacement Magnetic Door Sensor For Lippert # 128980 Steps On 2014 Thor Motorhome
    I reached out to my contact at Lippert and the correct replacement door magnet For your 2014 Thor Motorhome with the Lippert # 128980 steps is the Replacement Magnetic Door Sensor for Kwikee Electric RV Steps - Rectangle - Black # LC369299. The # LC301694 you mentioned is for older steps and works in reverse of the newer # LC369299. I included a video of the # LC369299 for you to take a look at.
    view full answer...
  • Troubleshooting Lippert Powered RV Steps That Extend Then Stop
    If you have confirmed that the motor in your Lippert or Stromberg Carlson powered RV steps is good and that there are no mechanical issues with the step linkage (that could be causing the step to sometimes stop before extending completely), then the most likely causes for the issue are a bad wiring connection (that allows for intermittent contact), a problem in the control module or a bad door switch. You can try bypassing the door switch to see if that allows the steps to extend fully....
    view full answer...
