Replaces the white, wedge-shaped, polypropylene plastic cover on your Ventline Ventadome RV roof vent.
Features:
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

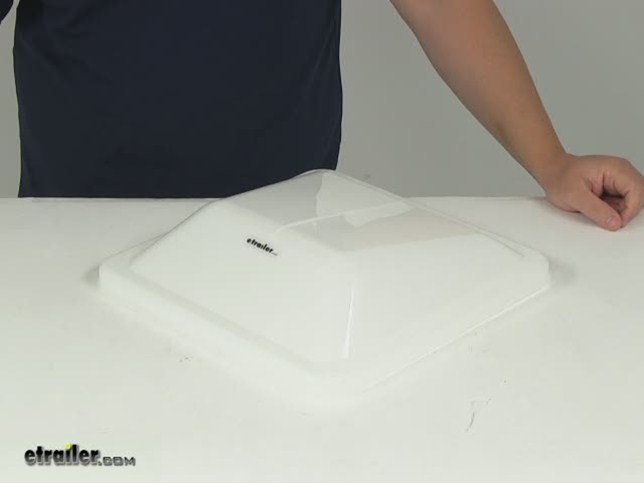

Today we're going to be taking a look at the Ventline Replacement Dome Assembly in white, part number BVD0449-A01. It's also available in smoke, part number BVD0449-A03. This is going to be a direct replacement for the lid on your model number V2092, V2094, V2119 and V2128, Ventadome Roof Vents. It has the same web shape and it's made out of the same polypropylene material. Over time your lid may crack, break or fade. We're going to show you how to replace it. Now of course this will be in your RV, but for demonstration purposes, we're going to show you right here.
We'll flip it over and this will be as if we we're looking up. First thing we want to do is go ahead and remove the screen. We've got these little tabs surrounding it. We can actually just push those out and begin taking it off. All you're going to need for this job is a Phillips-Head screwdriver. Let's go ahead and take off the knob.
Once we get that screw loose, we can actually just pull up on the knob just like that and set it aside. For our tray here, we just need to push in on each side inward. We've got some teeth that we need to get around, but then it should just pop right on out. You can see the two teeth here. Then we've got our switch. If you'd like you can disconnect it, we're going to leave ours attached.
The other two wires here will be connected to your power in your RV. Then we can grab our Phillips-Head screwdriver again and we're going to remove our arm assembly. Now we'll need to take these screws all the way out. With those loose, it's going to allow us to remove our arm from our lid. We can just slide it off like so and just kind of leave it set there. Then it's going to allow us to remove our lid from our vent assembly. Now this portion will be on top of your RV.
You can actually lift up on the non hinged end of the lid all the way up and then take it off. We can grab our new one. We'll locate the hinge side, go ahead and turn it over, line it up and then turn it over like so. Now we can go back inside of our RV. Back here on the inside we can reconnect our arm assembly. We'll just need to slide this on to the portion right here just like that and then position it over our holes. I've gone ahead and reinstalled my other components. Let's go ahead and test it out. I'd say it's working pretty good. That's going to complete our look at the Ventline Replacement Dome Assembly.
Average Customer Rating: 4.8 out of 5 stars (252 Customer Reviews)
Replaces the white, wedge-shaped, polypropylene plastic cover on your Ventline Ventadome RV roof vent.The part fit my trailer perfectly and came with easy to follow instructions. I did need a rivet gun for installation. (Home Depot $18) 756212
The product is working perfect. 576473
I watched the Video and it truly was just as easy as they made it look I removed the screen, cranking mechanism & then from above the damaged cover. Then did it all again in reverse! Took less than 15 minutes and looks And works like new! 504088
Tom - 05/03/2019Unfortunately in Colorado we’ve had a few hail storms. Went out to check on my trailer saw the top rounded dome windows were broken Went to the website , easily found replacements ,arrived on time and installed nicely a great product ,great company . 552898
I was kinda disappointed when I received the vent as I thought it came with the arm to attach it. At this time I'm waiting for someone to come help me to see if the old one will work. 575927
"Universal vents" don't always work. I ordered one by mistake from that giant online storehouse—realized I needed this specific model and it was not offered there. Etrailer had what I needed and also had the dome seal (BVD0455-01), which I also needed. Products were exactly as advertised and with the installation videos (also on etrailer) for the EXACT model ordered, installation was simple. Before and after pics included in this review (previous vent was damaged in a recent hail storm). 547139
Order was good but i ordered the wrong one 509927
Heather A - 05/19/2018The product was just as described. I watched the installation video before attempting replacement. It was easy to follow and replacement was complete within 10 minutes! 437670
Greg - 09/29/2018Excited about getting these new ones on our 5th wheel for this year. 773752
Got what I ordered came in a decent amount of time good jb 771621
Delivery was fast got what I wanted couldn't be better 770277
I’m very satisfied. It was easy to install and it has survived at least 3 hailstorms! 770136
Outstanding customer service. Items shipped same day I ordered them and delivered to me two days later. Packaged well. I am a happy repeat customer. 767881
all items shipped as stated, packed well 766084
Product showed enough picture to be sure I was ordering the right vent cover. Item arrived fast and was package well. Used instructions on bag to successfully change out the vent covers in about 5 minutes. 758762
The cover was exactly what I was looking for. Good fit and good quality. 757164
Great product. I purchased two and the fit great! 747478
Good stuff, reasonable prices 747259
Great product worked excellent I am happy with this order that I will order more 747168
Good product and services 737580
As good as oem , fit perfectly 735895
Easy to install and working great! 728688
Roof vent fit perfectly and was a better replacement than what had been there. 726053
great service thank you very much 721944
Quick service! Will order from this company again! 717195
