Replacement Wiring Harness for Lippert Electric Coach Step

Replacement Wiring Harness for Lippert Electric Coach Step

Item # LC301692
Retail:$45.97
Our Price: $30.75
You Save: 33%
Accessories and Parts
Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Need help with installation?
Locate installers near me
Replace the damaged 4-way wiring harness on your single, double, or triple electric Lippert Coach Step or Stromberg Carlson sliding step with this new one. Each wire is 11" long. 1-800-940-8924 to order Lippert accessories and parts part number LC301692 or order online at etrailer.com. Free expert support on all Lippert products. Great prices and Fastest Shipping for Replacement Wiring Harness for Lippert Electric Coach Step. Accessories and Parts reviews from real customers.
  • All Info
  • Reviews (1)
  • Q & A (0)
  • Videos (1)
  • Photos

Lippert Accessories and Parts - LC301692

  • RV Steps
  • Wiring
  • Lippert

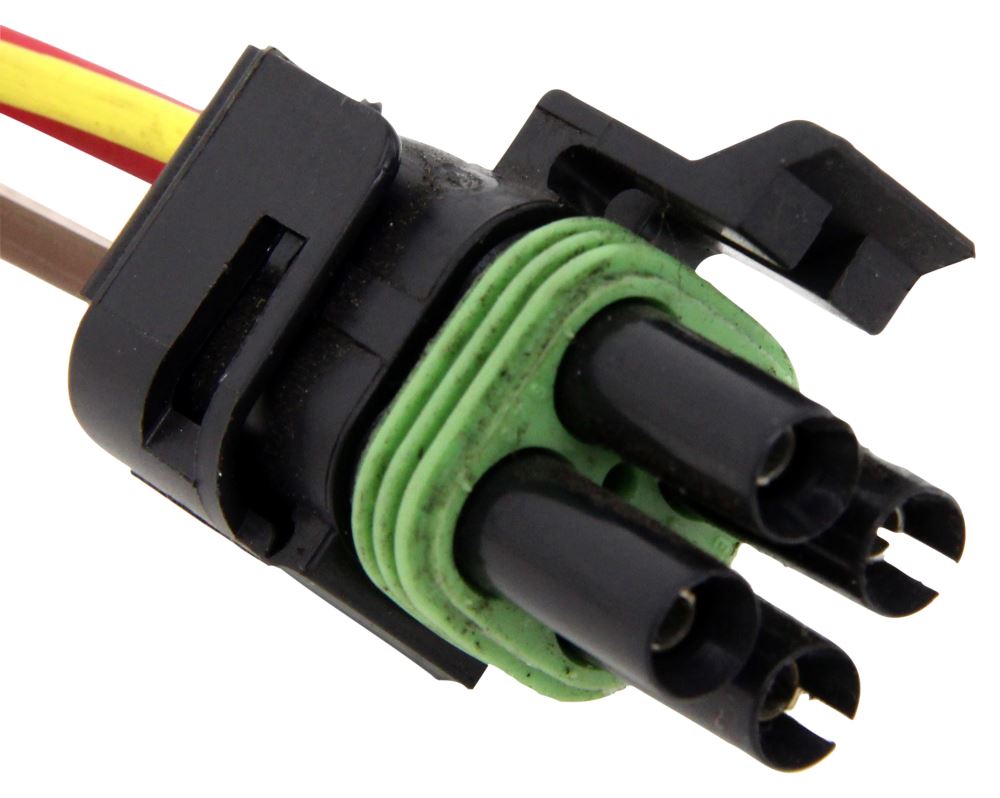

Replace the damaged 4-way wiring harness on your single, double, or triple electric Lippert Coach Step or Stromberg Carlson sliding step with this new one. Each wire is 11" long.


Features:

  • Replaces the 4-way wiring harness that came standard on your single, double, or triple electric Lippert Coach Step or Stromberg Carlson sliding step
  • Plugs into the power cord on your step
  • Splices into RV's wiring
    • White wire connects to a power switch
    • Yellow wire connects to a power source that is only hot when ignition is turned on
    • Red wire connects to your RV's battery
    • Brown wire connects to door switch
  • Wire length: 11"


Lippert coach step wiring diagram

301692 Lippert Components (LCI) 4 Pin Connector for RV Motorized Steps

SP-165045 Stromberg Carlson 4 Way Wiring Harness for Electric Steps





Video of Replacement Wiring Harness for Lippert Electric Coach Step

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Review of Lippert Components RV and Camper Steps Parts - Wiring Harness - LC301692

Hey everyone. I'm Ellen here at etrailer.com, and so we're taking a look at the replacement wiring harness for your Lippert electric coach step. So this is going to be that wiring that comes off of the step and allows you to connect it to the rest of your wiring system on your RV. So, we'll have four wires to connect. The white wire is going to go to a power switch. Yellow wire goes to a power source that's only hot when the ignition is on, so an ignition only power source there.

The brown wire goes to our door switch, and then the red wire goes to the RV battery.So, make those connections and then we'll plug in the other end to our step, and we'll be able to actually use all of those functions. So, if yours didn't already come with this switch or maybe something happened to the original, a wire got cut or damaged somewhere along the way, it is going to be that replacement part that you need to get back to using your step. Measures about 11 inches long, and that's pretty much all there is to it for our look at the replacement wiring harness for your Lippert electric coach step. Do you need any other parts for your Lippert components or for your RV in general Check us out here at etrailer.com. We've got a lot of options available to get you out on the road and enjoy your adventure.

Thanks for watching.

Customer Satisfaction Score:


Customer Reviews

Replacement Wiring Harness for Lippert Electric Coach Step - LC301692

Average Customer Rating:  5.0 out of 5 stars   (1 Customer Reviews)

Replace the damaged 4-way wiring harness on your single, double, or triple electric Lippert Coach Step or Stromberg Carlson sliding step with this new one. Each wire is 11" long.

by:


1
1

See what our Experts say about this Lippert Accessories and Parts

  • Replacement Parts and Wiring Diagram for Lippert Coach Steps
    The Replacement Control Module for Lippert Electric Coach Step # LC301702 has the purple wire that connects to the door light switch. The other end of the switch # LC301694 connects to the Replacement Wiring Harness for Lippert Electric Coach Step # LC301692. I've attached a wiring diagram to assist. The control module is what shuts down when the steps strike an object. It sensing that would have to do with the purple wire you stated because the step will extend or retract based on...
    view full answer...
    Image 1 for
  • Replacement Parts for Lippert Coach Step on Class A Motorhome
    The Replacement Control Module for Lippert Electric Coach Step # LC301702 is the brain for your coach step with serial number 06190. We also have the following parts for your coach step: Replacement Motor for Lippert Electric Coach Step # LC301695 Replacement Spacer for Lippert Electric Coach Step # LC128958 Replacement Door Switch for Lippert Electric Coach Step # LC301694 Replacement Gear for Lippert Single and Double Electric Coach Step # LC301696 Replacement Double Ball Joint for...
    view full answer...
    Image 1 for
  • Replacement Wiring Harness for Kwikee Electric RV Steps
    Actually for the Kwikee steps you will need harness # LC369243. The harnesses are pretty similar but the Kwikee one actually costs less!
    view full answer...
  • Replacement Parts for Lippert Electric Coach Steps 26 lci 165046
    The Lippert 165046 upper slide assembly you have has been discontinued. We sell replacement parts for it but not the entire unit. The Replacement Motor for Lippert Electric Coach Step item # LC301695 Replacement Control Module for Lippert Electric Coach Step item # LC301702 Replacement Wiring Harness for Lippert Electric Coach Step item # LC301692 Replacement Gear for Lippert Single and Double Electric Coach Step item # LC301696 The closest thing we have size wise is the Replacement...
    view full answer...
  • Where Do The Wires For The Replacement Control Module For Lippert Electric Coach Step Run To?
    Your control module # LC301702 should have a 2-pin connector coming from the harness that will connect to your Replacement Motor for Lippert Electric Coach Step # LC301695. The 4-pin wiring harness # LC301692 will plug into your control module as well, and splice into your RV's wiring. The color code is as follows: -White Wire - Will connect to a power switch, -Yellow Wire - Will connect to a power source that is only hot when the ignition is ON, -Red Wire - Will connect to your RV's...
    view full answer...
