This 7- and 4-pole trailer connector eliminates the need for an adapter and allows you to tow a trailer with either a 7- or 4-pole plug. Socket connects to your vehicle's OEM wiring system and mounts with included bracket. Call 800-298-8924 to order Hopkins custom fit vehicle wiring part number HM40975 or order online at etrailer.com. Free expert support on all Hopkins products. Guaranteed Lowest Price and Fastest Shipping for 7- and 4-Pole Trailer Connector Socket w/ Mounting Bracket - Vehicle End. Custom Fit Vehicle Wiring reviews from real customers.


  • All Info
  • Reviews (1136)
  • Q & A (714)
  • Videos (34)
  • Photos
  • Why etrailer?

Hopkins Custom Fit Vehicle Wiring - HM40975

This 7- and 4-pole trailer connector eliminates the need for an adapter and allows you to tow a trailer with either a 7- or 4-pole plug. Socket connects to your vehicle's OEM wiring system and mounts with included bracket.


Features:

  • 7- and 4-Pole trailer connector with mounting bracket
  • Has high-impact, ABS plastic construction
    • Stainless steel spring for easy cover operation
    • Rubber gasket provides weather-resistant design
  • Includes mounting bracket for easy, snap-in socket installation
    • Black, epoxy-coated steel construction
    • Mounts to bumper with included screws


Specs:

  • Application:
    • Replaces factory 7-way connector on Chevrolet, Ford, GMC and Nissan trucks and SUVs
    • Can be used to add a connector to 2003 and newer GM pickups and SUVs
  • Bracket dimensions: 4-3/4" long x 3-1/16" tall x 1-3/4" deep
  • Distance between mounting holes (center to center): 2-3/8"
  • 1-Year limited warranty


Dimensions of bracket

Note: Only one connector - a 4-way or a 7-way - can be used at a time because the covers on this socket will not open far enough to allow use of both plugs at the same time.


Product is manufactured by Pollak and distributed exclusively by Hopkins.

Similar to 11775, PK11893



40975 Hopkins 7- and 4-Way Trailer Connector Socket with Mounting Bracket - Vehicle End





This Product Fits The Following Vehicles

2019 - 2019 Ram 1500

2013 - 2016 GMC Acadia

2017 - 2017 GMC Acadia Limited

2002 - 2006 Chevrolet Avalanche

2013 - 2017 Buick Enclave

2011 - 2019 Ford Explorer

2013 - 2019 Nissan Pathfinder

2014 - 2019 Infiniti QX60

2014 - 2018 GMC Sierra 1500

2019 - 2019 GMC Sierra 1500 Limited

2014 - 2018 Chevrolet Silverado 1500

2001 - 2006 Chevrolet Suburban

2001 - 2006 Chevrolet Tahoe

2001 - 2006 GMC Yukon

2000 - 2006 GMC Yukon XL

2002 - 2006 GMC Sierra 1500

2007 - 2007 GMC Sierra Classic 1500

2002 - 2006 Chevrolet Silverado 1500

2007 - 2007 Chevrolet Silverado Classic 1500

2002 - 2006 GMC Sierra 1500 with 10 inch Deep Drop Bumper

2007 - 2007 GMC Sierra Classic 1500 with 10 inch Deep Drop Bumper

2002 - 2006 Chevrolet Silverado 1500 with 10 inch Deep Drop Bumper

2007 - 2007 Chevrolet Silverado Classic 1500 with 10 inch Deep Drop Bumper

2001 - 2006 GMC Sierra 1500 with aftermarket Roll Pan Bumper

2007 - 2007 GMC Sierra Classic 1500 with aftermarket Roll Pan Bumper

2002 - 2006 Chevrolet Silverado 1500 with aftermarket Roll Pan Bumper

2007 - 2007 Chevrolet Silverado Classic 1500 with aftermarket Roll Pan Bumper

2009 - 2014 Dodge Ram Pickup 1500 with factory 7-Way

2008 - 2010 GMC Sierra 2500 - 6-1/2 Foot Bed

2007 - 2007 GMC Sierra New Body 2500 - 6-1/2 Foot Bed

See All Vehicle Fits

Video of 7- and 4-Pole Trailer Connector Socket w/ Mounting Bracket - Vehicle End


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Hopkins Custom Fit Vehicle Wiring HM40975 Review

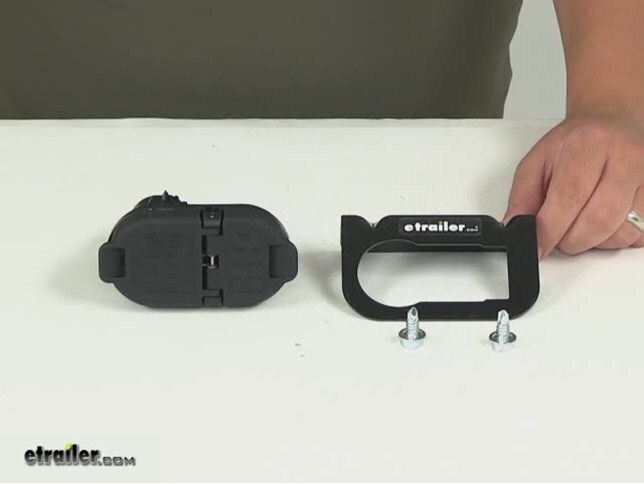

Today, we'll be reviewing part number HM 40975. This is the Pollak 7 and 4 pole trailer connector socket with mounting bracket. The product is manufactured by Pollak and distributed exclusively by Hopkins. It's going to offer you a 7 pole and a 4 pole trailer connector for easy connection, as well as the mounting bracket and the hardware. It has high impact, ABS plastic construction with a stainless steel spring for easy and convenient cover operation. The rubber gasket is going to provide weather resistant design. You see there, that they're very easy to open and close.

It does include the mounting bracket for easy snap in socket installation. The mounting bracket is made from a black epoxy coated steel construction and it mounts directly to the bumper with the included screws. This is designed to replace your factory 7 way connection on Chevrolet, Ford, GMC and Nissan trucks and SUVs. This can be used to add a connector to a 2003 and newer GM pick ups and SUVs. It's going to be an exact replacement for Chrysler and Dodge vehicles with 7 pull sockets from the factory. You see there, that we've got the easy connection, here, at the bank so you can get all your wiring in place.

It's also got the snap lock design, so it snaps right into the bracket. Once you have your connections made, you just feed this in through the bracket. It's going to snap into place. It's going to hold it nice and tight, very secure. On this side, you're going to have the 4 pole flap. On this side, you're going to have your 7 way connection.

It's got the 2 mounting holes up top for the 2 included screws. That's going to do it for today's review of part number HM 40975. .


Customer Reviews

7- and 4-Pole Trailer Connector Socket w/ Mounting Bracket - Vehicle End - HM40975

Average Customer Rating:  4.9 out of 5 stars   (1136 Customer Reviews)

This 7- and 4-pole trailer connector eliminates the need for an adapter and allows you to tow a trailer with either a 7- or 4-pole plug. Socket connects to your vehicle's OEM wiring system and mounts with included bracket.

- HM40975

by:

2017 Chrysler Pacifica


Matches the factory plug perfectly. Bought it for my 2017 Chrysler Pacifica after adding a tow package. 575307



- HM40975

by:


Part was delivered on time and perfect fit. Etrailer was a $100 cheaper than dealer. 575773



- HM40975

by:

2018 Chevrolet Silverado 1500


Awesome! Two minute installation! 575724



- HM40975

by:


perfect match! Very happy 575814



- HM40975

by:

2018 Jeep Grand Cherokee


Perfect fit and easy to install! 575076



- HM40975

by:

1998 Ford Explorer


Great quality products at a great price. Fast shipping and delivery. Easy installation with the included instructIon sheets. The 7 and 4 pole trailer connector provides the flexibilty to pull my teardrop trailer which has brakes and a 7-way plug or my utility trailer which has a flat 4-way plug without adapters. Fantastic customer service.etrailer.com has a great selection of products for your vehicle and traveling needs. 570294



- HM40975

by:

2018 Nissan Pathfinder


I ordered DrawTite hitch #76031 along with Tekonsha Wiring #118273 and HM40975, 7 and 4-Pole Trailer Connector Socket for my 2018 Nissan Pathfinder SL. I ordered on a Thursday afternoon and the merchandise arrived the following Monday evening (with free shipping and no tax). The hitch arrived in excellent condition with no scratches or scrapes and was packaged very well. The total for my order was a great price! This also included a tube of dielectric grease and a brush. To get a factory hitch would have required an expensive "Technology Package" at a cost of over $2000 or a dealer install which would have cost over $1000. I did the install of the hitch myself. It would have been far easier if I had a lift to raise the vehicle off the ground, and a helper to hold the hitch in place and get the 6 frame bolts started. I used an ice chest to prop up one side of the hitch while I got the bolts started on the other side. Watch the videos from etrailer before doing the install. I did have to trim about one-eighth of an inch off the corner of the gasoline vapor recovery box on the left underside of the vehicle to get the hitch into a position so that the holes in the hitch lined up with the weld nuts on the frame. I used a rotary file on the end of my drill to do this. The 2X2 receiver does barely touch the bottom of the rear trim on my Pathfinder but did not require cutting the trim to get it to fit. The Tekonsha #118273 Factory Wiring was not difficult to install. The etrailer video on how to install this item was not as good as it could have been. The installer says he is going to make the 2 vehicle connections inside the left-rear of the vehicle "by feel," which may be fine for someone who knows what he is doing, but was not helpful to me. I pulled back the trim on the inside left rear to make these 2 connections. You should definitely make ALL of your wiring connections BEFORE installing the hitch itself. If you don't, it will be very difficult to reach the connectors outside the right rear of the vehicle if the hitch is already in place. BE WARNED about this. The HM40975 connector was very easy to install and by having it you will not need to use an adapter to use a 4-way flat trailer connector. I used 2 stainless steel bolts to fasten the bracket into place instead of the included self-tapping bolts that were in the kit. This item is well worth the small cost. I am completely satisfied with my purchase from etrailer and will not hesitate to recommend them highly. Both George and Adam at Etrailer were very helpful. See the picture of the completed install on my 2018 Nissan Pathfinder SL. 566326



- HM40975

by:

2015 Audi Q7


Scratched my head for a while, trying to find a quality way to connect this vehicle end 4/7 wire socket to my trailer ready (almost) 2015 Audi Q7. Finally decided that it really didn’t need to be bolted, but could be hose clamped to the existing heavy duty Audi bracket. Mounted it sideways with a 1” diameter and a 3” diameter hose clamp. Be sure to use a 3” clamp with lots of serrations that all it to tighten it down a lot. You’ll need to drill out the small hole of the supplied bracket to allow a clamp to fit through it. The other hole is a slot, and works unaltered. Small clamp on bottom, large clamp on top. You’ll also need to relieve a small spot on the trim piece to make room for the 4-wire door to o-en freely. This is marked as red on one of the pictures. Looks good and should work good! 567819



- HM40975

by:


Good product. Fast service 570072



- HM40975

by:

2014 Jeep Grand Cherokee


The HM40975 was a perfect fit for my 2014 Jeep Grand Cherokee . I would definitely purchase if needed again. 571419



- HM40975

by:

2018 Chevrolet Silverado 1500


Also fit perfect like it says...thank u 571389



- HM40975

by:


Good quality no issues 568536



- HM40975

by:

2006 Ford F-350 Super Duty


Product was easy to install on a 2006 Ford F350, I replaced the original that had rusted a part. Just plug in and snaps right in. 565999



- HM40975

by:

2007 GMC Sierra


Perfect replacement for my 2007 Sierra Classics factory connector. 571162



- HM40975

by:


Good fit and worked just fine. A bonus is that it also has the 4-pin connector built-in so no adapter is required for that kind of trailer connector. 563271



- HM40975

by:

2018 Chevrolet Silverado


Fit my 2018 silverado perfect,well made. 567873



- HM40975

by:

Ford F-250 Super Duty


Replaced factory installed f250 7way. Perfect fit slide in place and plug the connector into the back and everything worked great. 5 mins to install. 565006



- HM40975

by:

2017 Nissan Titan


The product ended up being good for my needs and easy to install. But this light kit originally had an install video for a 2017 Titan when purchased but the video disappeared and became a 2010 Titan. Luckily it still worked for my needs. 568194



- HM40975

by:

2018 Chevrolet Silverado 1500


Very easy install and great fit. Took less than 10 minutes 570009



- HM40975

by:


very easy to install, Good quality part 570750



- HM40975

by:

2018 Jeep Grand Cherokee


Plug and play, couldn't be easier! Decent price too. Only 4 stars due to the ridiculous self-taping screws they expect you to put through 3/16" steel (just guessing on the thickness - it's 1/8-3/16 best guess...). The install video on the site shows them using nuts/bolts/lockwashers to install it, which is what I did. This product should come with that arrangement instead of the self-taping screws, in my not-so-humble-home-installer-opinion... 554683



- HM40975

by:

2017 Jeep Grand Cherokee


Installed on 2017 Jeep Grand Cherokee Laredo and Draw-Tite hitch. Setup was super easy using factory connection. Now just have to have Jeep dealer activate the trailer towing feature to get it to work. Couple quotes for $140.00 to flash computer. Seriously I asked. Oh well. I'm knocking it down 1 star because if you look at the video that etrailer has for installing this product, they installed on a hitch that had the mounting bracket on it and didn't use the self taping bolts. It seemed at least to me, there were/would be nuts and bolts provided with the kit (along with the self taping bolts). At least for me that wasn't the case and I had to piece together the hardware. 505920



- HM40975

by:

2002 Ford F-250 Super Duty


Plug worked great but mount didn't work for some reason said it fits a ford f250 2002 the connection matched but bracket was to short in height didn't come low enough to get plug below bumper holes lined up depth good but to high had to mount new bracket to old bracket 551190



- HM40975

by:

2017 Ford Transit T250


Great addition to new wiring harness, plugged right in and now no need to worry about an adapter. 567835



- HM40975

by:

2008 Nissan Titan


Easy to install, quick delivery. Does everything it said it would do. 568502



- HM40975

by:

2018 GMC Sierra


The 2018 GMC Sierra 1500 base model with no options has the wiring harness at the bumper. The bracket and bolts are not needed on the GMC 1500. 552385



- HM40975

by:

2017 Nissan Pathfinder


It came with it's own bracket, which is a plus. It was compatible with etrailer.com's part number C56357, which is also a plus. The self tapping screws being the only hardware coming with the item was a disappointment. I just installed etrailer.com's part number 76301 hitch receiver which has a mounting plate for brackets like this. The self tapping screws, which might have been effective, wouldn't have looked "professional." After finding some hardware which worked, it went on smoothly and fits well with the rest of the assembly. 538985



- HM40975

by:

2001 Chevrolet Tahoe


Good product. Sturdy, nice feature to have the 4 pin and 7 pin plugs, rather than using an adapter. Plugged right into my 2001 Tahoe wiring which was nice. Everything works as it should. My ONLY issue, is actually with etrailers installation video. We drilled the holes in the bumper, same as the video, and got everything installed. The vehicle wiring plugged into the connector at an upwards angle. This caused it to hit the hitch body before it was fully seated. We found we had to mount it to the hitch, because in the video, they have a "valley" hitch, that has more of a bend to it, than the factory round hitch. We ended up mounting it to the hitch itself. Works great. So for the product, 5 stars, for etrailer on this one issue, 4.5 stars. 206247



- HM40975

by:


Order arrived in 2 days. Exactly what I needed 434757


Comments

Worked perfectly until I sold my truck a few months ago to upgrade to a motor home.

Bill H - 09/21/2018

43848

- HM40975

by:

2014 Chevrolet Silverado 1500


Was exactly what I looked at on-line. The description was spot on. Was shipped in a timely mannet and it installed in just a few minutes 225112


Comments

The product is working fine. I like having the product so I dont need adapters. Thanks

Marshall a - 09/11/2016

20896

- HM40975

by:

Ford F-250 Super Duty


Trailer plug unit (Pollack 7 & 4 pole for my F-250 was broken by the car wash. Called the dealer and they wanted double what e-trailer sales it for plus I had to special order and that took too long to ship as I needed it immediately. I went online and found ETrailer.com and they had the exact replacement device that was identical to what the manufacturer had installed. I ordered it and asked to have it within a set timeframe and e-trailer did exactly what they said they would do! The lady I spoke with Cathy was on the stick with the entire order and follow-up. The Etrailer staff then followed up the very next day of delivery. I have just installed the plug this morning so it has to be tested but do not forsee any issues as it is the exact replacement which worked great before. I am very impressed with the service here and will most definitely buy from them again as well as refer my freinds and business associates. I manage a commercial fleet as well as work with many other contractors who have trucks and trailers and there is always the need for something in this category. Great job ETrailer, you have a new long term customer. 42962



- HM40975

by:

2014 Jeep Cherokee


This is a huge time saver and convenient. My pre-wired factory plug connected with just a snap. The 7 pin and standard flat 4 are protected with a spring loaded weather guard and mounts right to the hitch with no dangling wires. 563999



- HM40975

by:

2010 Ford F-150


This is a plug-in replacement for my 2010 Ford F-150 with factory installed trailer package. I had this exact same connector but someone unclipped it and stole it. Ford Parts wanted over $100 for a replacemnt (they included the entire rear bumper harness that I did not need). I had the cutout on the hitch that exactly matched this bracket and the blue socket that you see in the optional pigtail available for this product (see attached photo). I snapped this dual connector into my existing cutout - fit perfectly. Did not need to use the included bracket. So if your factory connector is damaged or stolen, use this as a snap-in replacement. The only difference is it says "Pollack" instead of "Ford". I called Hopkins before I bought and they said they supplied a lot of the OE parts Ford uses. 55449



- HM40975

by:

2008 Ford F-250 and F-350 Super Duty


Quality OEM fit.@ substantially lower cost then OEM. 83070


Comments

It appears there is an engineering design defect in this product - at least when installed on my 08 F250. Water from Michigan weather - i.e. rain, snow and car washes continues to find its way into the plug, corroding the contacts and causing a wiring fault. No Im NOT backing into water to unload a boat, Ive removed, cleaned and dried the inside at least three times, covered the contacts and connection points with dielectric grease and carefully sealed the unit w electric tape. Last week, I sprayed the outside of the plug w/ flexible rubber seal yes as seen on TV in my fourth attempt at stopping the water from getting into the plug. This past week, while on a 500 mile road trip we made it through torrential driving rain without experiencing any connection issues. Im keeping my fingers crossed and hoping I dont have to take the plug apart, now that its sealed in the rubber coating!

David S - 06/03/2014

4610

We hope the rubber coating takes care of the problem. If not, we've got a couple of suggestions. You mentioned dielectric grease. If you weren't already, you can be pretty liberal with the application. You can fill the socket and push the connector in and wipe the excess that squirts out. If all the voids are full of grease, there's no place for the water to go. Second, on most of these types of connectors, there is a rubber gasket on the vehicle side that usually stays in, but will sometimes pull out when you remove the cap or the previous 7-way connector. If you still have the cap or old connectory, you may want to check for the gasket.

-- Patrick B - 6/9/2014


- HM40975

by:

2016 Chevrolet Silverado 1500


I recently bought a new truck, as my other one was over twenty-two years old. On the old truck, I installed both the trailer hitch and the light hook-up. A lot has changed in the last twenty-two years. The agreement on the new truck was that it come with a trailer hitch, but I failed to include the light hook-up assembly. I thought that if you got one, you got the other! WRONG! I was informed that I would have to purchase and install the light hook-up myself. I went on line to etrailer.com and ordered the light hook-up. It was at a reasonable cost and arrived within a week of being ordered. Was a bit surprised when I opened the box and just found a plug-in type hook-up assembly. I was expecting a lot of wiring and other connectors. The installation took about a half an hour and was very easy to do. Again, a lot has changed in the past twenty-two years. I am very pleased with the part, price, ease of installation, and the change that the truck manufacturers have made in the area of tow package hook-ups. 384686



- HM40975

by:


Excellent quality. Only took 5 minutes to install. Outstanding customer service!! Ordered online on Friday and received via USPS on Monday, with emails letting me know the order was received, the item was shipped, and one that stated that the company had received information that the item had been delivered. And each one was signed by an individual. If only all companies operated this way. 93531


Comments

Works great! Nice to see that there are companies like yours that value customer service and take the time to follow up after a years time. Thank you.

Zip i - 02/20/2015

9614

- HM40975

by:

2015 GMC Sierra-1500


This was what I needed to make my new truck able to pull my two trailers. You even had a video showing how to install it on your web site, this helps a lot. Thanks for the help. 211204


Comments

Thanks for the follow up Rachael, the part is working great, dont use it very often but still needed to have one. You guys are great! Will recommend your site to others needing parts. Glad that a Company can still value there customers now a-days, does not happen as often as it use to.

Dan R - 08/05/2016

19960

- HM40975

by:

2013 Chevrolet Traverse


very easy to install. it is a rather tight fit on a Chevy traverse. Allows a factory install of aftermarket hitch by using GM harness # 25910884 ($68.00) . Harness comes with snap in wire ties that go in holes on cross frame of rear bumper. Vehicle to connector harness is located to the rear of right rear tire between outer body panel and tail light . Use flash light and look up. Cord fits E trailer Vehicle end plug 40975. Need to drill two holes in cross frame for bracket. It all snaps together very well. Also need to add 3 relays in engine fuse box. GM13502753. This is gray relay 1/2 in square and has 2750 market on top. this eliminates splicing delicate factory wiried and hassel of hot wire from battery. Bumper skirt snaps back into place and hides hitch totally on 2013 Chevy Traverse. 87284


Comments

Has worked like OEM installed product only about $400 cheaper.EXCELLENT I will do it again on my next vehicle,

Chas - 07/03/2014

5294
Comments

Chas,Where did you mount this part on your Traverse? I want to mount it to my 2010 Acadia but I cant find a good place to mount it? Can you send me a picture?I already bought the gm factory harness to install along the cross frame.

-- comment by: Rod b - 05/10/2015

11570
Comments

I installed it to the left of the receiver. trimmed some of the plastic on bumper trim that holds the removable access cover for the hitch. Y ou need to be careful not to cut away the slots that hold cover in place. The installed hitch and electrical are completely concealed.. Note there are several blogs on the Traverse owners forum. I also bought the correct tow switch,and relays that fit in the engine compartment fuse box. The ranny is already programmed at factory for tow mode. One fellow posted photos of the whole prcedure and listed all part numbers. I also ordered the tranny cooler from E-Trailer. Be sure to use a digital thermometer to be sure you hook up to correct lines. You will need to find correct fitting on internet. It will take some time to remove most of the front clip to have room to work.Incidentally I drove Traverse up on a coulpe fo 4X4 to be able to work under it., I used a floor jack to raise up hitch to align it.chas

-- comment by: Chas - 05/19/2015

11875

- HM40975

by:

2005 Chevrolet Silverado 2500


Because of my particular placement of the plug mounting bracket, I had to spot weld the bracket to my hitch. Once I did that, I let it cool a bit, that simply snapped my connector in, plugged my chevy 2500 hd wiring harness in the back and now I do not have to mess with plug adapters for my flat wired trailers. Very, very, easy installation. Additionally, this new plug solved a bunch of issures with blinking trailer lights or lights that were not working at all. Thanks for your courteous service, great price, and fast shipping. Forever a customer, tom 56598


Comments

All my comments in my review almost a year ago are still applicable today. Our winter here was terrible with all the rain, snow, and ice. My lighting circuits on my trailers and boat worked great...whereas in the past, they performed poorly in any kind of wet conditions.I always recommend to my friends who have had wiring problems with their trailers to start at the truck with a solid performing plug with appropriate adapters for the type of trailers you will be using. It will eliminate a host of problems with lights not working properly.Thanks once again for your courteous service.

tom g - 04/09/2014

3488

- HM40975

by:

2011 Jeep Grand Cherokee


This was a great addition to the hitch I bought for my 2011 Grand Cherokee. I was able to plug it right into the factory harness for a perfect fit. The only issue you may have is the trailer lights won't work until you get the computer flashed from the dealer to tell the Jeep it has a towing harness attached now. 54337


Comments

I have a 2012 Jeep Grand Cherokee that came without the tow package, but which still had the 7-way connector at the rear. This trailer connector socket attached easily to my hidden hitch, and connecting it to the Jeeps 7-way was a snap. If your trailer signals and brake lights do not work after installing this socket on the 2012 WK, youll probably have to take it to the dealer for a body control module re-flash, and itll cost you around $100.

-- comment by: Randy D - 02/19/2013

1065

Thanks for the info. We have seen some dealers so it for less even for no charge. Just depends on the dealer.

-- Patrick B - 3/21/2013


- HM40975

by:

2005 Chevrolet Tahoe


I really like this trailer plug since it converts a standard 7 Wire plug into both a 7 wire and 4 wire. It plugs directly into the factory wiring harness. it comes with everything you need to mount it (bracket and self tapping screws). It was an easy install. My 05 Chevy Tahoe had the factory 7 wire outlet bracket, I left that in place and mounted this bracket just to the left of it. I highly recommend this product. 437664



- HM40975

by:

2006 GMC Sierra


Nice and easy to do, plug and play. I tried to use the screws that came with the kit but they didn't work for me. I ended up using some bolts and nylock nuts to put it on. Yes you can fit a wrench up in that slot in the bumper('06 Sierra.) 143081



- HM40975

by:

2014 Chevrolet Silverado


Here's some snaps of my Hopkins #40975 installation. I can confirm that it's an identical replacement for the 2014 Silverado 1500 trailer-light blank insert, no bracket required. It took me 30 seconds to plug the Silverado's OEM 7-pin round connector (located inside the blank insert) into the #40975 Wiring Kit and snap it into the cutout. Then I tested the flat 4-pin outlet of the #40975 with a 5 dollar 4-pin LED tester from West Marine, and all light functions tested good. Shweet! To remove the OEM blank plug, it helps to reach behind it and pinch the two spring clips holding it in place... same with the #40975 if it needs to be removed for some reason. When I ordered the part from eTrailer, your site had a comment, "This will not fit your vehicle. See below for compatible parts," or words to that effect. Maybe take a look at that and remove the comment, as the #40975 is an exact fit for 2014 Silverado 1500, no bracket needed. Thanks, eTrailer team! 120915


Comments

Although I havent towed since installing the Hopkins Pollak wiring kit since I installed it a year ago, I have tested the 4-pin connector for proper function using a 4-pin LED tester from West Marine and it checks out okay. Recently I inspected the kit for water intrusion mentioned by one of the raters, and I found no evidence of moisture inside the dual-connector compartment. On installation, I did make liberal use of the dielectric grease that accompanies the kit. Good product, easy installation, and great price.

Ron P - 03/19/2015

10141

- HM40975

by:

2013 Toyota Tundra


I bought this as a replacement for the existing trailer connector on my 2013 Tundra. The mount was different than what I had (mine wasn't angled) but I was able to snap the wiring connector into the existing mount so I didn't have to change anything or drill holes. Installation took less than 5 minutes. Wiring harness on backside connected perfectly. Excellent value considering Toyota would only sell me an entire wiring assembly which was over $200 (if I recall correctly). eTrailer ordering, shipping and follow up from customer service confirming delivery of the part couldn't be beat! 194541


Comments

Still working great!

Ryan - 06/17/2016

18694

- HM40975

by:


Great product. Very easy to install. The hardest part of the installation was unplugging the factory harness from the factory connector socket due to the grime build up. A cordless impact driver makes installing the self tapping screws a breeze. The entire installation took approximately 10 min. 82146



- HM40975

by:

2017 Chevrolet Silverado


I just purchased a new 2017 Chevy Silverado 1500 4.3 L V6, 8ft bed, base model truck, with no options. The truck is rated to tow a 5900 lbs trailer with a CGVW limit of 11000 lbs. I will be towing a Lance 1985 travel trailer, that weighs in around 4500 lbs wet. With excellent reviews and outstanding installation videos from etrailer.com, I ordered the Curt C14006 class IV hitch; the Tekonsha proportional Prodigy P3 brake controller; the Tekonsha plug-in wiring adapter specified for my truck; Cipa custom slip-on towing mirrors; and the 7- and 4-Pole Trailer Connector Socket w/ Mounting Bracket - HM40975 specified for my truck. All new Chevy Silverado 1500's (even the base model with no options) comes from the factory pre-wired with a basic seven wire trailer towing harness already installed. Everything electric just plugged in without a single cut or splice of the wiring or any other wiring modifications. I just followed the instructions in the excellent installation videos on the etrailer.com website. The hitch installed quickly and lined up perfectly with factory bolt holes already on the truck frame, no drilling required. Finally I slipped on the Cipa custom towing mirrors and I was ready to tow after about two hours work. If I would have ordered my truck with a factory tow package, integrated brake controller, and extendable towing mirrors, the options would have run me slightly over $1450 on a new Chevy truck. Instead, I spent two hours of my own time doing the installations and paid about $550 for all the parts by ordering by from etrailer.com. Nice savings. You need to have a good set of socket and open end wrenches, including a torque wrench adjustable to a minimum of 110 ft/lbs for the hitch bolts. Spend some time and review all the installation videos for the parts that you need to order. The etrailer.com website also has downloadable installation instructions provided by the parts manufacturers. 477372



- HM40975

by:

2016 GMC Sierra 1500


Shipping was on point, no hassle from picking the correct part to adding in cart to check out all the way to actually receiving my product. Once I got it the installation it took like 2 minutes literally. The only issue I have is that the support Brackett is a "L" shape bracket and the 2016 GMC Sierra's don't have anywhere to actually bolt it into, however, the manufactures flat Brackett works all the same just connected the 7way port into the harness of truck then pushed locked it into the bumper. All in all was done in under 2minutes. Very please thus far 295995



- HM40975

by:

2012 Chevrolet Traverse


I just received my package from Etrailer.com and it was nice to open the box and have the right part/part I ordered arrive. Opened up the box staged my parts and started the install. It was very easy with the instructions that were sent and the video on their site that anyone can do this install with no issues. Hitch was on in no less than 15 mins from opening of the box to final torquing of the bolts. The customer service at this company is top notch. I have never had anyone from a company email me before after ordering from them like I did with this company and in business today you are seeing less and less of this type of customer care and service. AWESOME job Guys and Gals I will buy all my accessories from here. 90754



- HM40975

by:

2008 Ford F-250 and F-350 Super Duty


So the new bracket is a little different than the old one as you can see in the pictures I’ve got it mounted the way it is. For the time being. But I’m gonna have to make another bracket to get it up and back so it doesn’t stick down so low. I checked your website and didn’t see a bracket like this. 494917



- HM40975

by:

2015 Toyota Tundra


My adapter arrived last night. Took about 45 seconds to install on my 2015 Toyota Tundra Double Cab SR5, 4.6L 2WD . Fit perfectly to the already existing wiring in the bumper and snapped right into the hole. It's not listed as OEM for the Tundra, but sure fits like OEM. When I called the dealer to inquire about the part, I was quoted $279 and the parts guy couldn't guarantee the fit--comical. I haven't checked it with a test light yet, but it fit so well, that I cannot imagine it not working properly. ETrailer's customer service is perfect. Thanks guys! 198443


Comments

Not a single issue with plug adapter. Ive pulled many, many times this year and I love that I can hook up both of the most standard type plugs. Thanks, ETrailer!

Joey C - 06/16/2016

18634
67
1165
Show More Reviews

Ask the Experts about this Hopkins Custom Fit Vehicle Wiring
Do you have a question about this Custom Fit Vehicle Wiring?


  • Troubleshooting Electric Trailer Brake System on Trailer Towed by Chevy 2500 Series Truck
  • Discovering why the trailer brakes are not getting power will be a process of elimination. I am not aware of what you have and have not checked, so I will describe the whole troubleshoot process. Start with the brake controller itself. Is it properly adjusted and leveled (if necessary) according to the instructions? Is it getting power? To determine if the controller is receiving power, you can use a circuit tester like part # 40376 on the black wire that feeds the controller to ensure...
    view full answer...

  • Is the OEM Trailer Wiring Pattern the Same for Dodge Ford and GM vehicles
  • The OEM wiring configuration of all Chevrolet, Dodge and Ford vehicles, as well as Nissan and Toyota, is the same, and is identical to the pattern shown in the photo I have attached. This is all based on wiring that has not been changed from the original configuration by the owner of the vehicle. Many times we see vehicles come in with the wiring on the vehicle changed because the person has a trailer that is wired incorrectly. Instead of changing the trailer wiring to match the industry...
    view full answer...

  • Brake Controller Installation-2014 Chevy Silveardo
  • When used in conjunction with the # 3016 brake controller wiring adapter, the # 39523 brake controller would be plug and play. The controller wiring adapter would plug into the connector located in the convenience panel located behind the emergency brake pedal as shown in the provided photos. If your Silverado was not equipped with the factory 7-way, you can install the # HM40975 which would plug into the harness at the rear bumper. If you click the provided links, you can see some install...
    view full answer...

  • Wiring For 7-Way Connector on 2004 Chevrolet Silverado 2500
  • On your 2004 Chevrolet Silverado 2500 the factory wires should be light green, dark green, blue, yellow, red, brown, and black. The functions of those wires should be as follows: light green - reverse lights dark green - right turn/brake blue - electric trailer brakes yellow - left turn/brake red - 12 volt power brown - running lights black - ground I would also recommend to test the functions of your wires with a circuit tester, part # 40376, to verify the function of the...
    view full answer...

  • Tow Package Fuse Locations on a 2006 Chevy Silverado
  • From what I was able to find there are several fuses associated with the tow package wiring on a 2006 Chevy Silverado. In the instrument panel on the side of the dash you should see RT TRLR ST/TRN for trailer right turn and brake signal and LT TRLR ST/TRN for trailer left turn and brake lights. In the center panel in the truck cab there is only one fuse and it is for brake controller power. Under the hood there is a fuse that goes with stud # 2 for accessory power/trailer brakes,...
    view full answer...

  • Installing a 7-Way Trailer Connector on a 2000 Chevy Suburban
  • If your Suburban has a round connector to plug in a 7-Way, you could just use # 30955, which is a replacement 7 and 4-Way connector. On some models of the 2000 Chevy trucks and SUVs, there may not have been a tow package wiring plug located above the spare tire. Instead, there could be a bundle of wires. In the bundle of wires, look for the following colors: Yellow = left turn and brake light Dark Green = right turn and brake light Brown = tail lights White = ground Light Blue =...
    view full answer...

  • How to Install 4-Way Trailer Connector on 1999 Chevrolet Silverado 1500 with Factory Tow Package
  • The Tow Ready T-One Wiring Harness, part # 118315, is for the 1988 to 2000 Chevrolet C/K Series trucks. It is not for the 1999 Chevrolet Silverado 1500. The 1999 Chevrolet Silverado 1500 would use either the Tow Ready Wiring Harness, part # 118384, which is used if you have a harness that is located under the vehicle, behind the bumper, on the driver’s side of the vehicle. The wiring harness # 118384, is meant to plug in line with the factory wiring and provide a 4-Way flat connection....
    view full answer...

  • 7-Way Wiring Configuration for Slide-In Truck Camper
  • Your slide-in truck camper does not have electric brakes so the blue brake circuit wire from its 7-way connector is not used. All other lighting functions as well as 12V auxiliary power will be maintained on the other circuits. Please refer to the linked photo for the standard wiring/function configuration for RV-style 7-way connectors.
    view full answer...

  • Parts Needed to Install 7-Way on 2016 Ford F-150 with 4-Way
  • For your 2016 Ford F-150 if your trailer does not have brakes all you would need is the part # 37185 as an adapter to convert the 4-way to a 7-way. If you do have trailer brakes you would need the # 37185 and the install harness part # 22292. If you check out the install video I attached you will see how the connections would be made. For a brake controller I would recommend the Prodigy P2 Brake Controller part # 90885. This is our best selling brake controller because of how well...
    view full answer...

  • Removing Cover of Fuse Box on 2003 Chevy Silverado HD to Activate Trailer Charging System
  • The fuse box in your 2003 Chevrolet Silverado HD is located on the driver-side engine compartment. Opening it will require removal of a support bracket in the corner closest to the driver. The fuse box is just forward of this bracket. With the bracket removed the top cover of the Accessory Fuse Block can be snapped off. Next you will remove the lower cover to reveal the auxiliary positive power posts. Please refer to the linked article on brake controller installation which provides detailed...
    view full answer...

  • Location of Trailer Wiring Conections on a 2005 Dodge Durango Without Factory Hitch
  • If your 2005 Dodge Durango was wired for the factory wiring harness you will be able to use the Multi-Plug T-One Connector Assembly for 7-Way & 4 Pole Trailer Connector, item # 20135, to install a 7-Way and 4-Way connector at the rear of the vehicle. You will find the connector at the rear of the vehicle near the drivers side frame rail above the spare tire. If you do not have the factory installed tow package wiring you will need to use the Tow Ready Custom Fit Vehicle Wiring for the...
    view full answer...

  • Location of Factory Connector for Trailer Wiring on 2006 Chevy Silverado 1500
  • Your truck should have a round connector located above the spare tire for the adapter (part # 118384) to plug into. To locate the connector, you might have to lower the spare tire. The connector is usually zip tied to the rearmost cross member. The connector might have a protective cover over the end of it to keep road debris out of it. Certain models might not have the plug, but the wiring harness should still be there. If this is the case with your vehicle, cut the plug off the end...
    view full answer...

  • How to Activate the Factory Trailer Towing Package on a 2000 Chevy Silverado
  • The wiring will already be run on your 2000 Chevy Silverado. There will be 1 of 2 wiring situations on your truck. The wiring for the 7-Way will be located above the spare tire. If it is just bare wires with no plug, you will need to hard wire one in. The harness we have for this wiring situation is Pollak 7-Pole, RV-Style Trailer Connector Socket w/ Wiring Harness and Mounting Bracket, # PK11898. If your truck has a plug, then you will need to use a connector like the Replacement Multi-Tow...
    view full answer...

  • Troubleshooting Trailer Lights Not Working and No Power at the 7-Way on a 2000 GMC Yukon
  • There could be a couple of causes leading to the lighting malfunction you are experiencing. The first things I would check are the ground connections on the vehicle side 7-Way, trailer side connector, and the grounds for the lights on the trailer. On most trailers, the lights ground through the mounting studs. Make sure that at each ground location, there is no dirt or corrosion. A bad ground connection is one of the leading causes of lighting malfunctions. You can also probe the wires...
    view full answer...

  • How to Install 7-Way Trailer Connector on 1999 Chevy Silverado 2500
  • Because vehicle wire color coding can vary, even within the same model year, we always recommend wiring by function, not by wire color. At the vehicle assembly plant, if they run out of a particular color of wire, they will not shut down the assembly line and obtain more, they will simply substitute a different wire color. We offer an inexpensive circuit tester, part # 40376, or you can pick one up at a local auto parts store. Generally speaking, blue is usually output to trailer brakes,...
    view full answer...

  • Installing Used Kelsey Energize Brake Controller in 2010 Chevrolet Silverado with Factory Harness
  • Please take a look at the linked article, which specifically addresses the process of installing an aftermarket electric brake controller in a Chevrolet Silverado that is equipped with a pre-wired harness. The wires from the GM harness connect to the brake controller wires as follows: Red/Black wire connects to Black wire (battery power) White wire connects to White wire (ground) LightBlue/White wire connects to Red wire (brake light signal) Dark Blue wire connects to Blue wire (brake...
    view full answer...

  • How to Wire a 7-Way Trailer Connector to a 2005 Chevy Silverado
  • It sounds like you have found the bundle under the rear of your 2005 Chevy Silverado that would be used for wiring up a 7-way. In the bundle of wires, look for the following colors: Yellow = left turn and brake light Dark Green = right turn and brake light Brown = tail lights White = ground Light Blue = not used (camper shell light) Light Green = reverse lights The definitive way to determine the wire functions is to use a circuit tester, # PTW2993, and test each wire while...
    view full answer...


Do you have a question about this Custom Fit Vehicle Wiring?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality custom fit vehicle wiring for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate custom fit vehicle wiring information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Test Fit:
Joe V
Photos by:
Theodore B
Expert Research:
Michael L
Video Edited:
Zack K
Expert Research:
Sarah L
Video by:
Andrew K
Written by:
Tyler C
Expert Research:
Robert G
Expert Research:
Patrick B
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Reno H
Expert Research:
Jameson C
Video Edited:
Joshua S
Test Fit:
Nicholas E
Video Edited:
Jacob T
Expert Research:
John H
Updated by:
Adele M
Video Edited:
Andrew L
Expert Research:
Adam R
Video Edited:
Kathleen M
Video Edited:
Dustin K
Photos by:
Jim W
Installed by:
Cole B
Test Fit:
Shane T
Expert Research:
Lori W
Expert Research:
Jeffrey L
Video by:
Alan C
Test Fit:
Randy B
Video Edited:
Chris R
Test Fit:
Joe B
Updated by:
Sarah W
Video by:
Zach D
Test Fit:
Andrew S
Test Fit:
Brent H
Test Fit:
Shane H
Video by:
Jonathan Y
Test Fit:
Robert C

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.



Product Experts Available Now!

Call 800-298-8924


^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
