Twist-in, 7-Pole, RV-Style Trailer Connector for Chevy and GMC Vehicles - Vehicle End

Twist-in, 7-Pole, RV-Style Trailer Connector for Chevy and GMC Vehicles - Vehicle End

Item # PK11916

lowest price pledge

Retail:$25.16

Our Price: $16.95

You Save: 33%
Custom Fit Vehicle Wiring

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Orders above $99 qualify for Free Shipping

Shipping Weight: 0.22 lbs

Quantity:
In Stock, Ships Today
PK11916 - Custom Fit Pollak Trailer Hitch Wiring
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

  • Custom Fit
  • Trailer Hitch Wiring
  • Pollak
  • 7 Blade
  • No Converter
This socket is designed to fit into a pre-existing cutout on 2007-2013 GM 1500 trucks and 2007-2014 GM 2500/3500 trucks. Twist-in connector also serves as a replacement for OEM sockets on GM trucks 1999-newer that came with factory tow packages. Call 800-298-8924 to order Pollak custom fit vehicle wiring part number PK11916 or order online at etrailer.com. Free expert support on all Pollak products. Guaranteed Lowest Price and Fastest Shipping for Twist-in, 7-Pole, RV-Style Trailer Connector for Chevy and GMC Vehicles - Vehicle End. Custom Fit Vehicle Wiring reviews from real customers.


  • All Info
  • Reviews (488)
  • Q & A (198)
  • Videos (13)
  • Photos
  • Why etrailer?

Pollak Custom Fit Vehicle Wiring - PK11916

This socket is designed to fit into a pre-existing cutout on 2007-2013 GM 1500 trucks and 2007-2014 GM 2500/3500 trucks. Twist-in connector also serves as a replacement for OEM sockets on GM trucks 1999-newer that came with factory tow packages.


Features:

  • Twist-in, replacement 7-pole, sealed socket, RV-style trailer connector
    • Convenient, twist-in installation to existing socket hole on Chevy and GMC trucks
  • High-impact nylon construction
    • Resists corrosion
  • Spring-loaded lid with stainless steel spring and runner gasket
    • Prevents intrusion of moisture when closed
    • Has drain slot and angled design for drainage
    • Includes wiring diagram for quick installation
  • Copper-plated terminal pins
    • High conductivity and low resistance
    • Sealed with silicone at the back of the socket
      • Prevents moisture from contacting mating connector


Specs:

  • Application: fits 2007 - 2013 Chevrolet/GMC 1500 trucks and 2007 - 2014 Chevrolet/GMC 2500/3500 trucks
    • Serves as exact replacement for 1999 to current Chevy and GMC trucks with factory tow packages
  • Current rating: 30 amps
  • Volt rating: 12 volts
  • 1-Year limited warranty


twist-in socket location



11-916 Twist-in, 7-Way, RV-style Trailer Connector for Chevy and GMC Vehicles - Vehicle End
Replaces 20047





This Product Fits The Following Vehicles

2008 - 2013 GMC Sierra 1500

2007 - 2007 GMC Sierra New Body 1500

2008 - 2013 Chevrolet Silverado 1500

2007 - 2007 Chevrolet Silverado New Body 1500

2008 - 2012 GMC Sierra 1500 with 10 inch Deep Drop Bumper

2007 - 2007 GMC Sierra New Body 1500 with 10 inch Deep Drop Bumper

2008 - 2012 Chevrolet Silverado 1500 with 10 inch Deep Drop Bumper

2007 - 2007 Chevrolet Silverado New Body 1500 with 10 inch Deep Drop Bumper

2008 - 2010 GMC Sierra 2500 - 6-1/2 Foot Bed

2007 - 2007 GMC Sierra New Body 2500 - 6-1/2 Foot Bed

2008 - 2010 Chevrolet Silverado 2500 - 6-1/2 Foot Bed

2007 - 2007 Chevrolet Silverado New Body 2500 - 6-1/2 Foot Bed

2008 - 2010 GMC Sierra 2500 - 8 Foot Bed

2007 - 2007 GMC Sierra New Body 2500 - 8 Foot Bed

2008 - 2010 Chevrolet Silverado 2500 - 8 Foot Bed

2007 - 2007 Chevrolet Silverado New Body 2500 - 8 Foot Bed

2008 - 2010 GMC Sierra 2500 - 8 Foot Bed with 10 inch Deep Drop Bumper

2007 - 2007 GMC Sierra New Body 2500 - 8 Foot Bed with 10 inch Deep Drop Bumper

2008 - 2010 Chevrolet Silverado 2500 - 8 Foot Bed with 10 inch Deep Drop Bumper

2007 - 2007 Chevrolet Silverado New Body 2500 - 8 Foot Bed with 10 inch Deep Drop Bumper

2011 - 2013 GMC Sierra 2500 and 3500 - 6-1/2 Foot Bed

2011 - 2013 Chevrolet Silverado 2500 and 3500 - 6-1/2 Foot Bed

2011 - 2013 GMC Sierra 2500 and 3500 - 8 Foot Bed

2011 - 2013 Chevrolet Silverado 2500 and 3500 - 8 Foot Bed

2008 - 2013 GMC Sierra 3500 - Cab and Chassis

2007 - 2007 GMC Sierra New Body 3500 - Cab and Chassis

2008 - 2013 Chevrolet Silverado 3500 - Cab and Chassis

2007 - 2007 Chevrolet Silverado New Body 3500 - Cab and Chassis

2008 - 2010 GMC Sierra 3500 - Pickup

2007 - 2007 GMC Sierra New Body 3500 - Pickup

See All Vehicle Fits

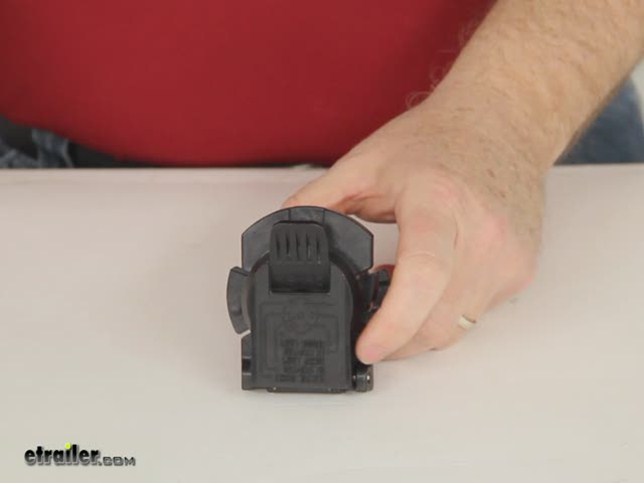

Video of Twist-in, 7-Pole, RV-Style Trailer Connector for Chevy and GMC Vehicles - Vehicle End


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pollak Custom Fit Vehicle Wiring - Trailer Hitch Wiring - PK11916 Review

Today were going to review part number PK11916. This is the twist-in seven pole RV style trailer connector for Chevy and GMC vehicles. This socket is designed to fit into a pre-existing cutout on your GM truck models 2007 and newer. This twist-in connector also serves as a replacement for OEM sockets on GM trucks 99 and newer that came with the factory tow packages. Basically, the way this would insert is on your truck on the bumper usually, there is a cap thats in the hole that this would go into. If you just take that cap, twist it and pull it out, then the hole would be exposed.

You would take this and these tabs right here, you would just line it up, put it in, twist it into position. That would lock this onto your rear bumper. This socket is made of a high-impact nylon construction which will resist corrosion, has a spring loaded lid as you can see here with a stainless steel pin, and has a runner gasket on the inside. That lid will help prevent intrusion of moisture when closed. If you do get any moisture on the inside, at the very bottom here, there is a drain slot which is angle designed for drainage.

So, basically, when this is installed on the bumper, this will actually angle towards the cap here which if any moisture does get inside it will go down that drain slot and drain out. This part does include the wiring diagram for quick installation, does have the copper-plated terminal pins you can see here which will give you high conductivity and low resistance, and at the very back you might be able to see its sealed with a silicone at the back of the socket and this will prevent moisture from contacting your mating connector. So, basically, when you install this you remove that cap off your bumper, put this in, lock it into place, take your harness that is on your truck and plug it into the back here. You have a working seven way on your truck. The application again is all Chevrolet and GMC trucks 2007 and newer and it will serve as an exact replacement for 99 to current Chevy and GMC trucks with the factory tow packages.

The current rating on this is 30 amps. The volt rating is 12 volts and it does come with a one year limited warranty. And, that should do it for review on part number PK11916. .


Customer Reviews

Twist-in, 7-Pole, RV-Style Trailer Connector for Chevy and GMC Vehicles - Vehicle End - PK11916

Average Customer Rating:  4.9 out of 5 stars   (488 Customer Reviews)

This socket is designed to fit into a pre-existing cutout on 2007-2013 GM 1500 trucks and 2007-2014 GM 2500/3500 trucks. Twist-in connector also serves as a replacement for OEM sockets on GM trucks 1999-newer that came with factory tow packages.

- PK11916

by:

2008 Chevrolet Silverado


Perfect fit for my 2008 Silverado. Identical to the adapter used in my wife's 2007 Suburban, except hers says "GM" and mine says "Pollack." This is all assuming it works, I haven't hooked a trailer up to it yet. 11806



- PK11916

by:

2010 Chevrolet Silverado


Perfect fit for a 2010 Silverado 2500HD. Time saving tip: It's not necessary to disconnect the molex plug from the old connector before twisting it out like it shows on the video. Just twist out the old one and the cable bundle will come through the hole in the bumper. From there you can disconnect the plug and plug in the new connector. It will save you two trips under the truck! 194832



- PK11916

by:

2009 Chevrolet Silverado


Part arrived on time and is exactly as described. I have a 2009 Silverado WT that did not have the factory connector installed , but was factory wired to the blank in the rear bumper. The PK11916 connector plugged into the factory harness and snapped into the factory hole in the bumper with no problems. Very easy to install! 214750



- PK11916

by:

2012 Chevrolet Silverado


Looks like OEM and took all of a minute or two to install. The video was very helpful to show how to remove plate on back of rear bumper. The wiring harness on my 2012 Silverado wasn place so it was only a matter of removing plate and plugging in. A seven point adapter then plugs into this and the trailer plug just pushes onto the adapter. I tried both a seven point adapter that I kept from my 2005 Silverado and also a seven point adapter that my brother has on a 2011 Honda Pilot and they are all universal and worked just fine.. Very user friendly.The tow hitch took about 45 minutes to also install with no help (though a second person could make it a 30 minute ordeal tops). Very pleased and the shipping was ahead of original date with just normal ground freight.. 47314



- PK11916

by:


REPLACED OEM PART PERFECTLY. TWISTED OUT THE OLD ONE AND REPLACED IT WITH THE NEW ONE, PLUGGED IN THE HARNESS AND WAS GOOD TO GO. 214066


Comments

They are all still performing well.

WALLY - 08/05/2016

20014

- PK11916

by:


Part was at my house a day early. Plugged in and away we go. Will use e-trailer for all my future needs and have told all my friends about it also. 194875


Comments

This thing works great!!! Not one problem!!

Paul M - 05/26/2016

17856

- PK11916

by:

Chevrolet


This little marvel was a piece o' cake to install. Less than 10 minutes from taking it out of the box to installing in the bumper of my Chevy and wiping my hands on my pants. If my nosy and talkative neighbor wouldn't have been staring over my shoulder, it would have been installed in under 5 minutes. 127695


Comments

Working fine.

Mike B - 04/29/2015

11224
Comments

No issues to report, the unit is working fine.

Mike B - 05/05/2015

11403

- PK11916

by:


After spending a little time online figuring out how this connector attaches to the factory hitch (push the tab, twist about 1/4 turn, pull out far enough to reach wiring harness connector), I ordered one from etrailer. When I got it, it took me all of 5 minutes to remove the broken connector and install the new one. Upon examining the OEM connector, which says "GM" on the lid's outside, it says "Pollak" on the inside, so the OEM part was built by this aftermarket company. No wonder it fit so well! BTW, the original broke because of cockpit error, not because of manufacturing defect. 128958



- PK11916

by:


Looks to be good quality. Easy to install. Remove the old connector by depressing the keeper, turning it counter clock wise about a quarter turn, slide it out, depress the keeper on the wiring harness connector and unpluging the unit. Install the new connector by pluging in the wiring harness connector, sliding the unit through the bumper hole and turning it about a quarter turn clock wise to lock it in place. It took less time than writing this. 89755


Comments

After a year, I still believe this product is well made of high quallity products. It is operating well as I expected it would. Thank you for building and selling this product.

Leon - 07/17/2014

5729

- PK11916

by:


worked great, 570189



- PK11916

by:


Awesome plug and play! Twist left pullout and unplug cap, plug in twist right and your in business! 566486



- PK11916

by:


Very easy to install.works great. I'm very pleased with it. Great price too 565575



- PK11916

by:

2009 Chevrolet Silverado


Your product is exactly what i needed it works great i would recommend etrailer for your needs 560315



- PK11916

by:


After 18 years, my original trailer plug connector was showing signs of corrosion. When I bought a travel trailer with electric brakes, I knew I could no longer trust my old connector. I purchased this replacement because it is identical to the OEM connector which I knew was excellent quality, not a cheap knock-off. It was simple to install and the wire connector plugged right in. I've been using it extensively for a year now and it's been working flawlessly. I'm glad I purchased this quality connector that I can trust. 558817



- PK11916

by:

2012 GMC Sierra


Quick delivery, nice product, easy inst allation. 550804



- PK11916

by:

2001 Chevrolet Silverado


The RV electrical socket was exactly the same as the original one on my pickup. Due to the design, it was a snap to change. The service of etrailer was great. 549871



- PK11916

by:

2001 GMC Sierra


Hardest part was removing the old one. As the old one was hit I had to make sure the old tabs on the truck were completely flat, then the new one went right in. 548480



- PK11916

by:

2004 Chevrolet Silverado


Great products and fast shipping. 544741



- PK11916

by:

2010 GMC Sierra


Perfect fit, 5 min install. Still working after a year! 544388



- PK11916

by:


My stock plug was corroded. New one arrived, fit perfectly, easy to install and my trailer has lights again. Time to go fishing. 542434



- PK11916

by:


THIS REPLACED FACTORY TRAILER PLUG PERF ECTLY 603520



- PK11916

by:

2013 Honda Pilot


Fast delivery and the part fixed my problem. When I look for products I start here. 585515



- PK11916

by:

2009 Chevrolet Silverado


It fits perfectly. Can't wait to try it out. The only problem I had was not etrailer's fault. UPS sent it to the wrong city, so it was late. The really great part is price. Chevy wants $60,this was $ 10. 581626



- PK11916

by:

2011 Chevrolet Silverado


Great service. fast delivery. and it was exactly what I needed. 581322



- PK11916

by:

2008 Chevrolet Silverado


Direct replacement for the 08 Silverado trailer connector in the factory bumper that was well used. Connector was EZ to replace as it used the factory harness. Plug and play. 576937



- PK11916

by:


Super fast shipping, great fit. 528728



- PK11916

by:


Fit and worked awesome 523621



- PK11916

by:

2008 Chevrolet Silverado


it fit exactly like you said it would as far as using haven't had the chance yet,but i will buy from you again thanks,,,,, 497041



- PK11916

by:

2007 Chevrolet Silverado Classic


etrailer is my go to source for any type of device for my trailers. I am a General Contractor with a fleet of trucks and trailers. I find their website very easy to use, with a large selection of parts and the layout is very helpful. Their service is fantastic, shipping is fast and easy and I have never had to return a part for any reason. I plan on using them again. 494256



- PK11916

by:


Was quick and fast shipping.. I received first one was damaged and which happened during shipping and it happens but they had a replacement out no questions asked right away within two days!! Works perfect and fits nice.. Great value and product and customer service is exceptional.. Will be buying more parts as needed from etrailer. 487041



- PK11916

by:


Was quick and fast shipping.. I received first one was damaged and which happened during shipping and it happens but they had a replacement out no questions asked right away within two days!! Works perfect and fits nice.. Great value and product and customer service is exceptional.. Will be buying more parts as needed from etrailer. 487108



- PK11916

by:


The trailer connector item# PK11916 was an exact replacement for a proprietary connector that would have cost three to four times more from the dealer. The device is good quality and easy to install. Very pleased. 483988



- PK11916

by:


product is excellent! 481632



- PK11916

by:


This is and easy install adapter with great quality ! 479097



- PK11916

by:


Looks just like the OEM part. 477943



- PK11916

by:

2003 GMC Sierra


Makes a simple pull replacement a 5 minute task instead of a 3 hour job 476961



- PK11916

by:


Yes it works great we are very happy with your product 474629



- PK11916

by:

2005 Chevrolet Silverado


Replaced my old plug when I installed a plug in the truck bed. Fit perfectly. 474550



- PK11916

by:


Good product. Still working fine 465585



- PK11916

by:


Still working as you would expect for a trailer plug 459379



- PK11916

by:


This is a great product. Exactly the same replacement part as my original. Very easy to install. The product and website are put together very well and it's always nice when you're contacted by the company to get feedback on the product. The shipping could have been a little faster but other than that I am very pleased. I would recommend etrailer.com to all my friends. Best regards Very satisfied customer 458964



- PK11916

by:

2013 Chevrolet Tahoe


My problem isn't with this product so much, but when I ordered it with part # pk11998 someone should have red flaged that useing these two together will give a non normal color coded traile plug. What a pain. 452066



- PK11916

by:

2007 Chevrolet Suburban


Quick shipping, product fit well. etrailer has good products. 451158


Comments

Product worked great

Arthur - 11/13/2018

45697

- PK11916

by:


I pull my trailer a lot and it still works great 450286


Comments

Everything is working fine. Thank you,

William - 11/13/2018

45687

- PK11916

by:


Product was great price was right shipping just a little slow but overall I give it a great review Thanks again for your honesty 428810



- PK11916

by:

2008 Chevrolet Silverado


It's plug 'n play! Worked great out of the box on my Silverado! 423899



- PK11916

by:


Part fit exactly!!! 418519



- PK11916

by:

2003 GMC Sierra


I had to replace the OEM unit on my 2003 Sierra after smashing it by accident (I can't have nice things). After I beat on the bracket with a hammer for about 20 minutes, I was able to get the replacement mounted and plugged in. It works just like the old one. 410917



- PK11916

by:

2011 Chevrolet Silverado


Great replacement. 405961



- PK11916

by:

2011 Chevrolet Silverado


Product worked great. Plug and play. 402509


52
491
Show More Reviews

Ask the Experts about this Pollak Custom Fit Vehicle Wiring
Do you have a question about this Custom Fit Vehicle Wiring?


  • Which Fuses Control Trailer Lighting Circuits on 2003 Ford F350
  • Like you said, it sounds like you have a tow package fuse that is either blown or missing. The fuses are located in the power distribution box under the hood or in a secondary, smaller box located on the firewall. Your owners manual or the lid of the fuse box should feature a diagram showing which fuses protect which circuits. From what I have found online, check fuse location # 1,3,4 and 16, making sure the fuses in those locations are present and not blown. If the plug was faulty,...
    view full answer...

  • Location of Fuses In Power Distribution Box To Install Brake Controller on 2008 Chevrolet Silverado
  • Sometimes the fuses are already installed from the factory, but if not the fuse slots are in the front of the box. I have attached a picture that shows the location of fuse slots. I have also linked a video installation of a brake controller on a 2008 GMC Sierra and an FAQ on brake controller installation on a 2008 Sierra/Silverado.
    view full answer...

  • Fuse Location For Trailer Wiring On 2009 Chevrolet Silverado Duramax
  • You should be able to find a fuse that is labeled for trailer wiring either in your owner's manual or on the inside of the fuse holder lid. From my research I found a few references to the fuses for a trailer. Check out Fuse # 1, It is a 40amp fuse and should be marked for trailer wiring. Numbers 9 and 10 are listed as trailer turn fuses and are 10amps. You can also check fuse # 14 which is the vehicle stop light. And if needed check out fuse # 19 that is listed as trailer backup. I...
    view full answer...

  • Maximum Towing Capacity for 2009 Chevrolet Silverado
  • I checked the owner's manual for your 2009 Chevrolet Silverado 1500 and the gross combined weight rating (GCWR) of your vehicle is 13,000 lbs. The best way to determine your towing capacity is to load your truck with all the people and cargo that you plan to carry when leaving on a trip and then weigh the truck. You will subtract this weight from the GCWR. This number will be the true maximum towing capacity of your Silverado. I typically don't recommend towing at your maximum capacity,...
    view full answer...

  • Removing the 7-Way Trailer Wiring Plug from the Housing, 2010 Chevy Silverado with Factory 7-Way
  • From what I understand of the 2010 Chevy Silverado, you first will need to release the connector and housing from the bumper. Pull it out, wiring and all, just enough that you have a little room to work. The housing should then just be able to be pulled away from the plug. There may be a little tab or lever on the top that you will need to hold down when pulling the housing away from the plug, like in the video linked below on a 2009 model. Make sure that you do not pull on the wires themselves...
    view full answer...

  • Troubleshooting No Power in Trailer Connector PK11916 on a 2008 Chevy Silverado 2500
  • On your 2008 Chevy Silverado 2500, there could be several issues causing the plug to not have power. First, I included two pictures for reference below. In the first one, you will see the fuse box opened with a red wire going to the silver stud. This is the power that goes to a brake controller. If you look at the red wire that is below the white master cylinder in the picture, that is the wire you need for the connector to have power. It connects to the black stud. There is another...
    view full answer...

  • 2008 Chevrolet Silverado 2500 12 Volt Trailer Towing Wire Connection Instructions
  • Your 2008 Chevrolet Silverado is set up from the factory with trailer tow wiring, so I agree that wiring power wires from the battery is not the way that things should be done in your case. On the 2008 Chevrolet Silverado there are two wires under the hood that need to be connected to have power to the 7-Way trailer connector at the back of the vehicle and the brake controller wiring under the dash, see photo at right. These wires are connected to the two studs at the power distribution...
    view full answer...

  • No 12 Volt Power At 7-Way on 2008 Chevrolet Silverado To Charge Trailer Breakaway Battery
  • On a factory 7-Way connector the 12 volt hot wire should be the terminal at the 1 oclock position, looking at the front of the connector. If you test that terminal with a circuit tester and have no power you will want to check under the hood of your 2008 Chevrolet Silverado. You will want to locate the power distribution box on the drivers side of the engine bay. Remove the cover on the distribution box. There will be two post terminals at the front of the box. The right post terminal...
    view full answer...

  • Troubleshooting Trailer Brakes not Working on a 2008 Chevy Integrated Brake Controller
  • The first thing I would test is the brake circuit on the 7-way at the rear of your 2008 Chevy truck. You will want to use a circuit tester like our part # 3808 to test the brake output circuit for voltage when the brake is applied. This will tell you if the problem is on the trailer or the truck. If there is voltage at the 7-way then you know the problem is in the trailer wiring. If there is not voltage then you know the problem lies somewhere in the tow vehicle. You could also try...
    view full answer...

  • Installing a Brake Controller on a 2006 Chevy Silverado 1500 with Tow Package, Is it Pre Wired
  • As long as your 2006 Chevrolet Silverado 1500, has the factory 7-Way tow package wiring at the rear of the vehicle all you will need is the Draw-Tite Brake Controller with Wiring for the 2006 Chevrolet Silverado, item # 5100-3015-P, which includes the # 5100 brake controller and the # 3015-P wiring harness needed to install the brake controller on your truck. The # 3015-P adapter will plug into a port in the power distribution box under the dash on your truck. If you do not have a factory...
    view full answer...

  • How To Connect Auxillary Power On 2008 Chevrolet Silverado 2500 To Charge Trailer Breakaway Battery
  • If the 12 volt power pin (#4 pin at 1:00 position) on the 7-way connector on your 2008 Chevrolet Silverado 2500 is being used for a trailer battery you can use the center pin on the 7-way as an auxiliary power source. You can wire the center pole of your 7-way as an auxiliary power connection by running a 10 gauge wire, part # 10-1-1, to the positive post of the vehicles battery through a 40 amp circuit breaker, part # PK54540. If you wire your auxiliary power this way you will want to...
    view full answer...

  • Location of Brake Controller Port on a 2003 Chevrolet Silverado 2500 HD
  • If your 2003 Chevrolet Silverado 2500 HD has the factory installed hitch and a 7-Way connector, then all of the wires for the brake controller have been run. The factory brake controller port is located in the black box underneath the dash on the drivers side, to the left of the brake pedal. Usually a brake control adapter will be included in the junction box. If an adapter is not in the junction box you can use the Draw-Tite Universal Brake Control Wiring Adapter, part # 3015-S, for...
    view full answer...

  • Replacement 7-Way Trailer Plug Needed for a 2007 Chevrolet Silverado Pickup
  • If you have the 2007 Chevrolet Pickup, Silverado New Body style, like the one in the video link below, then the Twist-in, 7-Pole, RV-Style Trailer Connector for Chevy and GMC Vehicles, item # PK11916, is the correct replacement. If you have the 2007 Chevrolet Pickup, Silverado Classic body style then the Pollak Replacement 7-Pole, RV-Style Trailer Connector Socket, item # PK11893, is the correct replacement for your vehicle. The Pollak 7- and 4-Pole Trailer Connector Socket w/ Mounting...
    view full answer...

  • Installing an Electric Trailer Brake Controller on a 2008 Chevy Silverado 1500
  • Your 2008 Chevy Silverado will have the wiring for a brake controller located under the dash, below the steering column and to the left of the brake pedal. The wires are held together by a white tag that may also list the functions of the wires. If not, you can follow the color/function code below. Brake Controller White to Truck White (ground) Brake Controller Red to Truck Light Blue (stop light) Brake Controller Blue to Truck Dark Blue (electric brake output) Brake Controller Black...
    view full answer...

  • Installing a Trailer Brake Controller on a 2008 GMC Sierra 1500
  • To install a brake controller on a 2008 GMC Sierra, you will need to locate the brake controller wire bundle under the dash. You will need to look below the steering column and to the left of the brake pedal. The wire bundle will be held together with white tape. The white tape should also list the functions of the wires. We have found that the red wire on the truck connects to the black wire on the brake controller for power. The dark blue wire on the truck connects to the brake controller...
    view full answer...

  • Installing an Electric Trailer Brake Controller on a 2008 Chevy Avalanche
  • If your 2008 Chevy Avalanche came with a factory installed 7-Way trailer connector, it will have wiring for the brake controller under the dash. It will not have a port you can plug into, but the wiring will be already ran and you just have to make 4 connections. The wire bundle will be located under the dash, to the left and above the brake pedal. The bundle will be held together with a white tag. On the tag, the functions of the wires should printed. On the tow package wiring from...
    view full answer...

  • What Trailer Connector Is Needed For A 2010 Chevrolet Silverado With Factory Trailer Wiring Harness
  • On your 2010 Chevy Silverado 1500 you will only need one of the trailer connectors. The Pollak Custom Fit Vehicle Wiring Connector, # PK11916, is a twist-in design that is designed to fit into the pre-existing cutout on your truck. I am sending a video link that will show this part being installed on a 2009 Chevy Silverado. The Hopkins 7 and 4-pole Trailer Connector, # HM40975, will also work on your vehicle, but the socket will not be able to be installed in the pre-existing cutout...
    view full answer...

  • Troubleshooting No 12 Volt Power at 7-Way Trailer Connector on a 2009 Chevy or GM Duramax Pickup
  • I would first test the 12 volt wire hooked up to the RV-Style Trailer Connector, # PK11916, to see if the wire itself is carrying power. If it is, then there is something wrong inside the connector such as a loose connection or its wired to the wrong pin. If no power is on the wire, then I would check the other wiring to make sure you have the correct wire. If you are still not getting 12 volt power then you know something is wrong between the wiring at the rear of the truck and where...
    view full answer...

  • What Connector is Needed For 2009 Chevy Silverado With Trailer Towing Wiring To The Bumper
  • On the 2009 Chevy Silverado with the wiring completed to the bumper. There should be a factory knock out plug on the rear bumper. To remove that cover, there should be a tab that you can depress and turn the cover counter clockwise. With the cover out of the connector you can then install the Pollak Twist-in, 7-Pole, RV-Style Trailer Connector for Chevy and GMC Vehicles - Vehicle End, # PK11916, and put that back into the bumper. You should now be able to plug in your trailer wiring...
    view full answer...

  • Brake Controller Power Wire Not Receiving Power On 2010 GMC Sierra With All Fuses and Connections
  • It sounds like you still need to make a few connections under the hood of your 2010 GMC Sierra. You will need to locate 2 wires, both wires are red/black with eyelets on the end. One wire is located between the fuse box and driver side fender, the other should be located under the brake master cylinder. On the driver side, remove the fuse box cover, there will be 2 threaded studs that are different sizes, the wires which have different sized eyelets will connect to the corresponding studs...
    view full answer...

  • Functions of Each Wire Color on Tekonsha Brake Controller and Installation On a 2012 Chevy Silverado
  • On the Tekonsha Envoy and all brake controllers the four wire colors will be, white is ground, black is 12 volt power, blue goes out to the trailer connector, and red is in from the stop light circuit on the brake switch. I am including a link to a FAQ page on trailer brake controllers. On your 2012 Chevrolet Silverado, if you have the factory 7-way connector on your vehicle you will just run the brake controller wires to a bundle of 4 or 5 blunt cut wires that are located under the...
    view full answer...

  • Replacement 7-Way Trailer Connector for a 2003 Chevy Silverado
  • The 7-Way trailer connector on the back of your 2003 Chevy Silverado should have a round plug behind it that plugs into another harness that continues up to the front of the truck. What you can do is use # C55774 which comes with a new mounting bracket and has both a 7-Way blade style connector and a 4-Way flat. Or you could use # PK11916 that you referenced if you just want the 7-Way. Both options are assuming none of the wiring was damaged. You can use a circuit tester like # ALL640595...
    view full answer...

  • Replacement 7-Way Trailer Connector for a 2003 Chevy Silverado 2500HD
  • I actually recommend that you use the Hopkins connector, # HM40975, because it comes with a 7-Way and a 4-Way and also comes with a bracket. The connection at the back is made to fit the factory harness on a 2003 Chevy Silverado that came with a factory 7-Way. I have included a link to a video that shows a typical installation for you. If you want to go with a regular 7-Way use # PK11893 and bracket # PK12711U.
    view full answer...

  • No Power for Trailer Lights on a 7-Way Trailer Connector on a 2011 Chevy Silverado
  • We have an FAQ article that will help with your 2011 Chevy Silverado. I have included some excerpts from it below and I have included a link to it for you. In addition to these steps, you will want to check the vehicle owners manual for the location of any fuses and/or relays associated with the trailer wiring to make sure they are present and working. There are two wires under the hood that have to be connected to make the tow package functional, one is the power wire to the brake control...
    view full answer...


Do you have a question about this Custom Fit Vehicle Wiring?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality custom fit vehicle wiring for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate custom fit vehicle wiring information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Test Fit:
Joe V
Photos by:
Theodore B
Expert Research:
Michael L
Video Edited:
Zack K
Video Edited:
Andrew K
Expert Research:
Maggie M
Written by:
Tyler C
Expert Research:
Robert G
Expert Research:
Patrick B
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Reno H
Expert Research:
Jameson C
Video Edited:
Joshua S
Test Fit:
Nicholas E
Video by:
Jacob T
Expert Research:
John H
Video Edited:
Patrick B
Updated by:
Adele M
Video by:
Andrew L
Expert Research:
Adam R
Video Edited:
Mike H
Video Edited:
Dustin K
Test Fit:
Cole B
Expert Research:
Lori W
Photos by:
Amber A
Expert Research:
Jeffrey L
Test Fit:
Randy B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.



Product Experts Available Now!

Call 800-298-8924


^
About Us
photos and videos
1,056,204 Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570 Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511 Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+ Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
73 Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357 Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
