Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class IV - Extra Efficient
Add to Cart
Derale

Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class IV - Extra Efficient

Part Number: D13613
96 Reviews | 28 Questions
$113.44
Retail:$125.25
You Save: $11.81
 Transmission Coolers

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
By submitting this form, you understand and agree to our Terms of Sale, Website Terms of Use and Privacy Policy.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

derale transmission coolers standard mount series 9000 plate-fin cooler kit w/ npt inlets - class iv extra efficient
derale transmission coolers plate-fin cooler standard mount d13613
derale transmission coolers standard mount d13613

Show All (3) Product Images

Show Fewer Product Images

In Use/Installed

2010 acura mdx transmission coolers derale standard mount on a vehicle
2010 acura mdx transmission coolers derale plate-fin cooler standard mount series 9000 kit w/ npt inlets - class iv extra efficient
2010 acura mdx transmission coolers derale standard mount d13613
0 transmission coolers derale plate-fin cooler series 9000 kit w/ npt inlets - class iv extra efficient
0 transmission coolers derale standard mount d13613
0 transmission coolers derale d13613
0 transmission coolers derale plate-fin cooler on a vehicle
0 transmission coolers derale standard mount on a vehicle

Show All (8) In Use/Installed

Show Fewer In Use/Installed

Customer Photos

Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class IV - Extra Efficient customer photo
Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class IV - Extra Efficient customer photo
Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class IV - Extra Efficient customer photo
Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class IV - Extra Efficient customer photo

Show All (4) Customer Images

Show Fewer Customer Images

Videos

Show All (4) Videos

Show Fewer Videos

Need help with installation?
Locate installers near me
11" Wide x 8-7/8" tall x 1-1/4" deep, radiator-style heat exchanger improves the performance and overall functioning of your vehicle's transmission. Includes hose-barb adapters to fit the 1/2" NPT inlets. Great Prices for the best transmission coolers from Derale. Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class IV - Extra Efficient part number D13613 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (96)
  • Q & A (0)
  • Related Parts
  • Photos

Derale Transmission Coolers - D13613

  • Plate-Fin Cooler
  • Standard Mount
  • 11W x 8-7/8T x 1-1/4D Inch
  • Full-Size Truck
  • SUV
  • With 1/2 Inch NPT
  • Derale

11" Wide x 8-7/8" tall x 1-1/4" deep, radiator-style heat exchanger improves the performance and overall functioning of your vehicle's transmission. Includes hose-barb adapters to fit the 1/2" NPT inlets.


Features:

  • Prolongs life of transmission
  • Improves overall performance
  • Prevents heat-related failures
  • Has furnace-brazed aluminum construction and 1-1/4" wide turbulator plates for more efficient cooling
  • Includes complete mounting kit, OEM spec hose with stainless steel clamps, Insta-dapt radiator adapter and hose-barb fittings
  • Recommended for full-size trucks and SUVs


Specs:

  • Inlets: 1/2" NPT
  • Fittings: 1/2" NPT x 3/8" hose barb
  • Overall dimensions: 11" wide x 8-7/8" tall x 1-1/4" deep
  • Distance between inlets: 8-7/8"
  • Mounting dimensions: 6-3/4" wide x 8" tall
  • 1-Year warranty


Note: The Derale Insta-dapt radiator adapter fits most vehicles with 5/16" transmission lines, but not all. In some cases, additional fittings or alteration of the OEM lines or hoses may be required for installation.


One of the more popular cooling systems available, the radiator-style, plate-and-fin heat exchanger provides increased surface area so that fluids can spread out along the finned chambers to cool faster. In addition to the increased surface area, this cooler also features turbulator technology, whereby fluids are agitated continuously, not only to facilitate heat transfer, but also to prevent any undesirable drop in pressure.

Dimensions

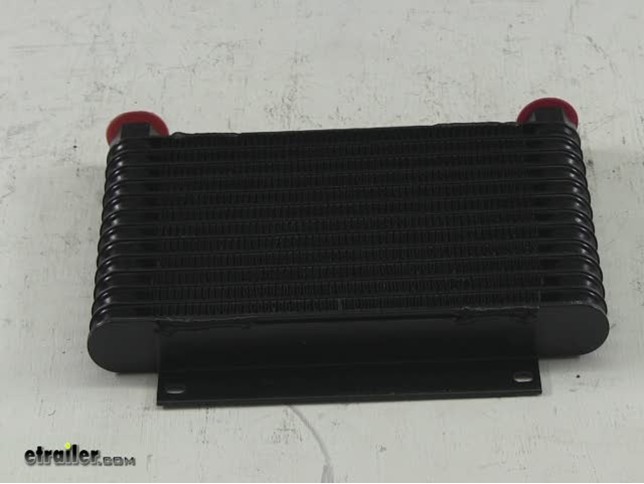

13613 Derale Series 9000 Plate and Fin Heat Exchanger with Installation Kit



This Product Fits The Following Vehicles






Customers Who Purchased This Transmission Coolers Also Bought...



Customer Satisfaction Score:

Ratings & Reviews

4.6

96 reviews
5 Stars
(73)
4 Stars
(18)
3 Stars
(2)
2 Stars
(0)
1 Star
(3)
Review Sort Icon
by:
My vehicle originally did not have a transmission cooler. After warming up, my transmission temperature would typically be 100 degrees higher than the ambient air temperature, whether moving or stopped. Towing the largest enclosed U-Haul trailer (6'x12') would raise the temperature to about 120 degrees above ambient.

After adding this cooler, the transmission stays about 70 degrees higher than the ambient air temperature on the highway, and 80-85 degrees above ambient while parked or driving in slow traffic. I haven't towed that same U-Haul trailer since adding the cooler, but towing a much larger (8.5'x20') enclosed trailer raises the temperature to about 110 degrees above ambient.

If you can find a spot the cooler will physically fit, it should work for your vehicle. You may have to get creative to solidly mount it. I used an angle grinder to remove part of a factory brace. When doing work in this area of your vehicle, be careful not to puncture the AC condenser! If you do, like I did, you will have to replace it. Some AutoZone locations will rent a vacuum pump and manifold gauge set. Doing your own repair means the total repair cost is only the sum of the new AC condenser and refrigerant.

The inlet/outlet NPT fittings on this cooler need to be tighter than you think. I was worried about stripping the threads, and didn't tighten them enough at first. I ended up removing my bumper cover multiple times to tighten them until they stopped leaking. I found the best way to detect a leak was to zip-tie a folded paper towel below the fitting. If it turned red, there was a leak. For my application, I would have preferred built-in 3/8" hose barb inlets instead of the 1/2" NPT fittings.
Customer Large Image
Customer Image
Click to Enlarge
Customer Large Image
Customer Image
Click to Enlarge
Customer Large Image
Customer Image
Click to Enlarge
Customer Large Image
Customer Image
Click to Enlarge
by:
2006 GMC 1500
2006 GMC 1500
This product is solidly designed and the installation kit well thought out. The connection hose was heavier and better quality than what the auto parts store could provide. I will be adding additional clamps to the connections so there are two on each just as a precaution against leakage. The single clamps are working well for my test period. I fabricated brackets for mine but using the plastic pins would work just as well. It is a huge improvement over the factory cooler. I would recommend it to anyone that is towing near or at truck capacity.
Ben L. profile picture

Ben L.

10/29/2015

The cooler is working flawlessly. I replaced the clamps with 12 PEX pipe crimps for a better seal. The transmission has operated within safe temps while towing 7000 lbs on I-70 over the Rocky Mountains. It is a worthy product!

by:
I had this installed and after 1 month it started to leak from the fins. I ordered another, had it installed and it has worked with no problems. etrailer took the defective cooler back no problem and gave me a full refund. Excellent customer service
Orville profile picture

Orville

1/19/2024

One year in and I’ve had no problems. No leaks and it still seems to be working fine.

by:
2005 Chevrolet Suburban
and took about 2 hours from start to finish. Installation was simple and was able to mount on the A frame in front of the radiator. Installation instructions was clear and was helpful with determine the supply and return lines. Fittings matched up perfect with no need to change out. I had to purchase another 4' of hose but the cooler was a lot simpler to install than I had expected.
by:
The first cooler leaked within 1 month of installation but I returned it for a full refund, got another, and the second one has worked perfectly for the last year. etrailer has customer service second to none!
by:
2011 Lincoln LS
Kind of an easy install on a 2011 Chevy Traverse LS. Fast shipping. Taking a long trip in a couple weeks towing a 3500 lb travel trailer. We'll see how it goes.
Thanks for all of the products etrailer has supplied to make my LS tow ready!
by:
Pretty easy to install. Worked great. Prior to adding this transmission cooler my transmission temps would routinely go over 200F so before I installed the cooler I had my transmission serviced. Thankfully no issues or burnt ATF. After installation the temps never went over 190F even towing in the south Louisiana heat. Great product and I'd buy again if needed.
by:
2009 Chevrolet Tahoe
Installed I about an hour in my ‘09 Tahoe. Been in for a week now and lowered the tranny temp an average of 15-20 degrees. I definitely needed the extra hose that was suggested in other reviews. I actually, accidentally, ordered 2 extra so or goes on my “overs” shelf. No trailer hauling yet but will be pulling a 8x16, 4000lb about 2 hours on Friday. That’s my real test.
by:
Exactly as described, looks and feels well made. Mounting and. hookup was straightforward and reasonably simple. Working perfectly so far. Love all the videos of products! This helps so much. Keep up the great job.
by:
Cooler looks to be good but hose clamps were junk and hose was too short. Had to buy clamps and more hose.
by:
2021 Chevrolet Traverse
Great quality! Simple installation, awesome product.
by:
Installation was relatively easy- quality product.
by:
Good product, but don't make the mistake I made like drilling a hole in the air conditioner condenser. Should have put a piece of metal or something in case my drill went through too fast. Well, live and learn. Bob
by:
Product received was as stated and shown on site. Can't wait to install this product. Hopefully putting an end to my tranny overheating problems. Will shop here again!
by:
2010 Chevrolet Silverado
Product really works well drop trans temp on Silverado from 160 to 125 degrees F. Could not find additional 11/32" tubing so Used 3/8" trans hose for connection- worked fine. Also I mounted on side with inlet at bottom to maximize cooling.
by:
2017 Nissan Armada
Installed on a 2017 Armada and has worked great for this last year.
by:
Great product, no issues.
by:
Quick and easy install
by:
by:
by:
by:
by:
I pulled a tab 320 camper from WI to AZ with a RAV4 Toyota and back again!! Tranny cooler definitely made it a doable drive!! Thanks again !!
Gwendolyn Y. profile picture
Etrailer Expert

Gwendolyn Y.

4/9/2026

That sounds like an awesome trip! Do you have any long trips planned for this year?

by:
You only get a few feet of hose. I don't understand how you're supposed to hook into your transmission line with such small amount of hose. I had to purchase 9 ft from the logo auto parts store. That was only the beginning. The clamps are very cheap. Two of them broke while tightening them. I had to stop again and run to the hardware store for clamps. The whole ordeal was very frustrating. Do yourself a favor and skip the so-called kit.
by:
Easy to install and has worked great on my '06 4Runner v6. A little extra piece of mind for the mountains. This size just barely fits on the passenger side of the radiator - there is a central, vertical support bar behind the grill that prevents a wider cooler from fitting.
Customer Large Image
Customer Image
Click to Enlarge
Customer Large Image
Customer Image
Click to Enlarge
25
96
true
Show More Reviews

See what our Experts say about this Derale Transmission Coolers

Do you have a question about this Transmission Cooler?
  • Transmission Cooler for 2022 Lexus GX460
    Hey Jeff! The best option is typically the largest one you can fit in your engine compartment. What did you mean when you said space is critical behind the grille? If you have room for the Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class IV # D13613 then I would get that over the Class II # D13613. If you don't have the space for it then the decision is made for you with the # D13612 as the best option. The Class IV # D13613 is only a couple inches taller so it...
    view full answer...
  • Should a Transmission Cooler Be installed On a Kia Sorento For Towing
    It's not required to install a supplemental transmission cooler for towing on most vehicles but it's certainly not a bad idea either as it will help prolong and extend the life of the transmission. There's not really a certain weight to consider one but the larger the trailer is in relation to the vehicle, the more benefits you'll see from one. If you tow through mountains I recommend one at pretty much any weight I recommend the Derale Series 9000 Plate-Fin Transmission Cooler Kit part...
    view full answer...
  • Recommended Transmission Cooler for 2018 Toyota Highlander
    The Derale Series 9000 Plate-Fin Transmission Cooler Kit part # D13613 is what I recommend for a 2018 Toyota Highlander. This is an extra efficient cooler meaning it can cool more fluid in the same amount of space than other lesser options. It's a complete kit that comes with everything you need for install. Please note, these kits are all universal so you'll have to find the cold/hot lines by touch and then splice into them using the included hoses and fittings. It will work great to cool...
    view full answer...
  • What is the Difference Between Class IV and V Transmission Coolers
    The higher the Class of transmission cooler the more efficient it is and the more cooling capabilities it has. Basically, the Class of a cooler is supposed to reflect the Class trailer hitch you have. So if you have a Class III hitch you would use a Class III cooler. But you can use any cooler that you want and going with the largest or most efficient cooler that will fit is actually recommended because transmission fluid cannot be over cooled. I have included a link to our help article...
    view full answer...
  • What is Included in Tow Package on a 2008 Toyota Highlander
    The features and equipment that constitute an auto maker's OEM "tow package" can vary by vehicle manufacturer, vehicle model and model year. Auto makers may change the elements of a "tow package" for any number of reasons. The best way to determine exactly what your particular Highlander's equipment and capacities are is to contact your local dealership with the VIN number. They can then determine exactly how it is equipped. If you have need for a weight distribution system for your trailer,...
    view full answer...
  • Is It Possible To Add Aftermarket Transmission Cooler To 2021 Hyundai Palisade?
    We do not have a transmission cooler that is confirmed to fit your 2021 Hyundai Palisade, but more than likely have one that will work you will just need to measure how much space you have available for one. If you have enough space for a cooler that measures 11" wide x 8-7/8" tall x 1-1/4" deep I recommend the Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class IV - Extra Efficient # D13613. I would install it in-between your factory cooler and the transmission...
    view full answer...
  • Transmission Cooler Recommendation for 2019 Nissan Frontier
    If so equipped, the factory transmission cooler would either be a separate unit sitting in front of the existing radiator, right behind the grille or you might have a dual-core radiator that has two separate zones or cores, one for the transmission fluid and another for engine coolant. Historically, Nissan has used the dual-core type radiator, but I'm unsure of the later models like yours. You should be able to find the supply and return lines from the transmission, simply follow them to...
    view full answer...
  • Vehicle/Hitch Towing Capacity of 2010 Acura MDX
    According to the owner's manual, your 2010 Acura MDX has a 5000 lb towing capacity with two occupants. The towing capacity decreases approximately 250 lbs for each additional occupant after two. As long as the as-towed weight of the trailer doesn't exceed the capacity of the vehicle or the hitch (whichever is less), you'll be fine. I'd also recommend looking at the capacity sticker on your current hitch, it's fairly common for a hitch to list two different capacities, one for towing,...
    view full answer...
  • Recommended Transmission Coolers for 2009 Nissan Armada SE 2WD Towing Travel Trailer
    We can help you with a supplementary transmission cooler for your 2009 Nissan Armada SE 2WD to reduce its operating temperature when you tow your new Forest River travel trailer. For a standard passive cooler that mounts in front of your AC condenser I suggest the Derale Class III model # D13503. This will provide significant additional cooling of your transmission fluid. For a higher-capacity passive option the Class IV model # D13613 is a good choice. If you happen to often tow in the...
    view full answer...
  • Are Transmission Coolers for 2001 Dodge Dakota Compatible with Manual Transmission
    Transmission coolers are designed to be fairly universal regardless of whether it's a manual or automatic, so a transmission cooler like the Derale # D13613 will be compatible with your 2001 Dodge Dakota with 3.9L V6 engine regardless of the transmission. The only extra part you're going to need are the Derale Radiator Adapter Fittings for Dodge Dakota # D13030, which gives you fittings to allow you to make the connections without having to flare or cut lines. I've also linked all of the...
    view full answer...
  • Recommended Transmission Cooler for a 2011 GMC Sierra V6
    Yes, we do have a transmission cooler for your V6 2011 GMC Sierra. It is the Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets item # D13613. This 11" Wide x 8-7/8" tall x 1-1/4" deep, radiator-style heat exchanger improves the performance and overall functioning of your GMC Sierra's transmission. Anything above 200 degrees starts to reduce the life expectancy of a transmission. You will need the Derale Snap-In Radiator Adapter Fitting for GM item # D13035 you were looking...
    view full answer...
  • Will Towing Affect Transmission On 2012 Audi A7
    If you are towing within the confines of the vehicle manufacturer, there should not be many adverse affects on wear or breakdown. That said, the main factor to transmission breakdown and wear is increased temperature so if you wanted to be sure to extend the life as much as possible you could add a transmission cooler. This is a pretty popular add-on for towing. I recommend the Derale Series 9000 Plate-Fin Transmission Cooler Kit part # D13613.
    view full answer...
  • Transmission Cooler Recommendation for a 2003 Acura MDX
    I would suggest the largest plate and fin transmission cooler that will fit on your vehicle to provide the most cooling.Transmission coolers are flow through devices so you can pretty much use any transmission cooler you want as long as it will fit in your vehicle. You cannot cool the transmission fluid too much so there is no worry of installing a cooler that is too large. The only precaution with a very large cooler is to let the engine warm a bit on bitterly cold days before taking...
    view full answer...
  • Transmission Cooler Recommendation for a 2010 Chevrolet Silverado 1500 4.8L
    If your transmission temperature is exceeding 200 degrees Fahrenheit, I would recommend adding a supplemental transmission cooler. One of the leading causes for transmission failure is overheating and decreasing your transmission temperature will prolong the life of your transmission. For your 2010 Chevrolet Silverado 1500, I recommend installing the largest transmission cooler that will fit in front of your AC condenser or radiator. If you have the space available, I recommend installing...
    view full answer...
    Image 1 for
  • How To Verify Transmission Cooler Return Line On a 2010 Dodge Grand Caravan With 3.8L Engine
    Based on the information I could find it appears the bottom line on the radiator is the return line for the transmission fluid returning to the transmission. You can always verify the temperature in each line with the vehicle warmed up using a Thermometer # PTW89722 to verify you have the correct line. This will allow you to install a Transmission Cooler # D13613 on your 2010 Dodge Grand Caravan.
    view full answer...
  • Recommended Transmission Cooler for a 2015 GMC Yukon XL
    The best transmission cooler for a 2015 GMC Yukon XL will be the biggest one you have space for but as these vehicles have very large engine bays you should be able to use pretty much any one such as the Derale Series 9000 Plate-Fin Transmission Cooler part # D13613 which is what I recommend. It measures 11" wide x 8-7/8" tall x 1-1/4" deep. You may also be able to use either the Derale Radiator Adapter Fittings part # D13018 or Derale Snap-In Radiator Adapter Fitting for GM part # D13035...
    view full answer...
  • Recommended Transmission Cooler for a Toyota FJ Cruiser
    Transmission coolers are universal in fit so the largest one you have space available for is best. I recommend the Derale Series 9000 Plate-Fin Transmission Cooler Kit part # D13613 as an excellent extra efficient option which only requires 11" wide x 8-7/8" tall x 1-1/4" deep of space. It comes with everything needed for installation.
    view full answer...
  • Why Install Transmission Cooler in Return Line Back To Transmission
    When it comes to transmission coolers, unless you live in an extremely cold climate you can't over cool a transmission. Most vehicles will have a stock transmission cooler, it'll either have a separate heat exchanger or it'll have a cooling circuit in the vehicle's radiator. This typically does a pretty decent job unless the vehicle is being pushed to its limits by towing near its capacity or in hilly areas. Having the factory cooler act at a pre-cooler and the aftermarket cooler installed...
    view full answer...
  • Recommended Transmission Cooler For 1/2 Inch Transmission Lines
    Sure thing; for a cooler, I recommend is the Derale Series 9000 Plate-Fin Transmission Cooler Kit with NPT Inlets - Class IV - Extra Efficient # D13613. This is a plate-and-fin cooler, which means it uses smaller plates that cover more area than other coolers in order to agitate transmission fluid. Because you cannot over-cool fluids, the basic rule of thumb for transmission coolers is that size matters so the large 11" wide x 8-7/8" tall x 1-1/4" deep Series 9000 is going to give you...
    view full answer...
  • Installation of Largest Transmission Cooler on a 2011 Dodge Nitro
    As far as transmission coolers go, you cannot cool transmission fluid too much, so installing the largest cooler that the space on your 2011 Dodge Nitro will allow is perfectly fine and will benefit your transmission the most. Ideally you want the transmission fluid to be between 160 and 200 degrees for the best operation and longest life from the transmission. Transmission coolers are a universal fit item, so as long as you have space in front of your air conditioning condenser, or between...
    view full answer...
  • Transmission Cooler For 2005 Acura RL
    For your 2005 Acura RL you want to select the correct transmission cooler by determining where there is enough space to mount it. If after measuring you find you have enough space, the cooler you referenced, part # D13613, would work well for you. I have attached a drawing that shows 3 positions for mounting transmission coolers. Transmission coolers are much more efficient when they are positioned to receive maximum air flow. At position 1, the transmission cooler is 100 percent efficient....
    view full answer...
    Image 1 for
  • Transmission Cooler For A 2007 Chevy Silverado 1500 With The 4.8l V8 Pulling A 20' Trailer
    Hi Elgrie! If your transmission is getting up to 200 degrees while towing, I definitely recommend getting an auxiliary cooler. You're not in the danger zone (anything above 230 degrees would be), but you are getting pretty warm. With that said, I would go with the following parts: Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets - Class IV - Extra Efficient # D13613 Derale Snap-In Radiator Adapter Fitting for GM # D13035 You didn't mention whether you had the New Body...
    view full answer...
  • Recommended Transmission Cooler for a 2010 Nissan Titan Pro-4X
    If you are having overheating problems, the Derale Series 8000 Plate-Fin Cooler # D13504 will definitely help. I should mention that this technically isn't listed for your 2010 Nissan Titan, so you should definitely measure where this will be installed to make sure it will fit properly. This will measure 11 inches wide by 12 inches tall. If this will not fit, the Derale Derale Series 9000 Plate-Fin Transmission Cooler Kit w/ NPT Inlets # D13613 is a little smaller at 11 inches by 8 7/8...
    view full answer...
  • Does Derale Atomic-Cool Mount in Front of Radiator of 2012 Jeep Liberty
    The Derale Atomic-Cool Remote Transmission Cooler Kit # D13950 is actually designed to mount away from the front of the vehicle it is being installed on, which in your case is a 2012 Jeep Liberty. Apart from that there are no specific spots this kit is meant to be mounted as it is a more universal application; it can be mounted anywhere else that you have space to fit its 12-3/4" wide x 9-3/8" tall x 4-5/16" deep dimensions. If you wanted a cooler that is designed to mount in front of...
    view full answer...
