Blue Ox Acclaim Tow Bar - A-Frame - Car Mount - 5,000 lbs

Blue Ox Acclaim Tow Bar - A-Frame - Car Mount - 5,000 lbs

Item # BX4330

lowest price pledge


Our Price: $591.72

You Save: $72.78
Tow Bars

This item qualifies for Free Shipping

Shipping Weight: 43 lbs

In Stock
BX4330 - Stores on Car Blue Ox Coupler Style
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted succesfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

BX4330 - Stores on Car Blue Ox Coupler Style
Blue Ox Acclaim Tow Bar - A-Frame - Car Mount - 5,000 lbs Non-Binding BX4330
Blue Ox Coupler Style - BX4330
BX4330 - Non-Binding Blue Ox Coupler Style
Blue Ox Non-Binding Tow Bars - BX4330
Blue Ox Tow Bars - BX4330
BX4330 - Non-Binding Blue Ox Tow Bars
Tow Bars BX4330 - 5000 lbs - Blue Ox
Blue Ox Stores on Car Tow Bars - BX4330

Customer Photos


  • Coupler Style
  • Telescoping
  • Blue Ox
  • Blue Ox
  • 5000 lbs
  • Stores on Car
  • Non-Binding
  • Steel
With a sturdy, secure, triple-lug connection and convenient, self-aligning arms, this A-frame tow bar is among the most dependable to use and simple to hook up. The Acclaim stores easily and unobtrusively on your towed vehicle when not in use. Lowest Prices for the best tow bars from Blue Ox. Blue Ox Acclaim Tow Bar - A-Frame - Car Mount - 5,000 lbs part number BX4330 can be ordered online at or call 800-298-8924 for expert service.

  • All Info
  • Reviews (25)
  • Q & A (103)
  • Videos (1)
  • Photos
  • Why etrailer?

Blue Ox Tow Bars - BX4330

With a sturdy, secure, triple-lug connection and convenient, self-aligning arms, this A-frame tow bar is among the most dependable to use and simple to hook up. The Acclaim stores easily and unobtrusively on your towed vehicle when not in use.


  • Coupler-style tow bar lets you tow your vehicle behind your motorhome
    • Integrated coupler attaches to trailer hitch ball on RV
  • Self-aligning design - hook up to base plates on towed vehicle and drive RV forward
    • Arms extend into rigid, tow-ready position and automatically lock in place
  • Triple-lug connection - sturdy brackets on the end of each tow bar arm provide reinforced connection to base plates
    • Each arm attaches and detaches from base plates with 2 easy-to-access pins
  • Simple, secure storage alongside towed vehicle
    • Integrated holding pin keeps arms together
  • Durable, steel construction
  • Rubber boots protect telescoping arms from dirt and grime
  • Safety cables are included
  • Made in the USA


  • Capacity: 5,000 lbs
  • Application: 2" hitch ball
  • Compatibility: fits Blue Ox removable-tab base plates that are spaced between 23" and 30" apart on center
    • Can be adapted for use with Roadmaster base plates with the Roadmaster Base Plate to Blue Ox and Demco Tow Bars Adapter (RM-033; sold separately)
  • Arm length (as measured when arm is pulled out straight in front of the coupler):
    • Extended: 42-3/4" from center of hitch ball to center of base pin hole
    • Retracted: 33-1/2" from center of hitch ball to center of base pin hole
  • Weight: 35 lbs
  • 3-Year warranty

Self-Aligning Design

The convenient self-centering arms on the Acclaim help to make hookup a snap. Standard tow bars have rigid arms that are essentially locked in place so you have to drive your towed vehicle into the exact position necessary for hookup. But with the Acclaim, you can connect from the approximate towing position quickly and easily. Once you have connected the tow bar to both your vehicle's base plates and your RV's coupler, simply drive your RV forward until the tow bar arms fully extend and lock in place. Before hitting the road, be sure to check that the arms are properly latched to avoid damage to the tow bar.

Non-Binding Release Latch

Non-Binding Tow Bar

Blue Ox has defeated the age-old problem of binding by creating a tow bar that is just as easy to release as it is to hook up. Simply press down the locking handles on the tow bar arms until the internal latch disengages. By releasing some of the static pressure from your tow bar you can flex its arms just enough to make disconnecting from the base plates a snap, even when it's out of level with your RV.

Triple-Lug Bracket

Triple-Lug Connection

Blue Ox base plates on your vehicle are equipped with two tabs each that connect to the brackets on the ends of the tow bar arms. These brackets are referred to as "lugs." The unique triple-lug design of the Acclaim tow bar creates a tighter, more stable connection by surrounding both base plate tabs. The result is a sturdy, reinforced connection that is stronger and more rigid for a safer, more dependable towing experience.

Hooking up the Acclaim to your base plates is as simple as it is secure. Just insert the triple-lug end of the tow bar arm into the base plate so that the center lug is positioned between the two tabs of the base plate. Then insert the 1/2" keeper pin through the lugs and tabs and secure it at the end with the included quick pin.

Simple Storage

The Acclaim can be easily stored on your towed vehicle when it is not in use. Simply disconnect the arm on the driver's side from the base plate bracket and swing it over to the other arm so that they are side by side. Secure the arms to one another with the integrated holding pin. Then line up the folded tow bar with the front of your vehicle so that the coupler is positioned next to the driver's-side base plate. Using the 1/2" keeper pin, connect the holding bracket beneath the coupler to the base plate bracket and secure it with the quick pin.

BX4330 Blue Ox Acclaim Tow Bar

BX4330 Installation InstructionsInstallation Details BX4330 Installation instructions

Video of Blue Ox Acclaim Tow Bar - A-Frame - Car Mount - 5,000 lbs

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

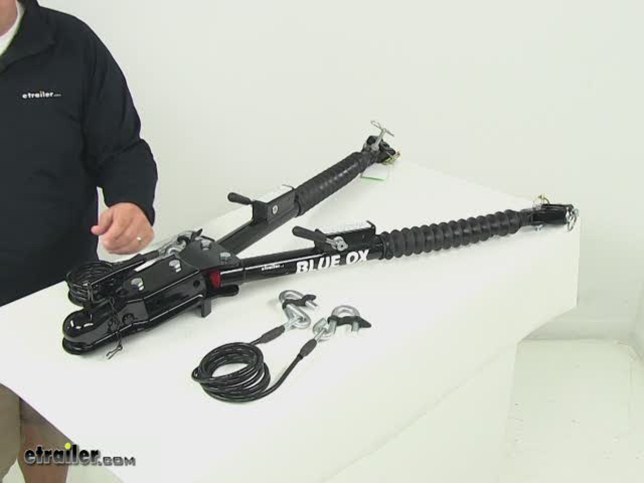

Video Transcript for Blue Ox Tow Bars BX4330 Review

Today we're going to be reviewing part number BX4330. This is the Blue Ox Acclaim A-Frame Tow Bar system. The coupler-style tow bar is going to let you tow your vehicle behind your motor home. It's going to feature the integrated coupler that's going to attach to the trailer hitch ball on your RV. It is designed for a 2" hitch ball. It's also going to have the integrated or attached coupler pin.

Just dor additional security, it goes right in to that hole there. Uses a really nice trigger light system to connect and disconnect from your hitch ball. Now, this tow bar system is going to feature a self-aligning design. All you have to do is hook up to the base plates on the towed vehicle and drive your RV forward. The telescope and arms are going to extend into a rigid, tow-ready position which they already are all the way extended. Then they're automatically going to lock in place.

Now, to disengage them from this position, all you got to do is to push down the handle. It's going to allow the arms to telescope in. Then, as if it was connected to an RV, you drive forward. It's going to telescope the arms out. Until it puts them in the lock position. Now, on the end of each arm is going to be a triple-lug connection.

These are just going to be sturdy brackets on the end of each tow bar arm that's going to provide a reinforced connection to the base plates. Each arm is going to attach and detach from the base plates with 2 easy-to-access pins. One on each arms, really simple system to use. The triple-lug connection is built very well and it's going to provide a nice sturdy connection point. Now, this does offer a simple, secure storage alongside the towed vehicle. Towards the end of the video, I'll show you how to get it to a stored position.

The entire unit's made from a durable, steel construction. It has a really nice finish on it so it's going to last a long time. As well as end up really well against rust and corrosion. Now, you got some rubber boots right here, that are design to protect the telescoping arms from dirt and grind. You are going to get a set of safety cables. These safety cables are made out of air-craft grayed tight material. They got the rubber keeper here over the hook. Then the plastic lining goes around the cables to protect your tow bar system from any scuss or damage that exposed cable could cost. The unit's going to offer a capacity of 5,000 lbs. Again, it is design for a 2" hitch ball. When it comes to compatibility, this is designed to fit Blue Ox removable tab based plates that are spaced at least 23" apart. It can be adapted for use with Roadmaster base plates with the Roadmaster base plate to the Blue Ox and Denco tow bars adapter. That parts going to be sold separately with part number RM-033. You can find that right here at Now, another great feature about this system is it only weighs about 35 lbs. it's easy for one person to move around and to connect and disconnect. Now, to get it to a stored position, one of the first things that we're going to do is we're going to go ahead and remove the clip from the integrated holding pin. Then we're going to go ahead just loosen up the arms. That's going to give us some flex when it comes to lining up the triple-lug on this side with the pin, the integrated holding pin on this side. This is going to be our passenger's side arm, this is going to be our driver's side arm. To get it to a stored position, we need to disengage the driver's side leg which we already did. Then we need to rotate it over on to the passenger side leg. When we do this, you're going to see that the coupler is going to rotate 90 degrees which is perfectly normal. We're going to go ahead and remove the pin and clip from the driver's side triple-lug connection. We're going to go ahead and rotate this over. The triple-lug connections is going to come down on top of that holding pin. Just like that, then we're going to use the included clip to secure that leg on top of the passenger's side leg. Now, once we have it in this position. Our arm is not going to go anywhere. The triple-lug that's connected to the passenger's side of our vehicle is going to act as a pivot point. All that you have to do is swing the coupler head towards the driver's side attachment of the base plate. That's where this bracket's going to come and use. There's a bracket on the bottom of the coupler. We're going to attach the coupler head bracket to the base plate with a half inch pin and quick pin. Basically, we're going to use the pin that was used to secure the triple-lug connection with the base plate. Now, we're just going to use that up here at the bracket on the bottom of our coupler. That's going to attach to the same point on the base plate of the triple-lug connection attached to. Really simple, basically this is just going to rotate towards the front of our vehicle. Again, using that triple-lug passenger side connection as a pivot point. It's going to allow us to easily and safely move it to a stored position. That's going to do it for today's review of part number Bx4330. This is the Blue Ox Acclaim A-Frame Tow Bar. .
