etrailer SD Non-Binding Tow Bar for Blue Ox and Curt Base Plates - RV Mount - 2" Hitch - 6K lbs
etrailer

etrailer SD Non-Binding Tow Bar for Blue Ox and Curt Base Plates - RV Mount - 2" Hitch - 6K lbs

Part Number: e47ZR
In Stock
$838.87
Retail:$871.25
You Save: $32.38
Tow Bar
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

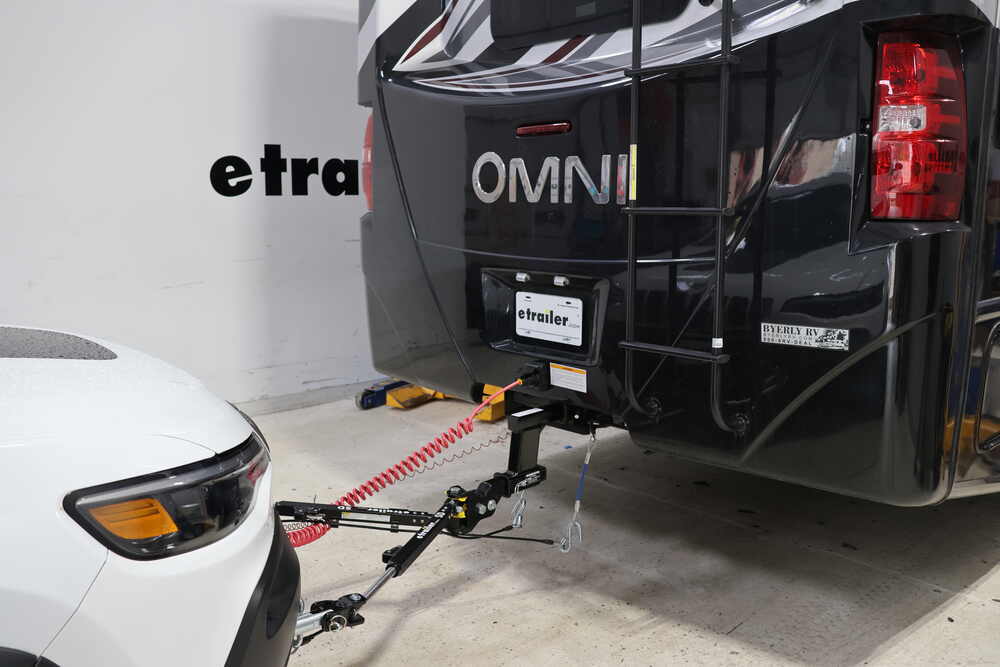

In Use/Installed

Customer Photos

This versatile tow bar is easy to use, with arms that support their own weight while you hook up and swing to either side for storage. Integrated safety cables keep your setup streamlined and organized. Built-in rise/drop keeps the tow bar level. Great Prices for the best tow bar from etrailer. etrailer SD Non-Binding Tow Bar for Blue Ox and Curt Base Plates - RV Mount - 2" Hitch - 6K lbs part number e47ZR can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (270)
  • Q & A (0)
  • Photos

etrailer Tow Bar - e47ZR

  • Fits Blue Ox Base Plates
  • Fits Curt Base Plates
  • Telescoping - Non-Binding
  • 6000 lbs
  • Hitch Mount
  • etrailer
  • Stores on RV
  • Cables Included
  • Steel

This versatile tow bar is easy to use, with arms that support their own weight while you hook up and swing to either side for storage. Integrated safety cables keep your setup streamlined and organized. Built-in rise/drop keeps the tow bar level.


Features:

  • Safely bring your vehicle along behind your RV
  • Self-supporting arms won't fall to the ground as you're hooking up
    • Smoothly extend and pivot to reach the base plate
    • Automatically lock into towing position when you pull forward
  • Extra-long arms help you make tight turns
  • Built-in rise/drop and tilt ensure tow bar is level during towing
  • Quick disconnect, even on rough terrain, with non-binding levers
  • Organized setup
    • Straight safety cables are integrated into the tow bar
    • Storage rod keeps electrical cord (sold separately) off the ground
  • Effortless storage: swing arms to the left or right and they'll lock in place
  • Compatible with Blue Ox and Curt base plates with included adapters
  • Steel construction with an E-coat finish resists corrosion
  • Lifetime technical support from the experts at etrailer.com
  • Made in the USA


Specs:

  • Fits: Blue Ox base plates
  • Application: 2" x 2" trailer hitch receivers
  • Arm length (from center of hitch pin hole at end of shank to center of base plate pin hole when lined up with arms straight):
    • Extended: 51-3/4"
    • Retracted: 39-1/4"
  • Built-in rise/drop: 1-1/2"
    • Head tilts an additional 3" up or down to keep tow bar level with the road
  • Weight capacity: 6,000 lbs
  • Weight: 41 lbs
  • Safety cable rating: 14,000 lbs
  • Lifetime limited warranty


etrailer SD Tow Bar dimensions

Note: If you use this tow bar in the rise or drop position you may need to add safety cable extensions (sold separately) to reach your tow vehicle's hitch.


Works with Blue Ox and Curt Base Plates

Compatible with Blue Ox Baseplates with these Adapters

If you already have a Blue Ox or Curt base plate or are planning on getting one, this kit includes the needed brackets to make this tow bar compatible. Simply unbolt the existing brackets and bolt on the new ones in their place. All the hardware is included.


Easy Hookup: Self-Supporting Arms

The etrailer SD has a lot of smart features that give you the flexibility to hook up your toad (towed vehicle) to your RV, without the need for your vehicle to be perfectly level or in the exact right spot.


etrailer SD Tow Bar Self-Supporting Arms for Easy Hookup

First of all, the arms are self-supporting, meaning that they hold themselves up without your help and won't fall to the ground when you let them go. They also move independently of each other, so you can focus on getting just one arm connected at a time. You'll never be stuck wrestling with a heavy tow bar.


Just slide the tow bar into your hitch and pin it in place. The telescoping arms will extend, pivot, and tilt to the needed length and angle to reach the tabs on your base plate. You can get hooked up and on with your adventure.


Once the tow bar's connected, slowly pull forward and the self-aligning arms will fully extend and lock into the towing position. Double check that the arms are properly latched and you'll be ready to hit the road!


Important: The arms need to be set up so that the storage rod is on the outside of the arm. Otherwise, the tow bar could be damaged when taking turns.


Extra-Long Arms Get You Around Tight Turns

The SD's arms are longer than average, giving you an above-average turning radius. You're going to be able to get around obstacles and make sharp turns with no worry of clipping the corner of your RV. Maneuver through gas stations and the campsite no problem.


Built-In Rise/Drop

It's important that your tow bar is as level as possible while you're flat towing, with no more than a 3" difference between where the tow bar sits in the hitch receiver and where the arms meet the base plate. It's fairly common for the hitch on an RV to sit too high in comparison to the toad, making it necessary to buy a high-low adapter.


etrailer SD Tow Bar Built-In Rise/Drop

With etrailer tow bars, the rise/drop is built right in, so it's less likely that you'll need an extra adapter. The head joint is also able to tilt up and down so you can make the tow bar level for your particular setup.


Non-Binding for Easy Disconnect

Uneven ground and sharp angles can put the arms of the tow bar in a bind and make them stiff and immoveable. Once you get to your destination, the last thing you need is to spend several minutes wrestling, yanking, and kicking at them to get your car disconnected.


etrailer SD Tow Bar Non-Binding Lever

Instead, get out of a bind in one easy step. Simply give the trigger on the arm of the SD a squeeze to disengage the internal latch. This releases the pent-up pressure so you can unhook and get on with your adventure.


Each trigger release latch is positioned on the side of the tow bar arm. This allows for a comfortable yet firm grip, unlike latches that are positioned on the tops of tow bar arms, which can be difficult to grab. This out-of-the-way placement also creates a clean look for the tow bar.


Organized Setup: Integrated Safety Cables

etrailer SD Tow Bar Integrated Safety Cables

Two straight, vinyl-coated safety cables are integrated right into this tow bar, keeping them from dragging on the ground and getting damaged. They won't get lost or tangled either; your whole setup will be streamlined and organized.


These cables, required by law, will keep your toad behind your RV if there's ever an accidental disconnect while you're towing. The steel S-hooks on each end of the cables connect to the toad's base plate and the RV's trailer hitch, with spring-loaded latches to ensure that they stay connected.


The etrailer safety cables are rated at 14,000 lbs, regardless of the rating of the tow bar. While it's not necessary to have such a high rating, it's nice to know that in the event of an emergency disconnect, these heavy-duty cables will be more than capable of catching your vehicle. If all else fails, these safety cables won't.


etrailer SD Tow Bar Storage Rod for Coiled 7-Way Electrical Cord

The tow bar also offers a convenient storage rod for securing your coiled electrical cord (sold separately). The rod holds your power cord neatly out of the way and up off the ground.


Ridiculously Easy Storage

etrailer SD Tow Bar Storage

The etrailer SD is incredibly easy to store on the back of your RV. Most RV-mounted tow bars require you to lift the heavy arms all the way up; they have to be fully vertical before you can secure them in the stowed position. With etrailer tow bars, all you have to do is raise the arms an inch or two - which you probably would do anyway while unhooking - and swing them to either side. When you lower them down again, the locking pin will automatically slide into the built-in tab. They can store to the left, right, or with one arm each way, however is convenient for you.


etrailer Technical Support

At etrailer, we're committed to the products we sell, and to helping our neighbors journey. We don't just sell it; we've installed it, we've wired it, and we've towed with it, so you're getting your answers straight from the experts. Our etrailer technicians perform flat tow installations on a daily basis, so they know all about your tow bar firsthand. For the life of your tow bar, our experienced and knowledgeable staff are available via phone, email, and chat to help you with any questions or concerns.


What You Need to Flat Tow

Flat towing can be a much more convenient way to take your car RVing with you than using a trailer or a tow dolly. It'll save you storage space both at home and at the campsite, and it takes less time and hassle to hook up.


To flat tow your vehicle, there are 5 basic components you're going to need: a tow bar, a base plate kit, a safety cable set, tow bar wiring, and a flat tow braking system.


For the RV Between the RV and Towed Car For the Towed Car
Hitch Tow bar Base plate
Wiring plug Safety cables Braking system
Wiring adapter cord Wiring kit/diodes

The custom-fit base plate installs on the frame of your toad so you can connect the car to your RV with a tow bar. Hook up safety cables between the vehicles to ensure that the toad does not separate from the motorhome if the tow bar becomes detached. Tow bar wiring syncs your vehicle's signal lights with your motorhome's tail lights, as required by law in most states. Finally, the flat tow braking system - also required in most states - activates the brakes in the toad when you hit the brakes in the RV, making for smoother, safer braking, and preventing wear on your motorhome.



9998971 etrailer.com Standard Duty Non Binding Towbar - Motorhome Mounted Towbar - 2" Hitch - 6K Rating

9998978 etrailer.com Base Plate Adapter Kit - Blue Ox and Curt

Installation Details E47ZR Installation instructions
