Roadmaster Stop Light Switch Kit
Roadmaster

Roadmaster Stop Light Switch Kit

Part Number: RM-751490
$48.56
Retail:$58.71
You Save: 17%
Flat Tow Brake System
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

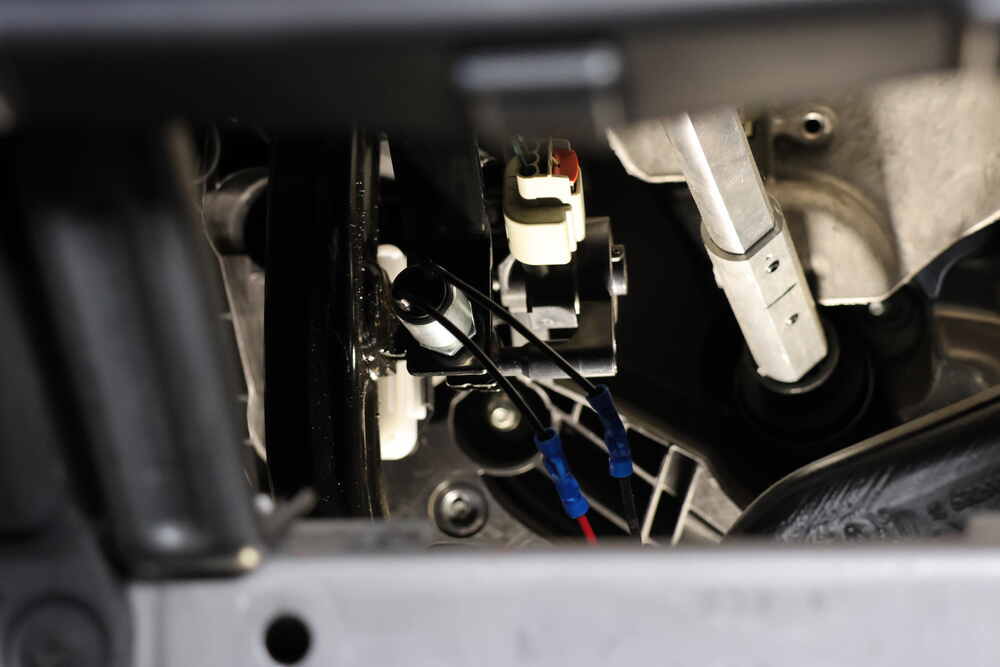

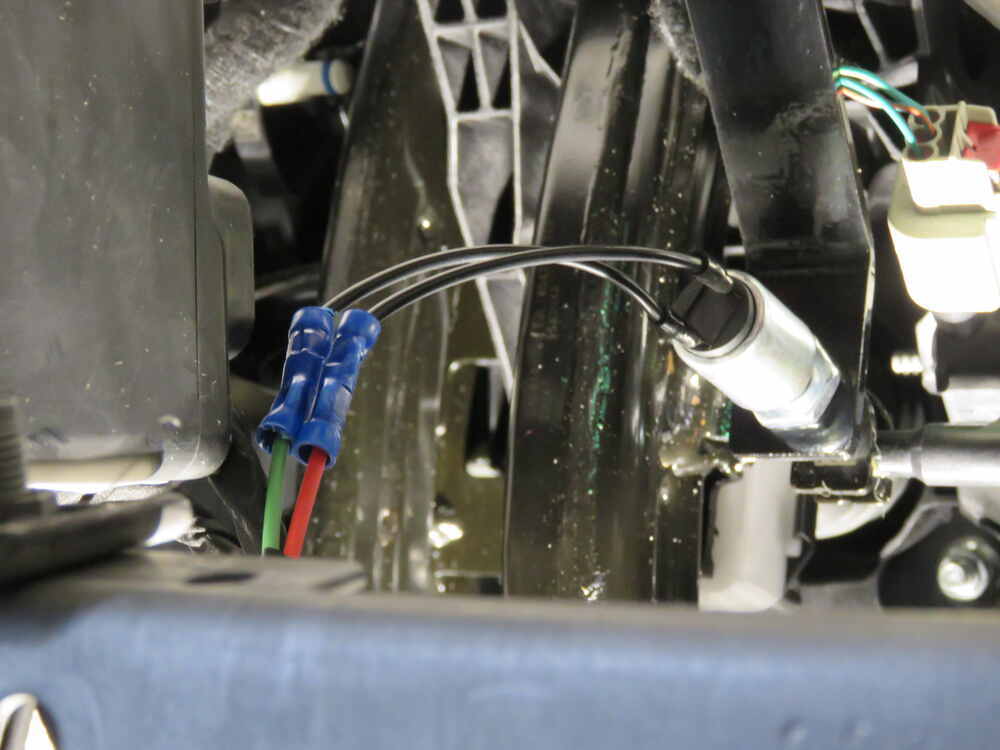

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Avoid damage to your vehicle by ensuring that your supplemental braking system is properly positioned and working effectively. Kit activates your RV monitoring system to alert you when the brakes of your towed car are being applied. 1-800-940-8924 to order Roadmaster flat tow brake system part number RM-751490 or order online at etrailer.com. Free expert support on all Roadmaster products. Great prices and Fastest Shipping for Roadmaster Stop Light Switch Kit. Flat Tow Brake System reviews from real customers.
  • All Info
  • Reviews (580)
  • Q & A (0)
  • Photos

Roadmaster Flat Tow Brake System - RM-751490

Highlights

  • Proactive brake monitoring: Alerts you when the towed vehicle's brakes are applied.
  • Effective vehicle protection: Prevents unwanted damage by ensuring correct brake usage.
  • Custom fit application: Designed for specific vehicles, ensuring accurate functionality.
  • Direct fuse box integration: Provides constant current and reliable signal connection.
  • Made in the USA: Ensures high-quality standards and support for local manufacturing.
  • Broad installation compatibility: Fits setups with no tow position in ignition systems.

Features to know about

Always Know When You''re Braking: Activation for RV Brake-Monitoring System

Peace of mind while towing starts with transparency. The Roadmaster Stop Light Switch Kit activates your RV's brake-monitoring system whenever the brake pedal in your towed car is engaged. So, you always know exactly when the brakes are applied in your towed vehicle, ensuring safe travels every time.

Protects Against Costly Damage: Monitors Supplemental Braking System

Installing supplemental braking systems can sometimes result in improper positioning, causing continuous pressure on the brake pedal. This kit ensures that your supplemental braking system is functioning correctly, helping to prevent unnecessary pressure on the brake pedal that could lead to vehicle damage.

Perfect for Custom Towing: Direct Wiring into Fuse Box

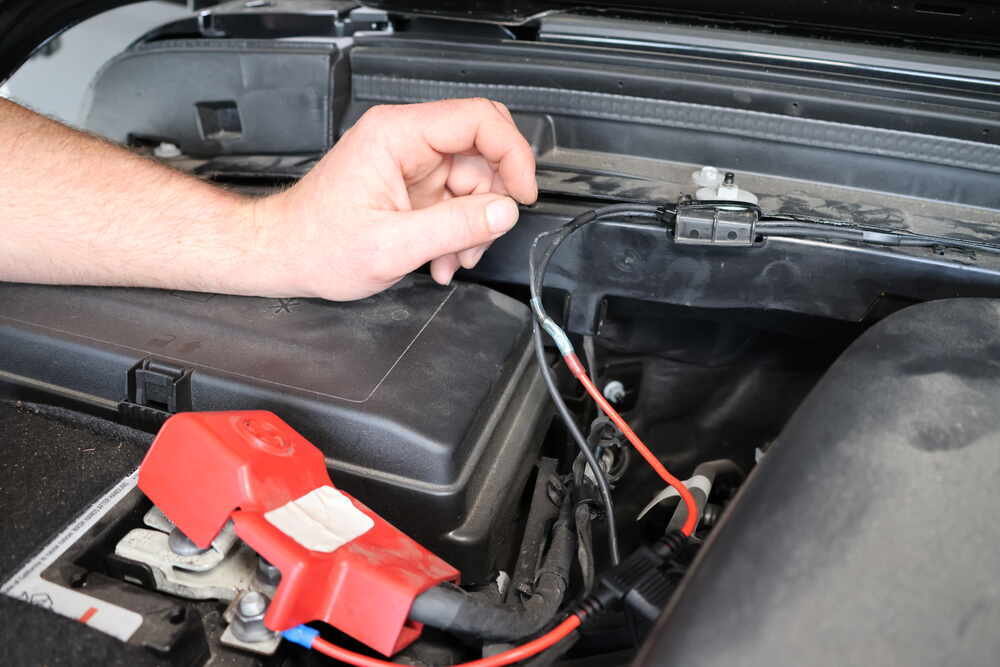

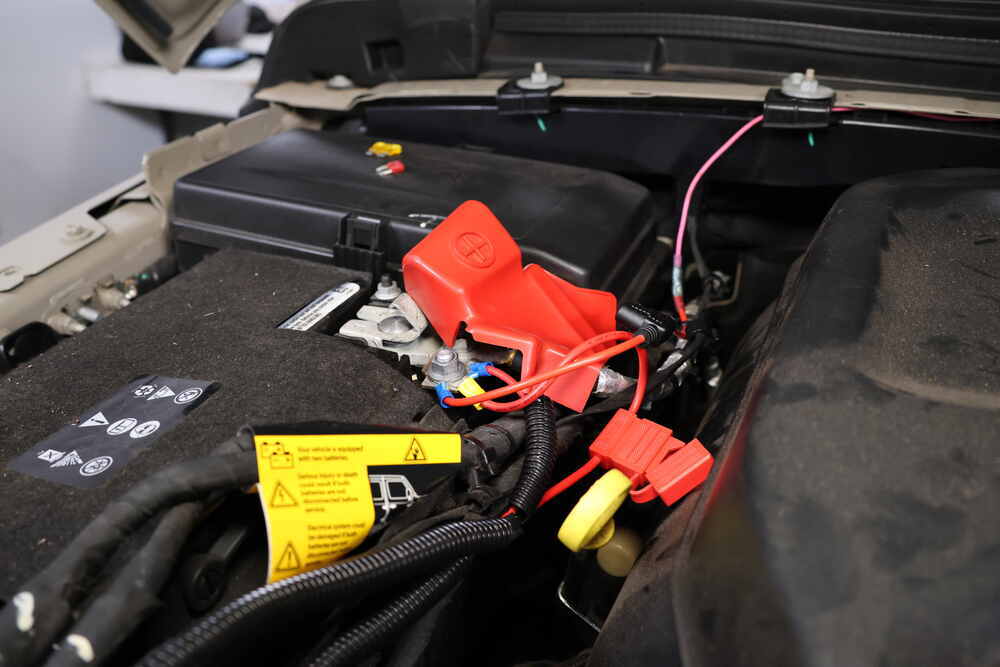

For those towing setups without a dedicated tow position in the ignition, this kit wires directly into your vehicle's fuse box, tapping into a constant current for foolproof operation. It’s an ideal solution for maintaining reliable functionality during custom towing applications.

Easy and Reliable Setup: Made in the USA

Proudly made in the USA, these parts not only guarantee exceptional quality but also uphold rigorous manufacturing standards. Whether you''re a DIY enthusiast or depend on professional installation, you''ll be confident in a straightforward setup that won’t let you down.

Tailored for Your Vehicle: Custom Fit Applications

Designed to fit precisely with your vehicle, this kit delivers dependable performance for your specific make and model, avoiding the one-size-fits-all pitfalls. Its 12-volt system offers the necessary customization and integration, catering to your unique towing needs.

Specs

Application:

  • Custom fit for your vehicle

Electrical Specifications:

  • 12 Volts

751490 Road Master Stop Light Switch Kit

Installation Details RM-751490 Installation instructions

This Product Fits The Following Vehicles



California residents: click here


Customer Satisfaction Score:

Ratings & Reviews

4.8

577 reviews
Avoid damage to your vehicle by ensuring that your supplemental braking system is properly positioned and working effectively. Kit activates your RV monitoring system to alert you when the brakes of your towed car are being applied.

by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:


25
577
Show More Reviews

See what our Experts say about this Roadmaster Flat Tow Brake System

  • Recommended Complete Flat Towing Setup for a 2024 Jeep Wrangler
    Hey Christian, welcome to the world of RV-ing! So in addition to the Roadmaster Nighthawk # RM-676 you're also goin to need: - A baseplate kit, like the Roadmaster Direct-Connect Base Plate Kit # RM-521453-5. These attach to the Jeep itself so you can hook up the tow bars. - A braking system, like the Demco Stay-IN-Play Duo Flat Tow Brake System for RVs w/ Hydraulic Brakes # SM99251 with the stop light switch # RM-751490. This braking system is a bit more involved set-up wise, but once...
    view full answer...
  • Recommended Parts Needed to Flat Tow a 2018 Jeep Wrangler JL or JL Unlimited
    For your 2018 Jeep Wrangler JL, I recommend starting with the Roadmaster EZ5 Base Plate Kit # RM-521453-5. This kit has removable arms to give you a very clean look when not flat towing your Jeep, and also gives you a clean connection to your tow bar when towing behind your motorhome. I recommend installing this base plate using Loctite threadlocker # LT37420 to keep your hardware from vibrating loose over time. For your tow bar, I recommend the Roadmaster Nighthawk All Terrain, Non-Binding...
    view full answer...
  • Parts Needed to Flat Tow 2020 Jeep Wrangler With Factory Bumper
    We have all of the parts you need to flat tow your 2020 Jeep Wrangler, and while it may seem like a lot of parts, it's actually just four basic components - base plates on the Jeep, a tow bar to connect the Jeep to your motorhome, wiring to power your Jeep's lights while it is being towed, and a braking system. Here is a list of what you'll need: - Base Plate Kit: Roadmaster Direct-Connect Base Plate Kit # RM-521453-5 - Tow Bar: Roadmaster Nighthawk All Terrain, Non-Binding Tow Bar w/...
    view full answer...
    Image 1 for
  • Parts Needed to Flat Tow 2018 Jeep Wrangler JL With BrakeBuddy Supplemental Braking System
    To flat tow your 2018 Jeep Wrangler JL you will need to start with compatible base plates; because you have a Blue Ox tow bar and assuming you have the standard factory bumper the best option is the Blue Ox Base Plate Kit # BX1139 which will be compatible with Blue Ox tow bars Alpha # BX7380, Avail # BX7420 as well as Aventa, Aladdin, Adventurer, Ambassador, Acclaim, Allure, and Trion. If your Blue Ox tow bar does not have integrated safety cables you will need those and can use the Blue...
    view full answer...
    Image 1 for
  • Correct Roadmaster Seat Adapter for BrakeMaster System on a 2018 Jeep JL Wrangler Unlimited
    Hey Kevin, thanks for reaching out! You'll need the Seat Adapter # RM69FR for your 2018 Jeep JL Wrangler Unlimited. This is used for both the BrakeMaster # RM-9160 and the BrakeMaster # RM-9060 for motor home air or hydraulic brakes respectively. You'll also need the Stop Light Switch # RM-751490 to keep your brake lights working correctly.
    view full answer...
  • Is The Brake Light Relay Needed With The Roadmaster 4 Diode Wiring Harness On 2018 Jeep Wrangler JL?
    Good question, Chuck! You will not need the Brake Relay # RM-88400 when installing the Roadmaster 4 Diode Wiring Harness # RM-15267 on your 2018 Jeep Wrangler JL Unlimited. This is because the stop light switch circuit on your Jeep JL will go dead while the vehicle is in tow. With that being said, some of the braking systems will require a stop light switch, like the # RM-751490 (and a 12 volt outlet kit # RM-9332)), but that is dependent on which system it is. Do you already have a...
    view full answer...
  • Flat Tow Setup for 2021 Jeep Wrangler Unlimited Sahara
    Hey Ed! It looks like you put together a great list of parts. I'm going to list everything out here with links so it is all in one place, including my suggestions. For a complete setup you will need the following: -etrailer Invisible Base Plate Kit # e98948 (I'm assuming you have the factory plastic bumper) -etrailer SD Non-Binding Tow Bar # e34ZR (includes safety cables) -Roadmaster 4-Diode Universal Wiring Kit for Towed Vehicles # RM-15267 (If you do not have ParkSense) -Roadmaster...
    view full answer...
  • Is Roadmaster Brake-Lite Relay Needed for Flat Towing 2020 Jeep Wrangler with Push Button Start
    The Roadmaster Brake-Lite Relay # 88400 that you referenced actually isn't needed for your 2020 Jeep Wrangler Unlimited with the push button start. In order to ensure proper operation of the signal lights and braking system you instead need the Stop Light Switch Kit # RM-751490. I have attached the written installation manual below along with an install video that you can follow along with.
    view full answer...
  • Comparing Direct-Connect and Crossbar Base Plates for 2018 Jeep Wrangler JL Unlimited
    The difference between the Roadmaster Direct-Connect Base Plate Kit # RM-521453-5 and Roadmaster Crossbar-Style Base Plate Kit # RM-521453-4 is how tow bars attach. As the name suggests, you will connect your tow bar straight to the direct-connect base plates while the crossbar style will require you use your tow bar's crossbar or quick-disconnect. This makes the direct-connect the easiest base plate to connect to and disconnect from. Because of that, for your 2018 Jeep JL Wrangler Unlimited...
    view full answer...
    Image 1 for
  • Parts Needed to Flat Tow a 2022 Jeep Wrangler Rubicon
    In order to flat tow your 2022 Jeep Wrangler Rubicon you will need at least 5 main parts. Those parts being a base plate kit, tow bar, safety cables, tow bar wiring and a supplemental braking system. I have listed all of those parts below as well as a recommendation and brief description of their purpose. Base Plate Kit: The Demco Tabless Base Plate Kit # DM9519336 that you want to use for your Jeep is going to provide the attachment point for the tow bar on your Jeep. Tow Bar: Since...
    view full answer...
  • Recommended Custom Tow Bar Wiring Kit for a 2021 Jeep Wrangler Unlimited
    Hey Patrick, so I took a peek and what we have for you and I was able to find the Hopkins Custom Tail Light Wiring Kit for Towed Vehicles # HM39VR which is a custom fitting harness that plugs into your existing wiring without splicing. As far as the Roadmaster Stop Light Switch Kit # RM-751490 goes, you are going to need that with your Roadmaster Even Brake Portable Flat Tow Brake System # RM-9400 to complete install. You're also going to need the 12 Volt Outlet Kit, 20 amps # RM-9332.
    view full answer...
  • 2018 Jeep Wrangler Unlimited Sahara JL Wiring for Flat Towing
    For your 2018 Jeep Wrangler Unlimited Sahara JL flat tow wiring, you will need the Roadmaster Stop Light Switch Kit # RM-751490 which will communicate with your motorhome's brake monitoring system that your Jeep brakes are being applied. This is to help you know if a problem is occurring like your Jeep brakes constantly being applied so you can solve an issue before damage occurs. I reached out to my tech contact at Roadmaster and you will not need the relay # RM-88400 because the factory...
    view full answer...
    Image 1 for
  • Recommended Flat Tow Wiring for 2019 Jeep Wrangler Unlimited Rubicon JL
    For your 2019 Jeep Wrangler Unlimited JL Rubicon to use the Roadmaster Even Brake Portable Supplemental Braking System - Proportional # RM-9400 you will need the 12 Volt Outlet Kit- 20 amps # RM-9332 to get the power needed for the system. I do recommend using the Roadmaster Battery Charge Line Kit for Towed Vehicles # RM-156-25 to get the battery charging needed so you don't deplete your vehicle battery on long trips. For your vehicle tow bar wiring to your LED lighting system I recommend...
    view full answer...
  • Parts Need to Flat Tow 2016 Ford Explorer
    Since you already have a Stowmaster tow bar and Blue Ox Patriot there are just a few more parts you will need though I would need a bit more information from you to get you exactly what you need. Is your 3.5L engine the EcoBoost? Do you have adaptive cruise control? And finally, do you have adjustable pedals? If you get back to me I can give you everything you'll need to flat tow your Explorer.
    view full answer...
  • Will the Flat Tow Equipment for a 2021 Jeep Wrangler Transfer to a 2024 Jeep Wrangler
    Wayne, the Roadmaster InvisiBrake Flat Tow Brake System # RM-8700 with the Roadmaster Stop Light Switch Kit # RM-751490 you have will transfer just fine from your 2021 Jeep Wrangler to your 2024 Jeep Wrangler. I'm also looking at the wiring and base plates, and it appears that all that should transfer as well.
    view full answer...
  • Which Roadmaster Base Plates For 2024 Jeep Wrangler Sahara For Flat Towing
    Hey Don, So the Roadmaster # RM35GR only fits Jeeps with that have a factory steel bumper that has a winch on it. Your 2024 Jeep Wrangler Sahara won't have that so the correct base plates are the Roadmaster Direct-Connect Base Plate Kit # RM-521453-5. As for the wiring, that is correct the Curt harness does not mention ParkSense as it is not for those Jeeps with Parksense. If you have the ParkSense you will need the Roadmaster Smart Diode 7-Wire to 6-Wire Wiring Kit for Variable Voltage...
    view full answer...
  • Recommended Wiring Harness and Baseplate for a 2024 Jeep Wrangler Sahara
    No, sorry Tony. You'll need to use a 6-way connector especially if your model Wrangler has ParkSense or LED lights. I recommend the Roadmaster Diode 7-Wire to 6-Wire Flexo-Coil Wiring Kit item # RM-15267 or if your Jeep has the ParkSense Proximity Sensors, the Roadmaster Wiring Kit for Variable Voltage LED Tail Lights item # RM63MR. We have two options for Demco baseplates that fit your 2024 Jeep Wrangler, which one you need is going to depend on your bumper. I have listed both below: Factory...
    view full answer...
  • Flat Towing Equipment Needed For A 2020 Jeep Wrangler With Standard Factory Bumper
    To flat tow your 2020 Jeep Wrangler you'll need a tow bar, base plate, tow bar wiring kit, braking system, and safety cables. The etrailer SD Non-Binding Tow Bar # e34ZR is a great choice for your tow bar. It has non-binding latches that make unhooking on any terrain easy and telescoping arms that make hooking up on any terrain easy. This tow bar also comes with safety cables so you won't need to purchase any separately. The etrailer Invisible Base Plate Kit # e98948 is a fit for a...
    view full answer...
  • Troubleshooting An Error Message With A Demco Stay-IN-Play Duo Coachlink Monitor
    The 2020 Jeep Wrangler Rubicon doesn't have a useable brake light switch wire so the coachlink monitor in your Demco Stay-IN-Play DUO # DM86VR is most likely sending this error since it isn't getting the brake signal. You'll need to install the Roadmaster Stop Light Switch Kit # RM-751490 and connect it to the red wire of the transmitter so that it can properly communicate with the coachlink monitor.
    view full answer...
    Image 1 for
  • Is The OEM Brake Switch Usable When Flat Towing A 2022 Jeep Wrangler?
    The OEM brake switch on your 2022 Jeep Wrangler is not usable for this purpose. You will need to use a brake light switch # RM-751490. This will send the proper signal to the supplemental braking system. I have linked our review and install video below if you want to take a look.
    view full answer...
  • Recommended Permanently Installed Braking System For A 2023 Jeep Wrangler Unlimited
    Excellent! We have just the thing. For a permanently installed system I recommend the Roadmaster invisibrake # RM-8700. This will be tied into your RVs brake light signal and will activate every time the brake lights illuminate. The actuator box installs permanently in an out of the way location and a plunger and cable connect behind the brake pedal. You really will not know its there once you install. Please note that with the 2023 Wrangler Unlimited, the OEM brake switch is not usable....
    view full answer...
  • Blue Ox Baseplate And Tow Bar Wiring Compatibility With A 2020 Jeep Wrangler Unlimited Willys
    If your 2020 Jeep Wrangler Unlimited Willys edition has a factory plastic or steel bumper then the Blue Ox Base Plate Kit # BX1139 would be a compatible fit for your vehicle. The Blue Ox Tow Bar Wiring Kit # BLU79FR you referenced would also be a fit for your Jeep but I recommend cutting off the 4-pole connector and wiring this kit into a 6-pole socket and 7-way cable kit like part # RM-146-7. This would allow you to also run a charge line cable like part # RM-156-25 so that you Jeep's...
    view full answer...
  • Recommended Tow Bar Wiring Kit For Flat Towing A 2024 Jeep Wrangler With ParkSense
    There unfortunately are no plug-and-play wire harnesses available for a 2024 Jeep Wrangler with ParkSense Proximity Sensors at this time so you'll need the Roadmaster Wiring Kit with Smart Diodes for Variable Voltage LED Tail Lights # RM47ZR. You should have the socket and umbilical cord with your Nighthawk tow bar, but if you don't you'll need part # RM-146-7 as well. The Invisibrake # RM-8700 will require that you tap into the brake light switch on your Wrangler, which isn't useable...
    view full answer...
  • Recommended Flat Towing Parts for a 2023 Jeep Wrangler 4xe
    I would be happy to gather a list of parts to help you flat tow your 2023 Jeep Wrangler 4xe. I have listed the ones you will need below and included any installation videos we may have: Tow Bar and Safety Chains - Roadmaster Falcon 2 Tow Bar item # RM-520 and item # RM-643 Base Plate Kit - Roadmaster Direct-Connect Base Plate Kit - Removable Arms item # RM-521453-5 Wiring Harness - Roadmaster Diode 7-Wire to 6-Wire Flexo-Coil Wiring Kit item # RM-15267. This diode kit allows you to use...
    view full answer...
