Circuit Tester Kit


Features:

  • Heavy-duty tester signals with a light and a buzzer
  • Tests low voltage up to 28 volts
  • Finds electrical shorts
  • Checks circuits from a distance
  • Checks polarity
  • Checks battery drain
  • Kit includes:
    • Alligator clip
    • Hook


40376 Circuit Tester Kit




California residents: click here

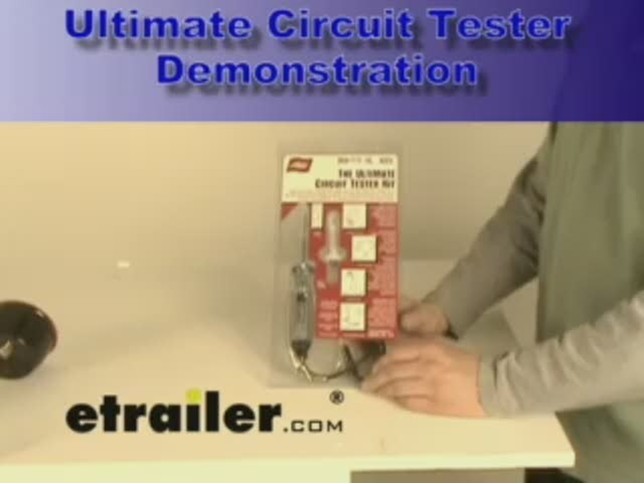

Video of Circuit Tester Kit

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Circuit Testing a Vehicle 4-Pole

Today Im going to show you how to test the functionality of a trailer four-way connectors. What youre going to need to do this is a circuit tester and a buddy in the drivers seat to operate the taillight functions. The first thing were going to test is the taillights themselves. Hit the taillights. (beeping) that means thats working. The next thing were going to test is the left blinker.

(beeping) That works. Then were going to test the brake light function on that side as well. So, hit the brakes. (beeping) That works. Then for the right blinker (beeping).

Now the right brake (beeping). Now we know that this four-way connector is functioning.
