Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 14K GTW, 1.4K TW

Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 14K GTW, 1.4K TW

Item # RP66561
lowest price pledge
Retail:$1,192.83
Our Price: $519.95
You Save: $672.88
Weight Distribution Hitch
This item qualifies for Free Shipping
Shipping Weight: 114 lbs
Quantity:
In Stock, Ships Today
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Product Expert Lindsey S's Opinion

Why would I buy this?

  • Friction material makes for quieter towing than systems with plain steel brackets
  • Easy-to-adjust head makes setup simple
  • Fully enclosed frame brackets look clean and streamline on the trailer

Why wouldn't I buy this?

  • Friction blocks can loosen up over time, and eventually the material will wear
  • You need to buy the hitch ball separately
Friction in brackets and in head works to prevent and correct trailer sway. Chainless brackets with automotive-style friction pads hold spring bars firmly in place to help keep trailer in line with your tow vehicle. Adjustable shank included. Lowest Prices for the best weight distribution hitch from Reese. Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 14K GTW, 1.4K TW part number RP66561 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (137)
  • Q & A (144)
  • Videos (2)
  • Photos
  • Why etrailer?

Reese Weight Distribution Hitch - RP66561

  • 900 lbs
  • 1000 lbs
  • 1100 lbs
  • 1200 lbs
  • 1300 lbs
  • WD With Sway Control
  • Prevents Sway
  • Bar Style
  • Includes Shank
  • Fits 2 Inch Hitch
  • Electric Brake Compatible
  • Surge Brake Compatible
  • Allows Backing Up
  • Reese

Friction in brackets and in head works to prevent and correct trailer sway. Chainless brackets with automotive-style friction pads hold spring bars firmly in place to help keep trailer in line with your tow vehicle. Adjustable shank included.


Features:

  • Evenly distributes weight over axles of tow vehicle and trailer for stability and control
    • Creates a more level ride for both tow vehicle and trailer
  • Integrated sway control limits side-to-side movement of trailer
    • Brackets keep spring bars in place for a rigid system that holds your trailer in line
      • No lift chains - eliminates unwanted movement of spring bars
      • Automotive-grade friction material lines brackets to help correct any sway that may occur due to winds, curvy roads, or sudden maneuvers
    • System head provides frictional resistance to limit movement of spring bars
  • Trunnion spring bars are hot rolled and tapered for superior strength and flexibility
    • Bars flex appropriately over uneven terrain for a controlled, even ride
  • Desired tilt is easily achieved using preset positions on system head - no more piling on washer after washer
  • No-drill, clamp-on brackets can adjust along the trailer frame to accommodate frame-mounted items such as gas tanks, toolboxes or generators
  • Included lift handle eases installation by reducing lifting required by trailer jack
  • Corrosion-resistant powder coat is long-lasting
  • System includes head assembly, adjustable shank, trunnion spring bars, sway control brackets, lift handle, pin and clip, and all necessary hardware
    • Hitch ball sold separately - requires 1-1/4" diameter shank


Specs:

  • Tongue weight: 700 lbs - 1,400 lbs
  • Gross towing weight: 14,000 lbs
  • Fits: 2" x 2" trailer hitch receivers rated for use with weight distribution systems
  • Maximum trailer frame height: 6"
  • Sway control bracket positioning: 27" - 32" back from center of coupler
  • Shank length:
    • 9-1/2" From center of hitch pin hole to center of adjustment holes
    • 10-3/4" From center of hitch pin hole to front of shank
    • 8-3/4" From center of hitch pin hole to back of shank
    • 14-1/4" Overall
  • Total height adjustment along shank: 8-3/4"
    • Maximum rise: 7"
    • Maximum drop: 2-1/4"
    • Overall height: 10-1/2"
    • Holes are spaced 1-1/4" apart on center
  • Limited lifetime warranty


Included w/ SystemRequired - Sold SeparatelyOptional Add-Ons
  • Adjustable Shank
  • System Head
  • 2 Sway Control Brackets
  • 2 Spring Bars
  • Lift Bar
  • Hitch Pin and Clip
  • Necessary Installation Hardware
  • Hitch Ball w/ 1-1/4" Diameter Shank
n/a

Weight Distributing Hitch

Create a stable ride for your tow vehicle and trailer with a weight distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.



Selecting a Weight Distribution System

The tongue weight rating is the most important factor in determining which size weight distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.


To determine the proper weight rating for a weight distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight distribution system.


Integrated Dependent Sway Control

The Steadi-Flex weight distribution system works to stop trailer sway before it begins. This is achieved in 2 ways. First, the system head is designed to firmly hold the spring bars in place to provide tight resistance and help ensure that your trailer tracks behind your vehicle. Second, the spring bar brackets that mount on your trailer's frame produce friction with the bars whenever any side-to-side motion occurs. This keeps the bars from moving, also helping to hold your trailer in a straight line.


System Head with Steel-on-Steel Friction

System Head

The head of the Steadi-Flex system firmly holds the spring bars in place at the hitch point. This tight hold helps to keep the bars from moving, which in turn helps to ensure that the trailer is held firmly in place behind your vehicle. If any sway or side-to-side movement does occur, the spring bars will move only slightly inside of the system's head. This steel-on-steel contact produces frictional resistance to limit further side-to-side motion of the bars, limiting the motion of your trailer in the process. The Steadi-Flex head is wider than most weight distribution heads. This design allows for greater surface area for the spring bars to move against. This makes it easier to produce the friction that resists sway.


Sway Control Brackets with Automotive-Grade Friction Material

Friction Material Brackets

The spring bars attach to the trailer frame with fixed, sturdy steel brackets. They sit on top of the brackets instead of being suspended by chains like the bars that are on traditional weight distribution systems. Chain suspensions typically allow a good deal of side-to-side play in the system. Because the Steadi-Flex has brackets in place of chains, that unwanted movement of the spring bars is eliminated. This helps to keep your trailer in line behind your vehicle. In addition, these brackets create friction to limit any side-to-side movement that may occur. When each spring bar on the Steadi-Flex system moves within the bracket, it rubs along the surface of the bracket, creating friction. This resistance limits the movement of the spring bar, thus preventing further side-to-side movement of the trailer.


Friction Material

Most systems with sway control brackets use bare steel brackets to create friction with the steel bars. Steel-on-steel friction typically causes a much louder ride, and it can result in wear and tear on the brackets themselves. The Steadi-Flex brackets, on the other hand, are lined with automotive-grade friction material. This material is more abrasive than bare steel, which allows more friction to build up faster and easier. The long-lasting friction material also reduces the banging noise created by the bars hitting the inside of the steel brackets. This provides a quieter ride while towing.


Fast, Easy Installation

The Steadi-Flex system is easy to install and set up. On the trailer side, simply clamp the spring bar brackets around your trailer's frame. Then prepare your vehicle by sliding the included shank into your 2" x 2" hitch receiver, and bolt on the head. The system head can be easily adjusted to achieve the proper angle and optimum leverage for your specific setup. No drilling is required to install this weight distribution system.


Head Tilt Adjustment

System Head

The head of the Steadi-Flex can be easily adjusted for the best possible angle for your towing setup. Adjusting the head lets you fine-tune the system's leverage so that you can get the best distribution of weight possible. Traditional head tilt adjustment methods require that the head be disassembled so that stackable washers inside the head can be either removed or added on. But with the Steadi-Flex, there are external, toothed washers on either side of the head that make it easy to change the tilt. Simply position the head in one of the preset angles based on your hitch's tongue weight, then bolt it in place, tightening the washers as you do so. Once the head is sitting at the correct angle, tighten the internal adjustment bolt to secure the platform in place.


Tapered Spring Bars

Spring Bars

The spring bars of the Steadi-Flex system slide into the weight distribution head for quick, easy installation. With a tapered design and hot rolled steel construction, these bars offer superior flex to evenly distribute the weight between your tow vehicle and your trailer.


The bars easily pin into place inside the system head - no need to torque or re-torque any trunnion bolts to adjust the tension. With fewer parts to manage, installing and maintaining the Steadi-Flex is simple.


Adjustable, Clamp-On Brackets

The spring bar brackets simply clamp around your trailer's frame - no drilling required. These brackets are designed to be positioned 27" to 32" back from your coupler and they can fit a wide range of frame sizes and can even be used on a trailer with a bottom-mounted coupler.


Adjustable Brackets

While other brackets use L-pins to secure the spring bars in place on the brackets, the hinged Steadi-Flex brackets close completely around the spring bars. As a result, you can have greater piece of mind knowing that the spring bars are secure, all without the hassle of using and possibly losing L-pins and any extra hardware.



66561 Reese Steady Flex Heavy Duty Weight Distribution System with Sway Control - 14,000 lbs GTW, 1,400 lbs TW

Installation Details RP66561 Installation instructions


California residents: click here

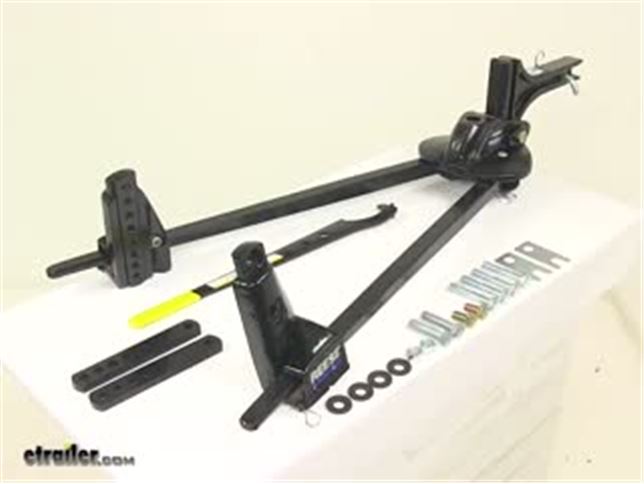

Video of Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 14K GTW, 1.4K TW

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Reese Weight Distribution - WD With Sway Control - RP66561 Review

Today we're going to be taking a look at the Reese Steady Flex Weight Distribution System with built in sway control. This is an all-in-1 sway control and weight distribution system that's going to evenly distribute weight over the axles of the tow vehicle and trailer, which is going to offer better stability and better control. Ultimately, this unit's going to create a more level ride for both the tow vehicle and your trailer. This weight distribution system has a tongue weight capacity of 1,400 pounds and a gross towing weight of 14,000 pounds. It can be used with top mount and bottom mount trailer couplers, as well as trailers that have surge, or hydraulic brakes. It does not have to be taken off when backing up your trailer. Just make sure to avoid sharp turns and jackknife situations. 1 of the most unique features about this weight distribution system is the built in sway control.

It's going to use friction style sway control. It's going to have 6 point sway control. When it comes to those different points, we're going to have 1 point here at the end of each bar on this side, 1 on this side, and then we're going to have a total of 4 here in the head assembly, 2 on top, 2 on bottom. These brackets are designed to keep the spring bars in place for a nice, rigid system. That's going to hold your trailer in line. The unit does not use lift chains, so it eliminates unwanted movement of the spring bars.

If we undo this portion right here, you can see that the bars are going to sit on these nice, thick friction pads. These are going to be automotive grade friction material in the brackets that help correct sway that may occur due to the winds, curvy roads, or sudden maneuvers. It's a really nice design of the unit. We're going to have those friction pads located on each side. Here at the head assembly, the system head is going to provide frictional resistance to limit movement of the spring bars as well. 2 points of sway, here at the brackets, 1 on each side and then 4 points of sway control on the head assembly, 2 on top, 2 on bottom. The steel spring bars are hot rolled and tapered for superior strength and flexibility.

These bars will flex appropriately over uneven terrain, which is going to offer a nice, controlled, even ride. This design allows for maximum ground clearance as well. You can see that we have a nice low profile design here at the head assembly. Just with the steady flex bars and the brackets, we're looking at maximum amount of ground clearance possible. When it comes to tilting the head assembly, that's easily achieved. It's going to use an elongated, serrated washer design.

Here, on these washers, I'm going to flip this around. Actually, I'm going to scoot it up and then I'm going to bring you just closer in on the head assembly. This unit's going to use an elongated washer, that's this portion right here. Then, there's going to be teeth on 1 side and there's teeth in the head assembly. Those grooves are going to line up. That's going to allow you to adjust the tilt, or the pitch of the head assembly. This design allows for quick and easy adjustment of the head assembly, which is going to increase, or decrease tension on your spring bars. Adjustment of the head assembly is very important in weight distribution systems. This design simply makes those fine tune adjustments very simple, which is going to help ensure a safer more enjoyable towing situation. There's going to be that elongated washer on each side here on that top connection point. There's also an adjustment bolt inside the head assembly. You have your hitch ball hole right here. Go straight back. Right here is an adjustment bolt. What you can do is once you have the desired tilt achieved for your situation, you can simply rotate that bolt until it makes contact with the front face here of the adjustable shank of the unit. Sometimes that might be difficult to do. What you can do is you can simply just take a flat blade screwdriver. It's got ridges on that bolt. You can just push it in and then rotate it over until it makes nice firm contact with the front face of that shank. These brackets right here, these are no drill clamp on brackets that can adjust along the trailer frame to accommodate frame mounted items such as battery boxes, gas tanks, tool boxes, or generators. The brackets are going to be positioned between 27 inches to 32 inches from the center of the trailer cup, or from the center of the hitch ball that's being used on the system. These brackets are going to attach to the trailer frame. This piece goes on the inside of the trailer frame. This piece goes on the outside of the trailer frame. You attach this to your trailer frame. When you're ready to set up your system, you slide this portion right here over this bar. It's got the grooves that line up. Then you can adjust it however you need to for your particular situation. It comes with all necessary hardware to get everything installed and fully assembled, installed, and tighten down. That way you're set and ready to go. Really nice design. I also want to mention that it's going to come with the adjustable shank. That's going to be this portion right here. This slides into the trailer hitch receiver on your vehicle and then it provides the attachment point for the head assembly. The adjustable shank is going to give the unit plenty of adjustability. This can be used in either the drop or rise positions. It's going to offer 7 vertical mounting holes. Those holes are going to be separated on center by an inch and a quarter. The maximum rise that you can get with this unit's going to be 7 inches. That's measuring with the system straight and squared off, so no tilt. If you have this in the rise position with the head assembly at the highest setting, it's going to give you a maximum rise of 7 inches. That's from the inside top edge of the receiver tube of your hitch to the top of the ball platform. With it in the drop position, with the head assembly at the lowest setting, it's going to give you a maximum drop of around 2 1/4 inches doing those same measurements. One of the other neat things about the unit is that Reese designed the system so that it does not need constant adjustment like other weight distribution systems. Once you have everything tightened and installed properly, you'll be set to go for a long time. The unit's going to feature steel construction. It's going to have a really nice corrosion resistant powder coated finish over the entire unit. Your hitch ball is sold separately. This does require a hitch ball with a inch and a quarter diameter shank. If you're in need of a weight distribution hitch ball, you can find those right here at etrailer.com. It does come with all your necessary hardware for installation. It's also going to come with these shims right here. These can be used to insure a tight fight between the head assembly and the adjustable shank of the unit. It can slide down right there. It's got the holes for the mounting hardware to still pass through. That's going to allow for some more stability, or a tighter fit right there. This is going to also come with the lift handle. This is going to ease installation by reducing the amount of lifting required by the trailer jack. This simply has a groove and it just helps get the spring bars up into the brackets. This is designed to fit an 2 inch by 2 inch trailer hitch receiver that's rated for use with weight distribution systems. It's going to fit trailer frame heights because of the brackets. It's going to fit trailer frame heights anywhere from 4 inches tall to 7 inches tall. It's going to fit trailer frame widths from a inch and a half to 2 inches. The distance from the center of the hitch pin hole right here on the shank to the center of the ball hole is going to be around 13 1/2 inches when the unit is square and straight. Reese also covers the unit with a limited lifetime warranty. That's going to do it for today's look at the Reese Steady Flex Weight Distribution System with the built in sway control.
