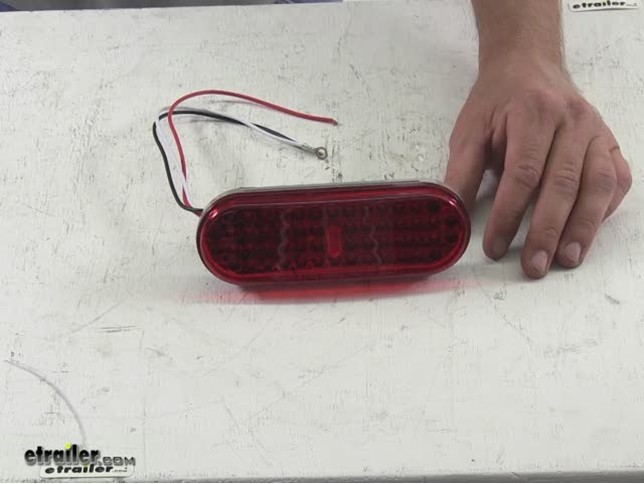

Optronics LED Trailer Tail Light - Stop, Tail, Turn - Submersible - 48 Diodes - Oval - Red Lens

Ask the Experts about this Optronics Trailer Lights

Do you have a question about this Trailer Light?

• Flush Mounted LED Lights for Flatbed Trailer

• Thank you for the photos; based on what you showed, you would want oval LED lights that are in the 6-1/2" x 2" range, though you would need exact dimensions to ensure the right fit. For example, # STL72RB is a red oval light that measures 6-7/16" x 2-5/16" x 1-3/4" deep while # STL70RB is another red oval light but with dimensions of 6-1/2" x 2-1/4" x 1-1/8" deep. The same will apply for your white oval lights, such as the 6-1/2" L x 2-1/8" W x 1" # BUL72CB. The other lights look to...
  view full answer...


• Replacement LED Tail Light for Trucklite Model 60

• Based on the dimensions for the Truck Lite Model 60 that you have it matches the Optronics 10-LED Trailer Tail Light # STL72RB so this light will work as a replacement for you. The 48-LED version # STL70RB that you referenced is the same size and will work too. For a grommet you would need the part # A70GB and then for a harness part # A45PB.
  view full answer...


• Availability of 6-1/2 Inch Oval Trailer 3 Function Light w/ LEDs

• We do offer a light with LEDs that is very similar to the Sealed, 6-1/2 Inch Oval Trailer Stop, Turn and Tail Light, # ST70RB. For this you would need Waterproof LED Trailer Tail Light - Stop, Tail, Turn, # STL70RB. This light measures 6-1/2 inch long x 2-1/4 inches wide x 1-1/8 inches deep. I have included a short video for you.
  view full answer...


• Replacement Tail Lights for 2006 Prestige Trailer Mariah Boat Trailer

• We have both standard incandescent and high-efficiency LED type boat trailer lights you can choose from and we also have LED-type replacement "bulbs" that let you convert existing light fixtures to brighter and less-power-hungry LED operation. It sounds like you have wraparound lights like Wesbar # 271595 and # 271594, which are the efficient LED type. These lights are very close to your dimensions. These 8-function lights are submersible and they include side and rear reflectors. If...
  view full answer...


• Replacement LED Trailer Lights for Kaper KII Lights for a 2009 Haulmark Trailer

• The lights that you have referenced, # STL70RB, do have the same measurements as the Kaper lights you have with the exception that they do not stick out as far from the trailer. As for the clearance lights I do not have one that is an exact match for the dimensions you have given. A close match is # MCL65AB. It measures 3-15/16 inches long and 1-1/4 inches wide. To mount it you would need a bracket like # A65PB or # A67CB.
  view full answer...


• LED Replacement for WESBAR 203561 Light

• Yes, the Optronics Trailer Light, # STL70RB, will replace the Wesbar 203561 to upgrade to LED lights. You will want to check the factory grommet when you remove the light, if the factory grommet is in good condition you can use it with the LED upgrade. If the factory grommet is worn or shows any signs of damage, now is the time to replace it. You would use the Optronics Rubber Grommet, # A70GB. Same thing on the 3-prong plug connector, check it also to make sure it is in good condition....
  view full answer...


• Installation of LED STL70RB Upgrade from Incandescent Sealed ST70RBTK

• I have a solution for a mounting bracket for the LED trailer lights # STL70RB, but the black outer case of the # ST70RBTK is glued to the light and not sold separately. The # STL70RB will fit into the # A70GB grommet and that grommet to the # BK70BB mounting bracket or # MT-BOX65 mounting box. Unfortunately, there is no STL70RBTK offered. I have linked all the above mentioned parts to this page for your convenience.
  view full answer...


• Replacement LED Tail Lights for a Pace Cargo Trailer

• You will need four each of the Sealed, 6-1/2 inch Oval LED Trailer Stop, Turn and Tail Light, 48 Diode, item # STL70RB, Rubber Grommet for 6-1/2 inch Oval Trailer Tail Lights, item # A70GB, and either the Straight 3-Wire Pigtail, item # A45PB or the Right Angle 3-Wire Pigtail, item # A47PB. This is an exact replacement so your grommets will work with the light if they are not damaged or hardened from exposure to the elements.
  view full answer...


• Replacement Trailer Light for a Wesbar 203561

• Yes! I am happy to report that Optronics trailer light # STL70RB can be used as a direct replacement for Wesbar light 203561. The Optronics light requires a pigtail harness, # A45PB, since it doesn't have wires in the back. I have included a link to a video review of this light for you.
  view full answer...


• LED Replacement Tail Lights for Incandescent Type on 2013 Calico Horse Trailer

• I was able to find images of your Calico horse trailer's Kaper-brand oval tail lights. These appear to be grommet mount types that use a rubberized ring for installation, similar to the LED light you referenced, Optronics # STL70RB. This Optronics oval light measures 6-1/2 x 2-1/4 x 1-1/8-inches deep. It mounts using their grommet # a70gb and connects using a standard 3-pring plug like # A45PB. If your lights have the same dimensions, mounting style and connector type as this Optronics...
  view full answer...


• Is Optronics 48 LED Light # STL70RB Brighter Than Optronics 10 Super LED Light # STL72RB

• I spoke with my contact at Optronics and they said the trailer lights are measured in candela output. Candela output is the luminous intensity of the light, or candle power. For comparison they said the candela output on a 100 watt incandescent light bulb in your home is 100 cd. They said the Optronics Sealed, 6-1/2 Inch Oval LED Trailer Light, 10 Super LEDs, part # STL72RB, uses 10 Super LEDs and has a candela output of 12 cd on the tail lights and 221 cd on the stop and turn lights. On...
  view full answer...


• Need Replacements for Kaper KII LED Tail Lights Installed in Tailgate

• In cases when tail lights are installed within a tailgate it may sometimes be that the hinge mechanism in the tailgate does not provide a good enough electrical ground connection; this can cause some lighting functions to not operate properly. If this is the case then routing a separate jumper ground wire from the light fixture ground wire to the vehicle/trailer frame can provide a better ground which will allow more current to pass. It is also possible that the wiring is carrying the...
  view full answer...


• LED Trailer Tail Light Recommendations for a Boat Trailer

• The Sealed, Miro-Flex, Thin Line, LED Lights, # MCL63CRB, are DOT approved as Trailer Marker, Clearance or ID Lights only, so you would not be able to use them as tail lights. A similar light in shape and size that would work for you is the Miro-Flex, Waterproof, Rectangular, LED Trailer Light, # STL33RB. You would also need a wiring harness like # A45PB, and a grommet, # A33GB. Or, if a rounded light is acceptable, you can go with # STL70RB, with wiring # A45PB and Grommet # a70gb.
  view full answer...


• Sealed LED Trailer Lights for a 2006 Nitro 591 Boat Trailer

• The more diodes the LED lamp has, the brighter it would be so if that is a concern then go with a model that has more diodes. You can take a look at the 48 diode model, # STL70RB, in the review video I have included. These lights use a 3-prong wiring harness like # A45PB. I cannot promise that it will be the same as your existing 3-prong connector. If you have to make splices, I recommend sealing out water using liquid electrical tape, # SWC50122. These lights can be mounted using grommet...
  view full answer...


• Replacement License Plate Light For 2009 Haulmark 7x12 Low Hauler Trailer

• I did some research on your 2009 Haulmark Low Hauler trailer. I was able to see several different styles of license plate lights and holders on trailers. I have attached a link to our product page for license plate lights. Some have the license plate holder attached to the assembly and some are just the lights that are mounted to light the license plate. There are different opinions about mixing LED and incandescent lights on the same circuit. We have had customers that wire them in the...
  view full answer...


• 6-1/2 Inch Oval LED Trailer Tail Light

• The direct replacement LED version of # ST70RB is # STL70RB. The L in the part number indicates this is the LED version. I have linked a video review of this light for you.
  view full answer...


• What is the LED Version of Trailer Tail Light # ST70RB

• The LED version of the light you referenced, # ST70RB, is actually the Sealed, 6-1/2" Oval LED Trailer Stop, Turn and Tail Light, # STL70RB. It has the same measurements and shape but uses LED lights instead. I have included a link to a video review of this light for you. The correct grommet for this light is # a70gb and if you need a mounting bracket use # BK70BB. For a pig tail wiring harness you will need # A45PB.
  view full answer...


• Optronics Trailer Lights # STL70RB and # LED Light Brightness

• I spoke with my contact at Optronics and was informed that the Lumen difference between part # STL70RB and part # STL22RB LED stop, turn and tail lights is not tested by Optronics. I was told that the more LED lights in the tail light the brighter the light will be. I have seen these lights on display and these lights are very bright especially as compared to incandescent lights.
  view full answer...


• How to Replace Optronics Taillight Part # STL70RB on a Cargo Trailer

• If your trailer has flush mount lights like the Optronics Sealed Oval LED Tail Light, # STL70RB, then I have two ways for you to remove your old taillights from your Haulmark Cargo Trailer. These taillights are sealed, therefore, you need to change the entire assembly, not just the bulbs inside. If you have access to the backside of the light from the inside of your cargo trailer and your lights are hardwired, then you need to cut the wires close to the old taillight and gently push...
  view full answer...


• Replacement Cover for Rear Light on 10 Ft Haulmark Trailer

• In order to find the correct replacement cover for the rear light on your 10 foot Haulmark trailer, I will need the brand name and the part number on the mounting base of your light. I have attached a link to all of our light lenses that are available.
  view full answer...


• How to Replace the Tail Lights in the Rola Tilting Enclosed Cargo Carrier Model # 59110

• The Tail Light on the Rola Tilting Enclosed Cargo Carrier, item # 59110, does not have a replaceable bulb. The taillights are sealed to prevent water from entering the housing and causing the bulb to blow out prematurely. You will need the Sealed, 6-1/2 inch Oval Trailer Stop, Turn and Tail Light, 3-Function, item # ST70RB. To replace the light you will need to pry the light fixture from the grommet that is installed in the carriers housing attach the plug to the new light and install...
  view full answer...


• Can the Bulb in Light, Red Flush Mounted Sealed Turn Signal - Oval, # ST70RB, Be Replaced

• The Light, Red Flush Mounted Sealed Turn Signal - Oval, # ST70RB, is a sealed light and is not meant to be opened to replace the bulb inside. I went out to the warehouse and pulled one of these lights to double check and it is sealed. I then checked other lights with the same dimensions and they are all sealed as well. I would recommend going with an LED light since LEDs last longer than incandescent bulbs and draw less power. Take a look at the Sealed, 6-1/2 inch Oval LED Trailer Stop,...
  view full answer...


• Availability of Replacement Trailer Stop/Turn/Tail Lights for Super 60 Model 60 Lights

• The replacement light you would need to replace your model 60 light is the Sealed, 6-1/2 inch Oval LED Trailer Stop, Turn and Tail Light, 48 Diode, item # STL70RB. The Sealed, 6-1/2 inch Oval LED Trailer Stop, Turn and Tail Light, 10 Super Diode, item # STL72RB, is just a bit small on the width and a bit large on the height to properly fit in the grommet for the model 60, but may work if you would like to try it.
  view full answer...


• What is the Difference Between Optronics Lights STL22RB and STL70RB

• The two lights you mentioned are essentially the same with the only difference being the amount and size of the diodes. The part # STL22RB has 12 larger diodes and the part # STL70RB has 48 smaller diodes. I attached review videos for both lights for you to check out as well. Basically the more diodes the brighter the light will be. For an install grommet the part # A70GB will be what you need for either light and the harness part # A47PB is the correct number.
  view full answer...


• How to Find Replacement Tail Lights for a 28 Foot Haulmark Travel Trailer

• To determine which lights will work for your 28 foot Haulmark travel trailer, you will need to check the light housing or the lens of the light and try to find a model number and manufacturer if possible. If you think the sealed 6-1/2 inch oval LED Trailer Lights # STL70RB will work on your Haulmark trailer, then you can purchase them and, if there is a problem, call our customer service department at 1-800-298-8924 and they will take care of you. The dimensions of the light are listed...
  view full answer...


• Does Optronics Trailer Light, # STL70RB, Fit Wesbar 203561 Light For Upgrade To LED Lights

• Yes, the Optronics Trailer Light, # STL70RB, will replace the Wesbar 203561 to upgrade to LED lights. You will want to check the factory grommet when you remove the light, if the factory grommet is in good condition you can use it with the LED upgrade. If the factory grommet is worn or shows any signs of damage, now is the time to replace it. You would use the Optronics Rubber Grommet, # A70GB. Same thing on the 3-prong plug connector, check it also to make sure it is in good condition....
  view full answer...


• Is there a Noticeable Difference in Brightness Between a 48 Diode Light and 68 Diode Light

• The more LEDs you have the brighter the light will be. There may not be much visible difference in the day but at night it will likely be noticeable. If you switch one light to # STL70RB you would want to change the other side too to keep things the same in terms of light output and overall appearance. I have linked a video showing the # STL70RB lit up. Not being able to find a number on a tail light is common. In those situations you would want to go by the dimensions of the light and...
  view full answer...


• Recommended 6-1/2 by 2-1/4 Oval Grommet Mount LED Taillamps for Homesteader Challenger Trailer

• A standard grommet mount taillight like the Optronics # STL70RB you referenced would work well for you. The lamp measures 6-1/2 x 2-1/4 inches, and uses the # A70GB grommet that fits in a 6-3/4 by 2-1/2 rough opening. The lamps are compatible with an industry standard 3 prong plug like part # A45PB. I've linked you to a product demonstration video, click the provided link to view it.
  view full answer...


• How to Wire Optronics Trailer Tail Light # STL70RB

• The 3-Wire Pigtail # A45PB for the Optronics Trailer Tail Light # STL70RB that you referenced features a black wire for the tail/running lights, a red wire for the turn/brake signal, and a white wire for ground. It's very likely that on your trailer the green wire is for right turn/brake lights, the yellow wire is for left turn/brake lights, and the brown wire is for running lights. Since trailer wiring isn't standardized it is still a good idea to test the wires on your trailer for...
  view full answer...
