Dutton-Lainson Hand Winch - TUFFPLATE Finish - 2 Speed - Direct Drive - 1,600 lbs

Dutton-Lainson Hand Winch - TUFFPLATE Finish - 2 Speed - Direct Drive - 1,600 lbs

Item # DL14521

lowest price pledge

Retail:$97.89

Our Price: $60.32

You Save: 38%
Trailer Winch

This item qualifies for Free Shipping

Shipping Weight: 9 lbs

Arrives before Christmas with Ground or 3 Day Shipping.
Quantity:
In Stock, Ships Today
DL14521 - Wire Rope,Polyester Strap Dutton-Lainson Standard Hand Winch
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

DL14521 - Wire Rope,Polyester Strap Dutton-Lainson Standard Hand Winch
Dutton-Lainson Hand Winch - TUFFPLATE Finish - 2 Speed - Direct Drive - 1,600 lbs Wire Rope,Polyester Strap DL14521
Dutton-Lainson Two Speed Winch Trailer Winch - DL14521
DL14521 - Wire Rope,Polyester Strap Dutton-Lainson Trailer Winch

Videos


  • Standard Hand Winch
  • Boat Trailer Winch
  • Utility Winch
  • Wire Rope
  • Polyester Strap
  • Standard Duty
  • Dutton-Lainson
  • Two Speed Winch
  • Standard Hand Crank
This Dutton-Lainson 2-speed, direct drive standard-duty winch is designed for multipurpose horizontal pulling operations. Lowest Prices for the best trailer winch from Dutton-Lainson. Dutton-Lainson Hand Winch - TUFFPLATE Finish - 2 Speed - Direct Drive - 1,600 lbs part number DL14521 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (8)
  • Q & A (8)
  • Videos (1)
  • Photos
  • Why etrailer?

Dutton-Lainson Trailer Winch - DL14521

This Dutton-Lainson 2-speed, direct drive standard-duty winch is designed for multipurpose horizontal pulling operations.


Features:

  • Standard-duty winch is designed for horizontal pulling
  • High carbon steel gears
  • Permanently lubricated bearings
  • Ergonomic handle grip
  • Zinc TUFFPLATE finish
  • Handle included
  • Made in the USA


Specs:

  • Capacity: 1,600 lbs
  • 5-Year limited warranty


Double Speed Pulling Winch Specifications
ModelRated Capacity (2)Drum Hub DiameterGear RatioHandle LengthMax. Mechanical AdvantageReversible Ratchet2-Speed OperationMax. Drum Capacity - Cable (3)Max. Drum Capacity - Strap
DL145211,600 lb.1-1/8"5.4:1 / 1:19-1/2"75yesyes1/4" x 58'45'

(2) Capacity is based in direct pull on the third layer of line on the drum. Capacity is reduced as the line builds up on the drum.(3) Drum capacity based on cable size listed. (Cable is not included.)


Winches are not to be used as hoists for lifting, supporting or transporting people, or for loads over areas where people can be present.



14521 Dutton-Lainson Hand Winch - TUFFPLATE Finish - 2 Speed - Direct Drive - 1,600 lbs - Model DL1602ADD



DL14521 Installation InstructionsInstallation Details DL14521 Installation instructions

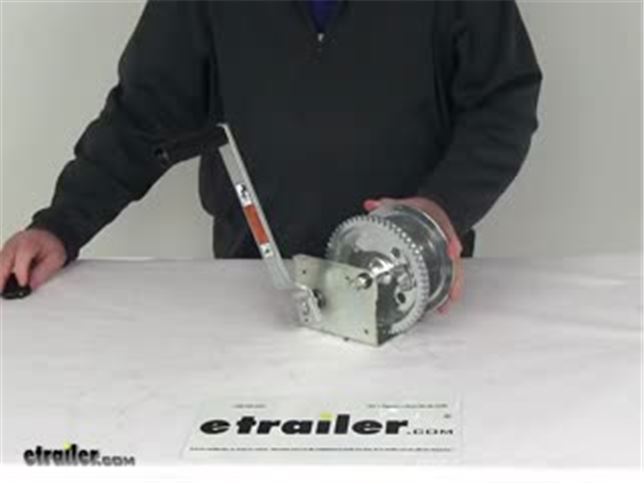

Video of Dutton-Lainson Hand Winch - TUFFPLATE Finish - 2 Speed - Direct Drive - 1,600 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dutton-Lainson Trailer Winch DL14521 Review

Speaker 1: Today we are going to take a look at the Dutton Lainson Two Speed Direct Drive Hand Wench with the TOUGHPLATE finish and a 1600 lb. weight capacity. Now this is a standard duty wench it's designed for horizontal pulling, so it's ideal for boat trailers and other pulling applications. It has this ratcheting handle here and on the end of the handle uses a nice ergonomic grip on it. And this is a quick attach handle, so it allows you to easily change from speed, like its in now to the high speed, or the direct drive for a 1 to 1 gear ration.The way you remove the handle, it has a little handle clip at the bottom, you just push in on it, it will slide right off and then again, just push it in to attach it. It will click right into place and now you are ready to go.

And again, if you want to move it back, just push in on the clip, slide it in, it locks right into place. The gears on this are a high carbon steel heat treated gear, and they use a zinc TOUGHPLATE finish on the whole wench.Now the TOUGHPLATE finish has about three times the corrosion resistance of a standard zinc plating and about 30% greater corrosion resistance when compared to powder coating. Now on the hub drum itself, right here on the shaft, it does have permanently lubricated barrings, it does use this reversible ratchet paw, you can see this ratchet right back here, that when it's installed or up, it will give you the ratcheting. And if you just push it down it will remove the ratcheting and will just let that free wheel, just like that.And nice thing about this ratchet paw, it is reversible. So basically what you can do, is you can remove it, reverse it around, and it will allow the cable to either wind off either the top or the bottom of the reel, whichever way you prefer just by reversing that ratchet.

Now this part is made in the USA. Few specs on it. The gear ratio, when it's in low speed, like it is right now, where I got the handle, that will be a 5.4 to 1 gear ratio and basically what that's telling you, it will take 5.4 revolutions of the handle to give you 1 revolution of the drum.Now this is a direct drive wench, so if you remove it, take it off the low speed, and then you put it on to the higher speed or the direct drive. That's directly on to there, so that's going to give you 1 to 1. So that's 1 revolution of the handle is 1 revolution of the drum.

So you can see that's a direct drive one to one ratio. Now the drum hub diameter, which is this part right in here, it's 1 1/8 inches diameter. Maximum drum capacity it will use a cable, a rope, or a strap.Now if you use a cable, or a rope the capacity will be 1/4 inch diameter 58 feet in length. If you do use a strap it will be a 2" wide strap by 45 feet in length. Now if you do use a cable or a rope, they do include this cable keeper.

Let me see if I can move this around just to show you here. Right on here, I've just temporarily installed it, but you can see it's the mounting hardware, and what that does it allows you to mount, when you go to install your cable or rope to the drum, you run it through here, attach it down there to get it started then you can wrap it around the drum. So this cable keeper does come with it.Capacity again on this is 1600 lbs., the handle length, which would be measured from the center here to the center here is 9 1/2". The base dimension on this wench, the length of it is going to be right at 5" long the overall width of the base is right at 3 7/8" wide. If you notice it does have multiple mounting holes to fit your application when you install it.And again, just to show you, like right now, we do have it in the direct drive or 1 to 1 position. And again if you flip that down, that will release it and allow it to free wheel and if we click it back in, move it down to the lower speed, you can see in that will give you 5.4 to 1 ratio.But that should do it for the Dutton Lainson Two Speed Direct Drive Hand Wench with the TOUGHPLATE finish and the 1600 lb. Capacity.


Customer Reviews

Dutton-Lainson Hand Winch - TUFFPLATE Finish - 2 Speed - Direct Drive - 1,600 lbs - DL14521

Average Customer Rating:  5.0 out of 5 stars   (8 Customer Reviews)

This Dutton-Lainson 2-speed, direct drive standard-duty winch is designed for multipurpose horizontal pulling operations.

- DL14521

by:


This winch works very well. I especially like the 2 speed operation. The direct drive axle is fast. Changing the crank handle from one position to the other is easy and fast. 297949



- DL14521

by:


I used it the first time and what your staff had recommended did the job perfectly. I will be using your company again for this type of equipment. Pulled my canoe up a very steep hill 40 + feet with very little effort. 255343



- DL14521

by:


Winch worked great. No problems The two speeds are a help when you want to get the strap in quickly. 357185



- DL14521

by:


excellent quality-fast shipment 217625



- DL14521

by:


did exactly what ,I wanted it to do. 153730



- DL14521

by:


this winch was just what I needed.the boat came up the trailer very easy and at my age it sure helps.This company is great.thanks 147011



- DL14521

by:


Winches are excellent for my purposes. I used them to install a large sail shade over my patio to protect it from the hot sun. Very easy to use, and very happy with them. Much better quality that the winches that I found at one of our local stores. 143030



- DL14521

by:


Excellent product, but hard to install. 126081


8
8

Ask the Experts about this Dutton-Lainson Trailer Winch
Do you have a question about this Trailer Winch?


  • Dimensions of the Dutton Lainson Winch part # DL14521
  • The length of the base of the Dutton Lainson Winch part # DL14521 that you referenced is 5-3/16 inches, the width of the base is 3-5/16 inches and the overall height is 4-1/32 inches.
    view full answer...

  • What Does Reversible Ratchet Mean Regarding Dutton Lainson Winches
  • I spoke to my contact at Dutton-Lainson and he informed me that reversible ratchet means that you can reverse the direction you have control of, but you will need to remove the ratchet assembly and reinstall it in the opposite direction to do so. I was told that you could have the strap pull over the top or pull under the bottom. For a strap you may be interested in a Hand Winch Strap with Safety Hook # DL24249.
    view full answer...

  • Can Roller Bunks be Used on a Boat Trailer for a Hurricane SS211 Boat
  • According to the research I did, I found that a Hurricane SS211 weighs in at about 2,990 pounds. That is not counting any gear that would be on the boat, water, fuel, and other items. All of these incidentals would push it over 3,000 pounds which would exceed the capacity of the Boat Trailer Deluxe Roller Bunks, # DL21741. All of the roller bunks we carry are rated for either 2,500 pounds (4 foot length) or 3,000 pounds (5 foot length). For your boat, I think the best solution would...
    view full answer...

  • How to Pick Out a Handwinch for a Boat Trailer
  • Generally when picking out a winch for a boat trailer the ratio is 2 to 1 meaning you would need a winch with roughly half the capacity as the weight of the boat. With good rollers and a short winching distance the ratio increases to 3 to 1, but with long winching distances and wooden bunks like what you currently have the ratio is 1 to 1. The Dutton Lainson Winch part # DL14521 that you referenced has a 1,600 lb capacity so it would be more than adequate and a great choice. For a...
    view full answer...

  • Trailer Winch Recommendation with a Handle that Can be Mounted on Either Side
  • I believe the best option you have would be to get a Dutton-Lainson Hand Winch # DL14527. This winch can have the handle mounted on either side of the winch, has a 1,600 lb capacity and gets bolted on. The Dutton Lainson Winch # DL14521 that you referenced cannot have the handle switched because it is a two-speed winch. I attached an FAQ article on hand winches for you to check out also.
    view full answer...

  • Trailer Winch Recommendation with a Handle that Can be Mounted on Either Side
  • The Dutton-Lainson winch # DL14521 handle cannot be moved to the opposite side. But take a look at # DL14527. You can move the handle to the other side with this winch. The only difference is that the handle on this winch is bolted on where as the other one has a quick release that is not bolted on.
    view full answer...

  • Hand Winch that Can Use 1/4 Inch Vinyl Coated Cable
  • We don't carry a winch that will hold 80 feet of 1/4 inch vinyl wire. The closest we come is the # DL14527 and # DL14521 which will handle up to 58 feet of 1/4 inch cable. Or there is # DL15403 which can use a 5/16 inch cable that's 47 feet.
    view full answer...

  • Are there Any Bearings in Dutton-Lainsion Winch # DL14521
  • There are no bearings associated with Dutton-Lainson winch # DL14521. You can look at the exploded view of the winch that I received from Dutton-Lainson to identify the part or parts that you are looking for. With that information I can determine if it is a part we have or if it is one I can have added to our site.
    view full answer...
