Strait-Line Weight Distribution w/ Sway Control - No Shank - Trunnion Bar - 15K GTW, 1,500 lbs TW

Strait-Line Weight Distribution w/ Sway Control - No Shank - Trunnion Bar - 15K GTW, 1,500 lbs TW

Item # RP66130
lowest price pledge
Retail:$1,103.37
Our Price: $696.87
You Save: $406.50
Weight Distribution Hitch
This item qualifies for Free Shipping
Shipping Weight: 108 lbs
Quantity:
In Stock, Ships Today
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Videos

Product Expert Lindsey S's Opinion

Why would I buy this?

  • Because it doesn't just rely on tension to control sway, you won't get a really rigid ride
  • Tends to track better during turns and swerves than 4-point systems
  • If you need a bigger drop or rise, you won't be wasting money by getting a standard shank that you won't end up using. But...

Why wouldn't I buy this?

  • Premium features carry a premium price tag
  • Bars popping in and out of cams can create a lot of noise, especially when turning
  • You do have to buy the shank separately, so there is that extra step.
Featuring dual-cam sway control to stop trailer sway before it begins, this weight-distribution system has flexible, powder coated steel, trunnion spring bars that create a level ride for both your trailer and your tow vehicle. Shank sold separately. Lowest Prices for the best weight distribution hitch from Reese. Strait-Line Weight Distribution w/ Sway Control - No Shank - Trunnion Bar - 15K GTW, 1,500 lbs TW part number RP66130 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (229)
  • Q & A (242)
  • Videos (1)
  • Photos
  • Why etrailer?

Reese Weight Distribution Hitch - RP66130

  • WD With Sway Control
  • Prevents Sway
  • 900 lbs
  • 1000 lbs
  • 1100 lbs
  • 1200 lbs
  • 1300 lbs
  • 1400 lbs
  • Shank Not Included
  • Fits 2 Inch Hitch
  • Fits 2-1/2 Inch Hitch
  • Electric Brake Compatible
  • Allows Backing Up
  • Reese

Featuring dual-cam sway control to stop trailer sway before it begins, this weight-distribution system has flexible, powder coated steel, trunnion spring bars that create a level ride for both your trailer and your tow vehicle. Shank sold separately.


Features:

  • Evenly distributes weight over axles of your tow vehicle and your camper or trailer for stability and control
    • Creates a more level ride for both tow vehicle and trailer
  • Automatically self-adjusting, self-centering sway control works in a variety of situations
    • Straight-line movement - cams lock in position to hold trailer steady despite crosswinds
    • Cornering - cams automatically unlock and slide to allow full-radius turns
    • Sudden swerving - cams seek a straight-line angle to help stabilize trailer
  • Sway control bolts onto A-frame trailer tongue and attaches to lift brackets via chains
    • No U-bolts or platforms to interfere with frame-mounted items such as gas tanks, toolboxes or generators
  • Trunnion spring bars are hot rolled and tapered for superior strength and flexibility
    • Bars flex appropriately over uneven terrain for a controlled, even ride
    • Sway-control cams provide attachment point for spring bars
  • Head assembly has a forged, raised ball platform - eliminates need for raised hitch ball
  • Adjustable spring-bar tension - just switch links in lift chains to fine-tune
  • Desired tilt is easily achieved with serrated-washer design - no more piling on washer after washer
  • System includes sway-control cams, head assembly, lift brackets, spring bars, lift chains and all necessary hardware
    • Adjustable shank and trailer hitch ball sold separately
      • Ball requires threaded shank with 1-1/4" diameter


Specs:

  • Tongue weight: 800 lbs - 1,500 lbs
  • Gross towing weight: 15,000 lbs
  • Fits: 2" x 2" and 2-1/2" x 2-1/2" trailer hitch receivers rated for use with weight-distribution systems
  • Lift-bracket positioning: mount about 30" back from hitch ball
    • Requires approximately 5-1/2" of space along trailer frame
      • Optional mounts (sold separately) that take up less space on trailer frame are available
    • Will not fit trailer frames wider than 2-1/2"
  • Limited lifetime warranty


Included w/ RP66130Required - Sold SeparatelyOptional Add-Ons
  • System Head
  • Sway-Control Cams
  • Spring Bars
  • Adjustable Shank
  • Hitch Ball w/ 1-1/4" Diameter Shank
n/a

Note: Dual-cam sway control cannot be used with surge-type trailer brakes and is designed for Class III and Class IV hitches only. Should not be used with aluminum trailer frames.


Weight Distributing Hitch

Create a stable ride for your tow vehicle and your camper or trailer with a weight-distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.



Selecting a Weight-Distribution System

The tongue weight rating is the most important factor in determining which size weight-distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.


To determine the proper weight rating for a weight-distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight-distribution system.


Serrated Washer System

Unique Features of Reese Strait-Line Weight Distribution

The easy-to-use, serrated washers on the Reese Strait-Line system make adjusting the tilt of the weight-distribution head a snap. This is a huge improvement over the standard pin-and-washer method, which involves piling washers - one on top of another - onto a difficult-to-access pin. The serrated-washer system lets you easily loosen, adjust and tighten a single washer and nut on either side of the head for simple, secure positioning.



The trunnion spring bars of the Strait-Line system slide into the weight-distribution head for quick, easy installation. With a tapered design and hot rolled steel construction, these bars offer superior flex, ensuring a smooth, controlled ride for both your tow vehicle and your trailer. These specially designed bars have rounded, hooked ends, making them the only kind of spring bars that can function with Reese's active-style, dual-cam sway control.


Weight Distributing Hitch

Dual-Cam Sway Control

Reese's dual-cam sway-control system stops trailer sway before it begins. This is a significant improvement over traditional friction-style controls, which help to correct sway only after it has already begun. This specially designed system uses unique sliding devices called "cams" to suspend the spring bars of your weight-distribution system. One end of a cam bolts onto your trailer's frame, and the other end attaches to the lift bracket via the lift chain. The rounded, hooked ends of the spring bars then sit in these cams. The controlled placement of the spring bars keeps your system secure while still allowing enough movement for free, easy interaction between your trailer and your tow vehicle.



Dual-Cam Sway Control Turning

During basic, straight-line towing, the cams lock in place and hold the trailer steady by applying constant, consistent pressure to both sides. This keeps the trailer from swaying in crosswinds. When you go into a turn, the cams unlock and slide to allow a controlled, full-radius maneuver. If you swerve suddenly, the cams will give to accommodate the movement while still working to obtain a straight angle, thereby maintaining control of the trailer.




66131 and 26002 Reese Strait-Line Trunnion Bar Weight Distribution Hitch without Hitch Bar

Installation Details RP66130 Installation instructions


California residents: click here

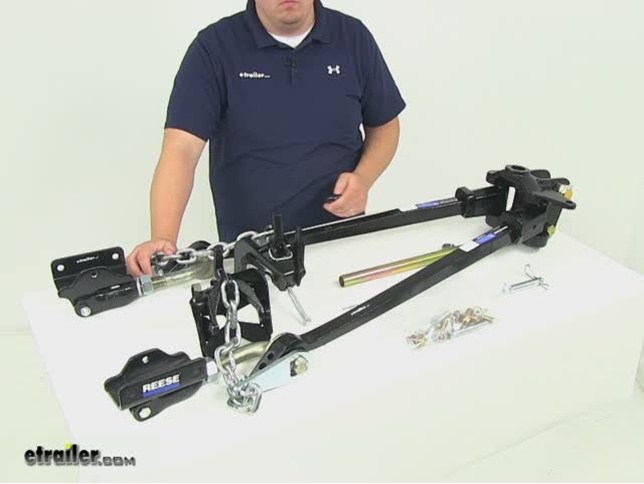

Video of Strait-Line Weight Distribution w/ Sway Control - No Shank - Trunnion Bar - 15K GTW, 1,500 lbs TW

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Reese Weight Distribution - WD With Sway Control - RP66130 Review

Today we'll be reviewing part number RP66130, this is the Reese Strait-Line Weight Distribution System with a sway control unit. This is a Trunnion bar design. The system's going to evenly distribute the weight over the axles of your tow vehicle and trailer for stability and control. It's going to create a more level ride for both the tow vehicle and the trailer. It's going to feature the automatically self-adjusting, self-centering sway control that's going to work in a variety of situations. Whether you're moving in a straight line the cams will lock in position to hold the trailer steady despite crosswinds. When you're going around corners or when you're cornering the cams will automatically unlock and slide to allow full radius turns.

Then, when you encounter the situations where you can't help but have sudden swerving, the cams actually seek a straight line angle to help stabilize the trailer. So, these two things right here, that's going to be your sway control system. It easily attaches to the wright distribution system via the chains. So, you don't have to mess with any U-bolts or platforms to interfere with the frame mounted items such as gas tanks, toolboxes, or generators, it just connects using the chains. Then, it will require drilling into the frame of your trailer. All the necessary hardware to get the sway control system installed is included, so keep that in mind.

The Trunnion bars are going to be hot rolled and tapered here on the ends for superior strength and flexibility. The bars will flex appropriately over uneven terrain for a controlled, even ride. Then, the sway control cams provide attachment point for the spring bars. They just sit over that portion right there of the sway control arm and so it's got that nice curved edge. It fits the contour of that really well and it's a perfect fit. The head assembly is going to feature a forged, raised ball platform that's going to eliminate the need for a raised hitch ball.

It's also going to allow you to get the desired tilt that you need. It's got the serrated washer design. So, here on each side where the shank goes, it's going to feature a serrated washer that has teeth that digs into the teeth on the head assembly. That's going to allow you to get the tilt that you need. That's also going to eliminate the need to have to use any spacers or piling on washers like you used to have to, to get the desired angle.

You can adjust the tension here on the spring bar all you got to do is switch between the different lengths to get the tension that you need depending on your application. This system is going to include a sway control cams, the head assembly, the lift brackets, the spring bars, the lift chains. It's also going to include the leverage bar and all necessary hardware. The leverage bar goes over that portion there of the bracket. It's going to allow you to get some leverage to lift up the chains in the position or to lower them, that way if you ever need to disconnect. It's just a really neat feature to help ease installation and removal. The frame brackets here are going to attach to the frame of your trailer and all you got to do is thread in the set screw, that's a really tight fit so you would need to use the appropriate tool to get that on there. So, once you have that on there you just tighten the set screws, that's going to push against the trailer frame. It's going to hold that bracket firmly in place. The adjustable ask and trailer hitch ball are going to be sold separately. This unit is going to require a hitch ball with a threaded shank with a 1 1/4 inch diameter or you can use the spacer right here, the reducer sleeve that goes in the hitch ball hole. You're going to be able to use a hitch ball with a threaded shank with a 1 inch diameter, so keep that in mind that is included.The system's going to offer a tongue weight of 800 pounds to 1500 pounds of tongue weight and then gross towing weight is going to be rated at 15,000 pounds. This system is designed to work with 2-inch by 2-inch and 2 1/2 inch by 2 1/2 inch receiver that would be rated for use with weight distribution systems. Again, that shank system is going to be sold separately. inaudible 00:04:03 in the mounting point for the lift bracket assembly, you want to mount this about 30 inches back from the hitch ball which would be this portion here, measuring in a straight-line angle 30 inches back on the trailer frame. Here at etrailer.com, you can find some optional mounts that take up less space on the trailer if you need to. These are going to require about 5 1/2 inches of space along the trailer frame. See there they got the nice opening in the bracket it's going to fit around a frame, this will not fit trailer frames wider than 2 1/2 inches. So, here on the sway control system, this portion is going to bold right onto the trailer frame, again all the hardware you need is included. You definitely want to refer to the instructions to make sure you get correct placement and to double check and make sure you have everything hooked up appropriately. Really simple system to use and to install, attached in just a few minutes. You shouldn't have any problem with getting that set.Now, when it comes to selecting a weight distribution system, the tongue weight rating is the most important factor into determining which size weight distribution system you should use. If the bars of the system you use are rated too high for your setup they'll actually cause a rigid ride which could result an imbalancing trailer. Then on the other hand, if the bars are not rate high enough the system will be unable to properly distribute the weight. To determine the proper weight rating, all you have to do is determining your trailers tongue weight and then add to that the weight of cargo behind the rear axle of your tow vehicle. The two measurements combined will make up the tow weight rating for your weight distribution system and then you can choose from a variety of options once you get that measurement figured out. That's going to do it for our review. Part number RP66130 this is the Reese Strait-Line Weight Distribution System with Sway Control. .
