Waterproof trailer light kit includes 2 combination tail lights and 2 clearance or side marker lights to serve 8 functions on trailers wider than 80". Universal mount with stainless steel hardware. 25' Harness with 4-pole connection.
Features:
Specs:
Note: Over 80" Federal Regulations require additional clearance lights (like MCL93RB or MCL84RB - sold separately). Also, if using with a tilting trailer you may need to route a separate ground wire from the clearance lights to a metal part of the trailer frame since tilting trailers sometimes use rubber isolators in the tilting mechanism.
The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The circuit board is sealed, which means that water will not damage the diodes or circuit board.
If a trailer is 80" or wider at its widest point, then it requires rear clearance lights in addition to basic trailer lights. These clearance lights indicate the width of the trailer when it is viewed from the back.
To meet these requirements on a flatbed utility trailer where the bed extends past the wheels, you can install combination trailer lights that include the rear clearance function. For proper mounting, the lights must be installed at the widest points on the rear of the trailer - one on each corner.
A P2-rated light produces a 45-degree angle of light to either side of its centerline for a total of 90 degrees of coverage. This beam pattern can be seen straight on, but it cannot be seen clearly from the side. So this type of light can be used as either a side marker light or a clearance light, but it cannot function as both. If you need both functions, then you must install 2 separate lights on your trailer - one as a front or rear clearance light and one as a side marker light.
California residents: click here
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

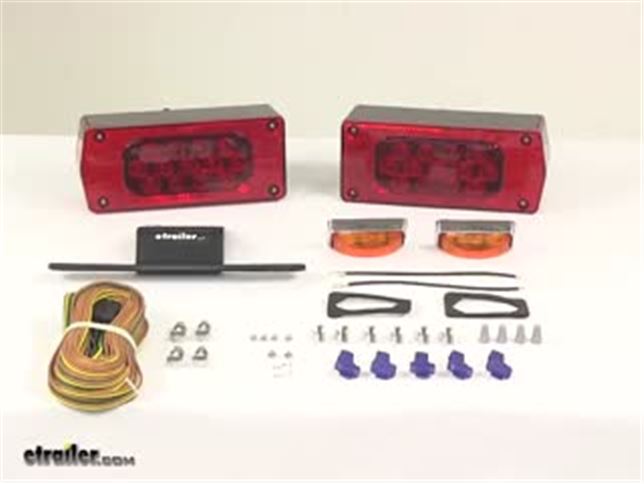

Speaker 1: Today we'll be having a look at and showing you how to install the Optronic Submersible Aero Pro LED trailer light kit. Part number TLL36RK.Now what's great about this kit is not always in the LED kit, but it comes with everything you need in order to wire up a trailer properly. With multiple LEDs inside of it. LEDs are great because they draw less power than standard incandescent lights and they last up to 50 times longer.This is also a waterproof submersible assembly. It makes it an ideal candidate to use on your boat trailers. On the side of our tail light assemblies, we have a side marker light, plus our reflex reflector.On the bottom of our driver side assembly, we have our license plate light to illuminate our license plate, which mounts on the provided license plate bracket.
This will help keep your trailer legal, so make sure that your license plate light is illuminated.Not only do these lights have our license plate lights on the driver side, our marker lights and our tail lights and running lights, but we also have our turn signals and brake lights on them.Now, in the front of our trailer, we have our clearance lights here. They have three built in LEDs to really help illuminate and let others know where our trailer's at behind our vehicle. These clearance lights have a nice amber color. They also have a built-in reflector and we have a nice chrome base to help give our trailer a nice finished look. These clearance lights, just like our back lights are submersible and waterproof.Now, for a few measurements to see if these will work for your trailer.
We're looking at about 7-7/8 of an inch and width on our light assemblies, we're looking at about 3-1/4 inches tall and about 2-3/4 of an inch deep.Now, on our clearance light assemblies with the chrome housing, we're measuring about 2-7/8 of an inch wide. We're about an 1-3/8 inch tall. With the gasket, we're measuring about 1-1/8 inch of depth.Now that we've gone over some features of our lights, we'll show you how to get them installed. To begin our install, we'll start at the front of our trailer. Make sure that we can route our wires to the back, making sure we have enough slack for our four pole connector in the front.Now, when we route our wiring, we have two sets of wires.
We have a green and a brown and this is for our passenger side and a yellow and a brown and that's for our driver side. Now, when you route these, you want to make sure you route them in a way that they're not going to interfere with any moving parts in the suspension and they're not going to get snagged on the ground on anything. We just routed ours to the existing wiring channels on our trailer.Now the white wire that comes off of our four pole connector, we need to attach this directly to our trailers frame. This serves as our ground. I'm going to make a pilot hole in the frame of our trailer with a small drill bit.Now, we'll take our white wire, strip off a little of the insulation, place on a ring terminal, crimp that down.Now, we'll secure our ring terminal where we drilled our pilot hole with a self tapping screw.
Okay, now that it's secure, we have a proper ground.Here we are at the back of our trailer. Now our trailer at one point in time had round lights in it. Not a big deal. We'll use the plate that the lights are mounted to, to secure our new lights.I went ahead and marked out two locations that are four inches apart from each other and even with the top of our trailer flan assembly here. We'll drill two pilot holes and enlarge them to secure our light assemblies.Where the pilot holes are made, we'll now enlarge them to a quarter inch in diameter.Now we'll take our driver side light. It's the one with the yellow wire coming out of it and a clear spot on the bottom. We'll take two of our carriage bolts and we'll slide those into the slots that are in the outermost location. Now most applications you'll pick one of the outer ones and the center one and you won't use one of the other outer ones, and your holes will be drilled two inches apart versus our four inches, but for our situation, since we're going over a round hole, we need to use the four inches so we have the most room.Now I'll take our light assembly, guide the wires through our round hole and then go through the two holes that we drilled. Now this is our license plate frame bracket here. Most applications you would go through the outer hole and then the bolt that we're not using in the middle to secure it in place, but because the way our trailer's designed we won't be able to use that in this particular application. We'll deal with this later. Place the lock washer on our bolt, followed by one of our nuts. Do the same for the other bolt.Now we'll take a 10 millimeter socket and we'll snug down our nuts. We don't need to go overly tight because if we go too tight, we'll just crack our plastic assembly.We'll go ahead and repeat our same process on the passenger side to mount our light assemblies. Now we can start making our wire connections. Here's our wire that we ran back from the front and the wires from our light. We're going to measure off how much of each we're going to need and cut off the excess. Separate our brown and yellow wire that we brought back and strip back the insulation from each end of our wires. We use some blue, 14 to 16 inch gauge heat shrink butt connectors that we have available on our website. The reason we're using these over the wire nuts that come with our kit is because these will provide a more weather tight seal so you don't have to worry about the elements causing corrosion, which could cause a short.Now we'll just match our wire colors up. Our yellow wire will go to our yellow wire. This is for our left turn signal and left brake light.This is our ground wire. We need to attach this ring terminal directly to our frame on the trailer. Now what I'm going to do to give us the cleanest and most professional install is measure off how much we're going to need to attach to this stud here. Cut off the excess. Strip back some insulation. Take a 14 to 16 gauge ring terminal, which we have available on our website. Stick on the wire and crimp it into place.I'll remove our nut, stick it over the stud and place a lock washer in the nut and snug it back down.Now we use a heat gun, which we have available on our website to shrink down our butt connectors. You'll want to use a heat gun over a cigarette lighter because it's an indirect source of heat versus and open flame. It won't damage the connectors.All right, for our particular application for our license plate bracket, we secured it in place with a couple self--tapping screws and some fender washers. This gives us a nice solid mount and the light will be able to shine down onto it still, thus illuminating it and keeping us legal.Now we will go ahead and wire up our passenger side the same way we did the driver side. The only difference is since we're on the right side now versus the left, our turn signal and brake light wire is now a green wire versus a yellow.So for our clearance lights, we're locating those on the side of our trailer towards the front. We took our bracket that they mount to, set it over where we wanted it and made a couple pilot holes through here and here for our self-tapping screws. Then right above this spot right here, we drilled a larger hole in the frame so we have a spot for our wires to pass through so they won't short out.We'll take our gasket, sit it on the back of our bracket. Take our self-tapping screw, go through one of the holes, line it up with the hole that we drilled. Get it to start. Line up our second self-tapping screw and get it started.Now we'll take our clearance light, our wire lead. We'll push the wire lead into the top location of the clearance light, feed our wire through the large hole and snap it into place.Okay, this is some extra black 16 gauge wire. We have this available on our website as part number 16-1-1. It's sold by the foot. You may or may not need this depending on your application. We'll strip off one end. That wire. We'll strip off the power lead from our clearance light and we'll combine the two with a butt connector.Like we've done before on all of our butt connectors, we'll use a heat gun. Now the brown wire from our four pole flat wiring that we routed into the back earlier, we'll cut right in the middle, strip back the insulation from both ends. Measure off how much of the wire that we added to the clearance light we're going to need. Cut off the excess. Strip off some insulation from it. Tie that in with one end of the brown wire. Take a butt connector, crimp it. We'll place the other end of the brown wire inside the butt connector.Now we will go ahead and wire up our passenger side the same way that we did the drive side. Now that we have everything installed, we'll test it all out. If we're using a tow doctor trailer tester to make sure everything's working right. Start by testing out our tail lights. Our tail lights are working and so are our clearance lights.Do a left brake light now. That's working. Also, doubles as our left turn signal. We'll do our right brake light again, which doubles as a right turn signal and that's working, too.That completes our look at and showing you how to install the Optronic Submersible Aero Pro LED trailer light kit. Part number TLL36RK.
