LED Combination Tail Light Kit for Trailers under 80" Wide - Submersible - Driver and Passenger

LED Combination Tail Light Kit for Trailers under 80" Wide - Submersible - Driver and Passenger

Item # TLL56RK
lowest price pledge
Retail:$187.99
Our Price: $68.75
You Save: 63%
Trailer Lights
This item qualifies for Free Shipping
Shipping Weight: 3 lbs
Quantity:
In Stock
Trailer Lights TLL56RK - Red - Optronics
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

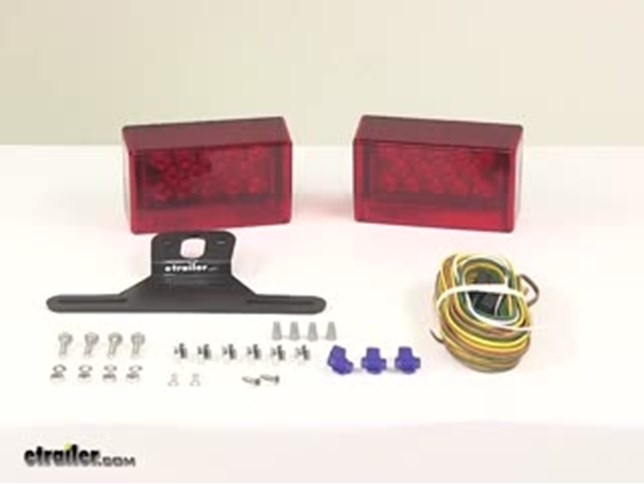

Waterproof trailer light kit includes 2 combination tail lights that serve 7 functions on trailers under 80" wide. Universal mount with stainless steel hardware and included license plate bracket. 25' wiring harness with 4-pole connector. Lowest Prices for the best trailer lights from Optronics. LED Combination Tail Light Kit for Trailers under 80" Wide - Submersible - Driver and Passenger part number TLL56RK can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (154)
  • Q & A (44)
  • Photos
  • Why etrailer?

Optronics Trailer Lights - TLL56RK

  • Tail Lights
  • Rectangle
  • Kit
  • LED Light
  • Red
  • Surface Mount
  • 6L x 3-1/2W Inch
  • Optronics
  • Submersible Lights
  • Stop/Turn/Tail
  • Side Reflector
  • Rear Reflector
  • License Plate

Waterproof trailer light kit includes 2 combination tail lights that serve 7 functions on trailers under 80" wide. Universal mount with stainless steel hardware and included license plate bracket. 25' wiring harness with 4-pole connector.


Features:

  • Rectangular combination tail lights serve 7 functions when properly mounted on trailers under 80" wide
    • Stop, turn, tail, side marker, side reflector, rear reflector, and license plate light
    • Built-in license plate light on driver's side light
  • Waterproof housing and lens unit is submersible
    • Great for marine trailer applications
  • LEDs make great replacements for incandescent lights
    • No bulbs to replace
    • No brittle filaments
  • Corrosion-resistant license plate bracket
  • Durable polycarbonate housing and acrylic lens
  • Red lens over clear LEDs
  • Universal mount
    • Stainless steel mounting hardware included
  • 25' Wiring harness with 4-pole connector
  • DOT approved


Specs:

  • Application: trailers under 80" wide
    • Driver side: STL57RB
    • Passenger side: STL56RB
  • Light dimensions: 6-1/16" wide x 3-5/8" tall x 2-1/4" deep
  • Number of diodes:
    • Driver's side: 23
    • Passenger's side: 18
  • Power draw at 12.8 volts:
    • Stop and turn lights: 0.268 amps
    • Side marker lights: 0.059 amps
  • Lifetime warranty on LEDs


Optronics TLL56RK LED Combination Tail Lights for Trailers Under 80 Inch Wide Diagram

Sealed, Waterproof Trailer Light

The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The circuit board is sealed, which means that water will not damage the diodes or circuit board.



TLL56RK Optronics LED Combination Tail Lights for Trailers Under 80" Wide - Submersible - 40 Diodes - Driver and Passenger Side - 25 Ft Harness

Alternate part number: TLL-56RK




California residents: click here



Customer Reviews

LED Combination Tail Light Kit for Trailers under 80" Wide - Submersible - Driver and Passenger - TLL56RK

Average Customer Rating:  4.8 out of 5 stars   (154 Customer Reviews)

Waterproof trailer light kit includes 2 combination tail lights that serve 7 functions on trailers under 80" wide. Universal mount with stainless steel hardware and included license plate bracket. 25' wiring harness with 4-pole connector.

- TLL56RK
by:

These lights are great!! I replaced the old filament style lights on my trailer with the LED's because I am on rough dirt roads almost exclusively and got tired of replacing bulbs. These lights installed quickly and easily, they are highly visible, and work like a charm. I am looking forward to less maintenance on my trailer lights, that's for sure! 313694


Comments
After a year of rough use the lights are working perfectly!
Arin W - 11/06/2017

30587

- TLL56RK
by:

Product was shipped promptly. The package contained all that I needed to completely re-wire my 5x9 Big Tex utility trailer. I am very pleased with the manner in which the system is color coded wiring for mistake free installation. I would definitely recommend etrailer. 351278



- TLL56RK
by:

The TLL56RK went on by small boat trailer easily and works great. Since my boats are used in salt water, I replaced all the hardware with stainless steel. The TLL16RK is for my larger, dual axel, boat trailer. As I laid out the harness, I realized that it was only 25' long; too short for the over 80" wide trailer. I had to add some additional harness wire, which required buying an after-market harness, whacking it up, and making eight additional splices. NOTE to the manufacturer, Optronics: The harness is for a WIDE trailer, which are normally LONGER!! Include a LONGER harness too. 105356



- TLL56RK
by:

Great product. I had to search a lot of different sites to find this size (roughly 6"x3.5") in a LED package because it had to fit my trailer bracket for the lights. As you can see in the picture the bracket protects two sides of the light so I needed the same size as the old ones. Thankfully eTrailer.com had the kit and it shipped within 24 hours. It bolted right on and everything I needed was included in the kit. Very happy with the product and the order process and shipping time from eTrailer. I would recommend this product to anyone. 547689



- TLL56RK
by:

Product was delivered undamaged and was exactly what I ordered. Product ordered was Led low profile trailer lights that were replacements for oem. They were installed and fit perfectly. I will use this company for trailer parts again and would recommend them 559551



- TLL56RK
by:

This is an excellent kit which seems to be a very good quality and is quite easy to install on the trailer. This will permit me back my trailer into the water without having to unplug before getting the lights wet. Also I would advise anyone doing a trailer wiring to keep in mind that if problems arise it most likely is due to a poor ground wire connection. The only problems I had with the lighting installation was due to ground wire not having sufficient contact. 163587



- TLL56RK
by:

Received what I ordered and they work as expected. Easy to install, no problems. Note: I put stops (3" bolts) on trailer to prevent lights from hitting ground. 916519



- TLL56RK
by:

easy to install all parts 914960



- TLL56RK
by:

I like the LED aspect of the trailer lights and installation was pretty straight forward, though I wondered why the white ground wire was so short. I used heat shrink connectors rather than the ones supplied with this package. Having one hand, project was still doable. 914788



- TLL56RK
by:

Ordered to replace 30 year old boat trailer lights. I haven't been able to install yet but they arrived fast and look just as they were described. Looking forward to getting them put on through the winter. 909873



- TLL56RK
by:

Great service, speedy delivery, I am very satisfied you guys are great thank you 892459



- TLL56RK
by:

Great fender was exactly what i needed and etrailer ships fast. Good to do business with them. I would buy again 899107



- TLL56RK
by:

Great product and quick shipping! 876408



- TLL56RK
by:

Very good price a quick shipping. Exactly what I needed. 873318



- TLL56RK
by:

Courtney was a fantastic help. Everything came in as expected. Thanks for the help. 873097



- TLL56RK
by: 08/20/2020

have had these installed for over 2 years. still performing! 865350



- TLL56RK
by:

864065



- TLL56RK
by:

Easy to use. Replacement as leds were great lights. 861589



- TLL56RK
by:

Great products, at fair prices. 861424



- TLL56RK
by:

Smooth transaction 868289



- TLL56RK
by:

Finally found led replacements that fits perfectly on my 1985 ez loader trailer!!! They were exactly what I was looking for. They are bright and look awesome!!!!! 853736



- TLL56RK
by:

I was informed that these LED trailer lights have a lifetime warranty on the LEDs. I’ll be saving all of my paperwork in case I have problem like I do with my current LEDs. 849936



- TLL56RK
by:

The TLL56RK LED Combination Tail Light Kit are working great after 1 year! Installation was straight forward while following the included instructions. I mounted these lights on a 20 ft. Shore Land'r boat trailer and the wire harness was more than long enough. No more changing filament bulbs. The one issue I had was that the lights could of been 1/2" wider to fit better. All other dimensions were good for my application. 847576



- TLL56RK
by:

Excellent!!!! Communication and shipping was great. Installation was a breeze. Lights look awesome. Thank you!! 827921



- TLL56RK
by:

Excellent product, would buy again! Thank You 825940


25
157
Show More Reviews

Ask the Experts about this Optronics Trailer Lights

  • How Does Wiring of Trailer Lighting Kit # TLL56RK Usually Route on Trailer
    The harness that comes with the # TLL56RK is 25 feet in length. Depending on how your trailer is set up you could easily run wires to either side or down the middle and then split off. For more info on this I attached an install video for this for you to check out as well.
    view full answer...
  • Does LED Tail Light Kit TLL56RK Have Side Marker Lights
    The description of the LED Combination Tail Light Kit for Trailers under 80" Wide # TLL56RK does specify that the lights have a side marker function (in the second line under "Features"). I have added a link to a help article which details trailer lighting requirements, which are different not only for different trailer widths, but also lengths and weights. I have also added a link to a video installation I recommend taking a look at which details the side marker function of the...
    view full answer...
  • Wire Gauge and Wire Colors for LED Combination Tail Light Kit TLL56RK
    While I'm not sure which wire you are referring to that you need to tap in to, I can tell you the wire colors for the LED Combination Tail Light Kit # TLL56RK; the yellow is turn signal, brown is tail light signal, and white is ground. The wires are 20 gauge and the splices are compatible despite the slight difference in size. If you take a look at the linked installation video, our installer does not use the splices but does instead use Butt Connectors # DW05744-10 which are for 16...
    view full answer...
  • Are Submersible Trailer Lights Guaranteed Against Leakage
    I have an explanation for you. Light kits like the LED Combination Tail Light Kit for Trailers under 80" Wide - Submersible part # TLL56RK and other submersible trailer light are actually a little confusing. They are not completely sealed, if fact it is just the opposite there are drain holes on the light that will allow for the water to drain out of the lights after they have been submerged. On incandescent type submersibles there is a thin plastic shield around just the bulb to keep cold...
    view full answer...
  • Side Marker Lights Required for Trailer Wider Than 80 Inches and Longer Than 30 Feet
    If your trailer is more than 80" wide and 37' long then you need 2 rear side marker lights, 2 rear side reflectors, 2 front side marker lights, 2 front side reflectors, 2 intermediate side marker lights and reflectors, as well as 2 front and 2 rear clearance lights. I have attached a helpful article that explains how many lights you need for different trailer variations and I clipped the parts specific for your trailer for you to check out. We have an abundance of lights and wiring as...
    view full answer...
  • Is Conspicuity Tape Required for Use on Trailers Less Than 80 Inches Wide
    According to the regulations (see the link I provided) conspicuity treatments are NOT required for trailers that are under 80 inches wide. This being said, it's never a bad idea to make yourself more visible to traffic but it's not a requirement.
    view full answer...
  • What do I Need to Completely Replace my Boat Trailer Lights
    I really like the LED Combination Tail Light Kit for Trailers part # TLL56RK. It offers LED lights which you won't have to be replacing bulbs in and with the submersible design you won't have to worry about water. It has the 4-way connector to connect to your Pathfinder and the wiring to make all of your connections. It also has the hardware for connecting the lights to the trailer. If for some reason your lights are different looking than these or you would like a different type please...
    view full answer...
  • Troubleshooting Tail Lights and License Plate Light on the LED Trailer Light Kit # TLL56RK
    There are a few things that you can do to troubleshoot your wiring situation and hopefully get you back out there to fish. You will want to start off by checking the connector on both your trailer and your 2005 Chevy Trailblazer as well as the connectors on your adapter. Make sure they are clean and free of any dirt or debris. If that looks good then you will want to check all of your grounds to make sure they are connected to a clean, bare-metal surface. If the adapter that you are...
    view full answer...
  • Upgrading Pop-Up Camper Taillights to LED
    Although they are a bit smaller than the lamps you are replacing, the Optronics # TTL56RK light kit would work great for you. The lamps would provide the same tail light, turn signal and brake light functions as the lamps you are replacing. The drivers side lamp will also provide illumination for the license plate. The only spot where you might have an issue would be in how the lamp attaches to the camper. The TLL56RK lamps are bolt mounted, with the head of the bolts fitting into slots...
    view full answer...
  • Availability of Just the Light Assemblies of Under 80" LED Trailer Light Kit # TLL56RK
    Yes, for just the light assemblies you would want the # STL56RB and # STL57RB which is what the part # TLL56RK comes with.
    view full answer...
  • What is the Difference Between Over 80 inch and Under 80 inch Trailer Tail Lights
    A trailer that is over 80 inches wide is required by DOT regulations to have rear clearance lights. An over 80 inch taillight kit, like part # TLL16RK, will have the side clearance light built into it. An under 80 inch taillight does not have the clearance light built in and an additional red, rear side marker light would be required if you used an under 80 inch rated light on a trailer that is over 80 inches wide. Using an over 80 inch taillight on a trailer like yours that is under...
    view full answer...
  • Replacement Taillights for EZ-Loader Trailer
    We carry all sorts of replacement trailer lights including taillights that you can see on the linked page. Since trailer makers do not maintain detailed specs on the lights they install during production you can match up the size, shape and functions of your taillights to those we offer, or you may be able to find a brand name and/or part number on the light base (not the lens). You can use the click on filters on the linked page to narrow the presented items to just those that match...
    view full answer...
  • Wire Gauge Used for the Optronics Waterproof Trailer Wiring Harness # TLL56RK
    The wire for the Optronics Waterproof Under 80 Inch LED Harness # TLL56RK is 20 gauge copper wire.
    view full answer...
  • Required DOT Lights for a Pop-Up Camper
    For light requirements you have to look at the total length and width of the trailer along with its gross capacity. The 1987 Coleman Sequoia is 14 feet, 11 inches long and 6 feet, 8 inches wide. That makes the trailer right at 80 inches wide, but less than 30 feet long and the gross weight will be less than 10,000 pounds. If you go with the under 80 regulations, which is likely how Coleman manufactured this trailer because that is how it is set up then the trailer will need to have: Back 2...
    view full answer...
  • What is the Wire Gauge of Optronics Waterproof Trailer Wiring Harness # TLL56RK
    The wire for the Optronics Waterproof Under 80 Inch LED Harness # TLL56RK is 20 gauge copper wire.
    view full answer...
  • Where Is Trailer Measured To Determine What Lights Are Required
    Actually, the width of a trailer is determined by it's widest point. If the wheels are outside of the frame of the trailer then the width is measured for that trailer from outside of the fender to outside of the fender on the other side of the trailer. If the wheels are under the trailer frame then the measurement is taken at the frame width only. I have attached a helpful article that explains how to measure a trailer and the article has also got a complete breakdown of the lights...
    view full answer...
  • What Does it Mean when a Trailer Light is Listed as Waterproof or Submersible
    When it comes to trailer taillights the terms waterproof and submersible are somewhat interchangeable. If a taillight is considered submersible that means that the internal circuits are waterproof and would be protected for if you were to back the trailer into water like when launching a boat. The part # TLL56RK that you referenced is listed as waterproof and submersible so it would work great on a boat trailer. Lights that aren't waterproof or submersible will still work just fine...
    view full answer...
  • Replacement LED Submersible Light Kit, Bar Light and Clearance Lights for a Boat Trailer
    For a light bar to go along with the Optronics Light Kit part # TLL56RK you could use the Optronics Light Bar part # MCL93RB, this light bar is LED and submersible. For clearance lights you could go with the part # 47-99-005 for red and part # 47-99-006 for amber.
    view full answer...
  • Trailer Lighting Kit Recommendation for a 7 foot by 14 foot Utility Trailer
    I attached a picture that details all of the required lights and reflectors for a trailer that is over 80 inches in width and shorter than 30 feet in length like what you have. Based on the dimensions of your trailer that you listed a center marker light is not required. For a similar light kit that comes with everything needed to the part you referenced you would want the part # TLL36RK. I attached a review video for this light kit plus a help article trailer light regulations for...
    view full answer...
  • Will Switching to LED Lights on Trailer Prevent Fuses From Blowing on 2013 Honda Pilot
    What I can tell you is that switching from incandescent lights to the LED Combination Tail Light Kit # TLL56RK for your ShoreLand'r trailer will 100 percent prevent you from continually blowing fuses. The reason is the minuscule power draw of these lights, with the stop and turn lights drawing about 0.27 amps and the marker lights about .06 amps. Your problem will definitely be solved in that regard. What we don't know for sure is everything the fuses on your 2013 Honda Pilot serve....
    view full answer...
  • Adding LED Lights Running off Battery and Switch in Enclosed Trailers
    Are you looking for internal or external lights? We can help you with both. For internal lights a good option is part # ILL22CHB because of how bright it is. It's an 830 lumens light which is brighter than most for sure. It's a 2 wire install so connecting it to the switch won't be an issue. If you want them outside the trailer take a look at part # MT70882. These are designed as off-road lights for a truck or Jeep so you know they can handle the elements. They're also quite bright at...
    view full answer...
  • What is Needed to Switch my 1992 Trailstar Boat Trailer Over to Led's
    I checked for images of your 1992 Trailstar and all of them that I saw use a light mounted under the angle bracket on each side. To switch out the entire kit with new light wiring and plug to the vehicle use the LED Combination Tail Light Ki part # TLL56RK. This has the new submersible Led's, new wiring and the new plug for your vehicle. If you are just trying to replace the lights and your wiring and trailer connector are in good order then use the LED Combination Trailer Tail Light...
    view full answer...
  • Easy to Install Wiring Harness on 2004 Jeep Liberty
    Since your 2004 Jeep Liberty does not seem to have the factory 7-way, the easiest to install 4-way that fits your Jeep is the Hopkins Plug-In Simple Vehicle Wiring Harness with 4-Pole Flat Trailer Connector # 42475. You'll only need to plug this into your Jeep's harness, and getting to that is likely going to be the most difficult part as you'll have to remove some interior paneling to find it. Then for lights, I recommend going with LED marker lights. Ten marker lights is quite a bit...
    view full answer...
  • Vehicle Bulb Out Sensor Goes Off When Towing a Trailer with LED Lights
    The bulb out sensor indicates that you may have a BMW, Volkswagen, Porsche, AUdi, or other German vehicle. These vehicles have a problem when towing a trailer with LED trailer lights. The problem is what you have described. The LED lights do not draw enough power (in this case it is just the blinkers) and it makes the vehicle think there is a bulb out. The fix is to use a special adapter, # TR20141, which will eliminate this problem because it adds load resistors that increase the draw...
    view full answer...
  • What is the Part Number for the Tail Light Assemblies in the Trailer Light Kit Part # TLL56RK
    If you are referring to the tail light assemblies included with the Trailer Light Kit part # TLL56RK then you can purchase them separately using part # STL56RB for the passenger's side and part # STL57RB for the driver's side. However, it will be more cost effective to just buy the kit so this is what I recommend as you would have spare parts as well.
    view full answer...
  • Mounting Bolt Pattern of Optronics Trailer Light Kit TLL56RK
    The distance between the mounting holes of the Optronics trailer light kit part # TLL56RK is 2 inches like you mentioned needing. The distance from the mounting holes to the top of the light is 1.825 inches.
    view full answer...
  • Submersible LED-Type Trailer Lights for 18-Foot Boat Trailer
    We do offer a range of fully submersible boat trailer lighting, in both incandescent and LED types, that can be seen on the link provided. You can click on the filters in the left-hand margin to narrow the results based on shape, color, size, bulb type and mounting style.
    view full answer...
  • Mount Stud Dimensions for Waterproof, Under 80" LED Trailer Light Kit # TLL56RK
    Yes, the mounting hole distance on the lights of the # TLL56RK that you referenced are 2 inches apart on center. These will fit in the space you have that's 6 by 3-1/2 inches as well.
    view full answer...
