Bulldog Round Jack - No Mount - Sidewind - 15" Lift - 5,000 lbs

Bulldog Round Jack - No Mount - Sidewind - 15" Lift - 5,000 lbs

Item # BD170205
lowest price pledge
Retail:$153.82
Our Price: $77.78
You Save: 49%
Trailer Jack
This item qualifies for Free Shipping
Shipping Weight: 13 lbs
Quantity:
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Need help with installation?
Locate installers near me
Jack has 19-1/4" retracted height and 34-1/4" extended height. Mount and foot sold separately. Lowest Prices for the best trailer jack from Bulldog. Bulldog Round Jack - No Mount - Sidewind - 15" Lift - 5,000 lbs part number BD170205 can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (65)
  • Q & A (5)
  • Videos (1)
  • Photos
  • Why etrailer?

Bulldog Trailer Jack - BD170205

  • Side Frame Mount Jack
  • 4001 - 5000 lbs
  • Sidewind Jack
  • No Drop Leg
  • Fixed Mount Jack
  • 15 Inch Lift
  • No Wheel or Foot
  • Bulldog

Jack has 19-1/4" retracted height and 34-1/4" extended height. Mount and foot sold separately.


Features:

  • Dependable jack is recognized as industry standard for agricultural and commercial applications
    • ASABE compliant
  • Precision-fit parts provide exceptional stability and reliability
  • Sidewind handle has smooth, ergonomic design for easy cranking
  • Outer tube has gray paint finish
  • Inner tube is zinc plated
  • Mount and footplate or caster sold separately


Specs:

  • Bracket height:
    • 19-1/4" Retracted
    • 34-1/4" Extended
  • Lift: 15"
  • Inner tube diameter: 2"
  • Outer tube diameter: 2-1/4"
  • Lift capacity: 5,000 lbs
  • Limited 5-year warranty


How to Determine the Lift Capacity You Need in a Jack

A trailer jack is designed to lift the tongue of your trailer so you can connect the trailer coupler to your hitch ball. To do this, you'll need a jack with a lift capacity high enough to handle your trailer's tongue weight.


Tongue weight is the amount of weight that your trailer applies to the back of your tow vehicle. Typically, your tongue weight should be 10-15% of your total trailer weight (trailer + cargo). In other words, a 10,000-lb trailer would have a tongue weight between 1,000 lbs and 1,500 lbs. For a trailer this size, you would need a jack with a lift capacity of at least 1,500 lbs.


It's okay to have a jack with a weight rating that is higher than your trailer's tongue weight. In fact, a jack with a higher lift capacity should operate more efficiently, allowing you to spend less time cranking and more time camping.


Trailer and Camper Jack Lift

Every jack offers a certain amount of lift or travel. Screw travel is the distance the jack extends when you crank it (or toggle it to "extend" on an electric model). Some jacks include a drop leg for extra adjustability. On these jacks, you'll see the maximum extension of the drop leg listed in the specs as well. Adding the screw travel and drop leg travel together will give you the total lift. The total lift listed above can help you determine how high this jack will be able to raise your trailer.



170205 Bulldog Jack - No Mount - Sidewind - 15" Travel - 5,000 lbs

Installation Details BD170205 Installation instructions


California residents: click here


Video of Bulldog Round Jack - No Mount - Sidewind - 15" Lift - 5,000 lbs

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bulldog Trailer Jack - Side Frame Mount Jack - BD170205 Review

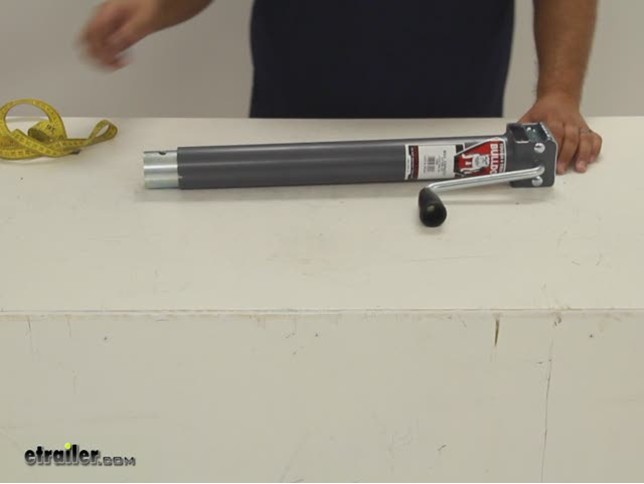

Today were going to take a quick look at the Bulldog Round Jack, part number BD170205. This jack does not have a specific mount setup included with it, that way you can fit it to whatever you need on your trailer. Its a sidewind design with en ergonomic handle that makes operating the jack nice and easy. The inner tube is zinc plated for a long lasting finish and the outer tube is finished in a gray paint. The jack has a 5,000-pound lift capacity and Bulldog covers it with a limited five-year warranty. The bracket height of the jack when retracted is about 19-1/4 inches, thats from this weld joint up at the top, down to the bottom of our inner tube.

We have another jack here, same model thats fully extended, so we can show you the extended height. Again, well measure from the same spot on the weld joint down to the bottom and thats about again 34-1/4 inches. The difference between the two, 15 inches, is our lift height. Theres no mount plate or caster included with this jack. That way you can purchase one separately so you can setup the jack according to your needs.

Thats it for our quick look at Bulldogs Round Jack, part number BD170205.
