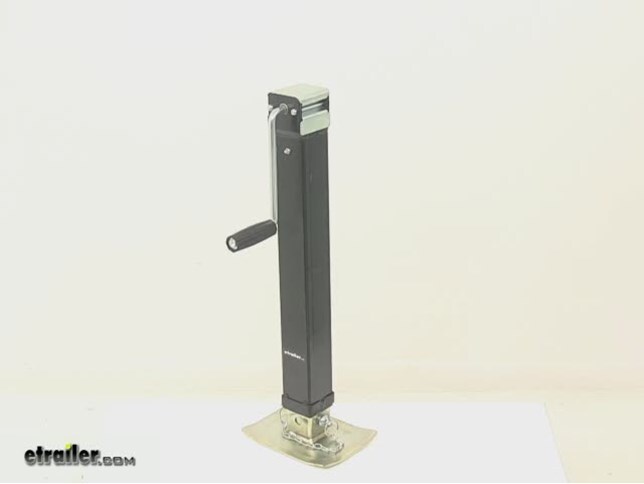

Square Direct Weld Jack w/ Footplate - Drop Leg - Sidewind - 28-7/8" Lift - 7,000 lbs

Square Direct Weld Jack w/ Footplate - Drop Leg - Sidewind - 28-7/8" Lift - 7,000 lbs

Item # TJD-7000S
Retail:$79.79
Our Price: $69.80
You Save: 13%
Trailer Jack
This item qualifies for Free Shipping
Shipping Weight: 24 lbs
Quantity:
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Need help with installation?
Locate installers near me
Weld-on jack has a retracted height of 24-3/4" and an extended height of 40-1/8". Square design provides superior side-load support. The drop leg offers 13-1/2" of lift on top of the 15-3/8" screw travel. Sidewind handle included. Lowest Prices for the best trailer jack from etrailer. Square Direct Weld Jack w/ Footplate - Drop Leg - Sidewind - 28-7/8" Lift - 7,000 lbs part number TJD-7000S can be ordered online at etrailer.com or call 1-833-496-1390 for expert service.
  • All Info
  • Reviews (444)
  • Q & A (0)
  • Photos
  • Why etrailer?

etrailer Trailer Jack - TJD-7000S

  • Side Frame Mount Jack
  • 6001 - 7000 lbs
  • Sidewind Jack
  • Drop Leg
  • Weld-On
  • Fixed Mount Jack
  • 28-7/8 Inch Lift
  • With Rectangle Foot
  • etrailer

Weld-on jack has a retracted height of 24-3/4" and an extended height of 40-1/8". Square design provides superior side-load support. The drop leg offers 13-1/2" of lift on top of the 15-3/8" screw travel. Sidewind handle included.


Features:

  • Utility jack lets you raise and lower your trailer
    • Ideal for agricultural and commercial applications
  • Square jack provides more side-load capacity than round-tube jacks
  • Sidewind handle has zinc finish for attractive look and rust resistance
  • Drop leg allows for increased lift and saves time when raising or lowering
    • Pin and clip holds leg at desired location
  • Effortless greasing with built-in grease zerk
  • Black painted outer tube
  • Zinc finished inner tube and footplate for corrosion resistance
  • Welded-on footplate minimizes sinking in soft ground
  • Weld-on installation


Specs:

  • Height (from bottom of foot to top of jack):
    • 24-3/4" Retracted
    • 40-1/8" Extended
  • Total lift: 28-7/8"
    • Screw travel: 15-3/8"
    • Drop leg travel: 13-1/2"
  • Lift capacity: 7,000 lbs
  • Support capacity: 8,000 lbs
  • Outer tube width: 2-1/2"
  • Inner tube width: 2-1/4"
  • Footplate dimensions: 7-7/8" long x 6" wide
  • Handle radius: 7-3/4"
  • Adjustment hole spacing on drop leg: 3-3/8" from center of hole to center of hole
    • 3-1/2" Between center of hole on bottom and center of nearest hole
  • 1-Year warranty


DimsBracket

TJD-7000S Ram Square Direct Weld Jack w/ Footplate - Drop Leg - Side Wind - 15-3/8" Screw Travel - 7,000 lbs





Customer Satisfaction Score:


Customer Reviews

Square Direct Weld Jack w/ Footplate - Drop Leg - Sidewind - 28-7/8" Lift - 7,000 lbs - TJD-7000S

Average Customer Rating:  4.8 out of 5 stars   (444 Customer Reviews)

Weld-on jack has a retracted height of 24-3/4" and an extended height of 40-1/8". Square design provides superior side-load support. The drop leg offers 13-1/2" of lift on top of the 15-3/8" screw travel. Sidewind handle included.

by:

Perfect fit, exactly what I wanted. A lot of it had to do with my machine shop guy cutting the old one off and found superb work on welding back the new one, but it is hard to tell that there was a change from the original. 18 foot flatbed, double-axle, 4 ton capacity.




by:

handle was slightly damaged in shipping, was shipped with multiple other heavy items and the box didn't hold up very well. Jack still works, drop leg saves on a lot of cranking.




by:

went right on direct replacement




by:

7000 lb trailer jack with grease fitting is smoother than I expected. Great Value. Easy on line order and great shipping. Thanks for the attention to my order




by:

This product is great! I bought it to repair a 2.5 x 20 inch bulldog jack that I bent. The insides fit like a glove. Even the gear mechanisms were the same.


Comments
I use the product frequently and it works as expected. It seems quite durable and strong. I use it on an 18’ gooseneck trailer when I go logging.
Robert - 08/25/2018


by:

this is what we needed to finish our small dump trailer. now if we find the time it would be great. really wish the drop leg jack was the one with foot pedal, but oh well. shipping was very fast. thank-you




by:

High quality jack, especially for the price. I use it as a stabilizer on a flatbed truck with a crane on it. Excellent customer service as always from etrailer.com!




by:

This thing is solid. The old landing gear was terrible. Huge improvement.




by:

Quick and easy to use, worked great on my trailer!




by:

I have not had a chance to use the products I ordered, however, I would like to comment on e-trailer's customer service.
It is outstanding!
I asked for a dimension that was not specified in any literature I could find.
So as a last ditch effort and without expecting much of a response, I sent the question.
Not only did George J send me an answer, he went to the warehouse, found one of the items, took an exact measurement, and created a page with a picture-diagram showing where the measurement was taken and the measurement and sent me the link.
I am seriously impressed.
Thank you George!
I don't generally see customer service like this anymore and it was sincerely appreciated.
I will look to e-trailers for all my needs of this type.
Thank you! Rating : ????????????




by:

received my product in a timely manner and happy with it at first appearance . WIll take now and have it welded to trailer.


Comments
its worked great on our dump trailer over the past year , great product..
MARK R - 12/07/2017


by:

I ordered these items for my DIY project, turning my bumper pull trailer into a goosenech trailer. The parts are of good quality and the delivery was quick. I would highly recommend for anyone who needs something for a DIY project to order from ETRAILER.COM
I went from that to this.




by:

This is the second trailer jack I have ordered from you. Excellent service and fair pricing.
Thank you.




by:

I've ordered several items from ETRAILER. All items are shipped very quickly and quality has always met my expectations.

I will continue to use them as my trailer parts supplier.




by:

Ordering was simple and they reached out to me personally to let me know it shipped. Used this in place of an antique jack on a mechanical press coil line straightener. It is a very heavy unit and this jack lifts it just fine.




by:

Just as I expected. Will do the job just fine. etrailer was a pleasure to do business with




by:

We have installed this jack on 2 of our trailers and we like the way it works.




by:

Cannot wait to have these installed on my car hauler to keep everything stable when I move my cars, trucks, tractors, etc.




by:

Trailer jack very heavy duty construction. Shipped quickly.




by:

I love this Jack for my trailer




by:

Great quality. I’ve been using it for about a year now. I would definitely recommend it to anybody that might need one




by:

Have not installed it yet, but it is exactly what i was looking for, even more heavy duty than i expected, and it came very quickly!




by:

Great service




by:

Fast shipping, Jacks work flawless thank you for the great product at a reasonable price!




by:

whats not to like, good jack at a real good price sent on time .


Comments
Hello George, though I have not used the jacks a lot, the jacks have worked as expected, and were a good value. Just wanted to add. I do not use them as trailer jacks, but as jacks to lift a removable dump bed unit. Picture a truck camper being removed from a truck so the truck can be used as a flatbed truck.
don - 10/01/2018

25
444
Show More Reviews

See what our Experts say about this etrailer Trailer Jack

  • Is Replacement Internal Screw Available for Ram 7K Weld-On trailer Jack
    I spoke with my contact at Ram and they said that the internal screw for the 7K jacks are not something they carry replacements of so you will need to replace the whole jack. Even if this wasn't the case it would be a good idea to replace the entire unit anyways so that you can be confident all of the internal components are working properly. From what you described it looks like you either need part # TJD-7000S which is a weld-on 7K jack with a sidewind handle or part # TJD-7000 which...
    view full answer...
  • Replacement Parts Available for the RAM Trailer Jack Part # TJD-7000S
    I do have several replacement parts available for the RAM Trailer Jack part # TJD-7000S but not an all inclusive rebuild kit. Instead you will need to select from the components listed below and repair the jack as needed. The most common fault on the above trailer jack is the spider gears and in order to replace them you will want to use part # TJD-7000S-GR. The rest of the replacement parts we have for the jack are listed below. If you can identify what is not working on the jack I would...
    view full answer...
  • Replacement Handle and Gears for the Square Direct Weld Jack w/ Footplate Part # TJD-7000S
    If you are referring to the Square Direct Weld Jack w/ Footplate part # TJD-7000S then the correct replacement handle is the Replacement Sidewind Handle part # TJD-7000S-HD and the correct replacement gear kit is the Replacement Sidewind Gear Kit part # TJD-7000S-GR. If the above is not the jack you are referring to then please let me know the make and model and I will see if we have any replacements parts for this assuming it is a brand we carry.
    view full answer...
  • Solution for Ram 8000 Series Trailer Jack that Won't Crank Up or Down
    Sounds like you need a gear kit to fix your Ram 8000 series trailer jack as yours are damaged. For that we have the # TJD-7000S-GR. When the Ram 8000 jack has the issue you described it is due to damaged gears which is what this kit fixes.
    view full answer...
  • Replacement for Ram Square Direct Weld Jack
    The replacement cap for the Square Direct Weld Jack w/ Footplate - Drop Leg - Sidewind - 28-7/8" Lift - 7,000 lbs # TJD-7000S is the Replacement Cap for etrailer and Ram Square, Sidewind Jacks # TJD-7000S-CP.
    view full answer...
  • Replacement Bushing For Etrailer.com Weld On Square Direct Weld Jack w/ Footplate
    I am happy to help you out. We do have the replacement bushing you are asking about for your Square Direct Weld Jack w/ Footplate, # TJD-7000S. That replacement bushing is part # TJD-7000S-BU.
    view full answer...
  • Diameter Of Replacement Sidewind Handle for etrailer and Ram Square, Direct Weld Jacks
    I went to the warehouse and took a measurement of the Sidewind Handle for etrailer and Ram Square, Direct Weld Jacks, part # TJD-7000S-HD. The handle diameter is 1/2-inch. I have attached a photo of the handle with the dimension shown you can check out.
    view full answer...
    Image 1 for
  • Gear Kit for Ram 8000 Series Trailer Jack
    The 8000 Series jack is # TJD-7000S. The replacement gear kit is # TJD-7000S-GR. If you'd like to verify you can measure the gears on your jack. The small gear is 1.331 inches for the outer diameter and 0.505 inches for the inner. Then the large gear is 1.703 inches outer and 0.595 inches inner./
    view full answer...
    Image 1 for Image 2 for
  • Availability Of Replacement Gear Kit For Ram 2500 Series Side Mount Trailer Jack
    I reached out to my contact at Ram and he was able to confirm that the correct replacement gear kit for your Ram 2500 Series Side Mount Trailer Jack is the Replacement Sidewind Gear Kit for etrailer and Ram Square, Direct Weld Jacks - 5,000 or 7,000 lbs # TJD-7000S-GR. I included a video of the # TJD-7000S-GR for you to take a look at.
    view full answer...
  • Replacement Handles for Ram Jacks
    It sounds like you have the RM0708DLJK Ram jacks which are very similar to the # TJD-7000S. You can use the Replacement Sidewind Handle for etrailer and Ram Square, Direct Weld Jacks # TJD-7000S-HD as a replacement handle for your jacks.
    view full answer...
  • Will Drop Leg from Ram 7000 Series Jack Fit a Ram 8000 Series Jack
    If you are talking about the drop leg # TJD-7000-FT then it could fit your 8000 series jack as long as all the measurements match up. This jack is 2 inches square and the distance from the center of one adjustment hole to the center of the next is 3-3/8 inches.
    view full answer...
    Image 1 for
  • What Is Weight Of Square Direct Weld Jack Item # TJD-7000S
    I do not have the exact weight of the Square Direct Weld Jack with Footplate, Item # TJD-7000S. However, it has a shipping weight of 24-lbs so it weighs around 20-lbs to 22-lbs. If you need to know weight capacity then it has a lift capacity of 7,000-lbs and a support capacity of 8,000-lbs. Let me know if you have other questions and I will be glad to answer them.
    view full answer...
  • Can Footplate be Rotated on etrailer.com Square Direct Weld Jack
    Yes, the footplate for the Square Direct Weld Jack # TJD-7000S can be oriented so that the wider section is facing either way for your trailer. There are holes in both directions for the jack itself that allow you to do this. I am attaching both pictures that you referenced as well as a review video that you can check out where this feature is highlighted.
    view full answer...
    Image 1 for Image 2 for
  • Installation Instructions for Square Direct Weld Jack # TJD-7000S
    I am attaching a picture of the instructions for your application to the product page. The instructions say to put the jack in the proper location for your trailer application, then weld on both sides of the jack length using a 3/16 inch fillet weld.
    view full answer...
    Image 1 for
  • Trailer Jack Recommendation for Needing Trailer 32 inches Above Ground
    Best solution would be the etrailer jack part # TJD-7000S as it can lift up to 28-7/8 inches and since it's a weld on style jack without any hardware you could attach it at the height you need to get the addition 3-1/8 inches you'd need as well.
    view full answer...
  • Dimensions of Square Direct Weld Jack
    I went out to the warehouse to measure the Square Direct Weld Jack # TJD-7000S and found that the top square piece measures 2-3/4" so it will fit flush under your 3" x 3" angle iron. This jack will give your 15-3/8" of travel, has a lift capacity of 7,000 lbs and support capacity if 8,000 lbs.
    view full answer...
    Image 1 for
  • Rebuilding etrailer.com Square Direct Weld Jack # TJD-7000S
    While we don't have a complete parts diagram for your Square Direct Weld Jack # TJD-7000S available, we do have a thorough installation video for rebuilding the jack that you can use for reference. I have attached the video to this answer page. This will show you exactly where all the inner components install, including the washer that you mentioned.
    view full answer...
  • What Is The Lift Capacity Of The Square Direct Weld Jack # TJD-7000S
    Yes, The Square Direct Weld Jack w/ Footplate # TJD-7000S can lift 7,000 pounds from the lowest position 24-3/4 inches retracted to the highest position 40-1/8 inches extended. The jack has a support capacity of 8,000 pounds. The jack has a weld-on installation and has a black painted outer tube and a zinc finished inner tube and footplate that is corrosion resistance. I attached a review video link below.
    view full answer...
  • Replacement Bushing and Washer for Ram 8,000 lb Jack
    I spoke to my contact at Pacific Rim, they said the correct replacement lower flange bushing and washer for your 8,000 lb Ram jack will be the Replacement Sidewind Handle Shaft Bushing for etrailer and Ram Square, Direct Weld Jacks - 7K # TJD-7000S-BU.
    view full answer...
    Image 1 for Image 2 for
  • Does Replacement Bearing for etrailer Jack
    The Replacement Bearing for etrailer and Ram Square Jacks - 7,000 lbs # TJD-7000-BR is 1/2 inch; it is does not have a weight capacity itself, but is designed specifically as a replacement for the following 7,000 lb etrailer and Ram jacks: - Square Direct Weld Jack with Footplate - Drop Leg - Topwind - 28-3/4" Lift - 7,000 lbs # TJD-7000 - Square Direct Weld Jack with Footplate - Drop Leg - Sidewind - 28-7/8" Lift - 7,000 lbs # TJD-7000S - Square Pipe Mount Swivel Jack with Footplate...
    view full answer...
  • What is Difference Between etrailer # TJD-8000S and # TJD-7000S Trailer Jacks
    The big difference is the orientation of the foot plate on both jacks. One just has the rectangular shaped foot plate rotated 90 degrees from the other. Aside from that they both have the same capacities and travel.
    view full answer...
  • etrailer Square Jack w/ Footplate to Replace Ram Side Wind Jack
    Thanks for the pictures! It looks like you have a Ram side wind jack and we do sell replacement parts for it. The jack you were looking at would be a great replacement for it if these parts do are not what you are looking for. The etrailer Square Jack w/ Footplate item # MJSQ-2500B is a bolt on, drop leg, sidewind jack. It has a 29-1/8" Lift and like your Ram jack is rated for 2,500 lbs. The rust-resistant, clear zinc finish protects against rust and corrosion caused by contact with water,...
    view full answer...
    Image 1 for Image 2 for
  • Replacement Lower Bushing And Washer For The Ram TJD-7000S Jack
    The Replacement Sidewind Gear Kit for etrailer and Ram Square, Direct Weld Jacks - 5,000 or 7,000 lbs Item # TJD-7000S-GR has the replacement pins in the kit. The washer can just be replaced with any washer that will fit over the shaft. You just want to make sure it is the same thickness as the bent washer. As far as the tube shaft bushing under the horizontal gear, unfortunately we do not currently offer that replacement part. It would require replacing the jack. I recommend going with...
    view full answer...
  • Inner and Outer Diameters of Gear Set # TJD-7000S-GR
    I went out into our warehouse to grab the gear set part # TJD-7000S-GR that you mentioned and the outer diameter of the larger gear is 1.7 inches with an inner diameter of .53 of an inch. The smaller gear has an outer diameter of 1.39 inches with the same inner diameter of .53 of an inch.
    view full answer...
    Image 1 for
