Square Jack w/ Footplate - Drop Leg - Bolt On - Zinc - Sidewind - 29-1/8" Lift - 2.5K

Square Jack w/ Footplate - Drop Leg - Bolt On - Zinc - Sidewind - 29-1/8" Lift - 2.5K

Item # MJSQ-2500B

lowest price pledge

Retail:$87.27

Our Price: $67.18

You Save: 23%
Trailer Jack

Orders above $99 qualify for Free Shipping

Shipping Weight: 23 lbs

Quantity:
In Stock, Ships Today
MJSQ-2500B - Fixed Mount Jack etrailer Side Frame Mount Jack
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos


  • Side Frame Mount Jack
  • 2500 lbs
  • Sidewind Jack
  • Drop Leg
  • Fixed Mount Jack
  • Bolt-On
  • etrailer
  • 29 Inch Lift
  • With Foot
Rust-resistant jack is great for marine use. Square design offers superior side-load support. Retracted height is 7-1/4". Extended height is 22-5/8". Screw travel is 15-3/8". Drop leg offers an extra 13-3/4" of lift. Lowest Prices for the best trailer jack from etrailer. Square Jack w/ Footplate - Drop Leg - Bolt On - Zinc - Sidewind - 29-1/8" Lift - 2.5K part number MJSQ-2500B can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (41)
  • Q & A (14)
  • Videos (2)
  • Photos
  • Why etrailer?

etrailer Trailer Jack - MJSQ-2500B

Rust-resistant jack is great for marine use. Square design offers superior side-load support. Retracted height is 7-1/4". Extended height is 22-5/8". Screw travel is 15-3/8". Drop leg offers an extra 13-3/4" of lift.


Features:

  • Marine jack lets you raise and lower your boat or recreational trailer
  • Footplate minimizes sinking in soft ground
  • Sidewind handle has comfortable, grooved grip
  • Corrosion-resistant clear zinc finish for durability
    • 100-Hour salt spray rating
  • Effortless greasing with built-in grease zerk
  • Bolt-on installation to the side of your trailer
    • Mounting bracket is included


Specs:

  • Application: trailers with a frame height from 2" to 5"
    • Trailer frame width must be no greater than 3"
  • Bracket height (from bottom of footplate to center of bracket):
    • 7-1/4" Retracted
    • 22-5/8" Extended
  • Total lift: 29-1/8"
    • Screw travel: 15-3/8"
    • Drop leg travel: 13-3/4"
  • Lift capacity: 2,500 lbs
  • Clearance: 17-1/2" from center of bracket to top of jack
  • Outer tube width: 2-1/4"
  • Inner tube width: 2"
  • Footplate dimensions: 7-1/2" long x 3-3/4" wide
  • Mounting bracket dimensions: 6-1/2" long x 6-1/2" wide
  • Handle radius: 7-7/8"
  • Adjustment hole spacing on drop leg: 3-3/8" from center of hole to center of hole
    • 3-1/2" Between center of hole on bottom and center of nearest hole
  • 1-Year limited warranty


Ram Dims

The rust-resistant, clear zinc finish protects against rust and corrosion caused by contact with water, making this the perfect jack for marine applications.



MJSQ-2500B Ram Square Swivel Marine Jack w/ Foot - Fixed Mount - Zinc - Side Wind - 15-3/8" Travel - 2,500 lbs







Video of Square Jack w/ Footplate - Drop Leg - Bolt On - Zinc - Sidewind - 29-1/8" Lift - 2.5K


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for etrailer Trailer Jack - Side Frame Mount Jack - MJSQ-2500B Review

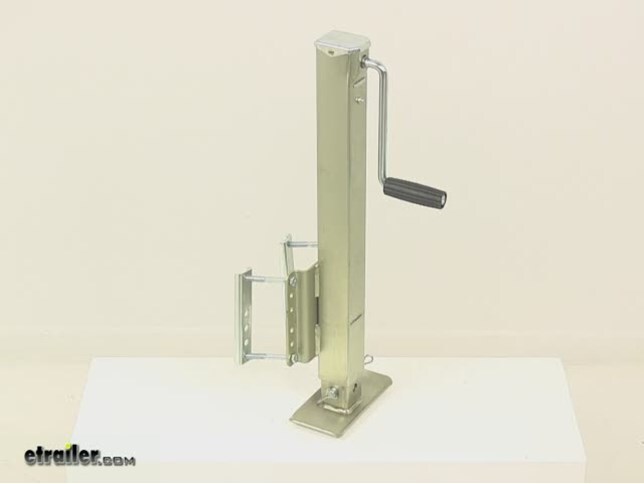

Today we are going to be looking at a square jack that comes with a footplate and a drop-leg. This marine jack is going to let you raise or lower your boat or recreational trailer. It's going to feature a lift capacity of 2500 pounds. It is a bolt on installation with the included brackets and hardware. It's also going to feature a side-wined handle, it makes it really easy to raise and lower the jack. It's got nice smooth operation; I don't feel any kinking or binding. The handle radius measuring from the center of where the handle mounts to the outer edge of the hand-grip is going to measure about 7 and 7/8 of an inch.

The jack is made from a steel construction, and it's a square design. The outer tube, this is going to give us a width measurement of 2 and 1/4 inches. The inner tube is going to give us a width of 2 inches. The jack also features a clear zinc finish which is highly resistant towards rust and corrosion, and again, it does come with a drop-leg as well as a foot-plate. The footplate is welded to the bottom of the drop-leg. The footplates going to give us a width measurement of 3 and 3/4's, a length measurement of 7 and 1/2 inches, so it's a really nice design.

It's going to do a great job at spreading out the applied weight especially on softer ground to help prevent sinking. It also helps to increase over all stability, the drop-leg does come with a pin and clip that way you can hold it in position to whatever position you want to have the drop-leg extended or retracted at. I'm going to show you the drop leg. 00:01:45. This drop-leg features a five hole design, it's going to offer and additional travel of 13 and 1/2 inches. That's measuring from the center of outer hole to center of outer hole, 13 and 1/2 inches, and can be adjusted in increments of about 3 and 3/8's of an inch. Here on the inner-tube, you're going to notice a hole on each side; that way you can change the drop-leg to change the direction you want the footplate to be facing.

. Maintenance is going to be pretty easy with this jack. Located right here is going to be a built in zerk fitting so that way all you have to do is attach a grease gun, and you can pump in your grease to lubricate the internal components. This is designed to fit around trailer frames that have a frame height up to 5 inches, the trailer frame width must not exceed 3 inches wide. If we take a look at the mounting bracket dimensions, we are going to measure from outer edge to outer edge. .. Going this direction we're looking at 6 and 1/2 inches; top to bottom we are looking at 6 and 1/12 inches.

Now the bracket height with the jack in the fully retracted position, measuring from the bottom of the foot-plate to the center of the bracket, it's going to be about 7 and 1/4 inches. With that extended it increases to about 22 and 3/8 of an inch. The jack height, with it in the fully retracted position, that's going to measure about 24 and 3/4 of an inch. With the jack all the way extended it increases to 40 and 1/8 inches, so this jack is going to offer a travel of 15 and 3/8 of an inch, and then again the drop-leg is going to offer an additional 13 and 1/2 inches of travel. The clearance that we have from the center of the bracket to the top of the jack, that's going to give us a measurement of about 17 and 1/2 inches. That's going to do it for today's look at the square jack with the included foot-plate and drop-leg. Again it's going to have a lift capacity of 2500 pounds.


Customer Reviews

Square Jack w/ Footplate - Drop Leg - Bolt On - Zinc - Sidewind - 29-1/8" Lift - 2.5K - MJSQ-2500B

Average Customer Rating:  4.8 out of 5 stars   (41 Customer Reviews)

Rust-resistant jack is great for marine use. Square design offers superior side-load support. Retracted height is 7-1/4". Extended height is 22-5/8". Screw travel is 15-3/8". Drop leg offers an extra 13-3/4" of lift.

- MJSQ-2500B
by:

Product was delivered on time and fit perfectly. Would definitely recommend this company 560540



- MJSQ-2500B
by:

Sturdy, easy to install, and easy to operate. What more could you want in a trailer jack? I have purchased trailer hitches. bike racks, wiring harnesses, and now a trailer jack from a trailer. They have never let me down. 538696



- MJSQ-2500B
by:

Very well built and great for when a swivel jack cannot be used as in my case due to a tongue tool storage box. Superb seller communication with super fast shipping. Highly recommend!! 564947



- MJSQ-2500B
by:

Very nice looking Jack with the zinc coating , looks like it came factory from Legend , but it didn't. 410477



- MJSQ-2500B
by:

Great heavy duty jack, no signs of corrosion after a year of use, still works smoothly and is greaseable. It's used on a heavy triple axle boat trailer that's galvanized so its bolt on construction was convenient. 503876



- MJSQ-2500B
by:

I love it! I bought a used trailer for my 50 million pound pontoon ( OK, maybe 2500 lbs). The jack that came with it failed the fourth time I lifted it, and the tongue weight was so high that a concrete block I was using underneath shattered with the tongue resting on it. I replaced the broken concrete with a block of wood which is much better. The old jack also had a wheel which was utterly useless because of the trailer weight. This new jack installed easily and cranks smoothly and with almost no effort. Also has a grease zirc built in, but did not say how often to grease it. Very nice........... 581179



- MJSQ-2500B
by:

I purchased this tongue jack for my trailer last season. I trailer 4-6 days a week for 8months of the year. This product has exceeded my expectations in every way 408449


Comments

It failed this spring. My toungue weight is 650 It was rated for 2500. Should be self explanitory

Rich B - 07/23/2018

41356

- MJSQ-2500B
by:

I used this for an unconventional application. It is clamped upside-down to the column of my floor drill press. This jack lets me raise and lower the heavy cast table of the drill press with a heavy cross slide fixture attached to it. No more back breaking and cursing when I need to adjust table height. I just had to drill 4 new holes in the mounting plate and use 4 clamp sections from 2 3/4" exhaust clamps with 5" 3/8 bolts to secure the jack to the drill press post. Simple modification made economical by etrailer.com. 401660


Comments

Still working GREAT! Uncommon application but it makes the drill press FAR more versatile! A little redneck engineering, but a big success!

Pete L - 07/04/2018

40495

- MJSQ-2500B
by:

Great square jack. Easy bolt on, smooth easy crank, adjustable height with the drop leg. Handles the tongue weight effortlessly. Has a grease fitting for lubrication. Fast easy bolt up install. 655007



- MJSQ-2500B
by:

My old swing jack wasn't up to the task. It was difficult to wind and was binding under the weight. this square jack drop leg was just what I needed to handle my 5000 lb boat on a dual axel trailer. Installation was quick using the provided bolt up hardware. The jack is smooth and easy to turn. I particularly like the zerk fitting allowing periodic lubrication. The drop foot is very accommodating! I shopped a lot and found etrailer had the best selection, quality,and price. 655004



- MJSQ-2500B
by:

I love etrailer and this product. My first stop always for my trailer needs. 620062



- MJSQ-2500B
by:

Delivery as promised! Quality jack! Super easy to install. We had ordered the same jack from Autoplicity and they screwed up our order big time. We should have known better! Old jack with wheel was on bent frame and wouldn't stay straight! Thank u we are very happy! 619553



- MJSQ-2500B
by:

Installed in minutes. WAY better than the junk put on new trailers. 616961



- MJSQ-2500B
by:

Product was exactly as described and expected. Shipping was quick. 616924



- MJSQ-2500B
by:

Item was as expected and looks like it is going to work great 605018



- MJSQ-2500B
by:

Still like new after a year. Only thing I would change is the gearing to make adjusting quicker and easier. Overall very durable and well made. 602893



- MJSQ-2500B
by:

EXCELLENT service!! Fast shipping and great pricing. Will definitely be using again for trailer parts and pieces. It s a real pleasure to have such quality service. 577702



- MJSQ-2500B
by:

Rust is occurring at the foot as this is what ruined my last jack. The jack is still functional and in good shape. The part where the foot is attached slides and is detachable. It can be replaced. I will probably replace it at the 2 year mark 574953



- MJSQ-2500B
by:

Looks great, I think solve my issue. 568158



- MJSQ-2500B
by:

My boat rests bow low on my trailer. I was looking for a bolt on trailer jack with 15 inches of travel and a drop leg. This product works great for my need. I can now lift the bow sufficiently to allow for rain water to drain out the stern. The jack was simple to install, the lift is smooth and easy to operate. My shipping was upgraded at no cost to me. I recieved it in two days! 557333



- MJSQ-2500B
by:

the jack works well. it is very stable and easy to crank up 555881



- MJSQ-2500B
by:

Nice heavy duty jack. So far it works great. Much better then the “ stock “ one on my trailer 542949



- MJSQ-2500B
by:

Bought as a replacement for my equipment trailer. Very sturdy, and easy to install. Quick shipment and reasonable price. 525421



- MJSQ-2500B
by:

This jack replaced one similar that was damaged. It is at least as good as the OEM one, if not better. The service I got from Nicholas C. was outstanding. I will continue to order trailer equipment from eTrailer. They are great people. 524058



- MJSQ-2500B
by:

works like a champ, cant beat the price, I needed the extra height adjustment feature 505399



- MJSQ-2500B
by:

Did not use it yet but it looks well built. I am happy with my order. 491461



- MJSQ-2500B
by:

AWESOME! Replaced my jack on the front of my camper, this works AWESOME with the custom battery box i added as well. 467202



- MJSQ-2500B
by:

FAST shipping, Jack looks great too! Waiting for spring to install, but I'm sure it will work fine. Thanks 460507



- MJSQ-2500B
by:

Price was good Service and delivery was great 459659



- MJSQ-2500B
by:

I purchased this trailer tongue jack to replace one that came with a Loadmaster trailer. The process was easy and delivery was prompt. Great service! 446593



- MJSQ-2500B
by:

Great pricing packaged well, quick delivery. All I can say is product looks good and prompt customer service. The jacks are well built good quality at a good price. Thanks I will Remember you on next purchase. Andy 442571



- MJSQ-2500B
by:

Jacks arrived in great shape, and very quickly I may add. They are very sturdy and will be way more than enough for the installation they are intended for. They will be installed on a support outrigger for a stair/working platform. 428296



- MJSQ-2500B
by:

I got my trailer stand in the mail today! These folks are great. They expedited my shipping at no additional cost and I got it right away! I would've gladly paid twice the price for this trailer stand. These guys are great… 385136



- MJSQ-2500B
by:

Great solid jacks, extremely fast shipping. Best price in comparison to similar jacks. Will give pics once installed 379488



- MJSQ-2500B
by:

Nice jack and excellent service on order processing and shipping. 377634



- MJSQ-2500B
by:

Excellent replacement jack for my boat trailer. 370233



- MJSQ-2500B
by:

Excellent 359908



- MJSQ-2500B
by:

My marine jacks were delivered quickly - look to be very solid. I installed them today - and they are working well. 346432



- MJSQ-2500B
by:

Excellent product! Installs very easy and seems very durable. Smooth operation jack! 341980



- MJSQ-2500B
by:

It will be a while before I finish the trailer rebuild but this jack appears to be up to the task. It' seems to e very sturdy & well made. It will be replacing a worn out top wind jack and I'm looking forward to the drop leg feature after 20 years of cranking the old one up & down (& up & down). I'll try yto report back in once it's been in use a while. 305984



- MJSQ-2500B
by:

Fast shipping, Great prices, Pleasure to do business with. Thank you 275205


Comments

Great product company outstanding

Dino P - 07/22/2017

26465
43
43

Ask the Experts about this etrailer Trailer Jack
Do you have a question about this Trailer Jack?


  • Mounting Hole Size for A-Frame Trailer Jacks
  • The mounting hole dimensions of A-frame jacks are a standard 3 inches apart on center, so you will need to weld your new jack on. I highly recommend the Bulldog Round, A-Frame Jack # BD1700100317, which has a 5,000 lb capacity and will give you 15" of lift. It has an outer tube diameter of 2-1/4" and sidewind handle; for a footplate you would want # BD018564. This jack has been highly praised by our customers, with nearly 200 reviews it has an average close to 5 out of 5 stars. I've added...
    view full answer...

  • Will a Taller Drop Leg Fit Fulton 2.5K Square Fixed-Mount Marine Jack FHD2500
  • Fulton Square Drop Leg for Stabilizer Jack, 29" Long Item # FSJ20324 by itself will be 24-3/4 inches tall from where it attaches to the jack to the bottom of the foot with the drop leg in the tallest position. It is essentially more than doubling the lift amount of Fulton Square, Fixed-Mount Marine Jack - Drop Leg - Sidewind - 2,500 lbs Item # FHD2500. However, because the drop link is so tall it will not be able to retract all the way into the jack leg it is attached to so keep that...
    view full answer...

  • Spring Loaded Quick Pin Compatibility with Square Jack Drop Leg
  • The Replacement Snapper Pin for Ram Jack Footplates, Casters, and Couplers # JFC-PN similar to what you find on trailer jacks like the Square Jack w/ Footplate - Drop Leg # MJSQ-2500B you mentioned is 3/8 inches diameter and about 2-3/4 inches long. The Ultra-Fab Spring-Loaded Quick Pins for Landing Gear Drop Legs - 3/8" Diameter - Qty 2 # UF17-943031 will work well on this application.
    view full answer...

  • Lawn Tractor Trailer Jack Compatible with 6-1/2 Inch Total Ground Clearance
  • One of your photos came through, so I can see the leaf collector trailer you mentioned with the framer's square. The best option we have for your low height is the Bulldog Rack-and-Gear Jack with Footplate - Weld On - 16" Lift - 750 lbs # BD161100 which from the bottom of the weld on bracket to the bottom of the footplate is 2-1/2 inches. This will give you ground clearance and will allow you to adjust the height of your trailer tongue as needed. We also have the bolt on Square Jack...
    view full answer...

  • Salt Spray Rating of etrailer.com Square Trailer Jack
  • The salt spray rating of jack # MJSQ-2500B is 100 hours.
    view full answer...

  • What is the Hole Spacing for etrailer Square Jack w/Drop Leg - Bolt On - Sidewind - 2.5K MJSQ-2500B
  • The mounting holes on Square Jack w/ Footplate - Drop Leg - Bolt On - Zinc - Sidewind - 15-3/8" Travel - 2.5K Item # MJSQ-2500B are spaced 1" apart on center for the top 3 holes and bottom 3 holes. The 2 inner-most holes are spaced 1-1/2" apart on center. Side to side the holes are spaced 5-1/2 inches apart on center.
    view full answer...

  • Recommendation For Replacement Trailer Jack For Four Winns Boat Trailer
  • A solid replacement jack that I recommend is the Square Jack w/Footplate-Bolt On, Item # MJSQ-2500B. This item is a great marine jack that has a rust-resistant zinc finish and that is built to be flexible and durable. It has a lift capacity of 2,500-lbs, fits a frame height from 2 inches to 5 inches, and has a comfortable, grooved grip handle. If this will not work for you, send me some more information like weight capacity needed, mounting bracket dimensions, pictures, etc. and I...
    view full answer...

  • Recommended Swivel Jack For Small 4 ft x 7 ft Utility Trailer
  • I recommend a swivel jack like part # DL22457. This has a 1,000 lb capacity and will fit trailer tongues up to 3 inch x 5 inches. This is a sidewind jack and it also has a 6 inch wheel included. This jack should have no problem with the weight of the trailer with a riding mower.
    view full answer...

  • Will Replacement Drop Leg for etrailer and Ram Square Direct Weld Jacks Fit Jack # MJSQ-2500B
  • Yes, drop leg # TJD-5000-FT will fit trailer jack # MJSQ-2500B. The drop leg that comes with this jack is 1-3/4 inches square which is the same as # TJD-5000-FT. And it has the same hole spacing.
    view full answer...

  • Handle Swing Radius of Etrailer.com Square Jack w/ Footplate # MJSQ-2500B
  • The etrailer.com Square Jack w/ Footplate # MJSQ-2500B referenced in your question features a handle radius from the center of where it mounts on the jack to the outer edge of the handle of 7-7/8 inches. This is a very nice sidewind jack that is designed specifically to mount to the side of the trailer like what you are wanting to do, so this will not be an issue. It is a simple bolt-on installation and the mounting bracket is included. It fits trailer frame heights of 2 to 5 inches...
    view full answer...

  • What Does etrailer.com Square Jack Part # MJSQ-2500B Weigh
  • The etrailer.com Square Jack Part # MJSQ-2500B that you referenced weighs 24 lbs.
    view full answer...

  • Recommended Side-Mount Trailer Jack for Camper Trailer to Improve Tailgate Clearance
  • I understand your tailgate clearance need but I do not recommend going without a tongue jack on your camper trailer. What you might do instead, to both improve your tailgate clearance and retain the safety and utility of a trailer tongue jack, is install a different type of jack, a side-fame-mount type, in place of the A-frame tongue jack. The stabilizer jacks on your camper are designed to support weight but would not take kindly to the bumps they might receive as you back your tow...
    view full answer...

  • Trailer Jack Recommendation for 3,000 lb Utility Trailer With 2-1/2" Tongue Width
  • For your utility trailer with a 2-1/2" wide tongue I recommend checking out the Square Jack w/ Footplate # MJSQ-2500B. This jack has a 7-1/4" bracket height when it is retracted and extends to 22-5/8", giving you 15-3/8" of travel. It has a 2,500 lb lift capacity, which is more than enough for a 3,000 lb trailer since the jack only lifts a portion of the trailer's weight.
    view full answer...

  • Drop-Leg A-Frame Jack for 4500-lb Travel Trailer
  • The 2500-lb-rated Square Jack # MJSQ-2500B certainly has enough capacity to lift the 600-lb tongue weight (TW) of a 4500-lb travel trailer although this particular jack is primarily intended for marine trailer applications. This jack's included bracket mounts to the side of a trailer frame that measures up to 3-inches wide and between 2- and 5-inches tall. Since your travel trailer is an a-frame you might consider a comparably-rated a-frame jack like the 3000-lb-rated Bulldog # BD1550100317...
    view full answer...
