Trades Pro Dual Range Heat Gun w/ Nozzles - 5-Piece

Trades Pro Dual Range Heat Gun w/ Nozzles - 5-Piece

Item # ALL836717
Our Price: $37.03
Electrical Tools
Shipping Weight: 2 lbs
Add to cart
In Stock
Electrical Tools ALL836717 - Black - Trades Pro
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Need help with installation?
Locate installers near me
This powerful dual range heat gun lets you remove paint or putty, bend plastic pipes, and more. There are 2 temperature settings and 4 nozzles to choose from. Hanging hook lets you store the heat gun when not in use. Durable plastic construction. 1-800-940-8924 to order Trades Pro electrical tools part number ALL836717 or order online at Free expert support on all Trades Pro products. Great prices and Fastest Shipping for Trades Pro Dual Range Heat Gun w/ Nozzles - 5-Piece. Electrical Tools reviews from real customers.
  • All Info
  • Reviews (9)
  • Q & A (0)
  • Photos

Trades Pro Electrical Tools - ALL836717

  • Wiring Tools
  • Heat Gun
  • Trades Pro
  • Black

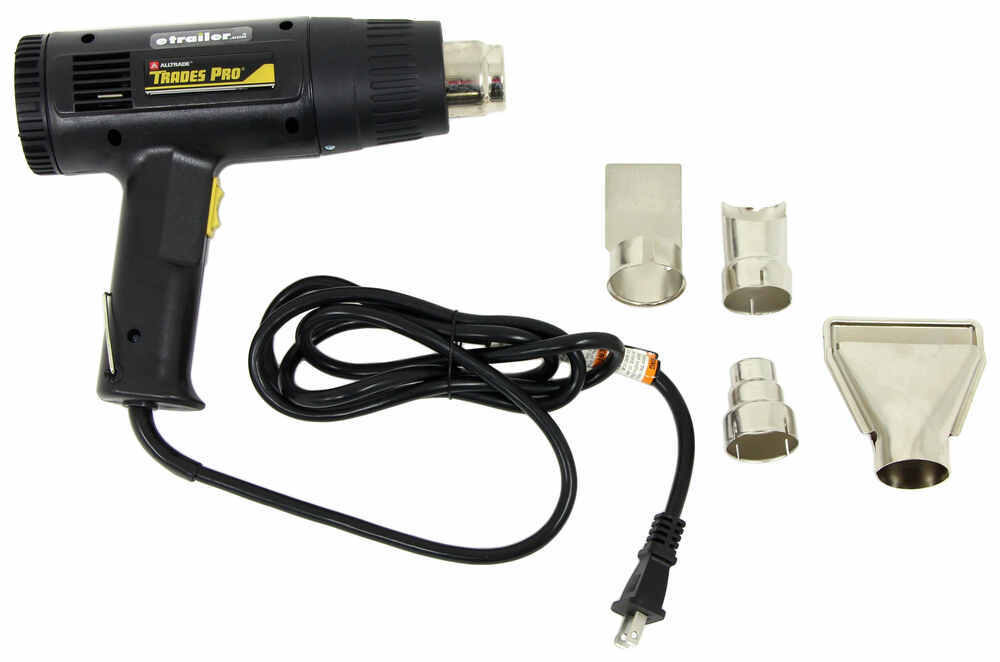

This powerful dual range heat gun lets you remove paint or putty, bend plastic pipes, and more. There are 2 temperature settings and 4 nozzles to choose from. Hanging hook lets you store the heat gun when not in use. Durable plastic construction.


  • Dual range heat gun has a powerful heating element for removing paint or putty, bending plastic pipes, heating shrink wrap, and loosening rusted nuts and bolts
    • Can also be used to soften adhesives on floor tiles
  • 2 Temperature and airflow output settings - low and high
  • 4 Nozzles are included
    • Air reduction nozzle focuses the heat on a smaller area
    • Deflector nozzle controls the direction of the heat to protect nearby objects from getting hot
    • Scraper nozzle removes paint, glue, decals, laminates, and more
    • Reflector nozzle deflects the heat in hard-to-reach places
  • Hanging metal hook on the bottom of the handle allows you to easily store the heat gun when not in use
  • Manual switch to turn it on and off and to apply the different temperature settings
  • Cord extends out to plug into an outlet
  • Durable, plastic construction with ceramic insulators


  • Voltage: 120 volts
  • Temperature:
    • Low setting: 700 degrees F (375 degrees C)
    • High setting: 920 degrees F (495 degrees C)
  • Wattage:
    • Low setting: 1,000 watts
    • High setting: 1,500 watts
  • Airflow output:
    • Low setting: 14 cubic feet per minute
    • High setting: 19-1/2 cubic feet per minute
  • Cord length: 6'
  • 1-Year limited warranty

836717 Trades Pro Dual Range Heat Gun with Nozzles - 5-Piece

California residents: click here

Customer Satisfaction Score:

Customer Reviews

Trades Pro Dual Range Heat Gun w/ Nozzles - 5-Piece - ALL836717

Average Customer Rating:  4.4 out of 5 stars   (9 Customer Reviews)

This powerful dual range heat gun lets you remove paint or putty, bend plastic pipes, and more. There are 2 temperature settings and 4 nozzles to choose from. Hanging hook lets you store the heat gun when not in use. Durable plastic construction.


I bought this after watching a video on this site; it looks very good and should save me some time in wiring both the car and the camper trailer.


Worked great for installing the trailer connector on our 2021 Chevy Colorado.


Works appropriately for heat shrink. Safer than a lighter.


good value and works well.


just what we expected


As usual, I have no complaints. I always get what I ordered within the specified time frame.


Works as advertised.




See what our Experts say about this Trades Pro Electrical Tools

  • How to Remove the Coupler on a Yakima Rack and Roll Trailer
    I spoke with a representative of Yakima, and they told me that they did not use a lock nut or any type of Loc-Tite on the Yakima Rack and Roll, # Y08106 coupler, so it is likely just oxidization causing the problem. If an impact wrench and cheater bar have not worked, you may want to soak it in penetrating oil for 15 minutes and try applying heat to the area around the nut to get it to expand. A heat gun such as the Trades Pro, # ALL836717, can be utilized for this. Should that option...
    view full answer...
  • Available Sizes of Heat Shrink Tubing
    Part # DW05451 is a pack of 25 six-inch lengths of heat-shrink tubing. This tubing fits wire from 14-gauge to 18-gauge. Similar item # DW05449 works on wires from 10- to 14-gauge. You can use a heat gun like # ALL836717 to shrink the tubing once your electrical connections are complete.
    view full answer...
  • Instructions & Can Other Connectors be Used to Install the Hopkins VueSMART Backup Camera
    For the most secure connection, when installing the VueSMART RV and Trailer Backup Camera # HM34FR, I do highly recommend using the included heat shrink butt connectors with a heat gun, the Heat Gun with Nozzles # ALL836717. However, if you'd like you can also use butt connectors that crimp such as the Butt Connectors # 05732-2. There are written directions which I've linked for you as well of the VueSMART RV and Trailer Backup Camera # HM34FR.
    view full answer...
  • Adding 5-Way With 25 Feet of Wire to Back of Trailer For Lights on Cargo Carrier
    So I think we have a solution here for you, but there isn't a vehicle-end 5-way that has 25 feet of wire, so you'll need to splice in additional wire. As for using the blue wire, that is the reverse light wire on the 5-way, so you would need that since you want to utilize a reverse light. Here is what you would need: - Hopkins Wiring Harness with 5-Pole Flat Trailer Connector - Vehicle End - 5' Long # HM37908 - Primary Wire - 16-Gauge - White - per Foot # DW02359-1 - Deka Heat Shrink...
    view full answer...
  • Recommended Wire Connector Used To Attach Lights On Boat Trailer
    In order to join lights together on a boat trailer you'll want to use heat shrink butt connectors like part # DW05743-10, part # DW05744-10, and part # DW05745-10 as they keep out moisture which reduces the chance for corrosion that cause lighting issues. If you need to tie multiple wires together, you can do so using one of the larger butt connectors. In order to seal these connections you also need a heat gun, the Trades Pro Dual Range Heat Gun w/ Nozzles part # ALL836717. I have attached...
    view full answer...
  • Reverse Light & Wiring For Boat Trailer
    So in order to add a reverse light to your boat trailer, all you need to do is connect the wiring from your junction box or 7-way directly to the reverse light's wires. For reverse lights, if you don't already have wiring at the junction box or your 7-way, what you can do is add 14 Gauge Primary Wire - Blue - per Foot # DW02414-1. Then you will simply run that wire to the reverse lights, which you can connect with butt connectors. The exact parts you will need to do this are the following: -...
    view full answer...
  • Wire For Trailer Lights & Electric Trailer Brakes
    We do indeed have wiring for trailer lights as well as electric trailer brakes. For the brakes you'll want 10 gauge wire, and for lights, 16 gauge wire, which you can get by the foot. To make the connections, the most secure way is by heat shrink butt connectors, so what you can use is the following: - Deka Jacketed 2-Wire, 10 Gauge Brake Wire - per Foot # 10-2-1 - Primary Wire - 16-Gauge - Black - per Foot # 16-1-1 - Deka Heat Shrink Butt Connector - Qty 5 # DW05745-5 or Qty 10 # DW05745-10 -...
    view full answer...
  • Converting to Electric Trailer Brakes From Hydraulic on 3,500 lb Axle
    Yes, we can get your set up to go from hydraulic to electric brakes, and your photo (thanks so much for that) shows you have a 10 inch brake drum. So here is everything you'll need in order to switch: - Electric Trailer Brake Kit # AKEBRK-35-SA - Mounting Hardware for 10" Brake Assemblies # BRKH10B - Deka Jacketed 2 Wire, 10 Gauge, Brake Wire - per Foot # 10-2-1 - Bright Way Push-to-Test Trailer Breakaway Kit # 3802308 - Deka Heat Shrink Butt Connector - 12-10 Gauge # DW05745-5 The...
    view full answer...
    Image 1 for
  • Do Trailer Lights Sparking Create a Short
    Yes, the reason the lights on your trailer are not getting power is because you created a short when the wires touched. You will need to replace the wire that shorted with the wire gauge you were using, likely 16 gauge # 16-1-1, 14 gauge # DW07550-1 or 12 gauge # 12-1-1. You will need to use Heat Shrink Butt Connector - 16-14 Gauge # DW05744-5 or 12-10 Gauge # DW05745-5 and Heat Gun # ALL836717 if you don't have one. I have added a link to a couple of help articles on trailer wiring which...
    view full answer...
  • Recommended Trailer Breakaway Kit w/ Battery & Wiring For Enclosed Trailer
    For a breakaway kit with a battery and battery charger, I recommend going with the most reliable option, which is from Hopkins. The correct part number for this kit is the following: - Hopkins Engager Push-To-Test Trailer Breakaway Kit with Built-In Battery Charger # 20400 The Hopkins # 20400 is really easy to use, with a button you can push that give you an indicator of if your battery is charged, charging, or low. It will automatically charge the battery so you don't have to do anything...
    view full answer...
  • Parts Needed to Convert From Hydraulic to Electric Brakes for 3,500 lb Axles
    Thanks for that info, and based on what you said, it sounds like you have a standard brake mounting flange like # 4-35 for a 3,500 lb axle. I do recommend just double-checking the inside diameter of your drum, as electric brakes for 3,500 lb axles fit drums that have an inside diameter of 10 inches. Assuming that is correct, we have exactly what you need to outfit your tandem axle trailer with electric brakes, which are the following parts: - Two (for both axles) of the Electric Trailer...
    view full answer...
