Item # RP66560

lowest price pledge

Retail:$896.27

Our Price: $479.95

You Save: $416.32
Weight Distribution

This item qualifies for Free Shipping

Shipping Weight: 110 lbs

Quantity:
In Stock
RP66560 - Electric Brake Compatible,Surge Brake Compatible Reese Weight Distribution
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
RP66560 - Electric Brake Compatible,Surge Brake Compatible Reese Weight Distribution
Reese Weight Distribution - RP66560
Reese Fits 2 Inch Hitch Weight Distribution - RP66560
Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 12K GTW, 1.2K TW Includes Shank RP66560
Reese Allows Backing Up Weight Distribution - RP66560
Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 12K GTW, 1.2K TW Allows Backing Up RP66560
Reese Weight Distribution - RP66560
Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 12K GTW, 1.2K TW Includes Shank RP66560
Reese Weight Distribution - RP66560
Reese Weight Distribution - RP66560
Reese WD With Sway Control - RP66560
RP66560 - Includes Shank Reese Weight Distribution
Weight Distribution RP66560 - Fits 2 Inch Hitch - Reese

Customer Photos


  • WD With Sway Control
  • 700 lbs
  • 800 lbs
  • 900 lbs
  • 1000 lbs
  • 1100 lbs
  • Reese
  • Fits 2 Inch Hitch
  • Allows Backing Up
  • Includes Shank
  • Prevents Sway
  • Electric Brake Compatible
  • Surge Brake Compatible
  • Heavy Duty
Friction in brackets and in head works to prevent and correct trailer sway. Chainless brackets with automotive-style friction pads hold spring bars firmly in place to help keep trailer in line with your tow vehicle. Adjustable shank included. Lowest Prices for the best weight distribution from Reese. Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 12K GTW, 1.2K TW part number RP66560 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (84)
  • Q & A (267)
  • Videos (2)
  • Photos
  • Why etrailer?

Reese Weight Distribution - RP66560

Friction in brackets and in head works to prevent and correct trailer sway. Chainless brackets with automotive-style friction pads hold spring bars firmly in place to help keep trailer in line with your tow vehicle. Adjustable shank included.


Features:

  • Evenly distributes weight over axles of tow vehicle and trailer for stability and control
    • Creates a more level ride for both tow vehicle and trailer
  • Integrated sway control limits side-to-side movement of trailer
    • Brackets keep spring bars in place for a rigid system that holds your trailer in line
      • No lift chains - eliminates unwanted movement of spring bars
      • Automotive-grade friction material lines brackets to help correct any sway that may occur due to winds, curvy roads, or sudden maneuvers
    • System head provides frictional resistance to limit movement of spring bars
  • Trunnion spring bars are hot rolled and tapered for superior strength and flexibility
    • Bars flex appropriately over uneven terrain for a controlled, even ride
  • Desired tilt is easily achieved using preset positions on system head - no more piling on washer after washer
  • No-drill, clamp-on brackets can adjust along the trailer frame to accommodate frame-mounted items such as gas tanks, toolboxes or generators
  • Included lift handle eases installation by reducing lifting required by trailer jack
  • Corrosion-resistant powder coat is long-lasting
  • System includes head assembly, adjustable shank, trunnion spring bars, sway control brackets, lift handle, pin and clip, and all necessary hardware
    • Hitch ball sold separately - requires 1-1/4" diameter shank


Specs:

  • Tongue weight: 600 lbs - 1,200 lbs
  • Gross towing weight: 12,000 lbs
  • Fits: 2" x 2" trailer hitch receivers rated for use with weight distribution systems
  • Maximum trailer frame height: 6"
  • Sway control bracket positioning: 27" - 32" back from center of coupler
  • Shank length:
    • 8-3/4" From center of hitch pin hole to center of adjustment holes
    • 9-3/4" From center of hitch pin hole to front of shank
    • 8" From center of hitch pin hole to back of shank
    • 13" Overall
  • Total height adjustment along shank: 8-3/4"
    • Maximum rise: 8-3/4"
    • Maximum drop: 4"
    • Overall height: 10"
    • Holes are spaced 1-1/4" apart on center
  • Limited lifetime warranty

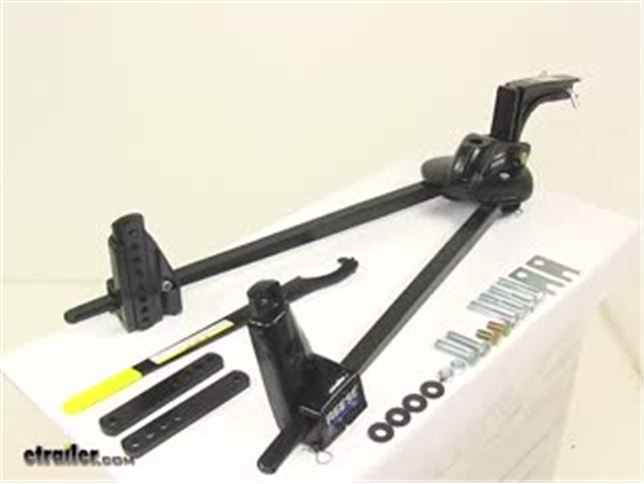

Included w/ SystemRequired - Sold SeparatelyOptional Add-Ons
  • Adjustable Shank
  • System Head
  • 2 Sway Control Brackets
  • 2 Spring Bars
  • Lift Bar
  • Hitch Pin and Clip
  • Necessary Installation Hardware
  • Hitch Ball w/ 1-1/4" Diameter Shank
n/a

Weight Distributing Hitch

Create a stable ride for your tow vehicle and trailer with a weight distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.



Selecting a Weight Distribution System

The tongue weight rating is the most important factor in determining which size weight distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.


To determine the proper weight rating for a weight distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight distribution system.


Integrated Dependent Sway Control

The Steadi-Flex weight distribution system works to stop trailer sway before it begins. This is achieved in 2 ways. First, the system head is designed to firmly hold the spring bars in place to provide tight resistance and help ensure that your trailer tracks behind your vehicle. Second, the spring bar brackets that mount on your trailer's frame produce friction with the bars whenever any side-to-side motion occurs. This keeps the bars from moving, also helping to hold your trailer in a straight line.


System Head with Steel-on-Steel Friction

System Head

The head of the Steadi-Flex system firmly holds the spring bars in place at the hitch point. This tight hold helps to keep the bars from moving, which in turn helps to ensure that the trailer is held firmly in place behind your vehicle. If any sway or side-to-side movement does occur, the spring bars will move only slightly inside of the system's head. This steel-on-steel contact produces frictional resistance to limit further side-to-side motion of the bars, limiting the motion of your trailer in the process. The Steadi-Flex head is wider than most weight distribution heads. This design allows for greater surface area for the spring bars to move against. This makes it easier to produce the friction that resists sway.


Sway Control Brackets with Automotive-Grade Friction Material

Friction Material Brackets

The spring bars attach to the trailer frame with fixed, sturdy steel brackets. They sit on top of the brackets instead of being suspended by chains like the bars that are on traditional weight distribution systems. Chain suspensions typically allow a good deal of side-to-side play in the system. Because the Steadi-Flex has brackets in place of chains, that unwanted movement of the spring bars is eliminated. This helps to keep your trailer in line behind your vehicle. In addition, these brackets create friction to limit any side-to-side movement that may occur. When each spring bar on the Steadi-Flex system moves within the bracket, it rubs along the surface of the bracket, creating friction. This resistance limits the movement of the spring bar, thus preventing further side-to-side movement of the trailer.


Friction Material

Most systems with sway control brackets use bare steel brackets to create friction with the steel bars. Steel-on-steel friction typically causes a much louder ride, and it can result in wear and tear on the brackets themselves. The Steadi-Flex brackets, on the other hand, are lined with automotive-grade friction material. This material is more abrasive than bare steel, which allows more friction to build up faster and easier. The long-lasting friction material also reduces the banging noise created by the bars hitting the inside of the steel brackets. This provides a quieter ride while towing.


Fast, Easy Installation

The Steadi-Flex system is easy to install and set up. On the trailer side, simply clamp the spring bar brackets around your trailer's frame. Then prepare your vehicle by sliding the included shank into your 2" x 2" hitch receiver, and bolt on the head. The system head can be easily adjusted to achieve the proper angle and optimum leverage for your specific setup. No drilling is required to install this weight distribution system.


Head Tilt Adjustment

Head Adjustment

The head of the Steadi-Flex can be easily adjusted for the best possible angle for your towing setup. Adjusting the head lets you fine-tune the system's leverage so that you can get the best distribution of weight possible. Traditional head tilt adjustment methods require that the head be disassembled so that stackable washers inside the head can be either removed or added on. But with the Steadi-Flex, there are external, toothed washers on either side of the head that make it easy to change the tilt. Simply position the head in one of the preset angles based on your hitch's tongue weight, then bolt it in place, tightening the washers as you do so. Once the head is sitting at the correct angle, tighten the internal adjustment bolt to secure the platform in place.


Tapered Spring Bars

Spring Bars

The spring bars of the Steadi-Flex system slide into the weight distribution head for quick, easy installation. With a tapered design and hot rolled steel construction, these bars offer superior flex to evenly distribute the weight between your tow vehicle and your trailer.


The bars easily pin into place inside the system head - no need to torque or re-torque any trunnion bolts to adjust the tension. With fewer parts to manage, installing and maintaining the Steadi-Flex is simple.


Adjustable, Clamp-On Brackets

The spring bar brackets simply clamp around your trailer's frame - no drilling required. These brackets are designed to be positioned 27" to 32" back from your coupler and they can fit a wide range of frame sizes and can even be used on a trailer with a bottom-mounted coupler.


Adjustable Brackets

While other brackets use L-pins to secure the spring bars in place on the brackets, the hinged Steadi-Flex brackets close completely around the spring bars. As a result, you can have greater piece of mind knowing that the spring bars are secure, all without the hassle of using and possibly losing L-pins and any extra hardware.



66560 Reese Steady Flex Heavy Duty Weight Distribution System with Sway Control - 12,000 lbs GTW, 1,200 lbs TW



RP66560 Installation InstructionsInstallation Details RP66560 Installation instructions


Video of Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 12K GTW, 1.2K TW


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Reese Weight Distribution - WD With Sway Control - RP66560 Review

Today we're going to be taking a look at the Reese STEADi-Flex Weight Distribution System with built-in sway control. This is an all-in-one sway control and weight distribution system that evenly distributes weight over the axles of your tow vehicle and your trailer, which is going to offer better stability and better control. Ultimately it's going to create a more level ride for both the tow vehicle and your trailer. Now, this particular system is going to feature a tongue weight capacity of 1,200 pounds and a gross towing weight capacity of 12,000 pounds, and it can be used with top mount and bottom mount trailer couplers, as well as trailers that have surge or hydraulic brakes. It does not have to be taken off when backing up your trailer. Just make sure to avoid sharp turns and jackknife situations. Now this unit's going to feature a multi-point friction-style sway control that's going to limit side to side movement of your trailer.

It's designed to control sway as soon as it starts, and again, one of the biggest key features about the unit is that the sway control is built into the unit. It's nothing additional that you have to purchase or anything additional that you have to install. It's all built in. We're going to have these brackets right here, that are going to keep the spring bars in place for a nice, rigid system. That's going to hold the trailer in line. The unit does not use lift chains, so it's going to eliminate unwanted movement of the spring bars.

If we undo the clip right here and flip this up, you can see right here these are going to be the automotive grade friction material, or friction pads. This is going to create that friction that's needed to really help control the trailer sway. These correct any sway that may occur due to winds, curvy roads, or sudden maneuvers. These brackets and the pads are going to be located on each side, and then the other thing that you're going to have is right here in the head assembly. It's a very unique design. The system head is going to provide frictional resistance, which is also going to limit the movement of the spring bars as well, which again, limits the amount of sway that we experience, so this head assembly, once tension is applied to it, once these are fully installed, the head actually pinches the bar.

That prevents the bar from moving, which in turn prevents trailer sway. Again, multi-point friction-style sway control with this unit, and it's built into the unit. Nothing additional is needed. Now, these are going to be steel spring bars that are hot rolled and tapered for superior strength and flexibility. These bars will flex appropriately over uneven terrain for a nice, controlled, even ride. The bars are going to attach in the head assembly with a pin and clip.

Now, the unique design of the head assembly and the style of the bars really allows for maximum ground clearance with this unit. I want to bring you in a little bit closer here on the head assembly. There's a few key features that I just want to talk about real quick. It does come with the hitch pin and clip to get it secured on your hitch. The shank is included, but right here at the head assembly it's going to use a unique design when it comes to achieving the amount or pitch of the head assembly, the tilt. It's going to use this elongated washer design. Hardware's included. The washer has teeth on it and the head assembly has teeth on it, so those two go together. It's located on each side of the unit, and so the desired tilt is easily achieved using an elongated, serrated washer design. This design allows for quick and easy adjustment of the head assembly, so that way you don't have to deal with the old style, which is all those washers and a spacer rivet. To get the tilt, it's all accessible here from the outer part of the head assembly. You don't have to get internal with it. It's really nice, especially when it comes to making those fine tune adjustments. It makes those very simple, which is going to help ensure a safer, more enjoyable towing setup and situation. Now, there's also an adjustment bolt inside the head assembly that can be set once the proper tilt of the head assembly has been achieved. You just bring that out until it makes contact with this portion right here of the shank. Really nice design. The other thing I want to point out are the no-drill, clamp-on brackets. These can adjust along the trailer frame, so that's going to be these right here. These are going to adjust along the trailer frame to accommodate frame-mounted items, such as a battery box, your gas tanks or propane tanks, toolboxes or generators. These brackets can be positioned between 27 to 32 inches from the center of the trailer coupler. Now, these brackets are going to attach to the trailer frame, so you're going to have the inside portion of the bracket, outside portion of the bracket, and then when you're ready to install, or even remove the weight distribution system, this portion right here slides on and off this bracket, and then once you have it set to what you need, you just secure it in place with the included hardware. All the necessary hardware to get the unit fully installed is included. Now, the adjustable shank, again, this is included. This is going to give you plenty of adjustability. This can be used in the drop or rise positions. It's going to offer 7 vertical mounting holes and those holes are separated on center by an inch and a quarter. With the unit in the rise position and the head assembly at the highest setting, it's going to give you a maximum rise of 8 3/4 of an inch. That's measuring from the inside top edge of the receiver tube of your hitch to the top of your ball platform. With it in the drop position and the head assembly at the lowest setting, it's going to give you a maximum drop of 4 inches. Now, Reese also designed this system so it does not need constant adjustment like other weight distribution systems. Once you have it set, once you have it installed properly, everything's set to go. You don't have to worry about getting out and checking it or re-torquing or anything like that. It's all going to be set and ready to go. It's going to last a long time, and again, it does not require you to have to constantly get out and make adjustments or check everything. It's going to be a steel construction. It's going to have a powder-coated finish, which is long-lasting, corrosion resistant design. Now your hitch ball, you will need to pick one of those up. That is sold separately. It's going to require a hitch ball with an inch and a quarter diameter shank, but again, it does come with all your necessary hardware for your installation. It's also going to come with these shims right here, that can be used to ensure a tight fit between the head assembly and the adjustable shank. It's going to come with your lift handle, which eases the installation by reducing the lifting required by the trailer jack. This goes around the bar, gives you enough leverage or the proper leverage needed to get those bars in the brackets. Now, this is designed for a 2-inch by 2-inch trailer hitch receiver. It's going to fit trailer frame heights from 4 inches to 7 inches tall. It's going to fit trailer frame widths from an inch and a half to 2 inches. The distance from the center of the hitch pin hole to the center of the hitch ball hole is going to be around 13 inches when the unit is square and straight, and Reese is going to cover this with a limited lifetime warranty. That's going to do it for today's look at the Reese STEADi-Flex Weight Distribution System with built-in sway control.
