Timbren Suspension Enhancement System - Rear Axle

Timbren Suspension Enhancement System - Rear Axle

Item # TFRTT1504E
lowest price pledge
Retail:$252.55
Our Price: $214.67
You Save: $37.88
Vehicle Suspension

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

This item qualifies for Free Shipping
Shipping Weight: 13 lbs
Quantity:
In Stock, Ships Today
Timbren Jounce-Style Springs Vehicle Suspension - TFRTT1504E
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

7,000-lb Capacity. These hollow rubber springs sit above the rear axle to help stabilize and level your vehicle. They also provide a more comfortable ride by absorbing road shock and improving roll stability. Easy to install and use. Lowest Prices for the best vehicle suspension from Timbren. Timbren Suspension Enhancement System - Rear Axle part number TFRTT1504E can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (1927)
  • Q & A (14)
  • Videos (4)
  • Photos
  • Why etrailer?

Timbren Vehicle Suspension - TFRTT1504E

  • Timbren
  • Jounce-Style Springs
  • Heavy Duty
  • Rear Axle Suspension Enhancement
  • Commercial

7,000-lb Capacity. These hollow rubber springs sit above the rear axle to help stabilize and level your vehicle. They also provide a more comfortable ride by absorbing road shock and improving roll stability. Easy to install and use.


Features:

  • Improves suspension, handling, and safety
  • Provides additional support as needed so you always have a smooth, comfortable ride
    • Allows the leaf spring ample movement while cushioning light loads
      • Rides just as smoothly when you're not hauling a load
    • Becomes more rigid as more weight is added for great performance when you're hauling a heavy load
      • Increases stability
      • Reduces vehicle sag
  • Works independently - side-to-side adjustment
    • Helps compensate for off-center loads
    • Reduces body roll when swerving and turning corners
  • Acts as shock absorber, taking the brunt of bumps and rough roads
    • Extends the life of your vehicle's suspension

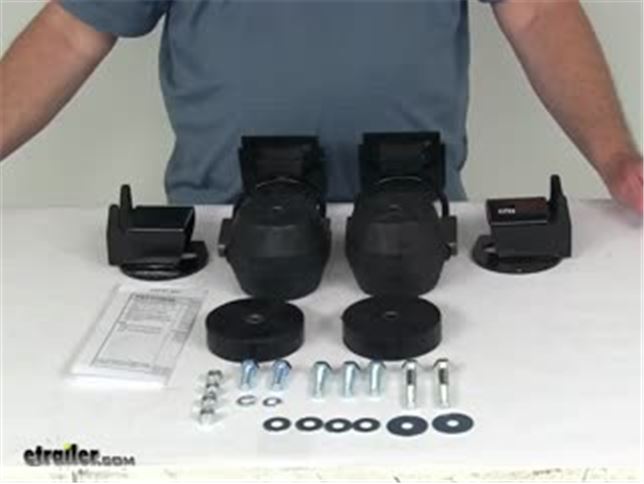

  • Includes 2 Aeon hollow rubber springs, custom-fit brackets, and hardware for a simple installation
    • Installs directly onto frame
    • No drilling required


Specs:

  • Load-leveling capacity: 14,000 lbs
    • Timbren springs will not increase your vehicle's weight-carrying capacity. Do not exceed the manufacturer's recommended weight limit.
  • Lifetime warranty
  • Satisfaction guarantee


Reduced rear axle sag with Timbren suspension enhancement

Whether you're hauling heavy loads in your bed or cargo area or towing a trailer, you will often see the rear of your vehicle sag while the front end rises. In these cases, the rear axle is handling not only the weight of the cargo, but also more of the vehicle's weight. Because less weight is on the front axle, the front tires are making less contact with the road. Overall handling - traction, steering, and braking - is negatively affected. But the resistance from Timbren's Suspension Enhancement System works with your factory suspension to keep your vehicle level and improve your driving experience.


Diagram of the Timbren spring installed

The Timbren system comes with custom-fit brackets that are bolted onto each frame rail above your rear axle. Hollow rubber springs are bolted to the bottom of the bracket and hang down to where the bottom of the leaf spring sits, 1" above the axle. The inch of clearance allows the existing factory suspension to operate normally under light loads and standard terrain, ensuring the smooth, comfortable ride that you are used to.


Action of a standard Timbren rubber spring

Timbren Suspension Enhancement Systems are designed to work progressively. When the hollow rubber springs are compressed, the convoluted design causes them to quickly collapse along the folds. Once the folds are compacted, the stacked barrel shape increases resistance, stiffening the suspension and keeping your vehicle level.


Timbren suspension system works to prevent body roll

Each hollow rubber spring works independently to support the driver's-side or passenger's-side of your vehicle. This is helpful when you swerve or make sharp turns. Each spring is activated when it is needed, so body roll is greatly reduced. The independent action also works well when you are hauling off-center loads.


Trailer swaying as it is towed behind a truck

Because your vehicle handles better with the springs, less turbulence will be passed along to the trailer and this helps to keep the trailer in line. Your driving comfort is further enhanced if the trailer does begin to sway (from a gust of wind or a passing semi) because the movement from the trailer is not transferred to your vehicle. This also works to make the sway subside more quickly.


An empty truck on a bumpy road without Timbren SES

Another great feature of the rubber construction is that the springs absorb most of the road shock, creating a smoother, more stable ride overall. Wear and tear on the factory suspension is also lessened because the rubber springs work to prevent bottoming out on rough roads.


Timbren Suspension Enhancement Compared to the Competition

Timbren's Suspension Enhancement Systems are much easier to install than air springs - there are no air hoses to run, no compressors or gauges to hook up, and no manual adjustments to make. The rubber construction makes Timbren's springs more elastic than similar products constructed of microcellular urethane. And more elasticity allows for a more comfortable ride because the rubber has more travel.



FRTT1504E Timbren SES with Aeon Hollow Rubber Springs - Rear Axle



TFRTT1504E Installation InstructionsInstallation Details TFRTT1504E Installation instructions

This Product Fits The Following Vehicles

2015 - 2020 Ford F-150




Video of Timbren Suspension Enhancement System - Rear Axle

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Timbren Rear Suspension Enhancement System Installation - 2016 Ford F-150

Speaker 1: Today on our 2016 Ford F150, we're going to take a look at and show you how to install the Timbren rear suspension enhancement system, part number TFRTT1504E. Now the need for a suspension upgrade typically comes from hauling. You're going to have either something in the bed of the truck or a large trailer and it's causing sag in the back of the vehicle. We've got about 1,000 pounds worth of water here in the back of the truck. We measured this before adding the water and it was at about 40 inches. After adding the water, it's down to about 3 and 1/2 inches.

So what we're going to do is put the Timbrens on and we'll show how we can take the weight off of this rear suspension system and allow those to do a lot of the work for us.And when we've got out truck loaded down like this, we're causing the rear suspension to do a lot of work. That causes friction, heat, you know the system's going to heat up a little bit. And over time it's just going to fatigue. It's not going to work as well as it did before. By adding our suspension upgrade, we should be able to take a lot of that pressure off of that system, allowing our truck to drive and operate a lot like normal, even when we've got it loaded right up to it's safe load limit.Now we can see what a difference is made with that Timbren installed.

We've got the same load in the bed of the truck and we've reduced that amount of sag by about 50%. We've brought it up about two inches to kind of split the difference from unloaded to fully loaded like we've got it. Now what this does, is we talked about before. This really reduces all that strain that's going to be on that rear suspension. It helps to absorb it.

It's going to extend the life of our suspension, especially if we do a lot of towing. As a side effect to this, we've also brought the front end down a little bit. That puts more pressure on the front tires. We talked about returning to the factory characteristics earlier. And by adding the pressure back on those front tires, our steering is going to feel more like normal, our braking.

And also the suspension geometry is returned so we won't have to worry about abnormal tire wear.Now here's a look at what the Timbrens going to look like installed. As you can see, as compared to the original jounce bumper that gives you an idea of the size difference there. This was basically only used for extreme overload situations. So whenever this part of the axle, you'll see how that was contoured. Whenever that part of the axle got all the way up to about this point, that's when it started to make contact. So that was just an extreme situation. With our new Timbren, you can see we're going to have about an inch of a gap here, maybe an inch and a quarter. So as our suspension starts to sag, this is going to engage much more quickly and give us much more benefit.Now with our gap being so much smaller here, this allows for more engagement of that Timbren. Essentially that gives us a lot more load leveling capability. Where this was basically just when it was extremely overloaded. This is going to take pressure almost the whole time when we're towing. Now as we're traveling down the road under normal circumstances, a lot times they're not even going to engage. That little bit of a gap still allows for a nice comfortable ride. Then once we get that load on, that's when the y start doing the job.Now overall, the installation process is really straightforward. We've got our custom bracket here on the upper portion. Just a single a bolt into an already existing weld nut, where you remove your old jounce bumper. This is going to go right back in place. Then to give us a great flat spot rather than our Timbren coming down on the rounded top of the axle. We've got a nice flat perch that we're going to be able to put in there. It's going to allow it to really work very effectively.Now your upper and lower bracket, they're heavy duty steel. They've got the black powder coat finish on them. And we've got Aeon rubber springs. These are hollow. So they're designed to have a minimal impact initially. But as we compress these more and more, they become stiffer and stiffer. So as our loads go up, the stiffness of our spring is also going to go up.Now these springs have a 7,000 pound capacity each. That gives us a total of 14,000 pounds in load handling capability. One thing you really need to keep in mind though, this doesn't raise the capability or the weight rating of your truck. You need to abide by that. This is just going to allow us not to put so much of a load on the rear suspension and also return a lot of the handling characteristics that we would have typically had from the factory.Here's a look at our truck going through out test course with the load in the bed but with no suspension enhancement. As you can see, we've got a lot of movement up and down in this suspension here. Not only does this affect the up and down in the truck but also the body roll is affected as we go through our wider corners.Now as we go through our bumps without our Timbrens, you can see what force is generated up and down and all the strain that's being put on the suspension. After the Timbrens, with our load in, you can see they're already engaged. They're making contact and helping to support the rear of our truck. We're not going to have near the body roll going to side to side that we did before, because these are designed to work independently from one another.Here's a good look at our Timbrens installed, but with no load in the back of the truck. As you can see, they're not really going to engage at all under normal driving situations. They do make contact here and there just to help smooth out our ride.Now to begin your installation, you want to have your rear suspension hanging slightly. So you'll need to support it with some jack stands. We've gone off our our hitch here and then just allowed our wheels to come down a little bit. What you're looking for is just to get some space between your axle and your bump stop here, so you can work.On the passenger side, we're going to pull down the heat shield here for the spare tire. The spare tire's typically here. We've already taken that down. It'll allow you to see better, but also it kind of gives you more room. So it might be a good idea. Got three bolts, we've got one here, 13 millimeter head on it. And then there are two right above this rail.Once you've got the three of those out, going to rotate it down and out of the way. Now we'll be taking the jounce bumpers out of the way. Up inside here, we've got a 13 millimeter bolt. You're going to need a little bit of an extension. Get in there and we'll get it removed. Then we'll repeat the same process on our passenger side.Now for the driver's side, we're going to move the upper bracket that's marked left. We want to grab the shorter bolt, you're going to put a lock washer on there. It's going to go right up through like that. We're going to secure it right in the hole the jounce stop came out of. These two tabs will be on the inside edge of the frame. To tighten that down, you'll need a 16 millimeter wrench. Now we can repeat that same process over on the passenger side.Now we can assemble our spring and spacer block to our bracket. We're going to use the longer bolt, use the fender washer. It's usually easier just to guide the bolt up through one at a time, that out. Spacer on and then that threads right into that weld nut. Now we're going to use a 17 millimeter socket and we'll get this snugged down. Once we have this one snugged down, we'll do the same thing on our passenger side.Now we can take our Timbren stop. This is going to be mounted right above our axle. You'll see the tab, it kind of narrows down here. That's going to fit right in between the two U bolts in the spring. Just want to bring that around the axle. It's important that we stay behind the brake lines and their sensor wire there. Make sure we're clear and everything, so we can add the lower part of our clamp. Want it just like that. And on each side we're going to be putting on a flat washer and also a nylon lock nut.Now we can get this hardware snugged up. Want to tighten these down evenly. We use a 9/16 socket. Once we've got them snugged, we'll torque down to the specifications listed in our instructions. Now once we've got everything torqued down properly, we're ready to put our heat shield back in place and our spare tire, if you decided to remove them. And that'll complete our installation of the Timbren rear axle suspension enhancement, part number TFRTT1504E on our 2016 Ford F150.


Customer Reviews

Timbren Suspension Enhancement System - Rear Axle - TFRTT1504E

Average Customer Rating:  4.7 out of 5 stars   (1927 Customer Reviews)

7,000-lb Capacity. These hollow rubber springs sit above the rear axle to help stabilize and level your vehicle. They also provide a more comfortable ride by absorbing road shock and improving roll stability. Easy to install and use.

- TFRTT1504E
by:

I will write a review as soon as they are installed. They came through as advertised the quality was above my expectation. I am looking forward to testing them with my boat in tow. 578110



- TFRTT1504E
by:

Timbren Suspension Enhancement System - Rear Axle Item # TFRTT1504E Just had a chance to install the Timbren. Went on a short drive with no load and have not hooked up the trailer yet. About an hour to install, the instructions where not very good but going on line etrailer site and followed the video. Very good product! 734943



- TFRTT1504E
by:
2017 Ford F-150

Product works as described. Handle the loads well not that hard a ride with my 27 foot trailer a tow 607158



- TFRTT1504E
by:
2016 Ford F-150

Great Product. Easy install 399499



- TFRTT1504E
by:
Ford Five Hundred

Functionally these Timbren Rubber Springs provide additional load capacity and reduce tipping while turning around corners on my F-150 as claimed; however, the set I purchased was overly stiff (I was only hauling 500 additional pounds). Timbren provided a replacement set with lower capacity which helped tremendously; however, it still rides slightly stiff. I wish Timbren or a competitor would provide these rubber springs in different durometers that provide 1000 lb increments to fine tune the suspension - reducing the over stiffness performance. 655944



- TFRTT1504E
by:

Installation was easy- did not require raising the truck as with correct socket extensions it’s doable. Would be nice if components had better paint adhesion. Also the u-bolts/brackets did not have any paint at all!! 572267



- TFRTT1504E
by:
2017 Ford F-150

This is the second time I purchase and install these, the first was for my 2013 F150 and now on my 2017 F150. I towed my 9600lb bumper pull RV with the new 2017 truck before i ordered this second set, just to see if i noticed the difference. I loved the last set but heck, life is about experiences right? Those of you who have these are laughing right now as you know what I'm going to say. HUGE difference, noticed the absence right away. Got home from that camping trip, straight on my computer to order this latest set. As far as I'm concerned this is the best $200 bucks you'll spend. You have extra cushion when it matters most and it doesn't affect your ride at all when you don't. They are very easily to install and you don't have all the extra equipment etc as with an airbag system. I'm not the kind of guy who works on his truck, I don't consider myself mechanical at all yet i didn't have any problems with the installation. The only "issue" i had was when attaching the stop bumper to the metal mount. The screw is just long enough so i could get the tension i needed to get it threaded (the head of the bolt would drop slightly within the socket). I was able to get it threaded by using my index finger to hold the bolt and my ring finger to turn it, just enough to get it started. After that I was fine. As i mentioned, I'm not mechanical so my tool options were limited. Just bring some patience with you and you'll be fine. The instructions are good. As long as I'll be towing a camper, I'll have a set of these on every truck I own. 400940



- TFRTT1504E
by:

I owned these for about a year and just recently switched to air bags instead. While the Timbren spring helped level the truck under load, there were other things that I was not satisfied with. One issue was the amount of distance the truck would drop until the Timbren would engage, I would have like to see them take affect sooner. I did not like the ride while empty. When hitting a decent size bump in the road the spring would slam into the stop causing for a very jolting ride. Also while under load and the Timbren was engaged, it made the truck extremely bouncy. Again it did stop the truck from further squatting under heavy load, but the other factors were what made me switch out for air bags, to which I have been very happy with. 565705



- TFRTT1504E
by:

I was surprised at how easy the OEM ones were to remove and how incredibly east the new ones were to install. I read the reviews and saw that there was more of a jolt when hitting potholes and rough roads. I believe the clearance between the plate and the buffer is about an inch. I have a 32 foot trailer I haul that holds a sub compact tractor, a mini hay baler, mower, rake and hay spears. I was concerned that the weight would damage the springs. So knowing the rougher ride when on bumpy roads, I felt it was the best option that was in my price range! That you so much!!!!! 628212



- TFRTT1504E
by:
2015 Ford F-150

Simple install and works very well on my 2015 F150 4x4. The truck feels way more solid while towing and you don't notice the Timbrens while the truck is unloaded unless on a really bumpy road. Overall great product for the price! 538585



- TFRTT1504E
by:

I purchased these to help with the poor rear suspension on a 2018 F150 while towing my 27’ camper. They will definitely stiffen up the rear end but in return they make the ride like an Abrams Tank. 663431



- TFRTT1504E
by:

Great product. Does a good job of leveling the truck when the 5er is hooked up. 662737



- TFRTT1504E
by:

Can make ride rough when empty. Do to loss of normal suspension room you hit the bump then you hit the new rubber suspension. With a load on it works very well. good directions and install. 590180



- TFRTT1504E
by:
2016 Ford F-150

Very easy install, had it unpackaged and on the truck in under an hour! Happy with the product. Simple and easy install. 542636



- TFRTT1504E
by:

Am happy with these. Install isn’t hard, and they work excellent for trailering heavy loads (10,000 lbs in my case with a half ton truck) 525095



- TFRTT1504E
by:
2017 Ford F-150

Customer service was great, helpful! Received the item as promised, very fast! Highly recommend e-trailer... 521144



- TFRTT1504E
by:
2016 Ford F-150

Just put it on this morning. Easy !Have on my 4wd 2016 f150 and is about 1 and half inches from the stop unloaded.Will know in a week what happens when I load my 34 ft travel trailer 503737


Comments
Sure removes the squat when heavy load applied so it is simple and effective
Larry - 05/03/2019

54808

- TFRTT1504E
by:
2017 Ford F-150

expected difficulty on instillation do to my age almost 70 , but found install and instructions supplied easy to understand took, a little longer than estimated but it turned out well. 501472


Comments
Great products and price, and a great company that offers assistance when needed. I dont need to purchase automotive or trailering parts often but when i do your the first on my list. Never disappointed!!
Dennis - 04/27/2019

54565

- TFRTT1504E
by:
2015 Ford F-150

I have a Ford 150 2015 with trailer package . I put the over loads on because I pull a 20 ft enclosed and a 20 ft open trailers wit Mustangs on . With the enclosed I found that there was a little sag in the rear of the pickup on long travels . Putting the overloads on were a 1 hour job didn't take any thing off the truck just jacked it up and put every thing on . Then found out it rode a little to ruff with out a trailer so I removed the small rubber donut and it rode great . 500030



- TFRTT1504E
by:
2018 Ford F-150

Recently purchased a 2018 Ford F150 and put these Timbrens on it just in case my boat causes it to sag a little. So far the suspension has not touched them but the truck is still new. They were a snap to install and etrailer, a pleasure as always. 483010



- TFRTT1504E
by:

Fast shipping thank you. 479842


Comments
Thanks for following up! Still have them on and love them they work great no complaints here!
Mike - 02/28/2019

49964

- TFRTT1504E
by:

Have not installed the product but soon. Very impressed with the quickness of arrival, 24 hours early. 470001



- TFRTT1504E
by:

Have not installed the product but soon. Very impressed with the quickness of arrival, 24 hours early. 469994



- TFRTT1504E
by:
2018 Ford F-150

I install these Timbren bags on a 2018 ford f 150 it was very easy . 465911



- TNRTTNA
by:

Review from a similar Timbren Aeon Spring System in Vehicle Suspension


Makes a huge difference in carrying heavy loads. I could tell an immediate difference when I had a full bed, gooseneck load, or a bumper pull load. Highly recommended. I considered air suspension, but did not want to tackle that installation. Literally can install this with a torque wrench and impact wrench. 725228


26
2180
Show More Reviews

Ask the Experts about this Timbren Vehicle Suspension

  • Rear Suspension Enhancement Recommendations For A 2016 Ford F-150 XLT
    You have several options to choose from in order to enhance the rear suspension of your 2016 Ford F-150 XLT while towing. Each of which has their own individual pro's and con's The best way to combat vehicle sag when towing a trailer is a weight distribution system because it will distribute the weight on the rear axle across the entire vehicle and trailer. Choosing the right system is very important. You will first start off by measuring the total tongue weight of your ready to tow...
    view full answer...
  • Recommended Suspension Enhancement for 2016 Ford F-150 Crew Cab 4x4
    The Timbren Suspension Enhancement System # TFRTT1504E is a confirmed fit for your truck. With a 1,100 lb tongue weight trailer, this system will help to keep the rear end from squat and your headlights from being too high to see the road as intended. These will act as a shock absorber as well as helping to stabilize your truck when under load. These spring are made for severe service vehicles like tow trucks so I don't recommend then for your truck as they can actually cause your truck...
    view full answer...
  • Timbren Suspension Kit Recommendation for 2016 Ford F-150 4x4
    Both of the kits you mentioned are a fit for your 2016 Ford F-150. The difference is that the part # TFR1504E has a 6,000 lb capacity and the part # TFRTT1504E has a 7,000 lb capacity. You would want to go with the lower rated spring as it will be a smoother ride quality. The higher capacity will be harsher. A 13 mm socket will be used to remove the bolt that holds your current bump stop in place. You basically will then need to use the attached diagram to assemble all of the Timbren...
    view full answer...
  • Things To Consider When Changing from a 3/4 Ton to 1/2 Ton Tow Vehicle
    There are a few things you need to consider when switching from a 3/4 ton like your 2008 Chevrolet Silverado 2500 to a 1/2 ton like a 2018 Ford F-150. For starters, the 3/4 ton is going to have a stiffer suspension than the 1/2 ton. This means that although the 3/4 ton did not squat while towing your trailer, that's not to say that the 1/2 won't even though it may still have a higher towing capacity. Also, the 3/4 ton will be more geared towards towing while means it likely has upgraded...
    view full answer...
  • Using the Timbren Suspension Enhancement System On a Lifted 2015 Ford F-150
    We have both front and rear Timbren Suspension Enhancement Systems for your 2015 Ford F-150. For the front of your truck you will want to use part # TFF150G and for the rear you will want to use part # TFRTT1504E. Timbren recommends a distance of 1" from the bottom of the bump stop to the top of the contact point. You can achieve this distance on trucks that are lifted using increments of the Timbren 1/2" Spacer part # TA25722-90P00 and the Timbren 1" Spacer part # A25723-90AH00 until the...
    view full answer...
  • Timbren Suspension Kit Recommendation for 2020 Ford F-150 4x4
    The difference between the Timbren rear suspension enhancement options for the 2020 Ford F-150 4x4 is that Timbren system part # TFRTT1504E is more for commercial use such as service trucks like tow trucks, they are also rated for 7,00 lbs. The Timbren system part # TFR1504E is designed for regular pickup trucks are rated for 6,000 lbs. The TFR1504E is what you need for a pickup truck. I have attached an installation video for your reference.
    view full answer...
  • Timbren Suspension Enhancement System Warranty and Return Policy
    The Timbren Suspension Enhancement System - Rear Axle # TFRTT1504E is a confirmed fit for 2015 -2018 Ford F-150 models. It has a lifetime warranty against defects in material and workmanship and is limited to the replacement of the failed part. I've attached the installation details that give you more details. Timbren products are well made and extremely durable. They are easy to install and require no maintenance. Our return policy is attached for your viewing as well.
    view full answer...
  • How To Fix Trailer Bounce When Towing and Suspension Enhancement For 2018 Ford F-150
    The suspension enhancement options for the 2018 Ford F-150 may help with the porpoising effect that you are experiencing. However, usually porpoising is caused by the trailer weight not being properly distributed. If there is too much weight in the back of the trailer the weight could cause the trailer to bounce. You want to try to make your tongue weight 10-15% of the overall weight of the trailer. If you are at 10% try to make it 15%. I recommend to use a tongue weight scale like part...
    view full answer...
  • Recommended Airbag Kit for a 2015 Ford F-150
    For a set of airbags that will work with your 2015 Ford F-150, I recommend taking a look at the Firestone Ride-Rite Air Helper Springs part # F2582. The Ride-Rite airbags will maximize safe load carry capacity, increase stability, and improve overall ride quality. The air pressure is adjustable for each airbag therefore you can adjust the pressure to suite your needs. In order to operate the airbags from inside the cab of your vehicle, I recommend the Firestone Air Command I part # F2158....
    view full answer...
  • Recommended Suspension Enhancement for 6 Inch Lift and Off-Road Trailer Towing
    With your 6 inch lift, the Timbren springs do have spacer availability, however the # TFRTT1504E is designed for severe service vehicles like tow trucks and would not be ideal in any way for off-road use. I definitely don't suggest Timbren springs for your application as they are designed for on the road towing and are really firm for support. For your truck I recommend the Firestone Ride-Rite Air Helper Springs # F2582 because they are extremely adjustable for your needs. They come...
    view full answer...
  • Recommended Rear Axle Suspension Kit For 2020 Ford F-150 4WD Short Bed
    If set and forget is your primary driver here, Timbren Suspension Enhancement System # TFRTT1504E is what I recommend. These sturdy rubber springs provide additional support and provide a comfortable ride. They will become more rigid as more weight is added which helps to stabilize your tow setup. Best of all there are no adjustments or maintenance required once installed. Included are video resources for additional information to get you started.
    view full answer...
  • Compatibility of Timbren Jounce Spring Suspension Enhancement with 5th Wheel In-Bed Hitch
    If you have a 2015-2018 Ford F-150 I recommend the Timbren Rear Suspension Enhancement System # TFR1504E which will work very well for a 5th wheel hitch application whether with raised base rails or underbed mounting. The jounce springs # TFRTT1504E you asked about will also work, but they are designed for Severe Service vehicles like tow trucks and won't serve you quite as well for your 5th wheel trailer. While you are upgrading, you may consider adding the Hopkins Endurance 5th Wheel/Gooseneck...
    view full answer...
  • Cost Effective Camper Tie Downs for Use with 2017 Ford F-150
    I called my contact at Brophy and they informed me that they tested the Brophy Clamp On Camper Tie-Downs part # HSAB on an aluminum body Ford F-Series pickup and didn't have any problems doing so therefore, yes they will work well for you. If you have a drop in bedliner that extends up to the side rails on the bed then they will need to be trimmed in order for the camper tie-downs to mount properly. In order to secure the truck bed camper to the tie-downs you will need a set of turnbuckles...
    view full answer...
  • Suspension Enhancement Recommendation- 2020 Ford F150 Towing Small 5th Wheel
    A jounce spring replacement like the Timbren # TFR1504E would be a great choice. The Timbren Aeon spring will not change the ride of your truck unless the rear suspension is compressed (like when a fifth wheel is hitched up). As more weight is added, the springs get progressively firmer. Because the springs replace the factory jounce bumpers, the Timbrens won't interfere with the bracketry for your firth wheel hitch. The springs will also make your truck feel more stable in turns and can...
    view full answer...
