Fulton XLT Bolt-Thru Swivel Trailer Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs

Fulton XLT Bolt-Thru Swivel Trailer Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs

Item # F141133

lowest price pledge

Retail:$195.62

Our Price: $135.85

You Save: $59.77
Trailer Jack

This item qualifies for Free Shipping

Shipping Weight: 23 lbs

Quantity:
In Stock
F141133 - Bolt-On Fulton Trailer Jack
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Side Frame Mount Jack
  • 1500 lbs
  • Sidewind Jack
  • No Drop Leg
  • Swivel Jack - Pull Pin
  • Bolt-On
  • Fulton
  • 12 Inch Lift
  • With Wheel
Corrosion-resistant swivel jack is great for marine use. Bracket height is 27" when extended, 15" when retracted. 8" Wheel turns 360 degrees so you can maneuver in any direction. Bolt-on installation with included hardware. Lowest Prices for the best trailer jack from Fulton. Fulton XLT Bolt-Thru Swivel Trailer Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs part number F141133 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (97)
  • Q & A (34)
  • Videos (1)
  • Photos
  • Why etrailer?

Fulton Trailer Jack - F141133

Corrosion-resistant swivel jack is great for marine use. Bracket height is 27" when extended, 15" when retracted. 8" Wheel turns 360 degrees so you can maneuver in any direction. Bolt-on installation with included hardware.


Features:

  • Marine-grade swivel jack lets you raise and lower your trailer
  • Convenient, spring-loaded, plunger-pin swivel feature
    • Swing up to stow parallel to tongue for travel
    • Move back into upright position for use
  • Self-healing Sharkskin finish offers a 1,200-hour salt spray rating on exterior jack surfaces
    • Ideal for use on a boat or snowmobile trailer
    • Durable enough for saltwater applications
  • Clear ZMax finish offers a 600-hour salt spray rating on internal components
  • Acme screw raises and lowers the jack quickly and easily, traveling 1" for every 5 turns
  • 360-Degree caster allows easy wheel movement in all directions
  • Bushing helps eliminate rattling of tubes by ensuring that the inner tube fits snuggly in the outer tube
  • Soft, ergonomic grip on sidewind handle makes it easy to crank jack
    • Handle catch helps keep handle from swinging when jack is stowed
  • Heavy-gauge steel construction
  • 3 Grease fittings make lubrication easy
  • Bolt-on mounting with included hardware


Specs:

  • Mounting: 3" x 3" and 3" x 4" trailer frames
  • Bracket height:
    • 15" Retracted
    • 27" Extended
  • Lift:12"
  • Lift capacity: 1,500 lbs
  • Wheel dimensions: 8" diameter x 2" wide
  • Pull pin diameter: 1/2"
  • 5-Year limited warranty


Corrosion Resistance for Marine Use

This jack is coated to resist corrosion, making it ideal for your boat or snowmobile trailer. The tubes and wheel assembly are coated in Fulton's Sharkskin finish. Sharkskin products undergo a test in which they are sprayed with a 5-percent salt solution to determine corrosion resistance over time. These products are able to withstand 1,200 hours of constant exposure to the saltwater mist. This 1,200-hour salt spray rating indicates that a product is not only durable enough to last in freshwater environments, but it can also be used on trailers that come into contact with saltwater. Sharkskin finish is also self-healing, meaning that it minimizes the effects of any scratches that may occur. As a result, this jack will retain its like-new appearance for longer.


In addition, the jack's acme screw, wheel assembly lock nut, and grease fittings all have Fulton's ZMax finish. This clear zinc coating offers a 600-hour salt spray rating, which is also great for marine use.

Dimensions

141133 Fulton XLT Bolt-Thru Swing-Away Marine Trailer Jack - 12" Lift - Single Wheel - True Turn 360 Castering System - Side Wind - Bolt-On - 1,500 lbs

Replaces #s 61271, 63115






California residents: click here

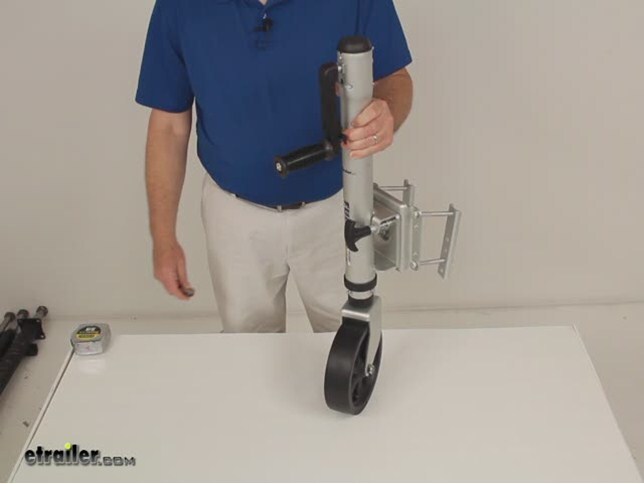

Video of Fulton XLT Bolt-Thru Swivel Trailer Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Fulton Trailer Jack - Side Frame Mount Jack - F141133 Review

Today we're going to review part number F141133. This is the Fulton XLT Swing-Away Bolt on Trailer Jack, has a 12 inch lift, is has a sidewind design and has a 1500 pound weight capacity. This maintenance free corrosion resistant jack is made from marine, recreational and utility trailers, has an upgraded speed and mobility to get you on the road quicker than the competition. The jack will raise and lower faster. Basically they do that by designing the acme screw which is the large screw in the length of the jack here that turns to let it down and up. They use a 5 pitch acme screw design versus the normal trailer jack that uses an 8 pitch acme screw and when they use the 5 pitch design, it will give you 5 turns per inch of travel. So in other words when you turn this handle 5 turns, it's going to move that jack up or down 1 inch. It's going to give you a lot quicker response, quicker speed. It's about 35% faster than the competition. Now it does include right here at the bottom the pat and pending true turn 360 system which will help when the wheel is on the ground in turning your trailer.

And the other nice thing about it is when you do turn to raise or lower your jack, the wheel will not spin. A lot of your trailer jacks if you ever notice, when you turn the handle to raise or lower them, that caster wheel would spin around and around, this one will not do that. Does use the patented, right here, you can see these 2 black bands, these are patented inner and outer tube bushings. This will help provide a tight fit and lessen the tube drag between the inner tube and this outer tube. What's nice about those bushings is again on some trailer jacks you'll notice a lot of them just wont have that bushing and as you extend your inner tube out, there's a lot to play there because there's no bushing there to take that from moving back and forth, so this will eliminate any of that extra play when you're cranking out your jack. Has a ergonomic sidewine handle right here which is made with a soft touch grip to lessen any cranking inaudible 00:02:10. It also has the handle hold up feature which is this thing right here, but as you push it up, keeps the handle from moving and where that comes into play is when you swivel your jack up out of the way and it's parallel with your trailer. Lots of times your jack handle will fall down and hang, but with this hold up feature, if you do that, when you twist ...

when you turn your . swivel your jack up along side the trailer and then you just . hold up feature will hold this handle into place with the jack, it won't be hanging down. Nice little feature they've added. Now there are grease fittings on this. There's 2 right up here, one here, one here and then there's one at the bottom.

One up here is to lubricate the gears, one is also to lubricate the jack screw and knot and then the one right here on the bottom will help lubricate this castering system. So basically if you keep those lubricated, this jack should last a long time. Has a nice shark skin finish which is an environmentally friendly self-healing finish. This will help provide maximum corrosion resistance and it's designed for use in salt water and other demanding environments and it has also meet the Z max 600 hours salt spray test. Now this jack has a patented. Right here you can see the bolt, XP bolt through mount swivel system. Has the F2 design pull pin which is very ergonomic, so you just pull out on this pin and you can swivel your jack up into out of the weight position. The mounting hardware, right here you can see I've installed it already, is included.

The application for this is it will install on a 3 inch by 3 inch trailer frame, a 3 inch by 4 inch trailer frame and a 3 inch by 5 inch trailer frame. Now the bracket height, what I'm going to do here is let's just . I'm going to retract this all the way. There we go, just retract it. The bracket height is measured from the center of your mounting bracket down to the bottom of the caster. In this case, the bracket height on this, going to try to give you an idea here. Basically from this caster to the center is going to be right at 15 inches when the jack is fully retracted and when we extend this out because it has a 12 inch lift, that measurement of the bracket height would be 27 inches. Now the lift capacity again on this is 1500 pounds. The wheel diameter is 8 inches and the width on it is 2 inches, so it gives very good stability and the pull pin diameter itself is a half inch pull pin diameter. But that should do it for the review on part number F141133. The Fulton XLT Swing-Away Bolt on Trailer Jack with the 12 inch lift, sidewind design and a 1500 pound weight capacity. .
