Square Pipe Mount Swivel Jack w Footplate - Drop Leg - Weld On - Sidewind - 28-1/2" Lift - 7K

Square Pipe Mount Swivel Jack w Footplate - Drop Leg - Weld On - Sidewind - 28-1/2" Lift - 7K

Item # TJDP-7000S-B

lowest price pledge

Retail:$148.98

Our Price: $135.51

You Save: $13.47
Trailer Jack

This item qualifies for Free Shipping

Shipping Weight: 28 lbs

Quantity:
TJDP-7000S-B - Drop Leg etrailer Trailer Jack
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos


  • Side Frame Mount Jack
  • 7000 lbs
  • Sidewind Jack
  • Drop Leg
  • Swivel Jack - Pipe Mount
  • Weld-On
  • etrailer
  • 28 Inch Lift
  • With Foot
Weld-on, pipe-mount swivel jack pivots up for travel, down for use. Square design provides side-load support. Retracted height is 14-1/2". Extended height is 29-1/2". Drop leg offers 13-1/2" of lift on top of 15" of screw travel. Lowest Prices for the best trailer jack from etrailer. Square Pipe Mount Swivel Jack w Footplate - Drop Leg - Weld On - Sidewind - 28-1/2" Lift - 7K part number TJDP-7000S-B can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (43)
  • Q & A (19)
  • Videos (1)
  • Photos
  • Why etrailer?

etrailer Trailer Jack - TJDP-7000S-B

Weld-on, pipe-mount swivel jack pivots up for travel, down for use. Square design provides side-load support. Retracted height is 14-1/2". Extended height is 29-1/2". Drop leg offers 13-1/2" of lift on top of 15" of screw travel.


Features:

  • Utility jack lets you raise and lower your trailer
    • Ideal for agricultural and commercial applications
  • Tubular swivel design lets you twist jack up for storage, down for use
    • Pull pin with clip holds jack in place
    • Lanyard connects pin to jack so it won't get lost
  • Square jack provides more side-load capacity than round-tube jacks
  • Belly band welded to the outer tube provides extra strength
  • Sidewind handle has zinc finish for attractive look and rust resistance
  • Drop leg allows for increased lift and saves time when raising or lowering
  • Black painted outer tube
  • Zinc finished inner tube and footplate for corrosion resistance
  • Welded-on footplate minimizes sinking in soft ground
  • Effortless greasing with built-in grease zerk
  • Weld-on installation with included female pipe mount


Specs:

  • Jack height (from bottom of foot to center of pipe mount):
    • 14-1/2" Retracted
    • 29-1/2" Extended
  • Total lift: 28-1/2"
    • Screw travel: 15"
    • Drop leg travel: 13-1/2"
  • Lift capacity: 7,000 lbs
  • Support capacity: 8,000 lbs
  • Outer tube width: 2-1/2"
  • Inner tube width: 2-1/4"
  • Footplate dimensions: 7-7/8" long x 5-7/8" wide
  • Pipe mount diameter:
    • Inner: 2"
    • Outer: 2-1/2"
  • Handle radius: 8-1/8"
  • Adjustment hole spacing on drop leg: 3-3/8" from center of hole to center of hole


Ram dimensions

TJDP-7000S-B Ram Square Pipe Mount Swivel Jack w/ Footplate - Weld On - Side Wind - 15" Screw Travel - 7,000 lbs

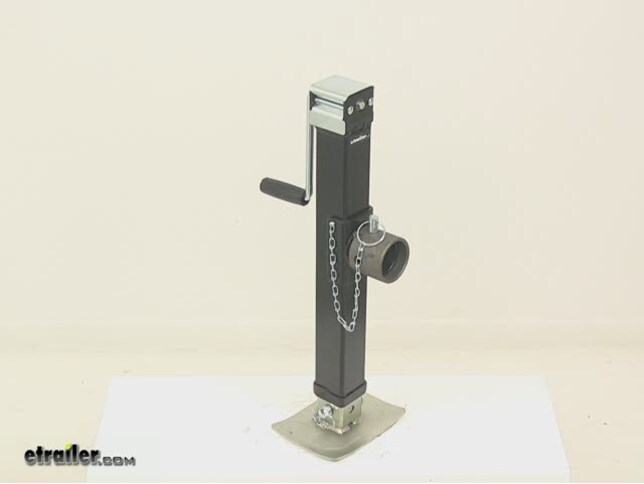

Video of Square Pipe Mount Swivel Jack w Footplate - Drop Leg - Weld On - Sidewind - 28-1/2" Lift - 7K


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for etrailer Trailer Jack - Side Frame Mount Jack - TJDP-7000S-B Review

Today we're going to be taking a look at a square pipe mount swivel jack with a included foot plate and drop leg. This utility jack is going to let you raise and lower your trailer. It's going to feature a lift capacity of 7000 pounds and a support capacity of 8000 pounds. It's going to feature the tubular swivel design that's going to let you swing the jack up along the trailer frame for a stowed position, and it's going to allow you to bring it back down for use. It does comes with the pull pin to secure it in either position. The pull pin's going to be held to the jack with that chain lanyard.

That way you don't have to worry about misplacing the pin or losing it. It's also going to come with a weld on pipe mount. This is a female pipe mount. It's raw steel, that way it's already ready to be welded on to the trailer frame. This get welded on to the trailer, and then you can see that this portion right here would go inside of here, and that's going to allow it to swivel around inside the pipe mount. Four holes line up with the four holes on the bracket, that way when you swing this up you can do so with the foot facing the front of trailer or the rear of the trailer whatever gives you the most clearance and works for your application.

This is included. That's going to have an outer diameter of 3 inches and an inner diameter of 2 1/2 inches. Now square jacks are going to offer more side load capacity than round tube jacks. This one is going to have a side wind handle that makes raising and lowering the jack very easy. It's got a really nice fluid design. Feels like a nice smooth operation.

I don't feel any kinking or binding. The side wind handle is going to give us a radius of about 8 1/8 of a inch. That's measuring from the outer edge of the grip to the center of where the handle mounts. The jack is made from a steel construction. The outer tube is going to feature a nice black powder coat finish, and the inner tube, the drop leg, and the foot plate are going to have a clear zinc finish, so overall the unit is going to be highly resistant towards rust and corrosion. It does include a drop leg. Drop legs are going to allow for increased lift, and they're going to help save time when raising or lowering your jack.

I do want to go to show you this drop leg. It's going to come with your pin and clip so if we remove that pin that's going to allow us to adjust the jack on our drop leg. I'm going to remove it all the way, because I want to point out that you can see here that it's going to be a five hole design. This jack's going to offer a travel measuring from outer hole to outer hole on center of about 13 1/2 inches, and then you're going to be able to adjust the 13 1/2 inch measurement in 3 3/8 inch increments. That's the distance between each hole center on center. Again, this is included, and it just slides directly in the inner tube of the jack. Once you find the location you want, secure it by installing the pin and clip. The foot plate is going to be welded to the bottom of the drop leg. The foot plate is a nice large design. It's going to measure about 8 inches by 6 inches so it's really going to do a great job at spreading out the applied weight even on softer ground to prevent sinking. It's also going to help increase overall stability. The inner tube is going to have a hole on each side that way you can rotate the drop plate to change the foot plate direction. The unit is going to allow for easy maintenance. Here on this side it's going to have the included zerk fitting. That way all you have to do is attach a grease gun to it, pump in your grease, and you can lubricate the internal components that way. A few measurements to go over with you real quick. With the jack in the fully retracted position, measuring from the bottom of the foot plate to the center of the pipe mount, we're looking at a measurement of about 14 1/2 inches. I did that measurement with it fully extended and that measures about 29 1/2 inches, so this jack is going to offer a travel or lift of 15 inches. Then again, the drop plate is going to provide an additional 13 1/2 inches on top of that. The 13 1/2 inch measurement can be adjusted in 3 3/8 inch increments. We're looking at a square design, so the outer tube is going to measure 2 1/2 inches by 2 1/2 inches. The inner tube is going to measure 2 1/4 by 2 1/4. That's going to do it for today's look at the square pipe mount swivel jack with the included footplate and drop leg.


Customer Reviews

Square Pipe Mount Swivel Jack w Footplate - Drop Leg - Weld On - Sidewind - 28-1/2" Lift - 7K - TJDP-7000S-B

Average Customer Rating:  4.8 out of 5 stars   (43 Customer Reviews)

Weld-on, pipe-mount swivel jack pivots up for travel, down for use. Square design provides side-load support. Retracted height is 14-1/2". Extended height is 29-1/2". Drop leg offers 13-1/2" of lift on top of 15" of screw travel.

- TJDP-7000S-B
by:

After welding a new pipe for mounting the jack, it requires at least twice the handle torque to pick up the Brushhog mower as did the Bull dog #7000 it replaced. 293957



- TJDP-7000S-B
by:

Very Happy with everything Excellent customer service and shipped product Perfect So happy it works perfectly with our trailer Would buy from from this company again Very pleased 604933



- TJDP-7000S-B
by:

No problems it has been just fine. 600992



- TJDP-7000S-B
by:

Great jacks bought two of them for rear load supports for my dump trailer. Should make loading my machine a lot more stable. Fast shipping 593670



- TJDP-7000S-B
by:

These are sweet jacks. I installed a pair on the rear of my 20ft bumper pull equipment trailer. These things will lift the entire trailer off the ground. Comes in handy changing flats. The reason I installed them was to stop the bobcat from lifting my truck off the ground when loading. Got tired of carrying 6x6 blocks to put under the rear of the trailer. I really like the swing feature. When stowed I crank them against the tail light bracket to keep them quiet. 592299



- TJDP-7000S-B
by:

Good product, but the packaging was severely damaged in shipping 586321



- TJDP-7000S-B
by:

Very strong and well built. It does rattle some when going down the road but that's an easy fix. I would definitely buy again! 563598



- TJDP-7000S-B
by:

Great value on these jacks! 557219



- TJDP-7000S-B
by:

Very adjustable, built tough, works well. I’m very happy with this purchase. If I had another trailer I would purchase this for it too. 551303



- TJDP-7000S-B
by:

easy wind and very strong 521690



- TJDP-7000S-B
by:

Very good, weld on. Only complaint is the slop between the mounting male bracket and female. It causes the camper to lean typically to the drivers side. I’m going to try welding some beads around the male side and build it up to get rid of the slop. 514127



- TJDP-7000S-B
by:

This is the 2nd set of these i have gotten from etrailer. As usual fast delivery and great service. These jacks are great and my other set is over a year old and never have had any problems with them at all. i would recommend these to anyone looking for a set with drop legs. The price cannot be beat for the quality. 511199



- TJDP-7000S-B
by:

The best jack one can use. This is the second one I ordered. Sturdy and easy to wind. I love it. 509543



- TJDP-7000S-B
by:

I have yet to install and use this jack,however, it was shipped and received in fast order. It's exactly as it was pictured/described on the site. 479676



- TJDP-7000S-B
by:

Excellent product, this part is used on a trailer designed for portable toilet's, the trailers are placed in various parts of San Francisco where concerts and other public gatherings are held. 478233



- TJDP-7000S-B
by:

Great Jack and a great price 475657



- TJDP-7000S-B
by:

Works great. Heavy Duty. 473578



- TJDP-7000S-B
by:

Works great. Satisfied with purchase. 473497



- TJDP-7000S-B
by:

Been usin these for a year now and love them! Never have had one issue with them. Since the mini off rd camper sits on 35" tires and a spring over the drop down extended legs are perfect. I would recommend to anyone who needs the extra length for a high riding trailer or camper. 472043



- TJDP-7000S-B
by:

Very good business to purchase trailer parts from and get the right parts from and fast turn around 470063



- TJDP-7000S-B
by:

We have not launch yet. I am back at Wallops now here is a couple of pic's of your jacks and how we are using them at NASA I will send more when we launch Take care and thanks for your help 462287



- TJDP-7000S-B
by:

5 stars 452379



- TJDP-7000S-B
by:

Very nice jack... 440906



- TJDP-7000S-B
by:

Very nice jack... 439879



- TJDP-7000S-B
by:

Professional and quick service...! Will not hesitate to order from this company. 436575



- TJDP-7000S-B
by:

Used 2 of these pipe mount swivel jacks on the back of a 16k gvw sure trac dump trailer to stabilize the rear of the trailer when loading and unloading equipment. Without these jacks the trailer rear end would go down when pulling a 10k bobcat up the equipment ramps and the truck pulling the trailer would go up dual tires and everything , not good. Excellent sizing, price, and build quality, would recommend to a friend 432885



- TJDP-7000S-B
by:

Very heavy duty. 432828



- TJDP-7000S-B
by:

Had high expectations for this product based upon web site presentation but upon receiving this jack it went way beyond my expectations. The weight, sturdiness, fluidness of movement, and quality of material and craftsmanship are exceptional. I would have paid even more for this jack because it is worth every penny. And on top of that, the associate that took my phone order was polite, courteous, knowledgeable and professional. I couldn't be more pleased! 424358



- TJDP-7000S-B
by:

Outstanding Product. Heavy duty. Easy to install. Highly recommend for heavy duty applications that require lift height and stowage while going down the road. 419065



- TJDP-7000S-B
by:

Good product. worked great for our trailer for the stump grinder and other machines. Durable. 404636



- TJDP-7000S-B
by:

Good service, good product, good price. Gets the old trailer up and down no problem 403796


Comments

I have bought a number of things over the years from etrailer and have been very happy with the experience and the product. I shop with you because you have a great ion and very good pricing and the transactions have always gone well. I bought two trailer jacks at about the same time and they both work exactly as I needed. I was just looking at things on your site yesterday and will always consider you first for the type of equipment you carry.

Spencer - 07/12/2018

40859

- TJDP-7000S-B
by:

Came timely, product is very good quality. Very pleased. 402447



- TJDP-7000S-B
by:

product work as described. It was smooth operating, well built. The company was right on the order followed up. I would recommend to a friend 356041


Comments

Last year our mission did not fly. We did have field ops and the jacks worked great. this year we have two missions on the books. I am not sure the current jacks are too tall at the minimum height if we can work around that we will order another set. PS tell Nicky I still will send photos of the flight as told her last year. We just didnt fly. Thanks for your help!

joe m - 03/20/2018

36183

- TJDP-7000S-B
by:

Real sturdy equipment at a great price. Nice big landing pad. 334024



- TJDP-7000S-B
by:

Great product, fast shipping!! 323334



- TJDP-7000S-B
by:

Received my trailer jack quickly and it appears to be very high quality unlike some of the other jacks for sale now days. 321559



- TJDP-7000S-B
by:

This jack arrived quickly as always from Etrailer...am very satisfied with the product... 318448



- TJDP-7000S-B
by:

quality product can't wait to instal 309414



- TJDP-7000S-B
by:

Everything arrived on time product as e xpected 309413



- TJDP-7000S-B
by:

This is a good, heavy-duty jack. It lift my trailer with ease. 301168


Comments

Raises my trailer with ease. Great product.

Gabriel R - 10/02/2017

28633

- TJDP-7000S-B
by:

I found them online and placed an order and received it in just a couple of days. Great company! Highly recommend them 288312



- TJDP-7000S-B
by:

Good quality - twice the lift of the jack it replaced at the same price - longevity TBD 288269



- TJDP-7000S-B
by:

Great product for the price. I was somewhat disappointed in how long it took to actually get the item after placing my order. Apparently, it was out of stock. 268400


46
46

Ask the Experts about this etrailer Trailer Jack
Do you have a question about this Trailer Jack?


  • Male and Female Pipe Mounts for etrailer Square Pipe Mount Swivel Jack TJDP-7000S-B
  • The end that normally attaches to jack # TJDP-7000S-B is # TJP-OP58. It has an outer diameter of 2-1/2 inches and inner diameter of 2 inches. For a weld-on male end that has 5/8 inch pin holes to match the above female mount use # AT81271 or # BD015279.
    view full answer...

  • Parts Used To Create The Square Pipe Mount Swivel Jack With Footplate
  • If you are looking for the parts needed to mount the jack # TJDP-7000S-B, the parts are already included in the packaging. To mount, place female pipe # TJP-FP58 in the proper location for trailer application. Weld on all the way around the female pivot pipe with 3/16" filet weld. Just in case you need it, I have the breakdown of the parts used to create the Square Pipe Mount Swivel Jack w Footplate # TJDP-7000S-B. You will need Replacement Drop Leg with Foot for etrailer and Ram...
    view full answer...

  • Weld-on 7,000 Pound Trailer Jack with Weld Mount Already Installed
  • The Square Direct Weld Jack # TJD-7000S does not include a mount and is designed to be welded directly to your trailer. For a similar jack the Square Pipe Mount Swivel Jack # TJDP-7000S-B installs using a weld-on pipe mount. It meets the same 7,000 pound capacity and has 15 inches of travel.
    view full answer...

  • Replacement Pipe Mount for Trailer Swivel Jack
  • The degree of tightness of a mounted pipe-mount jack like # TJDP-7000S-B depends on the jack's fit on the trailer mount and on the pin. Any differences in the diameters of the holes versus the pin will allow for some small amount of movement. If for example the trailer is older and very well-used the holes in its pipe mount could be rounded out slightly; the same could happen to the mount on the jack. If the holes are enlarged from years of friction you might be able to find a slightly...
    view full answer...

  • Dimension and Weight Capacity of etrailer.com Side Mount Weld-On Jack
  • The measurement of the jack you asked about # TJDP-7000S-B measures from crank to center of the pipe mount is 8-1/2 inches. The lift capacity of this jack is 7,000lbs and static support capacity is 8,000lbs. When using jacks like these, you are typically, only lifting the tongue weight (which is 10-15 percent of your total trailer weight) of the trailer so the higher rated ones will allow the jack's gears to work without strain. For a very similar top crank direct weld-on jack the...
    view full answer...

  • 7k Trailer Jack Recommendation for Enclosed Trailer
  • The Square Pipe Mount Swivel Jack # TJDP-7000S-B is a weld-on 7k trailer jack that would work well for you. The pipe mount would weld to the frame of the trailer and allow you to swivel up and down when needed. You should also note that our jacks are rated for lifting strength (tongue weight) and not for the total trailer weight. For the size of your cargo trailer you most likely would have a 700 lb tongue weight which this jack would make easy work of.
    view full answer...

  • Swivel Mount Trailer Jack for 6 Inch Tall Trailer Frame
  • The only bolt-on swivel jack we have that works with 6" tall trailer frames is the Trailer Valet 5X Swivel Jack and Trailer Mover part # STC-V211. The Trailer Valet has a 500 lb tongue weight capacity and works with frame rails up to 2-3/4" wide x 6" tall. In addition to featuring a bolt on tongue jack, the Trailer Valet as the name states doubles as a trailer dolly which will easily allow one person to move their trailer around. The dolly has integrated brakes which keep it from rolling....
    view full answer...

  • Shelby Side Wind Trailer Jack, Part # 6108SW for Triton Trailer
  • I think the Square Pipe Mount Swivel, part # TJDP-7000S-B would be a good choice for you. It has the 8,000lb support capacity which is one of the highest we offer, and is welded to the trailer frame.
    view full answer...

  • How Many Cranks Per Inch for the etrailer.com Square Jack # TJDP-7000S-B
  • The etrailer.com Square Jack # TJDP-7000S-B that you referenced takes 8 cranks of the handle to extend or retract 1 inch. I went out into our warehouse to confirm this.
    view full answer...

  • Recommendation for Pipe-Mount Swivel Trailer Jack that has a Grease Fitting
  • Round, Pipe Mount Swivel Jack w/ Footplate - Weld On - Topwind - 15-1/4" Travel - 7K Item # TJP-7002-B does not have a grease fitting. But there is a another option that does. Take a look at Square Pipe Mount Swivel Jack w Footplate - Drop Leg - Weld On - Sidewind - 15" Travel - 7K Item # TJDP-7000S-B. This version does have the grease fitting and has nearly identical specs as its round-tube brother. I have included a link to a video review of this jack for you.
    view full answer...

  • Can a Swivel Mount be Added to Square Direct Weld Trailer Jack # TJD-7000S
  • Square Direct Weld Jack # TJD-7000S will weld directly to the trailer frame. To make it a swivel jack you would have to weld on pipe mounts such as # BD015279 and # BDPG9810-00. Or you could go with jack # TJDP-7000S-B that already has the mount welded to the jack and includes the pipe that gets welded to the trailer frame. I have linked a video review of this jack for you.
    view full answer...

  • Swivel Jack Recommendation to Replace Shelby Jack that has Foot Plate
  • We no longer carry any Shelby jacks that will use the same mounting swivel bracket but what you can do is install a Jack like the # TJDP-7000S-B and just weld it's mounting bracket to your trailer and you would have a swiveling jack that has a footplate and a higher capacity of 7,000 lbs.
    view full answer...

  • Bolt-On Swivel Jack Options for 6" Tall Trailer Frames
  • The only bolt-on swivel jack we have that works with 6" tall trailer frames is the Trailer Valet 5X Swivel Jack and Trailer Mover part # STC-V211. The Trailer Valet has a 500 lb tongue weight capacity and works with frame rails up to 2-3/4" wide x 6" tall. In addition to featuring a bolt on tongue jack, the Trailer Valet as the name states doubles as a trailer dolly which will easily allow one person to move their trailer around. The dolly has integrated brakes which keep it from rolling....
    view full answer...

  • Will Swivel Jack Handle Move When in Stowed Position?
  • The handle for the Square Pipe Mount Swivel Jack, # TJDP-7000S-B, is going to be stiff enough that it will not free float. For example, if you refer to the picture I've attached, you can see the handle sitting in an upright position. You can also take a look at the video I've linked, and at about the 1:30 mark, you will be able to see the handle being used and then come to a stop without falling back down
    view full answer...

  • Total Height of Swivel Trailer Jack While Retracted
  • To total retracted height of the swivel jack # TJDP-7000S-B is 24-1/2 inches.
    view full answer...

  • Pipe Mount Jack Recommendation for Trailer that Has Wheel Caster Option
  • For the square jack part # TJDP-7000S-B that you referenced we do not have a wheel that will replace the foot. The reason is that the wheels have lower capacities around 1,200 lbs and this jack has a 7k capacity. If you wanted a similar option with a wheel you'd want the # BD1541150301 for a jack with the wheel caster # BDCP555 that you referenced. For the pipe mount you'd then want the part # BD015279.
    view full answer...

  • Recommended Weld-On Swivel Jack to Fit a 20 Ft. Triton Boat Trailer
  • We carry a large selection of weld-on jacks that will fit your Triton boat trailer. I have attached a link that will tack you to the product page that has all of these jacks for your to review. As for a jack that I recommend, I like the Square Pipe Mount Swivel Jack Weld On Sidewind, 7K, # TJDP-7000S-B. This jack has a 7,000 lbs lift capacity and has the 2-1/2 inch round tube swivel on the jack. Retracted the jack measures 17-1/2 inches and fully extended the jack will measure 29-1/2...
    view full answer...

  • Does the Pipe Mount BDPG9810-00 and Trailer Jack TJDP-7000S-B Have Same Pipe Dimensions
  • Yes the pipe diameters of the # BDPG9810-00 and the # TJDP-7000S-B are the same. Both of them have a 2 inch inner diameter and a 2-1/2 inch outer diameter.
    view full answer...

  • Economically Priced Trailer Jack with Swivel Pipe Mount that Welds On
  • For similar jack with the best price check out the Pro Series jack part # PS1400400303. This welds on with a pipe mount like the jack you referenced and swivels down when needed. It has a 2,000 lb capacity and a topwind.
    view full answer...


Do you have a question about this Trailer Jack?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer jack for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer jack information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Updated by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jameson C
Expert Research:
Adam R
Installed by:
Cole B
Photos by:
Zach O
Written by:
Amanda M
Updated by:
Mike S

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
