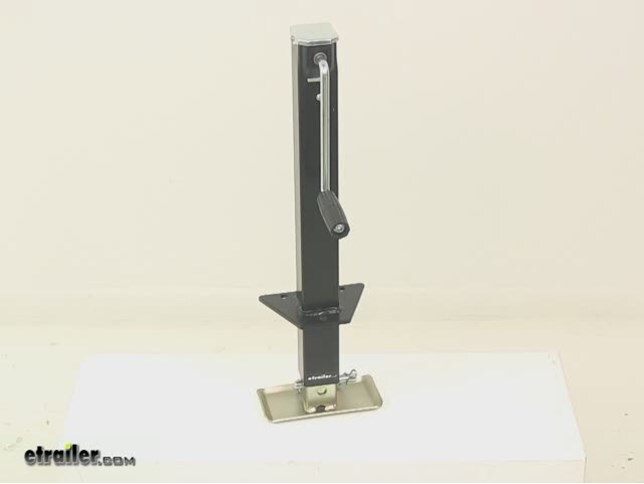

Square A-Frame Jack w/ Footplate - Drop Leg - Sidewind - 28-3/4" Lift - 3,000 lbs

Square A-Frame Jack w/ Footplate - Drop Leg - Sidewind - 28-3/4" Lift - 3,000 lbs

Item # TJDA-5000S
Retail:$99.85
Our Price: $90.37
You Save: 9%
Trailer Jack
Shipping Weight: 20 lbs
Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
This A-frame jack has a retracted height of 7-1/8" and an extended height of 22-3/8". The drop leg offers 13-1/2" of lift on top of 15-1/4" of screw travel. Includes a sidewind handle and footplate. Great Prices for the best trailer jack from etrailer. Square A-Frame Jack w/ Footplate - Drop Leg - Sidewind - 28-3/4" Lift - 3,000 lbs part number TJDA-5000S can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (686)
  • Q & A (0)
  • Photos

etrailer Trailer Jack - TJDA-5000S

  • Car Hauler
  • Enclosed Trailer
  • Fifth Wheel Trailer
  • Utility Trailer
  • 2001 - 3000 lbs
  • Sidewind Jack
  • Bolt-On
  • A-Frame Jack
  • Leveling Jacks
  • Tongue Jacks
  • 29 Inch Lift
  • With Rectangle Foot
  • Steel
  • etrailer

This A-frame jack has a retracted height of 7-1/8" and an extended height of 22-3/8". The drop leg offers 13-1/2" of lift on top of 15-1/4" of screw travel. Includes a sidewind handle and footplate.


Features:

  • Utility jack lets you raise and lower your trailer
    • Ideal for agricultural and commercial applications
  • Sidewind handle has zinc finish for attractive look and rust resistance
  • Drop leg allows for increased lift and saves time when raising or lowering
    • Pin and clip holds leg at desired location
  • Effortless greasing with built-in grease zerk
  • Black power coated outer tube
  • Zinc finished inner tube and footplate for corrosion resistance
  • Welded-on footplate minimizes sinking in soft ground
  • Bolt-on installation


Specs:

  • Bracket height (from bottom of footplate to bottom of bracket):
    • 7-1/8" Retracted
    • 22-3/8" Extended
  • Total lift: 28-3/4"
    • Screw travel: 15-1/4"
    • Drop leg travel: 13-1/2"
  • Lift capacity: 3,000 lbs
  • Support capacity: 5,000 lbs
  • Clearance: 17-5/8" from bottom of bracket to top of jack
  • Outer tube width: 2-1/4"
  • Inner tube width: 2"
  • Footplate dimensions: 7-1/2" long x 3-3/4" wide
  • Handle radius: 8-1/8"
  • Adjustment hole spacing on drop leg: 3-3/8" from center of hole to center of hole
    • 3-1/2" Between center of hole on bottom and center of nearest hole
  • 1-Year warranty


DimsBracket

How to Determine the Lift Capacity You Need in a Jack

A trailer jack is designed to lift the tongue of your trailer so you can connect the trailer coupler to your hitch ball. To do this, you'll need a jack with a lift capacity high enough to handle your trailer's tongue weight.


Tongue weight is the amount of weight that your trailer applies to the back of your tow vehicle. Typically, your tongue weight should be 10-15% of your total trailer weight (trailer + cargo). In other words, a 10,000-lb trailer would have a tongue weight between 1,000 lbs and 1,500 lbs. For a trailer this size, you would need a jack with a lift capacity of at least 1,500 lbs.


It's okay to have a jack with a weight rating that is higher than your trailer's tongue weight. In fact, a jack with a higher lift capacity should operate more efficiently, allowing you to spend less time cranking and more time camping.


Trailer and Camper Jack Lift

Every jack offers a certain amount of lift or travel. Screw travel is the distance the jack extends when you crank it (or toggle it to "extend" on an electric model). Some jacks include a drop leg for extra adjustability. On these jacks, you'll see the maximum extension of the drop leg listed in the specs as well. Adding the screw travel and drop leg travel together will give you the total lift. The total lift listed above can help you determine how high this jack will be able to raise your trailer.



TJDA-5000S Ram Square A-Frame Jack w/ Footplate - Drop Leg - Side Wind - 15-1/4" Screw Travel - 3,000 lbs





Customer Satisfaction Score:


Customer Reviews

Square A-Frame Jack w/ Footplate - Drop Leg - Sidewind - 28-3/4" Lift - 3,000 lbs - TJDA-5000S

Average Customer Rating:  4.8 out of 5 stars   (686 Customer Reviews)

This A-frame jack has a retracted height of 7-1/8" and an extended height of 22-3/8". The drop leg offers 13-1/2" of lift on top of 15-1/4" of screw travel. Includes a sidewind handle and footplate.

by:

Wish I would have upgraded sooner, is the first thing that comes to mind. The original equipment jack should be against the law of building trailers. I've never owned a trailer from a company that installs a jack long enough to reach the ground and lift the trailer off the ball, without having to use a block of some sort. This solves that issue! The drop leg alone gets you within an inch or two of where you'll start winding the jack to lift it off the ball. The side handle location is better in my opinion, and this has a grease fitting for maintenance. When installing, I had to turn the round hole into a square hole using my angle grinder with a cutoff wheel, maybe took 20 minutes to lay out the cut lines, make the cuts, and finish up with a file to smooth the edges. You will have to re-locate the 2 rear holes of the jack when mounting as they don't line up with the original ones. This is no big deal though, and even though the metal I was drilling through was pretty thick, if you'll put a few drops of oil in the spot you're drilling and then re-apply once or twice while drilling, this part will go quickly and easily and you won't burn your drill bit up. Don't forget the original equipment bolts are threaded, so you'll need some bolts, washers and nuts once you drill the 2 rear holes, unless you have the tools to thread them. I hope those few humble suggestions help anyone considering buying this. I couldn't be happier, and I"ll be buying another for my smaller trailer, even though this is rated for way more than it can haul. Worth every penny, don't hesitate to buy.

David

10/20/2023

Still works like new, no regrets whatsoever.



by:

Jack works great. Damaged the original when I forgot to lift the foot and hit my concrete parking apron. After I straighten out the mount this jack fit the hole perfectly and works great.



by:

If you don't have a drop foot jack you don't know what you're missing out on. this jack is a game changer for those who have to hitch a trailer daily as i do



by:

Very tough jack. It's a little slow moving because it's geared to handle so much weight. But the adjustable foot quickly gets it close to the ground. My trailer tongue required a few cuts to fit the square jack in my previously round hole. The back two bolts needed holes drilled as well.



by: 11/02/2022

Good Jack I don’t care for the pin that has the wire to lock it on.



by:

Installed in less than an hour with a little modification to the existing hole from the old jack. Works great!



by:

The product dimensions and capacity fit the needs of our trailer. Because so many in the past had just been broken off, I believe this will last for a while. Shipping time was great also.



by:

Instillation was very easy and it works amazingly. My trailer had a electric jack before and I was always having to maintain a battery, now I don't he to mess with that and it lifts super easy. I highly recommend this jack for enclosed trailers or heavy tongue weighted trailers.



by:

Service was fantastic and the hitch that I ordered was PERFECT. They got it here FAST and headache free. The square tube hitch is perfect and sturdier than my previous hitch and being able to raise it within itself makes it better than the original.



by:

I have had it for a year and it is still working great. Fairly easy to install and very easy to see looking though the rest view mirror of my truck. Still like it!



by:

I would have thought you would have included the hardware to install the screw jack to the trailer.
Whoever delivered the package put it in the wrong place. There is a drop box for packages to the left of gate. Kind hidden behind trees. They left it setting out in the open on the right side of gate.



by:

The trailer jack has worked great. We’ve put it to use a lot over the last year and it has never had even the slightest issue. I’d buy it again, although this one is so sturdy I doubt I’ll ever need to replace it.

Micah

7/27/2022

It has been over a year and my trailer jack is still working great!



by:

The product got damaged in shipment, partly because the box got punctured but it would have been ok if the cap was properly fastened to the jack. One screw was gone and the other loose, resulting in the cap getting bent

Etrailer Expert

Jenny N.

9/17/2022

Goodness! Having a damaged cap and missing screws is not what we want. Customer service will be touch with with you o have this taken care of.



by:

So easy to order, and it was shipped the same day and I received quickly! Great quality product. We will definitely be using etrailer.com for any future trailer parts!



by:

The A-frame jack continues to operate smoothly on my enclosed trailer.

The 15" travel with the added length from using the adjustable drop leg works well to accommodate the high tongue height of a drive over trailer.

Much handier than the pinned and removable foot plate it replaced.

Keith O.

9/19/2018

Still going strong with no corrosion issues after 1 year of Midwest road salt



by:

great product
great price
and great
service

from a fast customer service to a prompt delivery of the parts
Thank you, Melanie



by:

Great customer service! Amy J, did an amazing job getting the product I needed in a timely manner.



by:

Very good prod,service very good.and a sweet young lady too help to boot.have a wonderful day.



by:

I have not installed it yet, but the jack came very well packaged and the jack is very well built and just what I needed. I looked high and low on other online retailers and nothing compared to the choices provided by etrailer. The shiping was extremely fast also.

Tony

1/25/2019

Jack is performing great... love how I can adjust the length when unhooking from the truck... no longer have to cary around a block of wood.



by:

Sorry, haven’t used the trailer but a couple of times only use it to haul hay once or twice a year but it works great was more impressed with the terminal connection box that I bought for the same trailer that goes between the truck harness and the trailer wiring it worked great after I realized the color code on 7 pin pigtail harness from the truck does not match the correct wiring color code for a flatbed trailer can send you a picture if you want anyway great service thanks



by:

QUICK DELIVERY THANKS



by:

Like others have said, needed to modify the coupler and bottom reinforcement plate as the original jack was round and this is square. Additionally, I had to re-drill two of the bolt holes as they were in slightly different locations.

Drop leg is a big improvement and well worth the effort. Only reason I gave it 4 instead of 5 stars is that the gears are not as smooth as I would like. I have several trailers and other square, drop leg, side handle jacks are smoother. It's not bad and appears very strong so overall I would buy one again.



by:

As always, very pleased with etrailer.com. Their speed, pricing and customer service is second to none.
I needed a new jack for my equipment trailer and wanted to upgrade to a drop leg jack. I naturally went to etrailer to begin my search. I didn't want to go the weld on route and since my trailer previously had a standard bolt on tongue mount jack, I wanted to use the existing holes. This jack claimed to line up with existing bolt on tongue jacks however, two of the three bolts we off by maybe 1/2". In addition I was replacing a round jack with a square one, so obviously I had to modify the circle where the previous jack was mounted. I was able to quickly modify the bolt holes and the round hole with the plasma cutter and bolted it up no problem.

Jack seems high quality and name brand and I love the fact that it has a grease fitting for serviceability. The only reason for 4 stars was the fact that it wasn't a true "direct fit, bolt on" jack. Otherwise, another GREAT experience with etrailer !!



by:

Fast shipping!
Works great on my dump
trailer so I ordered another one to go on my other trailer.



by:

quality product


25
682
Show More Reviews

See what our Experts say about this etrailer Trailer Jack

  • Would Crank Handle of TJDA-5000S Interfere with Tailgate Opening on Truck
    The crank on the Square A-Frame Jack w/ Footplate # TJDA-5000S is on the front of the jack. It is very possible that it could interfere with your tailgate fully opening depending on the setup. If that were the case though moving the crank handle to be all the way up would help get around that. A longer ball mount could help. I attached a link to a page that has all of the longer ball mounts we carry.
    view full answer...
  • Replacement A-Frame Trailer Jack For Hyperlite 27HFS
    A great replacement jack for your Hyperlite 27HFS trailer is the Square A-Frame Jack w/ Footplate - Drop Leg - Sidewind part # TJDA-5000S. As your trailer has a dry weight rating of 5,578, the 5,000 support rating of this jack will be more than sufficient as the entire weight of the trailer will not solely be resting on the jack, only the tongue weight. The jack also comes in a powder coated black finish with a max lift of 13-1/2". The drop leg feature will eliminate the need for excessive...
    view full answer...
  • Recommendation of Square A-Frame Jack w/ Footplate
    The Square A-Frame Jack w/ Footplate - Drop Leg - Sidewind, # TJDA-5000S, is a top rated jack. This has a 4.9 rating from our customers out of, currently, almost 300 reviews. This A-frame jack has a retracted height of 7-1/8" and an extended height of 22-3/8". The drop leg offers 13-1/2" of lift on top of 15-1/4" of screw travel. Includes a sidewind handle and footplate.
    view full answer...
  • Detailed Dimensions Of The Square A-Frame Jack # TJDA-5000S
    When the jack # TJDA-5000S is fully retracted you will have a measurement of 7-1/8 inches from the bottom of the mounting plate to the bottom of the foot plate and when fully extended that measurement is 22-3/8 inches. From the top of the jack to the bottom of the mounting plate is 17-5/8 inches. The jack has a total travel distance of 15-1/4 inches. The dropleg is going to add an additional 13-1/2 inches of travel and can be adjusted in increments of 3-3/8 inches. I've made a diagram...
    view full answer...
    Image 1 for
  • Bolt Mounting Dimensions for etrailer Square A-Frame Jack w/ Footplate
    We don't have CAD data available for any of our products but I can definitely help you out with the mounting bolt pattern on the Square A-Frame Jack w/ Footplate # TJDA-5000S. The holes are 3" on center with that foremost hole being a little elongated to accommodate slight variances. The 3" distance is an industry standard. Attached is a photo showing that distance as well as a review video for you to check out.
    view full answer...
    Image 1 for
  • Materials Of The Drop Leg On A Square A-Frame Jack w/ Footplate Part # TJDA-5000S
    I called my representative at Ram International, and they informed me that the Square A-Frame Jack w/ Footplate part # TJDA-5000S has a drop leg made of zinc plated steel. The outer sleeve in which the drop leg is positioned in is made of steel as well with a black powder coated finish. Both of these surfaces should be fairly easy to weld with a little surface prep work.
    view full answer...
  • Recommended Trailer Jack Replacement For Circle J Horse Trailer
    Unfortunately the 15/32 measurement is something I can't match. The Fulton handles are thicker than that. What I recommend is exchanging your jack for a new one like the Square A-Frame Jack w/ Footplate - Drop Leg - Sidewind - 15-1/4" Travel - 5,000 lbs # TJDA-5000S. I've attached the page to all of our jack and landing gear options for you since I don't know the size or style of your particular trailer.
    view full answer...
  • Replacement Side-Wind A-Frame Trailer Jack Stabilizer with Foot for 2015 KZ Spree
    Your 2015 KZ Spree bumper-pull travel trailer came with a side-wind manual a-frame jack with foot plate. For a replacement I suggest the bolt-on 5K-rated side-wind jack # TJDA-5000S which includes a drop-leg to minimize your cranking time. Please refer to the linked review video for more details on this high-value jack. If you need new hardware you can locally source Grade 5 bolts and nuts, preferable stainless steel, at your local full-service hardware store.
    view full answer...
  • Will Square A-Frame Jack w/ Footplate # TJDA-5000S Fit 2014 Starcraft 16rb Launch
    Yes, the Square A-Frame Jack w/ Footplate # TJDA-5000S that you referenced is a fit for the a-frame of your 2014 Starcraft 16rb Launch Camper.
    view full answer...
  • Recommended Trailer A-Frame Jack With 28 Lift and 3,000 Lb Capacity
    The closest option we have available to the jack that you are looking for is the Square A-Frame Jack w/ Footplate part # TJDA-5000S which extends 28-3/4" and has a 3,000 lb lift capacity. It is a side wind A-frame with a footplate. I have attached a video for your reference.
    view full answer...
  • Can 2 A-Frame Trailer Jacks TJDA-5000S be Connected Together
    The handle on Square A-Frame Jack w/ Footplate - Drop Leg - Sidewind - 15-1/4" Travel - 5,000 lbs Item # TJDA-5000S is held to a gear with a roll pin and into the jack with e-clips. It would require modification and fabrication to link two of them together. Further modification/fabrication would be required to operate the jack with a power drill. Landing gear is usually at least partially protected from the elements because they sit under a 5th wheel trailer overhang or in compartments...
    view full answer...
  • Recommended Square A-Frame Jack With 5000 lb Capacity
    My recommendation is the Square A-Frame Jack w/ Footplate - Drop Leg - Sidewind - 15-1/4" Travel - 5,000 lbs, # TJDA-5000S. This jack has the same mounting as the Bulldog Square, A-Frame Jack - Drop Leg - Topwind - 15" Lift - 3,000 lbs, # BD195318 you mentioned. The only difference is that it is a sidewind jack instead of a topwind jack. We do not have a topwind option for square A-frame jacks with 5,000 lb capacity.
    view full answer...
  • Replacement Jack for Circle J 2-Horse Trailer
    We offer all types of trailer jacks that are shown on the linked page. These include a-frame tongue jacks like those supplied on many Circle J trailers I checked. These jacks are available in weight capacities from 750- to 5000-lbs. Just click on your preferred type using the filters on the page - sidewind or topwind - and whether or not you need a drop leg, and foot or wheel. You can also choose a jack based on how much lift it provides. For example, for a 3K-lift-rated sidewind jack...
    view full answer...
  • High-Quality Round Sidewind A-Frame Trailer Jack
    Sorry to hear the Square A-Frame Jack # TJDA-5000S didn't work out for you but we do have a round tube jack that will be a perfect replacement. I recommend the Round A-Frame Trailer Jack # TJA-5000S-B which is very similar to the square jack you referenced but its outer tube is round and has a 2-1/4" outer diameter; it also has a standard 3-hole mounting plate attached as you can see in the accompanying photo. This is a sidewind jack with 5,000 lb support capacity, 3,000 lb lift capacity,...
    view full answer...
    Image 1 for
  • Recommended Replacement Round Jack For Trailer Coupler
    It is an easy replacement for you based on the picture you sent. The opening for most A-frame jacks require an outer diameter of 2-1/4 inches. I recommend you use a round jack like the Round A-Frame Trailer Jack - Sidewind - 15-5/8" Travel - 5,000 lbs # TJA-5000S-B, it will be an easy fit without any change to the hole other than maybe cleaning up corrosion. For this application you will also want a footplate like # JF-99. This mount has all three elongated holes for easy mounting. The...
    view full answer...
    Image 1 for
  • What Coupler Fits the Square Tube Trailer Jack TJDA-5000S
    The only coupler we offer compatible with the part # TJDA-5000S is the A-Frame Trailer Coupler w/ Square Jack Hole # CA-5280-QB which is designed for 2-5/16 inch hitch balls. Reason is due to the higher capacity nature that the jack and coupler have and the fact that 2 inch hitch balls just don't have the same towing capacities as 2-5/6 inch.
    view full answer...
  • Recommended A-Frame Trailer Tongue Jack for the Demco Trailer Coupler Part # DM15337-97
    I do have an a-frame trailer tongue jack that will work with the Demco 50-Degree A-Frame Trailer Coupler part # DM15337-97 but the Square A-Frame Jack part # TJDA-5000S will not due to its square shaped design. Instead, I recommend using the Round A-Frame Trailer Jack part # TJA-5000S-B which has specifications that are very similar to the above jack. I have attached a review video of both the trailer jack and trailer coupler for you as well.
    view full answer...
  • Recommended A-Frame Jack Based On Retracted Clearance And Height From Bracket To Top Of Jack
    The dimensions you are asking for are difficult to find. For lifting ability, you normally will have to give on clearance on the top or bottom of the mounting plate. I've found a couple options for you, but your capacity needs will need to be considered along with the height clearances. For a 3,000 lb capacity, we have the Bulldog Square, A-Frame Jack - Fixed Leg - Topwind - 15" Lift - 3,000 lbs, # BD195321. This jack has a retracted height of 7-3/8 inches and a top clearance of 14-11/16...
    view full answer...
  • Recommended Square Jack And Support Plate For A-Frame Trailer Application
    That is a custom trailer build I believe. I asked another Expert here and neither of us have seen anything like it. Since you are adding a plate to the top and bottom of your tongue, the Bulldog Jack Support Plate - A-Frame - 2.3" Square Hole # BDSPBQ50 is a great option for support if you already have a square jack. If not, I recommend the Square A-Frame Jack w/ Footplate - Drop Leg - Sidewind - 15-1/4" Travel - 5,000 lbs # TJDA-5000S or the Bulldog Square, A-Frame Jack - Drop Leg -...
    view full answer...
    Image 1 for
  • Trailer A-Frame Jack with Maximum Lift Height
    Our A-frame jack with the most lift is the etrailer.com Square A-Frame Jack # TJDA-5000S which has 15-1/4-inches of travel and a drop leg that gives an additional 13-1/2-inches of lift, for 29-inches total. This is an inch more than the lift with the Ultimate Trailer Jack # 322-RDJ-2K. The 2000-lb-rated Ultimate is lighter at about 12-lbs but the 20-lb etrailer jack gives you a 3000-lb capacity.
    view full answer...
    Image 1 for
  • Mounting Bolt Hole Pattern for etrailer Square A-Frame Jack w/ Footplate
    The mounting hole pattern on the Square A-Frame Jack w/ Footplate # TJDA-5000S measures 3" on center, with the front mounting hole being a little longer just to accommodate any slight variances. This is the standard mounting hole pattern for A-Frame trailer jacks so it will fit on your toy hauler trailer. The A-Frame jack with the most lift capacity that we have available is the Phoenix Electric Trailer Jack # UF38-944055 which is rated for 5,500 lbs and is an electrical jack with a remote...
    view full answer...
  • Replacement Side-Wind Tongue Jack for 2014 Shasta Oasis 26b Tandem Axle Travel Trailer
    A properly-loaded 7000-lb trailer will have TW in the range of 700 to 1000-lbs so using a side-wind jack like the 5K-rated etrailer # TJA-5000S-B or the 3K-rated # TJDA-5000S is an excellent choice. You want to select a tongue jack based on your actual loaded trailer tongue weight (TW) but it is still always a good idea to select a jack with more capacity than you actually need. This rarely adds much cost but it does provide you with a safety margin and allows the selected jack to work...
    view full answer...
  • Does Trailer Valet TV94FR Trailer Jack Feature a Drop Leg
    The Trailer Valet # TV94FR trailer jack doesn't feature a drop leg. If you'd be interested in a sidewind jack with a 3K lift capacity, I'd recommend the etrailer branded # TJDA-5000S. The jack offers a total lift of 29 inches. If you'd prefer a top wind jack with a total lift of 28-1/2 inches and a 3K capacity, the Bulldog # BD195318 would be a fine choice. You can view product demonstration videos featuring the # TJDA-5000S and # BD195318 jacks by clicking the provided links.
    view full answer...
  • Are Replacement Rod And Nuts Available For A 2001 Circle J Riata Horse Trailer Front Jack
    The only rod and nut replacement we currently offer, part # TJD-12000-RODNUT, is a bit smaller than the one you have so the only option that we can offer would be a complete replacement of the jack. You'd want to check the GVWR of the trailer and choose a jack that's rated for at least 20% of the GVWR. For example, the Buyers Products Heavy-Duty 4" Square Jack w/Front Pin Drop Leg # 3370091415H can handle 12,000lbs and has 26" of lift capacity. It has a weld-on installation and comes...
    view full answer...
    Image 1 for Image 2 for Image 3 for
