Dexter Single Axle Standard Duty Suspension Kit - Double Eye Springs
(163 reviews)
Price: $26.94
In Stock
We'll connect you with nearby partnered installers who know this exact setup.
Dexter Single Axle Standard Duty Suspension Kit - Double Eye Springs
Part Number: K71-403-00
In Stock
$26.94
Retail:$47.10
You Save: 43%
Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.
Error submitting comment. Please try again momentarily.
We'll connect you with nearby partnered installers who know this exact setup.
- All Info
- Reviews (163)
- Q & A (0)
- Videos (2)
- Photos
Dexter Trailer Suspension Parts - K71-403-00
Highlights
- 9/16" Bolt Diameter: Matches standard double-eye spring eyes for a proper fit.
- 3/8" Thick Shackles: Helps maintain a secure connection and reduce unwanted flex.
- 3-1/8" Shackle Length (center to center): Keeps leaf spring geometry correct for stable towing.
- Zinc-Plated Hardware: Resists rust and corrosion, ideal for marine or wet conditions.
- Includes Bolts, Shackles & Nuts: Provides the key parts to refresh one single-axle setup.
- Works with 1-3/4" Wide Springs: Fits the common width used on many trailer suspensions.
Features to know about
Solid Connection for Steady Suspension: Built for 1-3/4"" Wide Double Eye Springs
Keeping your trailer’s suspension tight and aligned starts with the right hardware. This single axle heavy duty suspension kit is made for 1-3/4"" wide double eye springs and includes everything you need to mount them securely—2 shackle links, 2 shackle link assemblies, 6 flange nuts, and 2 shoulder bolts. The 9/16"" diameter bolts and 3/8"" thick shackles hold firm under load so your trailer tracks straight and rides stable.
Protection That Lasts: Fully Zinc-Plated Components
Rust and corrosion can take out suspension parts fast, especially around water or road salt. Every piece in this Dexter kit is zinc plated, so it stands up to moisture, grime, and weather without seizing or breaking down. It’s the kind of protection that makes a big difference if you’re hauling through wet or coastal areas.
Simple, Direct Fit Hardware: Correct Sizes Where It Counts
Getting the right fit keeps the job simple. The shackle length measures 3-1/8"" from hole center to hole center, and the bolt length is 2-7/8"" with a 9/16"" stepped section and 7/16"" threaded portion. The nuts tighten down to the shoulder of the bolt for a snug, free-moving connection that doesn’t pinch the spring. Everything lines up cleanly for a solid install that’s ready to roll.
Reliable Setup for Single or Multi-Axle Use
This is a standard duty single axle kit, but it can also be used on tandem setups by adding additional kits. That flexibility makes it a handy solution for a wide range of trailer builds where consistent suspension performance matters.
Specs
Compatibility
- Designed for: 1-3/4"" wide, double eye leaf springs
- Axle type: Single axle

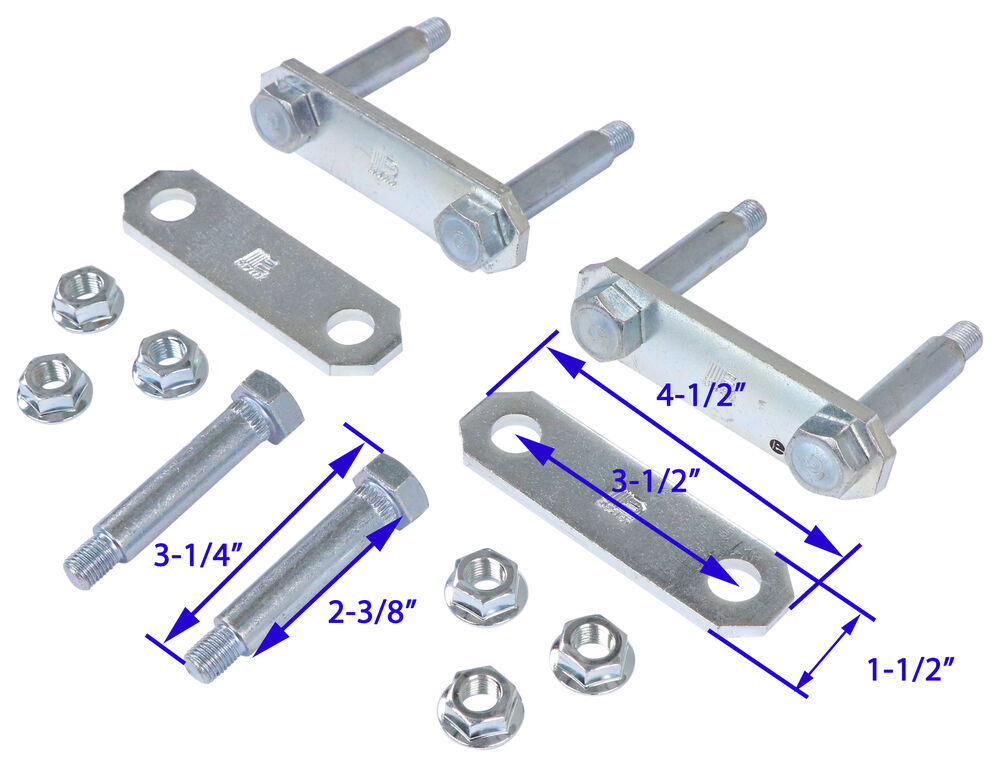

Included Components
- 2 Shackle links: (018-012-01)
- 2 Shackle link assemblies: (018-021-00)
- 7/16""-20 Flange nuts (Qty 6): (006-092-01)
- 2 Shoulder bolts: (007-126-00)
Bolts
- Bolt diameter: 9/16""
- Threaded portion diameter: 7/16""
- Bolt length: 2-7/8""
- 9/16"" portion length: 2-1/4""
Shackles
- Shackle link thickness: 3/8""
- Shackle length (hole center to hole center): 3-1/8""
Finish
- Plating: Zinc plated components
Country of Origin
- Made in: USA
K71-403-00 Dexter Single Axle Standard Duty Suspension Kit - Double Eye Springs
Compares to A/P-122-00
Video of Dexter Single Axle Standard Duty Suspension Kit - Double Eye Springs
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Video Transcript for Feature Review Dexter Single Axle Heavy Duty Suspension Kit
Hello, everybody. This is Jeff at etrailer.com. Today we're gonna take a look at the Dexter Single Axle Heavy Duty Suspension Kit for Double Eye Springs. Now, this single axle suspension kit is for 1 3/4-inch-wide double eye springs. These parts here will allow you to connect your double eye leaf springs to your trailer hangers, and the kit will include everything shown here on the table. It comes with the two shackle link assemblies, the two shackle links, two shoulder bolts, and then the six 7/16 by 20 size flange nuts.
These parts are made in the USA. But that should do it for the review on the Dexter Single Axle Heavy Duty Suspension Kit for Double Eye Springs.
