Trailer Hitch Receiver Lock - Extra Long - Flush Design for 2-1/2" Trailer Hitches

Item # RH5-XL

lowest price pledge

Retail:$104.50

Our Price: $18.95

Hitch Locks

Shipping Weight: 0.86 lbs

Keyed Alike?:

Quantity:

In Stock
DeadBolt Standard Pin Lock - RH5-XL
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

DeadBolt Standard Pin Lock - RH5-XL
DeadBolt Flush Pin Hitch Locks - RH5-XL
DeadBolt Hitch Locks - RH5-XL
DeadBolt 3-5/8 Inch Span Hitch Locks - RH5-XL
Trailer Hitch Receiver Lock - Extra Long - Flush Design for 2-1/2" Trailer Hitches 3-5/8 Inch Span RH5-XL

In Use/Installed

DeadBolt Hitch Locks - RH5-XL
RH5-XL - 3-5/8 Inch Span DeadBolt Standard Pin Lock
RH5-XL - 3-5/8 Inch Span DeadBolt Standard Pin Lock
RH5-XL - Steel DeadBolt Hitch Locks
DeadBolt Fits 2 Inch Hitch,Fits 2-1/2 Inch Hitch Hitch Locks - RH5-XL
RH5-XL - 3-5/8 Inch Span DeadBolt Standard Pin Lock

Customer Photos


  • Fits 2 Inch Hitch
  • Fits 2-1/2 Inch Hitch
  • Standard Pin Lock
  • DeadBolt
  • Keyed Alike
  • Steel
  • 3-5/8 Inch Span
  • Flush Pin
This extra long lock will work with both 2" (including newer Toyota Tundra and Tacoma) and 2-1/2" receivers (including the 2010+ GM HD series trucks). Call 800-298-8924 to order DeadBolt hitch locks part number RH5-XL or order online at etrailer.com. Free expert support on all DeadBolt products. Guaranteed Lowest Price and Fastest Shipping for Trailer Hitch Receiver Lock - Extra Long - Flush Design for 2-1/2" Trailer Hitches. Hitch Locks reviews from real customers.


  • All Info
  • Reviews (468)
  • Q & A (208)
  • Videos (2)
  • Photos
  • Why etrailer?

DeadBolt Hitch Locks - RH5-XL

This extra long lock will work with both 2" (including newer Toyota Tundra and Tacoma) and 2-1/2" receivers (including the 2010+ GM HD series trucks).


Features:

  • Deadbolt style with flush locking design
  • Machined from hardened, 15K stress-proof steel
    • Higher strength steel handles the highest load rating of any Class V hitch available
  • Covered key slot prevents corrosion
  • Double chrome plated for maximum rust resistance
  • Patented, pick-proof screw-and-lock security
  • All weather grips for improved handling in extreme environments
  • Multiple locks are available keyed alike
    • Simply choose the keyed alike option from the drop down menu above and enter the number of locks needed in the quantity box.
  • Made in the USA


Specs:

  • Fits 2" x 2" and 2-1/2" x 2-1/2" trailer hitches (Class III, IV, and V)
  • 5/8" Diameter pin
  • Inside width: 3-5/8"
  • Overall length: 6-7/8"



DeadBolt Class 5 hitch receiver lock shown with key and covered slot

Trailer hitch receiver lock for 2-1/2" x 2-1/2" Class V trailer hitches. Use in place of standard pin and clip. Prevents drawbar or accessory (bike rack/cargo carrier) theft.



RH5-XL Trailer Hitch Receiver Lock - Extra Long - Flush Design for 2-1/2" Trailer Hitches






Video of Trailer Hitch Receiver Lock - Extra Long - Flush Design for 2-1/2" Trailer Hitches


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

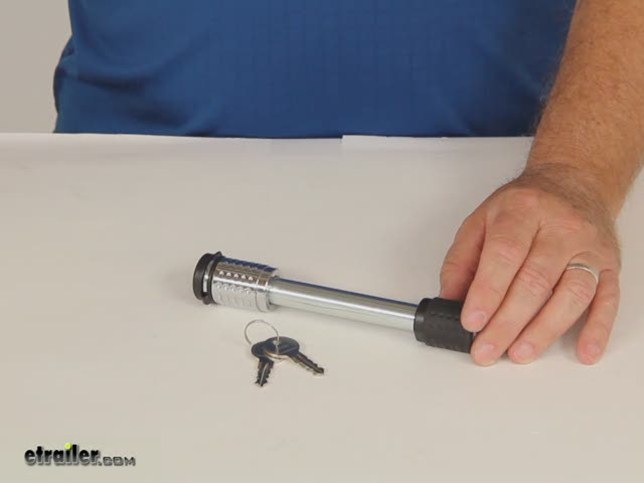

Video Transcript for DeadBolt Locks RH5-XL Review

Today we are going to review part #RH5-XL. This is the deadbolt trailer hitch receiver lock in the extra long version. This fits 2" and 2-1/2" hitches. This extra long lock will work with both the 2", which includes the newer Toyota Tundras and Tacomas, and 2-1/2" receivers like the newer GM heavy-duty series trucks. It is a deadbolt style with a flush-locking design. This is machined from a hardened 15K stress-proof steel.

A higher strength steel handles the higher load ratings of a lot of the higher class 5 hitches. The covered key slot right here, you can see will help prevent corrosion. It is a double chrome plating for maximum rust resistance. Uses a patented pick-proof screw and lock security. Has the all weather grip for improved handling in extreme environments. Now you can also get a multiple of these that are keyed alike.

Basically, what you would do is go to our product page for this part number and you will see a drop-down menu. What you do is just select the keyed-alike option from that menu and enter the number of locks you need. That way you will get all of them to use the same key. Again this is designed to fit the 2" x 2" and the 2-1/2" x 2-1/2" trailer hitches; class 3, 4, and 5. This is a 5/8th inch diameter pin.

The inside width on this, which is going to be in the inside measurement here, is 3-5/8" and the overall is going to be 6-7/8". Just to show you how this would operate, to get the head off you put the key in and you would just unscrew it like you are unscrewing a nut. That would come off and you go ahead and slide this through your hitch and the ball mount or whatever is going into your hitch, line the holes up and push this through, put this on the other end, and just turn the key like you are tightening it down. Once you get it to that point, you take it out and put your cover on. It would hold everything in position so that no one could steal your ball mount, cargo carrier, or your bike rack. That should do it for the review on part # Rh5-XL, the deadbolt trailer hitch receiver lock, extra-long version, for the 2" and 2-1/2" hitches.

.


Customer Reviews

Trailer Hitch Receiver Lock - Extra Long - Flush Design for 2-1/2" Trailer Hitches - RH5-XL

Average Customer Rating:  4.9 out of 5 stars   (468 Customer Reviews)

This extra long lock will work with both 2" (including newer Toyota Tundra and Tacoma) and 2-1/2" receivers (including the 2010+ GM HD series trucks).

- RH5-XL

by:


I wanted a locking Hitch pin to fit a 2016 Dodge Ram 2500 Tradesman 3/4ton truck with a receiver that has a 3" O.D. My old pin from an '06 GMC 1500 was too short for the Ram. I "asked the experts" and got a recommendation for the Deadbolt Hitchlock (Item # RH5-XL) with a usable length of 3-5/8ths inches. I ordered it and received it a day earlier than promised. Installation was very easy-Run it through the holes, hold the key, turn the other end 'till it stopped, and put on the dust cover. It fit perfectly with 5/8ths of an inch of extra length. This pin is exactly what I was looking for. Summing up, I got exactly what I wanted, the price was great, and the shipping was fast and reasonable. No downside at all. 370680


Comments

I love this pin for when I use my Weigh-Safe hitch. For when I only use a hitch plug, I use the Curt Pin

R G - 04/22/2018

37515

- RH5-XL

by:


This lock fits my 2012 GMC Sierra perfectly and works great. I was concerned about the potential awkward process of having to use the key to lock and un-lock this unit as you have to screw the threaded locking cap onto the bar with the key inserted. I imagined trying to flip my key ring full of keys over and over during the process. I discovered to my delight that all you have to do is insert the key , let your key ring remain fixed - then grasp the opposite end of the lock bolt and just spin it off or on. Works like a charm. 94220


Comments

This lock is working great after one year. Some metal discoloration at the 2 stress points where it bears the weight of the trailer - but I checked and it is not corroded or wearing - just discolored which I view as normal. The key mechanism works fine.

Steve V - 02/07/2015

9349

- RH5-XL

by:


After having 5 hitch bars with 2 in. Stainless Steel Balls stolen in one night I bought one for every vehicle over 10 years ago. I have not even had one attempt since. I still have 5 trucks and decided to replace all of the others and have 5 keyed alike which eliminated having to keep trying keys until I found the right one. The problem in now solved and I have the only keys to any of them. Even though having 5 keyed alike is not cheap it is far cheaper than replacing stolen hitch bars and stainless steel balls. Excellent Products !!! 151813


Comments

Great Product and they work as they should

Henry C - 09/19/2015

15089

- RH5-XL

by:


I installed this on my 2008 Toyota Tundra. It fits perfect. Very high quality of steel and the weatherproof cap looks very sturdy as well. I have read reviews of people who used this for a year a two and they say it is barely rusted. I purchased a Chinese made one last year and it was so hard to remove. I love that the key turns and tightens down the lock. Thank you for this high quality product. 185059


Comments

I have used this hitch lock for a year now. There is no rust and works perfectly when I open and close it. I would purchase it again for sure. 5 starts

Marc S - 04/14/2016

17464

- RH5-XL

by:


Before ordering the locking hitch pin online I spoke with etrailer customer service. Extremely helpful customer service. I ordered the product for a 2015 Tundra Platinum. Pin was oversized like I needed, and was not a problem. Put a couple of rubber washers on each side of the pin to help with the slack and noise caused by vibration. Works like a champ. Love the key system on this pin. I would recommend it for Tundra owners who have the oversized heavy duty factory hitch on their truck. Etrailer shipped the product very quickly and had excellent follow up communications after the sale. I would not hesitate to buy from etrailer again. 325738



- RH5-XL

by:


USA made. Looks like it will be up to the job. Class 5 rated. The weatherproof key cap even appears that it will stay on though anything mother nature can through at it. Description photo is accurate to this pin. 58498


Comments

Surprisingly it is still in almost new condition after cold Montana winters and muddy springs. It looks like a bit of dust gets in at the base of the threads but has not yet affected operation. I continue to stand by my review.

Jesse - 06/04/2014

4651

- RH5-XL

by:


From the first time I had a question, right up to delivery, etrailer has been great! I have an 05 Tacoma, and recently bought a trailer to haul my wifes and my ATV's. Bought a hitch lock from the local auto parts store, and threw the receipt away, figuring that it would work, but as it turned out, the lock barely went through the receiver and wouldn't engage the lock,when I tried to lock it. After a little frustration, did some research online, and found out this is a common problem on this truck, found an ad for etrailer, checked out the different locks, and found the one I needed. This receiver lock is much longer than my other lock , locks up my hitch mount safely and securely, nice stainless steel finish, looks as though it should last a long time. Thanks to everyone at etrailer, for all your help and followups. Fast delivery, fair shipping, overall a great first experience! Highly recommended! Tom 58197



- RH5-XL

by:


The product is perfectly made for heavy-duty security of any hitch connection! It is going to be used on my car through all four seasons and I've had one for over three years now, but needed another, so of course, I came to etrailer.com 77989


Comments

This product is still working strong after one year in use. I would buy this same item again in the future if I need to!

Mark W - 04/28/2014

3826

- RH5-XL

by:


Fit great,locked up tight. 227851


Comments

Still working great, hasnt rusted,cap still holds on tight, best hitch lock Ive had and Ive gone through a few, great product.

Kevin K - 09/25/2016

21231

- RH5-XL

by:


Product ordered was received quickly and functions properly. I needed a longer trailer hitch receiver lock after switching from the Ford factory trailer hitch on my F350SD pickup to the Torklift Superhitch. This lock works great and looks to be of high quality. Would order from etrailer.com again. Thanks. 58804


Comments

Still works great, No issues or problems.

Mike C - 05/23/2014

4404

- RH5-XL

by:


This truck has a 3" O.D receiver. I ordered the Deadbolt Hitchlock RH5-XL. I got it a day earlier than expected and it's exactly what I wanted. The fit was perfect, with 5/8" of excess length. Installation is very easy. 409847



- RH5-XL

by:


Fits Class V on a 2014 Chevy 2500HD perfectly with less than 1/16" on either side of the lock mechanism. Center lock pin fits hole within 1/16". Product came quickly, Ordered 2 locks keyed the same. Definitely makes one a believer in etrailer. 116003


Comments

Absolutely perfectly. Fits like a glove. Definitely would buy again.

Bob W - 02/11/2015

9442

- RH5-XL

by:


This lock is even a little long for my 2014 Tundra factory receiver so it should fit even the widest receivers made. Appears to be a good solid lock and simple enough that I don't expect any problems with the moving parts. 139621


Comments

No problems in the last year but then I never take my ball mount off.

Steve E - 07/07/2015

13096

- RH5-XL

by:


Purchased a Chevy 2500HD and it had a 2.5 inch receiver hitch which made my previous lock from my old 1/2 ton hard to use. Before ordering the locking hitch pin I called and spoke with etrailer customer service and both times they were extremely helpful. I ordered this product along with a 2", 2.5" and 7/8" to fit my travel trailer and utility trailer. Kim with etrailer customer service was able to get all 4 locks keyed the same so now I only need to carry one key. All the locks work great. I would highly recommend this to all Chevy 3/4 ton owners who have the oversized heavy duty factory hitch on their truck. Etrailer shipped the product very quickly and had excellent follow up communications after the sale. I would not hesitate to buy from etrailer again. 495367



- RH5-XL

by:


Purchased a Chevy 2500HD and it had a 2.5 inch receiver hitch which made my previous lock from my old 1/2 ton hard to use. Before ordering the locking hitch pin I called and spoke with etrailer customer service and both times they were extremely helpful. I ordered this product along with a 2", 2.5" and 7/8" to fit my travel trailer and utility trailer. Kim with etrailer customer service was able to get all 4 locks keyed the same so now I only need to carry one key. All the locks work great. I would highly recommend this to all Chevy 3/4 ton owners who have the oversized heavy duty factory hitch on their truck. etrailer shipped the product very quickly and had excellent follow up communications after the sale. I would not hesitate to buy from etrailer again. 495366



- RH5-XL

by:


What can I say, they work as advertised. I got a pair keyed alike and no complaints. Just a layer of security to make the lazy thieves move on to an easier target. 127609


Comments

A year later and these are great. No issues, they just work. Wish I ordered four instead of just two.

Toby - 04/29/2015

11230

- RH5-XL

by:


Out of all the hitch locks I've had, this lock beats them. No contest. Absolutely Bomb Proff ! Excellent choice for newer trucks with wider receivers, and made in the USA. Keeps my hard earned money here. 236259


Comments

Outstanding One lock for the life of the truck!

Chris L - 01/26/2017

22308

- RH5-XL

by:


If you have a late model Chevy with a 2 1/2" receiver, this is the locking hinge pin you want! I had the Master Lock 1469 DAT before this, but it would just barely engage do to not enough clearance. This pin is much better. 191871


Comments

Great - still going strong!

Dave L - 05/10/2016

17743

- RH5-XL

by:


Just purchased a new F-250 to pull my TT and the receiver lock I used with my previous truck will not fit (too short for the 2-1/2" hitch). Ordered this one and couldn't be happier. Works exactly as advertised...easy on, easy off...and I feel confident of it's ability to withstand the loads imposed by my trailer. Good packaging and fast shipping. 469035



- RH5-XL

by:


It looks to be good quality, glad I read the previous reviews and got the 2-1/2 inch, for a Tundra hitch. 99679


Comments

Everything is working perfectly and if needed in the future, I will return, thank you

Lambo54 - 09/15/2014

6837

- RH5-XL

by:


Item arrived ahead of schedule in perfect shape. Works as advertised. 171645


Comments

Fantastically! Secures the hitch to the truck with no concerns for the hitch coming loose or stolen!

Colorado J - 01/30/2016

16628

- RH5-XL

by:


Fast shipping and a great product, just as described. Thank you! 200297


Comments

Still working great! Even after a year, still dependable and does the job!

JT - 06/02/2016

18245

- RH5-XL

by:


Product works as stated. I like the fact that these can be ordered as keyed alike. 144123


Comments

Still very happy. Wouldnt hesitate to purchase again.

Mark P - 08/02/2015

13819

- RH5-XL

by:


Product was exactly as advertised and fit nicely on my 2014 Tacoma. 168069


Comments

After a year the hitch lock still looks and functions like new.

John G - 01/07/2016

16362

- RH5-XL

by:


The Hitch Lock worked just as outlined on my 2011 2500HD Silverado! 138372


Comments

Still working perfectly and no sign of any corrosion!

Mark W - 06/30/2015

12924

- RH5-XL

by:


So far - so good! This one fits my 2010 Tacoma. FYI: The 2" product #7683 DOES NOT fit a 2010 Tacoma. There does appear to be just under a 3/4" overhang when installed. I'm assuming it isn't a problem, since the hitch still can't move forward or backward, even if the hitch lock can. eTrailer was very quick to send me this new RH5-XL. The RMA process is truly painless. Kudos to the team at eTrailer ! 272132



- RH5-XL

by:


Once again..very happy with the service provided by etrailer, great selection and fast delivery. 186641


Comments

Works great

Jack F - 04/19/2016

17507

- RH5-XL

by:


The DeadBolt extra long lock product is excellent and fits my son's new 2012 Chevy Silverado HD 2500 trailer receiver as described that if would. It is very easy to install or remove. Your website video was very helpful with this selection. I like the fact that I was able to have all three keyed the same. The GMC hitch receiver cover is perfect for my 2011 GMC Yukon XL. My son has not had an opportunity to install the Du-Ha under seat truck storage box, but I am confident that he will be extremely happy with it's storage features, especially when hunting season rolls around. RJB 43512



- RH5-XL

by:


Ordered 7 that were keyed alike. They arrived quickly and in working order. Plenty long for a 2.5" ram stock (2014) receiver and small enough not to completely block the safety chain holes. It looks like they will work well. I anticipate packing the threaded hole with anti-seize and using some teflon/silicon grease to seal the shaft side and the key side of the head in effort to keep them from rusting tight in MN winters. When installing and removing, try twisting the fixed end holding the key still. Easier to make several revolutions if your receiver holes line up right. 551693



- RH5-XL

by:


This is nice - quick way to secure the ball mount to the hitch receiver. I thought that twisting the key a few times would be more hassle than just the push and click type. I found I could just hold the key in twist the other end. It is nice they come in various lengths and you can get them with the key coded to their coupler lock. Now if they could just make a lock that covers the ball too and use the same key - that would be great. Can't have too many locks on your trailer. This now lives on my truck - I did use some light oil in the lock to make it easier to use down the road. 336284



- RH5-XL

by:


Now friends can't take my trailer hitch cover and hide it or worse 201664


Comments

Still awesome!

Bill D - 06/18/2016

18816

- RH5-XL

by:


Works just as advertised. Fits my 2012 GMC Sierra 2500HD perfectly. I read the other reviews before I bought this item. Wanted to make sure it would fit. Looks rugged but practical. Although you have to rotate the key several times, this item features a positive locking system. I originally purchased a different type for my new pickup. The lock fell off on I-40. Fortunately, the pin stayed in and I didn't loose my utility trailer! Lesson learned---buy the good stuff. I recommend the RH5-XL if you need a good locking mechanism for the newer, wider receiver hitch. 39318



- RH5-XL

by:


Product met my expectation. Shipping was prompt. 144776


Comments

Works great - great service

Douglas W - 08/06/2015

13948

- RH5-XL

by:


Since this was our first trailer hitch cover purchase, I didn't realize that I would also need a trailer hitch cover lock. Once I came to this realization, I visited a couple of local regional & national auto parts retailers and couldn't find a suitable lock. I went back to etrailer.com from where we had purchased our trailer hitch cover. The lock fits and looks great. No rattling and our trailer hitch cover is safe & secure. It was also fairly easy to install. I also appreciated the brief explanatory video on the website which was an accurate portrayal. 58172



- RH5-XL

by:


Nice packing . Product works well with my Tacoma. 202420


Comments

Works very well!!

SheilaZ - 06/10/2016

18487

- RH5-XL

by:


The Deadbolt locking hitch pin is the best solution for keeping the hitch safe from thieves. I needed the RH5-XL with the longer shaft to fit the GMC hitch so my old 2" Deadbolt was moved to my Wrangler. The quality is second to none! The hitch ball cover from eTrailers is better quality than I could find locally and my orders arrived promptly! 90270



- RH5-XL

by:


Great to see a class V rated locking pin for ultimate safety while towing and security while parked. Fits F-250 factory 2.5" receiver with room to spare. Would be perfect if etrailer could provide a custom keyed alike service for all the various combinations of deadbolt products, as it is two separate keys is not too big of a hassle. 168115



- RH5-XL

by:


This product appears to be superior to most of the TriMax locks I have had in the past. I really like the keyed screw-on lock. I am relieved to state that this fits perfectly on the 3" receiver of my 2017 F350 Powerstroke. It is like this lock was made for that specific hitch. Buy with confidence. 466217



- RH5-XL

by:


Fit both hitches perfectly with some room to spare and they are 2" hitches. 37702


Comments

Go CatsLove the picture

-- comment by: Cat f - 07/25/2015

13626

- RH5-XL

by:


I wanted the 2.5 qurter turn round key hitch lock, but I must have inadvertently selected this one. It is not a quarter turn, half turn or full turn key. The key must be turned multiple times to screw the end cap on and lock the hitch. If this is what you want it’s excellent. 467051



- RH5-XL

by:


I have not yet had the oppurtunity to put this trailer lock to use (primarily intended for boat use in summer) but just from the look and feel alone I am pleased. It is very heavy duty and solidly made. I like the turning key/threaded locking mechanism as well as the rubber grips. I feel confident this will be a much better trailer locking device than the POS previously purchased at the local big box hardward supply. Thanks etrailer for a great product! 64591



- RH5-XL

by:


Ordered the Receiver Hitch, Ball and HitchLock and got free shipping. Order was confirmed immediately by email and shipped the very next day with the UPS tracking number. Order arrived one day early to my surprise. The Hitch appears to be well made and looks sharp, the Ball and Hitch Pin the same. Looking forward to getting the boat out of storage and hauling it with these new products. Great prices, fast and free shipping on quality products. 363630



- RH5-XL

by:


Fit great into my class V receiver. thought the screwing on and off would be a hassle but its operation is very smooth. Going to add a little grease on the screw threads to help keep the road salt and corrosion out. although Im sure the rubber O ring will do the job. Just like the piece of mind. The rubber cap for the key hole fits nice and tight. unlike like some of the softer rubber caps I've had on other receiver locks. Highly recommend. 335459


Comments

Great.Rubber cover is still like new. Operates like new still

John G - 02/03/2018

34183

- RH5-XL

by:


Needed a longer pin for the new truck (2016 SILVERADO 2500HD double cab long bed), and wanted a locking one (carry a receiver mount back-up/work light when not towing) and this was one of the few I found to fit the new style 2-1/2" receiver. Also the ONLY one I found that was rated at 15000 pounds (the WD drawbar costs more than the light so that may as well keep it too.....). Works great, USA made, andd stainless steel core. Perfect fix. 348650



- RH5-XL

by:


etrailer: Thanks for being a company easy to do business with. I actually ordered the wrong hitch receiver to start with and you sent me a prepaid return slip. Now I have the right one and it all looks great! Go Bucks! Thanks! Dan 357043



- RH5-XL

by:


Very nice design for a 2.5" Receiver. The key locks a threaded connection, not a gate type lock. My old Master Lock froze up terribly over time. I hope this will not, but time will tell. Looks good on my 2017 F250 Super Duty. 392299


Comments

Both products are still performing and looking great. I’ve had numerous people ask where I got them and I tell them to check out etrailer.com before they buy locally.

Jerry M - 06/13/2018

39717

- RH5-XL

by:


Works pretty well. As another reviewer tipped, after unlocking with the key, just turn the rubber coated side while holding the key to screw or unscrew the locking head piece from the shaft. I got this one for my 2016 Silverado 2500HD because there is not a lot of room on my hitch for a locking pin. This one fits perfect and it is designed well enough to keep me from worrying that it might come off my hitch. No worries! 324993


Comments

It has been working great for the past year. No problems.

Ken D - 12/14/2017

31908

- RH5-XL

by:


The "Dead Bolt" RH5-XL receiver lock is a high quality class-V (5) lock that looks great and actually fits the HD oversized hitch receiver that came standard on my 2011 Silverado 2500 HD. I tried several that claimed to fit, but did not. If you are looking for a class-V (5) receiver lock for the HD Chevrolet, don't waist time looking elsewhere. The RH5-XL is strong, looks great and very importantly, it fits. 8467



- RH5-XL

by:


The "Dead Bolt" RH5-XL receiver lock is a high quality class-V (5) lock that looks great and actually fits the HD oversized hitch receiver that came standard on my 2011 Silverado 2500 HD. I tried several that claimed to fit, but did not. If you are looking for a class-V (5) receiver lock for the HD Chevrolet, don't waist time looking elsewhere. The RH5-XL is strong, looks great and very importantly, it fits. 8465



- RH5-XL

by:


This lock worked great. The one I had was to short. This lock was plenty long enough and fit great for my tacoma since there receivers are wider on my tacoma then all my other receivers. Great product. 299678


58
476
Show More Reviews

Ask the Experts about this DeadBolt Hitch Locks
Do you have a question about this Hitch Lock?


  • Reducer Sleeve and Hitch Pin for a GMC Sierra Denali 2500HD with 2-1/2 Inch Factory Trailer Hitch
  • You are correct. Some OEM 2-1/2 inch hitches from different vehicle manufacturers are too wide for the standard size pin due to extra material on the outside of the hitches. You can get a reducer sleeve by itself. You can use reducer sleeve # DTADP25. Our customers have found that it fits the GM trucks with 2-1/2 inch receivers but not Ford OEM 2-1/2 inch receivers due to a slight design difference. Since you have a GM reducer # DTADP25 will work. For a locking pin that will fit...
    view full answer...

  • What Size Locking Hitch Pin Fits Different Class Trailer Hitches
  • On a Class I or II 1-1/4 inch trailer hitch you will need to use a 1/2 inch hitch lock such as # RH2-XL. This lock has a 2 inch span which is the useable length of the pin. I have included a link to a video review for you. For a Class III or IV 2 inch trailer hitch as well as Class V 2-1/2 inch trailer hitches you will need to use a 5/8 inch diameter pin such as # RH5-XL which has a span of 3-5/8 inches. I have included a link to a video review of this lock as well.
    view full answer...

  • Recommended 2-Kayak Carrier Solution for 2015 GMC Sierra Double Cab with Folding Tonneau Cover
  • Folding tonneau covers can sometimes be tough to fit along with a ladder rack since often both will use the same or similar attachment points on the tops or sides of the bed rails. But I do have a great solution for you for transporting two 14-foot kayaks with a total weight of 150-lbs that will actually cost you a lot less than many quality ladder racks AND avoid any concerns about compatibility with your tonneau cover. The solution I recommend is a hitch-mount load support bar....
    view full answer...

  • Locking Trailer Hitch Pin for Wider Toyota Tacoma OEM 2 Inch Trailer Hitch
  • Toyota and some Ford and Chevy OEM trailer hitches have that extra piece on the outside of the hitch and they require a different, longer locking hitch pin. Since we found out about this a few years ago we have added the note on the product page mentioning the issue. But not to worry because there are other locks that will fit. You can use hitch lock # RH5-XL which has an inner span of 3-5/8 inches and will be long enough for your Toyota hitch. I have included a link to a video review...
    view full answer...

  • Locking Hitch Pin Rated for at Least 14,000 Pounds for a 2015 Ford Super Duty
  • Locking hitch pin # RH5-XL is designed for 2-1/2 inch hitches and is made using 15,000 pound stress proof steel. This sounds like the best option based on your needs. I have included a link to a video review of this locking pin for you to the right.
    view full answer...

  • Reducer Sleeve for 2-1/2-Inch Hitch to Allow Use of Husky 2-Inch Weight Distribution Shank
  • It is rare that using a hitch adapter of any type has no down side but in the specific case of using a 2-inch weight distribution shank along with a reducer sleeve in a 2-1/2-inch hitch, this combination of products is perfectly safe and okay to do. In this instance it will save you a good bit of cash too. You can use Reese part # 58102 to reduce your hitch opening from 2-1/2-inches down to the 2-inch size of your Husky weight distribution shank. Curt part # C45405 is also suitable. If...
    view full answer...

  • Availability Of Keyed Alike Locks For Bulldog Collar-Lok Coupler # BD028287 And Trailer Hitch
  • If you are needing a lock for the Bulldog Collar-Lok Coupler w/ Low-Profile Latch, part # BD028287, and a lock for the hitch receiver on your vehicle that are keyed alike you can use the Deadbolt brand lock. For your Bulldog coupler you would have to use the Deadbolt Trailer Coupler Lock, part # 28012. This is a coupler lock with an inside width of 3-3/8 inches. I pulled the Bulldog coupler from our warehouse and measured the size of the lock pin that goes in the coupler. It measured...
    view full answer...

  • Recommended Trailer Hitch Lock for Fleet of 3/4 Ton GM Trucks
  • The best keyed alike hitch pin lock we have for your fleet of thirty 2017-2018 GMC Sierra 2500's is the Trailer Hitch Receiver Lock part # 7683 for 2" or part # RH5-XL for 2-1/2" receiver tubes. If the fleet has both 2" and 2-1/2" receiver tubes then I recommend part # RH5-XL as it can be used on both. The above trailer hitch lock is machined from hardened steel for strength and has a chrome finish for rust resistance. It comes with two keys and a dust cap to protect the lock core....
    view full answer...

  • USA-Made Locking Hitch Pin for a 2-1/2 Inch Trailer Hitch
  • I went out to the warehouse and pulled lock # BWTS51235 and found that it is made in China. DeadBolt 2-1/2 inch coupler lock # RH5-XL is made in the USA. I have linked a video review of this lock for you.
    view full answer...

  • Extra Long Locking Trailer Hitch Pin for 2015 Toyota Tundra
  • The factory installed hitch on the Tundra is wider than a typical 2 inch receiver, so a normal 2 inch hitch lock won't fit. We offer an extended length lock, part # RH5-XL. Multiple locks are available keyed alike, use the drop-down box on the product page. We don't carry a lock with the part number you mentioned, so I tried looking it up online and found no result. I'm not sure where you'd be able to get a longer pin for your particular lock.
    view full answer...

  • Recommended Gen-Y Torsion Hitch For 2018 Ford F-250 Super Duty
  • Yes, the Gen-Y Torsion 2-Ball Mount w/ Stacked Receivers # 325-GH-1125 is great for your needs, since your trailer and boat have a combined weight fully loaded of about 10k pounds. This product has a drop of 7-1/2" and rise of 7-1/2" which appears to be in line with your needs. The Trailer Hitch Receiver Lock for 2-1/2" Trailer Hitches # RH5-XL is a great addition to # 325-GH-1125.
    view full answer...

  • Need Stainless Steel Hitch Pin for 2-1/2-inch Class V Trailer Hitch Receiver on 2011 Silverado
  • We do offer a stainless-steel hitch lock suitable for the 2-1/2-inch Class V factory-installed hitch on your 2011 Silverado. TowReady lock # TR63253 features a stainless-steel pin and a chrome-plated lock assembly. The linked video will help to illustrate its features and operation. This lock has a 3-1/2-inch-wide center span and includes 2 keys. The lock you referenced, Dead Bolt part # RH5-XL, has a center span of 3-5/8-inches and will fit a Class V 2-1/2-inch hitch receiver, but...
    view full answer...

  • Locking Anti-Rattle Hitch Pin for GMC 3500 Sierra w/ 2-1/2 Inch Reciever
  • The DeadBolt # RH5-XL hitch lock is compatible with 2 or 2-1/2 inch receivers with an outside span of 3-1/2 inches like you describe. None of the anti-rattle devices we offer are compatible with a 2-1/2 inch receiver with the exception of # RM-062, which is only recommended for use when flat towing. It's not recommended for towing a trailer or for a hitch mounted accessory.
    view full answer...

  • How to Use the Thule T2 Bike Rack with a 2-1/2 Inch Trailer Hitch
  • You are on the right track. The only way we have that will allow you to use the Thule T2 Classic 2 Bike Platform Rack part # TH9044 with the 2.5" receiver tube opening on your truck would be with adapter. For this, I recommend the Brophy Hitch Reducer and Extender part # HR26. This adapter offers both a reducer from 2.5" to 2" and an extension of 7" from the center of each hitch pin hole. This 7" extension will have more than enough room for the shank of the T2 to securely rest inside....
    view full answer...

  • Recommended 2-Inch Trailer Hitch for 1997 Ford F-150 4.2L V6
  • We offer several classes of 2-inch trailer hitch receiver for your 1997 Ford F-150 V6 and these vary in their tongue weight (TW) and gross towing weight (GTW) capacities. Just click on the link provided to view our main page for F-150 hitches, then simply use the Select Vehicle Style drop-down menu at the top of the page to choose your bed style. All hitches include the required mounting hardware and I have linked an install video and article to help. For instance, if you want the...
    view full answer...

  • Recommended Locking Hitch Pins 5/8 Inch Diameter Keyed Alike for 2-1/2 Inch Trailer Hitch Receiver
  • The Fastway Trailer Hitch Lock and Adjustment Pin Lock Set for Flash E Series HD Ball Mounts # FA86-00-3685 does not allow a 3rd pin keyed alike although the 2 in the kit come keyed alike. If you want 3 pins 5/8 inch diameter, then the DeadBolt Trailer Hitch Receiver Lock - Extra Long - Flush Design for 2-1/2" Trailer Hitches # RH5-XL is the only option, but you can get as many as you like. This will work with the Fastway Trailer Hitches but won't have separate lengths like the kit.
    view full answer...

  • Recommended Locks For 2-1/2 Inch Receiver And Trailer Coupler
  • The DeadBolt Hitch Pin Receiver Lock, part # RH5-XL would be a great lock for your 2-1/2 inch receiver. This features a 5/8 inch diameter pin and has an overall length of 6-7/8 inches. For as coupler lock I recommend the DeadBolt Trailer Coupler Lock, part # 28012. This lock has a 1/4 inch pin diameter and has a span of 3-3/8 inches. Both of these locks have the covered key slot to help prevent corrosion. We do not have a hitch pin lock for 2-1/2 inch receivers and coupler lock...
    view full answer...

  • Hitch Pin or Lock to Secure a hitch Cover in a Trailer Hitch Receiver
  • A regular hitch pin and clip would work to keep the cover in the hitch. If your trailer hitch is a Class I or II with a 1-1/4 inch wide receiver then you would use pin and clip # PC2. For Class III, IV, and V receivers you would use # PC3. The other option is to go with a lock. For a Class I or II hitch you could use # RH2-XL. For a Class II, IV, or V you can use # RH5-XL. A regular pin or a lock will go through the hitch receiver and through the holes on a hitch cover securing the...
    view full answer...

  • Availability of a Locking Pin for the Bulldog Collar-Lok Coupler with Low Profile Latch
  • Yes, I recommend the Deadbolt trailer coupler lock # 28012 because it can replace the existing pin and it will fit inside the Bulldog Collar-Lok # BD028287. Just in case you don't have a lock for your hitch receiver, I recommend Deadbolt trailer hitch receiver lock # 7683, that has an inside width of 2-5/8 inches for a 2 inch hitch. If you have a 2-1/2 inch hitch you can use the Deadbolt trailer hitch receiver lock # RH5-XL, that has an inside width of 3-1/16 inches. I included several...
    view full answer...

  • Will the Titan Pintle Hook Mounting Plate # RP45294 Fit a 2008 Ford F-350 with 2-1/2 Inch Receiver
  • The factory 2-1/2 inch receiver on the Ford Super Duty trucks has more rounded corners whereas the Titan pintle hook mounting plate, # RP45294 has corners that are more squared. As a result, they tend not to fit together unless you remove some of the powder coating on the shank of the mounting plate. Do not remove any of the metal, though, just powder coat. A better fit would be # 45156 which has more rounded corners. You could then add pintle hook combo, # 63012. For a lock, I recommend...
    view full answer...

  • Keyed Alike Locking Hitch Pins for 2 Inch and 2-1/2 Inch Trailer Hitch Receivers
  • The Bulldog hitch pins cannot be ordered keyed alike but we do have sets that are keyed alike that you can use. Take a look at the Rapid Hitch lock set # AM3492. With this set you get one lock for 2 inch hitches and one for 2-1/2 inch hitches and they are keyed alike. You can also order 2 of the extra long lock # RH5-XL but it will only be flush on a 2-1/2 inch hitch. There is an option on its product page, above the add to cart button, to select keyed unique or keyed alike. I have...
    view full answer...

  • BOLT Trailer hitch Receiver Lock for a 2015 GMC Sierra 1500
  • For your 2015 GMC Sierra you will need BOLT hitch receiver lock # BL7023582 for 2 inch and 2-1/2 inch trailer hitches.
    view full answer...

  • Recommended 2-Inch Hitch Lock for Use with Equal-i-zer Weight Distribution System EQ37100ET
  • The Equal-i-zer Weight Distribution System # EQ37100ET fits 2-inch hitches so you can use one of the 2-inch hitch locks shown on the linked page. Dead Bolt # 7683 is a flush design that keeps the center span of the pin inside the receiver - making it tougher for a would-be thief to get to. Part # RH5-XL is a extra-long type that fits both 2-inch and 2-1/2-inch hitches. For maximum security I suggest a tubular key lock such as the Blue Ox # BX8858 which is harder to pick than a standard...
    view full answer...

  • Are Master Lock Hitch Lock for 2-1/2 inch Receivers Capable of Towing a 11,000 Pound Gross Trailer
  • The Stainless Steel Trailer Hitch Lock for 2-1/2 inch Receivers, item # 1469DAT, is rated at 10,000 pounds for Class III or IV hitches. You will need to check your hitch and make sure that it does not have washers welded to the sides of the hitch around the pin hole. If this is the case, the # 1469DAT lock will not fit. Another 2-1/2 inch we have had excellent results with is the DeadBolt Locks Flush Design for 2-1/2 inch Trailer Hitches, item # RH5-XL, customer reviews are excellent...
    view full answer...

  • Recommended Anti-Rattle Hitch Lock for Towing 4000lb Travel Trailer
  • We have exactly what you're looking for, the # 63232. The anti-rattle lock is compatible with hollow-shank ball mounts or hitch accessories. It can be used for towing. The receiver tube of your hitch can't be more than 2-5/8 inches. If it is, use # SHP2040-XL. The manufacturer recommends using an anti-seize compound like # LT37616 on the threads of the lock before use.
    view full answer...

  • Availability of Hitch Receiver Cover for Class V 2-1/2 Inch Hitch Receiver
  • We have one hitch cover for 2-1/2 inch hitches, # C22277, which you reference, but if you have your eye on a particular hitch cover that's available in a 2 inch version, you can use a reducer sleeve like # 58102, in your 2-1/2 inch hitch to make it a 2 inch in order to use any 2" hitch cover. I also recommend a locking hitch pin # RH5-XL to secure the cover and to deter theft. I've linked you to our selection of hitch covers that are compatible with 2 inch receivers.
    view full answer...

  • Looking Hitch Pin Recommendation for a 2012 Ford F-150 with 2-1/2 Inch Trailer Hitch Receiver Span
  • It will be a snug fit so if the outside of the receiver on your truck is 2-1/2 inches locking pin # BD580402 should fit. On each end of the pin, on the insides that face the inner span, it is tapered so there will be just enough wiggle room. It might be safer to go with span that is just a little wider like # 7683 that has a 2-5/8 inch span. Then there is an extra long span on # RH5-XL that measures 3-5/8 inches inside width. If 3-5/8 is too long and you do not want to chance a 2-5/8,...
    view full answer...


Do you have a question about this Hitch Lock?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality hitch locks for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate hitch lock information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Theodore B
Expert Research:
Michael L
Expert Research:
Robert G
Video Edited:
Patrick B
Expert Research:
Michael H
Installed by:
Jeff D
Expert Research:
Jameson C
Video Edited:
Jacob T
Expert Research:
John H
Expert Research:
Adam R
Updated by:
Laura H
Video by:
Dustin K
Photos by:
Amber A
Expert Research:
Jeffrey L
Photos by:
Sam P
Installed by:
Hayden R
Updated by:
Sarah W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
