2" Hitch Ball - 2" Rise - 1" Diameter x 2-1/8" Long Shank - 6,000 lbs

2" Hitch Ball - 2" Rise - 1" Diameter x 2-1/8" Long Shank - 6,000 lbs

Item # C40034
lowest price pledge
Retail:$34.73
Our Price: $30.35
You Save: 13%
Trailer Hitch Ball
Orders above $50 qualify for Free Shipping
Shipping Weight: 4 lbs
Quantity:
In Stock
Curt 2-1/8 Inch Shank Length Trailer Hitch Ball - C40034
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

2-1/8" Long x 1" diameter shank featuring a ball with a 2" high rise above the platform. Fine threads provide superior strength, and the nickel chrome finish offers corrosion protection. Lowest Prices for the best trailer hitch ball from Curt. 2" Hitch Ball - 2" Rise - 1" Diameter x 2-1/8" Long Shank - 6,000 lbs part number C40034 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (93)
  • Q & A (38)
  • Videos (1)
  • Photos
  • Why etrailer?

Curt Trailer Hitch Ball - C40034

  • Trailer Hitch Ball
  • 2 Inch Diameter Ball
  • 1 Inch Diameter Shank
  • Standard Ball
  • Hi-Rise Ball
  • Curt
  • 6000 lbs GTW
  • Class III
  • Chrome-Plated Steel
  • 2-1/8 Inch Shank Length

2-1/8" Long x 1" diameter shank featuring a ball with a 2" high rise above the platform. Fine threads provide superior strength, and the nickel chrome finish offers corrosion protection.


Features:

  • High-rise design lets you easily match ball to trailer height
    • Trailer hitch ball sits 2 extra inches above the ball mount platform
  • Fine threads provide exceptionally tight, strong grip
  • Nickel chrome finish resists corrosion
  • Lock washer and nut included


Specs:

  • Ball diameter: 2"
  • Shank dimensions: 2-1/8" long x 1" diameter
  • Ball rise: 2"
  • Capacity: 6,000 lbs


A-34 40034 Curt High-Rise 2" Trailer Ball - Chrome - 6,000 lbs





Video of 2" Hitch Ball - 2" Rise - 1" Diameter x 2-1/8" Long Shank - 6,000 lbs

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

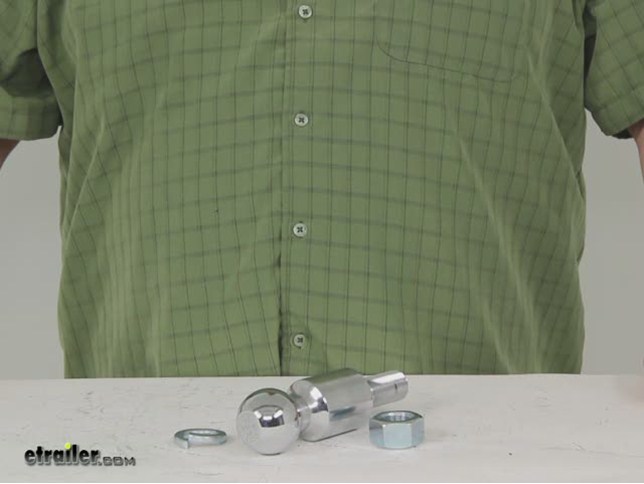

Video Transcript for Curt Hitch Ball - Trailer Hitch Ball - C40034 Review

Today, were taking to look at the Curt Two Inch Hitch Ball, part number C40034. This ball is a two inches in diameter. It also features a two inch high-rise that it lets you easily match the ball to the trailer height. The trailer ball will sit an extra two inches above the ball mount platform. Ill show you how were going to install that on a ball mount in just a moment. The fine threads provide an exceptionally tight and strong grip.

It has a nickel chrome finish to resist corrosion. The lock washer and nut are included. Again, this is a two inch diameter hitch ball. The shank is 2-1/8 inch long with a one inch diameter, a two inch ball rise and this item does have a weight capacity of 6,000 pounds. Now, were going to bring in our ball mount and trailer hitch demonstrator.

As you see here, you just slide the shank into the ball hole. You would put the washer on, put the nut on, and then finger-tighten that. Then once youve got that tighten, youll get your wrench and then continue to tighten as far as possible, and then youre ready to tow. As you can see, you have an additional two inches above the ball platform where your hitch ball was set. That should do it for our Curt Two Inch Hitch Ball with a two inch rise, part number C40034.

.


Customer Reviews

2" Hitch Ball - 2" Rise - 1" Diameter x 2-1/8" Long Shank - 6,000 lbs - C40034

Average Customer Rating:  4.7 out of 5 stars   (93 Customer Reviews)

2-1/8" Long x 1" diameter shank featuring a ball with a 2" high rise above the platform. Fine threads provide superior strength, and the nickel chrome finish offers corrosion protection.

- C40034
by:

Sturdy product and reasonable price!!! 898187



- C40034
by:

Exactly what I needed for my 4 wheeler to keep the tongue of the trailer from being too low. The price was good and the delivery was quick. The only thing I had to do was to enlarge the hole to fit the one inch shank. Thanks etrailer for having what I needed. 877775



- C40034
by:

Great quality, Excellent chrome plate over copper plate base on the steel. No problem as long as you can access the nut to tighten it. However, in my application the nut is captured in a recess, so you have to turn the ball to tighten it. There are no flats to wrench he ball. Strap wrench just slipped, leather over pipe wrench jaws got two turns before chrome polished the leather and slipped, triple wrap of duct tape got two more turns before tape ripped and adhesive slipped. Gave up and cranked pipe wrench. To cover scratched chrome masked off ball and around base and painted black to match hitch. Looks like it was made that way. 871687



- C40034
by: 08/07/2020

857413



- C40034
by:

Has worked well for me pulling a 24' enclosed race trailer. 795536



- C40034
by:

The Product was awesome. 782600



- C40034
by:

Item was as stated. 760484



- C40034
by:

great products, super fast shipping. Th x. 735142



- C40034
by:

Everything is excellent would buy from again . They really know their business 714018



- C40034
by:

Have no complaints. 705959



- C40034
by:

Chrome finish is poor Works fine 699542



- C40034
by:

Works great 696967



- C40034
by:

exactly as shown. video of the ball answered questions that I had. easy tightening. Some reviews stated that the ball didnt have cuts for tightening for two wrenches one to tighten the other to keep it from turning. I didnt have a problem one lock washer is chinsed down flat your good. Put it in your hitch for a quarter more turn and your good. with 2" drop this allowed it to become zero drop which was my goal . ordered from etrailer before and will if need in the future. live in cali so it took a few days but it was shipped out a couple hours after I ordered it. Now my bassboat trailer is level 693720


Comments
Works great leveled out my trailer. Now alls good. Exactly what I needed.
Stan M - 08/27/2020

97934

- C40034
by:

Needed to make my trailer a bit level when traveling...thank you for product availability!!! 693513



- C40034
by:

Appears to be excellent quality. Installed easily and will raise the front of my trailer to level it without modifying my hitch 667272


Comments
Is the perfect height to level my trailer. However did seem to start rusting in a short time
Charles G - 07/08/2020

86328

- C40034
by:

As expected. Top quality 606901



- C40034
by:

Great company will buy towing equipment from them for now on 604778



- C40034
by:

Great product Good price Speedy deli very 600643



- C40034
by:

Product as advertised. Arrived as promised. Excellent quality. 578783



- C40034
by:

Will be installing the ball this weekend, I foresee no problems - thanks for a quick and well packaged delivery 554487



- C40034
by:

Perfect for my needs.. I did not know this was an available product... Great price too. Thanks 554003



- C40034
by:

I needed to raise my tongue height to make trailer tow level. This looks like it will do the job. Thanks. etrailer was quick and convenient, got the ball 2 days earlier than promised. 547328


Comments
Just fine, thanks.
Phil L - 07/28/2019

58327

- C40034
by:

A simple solution to a sometimes tricky problem, the extra rise on the Curt hitch balls will enable you to zero in on getting the trailer level with minimal effort. 527739



- C40034
by:

Received the items when they said they would arrive The parts fit perfect and looked good! I would order again. Thanks for the good service! 517277



- C40034
by:

Over and above service. When I ordered I screwed up and ordered two items that were incompatible. I promptly received a call wondering if it was for two seperate applications or to be used together. I was able to rectify the mistake and received the corrected order promptly. Thank you for such good customer service. and the products work wonderfully..Thanks again. 509104


25
93
Show More Reviews

Ask the Experts about this Curt Trailer Hitch Ball

  • How To Tighten the Curt 2" High Rise Hitch Ball C40034 To 450 Ft. Lbs.
    There are torque wrenches available that can apply 450 ft. lbs of torque that is needed for the 2" High Rise Hitch Ball part # C40034. However, these torque wrenches can be very expensive and not easily attainable therefore we generally just recommend that you place some sort of large pry bar on your wrench/ratchet and then tighten as much as you can.
    view full answer...
  • 2 inch Rise Ball Mount Availability
    We carry several ball mounts that have a 2 inch rise. I attached a link to a page that has all of them listed. The most popular one we carry for a 1-1/4 inch hitch would be part # C45521 and for a 2 inch hitch part # C45230. We do carry a 2 inch hitch ball with a 2 inch rise built into it that has a 1 inch shank diameter, part # C40034. The thing about Class I ball mounts is that you are only supposed to use the recommended ball mount for the hitch that is installed in the vehicle....
    view full answer...
  • How Tall is the Curt 2 Inch Rise Hitch Ball # C40034 from Top of the Ball to the Mounting Surface
    The 2 inch Hitch Ball - 2 inch Rise - 1 inch Diameter x 2-1/8 inch Long Shank - 6,000 lbs, C40034, is 4-3/8 inches from the mounting surface that will contact the ball mount platform to the top of the hitch ball. This ball is designed to provide 2 inches of rise over the height of a standard hitch ball.
    view full answer...
  • Not Leaving Marks On Hitch Ball When Tightening The Nut
    I will be happy to explain the best way to not leave marks on the Curt 2" Hitch Ball # C40034. When I tighten the nut when using the hitch ball I use several layers of duct tape or a towel on the shaft portion of the ball when tightening it. That way it will leave as few marks as possible. Curt recommends the use of 250 ft/lbs of torque when tightening the nuts of their hitch balls with a 1 inch diameter shank. The general rule is for a 3/4" shank tighten to 150 ft/lbs For a 1" shank...
    view full answer...
  • Recommended Torque for Tightening Curt Hitch Balls to Ball Mount
    Curt recommends the use of 250 ft/lbs of torque when tightening the nuts of their hitch balls with a 1 inch diameter shank like the part # C40034 that you referenced. The general rule is for a 3/4" shank tighten to 150 ft/lbs For a 1" shank tighten to 250 ft/lbs, and for a 1-1/4 inch shank 450 ft/lbs.
    view full answer...
  • What is the Diameter of the High Rise Part of Curt 2 Inch Trailer Ball # C40034
    I went out to the warehouse and pulled Curt 2 inch ball # C40034. I measured the high rise part of the shank and it was 2 inches in diameter (1.9 inches to be exact) when measured with digital calipers.
    view full answer...
  • Using a Ball Mount with More Rise Instead of a Hi-Rise Hitch Ball on a Class I or II Hitch
    Like you said all of the hi-rise hitch balls have a larger shank diameter than 3/4 inches. They are all either 1 inch or 1-1/4 inch. But depending on how much total rise you need there may be a ball mount you can use that will get you close if not at the height you need. I have included a link below to our help article that shows how to measure to select a ball mount with the correct rise or drop. The Class I ball mount with the most rise is # C45028 with 5-3/8 inches rise. But it has...
    view full answer...
  • 2-5/16 Hi-Rise Ball Options For Additional Height
    We have 2 high rise hitch balls that have the 2-5/16 inch diameter, and they both have the 1-1/4 inch shank. We have the 2 inch rise # C40034 and the 1 inch rise # C40033. There is not a 2-5/16 inch hitch ball that has a 1 inch shank. If you want a ball mount that will work with this, I recommend the Draw-Tite Ball Mount for 2" Hitches - 1" Rise, 2" Drop - 8-1/2" Long - 16K # 40330.
    view full answer...
  • Is a High Rise Hitch Ball Needed To Tow With The Bumper On a 2015 Chevrolet Colorado
    That is a great question but I am afraid this is not something that we have been able to test our self that way we cannot confirm this for you and it would also be dependent on the height of your trailer coupler. However, if you feel the 2" of extra clearance is enough to help keep the coupler off the plastic rear fascia then we do have an option for you but this will be dependent on what size hole you have for the shank and what size hitch ball is needed. For example, the Hitch Ball part...
    view full answer...
  • Available High-Rise Hitch Balls
    When a small amount of height rise is needed to keep your hitched trailer level you can either use a ball mount with that amount of rise or in some cases use a high-rise hitch ball like those shown on the linked page. These hitch balls are available in all three ball sizes (1-7/8-inch, 2-inch and 2-5/16-inch) to match your trailer coupler and with two different shank diameters, 1-inch like # C40034 and 1-1/4-inch like # C40036, to match your ball mount. All are shown on the linked page. If...
    view full answer...
  • Installation and Torque of 1-1/4 Inch Shank Hitch Ball onto Ball Mount
    That foot pound rating for torqueing a hitch ball onto a ball mount requires a special torque wrench. A local mechanic should have something compatible. If you can't find anyone with the correct torque wrench as many max out at 250 lbs, then we recommend using a breaker bar and pipe extension to at least ensure the lock washer is completely compressed to flat before use. Installing the ball mount sideways in the receiver tube will allow the best hold (although without pin obviously)...
    view full answer...
  • Availability of a Trailer Hitch Ball with a 5/8 Inch Diameter Shank
    The shank on the CURT Ball, # C40034, is 1 inch in diameter. If the ball mount on your mower has a 1 inch diameter hole, the ball with fit. We do have a couple of hitch balls with a 5/8 diameter shank. From Brophy, we have # CB-20Z (2 inch diameter ball) or # CB10Z (1-7/8 inch diameter).
    view full answer...
  • Ball Mount Options For a Trailer With Minimal Ground Clearance
    There are two ways to level your trailer. One is to use a ball with a rise on it such as Curt # C40034 that you referenced. This part will work as long as your ball mount has a 1 inch diameter ball hole and you need only 2 inches of rise. The other way is to get a ball mount with the required rise. The first step is to find out exactly how much height adjustment is actually required to level your trailer. With the vehicle and trailer uncoupled on level ground, measure the hitch height...
    view full answer...
  • Gaining Rise With a Hitch Ball
    You can get get a hitch ball with a 1 inch diameter shank that will give you 2 inches of rise with a 2 inch ball # C40034, though that is going to limit your towing capacity to 6,000 lbs. If you needed to stick with a 10,000 lb towing capacity, then you would need a new ball mount, # C45338 for 8 inches of drop, # AMSC6 for 6 inches of drop or if four inches of drop was needed, # AMSC4. I have added links to video reviews of each of these ball mounts for you to take a look at.
    view full answer...
  • Availability of a 2 inch Diameter Hitch Ball with a 5/8 inch Shank
    The only 2 inch hitch ball we offer that has a 5/8 inch diameter shank is the part # CB-20Z.
    view full answer...
  • Trailer Hitch Ball with 5/8 Inch Diameter Shank for a Bad Boy Buggie UTV
    First, you will want the shank of the ball to be the same as the hole in the ball mount. If you need a 5/8 inch shank on a ball then we have some options. For a 2 inch ball we have # CB-20Z. For a 1-7/8 inch diameter ball we have # CB10Z. As far as ball mount specific to your Bad Boy Buggie UTV you will want to check with the manufacturer to determine if you have to use a specific ball mount or if you can use any ball mount that fits.
    view full answer...
  • How to Increase Height of Hitch Ball by 2-Inches
    Thank you for your recent purchase including an extra-long Curt 2-inch ball mount # D-26. This particular ball mount offers a choice of 3/4-inches of rise or 2-inches of drop relative to the hitch receiver opening. If you need an extra-long ball mount with 4-inches of rise to keep your hitched trailer level with the ground then you can use Curt # D-28 which provides a choice of 4-inches of rise or 6-inches of drop. The linked article will help you confirm just how much rise or drop you...
    view full answer...
  • How to Get a Ball Mount with 0 inches of Rise or Drop
    In order to get a ball mount that has effectively 0 inches of rise or drop you would need to get a Trailer Hitch Ball Mount, part # D-4, like the one you referenced that has a 2 inch drop, and then use a 2 Inch High Rise Ball, part # C40034. I attached links to FAQ articles on ball mounts and hitch balls below for you to check out also.
    view full answer...
  • Hitch Height on 2009 Acura MDX and Ball Mount Compatibility
    When we installed 2-inch Curt Class III hitch # 13354 on a 2009 MDX we found that the top of the receiver opening was indeed 17-inches above ground, although this can vary slightly from car to car depending on the amount of tread wear and factors like passenger and cargo weight. Since all tow vehicles will exhibit some degree of rear-end squat when a trailer is hitched to them, it is a good idea to have the starting height of the hitch ball on the MDX about 1-inch HIGHER than the top...
    view full answer...
  • Material of 2 Inch Trailer Hitch Ball With 1 Inch Shank and Rise
    There are very few trailer hitch balls with a rise, and all of them are made of chrome-plated steel, including the 2" trailer hitch balls. Both 2" hitch balls have a 6,000 lb capacity and 1" diameter shank with the difference being the amount of rise; the Curt 2" Hitch Ball # C40033 has a 1" rise and the Curt 2" Hitch Ball # C40034 has a 2" rise. Most trailer hitch balls are made out of chrome-plated steel now and they are just as high-quality as their stainless steel brethren while...
    view full answer...
  • How to Order a Ball Mount for 0 inches of Rise/Drop
    You are correct, you do need a zero rise/drop setup to tow your trailer level. In order to get a ball mount that has effectively 0 inches of rise or drop you would need to get a Trailer Hitch Ball Mount, part # D-4, like the one you referenced that has a 2 inch drop, and then use a 2 Inch High Rise Ball, part # C40034. Otherwise none of our ball mounts are designed for an exact 0 rise/drop.
    view full answer...
  • Multipupose Ball Mount to Tow a Trailer and Bike Rack at Same Time that Doesn't have a Drop
    You wouldn't want to use MaxxTow dual hitch receiver # MT70070 anyway because it will reduce the tongue weight capacity of the trailer hitch by 50 percent. The Curt multipurpose ball mount # D210 is going to be the best option. To overcome the 2-1/4 inch drop you can use a ball with a rise such as # C40034. This is a 2 inch ball rated for 6,000 pounds. It has a 2 inch rise so the drop of the ball mount would only be 1/4 inch. We also have ball # C40033 with a 1 inch rise. If you...
    view full answer...
  • Is A Taller 2 Inch Hitch Ball Available For A Class I Hitch
    I went out to our warehouse to measure the height of the Tow Ready Hitch Ball, # 63802, and found that it is 3-1/2 inches tall from the ball mount surface to the top of the ball. This hitch ball has a 1 inch shank diameter. You need to measure the diameter of the shank hole for the hitch ball on your Class I hitch to see if it has a 1 inch or 3/4 inch diameter. Most of the Class I and Class II ball mounts have a 3/4 inch hole for the hitch ball. If it has a 3/4 inch diameter, you...
    view full answer...
  • Hitch Ball Height of Tow Ready Interchangeable Ball Set # 63804
    The Diversi-Tech Interchangeable Stainless Steel Ball Set # DTLBM3125 that you referenced is not a high-rise ball kit. Our interchangeable ball sets are all standard height. However, in a 1-1/4-inch shank diameter we do offer two high-rise 2-5/16-inch hitch balls which can be seen on the link at right. These offer a choice of 1- or 2-inches of rise. Both # C40036 and # C40035 carry a 10K capacity. For 2-inch balls you can use either # C40034 or # C40033 along with bushing # 58184.
    view full answer...
  • Replacement Hitch Ball to Increase Ball Height
    It is always important to keep your trailer level when hitched to your tow vehicle and the two simplest ways to accomplish this are either a high-rise hitch ball such as the two you reviewed, parts # C40033 and # C40034, or a ball mount with the amount of rise you need. Either option will work. The hitch balls you referenced are shown in the linked photo; I have added the dimension above the mounting surface for each ball. If you have a 2-inch hitch receiver and want to use your existing...
    view full answer...
  • Does Hitch Ball Height Factor in to Determining Rise/Drop Calculation for Picking Out Ball Mount
    When determining rise you don't need to factor in the height of the hitch ball unless it's a high rise ball. The rise calculation is done by taking the measurement from the top of the hitch opening down to the ground and comparing it to the distance from the ground to the bottom of the trailer coupler when sitting level. In relation to the ball mount the dimension would be from the bottom of the ball mount platform to the top of the shank of the ball mount like in the picture I attached. An...
    view full answer...
  • Ball Mount Recommendation For Trailer Hitch and Trailer Coupler with Same Height
    Since your hitch and coupler height are the same, I recommend using a ball mount with a straight shank, like the MaxxTow Tri-Ball Mount # MT70270. This ball mount features a 1-7/8 inch, 2 inch, and 2-5/16 inch balls. The straight shank on this ball mount will allow you to tow your utility trailer level. If you don't like the idea of a multi-ball mount, you can use a ball mount with a 2 inch drop, like the Draw Tite Ball Moiunt 3/4 inch Rise or 2 Inch Drop # 2923, with a hitch ball that...
    view full answer...
  • Best Ball Mount with 8 to 10 Inch Rise for Front Mount Trailer Hitch on a 2014 Ram 1500
    The ball mounts that we carry that have enough rise do not have enough clearance to clear the front bumper on your 2014 Ram 1500. But I do have a possible solution for you. You could use Curt ball mount # D-28 which will provide 4 inches of rise. Then use Curt high rise ball # C40034 which will provide another 2 inches of rise for a total of 6 inches. This is a 2 inch ball. For the purposes of slow maneuvers in the driveway a 2 inch ball can be used with a 2-5/16 inch coupler. You would...
    view full answer...
  • Available Hi-Rise 2-Inch Hitch Balls
    We have Brophy hitch ball # CB28Z which is a 2-inch ball with 1-inch of rise. This ball has a 1-1/4-inch diameter shank that is 2-1/2-inches long. We also have Curt 2-inch ball # C40034 which has a 1-inch diameter shank that is 2-1/8-inches long. This can be used with Reducer Bushing # F-2. If you cannot find a hitch ball that matches your requirements you might just change out your ball mount to one with 2-inches more rise or use an adjustable one.
    view full answer...
