Lightweight aluminum scissor steps make it easy to enter and exit your RV. The 4-step assembly has 24" wide steps with non-slip tread. Stairs expand from 31" to 39" tall and fold up for storage. Mounting bracket and hardware included. Lowest Prices for the best rv stairs and steps from Brophy. Brophy RV Scissor Steps - 4 Steps - Aluminum - 24" Wide - 31" to 39" Tall - 300 lbs part number AS24 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
$228.95
Select Your Vehicle

View Cart

RV Stairs and Steps > Steps > Scissor Step > 4 Steps > 24 Inch Wide > 8-3/4 Inch Deep > Aluminum > 7-7/8 Inch Drop/Rise > Brophy

Brophy RV Scissor Steps - 4 Steps - Aluminum - 24" Wide - 31" to 39" Tall - 300 lbs

Brophy RV Stairs and Steps

(72 reviews)


Code:   AS24

Price:$228.95


Shipping Special

Shipping Weight: 27.6 pounds

Quantity:






Brophy RV Stairs and Steps - AS24

Lightweight aluminum scissor steps make it easy to enter and exit your RV. The 4-step assembly has 24" wide steps with non-slip tread. Stairs expand from 31" to 39" tall and fold up for storage. Mounting bracket and hardware included.


Features:

  • Scissor steps mount on your RV or camper to make getting in and out easy
    • 4-Step assembly expands from 31" to 39" tall
  • Non-slip tread on each step helps prevent falls
  • Stairs self-adjust to the terrain for increased stability
  • Hand rail (AHR4 - sold separately) adds even more stability
  • Foldable for easy storage
  • Lightweight, heavy gauge aluminum construction
  • Easy installation with included mounting bracket and hardware
    • Secure the mounting bracket to your camper using the (4) 1/4" x 1-1/2" screws
    • Clip the stairs into the "V" clamps on the mounting bracket
  • Made in the USA


Specs:

  • Expanded height: 31" - 39"
  • Retracted height: 12-3/4"
  • Step dimensions: 24" wide x 8-3/4" deep x 1-1/2" thick
  • Distance from top of one step to top of next step: 7-7/8"
  • Weight capacity: 300 lbs
  • 1-Year warranty


Note: This step is only to be used while vehicle is stationary and should not be mounted permanently. Use mounting bracket provided so step is easily removed prior to vehicle travel. For recreational use only. Not for commercial applications.



AS24 Brophy Aluminum Motor Home Scissor Stairs - Four Steps - 24 Inches Wide x 31 to 39 Inches Tall - 300 lbs



AS24 Installation InstructionsInstallation Details AS24 Installation instructions






Related Products



Customers compare AS24 to these similar products





Customers Who Purchased This RV Stairs and Steps Also Bought...



Replacement parts available for this product





Economy
$69.00 Less

Scissor Steps, 18" Wide, 31" - 40" Tall


Scissor Steps, 18" Wide, 31" - 40" Tall
Brophy RV Stairs and Steps

26 reviews

Code: SS04


Price:$159.95


6 Inch Deep

18 Inch Wide

Steel



Powder coated steel scissor steps make it easy to enter and exit your RV. The 4-step assembly has 18" wide steps with diamond tread. Stairs expand from 31" to 40" tall and fold up for storage.

more information →
Value
$4.00 Less
Premium
$96.00 More

Econo Porch Trailer Step with Handrail and Landing - Triple - 7" Drop/Rise, 28" Tall


Econo Porch Trailer Step with Handrail and Landing - Triple - 7" Drop/Rise, 28" Tall
Stromberg Carlson RV Stairs and Steps

34 reviews

Code: EHS-103-R


Price:$324.95


Stationary Step

7 Inch Drop/Rise

3 Steps

9 Inch Deep

27 Inch Wide

Steel

Stromberg Carlson



This park-model trailer step provides the stability of a stationary step with an interchangeable handrail for use on either side. The triple-step Econo Porch comes fully assembled: To use, simply unfold and attach braces.

more information →


Video of Brophy RV Scissor Steps - 4 Steps - Aluminum - 24" Wide - 31" to 39" Tall - 300 lbs


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Brophy Enclosed Trailer Parts AS24 Review

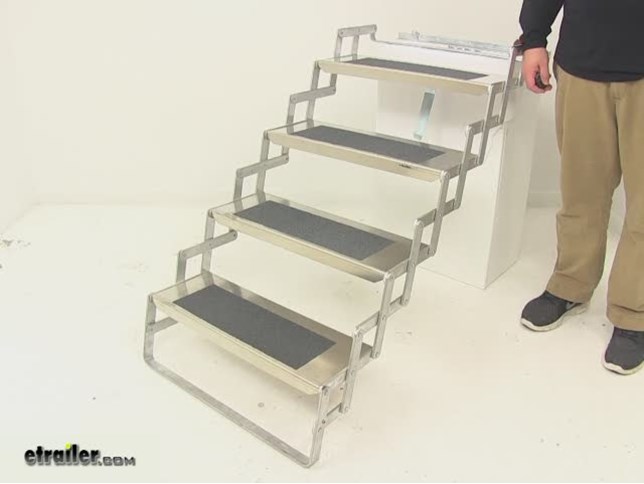

Today we're going to be taking a look at the Brophy RV Aluminium Scissor Steps. The scissor steps are designed to mount onto your RV or camper to make getting in and out much easier. This is a four step assembly that's going to expand from thirty one to thirty nine inches tall. If the area where you need some stairs is between these measurements, then these scissor steps will work well for your application. You can see that located on each step, we're going to have a nice gripped area. This is non-slip tread on each step that's going to help add grip and prevent falls. The stairs are going to self-adjust to the terrain for increased stability here at the bottom.

Now, there is an optional hand rail. Part number AHR4. That item is sold separately, but that'll add even more stability and safety to the unit. This is a fordable scissor stair. That way, when you're done using it, you can detach it from the included mounting bracket and then it'll fold easily for nice compact storage. The unit's going to be made from a light weight, heavy gauge aluminium construction.

Very simple installation, with the included mounting bracket and the included hardware. It's going to come with four lag screws that can easily be installed to hold the bracket in place. The bracket is this piece right here. It's going to mount about one eighth of an inch below the door. That measurement can be found in the included installation instructions.

It would mount like this, and then that top piece right here, would mount right here in the holds. That would hold it up close to the door. Really nice design. Nice sturdy construction. The bracket itself is going to measure about twenty four inches long. It's going to be one inch tall by one inch wide here on these lips.

Then you can see it has five mounting holes. The mounting holes are going to be separated on center from outer to outer hole by about twenty one inches. The distance between each one is going to be five and one quarter of an inch. The mounting bracket and the hardware is included, as well as detailed installation instructions. The product is made right here in the USA. Again, the expanded height is going to be anywhere from thirty one inches to thirty nine inches. Retracted height, when it's fully folded up . I'll show you how to fold it up here towards the end of the video . That's going to be twelve and three quarters of an inch. Take a look at some other measurements real quick. The steps are going to give us an over all width of about twenty four inches wide. They're going to give us a depth, from front to back, of eight and a half inches. Then the height, right here at the lip, that's going to be about one and . Looks to be about an inch and a half thick or so. The distance from the top of one step to the next step is going to be the same for each one, that's going to be seven and seven eighths of an inch. These steps are going to feature a weight capacity of three hundred pounds. Real quick, I just want to mention that the step is only to be used while the vehicle is in a stationary position. It should not be mounted permanently. You want to use the included bracket, that way you can easily remove the stairs prior to vehicle travel. Again, they do fold for compact storage. A couple different ways that you can fold it up. Once it's mounted, you can lift up on the bottom and then just push it into itself. Another way that's very easy to do is remove the arm from the bracket, lift the steps up, and then push them down. Here on the backside, it's go the clip. It goes right over that piece right there, snaps together. That way, once they're folded, they stay folded. That's going to do it for today's look at the Brophy RV Aluminium Scissor Steps.


Customer Reviews

Brophy RV Scissor Steps - 4 Steps - Aluminum - 24" Wide - 31" to 39" Tall - 300 lbs - AS24

Average Customer Rating:  4.9 out of 5 stars   (72 Customer Reviews)

Lightweight aluminum scissor steps make it easy to enter and exit your RV. The 4-step assembly has 24" wide steps with non-slip tread. Stairs expand from 31" to 39" tall and fold up for storage. Mounting bracket and hardware included.


- AS24

by: B.D.09/19/2014


Steps were as advertised. Well made, sturdy, quality construction. I choose not to mount the steps on the door wall, as there would be a large (5 1/2") gap from the camper to the first step (others have commented on this). I was able to mount under the camper, on a filler platform I have to use to get my camper above the truck bed sidewalls. This made the gap less by a few inches. One size does not fit "all", as the steps are out of level (mine are mounted at 32"). Perhaps the 3-step configuration would have been a better fit. I am considering modifying the bottom riser, cutting 3 inches off to better level the steps. Non the less, a great product, I would buy them again. 152149


Comments

The steps are still great. We like them very much.

B.D. - 09/19/2015

15098



- AS24

by: awesome steps12/19/2015


steps are great, my door bottom of cabover is over 3 feet off the ground when on my 05 gmc dually. they make going in and out a easy and safe especially with grand kids going up and down them. the only thing i did not like and why i did not rate them as excellent is the mounting bracket is very poor. an aluminum bar with 2" straps welded at an angle to hold the top off step on. when first mounted and stepped on it flexed more than i was safe with-i weigh 240 lbs. so i added a 1" square tube under the top part of the steps bar coming off the camper to support the arm that sits in the mount tabs. now i can go in and out loading stuff carrying 50 pounds of stuff and no flex. they seem very rigid when extended all the way out ,with very little flex on each step. remember take into consideration when buying them that the weight load needs to handle you and what you carry up steps. i would buy them again for another camper when needed. 233977



- as24

by: ROBERT B03/18/2014


2014 SILVERADO WITH A 2014 NORTHSTAR POP UP CAMPER . 3 STEP MODEL WOULD HAVE BEEN BETTER BUT THIS WILL WORK . THESE ARE VERY STURDY AND RAPID TO ATTACH AND DETATCH . VERY PLEASED SOON TO UPLOAD PHOTOS OF THE 4 STEP AFFIXED . ENTIRE PACKAGE WAS A PERFECT MATCH . THE STEPS WORK WELL , HOWEVER ON MY NORTHSTAR CAMPER THE SPACE ON THE FIBERGLASS BETWEEN DOOR BOTTOM AND CAMPER BOTTOM ( 1" ) IS TOO NARROW FOR THE BRACKET ATTACHMENT . SO A SLIGHT MODIFICATION ACCOMPLISHED THE TASK . MY ONLY REGRET IS THAT I HAD PURCHASED THE THREE STEP STAIR VS THIS FOUR STEP VERSION . ANGLE A BIT LAYBACK BUT MAYBE ONLY I WOULD NOTICE IT . YOU JUDGE . GREAT , STURDY SAFE AND FAST ASSEMBLY UNIT . THANKS 121171



- AS24

by: Jackman/Vermonter10/01/2014


Great steps, good quality, good price and good. Delivery! Wish I could say that for all mail order company's but I cannot. 153940


Comments

Just great. Have been up and down these stairs multiple times and they are sturdy, light and worth the money.

JackmanVermonter - 10/01/2015

15380



- AS24

by: Tom W.02/09/2016


I mounted our new Scissor Steps on my GMC so we can now easily enter our new Four Wheel Pop Up Camper. It's weight capacity is 300 lbs. so it will handle a big man easily. It is 24 inches wide and comes with non slip material on each step to help prevent us from falling. It only took me 30 minutes to mount it to my pickup just above the rear bumper and just under where the tailgate is mounted. It came with Lag screws, but I chose to use 1/4 " grade 5 hex bolts with flat washers, lock washer and a hex nut, since I was mounting it to my pickup bed. It was money well spent to make our camping trips more enjoyable. Thank you etrailer for such a great product. 237362



- AS24

by: Pat B03/07/2015


Hi George, I ordered the AS24 steps on Monday afternoon and before dinner I had confirmation of my order and that is is being shipped. It arrived here in Mn on Friday. Extremely fast service. I opened the box and set the steps up against my work bench and am impressed with the quality of your product. Will not be putting my camper on for about 6 weeks but I will certainly take a picture and email to you for your use. An experience far above the average manufacturer I have dealt with online with only reviews to guide me. Appears you really value and appreciate your customers. Thanks a lot, Pat in Minnesota 177383



- AS24

by: Helene04/29/2016


Great Steps 247509



- AS24

by: Marty S05/27/2015


Ordered this set to replace a steel stair set. Although this set is 6 inches wider, it is lighter and easier to use. I have arthritis in my wrists so the weight factor and ease of use was important. The quality is very good as I would expect from Brophy. Price was very competitive with other suppliers and I was kept informed of a delay and a offer to substitute another set was made. I stuck with the original order and was surprised to get it three days later. I have bought from e trailer in the past and will probably do so in the future. They offer great service and a quality product line. 198301



- AS24

by: Vicky09/12/2015


We love our new stairs! My husband had to create a platform with which to attach our stairs to access our really old, small, HIGH, cab-over camper --& we are thrilled with the quality and simplicity of the stairs and ease of installation. We have an old dog who travels with us. The stairs had to be suitable for HER as well as for us. We definitely test the weight limitations / capacity of the stairs and are thrilled that they appear to be withstanding the abuse. We feel we got lucky to find etrailer. 225119



- AS24

by: Don05/13/2015


Wow. You have to see it to believe how great the Scissor Steps work. I first saw the Scissor Steps on a truck where I was camping. and asked about them. He was kind enough to show me your web site. He showed me how easy it was to put them on and off. I have been using a plastic step type ladder for several years and fell once. It was unstable and the door opening was so high. This is a snap,so easy. I would like to find a bag to put them in for storage. If I my quote, Try it you will like it. 192514



- AS24

by: rockinl01/31/2016


we have put off buying steps for our camper because we thought they were to expensive. However when we saw these steps we liked the price and the look so we took a chance. I am so glad we did..i love my steps. No more trying to climb up into my camper. They are so nice and easy to use. My husband had no trouble installing them, and he loves the fact that they are removable so we can tow a boat on the road. They arrived sooner than expected and we are very happy with them. 236636



- AS24

by: Rebecca C.09/27/2015


These steps are awesome! Best price out there and we are impress with the quality. So much better than what we had. My husband has problems lifting, I can easily lift and attach them. Even our 5 yr old granddaughter said "Cool steps Grandma and Grandpa." 227940



- AS24

by: Ed I02/27/2015


They are a good quality product. I have a Ram 2500. Tow a fifth wheel so I have rails in the bed. I placed 2x4's in the bed so my camper will sit level. Mounting bracket was fastened to last 2x4 under camper door. Make sure door clears bracket...just like it says in the instructions. Dropped the steps onto V carrier and your done. Very easy installation. Solid steps...no more wobbly ladder to deal with. I'm very satisfied. 176359



- AS24

by: Mark Fisher03/19/2012


Great Product!!! I mounted the bracket and used the steps on my camper yesterday. Very easy to install the bracket and the step went on very easily. It took only 15 minutes. I have only 1 issue, the space between the top step and where the steps hook onto the mounting bracket is a little wide. I also like the weight of the steps, they are very light and even my wife can carry them and install them with no problems. 34378



- AS24

by: Kris P.04/23/2015


We have a little different camper setup. The camper is made for a small truck where ours is a short bed 2500 lifted. We built an adaptor base so it will fit snuggly in the bed. It also had to be raised 9 inches to clear the cab. These steps are perfect! They are high quality and construction. Couldn't find anything that would work until I found these. Shipping was very fast and arrived on time. Thanks 187684



- AS24

by: Rob E08/05/2013


I had a set of these steps on my slide-in truck camper. I came home from a trip and they were gone. Don't know where i left them. There are other ways to access the camper, but these folding steps are the best. We found the best price anywhere from etrailer and delivery was immediate and free. Fit and finish was perfect. I will definitely use these guys for stuff in the future. 93380



- AS24

by: Cliff06/26/2013


I looked at quite a few vendors for this product and found the lowest price at etrailer.com. It took me about 10 minutes to mount the step system to my Palomino Bronco 1500 and now the access in and out is a breeze...no more short step ladders. Shipping was fast and the product is sturdy and well built. I would recommend etrailer to anyone. 86280



- AS24

by: P.J.10/28/2015


Received the shipment a day ahead of the planned ETA. Stairs are for my mom's camper to replace the old ones that were unsafe. Instructions real straight forward and it took less that 15 minutes to install. I took about 15 minutes just looking at them. The quaility is a 10 and the money is great. Thanks to George J. for all the help. 231001



- AS24

by: Jim Nugent06/06/2014


Perfect. The first place I went the price was $375.00 for a similar product. The second place was Camping world...price $350.00. I have to admit that I wasn't expecting to pay so much, but $234.00 was a lot better price and they look like they will last a very long time. I will consider your company in the future. Thank you, Jim 134573



- AS24

by: dave l12/24/2013


Very pleased with the quality of these steps. Even though I have not attached to camper, need to weld a bracket then bolt on steps, I did place then against a workbench and used the first 2 steps. They are very sturdy and stable. Camping here will not start until April at the earliest, I can hardly wait. 111080



- AS24

by: Ryan A.12/04/2015


This was an excellent buying experience. Fast, easy ordering and item arrived exactly as expected and extremely fast! We're using this product for a bit of an unconventional use in our business and although we haven't installed it yet, product looks like it will do exactly what we need. 233000



- AS24

by: Step Alum Scissor Step 31-39 24 Wide04/19/2015


Thanks for your great service in getting my steps to me in time for my camping trip - and ensuring safe entry and exit from our truck camper. Very easy to install and super easy to hook on and quickly un hook for a quick get away. Thanks again George. John Wakefield, Tucson Arizona 186370



- AS24

by: pakinup06/02/2014


Love, love these steps. They are very well built, extremely sturdy and installed very easily. The shipping was very fast and in fact the steps arrived a day earlier than scheduled. We couldn't be happier with this transaction, will definitely do business with etrailer.com again! 133693



- AS24

by: S. Smith08/22/2014


Bought the 4 step to ease access into the back of my truck camper that's 39" off the ground. Man, these are great and very stable! Construction is rock solid and workmanship is first class. Very easy to use and wish I'd bought them a lot sooner. Shipping was fast too. Thanks! 147987



- AS24

by: AS2406/09/2015


I installed the Brophy RV Scissor Steps on my fifth wheel trailer. The instructions were clear and the total time was less than 20 minutes. The steps work great and look good too. I have no complaints with the product nor with the ordering process and delivery. Jim W. 201900



- AS24

by: Charlie V08/01/2011


Very nice, easy installation, well made. Shipping was extremely fast. I thought that the steps were for permanent installation but they have to be removed while travelling. Ok though, because it is very easy to remove and re-attach. Very happy with the deal. 20736



- AS24

by: Eric F.03/25/2016


Love the steps, quality piece, would recommend to anyone! 241686



- AS24

by: Tim B05/07/2015


This is extremely well made. It is easy to install and use. Etrailer had the best price and extremely fast delivery. Plus, they followed up to make sure I was happy. I would recommend this product and company to my family, and anyone else who might ask! 191189



- AS24

by: Don M.10/31/2015


I have been looking to buy steps for my cab over camper for some time now, but couldn't find anything I liked for a decent price. Then I saw this one on etrailer. I'm am very happy with the product and the price. Fast delivery and great service. ?? 231191



- AS24

by: Phil F.06/06/2015


Perfect on a 2015 3/4 ton Chevy with a bigfoot camper. 39 inches from ground to door. Great company. Told me when they received my order, told me when it shipped, received it in Seattle very quickly. Cost was about half of everything else I found. 201151



- AS24

by: Lee07/12/2015


Great looking steps. They were easy to install in minutes. Steps seem to be strong and very sturdy. Our only concern is the large hole in front of the top step, between the top step and the camper. A slip or misstep could be very painful. 211174



- AS24

by: Sandy05/18/2016


Easy to install. Very stable and easy to use. We like that it detaches for travel. It even clears our swing away hitch mounted bike rack so we don't have to remove the bikes to use the camper (just have to swing them off to the side). 250728



- AS24

by: Quill09/20/2014


The lady I placed the order with was pleasant, the stairs arrived early. They look great. Still getting them installed, it requires more than just lag bolting them on as other reviewers have stated. Would order from etrailer again 152264



- AS24

by: Mike D.05/11/2012


Have not had time to put these steps to a real test, but initially they look like a good, sturdy well-made product. Installation was a snap, the only problem being that they shorted me one lag bolt (five holes, but only four bolts). 40041



- AS24

by: Linda L.08/15/2012


They went out of their way to ensure we had this for our trip. Even sending it out on a Saturday to our destination---without us having to pay extra for shipping! It was there and ready to use when we arrived. Thanks so much! 51747



- AS24

by: Eli Allen04/12/2015


Better than I expected. 184783



- AS24

by: CJ07/15/2013


These steps went on my Citation camper that sits at about 38" off the ground on my 2002 Dodge Ram. I did have to modify them a bit to attach them, but I could not be more pleased with the end result! 89584



- AS24

by: Tom Tharp01/21/2015


Great product extremely easy to install drilled 4 holes used bolts instead of screws. my height was 37in. from ground 4 step was perfect size. steps are stainless and frame is alum. 170662



- AS24

by: Kenneth05/01/2016


Totally beyond expectations! Strong and easy to deploy with stability to boot! Very easy to install too. Perfect answer to the RV step problem--should be stock on all units sold. 247908



- AS24

by: Eldora05/13/2015


Worked just as we wanted it to! We did add a 2x4 under the camper to get extra clearance for wiring. maybe wouldn't have needed to but we did. Thanks good product at a fair price 192656



- AS24

by: Terry Y.08/25/2015


I had no problem installing the steps. I really like the no slip stairs . I always worried when my other stairs got wet. Should not be a problem now. Well made stairs ! 221636



- AS24

by: Jim12/20/2010


camper steps Quality product that installed easily as described. Excellent service from etrailer.com. I have never received better service from an online store. 4394



- AS24

by: Kenneth J.06/15/2012


Rec'd my steps today. Easy installation of a fine product. Steps are wide enough to retain our balance, (we are both in our seventies). Much appreciated. 44400



- AS24

by: DENNY D07/23/2014


I'M HAPPY WITH THE STAIRS BUT THE CLEARANCE UNDER THE DOOR WAS LIMITED. I HAD TO GRIND DOWN THE BARS ON THE MOUNTING BRACKET SO THE DOOR WOULD CLEAR. 142657



- AS24

by: Ted01/25/2012


These are the best truck camper steps I've seen any where. They are very sturdy, easy to mount, and deeper (8") than most of the others on the market. 30286



- AS24

by: Kevin02/24/2015


Ordered the brophy scissor steps for my pop up truck camper. They arrived as expected, fit perfect, and are a great addition to my rig. Very happy 175837



- AS24

by: Fran M.08/17/2015


The aluminum stairs are well built and easy to install. The shallow angle makes walking up easy. I will do business with Etrailer again. 219756



- AS24

by: Jack B11/21/2014


Great product. Exactly what I was looking for. Shipped on sat and got it on Tuesday. Look great on my camper. Thanks for the quick service 162067



- AS24

by: TW04/19/2016


Another amazing product!!! We bought some glow in the dark tape for the steps and they are as good as the more expensive glow steps!! 245967



- AS24

by: David W07/21/2015


This unit is so much stronger than the two previous collapse-able steps that we've used. IT IS SOLID! I would recommend them highly. 213366

52
74
Show More Reviews

Ask the Experts about this Brophy RV Stairs and Steps


  • Will Brophy Aluminum Scissor Steps, # AS24, Work On Boat Trailer
  • The Brophy Aluminum Scissor Steps, # AS24, fully extended is 39 inches tall and can be slightly compressed to 31 inches. If you are mounting the bracket to your boat trailer, you should measure from where the bracket will mount on the trailer down to the ground to see if these dimensions will work. If after you measure, you need a different size we do have other sizes available in the scissor steps. The Brophy, # AS02, has a extended height of 18 inches to 23 inches, the Brophy, # AS23,...
    view full answer...

  • What Size Scissor Steps for Rear Ramp of Toy Hauler 32 inches From Ground?
  • If 32 inches is the height unloaded, I think you are cutting it too close. With your toy hauler loaded, the height will definitely shorten a few inches. You would be better off with the smaller one that is 24 to 30 inches tall. You could mount the steps a little lower to accommodate the unloaded height of the toy hauler. The Aluminum Scissor Steps, 24 inches wide, 24-30 inches tall (part AS23) can be fully extended to 30 inches tall, or can be slightly compressed so that they measure...
    view full answer...

  • Adding Steps and Handle to a 5th Wheel Trailer
  • Scissor steps # AS24 include a mounting bracket, see picture, that mounts to the frame under the door of your trailer. These are not meant to be mounted all the time so they would have to be removed when towing the trailer. For permanent manual steps you can install # LC341504. They need a space 27-1/2 inches wide to mount. The mounting holes are 26 inches apart on center. To add a handle you can mount grab handle # GH12-713 to the side of the trailer. I have linked videos showing...
    view full answer...

  • Availability of 4-Step Set of Stairs for a 5th Wheel Trailer
  • The only 4-step aluminum steps we carry are scissor steps such as # AS24 but they are not designed for permanent installation on a 5th wheel trailer. The ones that are designed for permanent installation on a 5th wheel trailer are Lippert model # LC341504 and Stromberg-Carlson model # SMFP-4400. I have linked a video of the Lippert steps for you.
    view full answer...

  • Are Brophy Aluminum RV Scissor Steps # AS24 Study Enough for Senior Citizens
  • The Brophy Aluminum RV Scissor Steps # AS24 that you referenced have a 300-lb capacity and extend to between 31- and 39-inches in height. In order to accurately recommend stairs, I'll need to know the distance from where the steps mount to the ground.
    view full answer...

  • 4-Step Scissor Stairs for a Lance Camper in the Back of a Truck
  • We have a couple of 4-step scissor stairs you could use. We have a steel model, # SS04, and an aluminum model, # AS04, and both are 18 inches wide. These stairs mount using an included bracket that looks like # AS2002. So they do not pin into place. GlowSteps # TLA7804 have pins used to secure to the mounting bracket but they are wider at 20 inches.
    view full answer...

  • Aluminum Scissor Steps AS23 Dimensions
  • The height measurement on the item you selected is 24 to 30 inches to the mounting bracket. As long as the distance from the area the stairs are to be mounted straight down to the ground is within this 6 inch range the stairs will work nicely. We have other sizes of steps (see links below) if this size is not correct for you. I have posted links to hand rails for the adjustable steps also. If I can be of further assistance let me know.
    view full answer...

  • Replacement 4-Step 5th Wheel Trailer Steps to Replace Steep 3-Step Type
  • You're correct that you need 5th wheel replacement steps to extend down from the mounting point the same distance as the original steps do. This will avoid loss of ground clearance which is an important safety consideration. Trailer makers typically do not provide detailed specs on components such as steps that are used in their products but you can use the linked page to see our range of 4-step scissor steps. Brophy step # AS24 is 24-inches wide like yours, offers a 7-7/8-inch step...
    view full answer...

  • Do Brophy RV Scissor Steps Need To Be Fully Extended To Work
  • I called my contact at Brophy about the RV Scissor Steps, part # AS24. They told me if you have between 31 and 39 inches of distance from the mounting bracket to the ground, the steps will work well for you. I have attached a photo of the steps with the dimension noted you can check out.
    view full answer...

  • Availability of Scissor Steps That Mount Underneath the Camper
  • The mounting bracket on the Brophy Aluminum Scissor Steps, part # AS24, is 25 inches long and 1-1/2 inches wide and should be placed 1/8 inch below the lowest part of the door on your RV for installation. The steps I have that are made to bolt or weld onto the trailer frame are the Stromberg Carlson brand. They will only have single, double, and triple steps. I am including a link to a product page that will list all of the Stromberg Carlson steps I have available. I also have the...
    view full answer...

  • Fitment and Compatibility of Brophy RV Scissor Steps # AS24 on a 2009 Heartland Landmark 5th Wheel
  • The Brophy scissor steps # AS24 can be used on 31 inch to 39 inch distances, and since your RV is 38, these will work well for your application. Scissor steps # AS24 include a mounting bracket, see picture, that mounts to the frame under the door of your trailer. These are not meant to be mounted all the time so they would have to be removed when towing the trailer. As long as you have the space for this mounting bracket under your RV door and deactivate any automatic step release on...
    view full answer...

  • Is there a Way to Lock Scissor Steps on a Camper
  • There isn't a lock system specifically designed for locking scissor steps like part # AS24, but depending on the setup of your truck you could use a cable lock like the part # CAB-10 to route through frame of the steps and then through a safety chain loop on the truck's trailer hitch for example.
    view full answer...

  • What is the Distance from One Step to the Next for Brophy Aluminum Scissor Steps, # AS24
  • The distance from the top of one step to the top of the next step on Brophy Aluminum Scissor Steps, # AS24, is approximately 7-7/8 inches. I made a video showing this measurement which will appear on this page shortly.
    view full answer...

  • Weight of Folding Aluminum Scissor Steps # AS24
  • Yes, I went out to the warehouse and took the stairs only out of the shipping box and weighed them on a postal scale. The stairs only, no mounting bracket or hardware, weigh 23.80 pounds. You may also be interested in the Aluminum Hand Rail for 4 Step Scissor Stair, item # AHR4, for safety when using the aluminum scissor steps.
    view full answer...

  • Scissor Step Stair Bracket Dimensions
  • The AS24 mounting bracket is 25 inches long and 1-1/2 inches wide and should be placed 1/8 inch below the lowest part of the door on your RV.
    view full answer...

  • Aluminum Scissor Steps and Hand Rail Measurements
  • You are correct the Aluminum Scissor Steps, 24 inches Wide, 31-39 inches Tall, part # AS24, can be fully extended to 39 inches tall, or can be slightly compressed so that they measure 31 inches tall. You will need to measure from the ground to the bottom of your camper door to see what height you need. We do sell the matching handrail, it is the Aluminum Hand Rail for 4 Step Scissor Stair, item # AHR4 and it is custom fit to these stairs.
    view full answer...

  • Installation of the Aluminum Scissor Steps # AS24
  • The Aluminum Scissor Steps, 24 inch Wide, 31 inch - 39 inch Tall, are not designed to hang. These steps are designed to fit just below the door of the RV and contact the ground for support. There is a bracket attached to the RV so the stairs can be easily installed and removed.
    view full answer...

  • Replacement Aluminum 4-Step RV Steps for 2015 Heartland Landmark Trailer
  • We do offer several aluminum rv steps that feature 4 steps. You will want to either know what brand steps you are replacing or need to measure the mounting location of the steps you have on your Heartland. I have attached a link to our product page for the 4-step aluminum trailer steps. These steps vary by mounting width and also by the drop for each step, so you will want to have an idea how long you want the steps to be. You can visit the attached link and use the filters to choose...
    view full answer...

  • Mounting Bracket Dimensions for the Scissor Steps part # AS24
  • The width of the overall step of the # AS24 is 24 inches. I attached a picture that shows the dimensions of the included bracket as well. It is 1 inch tall and is 18-1/4 inches in length. You would need compare these dimensions to the area you plan to use to attach the steps.
    view full answer...

  • What is the Maximum Weight Capacity on the Brophy Aluminum Scissor Steps # AS24
  • I spoke with my contact at Brophy and they said the maximum weight capacity of the Brophy Aluminum Scissor Steps, part # AS24, is 300 lbs. If you are needing a hand rail for the aluminum steps I would recommend the Brophy Aluminum Hand Rail for 4 Step Scissor Stair, part # AHR4.
    view full answer...

  • Can the Brophy Aluminum Scissor Steps # AS24 Be Installed on a Tailgate
  • To use the Brophy Aluminum Scissor Steps, # AS24 on the camper you have in the bed of your 2015 Ford F150 you are going to need to remove the tailgate if you plan on connecting the steps to your camper because it would not be able to connect to your camper and also clear the tailgate. If you planned on installing the steps on the tailgate instead this would also work. As long as the install bracket of the steps are installed below where the door swings open your door should open just...
    view full answer...

  • RV Stairs with 4 Steps to Fit in Narrow 35-1/4 Inch Wide Area
  • The best option I can offer you is pull out steps # AS24. Its mounting bracket is 25 inches long and 1-1/2 inches wide and should be placed 1/8 inch below the lowest part of the door on your RV. I have included a link to the instructions to the right.
    view full answer...

  • Mounting and Depth Dimensions of the Brophy Aluminum Scissor Steps # AS24
  • When fully extended, the Brophy Aluminum Scissor Steps, # AS24, will have a depth of approximately 3 ft and an overall height of 39 inches (see photo). The mounting bracket that is included with the steps is pretty universal, so it could be mounted to your tailgate. It sounds like you want to use these steps to make it easier to get into your truck bed. You may be able to avoid the rubber seal from your truck cap if you install the mounting bracket on the inside of your tailgate. This...
    view full answer...

  • Weight Limit for the Aluminum Scissor Steps # AS24
  • The weight capacity of the Aluminum Scissor Steps, item # AS24, is 300 pounds.
    view full answer...

  • Scissor Step Recommendation for Mountaineer Trailer 33 inches off the Ground
  • The scissor steps part # AS24 would work well for you as they have a height range of 31-39 inches which would be perfect for your height of 33 inches. You would need to have the included mounting bracket attached to your trailer but once that is on the steps would install easily. These would need to get removed off of the mounting bracket if you were to drive the trailer as they do not permanently install. You may also be interested in the hand rail part # AHR4 as well to give you...
    view full answer...

  • Additional Step to Make Getting In and Out of 5th Wheel Trailer Easier
  • Steps such as # AS24 are not designed for permanent installation on a 5th wheel trailer. These steps are meant to be removed/installed when needed and you normally see them on in-bed campers. The other issue is that if you added permanent mount steps to your 5th wheel trailer the additional step could cause the whole assembly to hang too low and cause ground clearance problems while towing the trailer. The best solution is a separate step that you can carry with you in the trailer...
    view full answer...

  • Availability of Folding Scissor Steps for 120-Inch Wide x 78-Inch Tall Trailer Door Opening
  • All of the scissor step assemblies we offer can be seen on the included link. Most are 18- or 20-inches wide but we do have three that are 24-inches which is the widest that we offer. For example, Brophy RV Scissor Steps # AS24 can extend up to 39-inches high and the # AS25 can extend up to 48-inches high. We have no scissor steps that are the 78-inch height you need and those we carry retract into a folded position but do not fold inside the trailer during travel. Their weights can...
    view full answer...

  • Step Recommendation for 39 inch Tall Porch on a Fifth Wheel Trailer
  • As long as there is a place for you to securely attach the install bracket of the Brophy RV Scissor Steps # AS24 on your porch these steps should fit and work well. These are designed for 31-39 inch tall setups so your porch being 39 inches tall should work well for it.
    view full answer...

  • Scissor Step Recommendation for Truck Camper that is 36 inches off the Ground
  • For your truck camper that has a distance of 36 inches from the bottom of the door to the ground you would want the part # AS24 which has a range of 31 - 39 inches. This dimension range on the steps would be from the top of the mounting bracket down to the ground.
    view full answer...







Why etrailer.com?

At etrailer.com we guarantee:


Highest quality rv stairs and steps for the best price.


Real product know-how.

  • We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. This helps you get the right product the first time.
  • Every day our teams test, review, assemble and install our products. Our modern installation facilities allow our expert installers and customer service representatives to actually install and use the items we sell, so you can get real advice, from a real person who has the knowledge and expertise needed to solve your problem.

Most detailed, accurate rv stairs and step information available.

  • Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.

Information for this part was:

Expert Research:
DeAnne T
Expert Research:
Robert G
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jameson C
Expert Research:
John H
Updated by:
Adele M
Expert Research:
Adam R
Updated by:
Rachelle B
Installed by:
Cole B

Installations, made easy.

  • We love helping people.
  • We have the most highly trained customer service, hands-on experience, step by step videos and installation instructions. We are prepared to answer any question, give advice, or troubleshoot any problem you come across.

Fast shipping.


Personalized service for life.

  • We provide one-on-one, personalized service from the ordering process through the life of your product.

Trusted since 1946.

  • We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.

Info for this part was:


Expert Research:
DeAnne T

Expert Research:
Robert G

Expert Research:
Michael H

Expert Research:
Jeff D

Expert Research:
Jameson C

Expert Research:
John H

Updated by:
Adele M

Expert Research:
Adam R

Updated by:
Rachelle B

Installed by:
Cole B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time.







Stay Connected


Subscribe to email newsletter

Email

privacy - we don't send unsolicited email






etrailer.com reviews etrailer.com reviews

All images, layout and content copyright etrailer.com
