Fastway e2 Weight Distribution w/ 2-Point Sway Control - Trunnion - 4,500 lbs GTW, 450 lbs TW

Fastway e2 Weight Distribution w/ 2-Point Sway Control - Trunnion - 4,500 lbs GTW, 450 lbs TW

Item # FA92-00-0450

lowest price pledge

Retail:$469.00

Our Price: $424.00

You Save: $45.00
Weight Distribution

This item qualifies for Free Shipping

Shipping Weight: 57 lbs

Quantity:
In Stock, Ships Today
Fastway 100 lbs,200 lbs,300 lbs Weight Distribution - FA92-00-0450
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos


  • WD With Sway Control
  • 100 lbs
  • 200 lbs
  • 300 lbs
  • Fastway
  • Fits 2 Inch Hitch
  • Allows Backing Up
  • Includes Shank
  • Reduces Sway
  • Electric Brake Compatible
  • Surge Brake Compatible
  • Light Duty
Two points of steel-on-steel friction work to prevent and correct trailer sway in this weight distribution system. Sway control brackets help to ensure that your trailer stays in line with your tow vehicle. Adjustable shank included. Lowest Prices for the best weight distribution from Fastway. Fastway e2 Weight Distribution w/ 2-Point Sway Control - Trunnion - 4,500 lbs GTW, 450 lbs TW part number FA92-00-0450 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (245)
  • Q & A (72)
  • Videos (2)
  • Photos
  • Used (1)
  • Why etrailer?

Fastway Weight Distribution - FA92-00-0450

Two points of steel-on-steel friction work to prevent and correct trailer sway in this weight distribution system. Sway control brackets help to ensure that your trailer stays in line with your tow vehicle. Adjustable shank included.


Features:

  • Evenly distributes weight over axles of tow vehicle and trailer for stability and control
    • Creates a level ride for both tow vehicle and trailer
  • Integrated 2-Point Sway Control limits side-to-side movement
    • Brackets keep spring bars in place for a rigid system that holds trailer in line
    • Steel-on-steel friction helps to minimize sway caused by winds or sudden maneuvers
    • No lift chains - eliminate unwanted movement
  • Unique design makes system compatible with surge-type brake actuators
  • Trunnion spring bars flex for a controlled, even ride
  • No-drill, clamp-on brackets can be adjusted along the trailer frame
    • Accommodates frame-mounted items such as gas tanks, battery boxes, toolboxes, or generators
  • Desired tilt is achieved with traditional washer design
    • Add or remove washers from spacer rivet to tilt head up or down
  • Powder coated steel construction is durable and corrosion resistant
  • Snap-up lever eases installation by reducing lifting required by trailer jack
  • System includes head assembly, adjustable shank, spring bars, sway control brackets, lift handle, pin and clip, and all necessary hardware
    • Hitch ball sold separately - requires 1" diameter shank
    • 1-7/8" Thin walled socket (EQ70-00-4800 - sold separately) recommended for hitch ball installation


Specs:

  • Maximum tongue weight: 450 lbs
  • Gross towing weight: 4,500 lbs
  • Fits: 2" x 2" trailer hitch receivers rated for use with weight distribution systems
  • Sway control bracket positioning: 27" - 30" back from center of coupler
  • Maximum trailer frame height: 6"
  • Shank length:
    • 8" From center of hitch pin hole to center of adjustment holes
    • 9" From center of hitch pin hole to front of shank
    • 7" From center of hitch pin hole to back of shank
    • 12" Overall
  • Total height adjustment along shank: 7-1/2"
    • Maximum rise: 6"
    • Maximum drop: 2"
    • Overall height: 6-1/2"
    • Holes are spaced 1-1/4" apart on center
  • 10-Year warranty


Dimensionsbr class="clearb">
Included w/ SystemRequired - Sold SeparatelyOptional Add-Ons
  • Weight Distribution Head
  • 2 Sway Control Brackets
  • 2 Spring Bars
  • Snap-up Lever
  • Spacer Rivet and Washers
  • Necessary Installation Hardware
  • Hitch Ball w/ 1" Diameter Shank
n/a

Weight Distribution Diagram

Create a more stable ride for your tow vehicle and trailer with a weight-distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.



Selecting a Weight-Distribution System

The tongue weight rating is the most important factor in determining which size weight-distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.


To determine the proper weight rating for a weight-distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight-distribution system.


Fastway e2 Sway Control

The two points of sway control within the e2 are created by the steel-on-steel friction that occurs when the spring bars slide within the L-brackets that are mounted on the trailer tongue. Most traditional weight-distribution systems have spring bars that are suspended by chains. Although this ensures that the system is not so rigid as to create bounce in the trailer, it also allows a good deal of side-to-side play in the system.


The direct friction that is applied to the spring bars in the e2 system helps to stop sway once it has begun. The concept is similar to the way in which an add-on friction sway control device functions. When each spring bar moves forward or backward, or side to side, it rubs along the bracket, creating friction. The resistance created by this action limits the movement of the spring bar, thus preventing further side-to-side movement of the trailer.


Most add-on units feature some sort of friction material similar to that used in automotive brakes. But the e2 uses direct steel-on-steel contact to create resistance. This is the same sort of friction that is used with locomotives that pull loaded railcars weighing tons. No additional materials are needed. The steel will outlast any of those other materials, providing an extremely durable, functional sway-control system.



92-00-0450 Fast Way e2 Weight-Distribution Hitch - Trunnion Bar - 4.5K



FA92-00-0450 Installation InstructionsInstallation Details FA92-00-0450 Installation instructions

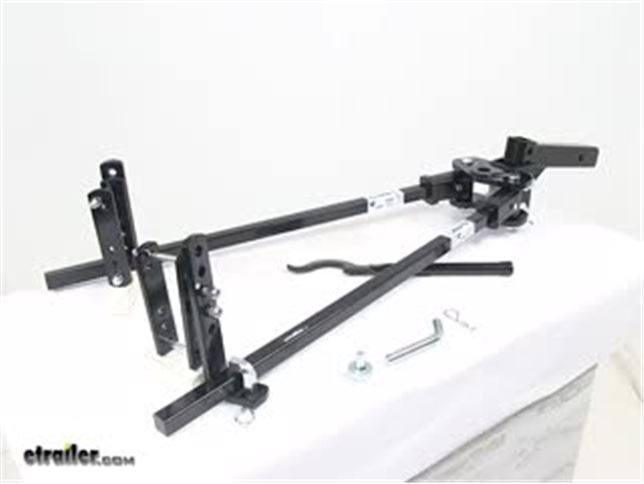

Video of Fastway e2 Weight Distribution w/ 2-Point Sway Control - Trunnion - 4,500 lbs GTW, 450 lbs TW


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Fastway Weight Distribution - WD With Sway Control - FA92-00-0450 Review

Speaker 1: Today we're taking a look at the Fast Way E2 Weight Distribution System, with two point sway control. Now, weight distribution is designed to evenly distribute weight over the axles of your tow vehicle, and your trailer. It's going to offer better stability and control while driving. It creates a more level ride for both the tow vehicle and the trailer. This particular system features two-point sway control. It's integrated into the unit, which sway control is designed to limit that side-to-side movement.

It's designed to control sway. So, these brackets are designed to keep the spring bars in place for a rigid system that holds a trailer inline at all times, features the steel-on-steel friction which helps minimize sway caused by winds or sudden maneuvers, and as you can see, this system does not utilize lift chains. So this design really helps eliminate any unwanted movement.The unique design makes this system compatible with surge type break actuators. You can back up your vehicle and trailer with this connected, there's no need to disconnect before going into reverse. The trunnion spring bars are designed to flex for a nice controlled even ride.

These are no-drill clamp on brackets that can be adjusted along the trailer frame, which is great for accommodating frame mounted items such as gas tanks, battery boxes, tool boxes or frame mounted generators.When it comes to the head assembly, which is this unit here, you can tilt the head as needed. The desired tilt is achieved using the traditional washer design. So, you add or remove washers from the spacer rivet to tilt the head up or down, and then there is an installation location back here, for that spacer rivet, and then at the bottom there is a set bolt, so if there's any type of give or slack in the system, you can tighten that set bolt to try to remove and eliminate any of that.We're looking at a durable steel construction. It's all powder coated, so it's designed to resist rust and corrosion, it'll last a long time. It also comes with your snap up lever.

This is designed to ease installation by reducing lifting required by the trailer jack. So this really helps get the bars in place on the lift brackets when you're setting up. Also, really helpful for when you're disconnecting.This part number comes with your head assembly, which is this right here. It comes with the adjustable shank, comes with your spring bars, sway control brackets, lift handle. Comes with your pin and clip to secure the unit inside of your hitch, and it comes with all your necessary hardware.

What you will need is you will need a hitch ball, so that is sold separately, they're available at etrailer.com. This head assembly has a ball hole that will accept a one inch diameter shank on the hitch ball. Maximum tunnel weight capacity for this unit is 450 pounds, gross towing weight capacity is 4,500 pounds. This is designed to fit inside of a two inch by two inch trailer hitch receiver that's rated for use of weight distribution. The brackets will fit trailer frame heights all the way up to six inches tall.Now, the shank length . A few measurements, I just want to mention for you real quick. I took a measurement from the center of the hitch pin hole to the center of the adjustment holes. Got a measurement of eight inches from the center of the hitch pinhole to the very front of the Shank, measures nine inches, and the overall length from back of shank to front of shank is 12 inches. This can be used in either the rise or drop positions. In the rise position, with the head assembly at the highest setting, you're going to have a rise of around five to six inches. With it in the drop position with the head assembly at the lowest setting, you're going to have a maximum drop of around two inches, and that's from the inside top edge of the receiver tube of your hitch, down to the top of the ball platform with everything straight and in line. No tilt applied to those measurements. Those holes on that shank are spaced apart on center by an inch and a quarter, so that is your incremental height adjustment.That's going to do it for today's look at the Fast Way E2 Weight Distribution System with the two-point integrated sway control.
