Fulton Round, Snap-Ring Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,200 lbs

Fulton Round, Snap-Ring Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,200 lbs

Item # FTJ120W0301

lowest price pledge

Retail:$89.70

Our Price: $50.95

You Save: 43%
Trailer Jack

Orders above $99 qualify for Free Shipping

Shipping Weight: 13 lbs

Quantity:
In Stock, Ships Today
Fulton Round, Snap-Ring Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,200 lbs 1200 lbs FTJ120W0301
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos


  • Side Frame Mount Jack
  • 1200 lbs
  • Sidewind Jack
  • No Drop Leg
  • Swivel Jack - Pull Pin
  • Weld-On
  • Fulton
  • 10 Inch Lift
  • With Wheel
With corrosion-resistant zinc plating a poly wheel base and 13" retracted height, this retaining-ring swivel jack is perfect for marine applications. Measures 11" from mounting bracket to top of jack. Inner tube diameter is 1-3/4". Lowest Prices for the best trailer jack from Fulton. Fulton Round, Snap-Ring Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,200 lbs part number FTJ120W0301 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (261)
  • Q & A (127)
  • Videos (2)
  • Photos
  • Why etrailer?

Fulton Trailer Jack - FTJ120W0301

With corrosion-resistant zinc plating a poly wheel base and 13" retracted height, this retaining-ring swivel jack is perfect for marine applications. Measures 11" from mounting bracket to top of jack. Inner tube diameter is 1-3/4".


Features:

  • Ideal for marine and recreational use
  • Convenient, spring-loaded plunger-pin swivel feature
    • Swing up to stow parallel to tongue for travel
    • Move back into upright position for use
  • Z-Max 600 zinc finish provides superior corrosion resistance
    • 600-Hour salt spray rating
  • Heavy-gauge steel construction
  • Sidewind design
  • Thermoplastic wheel, weld-on L-bend mounting bracket, and snap ring included


Specs:

  • Bracket height:
    • 13" Retracted
    • 23" Extended
  • Lift: 10"
  • Clearance: 11" from mounting bracket to top of jack
  • Inner tube diameter: 1-3/4"
  • Outer tube diameter: 2"
  • Wheel diameter: 6"
  • Snap ring pilot hole diameter: 2-1/2"
  • Lift capacity: 1,200 lbs
  • Limited 5-year warranty


Dimension

TJ120W0301 Fulton Round Retaining Ring Swivel Jack - Sidewind - Weld On - 1,200 lbs






California residents: click here


Video of Fulton Round, Snap-Ring Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,200 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Fulton Trailer Jack - Side Frame Mount Jack - FTJ120W0301 Review

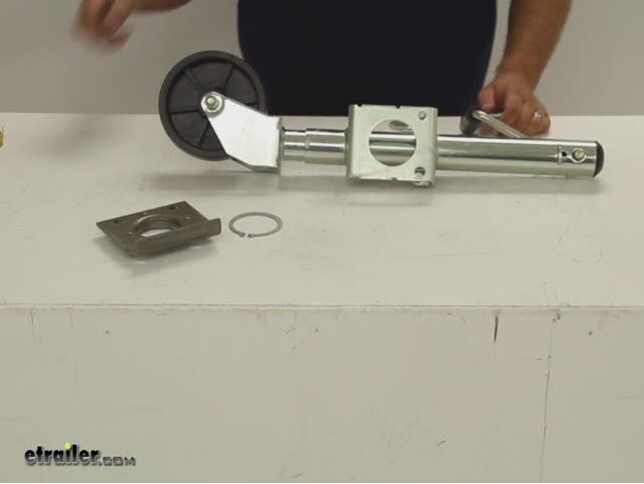

Today were going to take a quick look at the Fulton Round, Snap-Ring Swivel Marine Jack, part number FTJ120W0301. This is a weld-on round tube style jack. Included with the jack are bracket and a snap ring. What youll do is weld this bracket to your trailer frame. Your jack will slip over the bracket and then youll take your snap ring and secure it from inside the bracket. The jack has a bracket height of 13 inches when retracted, thats from here to the bottom of our caster.

Now we have another one of these jacks already extended, so we can show you the extended height. Its the same measurement from the bracket here to the bottom of our caster and that will measure 23 inches. Now the difference between the two, 10 inches, is our jack lift. The caster itself is 6 inches in diameter and the tubing diameter is 2 inches. It has a lift capacity of 1,200 pounds and Fulton covers it with the limited three-year warranty.

The entire jack is finished in Fulton Z-Max 600 zinc plating which provides superior corrosion resistance and is excellent for salt water applications. Thats it for our quick look at Fultons Round, Snap-Ring Swivel Marine Jack, part number FTJ120W0301.


Customer Reviews

Fulton Round, Snap-Ring Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,200 lbs - FTJ120W0301

Average Customer Rating:  4.9 out of 5 stars   (261 Customer Reviews)

With corrosion-resistant zinc plating a poly wheel base and 13" retracted height, this retaining-ring swivel jack is perfect for marine applications. Measures 11" from mounting bracket to top of jack. Inner tube diameter is 1-3/4".

- FTJ120W0301
by:

Extremely pleased with the quick delivery.The Fulton part was an exact replacement for the Shelby . Simple to install. 600540



- FTJ120W0301
by:

I bought this Fulton 1200 lbs trailer jack to replace the old 800 lbs jack on my Triton boat trailer. It is much sturdier and works a lot better. It was very easy to install, just one snap ring and in less than a minute it was on. I would recommend this trailer jack. 599383



- FTJ120W0301
by:

It's perfect!! Thanks again. Worked just fine with existing bracket. 100731


Comments

Perfect! Used this one as a replacement for the Fulton that came on my 1995 Stratos Trailer. Fit perfectly on existing bracket. Installed in 5 minutes. Further, I called etrailer on Friday afternoon, customer service was excellent - helpful and informed, and the jack showed up at my house Monday afternoon. Better design than the old one, which had a bolt-on wheel assembly that finally wore out. Thanks, etrailer!!!

-- comment by: Jeff - 10/16/2013

2194

- FTJ120W0301
by:

Purchased as a replacement for one damaged in storm Sandy. Perfect fit bit I wished I had a larger pair of snap-ring pliers to make installation a little easier. 145628


Comments

Still looks and works like new!

Richard W - 08/11/2015

14144

- FTJ120W0301
by:

I ordered this product to replace the jack on my Triton bass boat and the service I received was great and they make a great product with a good price. I do recommend this company. 80469


Comments

It is still working great. This is a great product. Thank you for checking with me.

Jerry T - 06/12/2014

4841

- FTJ120W0301
by:

Product installed easily over existing mount. Big improvement to the smaller jack I had been using. The jack is on my Sylvansport Go utility trailer. Make sure to use 9” snap ring pliers. Took about 10-15 minutes to remove old jack and install new one. Found etrailer great to work with and very professional and customer oriented. The only improvement I would suggest is to more clearly state the mounting diameters. 563700



- FTJ120W0301
by:

This is the exact replacement jack that was on my trailer. I couldn't find one locally, but etrailer had it in stock and shipped the same day that I ordered it. They emailed all the information that I needed to track my shipment. It was two business days on the delivery. This is my second purchase from etrailer and all that I can say are great things about them. I would highly recommend etrailer for all your trailer needs. 58522


Comments

After one year, the jack is working great. I would highly recommend this product.

Mike B - 05/10/2014

4069

- FTJ120W0301
by:

Fit perfect on my stratos trail trailer. The snap ring is a pain in the rear but other than that is fits and works fine. You need a big snap ring tool because this is a strong ring. I tried a couple for smaller ones and they wouldn't cut it. 132382


Comments

So far Ive had no issues with this jack. Doesnt jack as far up as my original but thats not a big deal. The ring is a bit of a pain but u finally got it on there. Definitely a strong ring. Better have the right tool to get it on

Tim M - 05/26/2015

12028

- FTJ120W0301
by:

This is a great replacement jack for our boat trailer, a 1999 Triton TR18. Replaced the original perfectly, without having to change the original welded base. Highly recommended. Got a 'before' and 'after' photo to help show what I mean. 360097


Comments

It’s working superbly, zero problems. The addition of the grease fitting was a great idea.

Johnny - 04/02/2018

36740

- FTJ120W0301
by:

My original jack on my 1997 EZ Loader trailing for a Champion 191DC Elite bass boat. Did some on-line research and found this site. Was not sure I could even replace it because the plate is welded on the frame, but after looking at some of the videos on this site I figured out which one to order. Everything went great with the order and shipping was very fast. the follow up emails also showed that they care about their customers. I did get a snap ring pillars and the job took about 10 minutes. Thanks, Brian 334294



- FTJ120W0301
by:

Parts arrived as promised before 8 pm using third day delivery. Packaging was outstanding and no damage resulted during shipment. Replaced a trailer jack on a circa 2001 EZLoader trailer that came with a 2001 Glastron SX175. The failed Chinese-made jack (not original) being replaced had the jack handle dismount when part(s) sheared or broke and the whole assembly fell apart. This replacement part fit perfectly and the new higher (1200 lb) load rated jack is better than the lower rated (1000 lb) jack that it replaced. Installed in less than 10 minutes. The tricky part is finding large enough snap ring pliers. I bought 8 inch snap pliers rated for 0.250 - 2.000 rings for less than 20 bucks that opened it barely enough to spring it on the circa 2.500 main hub diameter, then used a punch to slowly tap it back into the groove. Really, you need 9 inch plus pliers, but they are hard to find, at least in the upper Midwest, and if they can be found, are probably really expensive. I did not use the weld on bracket that came with the jack as the old bracket that was welded to the trailer mated to the new jack without issue. etrailer really made the process easy with the informative video. The only thing lacking is a published measurement between the holes that the pins snap in. Knowing the hub diameter, the small hole/pin diameter, and the small hole spacing gives you confidence that the part you are buying is the right one. 432155


Comments

Steve,Thank you for your review on FTJ120W0301.The diameter of the of the holes in the snap ring bracket is 2.313 and the space between the holes is 3.

-- Heather A - 09/14/2017

28196
Comments

Trailer Jack worked flawlessly, but unfortunately I lost my job after 30 years this spring and ended up selling most everything I owned, including the boat, when I relocated. E-trailer will certainly be my boat parts supplier when I get another boat early next year.

Steve M - 09/13/2018

43568

- FTJ120W0301
by:

Perfect fit, easily installed! Great turn around from order to delivery! 692355



- FTJ120W0301
by:

30 yr old trailer that came with a factory mounted jack. It finally gave out. This jack was just what we needed to replace. Replaced in 5 minutes. Didn't need to weld on new plate, this easily attached to old mount. 691521



- FTJ120W0301
by:

Fit like a glove! 688875



- FTJ120W0301
by:

Very good replacement jack. Easy to make the change if you have (or borrow) the right tool. 686783



- FTJ120W0301
by:

I just bought a boat and the trailer jack was damaged. I put this one on and it works great. 683837



- FTJ120W0301
by:

Great product and it fit perfect on my Triton boat trailer 682226



- FTJ120W0301
by:

Easy install, and works smoothly 680680



- FTJ120W0301
by:

Great quality product! Fast Shipping! Very pleased customer! 676644



- FTJ120W0301
by:

It's a good product I'd say. I wish the wheel turned more freely when pushing the trailer around on a nice concrete floor, but I have to kick the wheel to get it to go where I want. It seems heavy duty enough. I have it on a 5x10 homemade travel trailer and I think I am way under tasking it. If I could do it over I would have probably put a block under my tongue to lower the starting point of the crank. It barely clears my ball hitch when I crank it up. I have my trailer set up higher than most for off-road use. 673650



- FTJ120W0301
by:

Ordered replacement jack for ski boat trailer. Jack recommended was great fit and changed with simple tools required. Total time to change was about 1/2 hour . Great to deal with. 668597



- FTJ120W0301
by:

Worked like a charm as a replacement for my Triton boat trailer it snapped right over the old one! Would recommend to anyone who needs to replace theirs. 663503



- FTJ120W0301
by:

I have a 1997 Eagle boat trailer and I raised the jack up to high and the jack came apart. Since the jack mounting bracket is welded to the trailer I wanted a replacement jack that would mount to the existing bracket. I checked a number of boat related sites with no luck than went to etrailer. I found Fulton jack FTJ12W0301 and I read the reviews and it appeared to be a replacement for old Shelby jack model # 5756A. I ordered the Fulton on Sunday night and it arrived on Thursday afternoon by UPS! You need a good large pair of Snap Ring Pliers and it took about 5 min to install the new jack you get a new snap ring which I used and a mounting bracket which I did not need, the new ring fits fine on the existing mounting bracket. The only thing and the reason I did not give it 5 stars is that the pin that holds the jack in up right or swiveled position is 3/8" diameter and the old Shelby pin is 1/2" so there is a little wobble but should not be a problem, just fortunate to replace the old jack so easily when there was no other way to do it without a lot of work. My F-150 has a trailer ball high of 19" and I jacked the trailer receiver to 24" just did not want to go any higher so I'm good to head to the lake! 660700



- FTJ120W0301
by:

I have been looking for this item for a year or more. Fit my boat trailer perfectly. 637627



- FTJ120W0301
by:

easy to order. Great service. couldn't ask for more. I'll be back 636865



- FTJ120W0301
by:

Great delivery time and customer service as always. 636119



- FTJ120W0301
by:

Great product . Works well with boat tr ailer 625523



- FTJ120W0301
by:

Good product, like the grease zerk to aid in long term durability. 625330



- FTJ120W0301
by:

This fit my trailer perfectly. It was simple to install and all the holes lined up with the pins without issue. I would recommend this stand for those looking to retrofit your trailer with similar dimensions. This was fitted onto a Hurricane Boat Trailer. Works very well and am pleased. 622068



- FTJ120W0301
by:

Perfect fit. Works great. Thanks George 610788



- FTJ120W0301
by:

I looked at a lot of other websites and yours was by far the most detailed. I wanted info on specific dimensions and you offer that. The entire process of ordering and receiving exactly what I needed was trouble free as well. Wish more companies ran as professionally yours. Will undoubtedly use you again! 605854



- FTJ120W0301
by:

FAST SHIPPING AND GREAT PRICING. 600308



- FTJ120W0301
by:

This people KNOW TRAILER JACKS!. I called and told the lady exactly what I had- and she knew right away what I needed!! Even at Christmas- delivery was THE NEXT DAY! Very Pleased!!!!! Kenny 594550



- FTJ120W0301
by:

Very easy to install and works perfectly. Much better than the old one which was bent because of my carelessness. I pulled off with the jack still down on my boat trailer. The bracket was already welded on my trailer so only had to remove the O ring and replace the old jack with the new one and install the new ring. 590547



- FTJ120W0301
by:

Very easy to install and works perfectly. Much better than the old one which was bent because of my carelessness. I pulled off with the jack still down on my boat trailer. The bracket was already welded on my trailer so only had to remove the O ring and replace the old jack with the new one and install the new ring. 590545



- FTJ120W0301
by:

Perfect fit to existing weld on bracket! Quick and easy replacement. Worked trouble free for the last year 574781



- FTJ120W0301
by:

After a rather silly "forgetful moment" when I started to drive off with the wheel down, not far, but bent wheel, I began my search for a fix. Local box stores were of no help, but Google led me to etrailer. A description of my broken part and a solution was at hand! Best part of the story: my replacement unit arrived in TWO days, perfect fit. Now: DON 'T MAKE THE SAME MISTAKE AGAIN!!!!!!!!! Thanks for the help and the great service...... 568309



- FTJ120W0301
by:

A 566949



- FTJ120W0301
by:

Jack works great ,handle turns with ease when lifting or lowering trailer. 566102



- FTJ120W0301
by:

Exactly what I needed and the website was excellent in providing an alternative replacement to what was on my trailer along with detailed information on how to replace. 563988



- FTJ120W0301
by:

Great Service. The part was delivered quickly, and it was exactly what I needed. Thank you 556575



- FTJ120W0301
by:

Had a Shelby model 5784 trailer jack. The FTJ120W0301 fit perfectly on the Shelby jack plate, so I was able to reuse the welded mount to my trailer. etrailer customer service is excellent! 555260



- FTJ120W0301
by:

The website gave a detailed description of the trailer jack, including mounting hole dimensions, to ensure that it would exactly replace the existing old jack, without any modification needed to the original mounting plate. The installation was easy, although the new snap-ring pliers I bought barely opened the snap ring enough to fit the flange on the mounting plate. A big, heavy-duty pair of snap-ring pliers should be used to make the intallation easier and quicker. The new jack operates smoothly and holds the trailer tongue up well. 552460



- FTJ120W0301
by:

Great customer service. Gave expedited shipping at no additional cost. 551267



- FTJ120W0301
by:

Ordered online and came a few days later like clock-work! Fast, efficient and pricing was great too. Thanks again. 550398



- FTJ120W0301
by:

Went on easy. Works great so far. Seems like it will hold up over time. 549484


Comments

Still going strong and easy to use.

Anthony A - 08/04/2019

58629

- FTJ120W0301
by:

Works great. Didnt have to reweld the backing plate. I was able to use the existing one still on the trailer. Just removed the snap ring and switched out the old with the new. 539727


Comments

Its been great. Plus I havent crunch or bent it yet..

Clark g - 07/09/2019

57601

- FTJ120W0301
by:

Went on in minutes (I mean like 5 or less) Not quite as long as the original - but really close I was really stressed out when we pulled it out of storage and the jack was "jacked up" - but it was a cheap and easy fix Thanks ETRAILER 523146



- FTJ120W0301
by:

Best replacement trailer jack I could find. Great servie from ETrailer as always. First place I go for my trailer parts. Horse, boat and camper. 518147



- FTJ120W0301
by:

Good stuff! Quick delivery! 505775


61
281
Show More Reviews

Ask the Experts about this Fulton Trailer Jack

Do you have a question about this Trailer Jack?


  • Replacement Swivel Jack For 2003 185 Searay Bowrider With Shorlandr Trailer
  • Your current jack is an interesting hybrid. It is a bolt-on receiver with a bolt-thru swivel. Normally the bolt-thru jacks have a welded on plate to attach to. For the jack replacement, I recommend the Fulton Bolt-Thru Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,200 lbs # FXP10W0301. This is the highest capacity jack with the bolt-thru option and a caster wheel on the bottom. It has a zinc plating for corrosion resistance and has a 6 inch thermoplastic wheel included. It...
    view full answer...

  • Replacement Swivel Jack for Shelby Model 5764A With 5.5 Inch by 3 Inch Bolt Battern
  • Swivel jacks fit 3x3 to 3x5 frames but none for a 5-1/2 inch frame. You would need to look at weld-on jacks such as # FTJ120W0301 or consider drilling mounting holes in your frame. If your frame isn't 5.5 inches and you just need that clearance, I recommend the Fulton Bolt-Thru Swivel Marine Jack w/ Caster - Sidewind - 10" Lift - 1,200 lbs # FXP10. I've attached a photo with the bracket dimensions to assist.
    view full answer...

  • Replacement Jack for a 2008 Carson Run Runner Travel Trailer/Toy Hauler
  • Shelby has been out of business for a while now so replacement parts are no longer available. Your best option would be to replace the jack with a new one. In your picture it looks like you have a spot for a round tube A-Frame jack. There are a lot of options that will fit. It looks like the heaviest version of the 2008 Carson Fun Runner is 9,000 pounds dry. A 2K jack such as # PSEA2000-14007 is a good option. The foot is included. I have linked a video review of this jack for you. Need...
    view full answer...

  • Fulton Jack Recommendation for Triton Dual Axle Boat Trailer with Weld On Fulton Jack
  • Sounds like you'd need a Fulton jack like the part # FXP100W0301 which is a weld on style jack like what you have that would attach to a bracket like part # P9012-00 that you'd have installed on your trailer most likely. You can send me pictures if you like and I'll take a look and see if there's something else that would work better. Sticking with a Fulton jack though will allow you to reuse the bracket you have installed instead of having to remove what you have and install a new one.
    view full answer...

  • Available Castor Wheels for Boat Trailer Swivel Jack
  • Fulton's Snap-Ring Swivel Jack # FTJ120W0301 fits on a snap ring mount with a pilot hole diameter of 2.313-inches. If this matches you're good to go. If not you might consider just installing a castor wheel on your existing jack. If you jack's inner tube has an outside diameter of 2-inches the you can use # JC-101 or # PS1400750340.
    view full answer...

  • Will the 1,200 Lb Fulton Snap-Ring Swivel Jack Work In Place of an 800 Lb Model
  • The snap ring swivel mount design has not changed to the best of my knowledge so the Fulton Round, Snap-Ring Swivel Marine Jack part # FTJ120W0301 should work just fine with your existing mount therefore no welding will be required. The tongue weight of your boat trailer would be well within range for the above 1,200 lb option so there will not be any concerns here either. In regards to the Fulton Single Speed Trailer Winch part # F142306, this will also do a good job of replacing the...
    view full answer...

  • Replacement Trailer Jack for Fulton Jack that Uses Snap Ring
  • For your trailer that has a Fulton trailer jack that attaches with a snap ring the trailer jack you'd want is the Fulton part # FTJ120W0301 which will attach directly to your weld mount.
    view full answer...

  • Will Fulton Jack be a Replacement for Shelby Jack 5776
  • It is possible the Fulton Round, Snap-Ring Swivel Marine Jack # FTJ120W0301 will fit the same mount used by your Shelby 5776 jack but we do not have the exact dimensions of the mount used by your Shelby jack so you will need to take a quick measurement. The Fulton jack mounts to a L-Bend mounting bracket that measures 2-1/2 inches on the inside of the mounting hole, as you can see by the accompanying diagram. If yours measures the same, the Fulton Jack # FTJ120W0301 will fit on the same...
    view full answer...

  • Recommendation to Replace Shelby 5756A Trailer Jack
  • Based on my research, the Fulton Round, Snap-Ring Swivel Marine Jack # FTJ120W0301 will be a perfect replacement for your Shelby 5756A trailer jack. This jack will allow you to use the existing snap ring jack mount on your trailer for installation. The trailer jack has a 1,200 pound weight capacity and a 10 inch lift. The snap ring pilot hole diameter is 2.313 inches and the retracted bracket height is 13 inches. Note that the jack does include a weld-on mounting plate, but you can use...
    view full answer...

  • Will etrailer Jack MJ-1206B or Dutton-Lainson Jack DL22300 Fit a 2x2 Inch Trailer Frame
  • You would have to bolt Round Swivel Marine Jack w/ Wheel - Bolt On - Zinc - Sidewind - 10" Travel - 1,000 lbs Item # MJ-1206B directly to the trailer frame and not use the included brackets to bolt the jack around the frame. A 2x2 inch frame is too small to use the bolt-around brackets. You would need to use the 2 lowest holes in the bracket that is attached to the jack. You will also likely need shorter bolts and matching nuts, obtained locally, to bolt it on. The same goes for # DL22300. I...
    view full answer...

  • Swivel Jack Replacement Recommendation for Shelby 5730 Jack
  • I believe the jack you are looking for a replacement for is a frame mounted, swivel jack, sidewind, that has a 2,000 lb capacity and a wheel caster. We did have a customer come back and say that the Fulton jack part # FTJ120W0301 will attach just fine to the pipe mount on the trailer frame from a Shelby jack.
    view full answer...

  • Availability of Replacement Jack for Shelby Model 5781 that Mounts to Existing Mount
  • What we have heard is that the Fulton # FTJ120W0301 does fit the mounting plate of the Shelby Jacks like what you have and would work well. This has a wheel caster and a 1,200 lb capacity like what you need as well.
    view full answer...

  • Replacement Fulton Swivel Jack to Fit Weld-On Mount Already on Trailer
  • Since you have a Fulton jack you will want to replace it with a Fulton so that you can reuse the same mount. For that jack # FTJ120W0301 is going to be the best option.
    view full answer...

  • Which Trailer Jack Will Fit on Same Pipe Mount as Shelby Jack
  • From previous customers who have tried it we know that the Fulton jack # FTJ120W0301 fits the exact same mount as the Shelby jack. We don't have a similar 1,500 jack with same pipe mount but the Fulton would still work well for you.
    view full answer...

  • Trailer Jack Compatible With Atwood Snap Ring Weld Mount on Cobalt Trailer
  • The Fulton Round, Snap-Ring Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,200 lbs # FTJ120W0301 will be able to utilize the Atwood welded snap ring mount.
    view full answer...

  • Replacement Swivel Jack for Shelby 5765A
  • For a trailer jack similar to the Shelby jack you mentioned I recommend the Fulton # FTJ120W0301. This is a 1,200 pound rated swivel jack with a sidewind handle. It's a weld-on jack with 10 inches of lift.
    view full answer...

  • Boat Trailer Jack For a 1998 Shorelander Trailer with Original Snap Ring Jack
  • The inside diameter of the snap ring for the Fulton Trailer Jack, # FTJ120W0301, is 2.28 inches, and is designed to fit in the 2-1/2 inch retaining groove on the mounting plate. As long as the diameter of the retaining groove on your jack mounting plate is 2-1/2 inches this jack will work. This is the highest capacity jack that we have that has a snap ring attachment. Jacks with higher capacities have different attachment systems.
    view full answer...

  • Replacement for Shelby # 5756 1200 lb Jack
  • The Shelby # 5776 is the direct replacement for the # 5756, but we do not offer that particular jack. The Fulton # FTJ120W0301 that you referenced would make an acceptable replacement. The capacity and the amount of lift or travel is identical. Both jacks are weld-on applications and both have a corrosion inhibiting zinc plated finish. The Fulton jack dimension from the bottom of the mounting bracket to the bottom of the caster when fully retracted is 13 inches, 23 inches when fully...
    view full answer...

  • Replacement Jack to Fit Mount of Shelby Industries 5756a
  • What we have heard from our customers is that the Fulton # FTJ120W0301 does fit the mounting plate of the Shelby Jacks like the 5756a that you have.
    view full answer...

  • How To Determine if Fulton Round, Snap-Ring Swivel Jack # FTJ120W0301 Will Fit Existing Weld Mount
  • To determine if the Fulton Round, Snap-Ring Swivel Marine Jack, part # FTJ120W0301, will fit on your existing weld mount on your trailer you will need to measure the diameter of the weld mount on your trailer. The inner diameter of the large mounting hole on the center of the mounting bracket for Fulton Jack, # FTJ120W0301, is 2-1/2 inches. The Fulton jack also uses a 3/8 inch size pull pin. This jack will also come with a new weld-on mounting bracket in case it will not fit your older...
    view full answer...

  • Trailer Jack Replacement Solution for Shelby 5774
  • We aren't going to have a jack that's going to bolt right up to the same mounting bracket your Shelby mounted to so your best option will be to cut off the old mounting bracket and weld on a new one like with what you could do with the Fulton part # FTJ120W0301. This jack will work great and once the bracket is welded to the trailer will also be very easy to use. Check out the review video link I attached for the jack for more info as well.
    view full answer...

  • Replacement for Fulton Magnum Series Trailer Jack
  • The correct replacement for the Fulton Magnum Series Trailer Jack on your trailer is the Fulton Bolt-Thru Swivel Marine Jack part # FXP10W0301 if you have a bolt-thru mounting bracket or part # FTJ120W0301 if you have a snap-ring mounting bracket. I have attached a photo of each to help you distinguish which you have. The bolt holes you are referring to are used as an alternative to mounting the mounting bracket to the frame of the trailer, not the jack to the mounting bracket. I called...
    view full answer...

  • Replacement Fulton Jack for Older Fulton Magnum Series Jack on Ranger Trailer
  • The Fulton Magnum series jack on your 03 Ranger has been discontinued by the manufacturer. They list the # FXP10W0301 as a replacement for the discontinued jack if you have a bolt-thru mounting bracket or # FTJ120W0301 if you have a snap-ring mounting bracket. I've attached a photo to assist. This will work with your current weld on bracket for an easy replacement.
    view full answer...

  • Can Shelby Snap Ring Jack Mount Accept Fulton Round Snap-Ring Swivel Marine Jack FTJ120W0301
  • Yes, you can use your existing snap ring jack mount to install the Fulton Round Snap-Ring Swivel Marine Jack # FTJ120W0301. This jack includes a weld-on mounting plate but you can use the existing one on the trailer along with the snap ring included with the jack.
    view full answer...

  • Jack Recommendation to Replace Shelby Jack 5754A on Trailer
  • We did have a customer come back and say that the Fulton jack part # FTJ120W0301 will attach just fine to the pipe mount on the trailer frame where a Shelby jack just like yours was installed.
    view full answer...

  • Jack Recommendation for a Triton Boat Trailer
  • From the research that I did I found that Triton used Fulton jacks on a lot of their boat trailers. While this Fulton Round, Snap-Ring Swivel Marine Jack, part # FTJ120W0301, may not necessarily be the exact same one that is on your boat trailer it should install onto your trailer. The first thing I would consider when replacing a trailer jack is the capacity needed. The # FTJ120W0301 has a capacity of 1,200 lbs. If that would be adequate for your application. We carry similar jacks...
    view full answer...


Do you have a question about this Trailer Jack?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer jack for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer jack information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Theodore B
Photos by:
Jackie C
Expert Research:
Michael L
Written by:
Lindsey S
Expert Research:
Robert G
Installed by:
Patrick B
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Reno H
Expert Research:
Jameson C
Video Edited:
Jacob T
Expert Research:
Adam R
Updated by:
Laura H
Photos by:
Amber A
Expert Research:
Jeffrey L
Updated by:
Alexander C
Photos by:
Stacy F
Updated by:
Hannah L
Updated by:
Isabelle B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
