5-Leaf Double-Eye Spring for 6,000-lb Trailer Axles - 25-1/4" Long

Item # SP-111275

lowest price pledge

Retail:$36.98

Our Price: $34.81

Trailer Suspension

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
universal group trailer suspension leaf spring components
universal group trailer suspension leaf spring double eye springs
universal group trailer suspension components leaf springs
universal group trailer suspension leaf spring springs 5-leaf double-eye for 6 000-lb axles - 25-1/4 inch long

Customer Photos

universal group trailer suspension leaf spring springs sp-111275
universal group trailer suspension leaf spring springs sp-111275
universal group trailer suspension leaf spring springs 5-leaf double-eye for 6 000-lb axles - 25-1/4 inch long
universal group trailer suspension components leaf springs sp-111275
universal group trailer suspension components leaf springs
universal group trailer suspension leaf spring double eye springs
universal group trailer suspension leaf spring springs sp-111275
universal group trailer suspension leaf spring springs sp-111275
universal group trailer suspension leaf spring springs 5-leaf double-eye for 6 000-lb axles - 25-1/4 inch long
universal group trailer suspension leaf spring springs sp-111275
universal group trailer suspension leaf spring springs sp-111275

Videos


  • Leaf Springs
  • Double Eye Springs
  • Leaf Spring Suspension
  • Suspension Components
  • 25-1/4 Inch Long
  • 6000 lbs
  • Universal Group
Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 6,000-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter. Lowest Prices for the best trailer suspension from Universal Group. 5-Leaf Double-Eye Spring for 6,000-lb Trailer Axles - 25-1/4" Long part number SP-111275 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Universal Group Trailer Suspension - SP-111275

Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 6,000-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.


Features:

  • Leaf spring acts as part of your trailer's suspension system
    • Provides attachment point for your trailer's axle
  • Multiple leaves allow flexibility to absorb road shock
    • Allows for a smooth ride
    • Reduces wear and tear on trailer
    • Ensures level ride on bumpy and uneven surfaces
  • Sturdy steel construction
  • Nylon bushings included
  • Pre-mounted hangers or aftermarket hanger kit (sold separately) required for installation
    • Spring attaches to hanger mounted on trailer frame at one end
    • Other end connects to shackle straps suspended from hanger or equalizer


Specs:

  • Quantity: 1 leaf spring
  • Spring capacity: 3,000 lbs
  • Axle capacity: 6,000 lbs
  • Length from center of spring eye to center of spring eye: 25-1/4"
  • Spring width: 1-3/4"
  • Eye diameter with bushing: 9/16"
    • Eye diameter without bushing: 11/16"
  • Leaf thickness: 3/8"
  • Number of leaves: 5
  • Additional dimensions: see table


Double-Eye Spring

Part NumberABCD
SP-11127512-3/4"13-1/3"25-1/4"3-1/8"


Note: To ensure proper axle alignment and suspension performance, leaf springs should always be replaced in pairs.


Leaf springs are an integral part of your trailer suspension system. The leaf springs provide the attachment points for your trailer's axle, suspending it from the frame of your trailer. Each spring flexes to absorb road shock as you travel, allowing the axle to move somewhat independently of the rest of your trailer. This helps to reduce wear and tear on the trailer and also ensures a smooth ride.


Double-eye leaf springs attach to hangers that are welded onto your trailer. One end of this spring will attach directly to the hanger with a suspension bolt. The other end will attach to shackle straps that are suspended from a hanger. These straps allow the spring to move and pivot so that it can better compensate for uneven pavement. If you have a tandem- or triple-axle trailer, the shackle straps will be attached to the equalizer that connects multiple springs.


To mount this spring, you will need hangers, shackle straps, and suspension bolts. If you are simply replacing a spring, you may still have hangers welded onto your trailer. You should, however, replace your shackle straps because they are usually the first component to wear out. You may choose to replace old suspension bolts as well. It is recommended that you replace the other leaf spring in your setup at the same time. Because springs can sag and elongate as they wear, this new spring may not exactly match the old one, and the alignment of your trailer could be affected.


If you are fabricating a trailer, you will need to purchase a hanger kit for installation. To determine the type of hanger kit that you need, you must know the specific type of leaf spring that you have, as well as your axle capacity. Depending on the hanger kits used with them, springs can be configured to work for single-, tandem- or triple-axle applications. Hangers and other suspension components can also be purchased separately if there isn't a complete kit that works for your setup.



UNA-111 Universal Group Double Eye Trailer Leaf Spring - 5 Leaf - 3,000-lb Capacity

Replaces PR5







Economy - This item

5-Leaf Double-Eye Spring for 6,000-lb Trailer Axles - 25-1/4" Long


5-Leaf Double-Eye Spring for 6,000-lb Trailer Axles - 25-1/4" Long
Universal Group Trailer Suspension

124 reviews

Code: SP-111275

In Stock

Retail:$36.98

Our Price: $34.81


  • Trailer Suspension
  • Leaf Spring Suspension
  • Suspension Components
  • 25-1/4 Inch Long
  • Leaf Springs
  • 6000 lbs
  • Double Eye Springs
  • Universal Group


Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 6,000-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.

more information →
Compare Similar Products
Economy
Price: $22.15
$12.66 Less

4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 25-1/8" Long


4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 25-1/8" Long
Universal Group Trailer Suspension

286 reviews

Code: SP-212275

In Stock

Our Price: $22.15


  • 25-1/8 Inch Long
  • 3500 lbs


Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 3,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.

more information →
Value
Price: $125.40
$90.59 More

Lippert Components Bolt-On Shock Mount Kit w/Heavy Duty Oil Shocks - Fits 2-3/8" Axle Tube


Lippert Components Bolt-On Shock Mount Kit w/Heavy Duty Oil Shocks - Fits 2-3/8" Axle Tube
Lippert Components Trailer Suspension

5 reviews

Code: LC281255

In Stock

Retail:$169.10

Our Price: $125.40


  • Suspension Enhancement
  • Shocks
  • Round Axle - 2-3/8 Inch
  • Single Axle
  • Lippert Components
Premium
Price: $1,369.77
$1,334.96 More

Lippert Components Center Point by Trailair Air-Ride Suspension Upgrade - Tandem Axle


Lippert Components Center Point by Trailair Air-Ride Suspension Upgrade - Tandem Axle
Lippert Components Trailer Suspension

Code: LC1565391


Retail:$1,704.06

Our Price: $1,369.77


  • Cushioned Suspension
  • Utilizes Existing Axle
  • Leaf Spring Replacement System
  • Tandem Axle
  • Lippert Components

Related Products



Customers compare SP-111275 to these similar products





Customers Who Purchased This Trailer Suspension Also Bought...



Replacement parts available for this product

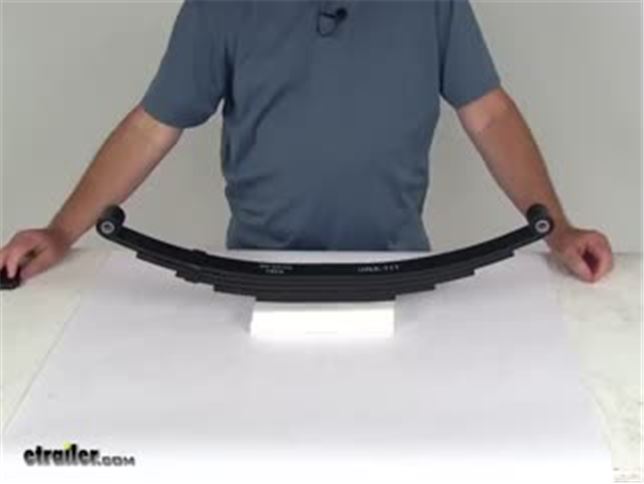

Video of 5-Leaf Double-Eye Spring for 6,000-lb Trailer Axles - 25-1/4" Long


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Universal Group Trailer Suspension SP-111275 Review

Today we're going to take a look at the 5 leaf double eye spring for 6,000 pound axles. Now this is made of a nice strong durable steel construction. It is designed to flex to absorb road shock, provide a nice smooth ride which will help reduce wear and tear on your trailer. It does ensure a nice level ride on bumpy and uneven surfaces and it does mount to your trailer frame with hangers or a hanger kit which we do sell separately on our website and lots of times we'll list them on this product page as a related product. If you notice in the eyes themselves it does include the nylon bushing. A few specs on this, the spring capacity of this one spring is 3,000 pounds so when this one is matched with one on the other side of the axle, it will give you a total .. It will meet the actual capacity of 6,000 pounds.

Again, if you notice it is 5 leafs, 1, 2, 3, 4, 5. I'll give you a few measurements on this. We're going to do the spring length and width which are the critical measurements. The spring length will be measured from the center of this eye to the center of this eye. If we take the tape measure, you can see if we go right across it will be 25 and a quarter inches for the spring length. The spring width will be measured edge to edge just right there, so you can see it's right at 1 and 3 quarter inches for the width and the eye diameter on the double eye, the eyes right here is 9, 16, 7 inch.

Now this part is for quantity of one spring. One last note I do want to mention that to ensure proper axle alignment and suspension performance, leaf spring should always be replaced in pairs. That should do it for the review on the 5 leaf double eye spring for 6,000 pound trailer axles.
