Electric Trailer Brake Kit - Self-Adjusting - 12" - Left and Right Hand Assemblies - 5.2K to 7K

Electric Trailer Brake Kit - Self-Adjusting - 12" - Left and Right Hand Assemblies - 5.2K to 7K

Item # AKEBRK-7-SA
lowest price pledge
Our Price: $208.19
Trailer Brakes
This item qualifies for Free Shipping
Shipping Weight: 30 lbs
Quantity:
etrailer Trailer Brakes - AKEBRK-7-SA
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Self-adjusting driver's-side and passenger's-side brakes are 12" x 2". Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 14.5" to 16.5" wheels. Lowest Prices for the best trailer brakes from etrailer. Electric Trailer Brake Kit - Self-Adjusting - 12" - Left and Right Hand Assemblies - 5.2K to 7K part number AKEBRK-7-SA can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (876)
  • Q & A (369)
  • Videos (2)
  • Photos
  • Why etrailer?

etrailer by AxleTek Trailer Brakes - AKEBRK-7-SA

  • Electric Drum Brakes
  • 5200 lbs Axle
  • 6000 lbs Axle
  • 7000 lbs Axle
  • 12 x 2 Inch Drum
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • 16 Inch Wheel
  • etrailer
  • Self Adjust
  • Brake Set

Self-adjusting driver's-side and passenger's-side brakes are 12" x 2". Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 14.5" to 16.5" wheels.


Features:

  • Electric brakes are easier to install and offer more user control than hydraulic brakes
    • Require only an electric brake controller (sold separately) - no actuator or hydraulic lines necessary
  • Automotive-grade friction material is molded to brake shoes
    • Pads are fully bonded - not riveted - to shoes for long life and more braking torque
    • Less chance of cracking and crumbling that can lead to mechanical lockup, thanks to tapered edge and circular grinding
  • Self-adjusting brakes do not require periodic manual adjustment like standard brakes
    • Fine-tooth brake adjustment gears allow for a more precise setting
  • E-coated backing plates resist wear and corrosion
  • Adjuster plugs (included) cover access holes to keep dirt and grime out of the assemblies and off of the shoes
  • Left-hand (driver's-side) brake assembly and right-hand (passenger's-side) brake assembly included
    • Mounting bolts and hardware (BRKH12) sold separately
  • QAI and CSA certified


Specs:

  • Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO
  • Dimensions: 12" diameter x 2" wide
  • Mounting flange bolt pattern: 5 bolt
  • Wheel size: 14-1/2", 15", 16", and 16-1/2"
  • Axle rating: 5,200 lbs, 6,000 lbs, and 7,000 lbs
  • Limited 1-year warranty


Self-Adjusting Brakes Don't Require Routine Adjustment

Standard electric brake assemblies require manual adjustment of the brake shoes over time to provide longer-lasting and more efficient braking performance. With self-adjusting brakes, the brake shoes are always properly aligned, so there's no need to manually adjust the brakes after the initial adjustment. As a result, you get optimum performance without having to take the time to continually perform this type of maintenance.


Thoroughly Tested for Safety

These brake assemblies meet the requirements for certification by the Canadian Standards Association (CSA). The CSA creates standards, which when complied with ensure a safe and quality product. These brake assemblies underwent extensive testing to measure stopping distances when braking. These brakes have also been tested by QAI for braking performance in a complete automotive setup and under real-world conditions to provide the most realistic scenario for the everyday driver.


Automotive-Grade Friction Material

Each shoe on these brake assemblies is lined with automotive-grade friction material for improved stopping performance and longevity. The friction material is fully bonded onto the surface of the brake shoe. This lining is custom-molded for a perfect fit. The edges are tapered to ensure long-lasting performance. This taper, along with the circular grinding that the lining undergoes, helps to prevent cracking and crumbling. This durability helps to prevent mechanical lockup, which can occur when brake shoes are excessively worn or broken.


The friction material is also SAE-N certified, which means that it is an environmentally safe product that complies with California and Washington regulations regarding the composition of brake pads. As a result, this material not only provides high-performance braking that can endure the test of time, but it is also environmentally friendly and safe for use throughout the United States and Canada.



B12EA-21 AxleTek 12" x 2" LH Self-Adjusting Electric Brake Assembly - Drivers Side - 5.2K, 6.0K, 7.0K Axles

B12EA-22 AxleTek 12" x 2" RH Self-Adjusting Electric Brake Assembly - Passengers Side - 5.2K, 6.0K, 7.0K Axles

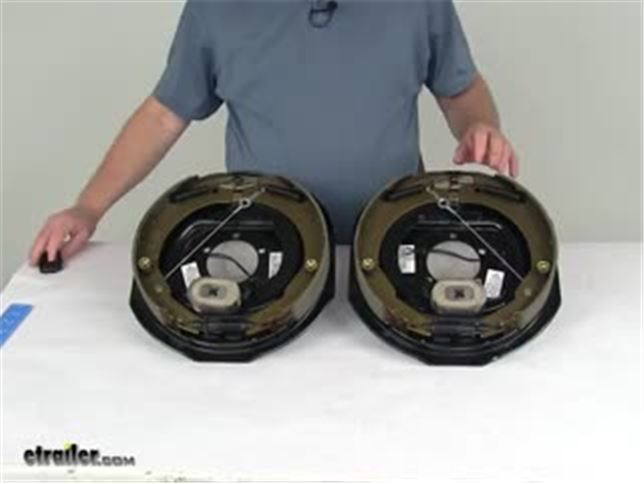

Video of Electric Trailer Brake Kit - Self-Adjusting - 12" - Left and Right Hand Assemblies - 5.2K to 7K

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Electric Trailer Brake Kit Self-Adjusting Left and Right Hand Assemblies Installation

Today on our trailer we will be installing the eTrailer Axle Technology Electric Trailer Brake Assembly, self-adjusting for the right hand side, for 5,200 pound to 7,000 pound axles. It is part number AKEBRK-7R-SA. It's also available as an assembly for the left hand side, part number AKEBRK-7L-SA. The left and right brakes are also sold as a pair with part number AKEBRK-7-SA. Here's a look at our new brake assembly. What we're looking at here is the left hand side brake assembly, but the right hand side installs in exactly the same manner. As you can see, it's an entire new assembly, new backing plate, new shoes, all new springs, a new self-adjuster, and a brand new magnet.

This is a quick and easy installation versus us repairing your worn out magnet or your warn out shoes. Just a matter of unbolting the old one, putting the new one on, and connecting your new wires. It saves you a lot of time, a lot of effort, and money in the long run. The nice thing about this brake assembly that we have here today is the fact that it is self-adjusting. Once you do your initial adjustment once you install it, you don't have to worry about adjusting it ever again.

It will take care of that for you. First thing we need to do is take off our tire and wheel assembly. We'll take off our entire wheel and set it aside. Now we need to take off our grease cap on our hub assembly. Use a screwdriver. We'll just tap it in there to get behind it.

We'll take off our keeper here on our nut. Just pry it off. Then we can remove our nut. With our nut removed, we can now remove our hub assembly. Once our hub assembly is off, we can take off our outer bearing and our spacer washer here and set those aside.

We will be replacing our hubs and our bearings so we don't need to worry about saving any of the bearings or removing the seal. We'll just set this aside and have it out of our way. Now we'll cut our wires that goes to our brake assemblies, unwrap this so we can see what we're working with here. Little snip back here to get rid of the butt connector. We'll have the new one. You can see this isn't a heat shrink butt connector; it's just a standard butt connector. We replace them with heat shrink butt connectors so it will be more weatherproof. Now before we get dirty, we're going to need to clean off this grease. We'll just take a shop towel here and wipe it off our spindle. This way is a good time to inspect your spindle too and make sure there's no deep gouging, cracks, or burns on it. Ours is looking pretty clean so far. Now that our spindle's cleaned off, we can remove our brake assembly here. I just want to point out that our brake assembly is covered in brake dust so you want to make sure you're wearing gloves when you're doing this just because a brake dust can be harmful to your health. There's five nuts that hold our brake assembly onto our axle. With all five of our nuts now removed, we can take our brake assembly, pull it off. We can discard it. Now we can slide our new assembly on. We'll make sure we have our wires up and out of the way behind it so they don't get pinched behind our backing plate here. We'll just slide it onto our axle, line up our studs, push it on. You want to make sure your magnet is facing down towards the bottom. If we did it like this, you see it's no longer on the bottom. We did it like this, it's off to the sides. You want to have it as close to the bottom as possible. Right there is perfect for our application. We'll take our nuts and we'll reinstall them. Now when we tighten these down, we'll want to make sure we go in a star pattern just like you would when you're tightening down the lug nuts on a wheel. You would do diagonally across, back, down, and then back up. You never want to do two that are next to each other at the same time. Now we're going to torque these down. Again, just like we did with snugging them down, we'll go in an alternating pattern. Now that our new brake assembly has been torqued down, we can make our electrical connections to the existing wires on the trailer. Now because trailer brakes utilize a magnet, it doesn't matter which wire goes to where. We'll take our existing wires here, strip back some insulation, take two heat shrink butt connectors. We have these available on our website if you need to purchase them. Install them onto the wire. We'll crimp it down into position. Now since these are a smaller diameter gage wire, what I like to do is fold the wire back in half on itself like that so it's a little bit thicker. Then we can crimp it down into our connector. Now we'll take our heat gun and we'll shrink our butt connectors. With this heat shrink butt connectors now heat shrinked, we have a nice, secure, weather-tight connection and we won't have to worry about moisture getting in there and causing corrosion and causing our trailer brakes to work inadequately. Now you have the option to to reinstall your old hub assembly, but while you have it off it is a good time to replace it. That is what we will be doing here. The hub assembly we are using is part number AKHD-865-7-2-K. Now we'll begin our installation by first packing our wheel bearings. We'll start with the inner one first. We'll take a tub of grease, drop the bearing on down in there, spin it around a little bit, get it nice and coated. Then we'll start working our grease into our rollers. If you need to purchase any axle grease, we do have this available on our website. Now that I'm holding the inner section of the bearing and moving the outer section, and it feels nice and smooth, what we're going to do is we'll put some grease around the inside of it and we'll coat the outer portion of the bearing as well. We'll drop our wheel bearing into our hub. Now we can install our grease seal. Just put it down in position into our hub. Now you can use a seal installer if you have one. I don't have one large enough to do this so I'm going to use the old fashioned block of wood trick. I'll stick it on top of it, make sure it's sitting nice and flush, and we'll tap it in with our hammer. As you can see, that pushed our seal in nice and straight and it didn't cause any damage to it. Now that our seal is fully installed, I always like to take a clean shop towel with some brake parts cleaner and clean off our area where our shoes will contact just in case there's any oil or grease from manufacturing on our hub assembly. We'll flip it on over and we'll work on packing our inner bearing at this time. We'll work all this grease on the outer bearing just like we did the inner one. We'll set it aside right there. We'll slide our new hub assembly onto our spindle. Now we can install our outer wheel bearing. Slide it into place. We'll take our washer here, slide it onto position. We'll reinstall our nut. We'll rotate our hub a little bit while we tighten the nut down. Make sure where good free play in our bearings, which we do. It rotates nice and smooth. That grinding noise you're hearing are our brake shoes rubbing against our drum. That's normal. We have to adjust those a little bit here shortly. Now we'll reinstall our tab here which holds our lock nut in place. Now before we reinstall our grease cap I always like to take a little bit of grease, put it in there just so, if it needs to, it can work its way into the bearings. We'll take our new cap, place it into our hub, and we'll tap it in. Clean off our excess grease. Now I always like to put the wheel and tire back on the hub before we adjust our brakes just so we can rotate the brake assembly easier and get the proper feel. Now we'll tighten down our new lug nuts, they use a 13/16 socket, making sure we go in a crisscross pattern. We'll torque all of our lug nuts once we have our trailer back down on the ground. Now that everything's installed, we need to do our initial adjustment on our trailer brakes. Once we have them adjusted properly, we don't ever have to worry about adjusting them again because they are self-adjusting. We'll take out this back cap here. I'm going to be using a brake spoon. We have these available on our website if you would like to purchase one. We'll adjust our star wheel adjuster down while rotating the wheel to make sure our brakes are starting to grab more. Once we have light drag on the brakes, we know they're adjusted properly. We have light drag. As you can see, I'm putting a little bit of effort into the tire to move the wheel assembly. Once we're right about here, our brakes are properly adjusted and we can reinstall our dust cap. Now we're going to spin our wheel and have our assistant activate our brake controller on our tow vehicle. You can see our brakes are now working properly. That completes our installation of the eTrailer Axle Technology Electric Trailer Brake Assembly, self-adjusting, for the right side, for 5,200 pound to 7,000 pound axles, part number AKEBRK-7R-SA.


Customer Reviews

Electric Trailer Brake Kit - Self-Adjusting - 12" - Left and Right Hand Assemblies - 5.2K to 7K - AKEBRK-7-SA

Average Customer Rating:  4.8 out of 5 stars   (876 Customer Reviews)

Self-adjusting driver's-side and passenger's-side brakes are 12" x 2". Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 14.5" to 16.5" wheels.

- AKEBRK-7-SA
by:

Received brake assemblies three business days after placing the order as promised by Ms. Chrissy J....who provided the finest customer service I've EVER experienced. Ms. J should be commended for her positive, can-do attitude and commitment to this customer! She explained how to measure the brake assemblies so that I ordered the proper size. And then she promptly ordered the parts and explained when I should expect delivery. She also helped me order for grease seals for all four hubs. All the parts arrived when Ms. J told me they would arrive. And, it is such a time saver to replace the electric brake assembly rather than rebuild existing assemblies. This is my second purchase of brake assemblies and it's always easier to remove four bolts and use a butt connector to splice electric to new assembly than spend hours replacing shoes and associated hardware. Chrissy J provides twelve out of ten level service. Yes, she's that prolific! 725435



- AKEBRK-7-SA
by:

excellent 699428



- AKEBRK-7-SA
by:

They are supposed to be self adjusting, however, they do not seem to self adjust. I have to get under the trailor several times to adjust 720201



- AKEBRK-7-SA
by:

So happy to have the new self adjusting trailer brakes. The old ones were shot. The price and the speedy free shipping make etrailer the best. Every American company should be run this way. 695998



- AKEBRK-7-SA
by:

Absolutely the best customer service team. I had to call a few times to be sure of the best part size. I ordered four brake assemblies. They arrived quickly and well packaged. They very easily replace the existing. Four bolts and two wires per each and that's it. Replaced bearings and races at the same time. Trailer is a Sailtrailer. 12k capacity. 720606



- AKEBRK-7-SA
by:

Decided to spoil my equipment trailer with a new set of brakes. While searching the web I came across Etrailer mostly because their prices were the lowest and the website was easy to navigate. Shipping was free and amazingly fast. Ordered on Tues. and UPS delivered on Friday. Let me start by saying i'm no trailer mechanic! These brake assemblies were just what I needed. I watched the install video and the job went smooth and without any problems. I highly recommend this to anyone intimidated by brake shoes and springs. Just bolt on the entire brake assembly in one piece, replace the hub, a quick brake adjustment and your on your way. It doesn't get any easier! 358278



- AKEBRK-7-SA
by:

First step was the ordering, Talked to Steve and he was very well versed on what I needed. He gave me his direct line so after I got my bearing #’s and call back it took only minutes to finalize the order. I ordered on Wednesday and received everything on Friday. Wow, Great service. Doubled checked all the items and everything was perfect. Buying the assembly is the way to go. Very quick install. Great experience. 679952



- AKEBRK-7-SA
by:

These assemblies were a perfect match. Bolted right on and the materials they are made of seem to be comparable to the Dexter assemblies I removed. Only time will tell if they hold up. The pads on the dexter assemblies were coming loose from the shoes and curling at the edges. Hoping these will do better. Gave these a 4 because my main concern when buying online is that things fit and the materials are good. No issues with installation. 565668


Comments
I am glad I added these self adjusting brake kits. They seemed to have adjusted correctly, and from what I can tell, the brakes are working well. My 26 foot camper is old and pretty heavy at 5200 lbs dry weight. Seems to be braking evenly and cannot detect any pulling side to side or unevenness when I use the brakes. I am leery about giving 5 stars with only a year of use, but yeah, 5 stars at this point.
Kenny - 09/16/2019

61208

- AKEBRK-7-SA
by:

Brakes were exactly as they said on the website. I would say that I wish they had a cross reference from older brake numbers to the new ones. I received the brakes in 2 days using the free shipping and replaced all 4 wheels on my trailer. 417146



- AKEBRK-7-SA
by:

I thought I had the right product selected and called customer service but was quickly informed that I would need a different style for my trailer. Glad I called. The shipment came in a timely manner. The parts all fit well and went together smoothly. Only problem was brakes would not engage when energized and after trying to troubleshoot I called for support and was told it had to be a problem with my ground. I was convinced that I had a good connection but upon further inspection the wire popped out of the harness and once it redid it the brakes worked flawlessly. Good product and customer service. 565186



- AKEBRK-7-SA
by:

I am replacing the brakes on our 2016 Forest River Shockwave Toyhauler. After removing the wheel drums to repack the bearings, I noticed splattered grease covering the entire brake system of each wheel. Most likely due to me over greasing the EZ lube axles. The brake assembles I ordered and received were exactly the same I was replacing which made the job very simple. I made the initial adjustments then took the trailer out for a test drive to break-in the shoes. They feel better than new. Ordering was very straight forward and shipping arrived a day sooner than expected. I will continue to use etrailer.com for my future trailer/towing needs. Now I know how many pumps of the grease gun it takes to adequately lube each axle. 505053


Comments
Weve put on about 4000 miles on the 12 self-adjusting brakes and they feel solid. Travelling through winding canyons and mountain roads have not been a problem. I feel safe when towing my trailer and look forward to many miles ahead.
Bryan D - 05/07/2019

54987

- AKEBRK-7-SA
by:

I sent a question to etrailer.com Re: brake assemblies for my 1964 Airstream RV. I got a prompt response explaining how to measure the old brakes on the trailer to correctly size the brakes I needed. Finding the size allowed me to research the hub & bearing assemblies I also needed. I ordered them all with confidence they'd fit. Installed the self adjusting Electric Brake Assemblies along with the Hub kit with bearings, All parts fit together perfectly. Thanks George. 419448


Comments
I’m very satisfied with the Brake and Hub Assy’s. I purchased from you guys. I recently had a question regarding Lug Nut Torque on the Hubs. I couldn’t locate any info on the instructions that came in the Boxes nor could I find this Info on the website. I looked in the FAQ’s area & also on the parts info page for the parts I bought. I like finding the Info myself, Usually after hours. I ended up having to call you guys. I talked to Sammie at Customer Service, She didn’t have the exact but did know where to get it. She sent me the Torque Chart with the Torque settings for the Hub and Wheel Type I have. I think that this Info Should be included in the box with the new Hubs and Lug Nuts, Plus easily found on the website. Your Videos and Tips are a Great Extra Plus for us DIY’s like me. I Appreciate Your effforts!! Thanks Again,
Ernie T - 08/15/2018

42359

- AKEBRK-7-SA
by:

So Disappointed!! This is a review of my order experience, not the product. I needed to replace the brake assemblies on my camper before we could go on vacation. I call to see how long it would take to receive and was told 2 days. I placed the order and received as told. I was about to be impressed until I opened the box. They not only sent the wrong brand, but also the wrong size. I called customer service and had to wait 45 minutes for someone answer. She agreed it was their mistake. I told her I only had two more days to get them on and still go on vacation. I asked for next day delivery. She was able to do that, but said it would ship that day and go 2nd day. The next day, the order had not shipped and the tracking number I was given doesn't even register on UPS. I don't when or if I will receive the correct product. Very disappointed that they would not step up and make it right. 402822



- AKEBRK-7-SA
by:

These are outstanding backing plates and brakes setups. I ordered four of these for my 1997 Sunnybrook fifth wheel. Everything is preassembled! All I had to do was adjust the brakes a little to get the new hubs over them and that was all. Five nuts to remove and replace. Great product! 382238


Comments
The Drums, Bearings and Backing plates I installed from your company have worked GREAT! I have not had a single issue with their operation. I even accidentally ordered the incorrect seals, and that was handled perfectly! Thanks so much for carrying and supplying QUALITY parts and having excellent customer service!
Terry M - 05/18/2018

38650

- AKEBRK-7-SA
by:

Before and after pictures. I needed to use acetylene torch to remove the old. New brakes fit perfectly and new bolts tightened up well. Will definitely buy again on a few years. Thank you 410556



- AKEBRK-7-SA
by:

All I can day is WOW! Great customer service fast shipping with awesome prices and easy installation. Having never done anything like this before my wife and I were skeptical about the amount of work that would be required. However I have to say if you can change a tire and grease your bearings you will have no trouble changing brakes. Thank you etrailer! 557829



- AKEBRK-7-SA
by:

Perfect fit great price and fast shipping thanks. 644987



- AKEBRK-7-SA
by:

These brake backing plates are great and really cost about the same as buying shoes and springs separately...but this way they come pre-assembled. These come with new mounting bolts and nuts. The nuts DO NOT appear to be of good quality and I would advise against using them. (use your originals) Replacing all four backing plates on my trailer, I broke out the digital torque wrench to torque the 5 backing plate nuts/bolts to the recommended 50ft-lb. At less than 30 ft-lb of torque, I noticed they would not get any tighter, although I was backing up the bolt with a wrench. I removed the nut to find the treads had pulled thru the nut, not cross threaded as I hand tightened them initially, but the threads just gave up. Bolts still looked ok. I replaced with my originals and all is ok. Don't trust these supplied nuts without verifying torque with a torque wrench. If I was etrailer, I would remove them from the kit. 468170



- AKEBRK-7-SA
by:

I replaced the (4) brakes on my 8 month old 5th wheel trailer due to leaking grease seals. While I was in there, I wanted to "upgrade" to self-adjusting brakes and this brake kit fit the bill splendidly. Installation was straightforward--simple and easy. Initial brake adjustment was easier with the new kit than adjusting the OEM brakes I was replacing (the adjusting stars line up with the adjuster holes in the backing plates on the new brakes--not so much on the OEM brakes). The self-adjusters work as they should--used to be I'd apply the trailer brakes only from time to time (in a parking lot or fuel station) to check on how the OEM brakes were working and whether or not it was time for a brake adjustment. I still check my trailer brakes in the same manner, however, I've not had to adjust the new shoes since the initial install...very convenient. Overall, I'm very satisfied with my new brakes and the service from etrailer. P.S. I've uploaded a set of "before & after" pictures... easy to tell the difference, eh? Have you checked your brakes lately? 486715



- AKEBRK-7-SA
by:

I had a very good experience with my order. Although I don’t have my brake assemblies installed yet they arrived in two days with no damage and seem to be of good quality. I also called to verify that I ordered the correct parts for my 5th wheel rv and they were very helpful and cordial. Will not hesitate to do more business with ETRAILER! 543598


Comments
It’s been a year and these assemblies have worked out great! Easy install and no more manual adjustments!!
Roger - 07/19/2019

57975

- AKEBRK-7-SA
by:

I have ordered from etrailer.com on other occasions and for the most part what keeps me coming back in the pricing. They usually have the lowest price for the same original equipment. Be careful if you haven't heard that your product has shipped in a reasonable amount of time, even if their website says they have the item in stock. They will hold your order until they have all the parts to ship. I had not seen a shipped email for almost a week and when I called they said they would have it to ship in mid august, about a month after I ordered. I was told they had a similar item in stock ready to ship now if I wanted to change my order. I appreciated that and did change my order, however, I needed to know that information at the time they knew it because I had to change my vacation plans because I could not get the parts in time to take our 5th wheel. Overall this is a good place to order parts from and I will keep doing so. 414913



- AKEBRK-7-SA
by:

Brake assemblies were delivered fairly quickly, not totally pleased to find they were made in China. They were not packaged appropriately and had a couple of chips on lining. I didn't want to go through the hassle of returning them so I just put them on. I am going to give it a 2 star rating for quick delivery and price point for the product. I would buy again for a trailer that is not used often but would not recommend these for a heavy trailer. 545763



- AKEBRK-7-SA
by:

Originally wanted to just repack wheel bearings, so I pulled a wheel to find out which Grease Seals to order. Found brake shoes worn a lot. Because the price on a complete assembly was sooo reasonable, I ordered 4 assemblies plus seals. Turns out the other three (original) brake assemblies had blown grease seals. What a mess! Not to mention my experience of poor to no braking power! So glad I ordered new, complete brake assemblies. No mess, no fuss. Just pull old assembly, cut wires, replace new assembly, splice wires- Done! BTW - one of the new assemblies had a crack in the shoe - probably from being banged in shipping. etrailer replaced it right away and I returned the cracked one. What GREAT service! I have attached a pic of one of the old assemblies w the blown grease seal so you can see how reasonable it is to just buy and replace the whole thing vs. all the clean up that you would need to do if you did just the shoes. 513017



- AKEBRK-7-SA
by:

Product GOOD Packing and ability of shipping company to deliver without damaging product not so good. It sure defeats the purpose of buying a complete brake assembly if I have to reassemble 3 of the 4. SEE PICTURES 529577



- AKEBRK-7-SA
by:

All parts were received and in good condition. Everything fit and went together fine. The final and best test will be the end of Nov. when it goes on a 1500 mile one way trip. Crystal was great to do business with. Very professional. 559351


45
916
Show More Reviews

Ask the Experts about this etrailer Trailer Brakes

  • Difference Between Dexter and etrailer.com Brand 12 inch Brake Assemblies
    Dexter brake assemblies like the part # 23-458-459 are essentially the best ones on the market. They use the best materials and and incredibly reliable and well-made. That being said the etrailer.com brand assemblies part # AKEBRK-7-SA are also very well made too. We have sold a ton of these and gotten very positive feedback on how well they well they work and how reliable they are. If it was my money I would go with these unless you want to have the absolute nicest materials money...
    view full answer...
  • Electric Brake Assemblies For Dexter 6000 lb Axles With 12x2 Inch Drums
    The brakes you are looking for are a standard size, so rather than getting the shoes and magnets for your older design, I recommend upgrading your system. I recommend the Electric Trailer Brake Kit - Self-Adjusting - 12" - Left and Right Hand Assemblies - 5.2K to 7K # AKEBRK-7-SA. These are really well made assemblies. The brake pad material is actually cut instead of scored and broken like other assemblies, so you get a better quality pad. If you want the current Dexter assembly...
    view full answer...
  • Replacement Hub and Drum Assemblies for AL/KO 8460 Hubs and Drums
    It looks like Trailer Hub and Drum Assembly - 5,200-lb Axles - 6 on 5-1/2 Item # 8-201-5UC3 could be the right replacement for you. You can check the bearing numbers if you still have the bearings. If they are 25580 for the inner and LM67048 then this hub and drum assembly will work. If you have different bearing numbers let me know what they are. And if you do not have the bearings anymore you can measure the spindle with digital calipers such as # PTW80157. I have linked a help article...
    view full answer...
  • How to Find Replacement Trailer Hub Assembly for Dual Axle Trailer with 6 on 5-1/2 Bolt Pattern
    To ensure you get the correct replacement hubs for your trailer, you will need to find either the bearing numbers on your existing hub assembly or you can measure the spindle if these cannot be found. The bearing numbers should be stamped onto the bearings themselves. I have attached an image that shows what numbers or dimensions are needed. When measuring the spindle, I recommend using a digital caliper like # PTW80157 to get the most accurate measurement possible. For example, the...
    view full answer...
  • Replacement Hub/Drums and Brake Assemblies for Dexter P-29 SLR D52 Trailer Axle
    For a 5,200 lb D52 Dexter trailer hub/drum we have the part # 8-201-9UC3-EZ which fits your spindle and comes with the bearings and seals. For a set of self adjusting brake assemblies then you'd want the part # AKEBRK-7-SA and you'd be set.
    view full answer...
  • Replacement 12 inch Brake Assemblies for Hadco Trailer Axles
    We have a large selection of 12 x 2 electric brake assemblies available, which I have linked for you to look through. I recommend looking at the etrailer.com Electric Trailer Brake Kit - Self-Adjusting # AKEBRK-7-SA. These 12 inch assemblies are designed for 5,200 to 7,000 pound axles and feature a 5 bolt mounting flange bolt pattern. They are also self-adjusting so they will not require periodic manual adjustments like standard brakes. I have included a short video demonstration on this...
    view full answer...
  • Replacement Brake Assemblies for a 7K Trailer with 12 x 3 inch Brake Assemblies
    If you are just wanting to get new brake assemblies you could use part # AKEBRK-7-SA for 12 x 2 assemblies for electric brakes or part # AKUBRK-7 for hydraulic brakes. These measure 12 x 2 inches so they will fit in the hubs you have now, plus they are rated for up to 7,000 lbs axles like that you have. They also fit a brake mounting flange that has a 5 bolt pattern. Although this will work, I recommend going ahead and replacing your drums as well so that you have an entirely new system...
    view full answer...
  • Replacement Hub/Drum and Brake Assemblies for Trailer with AL-KO 8460 Hubs
    From past customers we've learned that the AL KO 8460 hub/drum are 5,200 lb capacity drums that have a 6 on 5-1/2 inch bolt pattern. So for a replacement hub you'd want the part # 8-201-5UC3. And then for a pair of brake assemblies you'd want the part # AKEBRK-7-SA like you referenced.
    view full answer...
  • Replacement Bearings for a 2007 Weekend Warrior SuperLite FS2500
    I really wish I knew exactly what size bearings your trailer has but trailer manufacturers do not provide us with this information. However, if the Electric Trailer Brake Kit part # AKEBRK-7-SA that you purchased is correct then the most likely hub/drum to pair with these brakes is the Trailer Hub and Drum Assembly part # AKHD-655-6-K which uses a 25580 inner and a 15123 outer bearing. In order to be certain this is the correct hub/drum for you, you can either pull the hubs you have now...
    view full answer...
  • Recommend Electric Drum Brakes For A 7,000 Lb. Axle
    I have a few options for you to consider when replacing the electric drum brakes on 7,000 lb. axle. You can choose from a self-adjusting or manual adjusting assembly. The self-adjusting drum brakes like the Electric Trailer Brake Kit part # AKEBRK-7-SA have an integrated mechanism that will automatically move the adjuster screw outward as the shoes begin to wear. This will ensure you are receiving the maximum performance and wear life from your brakes. The second option you have is...
    view full answer...
  • Recommended Replacement Electric Trailer Brake Assembly for 5,200 - 7,000 Pound AL-KO Axle
    For replacement self-adjusting electric trailer brake assemblies on your trailer with AL KO T52 axles, which are rated at 5,200 to 7,000 pound capacity, I recommend the etrailer.com Electric Trailer Brake Kit - Self Adjusting # AKEBRK-7-SA. These are 12 x 2 inch, self-adjusting brakes that are compatible with your AL-KO axle. This kit includes both the left hand and right hand brake assemblies. The mounting flange has a 5-bolt pattern. For the mounting hardware on these brake assemblies...
    view full answer...
  • Replacement Electric Trailer Brakes for a 2010 Montana 3400RL Hickory
    Before you replace anything try adjusting the brakes, if you haven't already. I've attached an article and a video on adjusting brakes. In the video skip ahead to about the 4:35 mark to see the adjusting. It can be easier using an Adjustment Spoon # W80630. If you do need replacement brakes my guess is that you'll need 12 inch assemblies, based on the size of your trailer. However, you'll want to measure to make sure. Measure the insides of your drums like is shown in the attached...
    view full answer...
  • How to Adjust Drum Brake Pad Pressure Using Brake Spoon Tool
    If you have not already done so you can adjust the brake pad pressure star wheel to increase the pad pressure on the hub surface. This will increase your braking force. Since it sounds like all the brakes are behaving in the same way (and have the same modest wear) this is most likely the issue. You can use the brake spoon adjustment tool # W80630 or a flat blade screwdriver to rotate the star wheel upward (as viewed from the rear of the brake, where the adjustment slot is). Please refer...
    view full answer...
  • Replacement Brakes and Hubs for a 2008 Dutchmen 30S-DSL Travel Trailer
    The correct self-adjust braking assembles and hub/drums for your 2008 Dutchmen 30S-DSL are going to be the Electric Trailer Brake Kit part # AKEBRK-7-SA and the Trailer Hub and Drum Assembly part # AKHD-655-6-EZ-K (2). I was able to verify all of this with Lippert using the serial number on the axle. The 4,400 lb axle uses the same hubs and brakes as the 5,200 lb axles.
    view full answer...
  • Recommended Brake Assemblies for 5,200 lb Lippert Axles on Toy Hauler
    For your brake assemblies, I recommend the Electric Trailer Brake Kit # AKEBRK-7-SA which will give you the brake assemblies for one 5,200 lb axle. These brake assemblies are self-adjusting so you will not need to do anything to maintain them. They will automatically adjust as they wear to give you the best braking available. Since you haven't done any maintenance in the past 12 years, I recommend replacing the assemblies versus just the individual parts. I think you'll be really...
    view full answer...
  • Brakes for 1998 Coachmen 285RK 5th Wheel Trailer
    You'll want to check the axle stickers on your 1998 Coachmen 285RK 5th Wheel, but as long as the axles are 5200 to 7000-lb axles with 12" drums, you will be able to use the Electric Trailer Brake Kit # AKEBRK-7-SA to replace the brakes on your rig. If you have a different axle capacity and drum size, please let me know and I can recommend a different brake kit. This kit includes the right and left brake assemblies, but does not include the mounting hardware. Since this kit doesn't come...
    view full answer...
  • Replacement Braking Assemblies for Trailer with 5 Bolt Brake Flange and 12 Inch Brakes
    The axle tag may be wrong but you really don't need to look into this too much further as you have given me the two bits of information that I need to confirm the correct braking assemblies and that is the number of bolts on the brake mounting flange and the size of your braking assemblies. Based on this, I can confirm the Electric Trailer Brake Kit part # AKEBRK-7-SA are a fit and will work on your trailer. These are also commonly used with hubs/drums that have a 6 lug pattern.
    view full answer...
  • Recommended Electric Trailer Brakes for 7K Axle
    Dexter does make excellent products, but in this case I recommend going with our Electric Trailer Brake Kit # AKEBRK-7-SA over the Dexter Nev-R-Adjust Electric Trailer Brake Kit # 23-464-465. They both have the same features except that the etrailer.com option has pads that are cut during production as opposed to snapped off. This results in the etrailer.com brake pads lasting longer and having better resistance against wear and tear.
    view full answer...
  • Recommendation to Replace Dexter 023-326-00 Electric Brake Assemblies on Trailer
    Based on my research, the 023-326-00 number you found at the back of your existing brake assemblies refers to the Dexter 12 inch x 2 inch electric brake assembly that is designed for 6,000 pound axles and features a 5 bolt mounting flange pattern. If this is correct, you can indeed use the etrailer.com Electric Trailer Brake Kit # AKEBRK-7-SA that you referenced. These 12 inch x 2 inch self-adjusting assemblies do not require periodic manual adjustments like standard units. They are...
    view full answer...
  • Replacement Electric Brake Assembly for AL-KO 5,200 Pound Axle
    If you are just replacing the electric brake assemblies for your AL-KO 5,200 pound axle, I recommend looking at the etrailer.com Electric Trailer Brake Kit - Self-Adjusting # AKEBRK-7-SA. These are 12 inch x 2 inch self-adjusting brakes designed for axle ratings of 5,200 pounds. They have a 5 bolt mounting flange bolt pattern and this kit includes both the left hand and right hand brake assembly. These self-adjusting brakes will not require periodic manual adjustments like standard brakes....
    view full answer...
  • How to Determine Correct Electric Brakes for 5th Wheel Trailer
    I assume you are looking for electric brakes and for a drum with a 4,400 lb axle that has a 12 inch diameter a great option is the Electric Trailer Brake Kit - Self-Adjusting - 12" # AKEBRK-7-SA. These are rated for more than your axle's capacity but the only brakes available for 4,400 lb axles are 10" such as the Dexter Nev-R-Adjust Electric Trailer Brake Kit # K23-478-479. You do need to make sure you have a 5-bolt mounting flange bolt pattern; it will also require Mounting Hardware...
    view full answer...
  • Replacement 12 inch Brake Assemblies for Dexter 36-89 on Trailer
    The brake assemblies you have are 7k Dexter assemblies that are 12 inch by 2 inch in size. The part number # AKEBRK-7-SA will work as a great replacement set. This includes assemblies for both sides of your trailer that are self adjusting.
    view full answer...
  • Self-Adjusting Brake Assemblies Compatible with AL-KO 7200 Drums
    The Electric Trailer Brake Kit - Self-Adjusting - 12" - Left and Right Hand Assemblies - 5.2K to 7K # AKEBRK-7-SA will fit an AL-KO 7200 drum. These brakes will not require maintenance adjustments as the shoes wear over time because they will automatically adjust as needed to give you the best braking function. Those hubs are discontinued and uniquely sized to fit the 99 spindle, so if you need replacement hubs compatible we have the Trailer Hub and Drum Assembly - 7,000-lb Axles -...
    view full answer...
  • Comparing The Electric Trailer Brake Kit # AKEBRK-7-SA To 7K Dexter Brake Assemblies # 23-465/23-464
    The Electric Trailer Brake Kit - Self-Adjusting - 12" - Left and Right Hand Assemblies - 5.2K to 7K # AKEBRK-7-SA are the equivalent of the Dexter 7K assemblies # 23-465 and # 23-464. They are actually a little nicer than the Dexter assemblies in my opinion because the brake shoe material is cut instead of scored and broken off so there is a cleaner line for less wear and tear at the edge of the material. They are absolutely compatible with the Trailer Hub & Drum Assembly - 7,000...
    view full answer...
  • Axletek-12-GG Replacement Brake Assembly and Hub Recommendation
    The correct set of replacement brake assemblies for your AxleTek 12 inch assemblies is the kit part # AKEBRK-7-SA that you referenced. This kit is a pair of left and right assemblies that are an exact match to what you have that are also self adjusting as well. Then if you have a 6 lug hub/drum currently the correct replacement would be the part # AKHD-655-6-EZ-K or if you have an 8 lug hub you'd need # AKHD-865-7-G-EZ-K.
    view full answer...
  • Routing Electric Brake Assembly Wires For Best Connection and Function
    Depending on the size of your trailer, I recommend the Electric Trailer Brake Kit - Self-Adjusting - 12" - Left and Right Hand Assemblies - 5.2K to 7K # AKEBRK-7-SA or the # AKEBRK-35-SA for 3,500-4,200 lb axles. These assemblies will install with # 10-1-1 wiring run from the electric brake output wire of your trailer connector to one side of your brake magnets and then the other wire of your brake magnet gets wired to ground on the axle or the trailer frame. This wiring does not...
    view full answer...
  • How To Determine Correct Braking Assemblies for Tow Master Trailer with Unknown Axle Capacity
    It is not required to know the axle capacity when selecting the correct replacement barking assemblies for a trailer axle though it does help. If you want to try and determine this you can look for a sticker on the center of the beam or measure the diameter of the beam assuming it is indeed a round axle tube. The smaller 3,500 lb axles usually have a 2-3/8" diameter whereas the larger 5,200 lb and 7,000 lb axles usually have a 3" diameter. That said, if you know the size of your braking...
    view full answer...
  • Piezas necesarias para agregar frenos eléctricos en un remolque con ejes de 5,000 lb
    Para agregar frenos de remolque eléctricos a sus ejes de 5,000 lb, necesita una brida de montaje del freno (la mayoría de los ejes del remolque vienen de serie con ellos), un conjunto de freno, un conjunto de cubo y tambor, cableado del remolque, un kit de arranque y un controlador de frenos en su vehículo . Si no tiene una brida de montaje del freno, entonces necesita la pieza # 4-44-1 que debe soldarse profesionalmente con una plantilla. Esto le permitirá instalar el kit de freno eléctrico...
    view full answer...
  • Does etrailer.com 7k Brake Assembly Kit Fit Rockwell 7k Trailer Axle
    Yes, the Rockwell trailer axles are made to the standard axle dimensions so the Electric Trailer Brake Kit # AKEBRK-7-SA that you referenced will fit and work well on a 7k Rockwell trailer axle like yours. I attached an install video for this kit for you to check out as well.
    view full answer...

Do you have a question about this Trailer Brake?




  • Why etrailer.com?

    At etrailer.com we guarantee:
  • Highest quality trailer brakes for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer brake information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Mike L
Expert Research:
Michael H
Expert Research:
Jameson C
Expert Research:
Adam R
Expert Research:
Jeffrey L
Edited by:
Lindsey S
Installed by:
Jeff D
Installed by:
Brent H
Video Edited:
Dustin K
Updated by:
Sarah W
Written by:
Alexander C
Video by:
Zach D
Test Fit:
David F

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!
Call 800-298-8924
