Optronics/
Clearance Lights/
Rectangle/
LED Light/
RedItem # MCL32RB
Retail:$18.00
Our Price: $4.24
You Save: 76%Orders above $50 qualify for Free Shipping

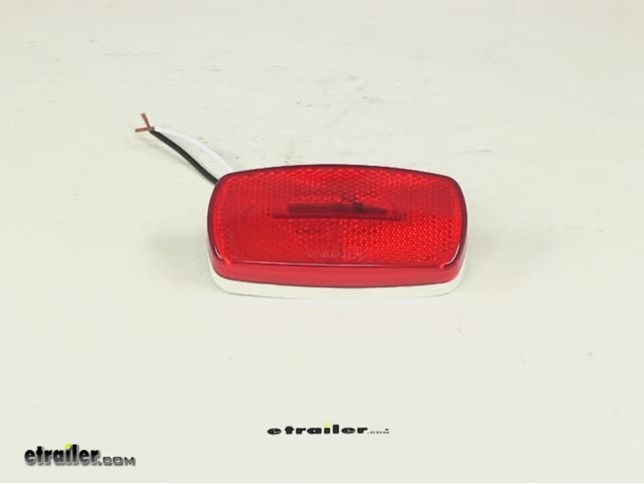

4" x 2" Rectangle. LED trailer light functions as a clearance or side marker light when properly mounted. Built-in reflex reflector. Durable ABS housing with white base. Surface mount - hardware not included. 2-Wire design. P2 rated.
Features:
Specs:
A P2-rated light produces a 45-degree angle of light to either side of its centerline for a total of 90 degrees of coverage. This beam pattern can be seen straight on, but it cannot be seen clearly from the side. So this type of light can be used as either a side marker light or a clearance light, but it cannot function as both. If you need both functions, then you must install 2 separate lights on your trailer - one as a front or rear clearance light and one as a side marker light.
California residents: click here
Video of LED Trailer Clearance or Side Marker Light w/ Reflex Reflector - 3 Diodes - White Base - Red Lens
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Today we'll be taking a look at and installing the Optronics LED trailer clearance or side marker light. Part number MCL32RB. Now this is what our old incandescent side marker light looks like and this is what our new Optronix LED side marker light looks like. LED's are the perfect replacement for incandescent lights. They can last up to 50 times longer, are more efficient and there are no bulbs to replace. This rectangular trailer light can function as a side marker, a clearance light or an identification light. It's 4 inches long by 2 inches tall and 1 inch deep and it is DOT compliant. Now let me go over some of the features and go ahead and show you how to get it installed.
So we'll need to pop the cap on our old incandescent light here. Just taking a flat head screw driver and just easing it off like that. Then I'll grab my phillips head and I'll remove the 2 screws on the end here. Now we'll need to make sure and set these aside because our new LED light doesn't come with any hardware. Now as you can see our old light has some sealant around it, no big deal. Once I get the casing off I'll go around with a scraper and take that off.
So we can go ahead and pull the wiring out a little bit. Now with all that cleaned off, I'm going to go ahead and cut my wires. First I'm going to clamp them in place so we don't lose them back in the camper. Now let's strip back our wires. We're going to come back a 1/4 inch to about 3/8ths and trim that off, just like that. Now when installing our new side marker we're going to be using some heat shrinking butt connectors.
And these are going to be part number DW05743-5. So we'll just put them on in place and then we'll crimp them down. Then we grab out side marker. Now they are going to come pre stripped so all we have to do is just remove a little bit of the housing there. We're going to put white to white, and then black to green. Before we mount it, let's go ahead and check our power.
All right, now that we know we have power we can go ahead and mount it up. Let's first shrink our butt connectors. Now if you don't have a heat gun, you can also use a lighter. Now let's take out the casing on our light and remove our crimpers. You can just line up our holes that we had before and reinsert our screws. Perfect. Now we can just replace our lens. It just snaps on place and then we have it. Now it's up to you if you want to caulk it or not. It was caulked before so I'm go ahead and caulk it again. We do sell caulk here at etrailer.com and that's part number 0160297. And that's going to complete our look and install of our Obtronics LED trailer clearance or side maker light. Part number MCL32RB.
Average Customer Rating: 4.8 out of 5 stars (143 Customer Reviews)
4" x 2" Rectangle. LED trailer light functions as a clearance or side marker light when properly mounted. Built-in reflex reflector. Durable ABS housing with white base. Surface mount - hardware not included. 2-Wire design. P2 rated.fast deivery, good price, good product. 668400
Replaced burned out incandescent clearance light with LED. Been doing that with all my incandescent lights as they fail. Worked great and fantastic price. Wiring info on the etrailer web site also helpful. This was the closest match to the originals. 553662
This red LED side marker light works well and has adequate power leads. I purchased two of these as well as two of the amber side marker lights. For some reason, the lens cover on both of the red ones does not securely snap on. With the slightest bump/jar, they will pop off. I added some superglue to the pressure points to help secure them. I'm counting on never needing to service them since they are LED. Didn't have this problem with the Amber ones. 304129
I've ordered from you guys several times, always a good experience. Some of the things you have are available on big web-site stores, but I am old fashioned and really like being able to talk on the phone. The main reason I need to talk is for special shipping instructions and it always works out with you guys! The marker lights look great and are as promised, way better than the ones that never showed up from the big store. 723411
These are excellent . 721058
TOO SMALL AND NOT WATER PROOF - CAN'T FIND ANY THAT FIT THE BUMPER ENDS ON THE SUZUKI SAMURI JX. I NEED LIGHTS NOT REFLECTERS; AS MOST DEALER SEEM TO THINK; YOURS WERE THE FIRST THAT LOOKED PROMISING. WILL BE USING THE ONES I GOT FOR THE VARDU. tHANKS 717668
Great customer service 715404
Performing as expected after one year! 711507
SIze was a perfect match for my existing light. Very Bright! 707043
I was very pleased to receive the product just as ordered. These are excellent lights; better than the original ones. 706989
Good price,good product. Thanks 706688
Got the three LED tail lights to upgrade my 18 ft trailer. Should work fine. Thanks. 697449
Received product on time and in good condition, great value for the money 692636
Product arrived on time and accurate to my order. 688174
I'm fixing up a 20 yr old RV so I ordered several parts and all were exactly as requested. Delivered in 4 days. Web site is very easy to maneuver. Going to use them again this week. 674563
I was impressed on how fast they processed my order. The product! Received came packaged well and was of good quality. I will order stuff from here again. Thanks. 674260
fast and easy shipment was quick this is my second set of lights I have bought 662505
These lights are bright and exact replacement to the existing incandescent clearance marker light. The mounting holes lineup exactly. 657459
As described. Nice replacement for my old running lights. 658011
etrailer comes through again! I was pleased and surprised to find these Bargman lights. They are an exact replacement for the Bargman lights in my 1985 Champion Lasalle motorhome. No more fussing with corroded light sockets. These LED lights are much more visible then the original incandescents ever were! Be safe. Be seen. 653558
Installed a couple of days ago and took out the RV yesterday. Works as advertised. 646882
Found just I was looking for, website is great. My order shipped sooner than I expected and I had it in 3 days. Great service again from etrailer, I will be back. 637515
Good quality 634693
Bright replacements at one third the cost for the taillights on my Cub Cadet tractor. 615788
Great product. 611018
Received parts for my enclosed trailer today. Very prompt. Well packaged. Thanks 609377
looks and works great 603869
looks and works great 604177
looks and works great 604175
looks and works great 604171
Received the order quickly. Product is a direct replacement for what I need 600714
Easy install and they look great. Much better and brighter than the original incandescent lights. Exact fit as the original lights on my trailer. 600603
product was as promised and delivered q uickly 600047
I ordered 7 red and 6 amber for my 5th wheel camper to replace the old lights, they will work just fine, because all the holes in the camper and the lights line up perfectly. 593226
Great Customer Service 592450
I am pleased with the quality of this clearance light. 591261
Good replacement 590166
really tough made product. Low lighting in daylight, but makes a very good job at night. 582922
Great bang for your buck replacement led marker 577048
These LED lights not only fit perfectly and were hassle free, but they are actually nicer than the stock one that I scraped off when cutting a corner too sharp at a gas station. Oooops. Anyway, the new ones are brighter and fit like a charm. Service at eTrailer was great with fast delivery. I will be using them for future purchases. I am very impressed with them. I only needed one, bought I bought two so each side of the RV would match. Couldn't be happier with the product and the service. 576947
Very bright very reflective a great upgrade for a reasonable price and quick easy install 574832
This light was easy to install and shined a bright light. 573526
Perfect fit 566546
High quality product, great price, and excellent service. 562710
easy peezy 562014
the LED looks great! 553457
When placing my order, the sales rep was extremely helpful to assure I was ordering the right equipment. They were very knowledgeable about what I needed for my older RV, and the breaks and bearings fit perfectly. Also, shipping was fast. I will get all my RV upgrades in the future from etrailer. Highly recommend them, and prices were good. 553337
Right product...right price 550813
I am very satisfied with the lights. They look like the original lights and are LEDs. 549689
Arrived quickly and was just what I ordered and very easy to install 547848
