Pro Series Round, A-Frame Jack - Topwind - 14" Lift - 2,000 lbs

Pro Series Round, A-Frame Jack - Topwind - 14" Lift - 2,000 lbs

Item # PSEA20000103
lowest price pledge
Retail:$42.35
Our Price: $25.41
You Save: 40%
Trailer Jack
Orders above $99 qualify for Free Shipping
Shipping Weight: 10 lbs
Quantity:
PSEA20000103 - No Drop Leg Pro Series Trailer Jack
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Ideal for multiple agricultural and commercial applications, this standard A-frame jack features an 8" retracted height and measures 11" from the mounting bracket to the top, excluding the handle. Base sold separately. Lowest Prices for the best trailer jack from Pro Series. Pro Series Round, A-Frame Jack - Topwind - 14" Lift - 2,000 lbs part number PSEA20000103 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (124)
  • Q & A (38)
  • Videos (2)
  • Photos
  • Why etrailer?

Pro Series Trailer Jack - PSEA20000103

  • A-Frame Jack
  • 2000 lbs
  • Topwind Jack
  • No Drop Leg
  • Pro Series
  • Standard A-Frame Jack
  • Bolt-On
  • Weld-On
  • 14 Inch Lift
  • No Wheel or Foot

Ideal for multiple agricultural and commercial applications, this standard A-frame jack features an 8" retracted height and measures 11" from the mounting bracket to the top, excluding the handle. Base sold separately.


Features:

  • Utility jack is perfect for agricultural and commercial applications
  • Precision-fit parts provide exceptional stability and reliability
  • Weld-on/bolt-on bracket mounts to any standard A-frame coupler
  • Outer and inner tubes have black paint finish
  • Topwind handle has smooth, ergonomic design for easy cranking
  • Footplate or caster assembly sold separately


Specs:

  • Bracket height:
    • 8" Retracted
    • 22" Extended
  • Lift: 14"
  • Clearance: 11" from mounting bracket to top of jack
  • Inner tubing diameter: 2"
  • Outer tubing: 2-1/4"
  • Lift capacity: 2,000 lbs
  • Limited 1-year warranty


EA20000103 Pro Series Round A-Frame Jack - Topwind - 14" Travel - 2,000 lbs

EA2000 Fulton A-Frame Utility Trailer Jack - Round, Topwind, 2,000 lbs




California residents: click here

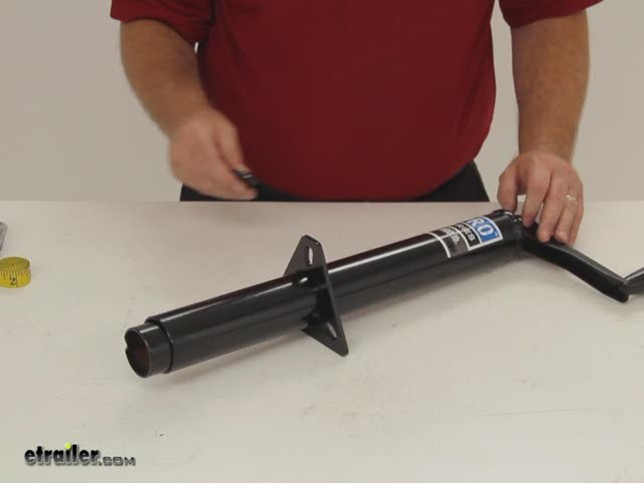

Video of Pro Series Round, A-Frame Jack - Topwind - 14" Lift - 2,000 lbs

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pro Series Trailer Jack - A-Frame Jack - PSEA20000103 Review

Today, were going to review part number PSEA20000103. This is the Pro Series Round, A-Frame Topwind Jack. This standard A-Frame Jack is a nice utility jack which is perfect for agricultural and commercial applications. This is made of precision fit parts which would provide exceptional stability and reliability. This does have a welled-on or bolt-on mounting bracket which will mount to any standard A-Frame trailer. This triangle part right here is the mounting bracket.

The three elongated holes would be used if youre going to bolt it on. The distance between the center of each hole is 3 inches, and that is the industry standard on A-frame trailers. If you have a jack on your A-frame trailer that is bolted on, it should be at to 3-inch industry standard dimension. The outer and the inner tubes have a black paint finish. This is a topwind jack so the handle is at the top.

It has a smooth ergonomic design for easy cranking. Now, this jack does not come with any base. That is sold separately. You could get a footplate or a wheel caster assembly. Just to give you a few dimensions on this jack.

The clearance which would be from the mounting bracket to the top of the jack is going to be 11 inches. This jack is in the retracted position; it is fully retracted, so the measurement from the bottom of the tube to the mounting bracket is going to be 8 inches in the fully retracted position. Now, this jack in the fully extended position, which I have right here, same jack, its just all the way extended out. The measurement from the bottom to the mounting bracket is going to be 22 inches. This jack will have a lift of 14 inches and basically that is the 8-inch retracted dimension subtracted from the 22-inch extended dimension.

That will give you a 14-inch lift. The inner tubing is a 2-inch diameter; the outer tubing is a 2-1/4-inch diameter. This jack does have a lift capacity of 2,000 pounds, and it does come with the limited one-year warranty. Now, I want to show you the bases that you could purchase separately that would fit on to this. The first one would be a footplate which is part number PS1400700340 and basically it would have a pin and clip that you would remove and align the holes with the holes in the jack and then just insert the pin to hold it into place and then the safety clip. Now, you would have a jack with a footplate installed. The other choice would be the wheel caster assembly, which is this part right here. That is part number PS1400750340, and this would install the same way, you remove the pin and clip, align the holes with the inner tube and there would be you jack with the caster assembly all attached to it. This product does have a limited one-year warranty. That should do it for our review on part number PSEA20000103.


Customer Reviews

Pro Series Round, A-Frame Jack - Topwind - 14" Lift - 2,000 lbs - PSEA20000103

Average Customer Rating:  4.9 out of 5 stars   (124 Customer Reviews)

Ideal for multiple agricultural and commercial applications, this standard A-frame jack features an 8" retracted height and measures 11" from the mounting bracket to the top, excluding the handle. Base sold separately.

- PSEA20000103
by:

It was a great jack for our trailer 356038



- PSEA20000103
by:

Quick shipment, and all included as advertised. A++ 641749



- PSEA20000103
by:

Perfect replacement fit, very good communication. Jack was not in stock but I was promptly notified and given other options. Stuck with original choice, which was shipped and delivered in the time framed given. The hardest part of installation was the motorcycle ride to Ace on a beautiful 60 degree December day to get new bolts. 233690


Comments
The jack does its job, it has been up and down several times.
bodyhack - 12/12/2016

22038

- PSEA20000103
by:

Great price,and very fast delivery . looks and feels very solid, I would recommend to friends. 749096



- PSEA20000103
by:

Product got here four days earlier than expected and they gave me free shipping. 723410



- PSEA20000103
by:

Jack works great come very fast 719565



- PSEA20000103
by:

Product arrived earlier than expected, perfect fit, works as expected. 716396



- PSEA20000103
by:

Very quick shipment, product was delivered as advertised. Really like the service from etrailer on a consistent basis! 698324



- PSEA20000103
by:

Quality as advertised. Packaging a bit damaged but contents were fine and fit perfectly! 680833



- PSEA20000103
by:

Perfect replacement for the original jack on my trailer 674586



- PSEA20000103
by:

Great product 613392



- PSEA20000103
by:

Inexpensive 592485



- PSEA20000103
by:

Great job 580027



- PSEA20000103
by:

The trailer jacks were perfect fit and man they make cranking up that trailer a breeze 524309



- PSEA20000103
by:

This is solid gear for a great price, I recommend it and would be happy to buy it again 513128



- PSEA20000103
by:

Perfect for my camper..well built...an the price was right. 501138



- PSEA20000103
by:

Everything ordered was received very quickly. All items purchased were true to fit. Would definitely purchase additional items from etrailer and highly recommend them. 492149



- PSEA20000103
by:

Easy website store... fast shipping! 468924



- PSEA20000103
by:

Fit perfectly and I removed the side frame jack which struggled at times. 460392



- PSEA20000103
by:

Fast delivery, easy set up, happy custo mer! 431592



- PSEA20000103
by:

Very please with the product and the delivery time. Thanks guys. 429602



- PSEA20000103
by:

Works great fast and reasonable shipping 422674



- PSEA20000103
by:

I would like to take this time to let you know that I appreciated your very quick service as well as your excellent products. Thanks again and I will be letting my friends know about you in the future. Thanks again, Ed 411284



- PSEA20000103
by:

Hey! It's a trailer jack. It appears of quality construction and works smoothly. The price was fair and the delivery was immediate. thanx etrailer po 395267



- PSEA20000103
by:

Excellent quality , at a good price . Would buy from etrailer.com again . 384938


25
124
Show More Reviews

Ask the Experts about this Pro Series Trailer Jack

  • Recommended Electric A-Frame Jack for Trailer with 5,824 Dry Weight
    When looking at electric A-frame jacks, the important weight to consider on your trailer is its tongue weight. This is the weight that the jack will actually be lifting and not its total loaded weight. A trailer's tongue weight should be 10 to 15 percent of its total weight. If your trailer has an empty weight of 5,824 pounds, we can estimate a dry tongue weight of around 580 to 875 pounds. Note though that you will want to also account for the loaded cargo weight as well when the trailer...
    view full answer...
  • Can a Manual A-Frame Trailer Jack be Raised and Lowered Using a Power Drill
    Like you said there are some stabilizer jacks and even some winches that will allow you to attach a drill to raise/lower or reel in legs or line much faster. But there are no A-frame jacks, or any regular trailer tongue jacks, that I have seen that have this type of feature. If manually cranking the handle starts to be a chore the best option is to go with an electric jack. The most cost effective one is Ultra-Fab jack # UF38-944037 rated for 3,500 pounds.
    view full answer...
  • Determining Height of Pro Series A-Frame Jack # PSEA20000103 for Tailgate Clearance
    I went out to our warehouse to take some measurements on the Pro Series A-Frame Jack # PSEA20000103 that you referenced and found that there is a distance of 11 inches from the mounting bracket just to the top of the jack tube. From the mounting bracket up to the top of the handle there is a distance of 14 inches. I have attached an image to assist. If this pushes you over the height needed to stay under your truck's tailgate I recommend taking a look at the Ultimate Jack # 322-RDJ-2K,...
    view full answer...
  • Trailer Jack Solution For Jack that Hits Tailgate When Down
    The # PSEA20000103 is one of the shortest A-frame jacks we offer from the mounting bracket to the top of the jack at 11 inches. The best solution I can recommend would be to go with a side mounted trailer jack like part # PS1400300303 that would install on the trailer frame behind where your current jack is so that you would have tailgate clearance when needed.
    view full answer...
  • Bolt On Jack Recommendation for Extreme Boat Trailer with 6 Inch Frame
    The mounting plate for the Fulton Marine Jack, # HD50000101, has holes measuring 6-5/8 inches x 4 inches apart and a 5,000 lb weight capacity so this jack should work for your Extreme boat trailer. I have included a diagram with these measurements for you.
    view full answer...
  • What Weight Capacity of Tongue Jack is Needed for a 4,600 Pound Dry Weight Trailer
    The rule of thumb for estimating a tongue weight is 10-15 percent of trailer weight. A 4,600 pound trailer would have a tongue weight between 460 and 690 pounds. Somewhere between a 1,000 to 2,000 pound capacity jack would be fine. Having a jack that is rated for more than the tongue weight is not a problem. The jack you were looking at Pro Series A-Frame Topwind Jack, part # PSEA20000103, would work fine. You could also use Dutton-Lainson jack, part # DL22530 or Bulldog Heavy Duty...
    view full answer...
  • Trailer Jack Recommendation For 14,000 Lb A-frame Dump Trailer
    The rule of thumb for estimating a tongue weight is 10-15 percent of trailer weight. So your 14,000 pound trailer would have a tongue weight between 1400 lbs and 2100 lbs so any trailer jack rated over 2,500 lbs would be sufficient to lift the trailer's tongue however I recommend a higher capacity and high quality designed jack because they tend to last a bit longer. The most common reason for a trailer jack to stop working is because of friction that breaks down the gears and and over-extension. I...
    view full answer...
  • Looking for A-Frame Trailer Jack That Retracts Enough to Clear Driveway Aprons
    Swivel jacks do not work well with A-frame trailers, so a swivel jack would not be a good choice. Your best bet would be to stay with an A-frame jack. I would recommend finding the jack with the lowest possible retracted height. For instance, the Pro Series # PSEA20000103 you mentioned has a retracted height of 8 inches, which would be the distance between the bottom of the jack tube and the mounting bracket. The Pro Series # PS1401000303 has the same 2000 lb capacity as the jack you...
    view full answer...
  • A-Frame Jack Replacement for a Carry On 5x10LGW2K Trailer
    I looked up pictures of your Carry On 5x10LGW2K trailer and it uses a standard A-frame design so for an easy replacement the Pro Series Jack part # PSEA20000103 would be a great topwind option just like what came on the trailer. For a caster wheel you would want the part # PS1400750340 or for just a standard foot plate part # PS1400700340.
    view full answer...
  • How to Grease the Gears on the Pro Series Round, A-Frame Jack, # PSEA20000103
    To grease the gears on the Pro Series Round, A-Frame Jack, # PSEA20000103, you would need to remove the handle and top plate to expose the gears. The gears come already greased but if more is needed, you would have to completely remove the old grease (not all greases are compatible with each other) before adding the new grease like LubriMatic LMX Industrial Strength Grease, # L11390.
    view full answer...
  • Replacement Parts Availability for Pro Series Trailer Jack
    Economy jacks like the Pro Series # PSEA20000103 do not have the same availability of replacement parts as the comparable products that are more costly. This is why they cost less. Pro Series does offer a replacement handle # PS1400920383 for their higher-capacity square tube jacks like # PS1400950376 but not for their lower-capacity value-priced jacks. If you wish to select a new jack you can do so using the linked page.
    view full answer...
  • Trailer Jack Foot Plate Needed for a Jack with 1-5/8 inch O.D. Tubing
    It sounds like the Removable Steel Foot with Pin for DL22530 A-Frame Trailer Jack by Dutton-Lainson, item # DL22541, will be the closest fit we have for your trailer jack. This foot plate has an inner diameter of 1-3/4 inches which is slightly larger than your 1-5/8 inch outer diameter jack tube. All of the other foot plates that we carry have an inside diameter of 2 inches.
    view full answer...
  • 2,000 lb A-Frame Jack Recommendation
    I was able to find the first jack you referenced, the EA2000103, and it is basically just a topwind, a-frame jack with a 2,000 lb capacity. For a jack that is basically identical you would want the Pro Series Jack part # PSEA20000103. Check out the review video I attached for more info as well. From the top of the jack to the bottom of the mounting bracket this jack measures 11 inches. From the bracket to the bottom of the jack when fully extended it is 22 inches, fully retracted 8 inches.
    view full answer...
  • Trailer Jack Weight Capacities for Lifting and Holding Weight
    A trailer tongue jack like Pro Series # PSEA20000103 has a rated lift capacity of 2000-lbs. Two of them would have twice the capacity but this type of jack is typically used singly on an A-Frame trailer. Other types of jacks like a 5th wheel dual-jack landing gear kit # BD500162 consists of two separate but interconnected jacks each able to lift 4000-lbs which gives this kit its overall 8K rating. In comparison a stabilizer scissor jack like # UF48-979002 will have a much higher weight...
    view full answer...
  • Why Does an A-Frame Trailer Jack Get Difficult to Crank
    I spoke with my contact at Fulton jacks and he stated that what you are describing is a symptom of the jack screw inside the jack seizing up. Jack companies don't make the internals of their jacks easily accessible for cleaning and lubrication. Typically to get them apart requires quite a bit of work and then they are nearly impossible to get back together properly. You can try lubricating the jack from the bottom of the inner leg up into the top of the jack, but it's going to be much...
    view full answer...
  • A-Frame Jack With Caster and Wheel that Will Swivel
    I have a solution for you, but all of the A-frame trailer jacks that we carry have a straight inner tube. These jacks have a guide inside to keep the tube straight while being lowered or lifted. We offer several wheel and caster assemblies that will swivel while the inner tube of the jack stays straight. The wheel and caster for the Pro Series Round, A-Frame Jack # PSEA20000103 that you referenced is the Pro Series 6 Inch Detachable Caster with Pin for 2 Inch Diameter Jacks # PS1400750340. If...
    view full answer...
  • A-Frame Trailer Jack for 7,000 lb Trailer to Help Install Spring Bars of Weight Distribution
    The Pro Series 2,000 lb A-Frame jack part # PSEA20000103 that you referenced would do a great job to help with installing the spring bars of your weight distribution system. This would have over double the capacity needed for your trailer's tongue weight so it would do a great job also lifting some of the weight of the rear of your truck when the coupler is attached to the hitch ball. I attached a review video for the jack for you to check out as well. For a foot plate to help spread...
    view full answer...
  • What To Do if Trailer Jack Breaks Nut From Assembly and Stops Functioning
    The nut you are seeing in the inner pipe is not designed to be replaced. It sounds as if your jack was wound past is working limit and either broke or ruined the threads on the lift rod. You will need to replace the jack, if this is the case.
    view full answer...
  • Which Support Plate Can be Used with Pro Series A-Frame Trailer Jack # PSEA20000103
    The outer tube diameter of the Pro Series A-frame Trailer Jack, # PSEA20000103, is 2-1/4 inches, so you will need a support plate with a hole diameter larger than that. The Bulldog Jack Support Plate, # BDSPB50, has a diameter of 2-9/32 inches, slightly larger than the jack tubing, so it will work. And Bulldog Jack Support Plate, # BD003135, is a little larger than that at 2-11/32 inch diameter. Either of these plates should be a good fit.
    view full answer...
  • What Size Hole is the Pro Series Jack PSEA20000103 Designed to Fit
    If you can find a way to widen the hole on your trailer that is used for mounting a trailer jack the # PSEA20000103 that you referenced would work well for you. The outer tubing of this jack is 2-1/4 inches so depending on your trailer you could find a hole saw in this size or just use a grinder like a dremel to widen it. I would recommend only going wide enough for the jack to install and not any further.
    view full answer...
  • Recommended Electric A-Frame Jack for Grand Design Imagine 2800BH Travel Trailer
    To choose the proper electric trailer jack, you'll want to determine the trailer's tongue weight, which is usually between 10-15 % of it's as-towed weight. You listed the hitch or tongue weight as 604 lbs, but that's with a camper with no gear, propane or water stowed aboard. Your tongue weight is likely a couple of hundred pounds more. Because the jack you eventually end up with will not only have to lift and support the trailer's tongue weight but will also need to partially lift the...
    view full answer...
  • Floor Jack to Change Wheel/Tire of 5,000 lb Trailer
    A 3,000 lb jack would be able to lift a 5,000 lb trailer since the jack would basically only be lifting half of the trailer weight since the other half is supported by the wheel on the other side. I think bare minimum you'd need a 2,500 lb jack though. That said going with a higher rated jack like the # PTW1605 which has a 4,000 lb capacity would be a really great choice as that just means that jacking up the trailer will be an easier job for you and this kit comes with jack stands which...
    view full answer...
  • Outside Dimensions of the Outer and and Inner Tube on the Pro Series A-Frame Top Wind Trailer Jack
    The outer tube diameter where the mounting flange is welded on to the Pro Series Round, A-Frame Jack, item # PSEA20000103, is 2-1/4 inches. The inner tube that extends and retracts has an outer diameter of 2 inches, see photo. At this time we do not have a Jack with an outer tube diameter of 1-7/8 inches and inner tube diameter of 1-5/8 inches. Your best options would most likely be to enlarge the hole in your mounting plate for a 2-1/4 inch diameter jack or to go with a frame mounted...
    view full answer...
  • Trailer Jack Wheel Recommendation for Pro Series Trailer Jack part # PSEA20000103
    For the Pro Series Jack part # PSEA20000103 that you have the correct wheel caster is the part # PS1400750340. Only thing you'll need to take note of is that this wheel cuts the capacity of the jack down to 1,200 lbs.
    view full answer...
  • What are The Dimensions of the Jack Housing On The Pro Series Trailer Jack, # PSEA20000103
    On the Pro Series Trailer Jack, # PSEA20000103, the measurement from the the mounting bracket to the top of the housing is 11 inches. The measurement of just the jack housing below the mounting plate is 7 inches. The jack will stick out another inch on the bottom housing when fully retracted. I also have the Pro Series Trailer Jack, # PS1401000303, which is a topwind, 2,000 lbs. jack. It measures 16 inches from the mounting bracket to the top of the housing. The measurement of the jack...
    view full answer...
  • Length of Pro Series 2K A-Frame Trailer Jack from Mounting Bracket to Bottom and Pin Hole Diameter
    On the Pro Series Round, A-Frame Trailer Jack, # PSEA20000103, it measures 8 inches from the mounting bracket to the bottom of the inner tube. For the footplate, # PS1400700340, or the Wheel, # PS1400750340, (both fit this jack) the pin diameter is 5/16 of an inch and the length is 2-3/4 inches. The slotted holes on the mounting bracket measure 7/16 inches wide by 7/8 inches long. They are 3 inches apart on center.
    view full answer...
  • Method to Support Tongue of Rented 6 x 12 Enclosed Trailer for Temporary Storage
    If there is no tongue jack installed on the 6 x 12 enclosed A-frame trailer you are renting you can certainly install one to allow safe storage while the trailer is uncoupled from your tow vehicle. A cinder block or stacked lumber are commonly used for stationary long-term storage applications but a safer route is to install a tongue jack such as # PSEA20000103 and mount to it either a caster # PS1400750340 which will allow you to maneouver the trailer for hitching it to your vehicle, or...
    view full answer...
  • Is a Base or Wheel Needed when Ordering the Pro Series Round A-Frame Jack
    The Pro Series Round, A-Frame Jack - Topwind - 14 inch Lift - 2,000 lbs, item # PSEA20000103, does not come with a footplate base, item # PS1400700340, or a wheel, item # PS1400750340, so that you can determine the best option for your setup and purchase accordingly. You would need to order a footplate if you park your trailer in a stationary position and do not need to move the trailer when not hooked to a vehicle. If you need to be able to move your trailer when it is not attached...
    view full answer...
  • Would the Pro Series Round, A-Frame Jack # PSEA20000103 fit a 3-1/4 inch Bolt Pattern on Trailer
    The standard bolt pattern for a-frame jacks is 3 on 3 inch. However, if you look at the mounting flange of the Pro Series Round, A-Frame Jack # PSEA20000103 you will see that the mounting holes are slotted and allow for a bit of wiggle room there. An extra 1/4 inch wouldn't be a problem at all. This jack would work well for you, it has a 2,000 lb capacity so it would work well on your trailer.
    view full answer...
