Fulton Bolt-Thru Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,500 lbs

Fulton Bolt-Thru Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,500 lbs

Item # FXP15W

lowest price pledge

Retail:$129.76

Our Price: $117.36

You Save: $12.40
Trailer Jack

This item qualifies for Free Shipping

Shipping Weight: 15 lbs

Quantity:
In Stock, Ships Today
Fulton Weld-On Trailer Jack - FXP15W
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Side Frame Mount Jack
  • 1500 lbs
  • Sidewind Jack
  • No Drop Leg
  • Swivel Jack - Pull Pin
  • Weld-On
  • Fulton
  • 10 Inch Lift
  • With Wheel
With corrosion-resistant zinc plating, a durable, poly wheel base and 12-3/4" retracted height, this swivel jack is perfect for marine and other recreational applications. Measures 12-1/2" from mounting bracket to top of jack. Lowest Prices for the best trailer jack from Fulton. Fulton Bolt-Thru Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,500 lbs part number FXP15W can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (42)
  • Q & A (38)
  • Videos (1)
  • Photos
  • Why etrailer?

Fulton Trailer Jack - FXP15W

With corrosion-resistant zinc plating, a durable, poly wheel base and 12-3/4" retracted height, this swivel jack is perfect for marine and other recreational applications. Measures 12-1/2" from mounting bracket to top of jack.


Features:

  • Ideal for marine and recreational use
  • Fits all mounts up to a 3" x 5" trailer frame
  • Convenient, spring-loaded, plunger-pin swivel feature
    • Swing up to stow parallel to tongue for travel
    • Move back into upright position for use
  • Z-Max 600 zinc finish provides superior corrosion resistance
    • 600-Hour salt spray rating
  • Bolt-Thru mount provides minimum deflection and maximum support
    • 3-D Formed, heavy-gauge steel stampings
    • Proprietary bushing material
  • Heavy-gauge steel construction
  • Weld-on bracket sold separately
  • Sidewind design
  • Thermoplastic wheel and mounting bracket included


Specs:

  • Application: 3" x 3", 3" x 4", or 3" x 5" trailer frames
  • Bracket height:
    • 12-3/4" Retracted
    • 22-3/4" Extended
  • Lift: 10"
  • Clearance: 12-1/2" from mounting bracket to top of jack
  • Inner tube diameter: 2"
  • Outer tube diameter: 2-1/4"
  • Pull pin diameter: 1/2"
  • Wheel diameter: 8"
  • Lift capacity: 1,500 lbs
  • Uses an 8 pitch acme screw
    • Takes 8 turns of the handle to raise or lower the jack an inch
  • Limited 5-year warranty


XP15W 0301 Fulton Marine and Recreational Bolt-Thru Swivel Jack, Sidewind, 10" Travel, 1,500 lbs






California residents: click here


Video of Fulton Bolt-Thru Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

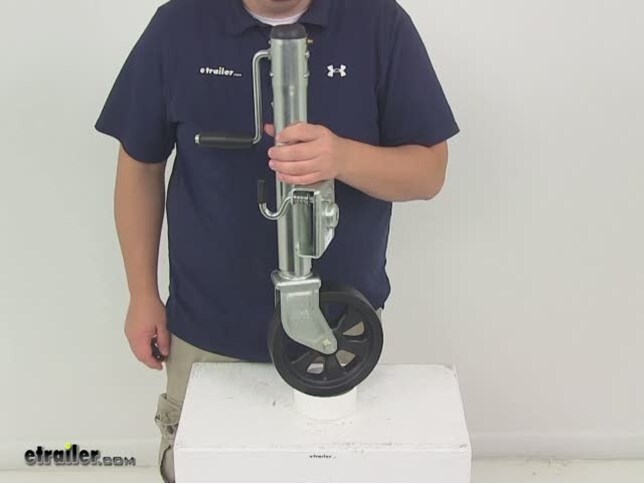

Video Transcript for Fulton Trailer Jack - Side Frame Mount Jack - FXP15W Review

Today were going to review part number FXP15W. This is the Fulton Bolt-Thru Swivel Marine Jack. Its a sidewind jack. This is ideal for marine and recreational use. It has a corrosion-resistant zinc plating and a durable poly wheel base. It has a convenient spring-loaded plunger pins swivel feature which is right here and the mounting plate would be sold separately.

This will allow it to swing up to stow parallel to the tongue for travel and then you pull this plunger pin out, it will move back into the upright position for use. This is made of a Z-Max 600 zinc finish which will provide superior corrosion resistant and its tested at a 600-hour salt spray rating. The bolt-thru mount provides minimum deflection of maximum support. It is a heavy gauge steel construction and, as I mentioned, a weld-on bracket which is used for this. Mounting to the trailer is sold separately.

It is a sidewind designed jack and it does have a thermal plastic wheel which is included. This part is made in the USA. It does have a lift capacity of 1,500 pounds. I do want to give you a few measurements. The bracket height is retracted.

This one here I have in the fully retracted position and when we measure that we would go from the center of the mounting plate to the bottom of the wheel. The bracket height on this one retracted would be 12-3/4 inches. Now, I do have a sample of the same exact jack in the fully extended position which is right here and if we measure from the center of the mounting plate to the bottom of the wheel it would be 22-3/4 inches. If you subtract the retracted measurement from the extended measurement, it will give you a maximum lift of 10 inches on this jack. Also, I just want to give you the measurements of the clearance from the mounting bracket to the top of the jack and that would be 12 1/2 inches.

This does use a 2-inch tubing diameter and a half-inch pull pin. The wheel diameter is an 8-inch wheel diameter and this part does come with a limited five-year warranty. That should do it for our review on part number FXP15W.
