Roadmaster Bulb and Socket Tail Light Wiring Kit for Towed Vehicles - Red LEDs
Roadmaster

Roadmaster Bulb and Socket Tail Light Wiring Kit for Towed Vehicles - Red LEDs

Part Number: RM-152-LED
In Stock
$96.73
Retail:$155.31
You Save: 38%
Flat Tow Wiring Harness

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

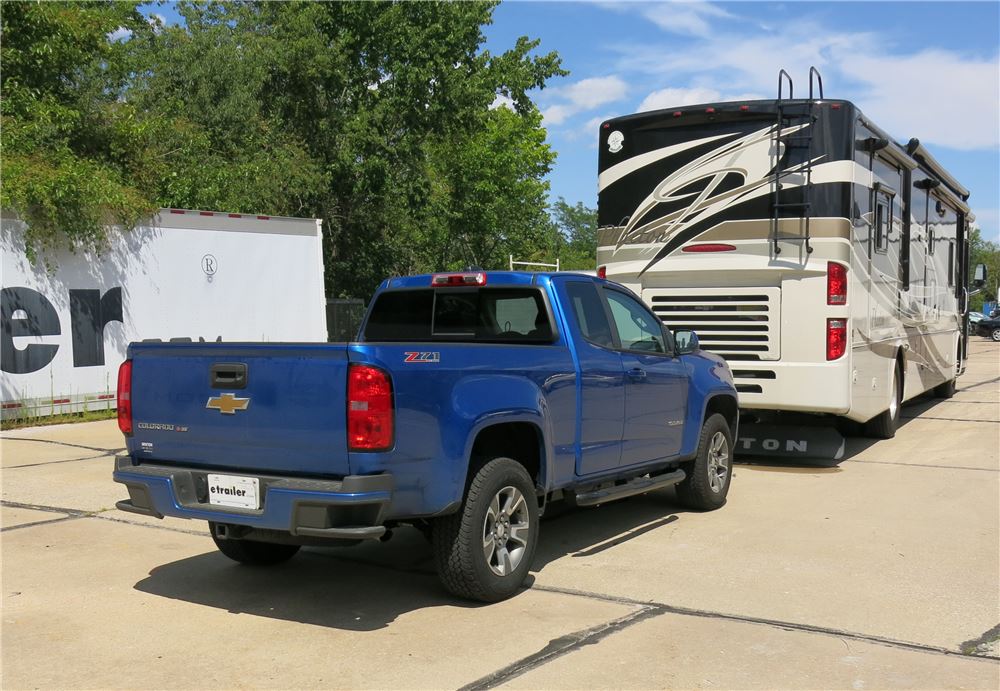

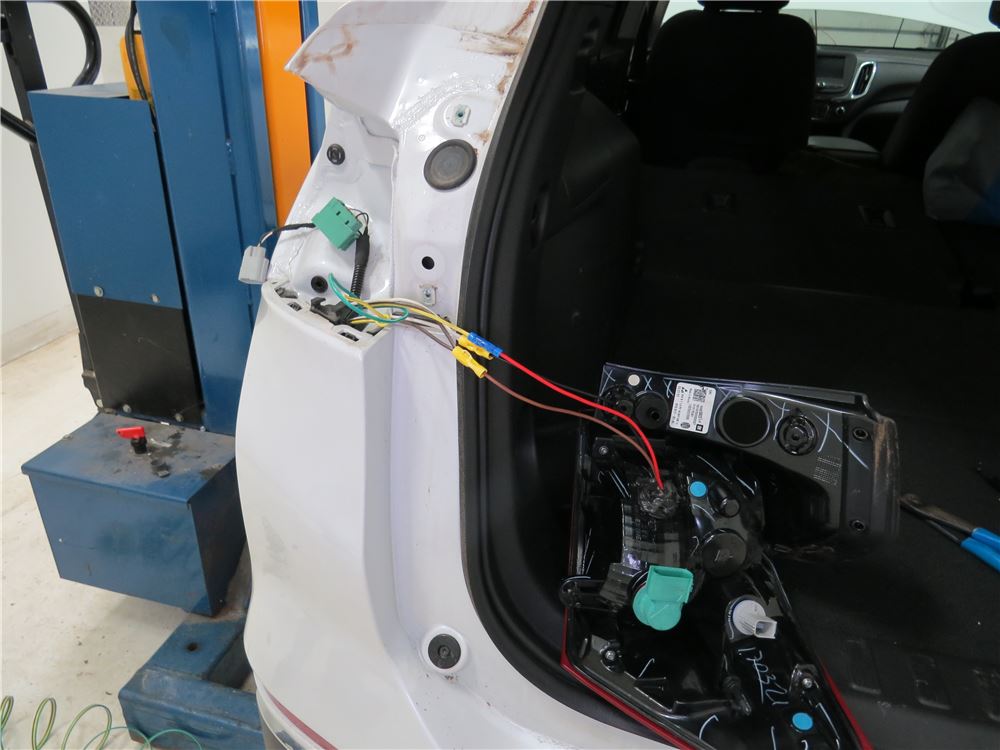

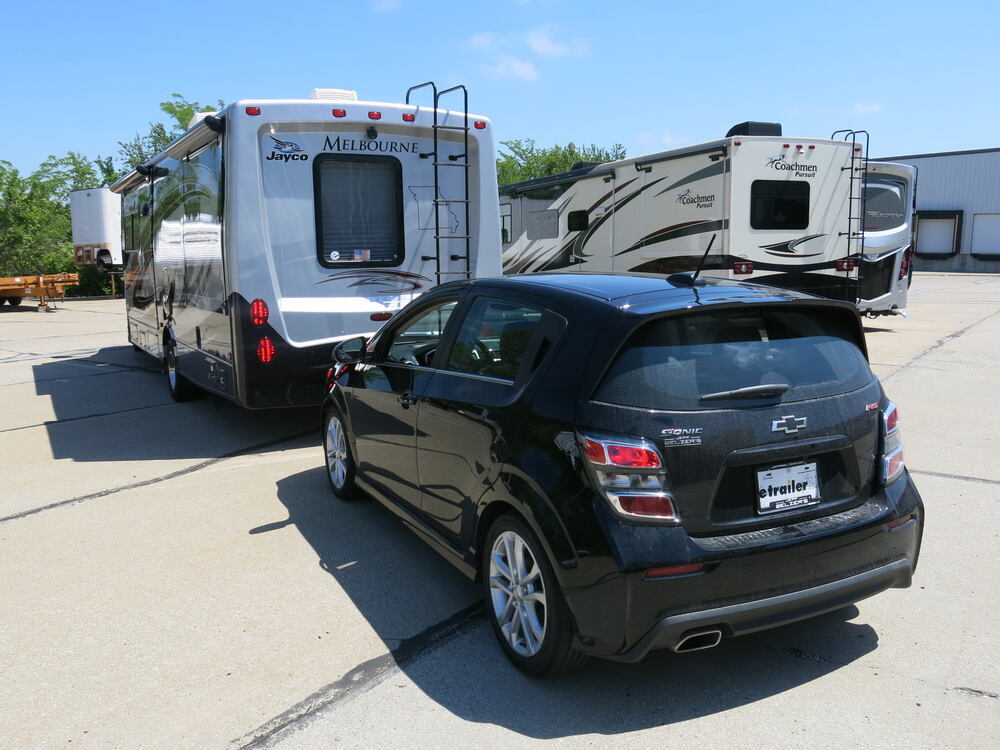

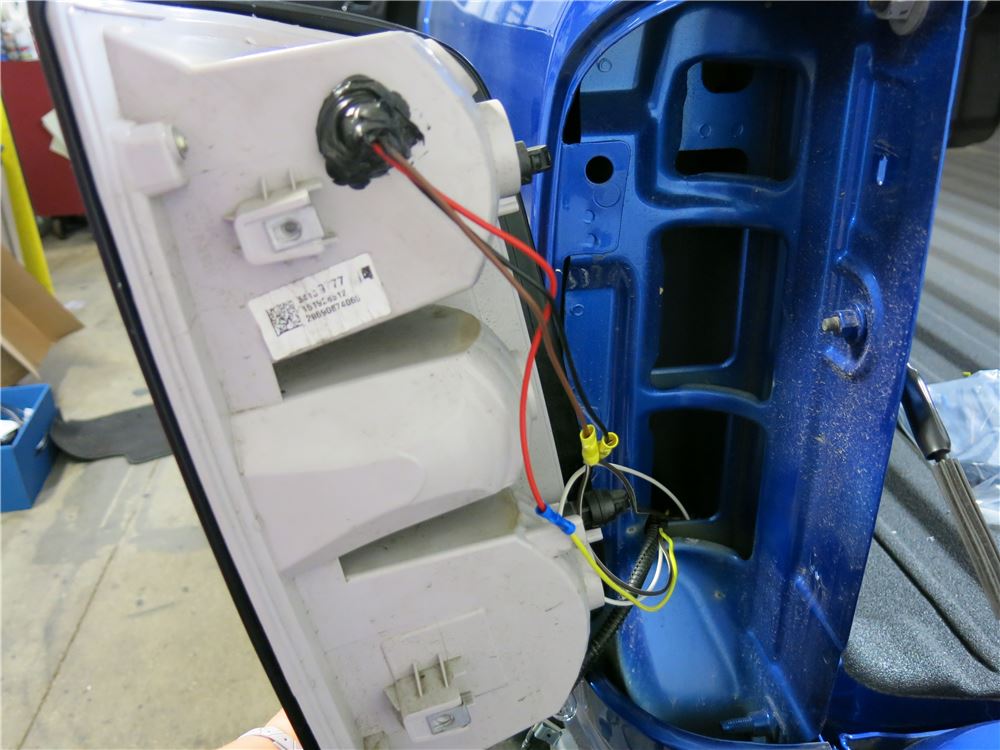

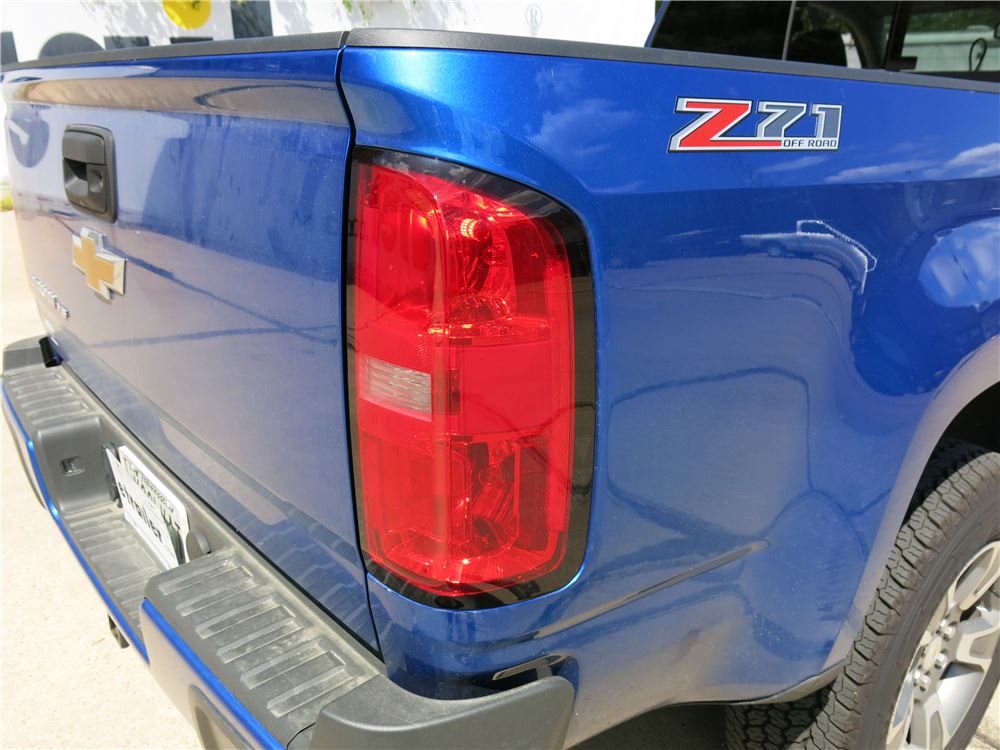

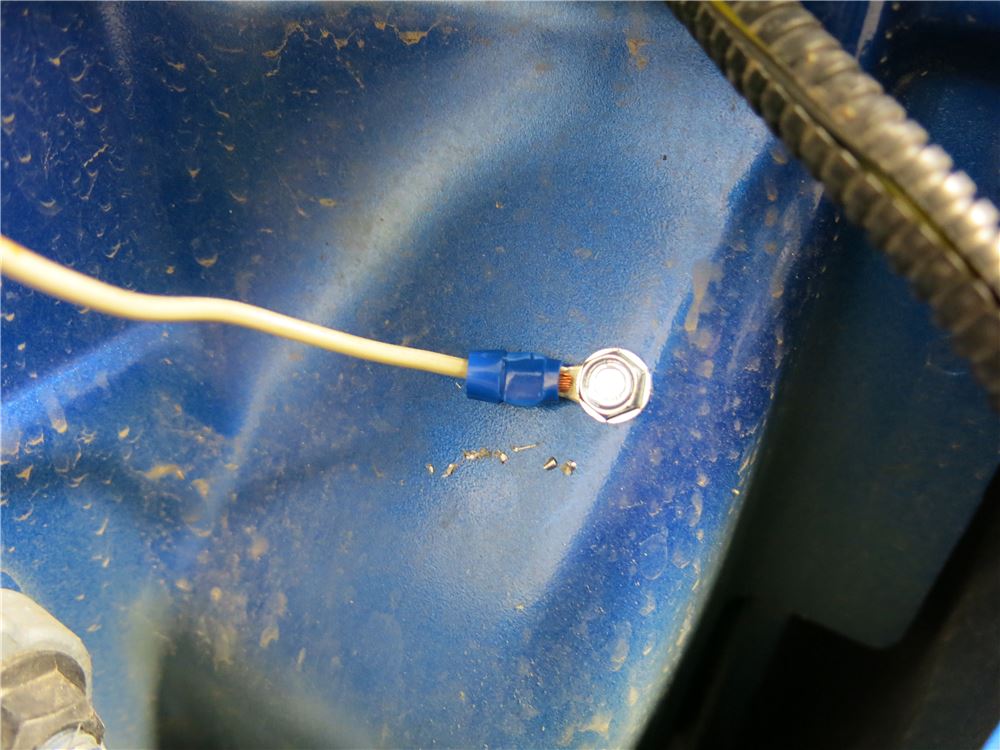

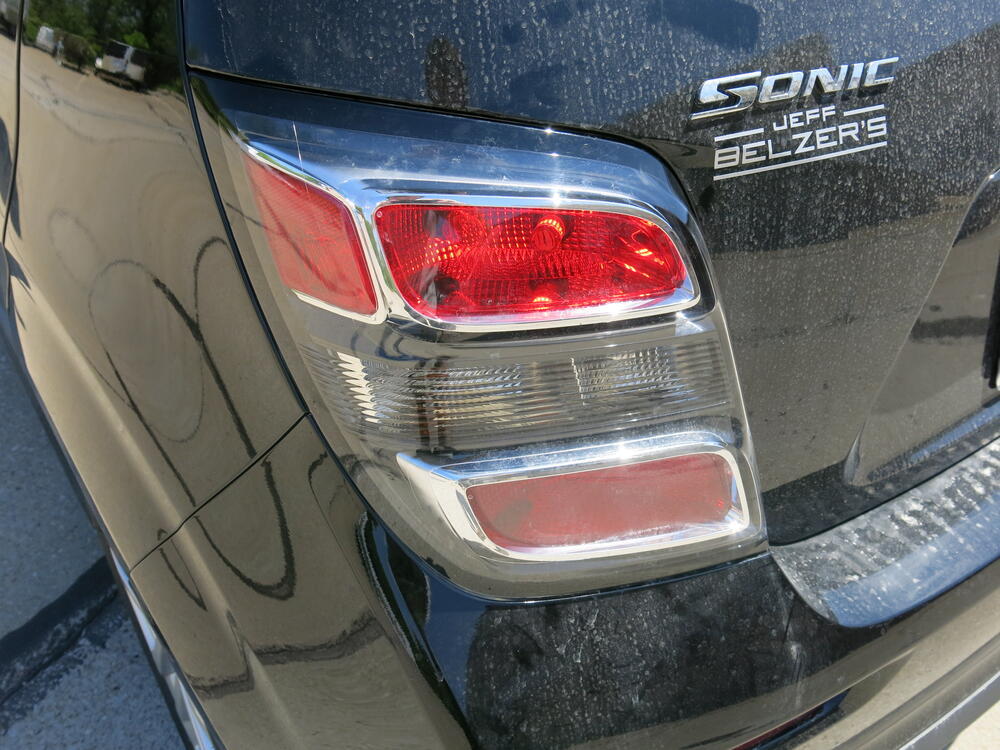

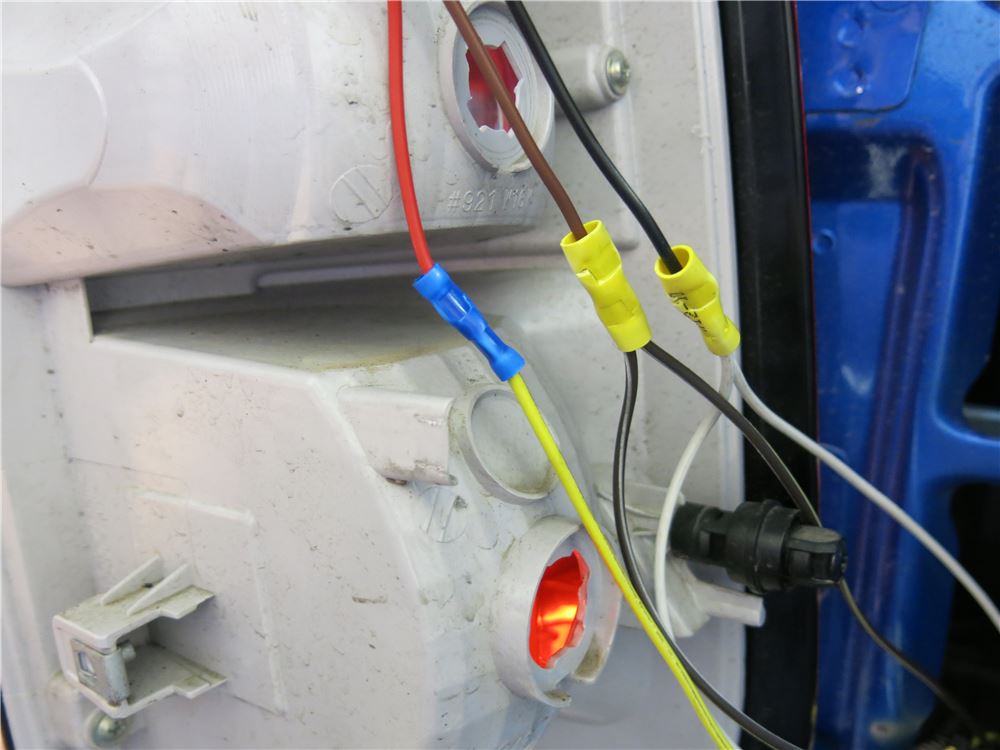

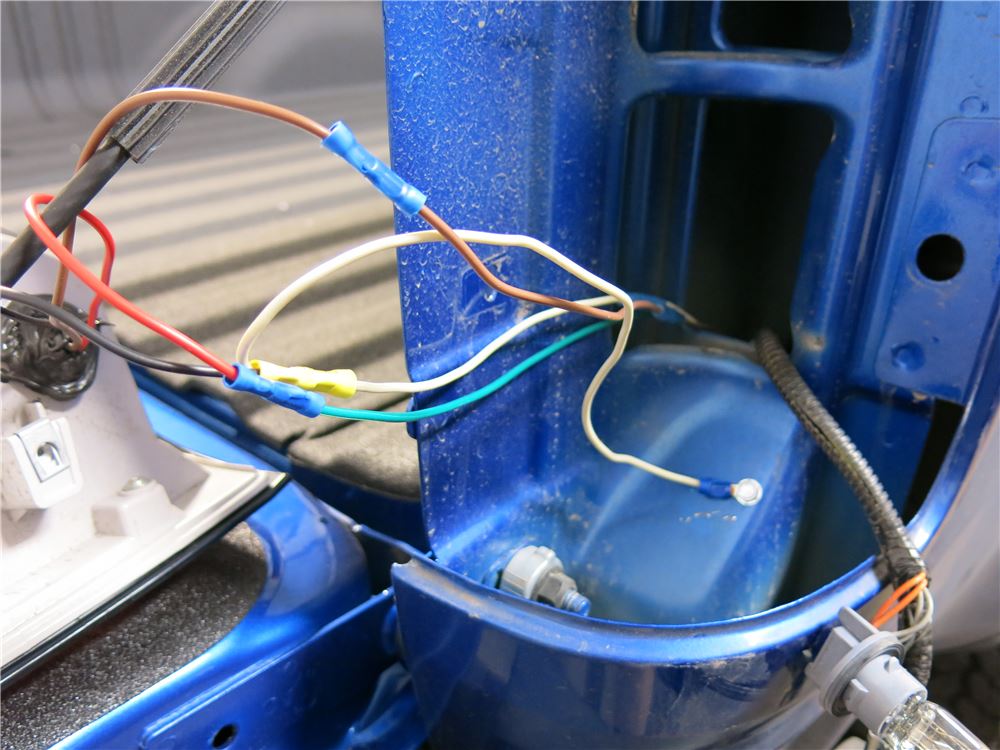

In Use/Installed

Need help with installation?
Locate installers near me
These lights get turn and brake signals on your towed car without splicing into its wiring. They mount inside your vehicle's tail light housing, with the wiring out of sight. The LEDs are efficient, long-lasting, and bright. 450 Lumens per bulb. 1-800-940-8924 to order Roadmaster flat tow wiring harness part number RM-152-LED or order online at etrailer.com. Free expert support on all Roadmaster products. Great prices and Fastest Shipping for Roadmaster Bulb and Socket Tail Light Wiring Kit for Towed Vehicles - Red LEDs. Flat Tow Wiring Harness reviews from real customers.
  • All Info
  • Reviews (427)
  • Q & A (0)
  • Photos

Roadmaster Flat Tow Wiring Harness - RM-152-LED

Highlights

  • No splicing required: Protects vehicle wiring by installing alongside existing tail lights.
  • Efficient LED lighting: 450 lumen bulbs are brighter and last longer than incandescent.
  • Universal fitment: Designed to work with various vehicles due to its flexible installation.
  • Enhanced safety features: Displays RV's tail, turn, and brake signals effectively.
  • Easy DIY installation: Includes wiring, bulbs, sockets, and necessary hardware.
  • Compact build: Each bulb has an overall length of 2.5 inches for a snug fit.

Features to know about

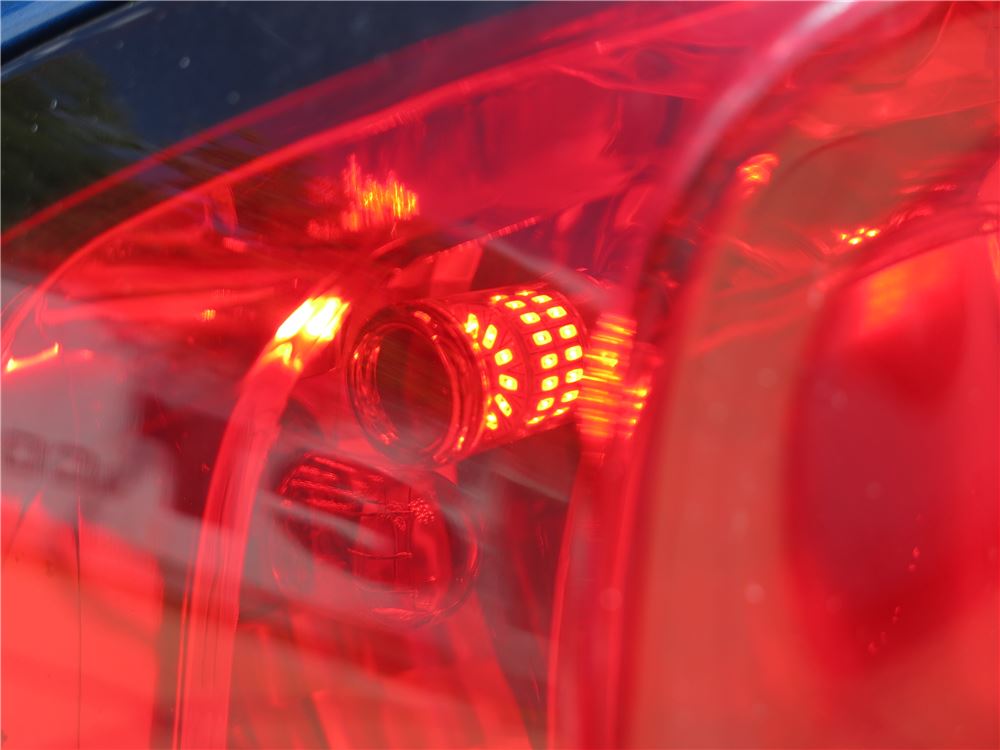

Illuminate Your Journey: LED Bulb and Socket Kit

Say goodbye to dim tail lights when towing! The Roadmaster Bulb and Socket Tail Light Wiring Kit with red LEDs showcases your RV’s signals on your towed vehicle effortlessly. These LED bulbs shine brighter and last longer than traditional incandescent bulbs, with an impressive output of 450 lumens per bulb. This feature ensures maximum visibility and safety, turning challenging driving conditions into a breeze.

Protect Your Vehicle’s Integrity: Bypass Vehicle Wiring

Splicing into your car’s wiring can be a daunting task, but with this kit, you don’t have to. The Roadmaster setup easily mounts inside your vehicle’s tail light housing. This simple installation process keeps your vehicle’s factory wiring untouched and your warranty intact. It's a dream come true for those with modern vehicles filled with complex computer systems.

Universal Fit for Any Adventure: Versatile Mounting

Towing a different vehicle for your next trip? No problem! This kit’s universal design ensures it can be utilized with a wide range of vehicles. Whether you’re upgrading your towing setup or moving to a new car, this kit adapts effortlessly, providing flexibility for all your adventures.

Brighten Every Brake: LED Technology

LED technology in this kit means optimal brightness, crucial for ensuring the cars behind you know when you’re stopping. Each bulb fits perfectly into a 1-inch diameter hole, enhancing both tail and brake visibility with ease. This straightforward design guarantees that your signals are impossible to miss and works effectively whether installed on a Chevy Spark or a GMC Sierra.

Simplified Install and Maintenance: Complete Installation Kit

This kit comes packed with everything you need: wiring, two red bulbs, two sockets, and all necessary hardware. The hassle of sourcing additional parts is eliminated, making your setup as easy as a Sunday morning. No need to worry about installation fees or hiccups; your DIY project just got a whole lot simpler.

Long-Lasting Reliability: Durable LED Performance

Designed to withstand the demands of the road, the LEDs are built for long-term use and consistent performance. Their durability and efficiency make them ideal for frequent travelers and weekend explorers alike, ensuring your setup remains reliable no matter the distance traveled.

Specs

Wiring

  • Wiring harness length: 27'
  • Wire loom:
    • Length: 3'
    • Diameter: 1/2"

Lighting

  • Light output per bulb: 450 lumens
  • Overall length of bulb: 2-1/2"
  • Length of bulb from flange to top of bulb: 2"

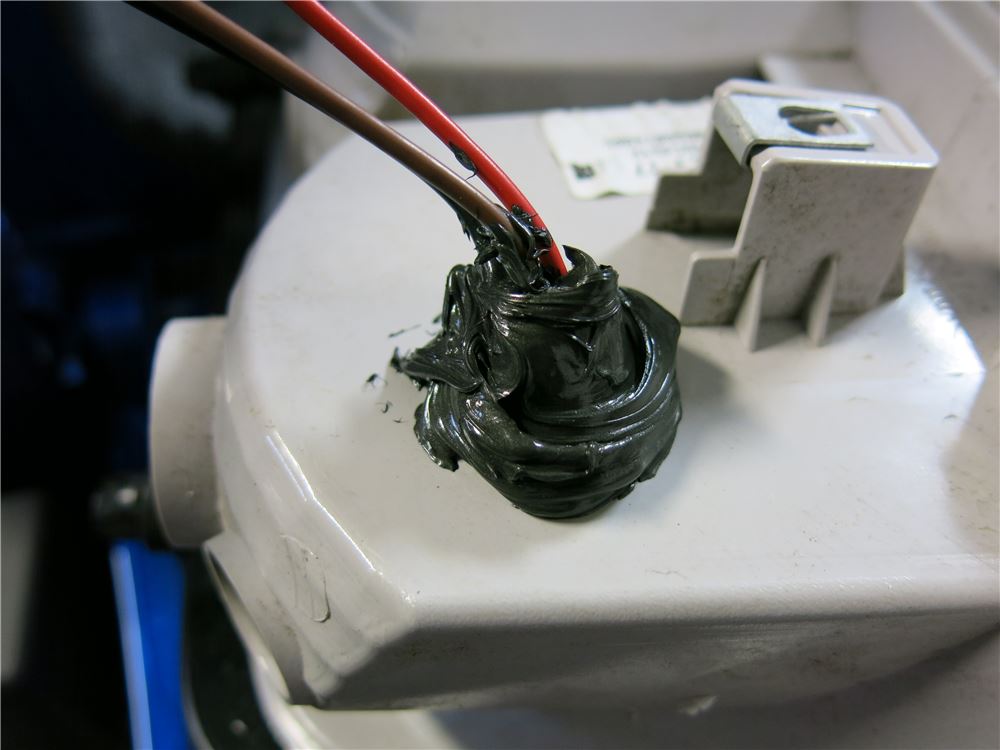

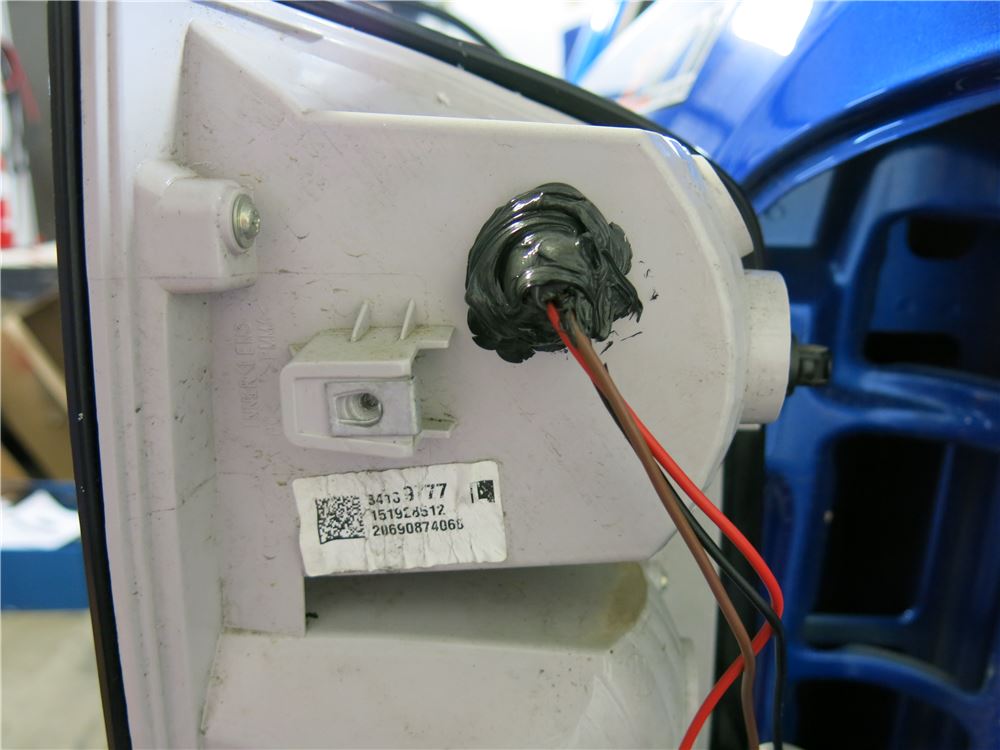

  • Hole required for sockets: 1" diameter

Warranty

  • Limited lifetime warranty

Note

Check that there will be enough room in each tail light housing for the extra bulb and socket.

152-LED Road Master Tail Light Wiring Kit for Towed Vehicles - LED Bulb and Socket

Installation Details RM-152-LED Installation instructions

This Product Fits The Following Vehicles



California residents: click here


Customer Satisfaction Score:

Ratings & Reviews

4.7

427 reviews
These lights get turn and brake signals on your towed car without splicing into its wiring. They mount inside your vehicle's tail light housing, with the wiring out of sight. The LEDs are efficient, long-lasting, and bright. 450 Lumens per bulb.

by:

Everything I need. Excellent seller.



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:

Great price and fast delievery. Thanks



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:


25
427
Show More Reviews

See what our Experts say about this Roadmaster Flat Tow Wiring Harness

  • Parts Needed to Flat Tow 2013 Jeep Wrangler Unlimited with Aftermarket Bumper that Has D-rings
    Flat towing a vehicle such as a Jeep Wrangler behind a Class C motorhome such as the Dynamax Force 37BH HD will require a few items including the tow bar and braking system. The Blue Ox Patriot braking system # BLU37TR that you referenced is a very good selection. I linked overview articles on flat towing that cover each of the items needed. These are a good starting point. But first I suggest you check with the bumper maker to confirm it is rated for towing. Not all aftermarket bumpers...
    view full answer...
    Image 1 for Image 2 for
  • Flat Towing Base Plates for a 2010 Mini Cooper S Hartop
    I reached out to Blue Ox and there is not a confirmed fit for your 2010 Mini Cooper S Hardtop, but I do have a solution for you. I recommend the Roadmaster EZ Base Plate Kit - Removable Arms # 521877-1 which is confirmed to fit your Model S Hardtop. Then I recommend the Roadmaster Falcon 2 # RM-520 for your tow bar and # RM-643 for your safety cables. You can use the plugs # RM-210 when not in use if desired. For your wiring, I recommend the Roadmaster LED Bulb and Socket Kit # RM-152-LED....
    view full answer...
  • Parts Needed To Flat-Tow a 2019 Chevrolet Equinox with 2.0 Turbo
    Yes, the Roadmaster Direct-Connect Base Plate Kit part # RM-523193-5 is a fit for your 2019 Chevrolet Equinox with the 2.0L turbo engine. I checked with Roadmaster to confirm this for you as well. Also, you do not have hydroboost power assist brakes so no need to worry about that for the InvisiBrake. In order to complete your flat-towing setup you will also need a tow bar, safety cables, tail light wiring harness, supplemental braking system, and possibly a high-low adapter. There may also...
    view full answer...
    Image 1 for
  • Bulb With Socket Kits and Wiring Kits For Flat Towing
    Here is a list of the different bulb and socket kits we currently offer. Roadmaster Tail Light Wiring Kit with Bulbs # RM-155 Blue Ox Tail Light Wiring Kit - Bulb and Socket # BX8869 Roadmaster Tail Light Wiring Kit w/ 7-Way to 6-Wire Connector - LED Bulb and Socket - Red # RM-152-LED-7 Roadmaster Tail Light Wiring Kit for Towed Vehicles - LED Bulb and Socket - Red # RM-152-LED Blue Ox Tail Light Wiring Kit for Towed Vehicles - Integrated LED Bulb and Socket - White # BX88269 Blue Ox...
    view full answer...
  • Parts Needed to Flat Tow a 2018 Ford Fiesta SE Hatchback
    I would love to help you get absolutely everything that you need to flat tow your 2018 Ford Fiesta SE Hatchback. However, Blue Ox does not make a base plate kit for the non EcoBoost model therefore I recommend you use Roadmaster instead. I typically prefer Roadmaster anyhow as they offer more options for flat towing equipment. I have attached a list of all the parts you will need below: Roadmaster Nighthawk All Terrain Tow Bar part # RM-676 Roadmaster Direct-Connect Base Plate Kit part...
    view full answer...
    Image 1 for
  • Recommended Supplemental Braking System for a 2021 Chevy Equinox Towed by an RV w/ Air Brakes
    Since your 2007 HR Neptune XL motorhome has air brakes you will want to use the Demco Air Force One Supplemental Braking System item # SM99243 with your 2021 Chevy Equinox. This system has been specifically designed to work with RVs equipped with air brakes like yours. This a proportional braking system that will stop with the same force that you are using to slow or stop your RV. I have linked an installation video below. The Demco SBS Second Vehicle Kit item # SM99209 you were looking...
    view full answer...
  • Does SMI DUO Supplemental Braking System Require Anything Else to Function on 2017 Chevy Sonic
    The SMI DUO # SM99251 is a confirmed fit for your 2017 Chevy Sonic and will easily allow all of your vehicle taillights to continue functioning like normal. No other parts are needed. We had the chance to install this kit on a similar 2014 Chevy Sonic which I attached a link to the install video for you to check out. When flat towing the vehicle you will need a lighting kit though so that the tow vehicle can control the vehicle taillights. For that the Roadmaster LED bulb and socket kit...
    view full answer...
  • Will Roadmaster Sterling Tow Bar Work With Roadmaster Direct-Connect Base Plate On 2020 Equinox
    The Roadmaster Direct-Connect Base Plate Kit # RM-523193-5 you mentioned will work great with the Roadmaster Sterling All Terrain # RM-576 you are interested in with the included pin and clips. You will need to add the RoadMaster 76" Single Hook # RM-645-76 as the included EZ safety cables will not work with the Roadmaster # RM-523193-5 baseplate. To complete your flat tow setup you will also need lighting, and a supplemental brake system. Wiring Kit - Roadmaster Tail Light Wiring Kit...
    view full answer...
  • Does the LED Bulb and Socket Tail Light Wiring Kit Pull Power Directly from Motorhome
    That is correct. The LED bulbs for the Tail Light Wiring Kit # RM-152-LED will install into the tail light housing on your 2019 Chevy Equinox and then you'll route the 4-wire harness to the front of the vehicle and install it in a plug like what comes with the Flexo-Coil Kit # RM-146-7 so they receive power directly from the motorhome. For a complete flat towing setup you will need a base plate kit, tow bar, safety cables, vehicle tow bar wiring, a supplemental braking system, and possibly...
    view full answer...
  • Recommended Flat Tow Wiring Harness for 2019 Equinox Premier
    The Roadmaster Tail Light Wiring Kit for Towed Vehicles - LED Bulb and Socket - Red # RM-152-LED excludes the premier model. The bulb and socket kits are not recommended for your vehicle because there simply isn't room in that particular assembly for the 1 inch hole required according to my tech contact at Roadmaster. Instead I recommend the diode kit # RM-154 or Roadmaster Diode 7-Wire to 6-Wire Flexo-Coil Wiring Kit # RM-15267 which is my preference and will allow you to add the charge...
    view full answer...
  • Availability of Roadmaster Tow Bar Lighting Kit for 2022 Jeep Cherokee Trailhawk
    Roadmaster has diode style tow bar lighting kits that fit your 2022 Jeep Cherokee Trailhawk like with the part # RM63MR but they do not list any of their bulb and socket kits as a fit due to space constraints in the housing of the light assemblies.
    view full answer...
  • Can Bulb and Socket Flat Tow Wiring Fit a 1999 Jeep Cherokee Sport
    The Roadmaster Tail Light Wiring Kit for Towed Vehicles # RM-152-LED requires a 1" hole to install the bulbs into the tail light housing. It does look like you're limited on spacing inside your housing and when I reached out to my contact at Roadmaster he confirmed that we need to go with a different tail light kit for your setup. I recommend the Universal Hy-Power Diode Wiring Kit # RM-154 if the brake and turn signal are combined on your 1999 Jeep Cherokee Sport, or the Universal Wiring...
    view full answer...
    Image 1 for
  • What Color Are the LEDs That Come With the Roadmaster Tail Light Wiring Kit for Towed Vehicles
    The Roadmaster Tail Light Wiring Kit for Towed Vehicles part # RM-152-LED comes with red LEDs which are needed because with LEDs you must use a bulb color that matches that of the tail light housing in order to get a true color. The bulb type that is used is indeed an 1157 so there would be different intensities based on if the stop or tail lights were activated. Please note, the Replacement LED Bulbs and Sockets part # RM-152-2 are just the replacement LEDs for the Roadmaster Tail Light...
    view full answer...
  • Flat Towing Wiring Kit for 2019 Chevrolet Equinox
    If you have the 2019 Chevrolet Equinox Premier you can use Roadmaster diode wiring kit # RM-15267 along with 6-pole plug # RM-910030-8 that you will install in place of the included 7-way. An article on wiring is linked to assist you with this process. If you do not have the Premier you'll instead need one of the kits shown on the linked page, such as magnetic light kit # TL21RK or bulb and socket kit # RM-152-LED.
    view full answer...
  • Recommended Flat Tow Wiring Kit For A 2019 Jeep Grand Cherokee
    The 2019 Jeep Grand Cherokee is not compatible with bulb and socket kits from Roadmaster like the # RM-152-LED that you referenced. Bulb and socket kits will actually cause much more harm since you'd have to drill into the tail light housing and run the risk of damaging the light and will typically also face issues with water leaking into the taillight through the hole the bulb and socket kit uses. You'd be much better off just using a splice in kit like the Roadmaster Diode 7-Wire to...
    view full answer...
  • Parts Needed to Flat Tow 2019 Chevy Equinox
    To properly and safely flat tow your 2019 Chevy Equinox you are going to need a base plate kit, tow bar, safety chains, a wiring kit, a supplemental braking system and likely a high-low adapter. I'll list the best parts for you: - Base Plate Kit: Roadmaster Crossbar-Style Base Plate Kit # RM-523193-5 - Tow Bar: Roadmaster Nighthawk All Terrain, Non-Binding Tow Bar # RM-676 - Wiring Kit: Roadmaster Diode 7-Wire to 6-Wire Flexo-Coil Wiring Kit # RM-15267 (if the Equinox is a Premier model)...
    view full answer...
    Image 1 for
  • Can a 2016 Honda Civic be Flat-Towed
    According to the owner's manual for your 2016 Honda Civic, if the vehicle has a manual transmission then it can be towed behind a motorhome with all four wheels on the ground. From my research, the tenth generation which is what you have from 2016+ plus is flat towable whereas the ninth generation from 2012-2015 is not flat towable. In order to flat-tow the vehicle you going to need a tow bar, base plate kit, safety cables, tail light wiring harness, supplemental braking system, and possibly...
    view full answer...
    Image 1 for
  • Recommended Wiring to Flat Tow my 2008 Jeep Wrangler
    I have a great option but the Roadmaster Tail Light Wiring Kit for Towed Vehicles part # RM-152-LED is not a confirmed fit for your 2008 Jeep Wrangler JK Sahara edition. It comes down to the inserts being too long and interfering with the standard lights. I recommend going with the Hopkins Custom Tail Light Wiring Kit for Towed Vehicles part # HM56200 it is the best of both worlds it plugs in between the factory connector so you are not splicing into anything but it also doesn't require...
    view full answer...
  • Parts Needed to Flat Tow a 2020 Chevrolet Sonic Hatchback
    Yes, According to the owners manual for your 2020 Chevrolet Sonic Hatchback you can flat tow your Sonic with automatic transmission. I have included a list of the parts you will need, as well as a recommendation for each part. You will want to make sure you consult the owners manual for your Sonic to be sure you complete any requirements/recommendations from the manufacturer before towing your Sonic. Base Plate Kit: This Provides the attachment point for the tow bar coming from your RV....
    view full answer...
  • Are Curt Base Plates on 2018 Chevy Equinox Compatible With Roadmaster Falcon 2 Tow Bar
    I reached out to Curt, who said you can use the Curt Custom Base Plate Kit # C28FR with your 2018 Chevy Equinox and the Roadmaster Falcon 2 Tow Bar # RM-520 so long as you use an adapter designed for Blue Ox base plates. So what you need is the Roadmaster Tow Bar to Blue Ox Brackets Adapter # RM-031. As far as the wiring kits on your '18 Equinox (excluding Premier) the LED and standard bulb and socket kits, which are the Roadmaster Tail Light Wiring Kit for Towed Vehicles - LED Bulb and...
    view full answer...
  • Will the Roadmaster Tail Light Wiring Kit # RM-152-LED Provide All Lighting Functions
    Yes, the Roadmaster Tail Light Wiring Kit for Towed Vehicles, # RM-152-LED, will operate tail, stop, and turn signals with one LED blub per side of the vehicle.
    view full answer...
  • Is There An Installation Video of the Roadmaster Bulb and Socket Kit on a 2017 Ford F-350
    At this time we do not currently have a video of the installation process of the Roadmaster # RM-152-LED kit on a 2017 Ford F-350, but as soon as we do get an opportunity to make one we will certainly be looking to take advantage. To install a Roadmaster Bulb kit like the # RM-152-LED you'll need to remove the tail light housing on your vehicle and just choose the best spot for a 1" hole to be drilled without interfering with any of the other lights or wiring components. You could potentially...
    view full answer...
  • Available Tow Bar Wiring Kits for 2015 Chevrolet Traverse
    Hopkins Custom Tail Light Wiring Kit for Towed Vehicles item # HM56106 fits the Chevy Traverse for model years 2009 through 2012. It does not fit your 2015 model year but the flat towing wiring kit options for your 2015 Traverse are shown on the linked page. These include bulb-and socket kits like # RM-152-LED, hardwired diode kits like # RM-15267 and magnetic light kits such as # TL21RK. The included article on tow bar wiring will give you the details on each type to help you decide...
    view full answer...
  • Do Blue Ox Base Plates Fit 2021 Chevy Spark ACTIV & Parts Needed to Flat Tow
    I checked with Blue Ox, and the Blue Ox Base Plate Kit # BX1725 will fit your 2021 Chevy Spark ACTIV with a manual transmission. I have added cut out for you from the linked installation instructions from these base plates which shows the base plates on this vehicle. Along with the tow bar you asked about, there are a number of other parts needed to flat tow your 2021 Chevy Spark ACTIV with manual transmission, so I'll make a list for you to make it easier. - Base Plate Kit: Blue Ox Base...
    view full answer...
    Image 1 for
