Trailer Light Mounting Bracket for 6-1/2" Oval Trailer Lights, Steel - Black Powder Coat

Trailer Light Mounting Bracket for 6-1/2" Oval Trailer Lights, Steel - Black Powder Coat

Item # BK70BB

lowest price pledge

Retail:$6.13

Our Price: $5.56

You Save: 9%
Accessories and Parts

Orders above $99 qualify for Free Shipping

Shipping Weight: 0.65 lbs

Quantity:
In Stock, Ships Today
Optronics Mounting Brackets Accessories and Parts - BK70BB
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Trailer Lights
  • Mount Parts
  • Mounting Brackets
  • Optronics
  • 6-1/2 Inch Diameter
  • Black
Call 800-298-8924 to order Optronics accessories and parts part number BK70BB or order online at etrailer.com. Free expert support on all Optronics products. Guaranteed Lowest Price and Fastest Shipping for Trailer Light Mounting Bracket for 6-1/2" Oval Trailer Lights, Steel - Black Powder Coat. Accessories and Parts reviews from real customers.


  • All Info
  • Reviews (131)
  • Q & A (133)
  • Videos (1)
  • Photos
  • Why etrailer?

Optronics Accessories and Parts - BK70BB


Trailer Light Mounting Bracket for 6-1/2" Oval Trailer Lights, Steel - Black Powder Coat

A black, steel bracket for mounting 6-1/2" oval lights. The bracket measures 8-1/4" long x 4" wide with a 1-5/8" deep mounting base. The bracket has a 6-11/16" long x 2-5/8" wide hole in the center for mounting the light, and has two screw holes in the bracket centered at the rounded ends of the hole. The black, powder coated bracket is made from sturdy, durable steel and can be used to mount lights vertically or horizontally. The bracket base mounts on 6-1/4" centers. Along with the sealed light, a grommet (A70GB) is required to complete the installation.

  • Black, powder coated bracket for mounting 6-1/2" oval lights
  • Constructed from strong, durable steel
  • Mounts lights vertically or horizontally
  • Lights mount into 6-11/16" long x 2-5/8" wide hole in center of bracket with screw holes centered at rounded ends
  • Base mounts on 6-1/4" centers
  • Requires grommet A70GB to complete installation
  • Dimensions: 8-1/4" L x 4" W with 1-5/8" deep base

Manufacturer Cross Reference
Bracket will work as an exact replacement for:
Uni Bond # MB2238
Truck Lite # 60720
Grote # 43362
Peterson # 421-09

Manufacturer Specifications

Black powder coated steel bracket for horizontal or vertical mounting of 6" oval lights. Grommet part #A70GB is required for complete installation.

dimensions of mounting bracket


BK70BB Black Powder Coated Bracket for 70 Series Oval Lights by Optronics, Inc.

Alternate part number: BK-70BB

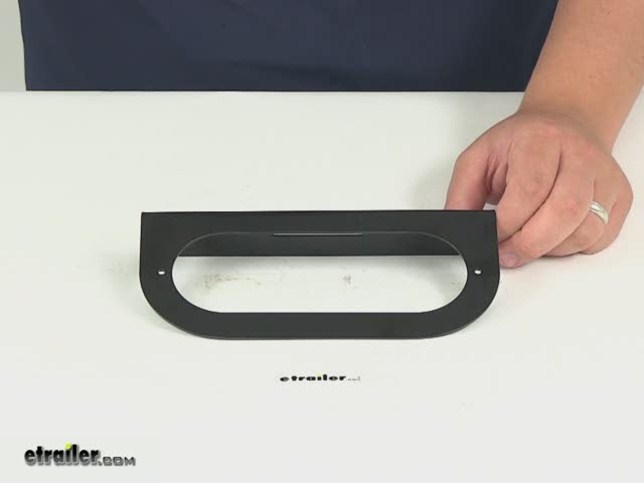

Video of Trailer Light Mounting Bracket for 6-1/2" Oval Trailer Lights, Steel - Black Powder Coat


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Optronics Trailer Lights BK70BB Review

Today we're reviewing part number BK70BB from Optronics. This is a trailer light mounting bracket for six and a half inch oval trailer lights. It's constructed or durable steel and it has a black powder coat finish that resists both rust and corrosion. The bracket can be mounted horizontally, like this, or vertically, like that. It has two mounting holes at the top and two screw holes, one on each side, as you can see here. The opening for the six and a half inch light is six and eleven-sixteenth inches long, and it is two and five-eights inches tall from the bottom of the opening to the top. The way this works is, you must have a six and a half inch grommet. If you don't have one of your own, you can purchase this one separately on etrailer.com. This is part number A70GB, and it is the Optronics six and a half inch rubber grommet.

The way this works, I have a six and a half inch oval light here, so I can show you. You put the grommet on the light, it gives you a nice weather-resistant seal, and as you can see, the grommet is open in the back for easy access to your wiring. Then you mount that into the bracket, like that. It allows you to flush mount your light. We can take that off. There are brackets made by several other manufacturers for which this part can be an exact replacement, and those are listed on the product page. Now to check some measurements. This bracket measures eight and a quarter inches long. Four inches tall. And one and five-eighths of an inch deep. There you have it for part number BK70BB from Optronics, the trailer light mounting bracket for six and a half inch oval trailer lights.


Customer Reviews

Trailer Light Mounting Bracket for 6-1/2" Oval Trailer Lights, Steel - Black Powder Coat - BK70BB

Average Customer Rating:  4.9 out of 5 stars   (131 Customer Reviews)


- BK70BB

by:


A friend had this style on his trailer and they seemed to be trouble free, I could not buy these local for the price etrailer offers. So I bought light, gromet, and pig tail. Very nice and easy to mount. 282384



- BK70BB

by:


The lights are great, however, you should probably sell as a kit to include the mounting brackets and wiring harness. I had to make a second order to complete the installation on my truck. 567111



- BK70BB

by:


Used 2 of these to add a light kit to my Thule T-2 receiver bike hitch. East to mount and wire with optional lens kit. Adds extra safety with 2 29 inch bike hanging out the back. 563721



- BK70BB

by:


Nice quality NOT some flimsy piece of tin. Great place to deal with. 198643


Comments

Thank you for the concern, Everything I purchased from you are working as they should. VERY HAPPY with all.

Dennis W - 06/17/2016

18730

- BK70BB

by:


Elcellent product and arrived early. Works just as advertised and looks nice on my Cargo Carrier. Just got done ordering more items. Great customer service department answered all my questions. 519670



- BK70BB

by:


Very snug fit with the grommet and light unit. This wasn't easy to marry but one things for sure - it ain't coming apart easy!! This bracket is essential to properly mounting the oval LED flasher/back-up light etc...the seller should strongly recommend you purchase this or else you'll end up like me and have to pay for shipping twice. Thanks, 14622



- BK70BB

by:


First...I have used trailer hitches and other products from etrailer before...all worked and were relatively easy to install for a 74 year old, falling apart, fat boy. I have no real complaints toward etrailer or those/this product. I called before ordering this oval light mount to be sure it would fit the LED trailer lights I have and was assured all 4 holes lined up perfectly. My lights looked like the 10 led STL72R, but the mount had only two holes and only 1 hole lined up(see pictures)...the other was off by ~14" to 3/8". In all fairness I don't know how old my lights are or who made them...nor do I know which light was used as a model or by whom at etrailer... It is NOT a big problem and easily fixed and the mount is usable as is just by drilling an upper mounting hole and/or elongating the mount holes on both the light and mount and using washers to squeeze the flanges together. A person can always hope that pieces and parts will fit perfectly but that isn't the usual happening especially with parts made who knows how many years apart and by how? many manufacturers. I am satisfied. This assembly will be mounted on a "trunk mount" attached to my Voyager Trike kit on my 2002 Moto Guzzi California Special Sport 216182



- BK70BB

by:


Good looking product, however the mounting holes for the lites I bought do not match up with the lites themselves, so I will need to drill holes that match. 236161


Comments

Returned, cheap and inferior compared to replacements...

Keith W - 01/22/2017

22276

- BK70BB

by:


The Brackets are made of rigid, high quality steel, with a nice powder coated finish. We used these brackets to add newer style lights to an old trailer. These saved us lots of machining and cutting time. 118606



- BK70BB

by:


Exactly what I was looking for these are sturdy enough to attach with magnets as temporary towing lights for my historic vehicle. Thanks 15680



- BK70BB

by:


Good fit and plenty of holes for vaious mounting applications. I welded mine on and the material is thick enough to be welded and hold its structural integrity mounted in any position. 54137



- BK70BB

by:


Looks great on my trailer. thanks 121667


Comments

Just like a TIMEX watch takes a licking

john m - 03/21/2015

10181

- BK70BB

by:


Made it a lot easier to attach our LED lights to our hitch bike rack. 573408



- BK70BB

by:


Always happy with my etrailer purchases. 562986



- BK70BB

by:


Not sure how these brackets wouldn't be 5 stars. Seemed to be pretty stout so shouldn't wiggle or bend. It took me about 20 minutes to mark/drill holes and bolted them into the trailer frame using 1/4" bolts with fender washers and nyloc nuts. Next time I have to replace the wood decking, I'll probably weld them in place 559486



- BK70BB

by:


works great, 1 year later still holding up well 556339



- BK70BB

by:


Exactly what I expected and more. Received shorter delivery time than expected to. We will be doing business again. Hats off to etrailer.com and phone support! 549368



- BK70BB

by:


This is a quality product. 604131



- BK70BB

by:


Attaced trailer lights to a Thurle hitch, 2bike platform. When the plateform is lowered to the loaded position the lights are located on the bottom of the rearmost horizontal bar. The light on the left is attached to the hex bolt at the end of th bar and rhe other end of the mounting bracket is held to the bar by a zip tie which runs through the hole at that end of the bracket. On the right side There are 4hex bolts on that part of the bar. The bracket holes don’t match up to those bolts. I used the bolt closer to the center and furthest to the rear and drilled a new hole in the bracket to match the bolt in that line furthest to the end. Both lights are secure and as the picture shows helps to define the protrsion of the rack and hopefully will protect from a rearend crash. 602170



- BK70BB

by:


Great products! Great customer service! Delivery was ahead of schedule! I could not ask for more! 595611



- BK70BB

by:


Well made and solid. 521288



- BK70BB

by:


Great product! Well made of heavy duty gauge steel. Has a great coat of paint on it!! Welded this to 2, L brackets and was very surprised how well the paint held up to the intense heat! Only had to do minor touch ups! 508491



- BK70BB

by:


Excellent product. Shipping was wonderful. Fits perfectly. Thanks 487561



- BK70BB

by:


I welded these on my trailer and bolted them on another trailer and they are sturdy enough for either way. 479050



- BK70BB

by:


I welded these on and they are doing just great . 479045



- BK70BB

by:


Great 476856



- BK70BB

by:


good price fast delivery 462319



- BK70BB

by:


Used as a template, worked good. 460623



- BK70BB

by:


I did a short search for light templates and brackets and came across these. Contacted etrailers and purchased these right away. The price was less than I had anticipated and I'm very happy with the quality and shipping speed from etrailers. Highly recommend! 460600



- BK70BB

by:


Perfect fit. Installation is a breeze. 456541



- BK70BB

by:


Good Basic Product..Good gauge Metal . 449552



- BK70BB

by:


Good Products. 446571



- BK70BB

by:


Tail light bracket cutout is a perfect fit. Bought them to cover oversized factory oval cutout. Will easily mount onto trailer allowing lights to remain in factory cutout location. Well made brackets. Timely delivery. 445471



- BK70BB

by:


Upon placing an order i had not received tracking number of shipment and called to see where order was after 7 days. While there was some confusion they found the problem that supplier was no longer making a stainless light bracket and originally said they were 2 more weeks out on getting the powder coated ones. 3 days later may shipment was received in full with everything. Even though there was an error in the order at least you could contact someone and get immediate assistance. This will be my first choice for parts as they have given great service on all my previous orders as well. Keep up the great service hard to find these days. 434745



- BK70BB

by:


Loved the item i bought! It was a perfict fit and the cost was just right!! 433891



- BK70BB

by:


great price would like to use stainless one but not cost affective. 423572



- BK70BB

by:


Good material and finish 420186



- BK70BB

by:


Great product 419119



- BK70BB

by:


I used this with the 98174 led light kit to put on my Thule T2 bike rack. I was alway worried about the expensive bikes on the back of the car when in traffic. The light kit makes brake lights visible and no worry of bikes blocking them any more. I used heavy duty outdoor double sided tape to mount brackets and lights to the rack. 413914



- BK70BB

by:


Led lamps fit inside snugly and it mounted to the frame easily. 400708



- BK70BB

by:


All items work great. Thanks for your help. Might need your help again. Thanks a million. Griff 391938



- BK70BB

by:


Wasn't expecting this kind of quality for the price. Very well made 387300



- BK70BB

by:


Ordered a LED tail light, bkt, grommet and harness set, received an incorrect harness, called etrailer and the correct harness was sent to me. Very nice tail lights, bright, low current draw and excellent customer service. 385466



- BK70BB

by:


great parts, good pricing, fast shipping. that's why i.m a repeat customer... terry 382325



- BK70BB

by:


What a great customer service experience! Both Pat and Angela provided info on the parts i needed. I will be ordering from etrailer again! 378247



- BK70BB

by:


Arrived on time! Used on my hitch mounted bike rack. Worked out great. Now I feel safe hauling my Fat Bike and people can see my lights!! 376426



- BK70BB

by:


I purchased these Submersible LED bulbs for my boat trailer for two reasons. The first is so road traffic is aware of my intentions of backing up and the second is to make it easier to back my trailer into my driveway at night. The only thing that I find disappointing about this product, is that the wires are not sealed. You have to plug a pigtail in to power the bulb. Although they say it is watertight, I still plan on sealing the plug with some marine grade silicone sealant. Otherwise I am very satisfied with the way these bulbs light up my path of travel. 376430



- BK70BB

by:


Haven't completed trailer yet. 372540



- BK70BB

by:


Great product for adding lights without having to drill the large hole 371382



- BK70BB

by:


good value 369558
