Bulldog Round, A-Frame Jack - Sidewind - 15" Lift - 5,000 lbs

Item # BD1700100317

lowest price pledge

Our Price: $83.37

Trailer Jack

Orders above $99 qualify for Free Shipping

Shipping Weight: 14 lbs

Quantity:

In Stock
bulldog trailer jack sidewind no drop leg round a-frame - 15 inch lift 5 000 lbs
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
Bulldog Sidewind Jack Trailer Jack - BD1700100317
BD1700100317 - No Wheel or Foot Bulldog A-Frame Jack
BD1700100317 - No Drop Leg Bulldog A-Frame Jack
Bulldog Round, A-Frame Jack - Sidewind - 15" Lift - 5,000 lbs Sidewind Jack BD1700100317

In Use/Installed

Bulldog A-Frame Jack - BD1700100317
Bulldog Trailer Jack - BD1700100317
Bulldog A-Frame Jack - BD1700100317

Customer Photos


  • A-Frame Jack
  • 5000 lbs
  • Sidewind Jack
  • No Drop Leg
  • Standard A-Frame Jack
  • Bolt-On
  • Weld-On
  • Bulldog
  • 15 Inch Lift
  • No Wheel or Foot
Ideal for multiple agricultural and commercial applications, this standard A-frame jack features an 8-3/5" retracted height and measures 14-3/4" from the mounting bracket to the top, excluding the handle. Base sold separately. Lowest Prices for the best trailer jack from Bulldog. Bulldog Round, A-Frame Jack - Sidewind - 15" Lift - 5,000 lbs part number BD1700100317 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (204)
  • Q & A (51)
  • Videos (2)
  • Photos
  • Why etrailer?

Bulldog Trailer Jack - BD1700100317

Ideal for multiple agricultural and commercial applications, this standard A-frame jack features an 8-3/5" retracted height and measures 14-3/4" from the mounting bracket to the top, excluding the handle. Base sold separately.


Features:

  • Dependable jack is recognized as industry standard for agricultural and commercial applications
    • ASABE compliant
  • Precision-fitted parts provide exceptional stability and reliability
  • Weld-on/bolt-on bracket mounts to any standard A-frame coupler
  • Sidewind handle has smooth, ergonomic design for easy cranking
  • Outer and inner tubes are gray-paint finished
  • Footplate or caster assembly sold separately


Specs:

  • Bracket height:
    • 8-5/8" Retracted
    • 23-5/8" Extended
  • Lift: 15"
  • Clearance: 14-3/4" from mounting bracket to top of jack
  • Inner tube inside diameter: 1-3/4"
  • Inner tube outside diameter: 2"
  • Outer tube diameter: 2-1/4"
  • Handle radius: 6-11/16"
  • Slotted bolt holes on mounting flange: 7/16" wide x 7/8" long
  • Lift capacity: 5,000 lbs
  • Limited 5-year warranty


1700100317 Bulldog Round A-Frame Jack, Sidewind, 15" Travel, 5,000 lbs - SWL 175






Video of Bulldog Round, A-Frame Jack - Sidewind - 15" Lift - 5,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

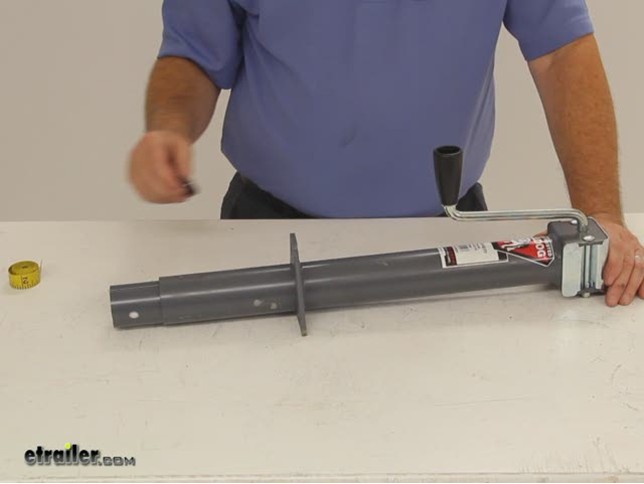

Video Transcript for Bulldog Trailer Jack BD1700100317 Review

Today, we're going to review part number BD1700100317. This is the Bulldog Round A-Frame Jack with the Sidewind Handle and a 5000-pound weight capacity. This Bulldog Jack is ideal for multiple agricultural and commercial applications. This standard A-Frame Jack is a dependable jack which is recognized as an industry standard for a lot of the agricultural and commercial applications. They do use precision fitted parts which will provide exceptional stability and reliability. The mounting bracket which is the triangular piece right here can be welded on or can be bolted on using the three holes.

Now, the holes are 3 inches center to center which is the industry standard for the A-Frame Jacks. The sidewind handle has a smooth ergonomic design for easy cranking and also the outer and the inner tube are painted gray. Now, the footplate and the wheel caster assembly for the bottom which connects to the bottom of the jack is sold separately and if you pull up the product page for this part number usually to the right of the page, it will list the related products and it should show the footplate and the wheel caster assembly. Now, I do want to give you some measurements on this. The clearance which should be measured from the mounting bracket to the top of the jack will measure 14-3/4 inches for the clearance height.

Now, this jack is in the fully retracted position so the retracted height would be from the bottom of the jack to the mounting bracket, and that would measure 8.6 inches. Now, I do want to give you the extended height so the safe time, I pull another exact same jack and crank it up. Here it is in the fully extended position, so if we measure from the bottom to the mounting, it would be 23.6 inches. So to get the lift, if you would take the extended dimension of 23.6 and subtract the retracted dimension of 8.6, that will leave you with a lift of 15 inches so the maximum lift on this jack would be 15 inches. The inner tube is 2 inches in diameter.

The outer tube is 2-1/4 inches. The handle radius which is this measurement right here would measure 6.6 inches. Again, this jack has a lift capacity of 5000 pounds and it does come with a limited five-year warranty. And that should do it for our review on part number BD1700100317.


Customer Reviews

Bulldog Round, A-Frame Jack - Sidewind - 15" Lift - 5,000 lbs - BD1700100317

Average Customer Rating:  4.8 out of 5 stars   (204 Customer Reviews)

Ideal for multiple agricultural and commercial applications, this standard A-frame jack features an 8-3/5" retracted height and measures 14-3/4" from the mounting bracket to the top, excluding the handle. Base sold separately.

- BD1700100317

by:


eTrailer, I can't say enough about how impressed I am with the product selection, reviews, education gained through your videos, and service. I am very impressed and you've gained a new customer who will be back as my needs dictate. Your shipping time was amazing and for someone who is accustomed to free 1-2 day shipping times from another online retailer that sounds like Parmesan.com, you kept your word, at no additional cost, and had the product to me as promised. Very, very impressed - Wow! Thank You! I will hail your name at the marina should I find anyone in need of your product line... Okay, now on to the Bulldog 5000 lb Jack. I did not need the entire 5000 lb support as I am replacing a Bulldog 2000 lb jack - but for the eTrailer price, how could I go wrong? This jack feels a bit more stout than my previous jack and based upon the specs and product review provided by eTrailer, I knew that this one would fit my trailer better than the previous version. In particular, the retraction and extension information. I had it installed within 15 minutes and used both the lower support plate and detachable foot plate which were also provided by eTrailer. Keep up the great work! 191736



- BD1700100317

by:


I purchased this to replace a trailer jack that had broken when I was packing up to leave my campsite. I had to ask the campground's maintenance dept to help jack my trailer up and onto my pickup so I needed a replacement jack quick in order to continue to tow the trailer on our next trip. I was happy to find what I needed at etrailer. The gray color matched my trailer tongue and supported more than enough weight. I also needed a side handle as the top handle was in the way of my propane tanks. The install was quick and the jack works great so far. Highly recommend it! 431609



- BD1700100317

by:


Not much to say-its a tongue jack. Direct replacement, and works as advertised. Shipping was fast though, that's good. 100336


Comments

Has it been a year already?? Wow. Bulldogs a good boy, hes doing exactly what I expected of him holding the front of my trailer up! Really, the crank handle still moves smoothly, the leg is still arrow straight and iron strong. No complaints!

James M - 09/12/2014

6797

- BD1700100317

by:


Product got here immediately. Easy to install. Works great!! I realized I've been burning way too many calories cranking with my old jack for way too long! My kids can even operate this jack. Thank you! 225444


Comments

Still works like a champ!

Jeff G - 09/14/2016

20973

- BD1700100317

by:


As received, the jack handle is toward the tow vehicle when mounted. This seemed backwards to me so I disassembled the jack to change the position of the handle to the rear. I found metal shavings in the grease on the inside surface of the inner tube and a very rough surface on the screw threads. I had to remove the screw from the tube nut to clean it and then clean inner surface of the tube. With new grease, the jack now operates smoothly but I have to believe that the jack would have been damaged if I had not discovered the shavings and corrected the problem. 126373


Comments

Mike , it looks like this will mount on three different directions. are the three holes not the same distance apart?

-- comment by: Dan C - 05/11/2014

4073

The holes are the same distance apart, but the jack tubes are not centered on the plate. An a-frame jack will only fit into the mount on the trailer one way. On this jack, Bulldog part # BD1700100317
Bulldog Round, A-Frame Jack - Sidewind - 15" Lift - 5,000 lbs
$83.37
, the handle will typically face forward. In rare cases, the trailer builder will orient the mounting plate differently.

-- Patrick B - 5/19/2014


- BD1700100317

by:


Exactly what ordered The videos made it easy to decide which jack I needed. 112503


Comments

My bulldog round A-frame jack after one year works perfectly, i couldnt be happier.Kevin

Kevin F - 01/10/2015

8517

- BD1700100317

by:


Very well built. Easy to install. Easy to crank, even when my trailer has a tractor on it. 207289


Comments

I have had no problem with my jack. Happy with the purchase.

Craig S - 06/25/2016

18944

- BD1700100317

by:


Ridiculously easy to install- works like a charm on a 10k GVW trailer- great investment! 225370


Comments

A year later and it works like the day I installed it!

Steve - 09/12/2016

20912

- BD1700100317

by:


I purchased this to replace an electronic jack for two reasons, one i was a little hesitant about trying to install an electric one and two someone told me the electric ones werent worth it. Boy am i happy. This thing was a breeze to install. Took about ten minutes for a mechanically challenged person. Used two jacks to lift the front of the trailer and unscrewed three screws - pulled out electronic jack and replaced with the Bulldog and tightened three screws and done. Piece of cake. Even better - etrailer upgraded me for free to 3 day shipping and i got the jack about a week before i expected. Great customer service. 55784



- BD1700100317

by:


This jack is shorter from the attachment to the bottom which will allow the easy use of the 6" wheel that I purchased from eTrailer. The jack runs smoothly both up and down. Installation took only about 5 minutes. Removed the three bolts holding the old one and removed the jack, replaced with the Bulldog jack and tightened the bolts. This has a rating for 5000 lbs, which is far more than will ever be needed with this utility trailer. I expect a long life for this unit. eTrailer does a great job showing the product and explaining how to install/use. Shipping was only a few days. I will buy again from eTrailer. 242538



- BD1700100317

by:


This product performs great. Easy to use and easy to install. I had a battery jack lift and the gearing started to fail and after several attempts to fix it I replaced it. I looked for a through tongue jack lift that would be mighty enough for my work trailer. This jack met the statistics and has performed beautifully. One suggestion I would add though if the manufacturer could include new bolts, nuts and washers to mount the jack. I struggled a little to get the old bolts out without breaking them. I got them out and reused them, but it would've been nice to have it all shinny and nice. 305395


Comments

Hi there, thanks for reaching out to me. The trailer jack is still working great. It is still easy to lift the tongue of my 16 enclosed trailer with the crank handle. Still a great purchase..

Andrew H - 10/11/2017

29082

- BD1700100317

by:


I was having issues with my RV front jack and every time I would jack it up it would either get stuck on up position or down position and you could hear where the gears were stripped.So I purchased the Bull Dog Item # BD1700100317 as well as the BD018564 as the footplate. I received the item within 3 days of order,open the boxed and installed in less than 5mins.One of the easiest products I have ever installed.I worked the trailer jack up and down with no problems and good amount of extend.Thanks guys for making my camping trips easier..Picture attached of old jack and new one in place. 317019



- BD1700100317

by:


Replaced failed problematic electric jack. Installation took 20 minutes. Jack works great as advertised. I expect it to outlast my trailer and truck and even me. 376448



- BD1700100317

by:


Jack is great, fast delivery. Shipper was hard on the box. Glad there was no damage to the jack. 439547



- BD1700100317

by:


Great product. Bought a older enclosed trailer that had a jack with a crank on top. The old jack was very tired. I moved the spare tire to the front of the trailer outside, form its original location on the inside front wall, (which made little sense to me). With the tire on the outside the position of the jack and the crank handle rotation became more of an issue. The front crank solves that issue, and I feel it is a more natural cranking motion. 468025



- BD1700100317

by:


I received the Bulldog 5000 Lb. A-Frame jack (BD1700100317) and coupler (CA5100B) Friday 12/9 and installed them the next day. They work great! I couldn't be happier with the service and prompt delivery that e-trailer provided. One of my items was not available so they were able to split my order with no extra cost. That was a life saver for me since I am a N.Y.C. mobile food vendor and needed the parts A.S.A.P. Thanks e-trailer. 27969



- BD1700100317

by:


As always, fast shipping. I have a home made car trailer that should'a been 2 feet longer but isn't that always the case. Haha. When hauling a late 60's to 70's car the front end hung over jack making it useless sometimes. Decided to try this side wind jack. Works great. Still have the same problem sometimes but the handle can be easily modified to be extended out as far as needed. Don't know why I waited so long to try this. 288536



- BD1700100317

by:


This is a great jack I put it on my 14' enclosed construction trailer. The jack bolted right on and I have had no issues. I will always use Etrailer.com in the future. Their customer service department is very helpful. 125422



- BD1700100317

by:


I got this 5,000lb jack because I had two 2,000lb jack handles break, so hopefully this takes care of the issue. Customer service was excellent. NOTE: keep the bolts from your old jack. The jack from etrailer does not come with any. I had to go to a RV dealer to get the proper bolts. Do not put just any bolt with these jacks. Must have a certain strength and I could not find one at the hardware stores. 229107



- BD1700100317

by:


Great product. Item came earlier than expected. I had a 2000 lb top winder on my 18-ft box utility trailer that eventually became so difficult to crank that jacking it off of the ball was nearly impossible. Decided to go with this 5000 lb sidewinder. it bolted on easily and now elevating my heavy box trailer is a breeze. Even my 5-year old son likes to help daddy "drop the trailer!" 158298



- BD1700100317

by:


This jack replaced the stock jack on my camper. The tongue weight of the camper is 2100 lbs. I purchased the 5000 lb jack because of all the equipment that is in the camper. This jack is like jacking up nothing. Very, very easy to crank, even with the truck attached to hook up the stabilizer bars. I highly recomend replacing your stock jack with this reasonably priced quality jack! 186056



- BD1700100317

by:


This 5000 pound trailer jack is just what the doctor ordered for my boat trailer. The old jack that the trailer came with was getting very hard to turn. This jack is about 3000 pounds beyond what is required for getting the trailer up and off the ball. It is very easy to turn the handle and with the 3 inch triangle bolt pattern it matched the trailer bolt pattern. Excellent product. 313969


Comments

Perfect

Bob S - 11/06/2017

30590

- BD1700100317

by:


This is a great jack. No muss , no fuss. So simple to mount, bolt holes lined right up, and I had the job done in 30 minutes, which included getting out the few tools needed to do the job. My wife and I are restoring a vintage 1972 Yellowstone. Heavy trailer to say the least. A 12 year old kid can lift it with this jack. Very happy. Looks great to. Thanks E Trailer. 35587



- BD1700100317

by:


My first time was a charmer! Ordered 5k lb. jack and foot, which I could not find anywhere else, and it works great. Ordered for customer who uses this heavier duty jack on his commercial pressure washer trailer. Product was just as advertised. This was my first order, but it definately will not be my last. System was so simple, quick, and easy to do. 4326



- BD1700100317

by:


the product is great that why I only buy bulldog but the cardboard box they shipped it in was horrible the jack was hanging out of the box all the tape came loose there was hardly any box on the jack luckily the jack survived don't even know why they bothered putting it in a box that was as a good as a paper towel they need to review their packaging 477262



- BD1700100317

by:


Its made in Mexico, but its well made. I added a grease fitting to the top lid so I dont have to always take off the lid to lubricate the gears. I also had to modify the foot plate holes slightly to fit my pattern but it was no big deal. Its not the same quality as the old Bulldog (USA Made) jacks but I would buy it again if I needed another. 406363



- BD1700100317

by:


I bought this jack to replace the worn out unit on my 1977 trailer. The old one is welded into the frame and would be a pain to remove and re-weld this one. The old one had the main tube threads strip out on the smaller down tube. Easy way out - I took this one apart, and replaced all of the parts out of the new one - into the old outer-tube. 55741



- BD1700100317

by:


My purchase was exactly what I was looking for. What made my purchase even better was etrailer lived up to their price match guarantee. I found my item cheaper and with cheaper shipping. Etrailer gave me a credit within 24 hours. Shipping was excellent also. I received my purchase within a week, even with a holiday weekend. Great job etrailer. 42161



- BD1700100317

by:


I am very happy with the service and knowledge of the customer service. Everything has been shipped out promptly and arrived in great condition. They told me there was a back order for about a month and managed to get one and ship it to me in a couple days.I would recommend them to anyone looking for trailer parts. Thanks for the help. 154468



- BD1700100317

by:


The sidewinder lift jack appears to be a well built product. It is installed on our 32ft travel trailer and has no trouble lifting it. Being a sidewinder solved the problem of hitting your knuckles on a lift mount attached to the trailer tongue. I would recommend this product for use on travel trailers and haulers. Happy hauling. 77405



- BD1700100317

by:


the bulldog trailer jack arrived just in time and I installed it in about five minutes! it works great and lifts my 29ft travel trailer with ease. I would recommend the bulldog jack to anyone plus your co. was super friendly , and answered all my questions in a very courteous and friendly way.will have pictures coming soon! 221628



- BD1700100317

by:


Great product for a good price. Ordered a 5000lb trailer tongue jack as mine broke late in the day on Monday and received it by Wednesday (less than 2 days). I use my cargo trailer everyday for work and was excited to get it fully operational with out taking a floor jack. Thank you for giving excellent customer service. 439312



- BD1700100317

by:


I ordered this because the jack on my brand new 23 foot travel trailer broke. This jack is ten times better than the one that came on the camper. The instructions that came with it were not specific to this model making them a little confusing. Luckily the installation is not tricky at all. I recommend this product. 44303



- BD1700100317

by:


I was looking for a trailer jack and came across this site. Etrailer is by far one of the best web sites that I have ever come across. All items appear to have great descriptions and lots of photos. There is no guessing of what you will be buying. Their prices and selection are very good. Delivery time very quick. 335455



- BD1700100317

by:


Awesome looking jack, replaced the one that was on our travel trailer. Got tired of busting my hand with that top handle jack. Installed in about ten minutes. Will also like the idea that it has 2000 more pounds of capacity. Very easy to operate nothing like the old one. Ordered on Monday and got it on Wednesday. 285149


Comments

Awesome looking jack, replaced the one that was on our travel trailer. Got tired of busting my hand with that top handle jack. Installed in about ten minutes. Will also like the idea that it has 2000 more pounds of capacity. Very easy to operate nothing like the old one. Still working great.

Garry E - 08/21/2017

27441

- BD1700100317

by:


My trailer weighs around 2500 and my local dealer sold me one rated for "2000 lbs" and said it would be fine. After it broke I discovered a very tiny etching on the jack that said 1000 lbs. For the SAME price I got a 5000 lb Bulldog jack and it works GREAT! My future trailer needs will be purchased here. 335551



- BD1700100317

by:


installed this product myself on the horse trailer, in my opinion the side crank jacks seem to be easier to work with but both of my side crank jacks are also a step above their replacement in weight rating. good product worth getting if you need/want a replacement for an equal or lighter weight jack 413002



- BD1700100317

by:


I ordered the jack, to replace the old tired jack on my 1970 Globestar travel trailer. The jack was shipped within 24 hours and I received the jack at my door within 48 hours via UPS ground shipping (Super Fast Shipping). It mounted up perfectly and took about 5 minutes for the three bolt installation. 56435



- BD1700100317

by:


Great product that fit perfectly for an easy installation. I ordered this item from etrailer to replace a 2,000 lift capacity A-Frame jack on a new Forrest RIver toy hauler trailer. Etrailer shipped the product the same day and provided tracking information that let me know when to expect the item. 62641



- BD1700100317

by:


Jack came in a large box with other items. Jack was not packaged or protected. It was scratched in several places down to the metal. I had to repaint it before it rusted. Second time I have purchased something that has been scratched, chipped or damaged due to cheap and irresponsible packing. 495953



- BD1700100317

by:


Perfect replacement for the electric jack that failed on me. Side wind handle is really easy to use even with a load on the trailer. I had planned to use the foot off my old jack but it won't fit due to a small groove in the new jack tube. I will find a way to make it work via big hammer. 240004



- BD1700100317

by:


This bulldog jack ( I also purchased the footplate as well) has been the best jack I have ever had on my camper. This is of top notch quality, very affordable in price and easy to install. I have recommended this jack to others. If I need another one I will definitely buy another one. 310616



- BD1700100317

by:


Extremely solid jack. I'm replacing a problematic electric jack that only seems to work at home. This may require a little more 'elbow grease' than holding a toggle switch, but will relieve the aggravation of the electric jack failing every time I get more than 10 miles from home. 451469



- BD1700100317

by:


Bought this to replace the cheesy 1500lb jack on my 38' travel trailer that lasted 8 months. Works very much better than the original, knocked a star off because the plastic handle broke off the second time I used it. An easy fix but slightly irritating. 259891



- BD1700100317

by:


Came home after a long weekend of camping and found the package in the garage. Proceeded to install the new a frame jack on our camper. It took a total of 5 minutes. Very pleased with the ease in which it took to install. Ready for another camping trip! 52448



- BD1700100317

by:


Very happy with the jack, worked very well for our Hurst Trailer. Thank you for you quick attention to our order, and getting it processed. your product was clearly defined and made the correct selection for what we needed without any second guessing. 18123



- BD1700100317

by:


Pros: This jack performs extremely well. The design of having the cap over the gear housing unit helps to keep the water out. Cons: I wished that it was designed with a grease fitting to lube the gears. Easy to install and highly recommended. 176752



- BD1700100317

by:


etrailer.com is all you need to know for ordering trailer supplies. Ordering was user friendly and entire order arrived ahead of schedule even though we chose ground shipping. All parts came "as advertised" products. Way to go etrailer.com! 20773



- BD1700100317

by:


Item was shipped promptly and found to be as advertised. I had it mounted on my trailer in about 10 minutes or so. Although I have not had the opportunity to use it yet as it is mounted on my RV trailer, it appears to be a quality product. 165509



- BD1700100317

by:


Installed perfectly and is so much easier to use than the old one. I kept busting my knuckles on the front of the trailer on the original as the handle was mounted on top. This one raises from the front. Great speedy delivery and product. 117734


53
207
Show More Reviews

Ask the Experts about this Bulldog Trailer Jack
Do you have a question about this Trailer Jack?


  • How to Choose the Correct Replacement Trailer Jack With Enough Ground Clearance on Rough Terrain
  • When choosing a jack for your trailer you will want to remember that the jack is not going to be lifting the entire weight of the trailer. You should choose a jack that exceeds the tongue weight of your trailer when it is fully loaded. The tongue weight of a trailer is typically calculated as 10 to 15 percent of the trailer weight. I would recommend finding the gross trailer weight rating (GTWR) which is the maximum weight that your trailer can support and choose a jack that is rated...
    view full answer...

  • Size of Bolt Needed for A-Frame Jacks
  • I spoke with my contact at Cequent and he said Bulldog and Pro Series A frame jacks will use 3/8 inch bolts, which is the standard size for A frame jacks and couplers. For install details and some product demonstration videos, click the provided links.
    view full answer...

  • Recommended Replacement Trailer Jack for Jayco Popup Tent Trailer
  • I think you are asking about a trailer jack for your Jayco popup. If so we have just what you need. For an a-frame camper I recommend a jack like part # BD1700100317. This is a sidewind jack that has a 5,000-lb capacity and has a 15-inch lift. This jack measures 8-5/8 inches when retracted and 23-5/8 inches when extended and has slotted bolt holes on the mounting flange that are 7/16 inches wide and 7/8 inches long. If a jack is not what you are looking for let me know and I will...
    view full answer...

  • Difference in Side Wind Operated A-Frame Jack and Top Wind A-Frame Jack
  • The choice between a side wind jack like the Bulldog Round, A-Frame Jack - Sidewind, part # BD1700100317, and a top wind jack like the Bulldog Round, A-Frame Jack - Topwind, part # BD155032, will usually be for clearance issues. A top wind jack will be used when there is something on the trailer that will interfere with the rotation of the side wind handle on the jack and a side wind jack would be used if there is interference for the top wind jack handle. If the clearance issues are...
    view full answer...

  • Mounting Bolt Pattern of the Bulldog A-Frame Jack and is Hardware Included
  • The bolt holes on the Bulldog Round, A-Frame Jack, item # BD1700100317, triangle mounting flange are 3 inches from center of one hole to the center of the next hole. They are equally spaced apart and they are elongated for easier installation. A-Frame jacks are all the same size and have the same bolt-pattern. The manufacturers did this so they could simplify the manufacturing process for both bolt-on and weld-on A-frame jacks. The jack can be bolted on, hardware not included, or...
    view full answer...

  • Mounting Hole Size for A-Frame Trailer Jacks
  • The mounting hole dimensions of A-frame jacks are a standard 3 inches apart on center, so you will need to weld your new jack on. I highly recommend the Bulldog Round, A-Frame Jack # BD1700100317, which has a 5,000 lb capacity and will give you 15" of lift. It has an outer tube diameter of 2-1/4" and sidewind handle; for a footplate you would want # BD018564. This jack has been highly praised by our customers, with nearly 200 reviews it has an average close to 5 out of 5 stars. I've added...
    view full answer...

  • Can A-Frame Trailer Jack be Removed and Side Frame Mounted Jack Installed
  • You can remove the A-Frame jack and install a frame-mounted jack on your trailer if you want to. It would not harm the trailer but if you wanted you could weld in some pipe in the old A-frame jack hole or cover it top and bottom with steel plates to ensure rigidity. I recommend a swivel jack, # PSEJ10000101, that can rotate out of the way when you tow the trailer. This jack bolts on up to 3x5 inch frames and has a 1,000 pound capacity. I have linked some videos on this jack for you.
    view full answer...

  • Recommendation for an A-Frame Horse Trailer Jack with 15 Inch Lift and 5,000 Pound Capacity
  • If you are looking for another A-Frame jack, we have the new Pro Series Round, A-Frame Jack - Topwind, # PS1400600303, with 15 inch lift and 5,000 pound capacity. The mounting bracket on this jack uses the same hole spacing as the Bulldog Jack, # BD1700100317, that you have referenced. You can attach a wheel, # PS1400750340, or a footplate, # PS1400700340.
    view full answer...

  • Can A Wheel Be Added To The Bulldog Round, Pipe-Mount Swivel Jack # BD178201
  • When a wheel is added to a jack, the weight capacity will change to what the weight capacity is on the wheel. The wheels will only have a weight capacity of from 800 lbs. to 1,500 lbs., so that would dramatically reduce the weight capacity on a 5,000 lb. jack. The Bulldog Round, Pipe-Mount Swivel Jack # BD178201 comes with a standard footplate. They do not offer a wheel option on this pipe-mount jack. I do not have a pipe mount jack that will accept a wheel. I do have the spring-loaded...
    view full answer...

  • Replacement Trailer Jack For A-Frame Coupler With 2500 lb Tongue Weight
  • For your application there really isn't an comparable replacement jack. You cannot use a product designed for larger tubes on your jack that has moving parts. You could use a foot that is larger and then use a metal tube as a coupler to give you a firm connection as long as the rating is strong enough. I recommend just getting a new jack like the Bulldog Round, A-Frame Jack - Sidewind - 15" Lift - 5,000 lbs # BD1700100317. You may need to file the opening in your coupler to fit the...
    view full answer...

  • Differences Between Bulldog A-Frame Jacks # BD1700100301 and # BD1700100317
  • Bulldog jacks # BD1700100317 and 1700100117 are the same item; the different part references denote individual retail boxed packaging versus bulk (unboxed) packaging for the # BD1700100317. Jack # BD1700100301 is the same jack only with a zinc finish instead of the painted finish. All share the same capacities.
    view full answer...

  • Replacement Jack and Coupler for a 1955 Traveleze Trailer
  • Sounds like you are looking for a trailer jack. I looked up some pictures of your 1955 Traveleze and it is built on an A-frame so for an A-frame jack something like the part # BD1700100317 would work great. I attached a review video for more info for you to check out as well. Or it is possible that you are looking for a coupler repair kit. We offer several repair kits, but it will depend on what coupler you have on your trailer to know what would work best. See attached link to see them...
    view full answer...

  • Trailer Jack Recommendation for 19 Foot Springdale Camper
  • I looked up your trailer and it has an A-frame style jack on it so for a replacement the Bulldog jack part # BD1700100317 would fit and work well. Unless you wanted to go with an electric jack to make raising and lower the jack easier. My favorite powered jack to recommend is the Husky Jack part # HT87641 as it has bearings in the screw which allow it to operate quicker and smoother. It also shuts off automatically before topping or bottoming out. Other jacks will allow you to go too...
    view full answer...

  • Where Is The VIN Number on a Sure Trac Utility Trailer Found?
  • That is a good question. Usually a utility trailer's VIN number will be found on the frame near the trailer tongue but it actually can be printed anywhere on the frame. It may also be on a sticker that carries the manufacturer name and trailer model information. That sticker may be positioned in an out of the way location to protect it from wear from regular use and road hazards. It should be a 17 character VIN. In cases of trailers that have no VIN, your local state police or highway...
    view full answer...

  • Jack Recommendation for a Trailer with a 1-7/8 inch Diameter Bottom Support Plate
  • None of the jacks we offer have tube dimensions that would be small enough to fit the bottom support plate on your trailer that is 1-7/8 inches in diameter. The best recommendation I could make would be to install a new bottom support plate like part # BD003135 so that you could use a jack like the Bulldog Jack part # BD1700100317 that you referenced. For a foot plate you would want part # BD018564.
    view full answer...

  • Will Bulldog Round A-Frame Jack Fit a Wells Cargo Trailer
  • All A-Frame mounted jacks like this Bulldog jack, use the same bolt pattern. In other words, those mounting holes are a universal size and pattern that way any A-Frame jack will fit into any A-Frame jack mount. As long as your Wells Cargo has an A-Frame jack mount, this jack will fit.
    view full answer...

  • Recommendation for Tongue Jack on Travel Trailer with 780 LB Tongue Weight
  • I recommend going with the Ultra-Fab Electric A-Frame Jack, # UF38-944017. This jack has a 12 volt motor for quick and simple lifting. The lift capacity is 3,500 pounds. By using a jack with a much higher lifting capacity than the tongue weight of your trailer, there is less wear and tear put on the jack's motor. If you are looking for a more economical option, Bulldog offers the Sidewind A-Frame Jack, # BD1700100317. This jack gives you a lift capacity of 5,000 pounds. A Detachable...
    view full answer...

  • A-Frame Trailer Jack with 4 Inches Bracket to Bottom of Jack Clearance when Retracted
  • The mounting bracket on Bulldog jack # BD1750290317 is welded to the outer jack tube so it cannot be moved. For a 5k A-frame mount jack with better clearancec # BD1700100317 measures 8-5/8 inches when retracted. If 2,000 pounds capacity is enough then Pro Series jack # PS1401000303 measures just 5-1/2 inches retracted. Or the 750 pound rack and gear jack # BD165111 goes all the way down to 3-1/2 inch retracted height.
    view full answer...

  • Difference Between Bulldog Powder Coated and Zinc Finish 5,000 Pound A-Frame Trailer Jacks
  • The difference is just as you have said. Bulldog jack # BD1700100317 is powder coated while # BD1700100301 has a zinc finish which makes it better for marine applications. Both are rated for 5,000 pounds, have 15 inches of lift, and install the same way with the same 3-hole mounting flange. I have linked video reviews for each jack for you.
    view full answer...

  • Should a Jack Get Hard to Crank Halfway Through it's Travel
  • It does sound like there is something that has damaged the internals of your current jack right at about halfway up. Regardless of top-wind or side-wind this should not happen. Either style would work well as a replacement for you. The part # BD1700100317 that you referenced would be a great choice. I attached a review video for you to check out.
    view full answer...

  • Replacement Jack Solution for Trailer that Needs 1-7/8 inch Diameter Tube Jack
  • None of the jacks we offer have tube dimensions that would be small enough to fit the bottom support plate on your trailer that is 1-7/8 inches in diameter. The best recommendation I could make would be to install a new bottom support plate like part # BD003135 so that you could use a jack like the Bulldog Jack part # BD1700100317 that you referenced. For a foot plate you would want part # BD018564.
    view full answer...

  • Trailer Jack and Wheel Caster Recommendation with 15 Inches of Travel and a 1,500 lb Capacity
  • I have a solution for you, you will need to get the Bulldog Round, A-Frame Jack # BD1700100317 that you referenced, and then you will need to install a Replacement Heavy-Duty Caster # BDCP555. The # BD1700100317 has a 5,000 lb capacity, and the # BDCP555 has a capacity of 1,500 lbs you would have a jack setup with 15 inches of rise, 1,500 lb capacity and has a caster wheel.
    view full answer...

  • Landing Gear Jack Recommendations for a Livestock Trailer
  • If you are considering a dual jack setup like the part # BD500162 that's what I would recommend. Two jacks will offer more stability and since two jacks will be doing the lifting instead of one the cranking will be a bit easier as well. The easiest to use setup will be a powered landing gear set though as it would only require you to press a button. For that the Bulldog part # BD500161 would be a great option.
    view full answer...


Do you have a question about this Trailer Jack?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer jack for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer jack information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Theodore B
Written by:
Lindsey S
Expert Research:
Robert G
Expert Research:
Patrick B
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jameson C
Updated by:
Adele M
Expert Research:
Adam R
Updated by:
Laura H
Photos by:
Amber A
Expert Research:
Jeffrey L

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
