Dexstar Steel Spoke Trailer Wheel - 15" x 5" Rim - 5 on 4-1/2 - White Powder Coat

Dexstar Steel Spoke Trailer Wheel - 15" x 5" Rim - 5 on 4-1/2 - White Powder Coat

Item # AM20422
lowest price pledge
Retail:$46.59
Our Price: $42.61
You Save: 9%
Tires and Wheels
Orders above $99 qualify for Free Shipping
Shipping Weight: 17 lbs
Quantity:
In Stock, Ships Today
AM20422 - Steel Wheels - Powder Coat Dexstar Wheel Only
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

White power coated, 15" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards. Lowest Prices for the best tires and wheels from Dexstar. Dexstar Steel Spoke Trailer Wheel - 15" x 5" Rim - 5 on 4-1/2 - White Powder Coat part number AM20422 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (95)
  • Q & A (35)
  • Videos (1)
  • Photos
  • Why etrailer?

Dexstar Tires and Wheels - AM20422

  • Wheel Only
  • 15 Inch
  • 5 on 4-1/2 Inch
  • Steel Wheels - Powder Coat
  • Dexstar
  • Standard Rust Resistance

White power coated, 15" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards.


Features:

  • Sturdy steel construction
  • Excellent corrosion resistance
    • White powder coat finish over e-coat primer
  • 8-Spoke pattern
  • High-quality wheel meets DOT specifications
  • Made in the USA


Specs:

  • Rim dimensions: 15" diameter x 5" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 3.19"
  • Capacity: 2,150 lbs
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




20422DX Dexstar 8-Spoke White Wheel - 15"

017-143-1X

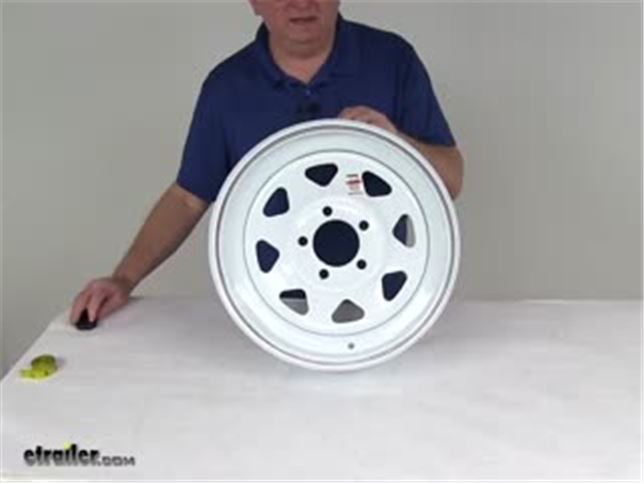

Video of Dexstar Steel Spoke Trailer Wheel - 15" x 5" Rim - 5 on 4-1/2 - White Powder Coat

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexstar Tires and Wheels - Wheel Only - AM20422 Review


Customer Reviews

Dexstar Steel Spoke Trailer Wheel - 15" x 5" Rim - 5 on 4-1/2 - White Powder Coat - AM20422

Average Customer Rating:  4.9 out of 5 stars   (95 Customer Reviews)

White power coated, 15" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards.

- AM20422
by:

Searched, found, ordered, received, met needs perfectly, received follow-up inquiries, completely satisfied! As good service as ever experienced. Product was sitting beside my door when I returned home from a brief trip. Delighted! 172924



- AM20422
by:

Rim is good looking and powder coated w ell. 558258



- AM20422
by:

The rims arrived quickly and in good condition. There were a few minor nicks (probably from shipping). I was amazed when I mounted the tires and went to balance them,they where within 1/8 once! Very impressed with the quality of these rims,however valve stems really would have been nice to have. All that said will buy from etrailer again. 643638



- AM20422
by:

Perfect match of our utility trailer wheels. Beautiful finish!! Needed a spare wheel for our spare tire. Super fast and well protected shipping. 470175


Comments
My wheel still looks brand new and there havent been any issues with it at all!!!
Shawn - 01/27/2019

48949

- AM20422
by:

I was impressed with turnaround. The only things I would expect free return shipping. My salesperson was excellent 737052



- AM20422
by:

Nice wheels came very well packed and shipping was super fast and free. 725077



- AM20422
by:

Its a wheel and its White. Not sure what more to say...the finish was nice? 715632



- AM20422
by:

good price 706795



- AM20422
by:

Wheel fit perfectly...fast shipping, great communication. 705184



- AM20422
by:

This wheel is great, of high quality and made in America! Wish I had gotten two. 681491



- AM20422
by:

As always your service ie second to non. Everytime I place an order it ships within a couple hours. Your products are great. The price is always a great value. I love shopping your website. Brian Miller order #108202989 679321



- AM20422
by:

Great Service. Item was shipped out 1 hour after I ordered it and arrived a day earlier then expected. I will definitely order from Etrailer in the future. Thanks 669564



- AM20422
by:

Outstanding customer service. Order arrived sooner than I expected. 663442



- AM20422
by:

Perfect upgrade for the rusty old rims, price is great, fit is great, and looks even better. Happy camper... 659889



- AM20422
by:

Chris, Thanks for having it delivered in 3 days. Got the tires off the old wheels, then took them to Discount Tire for mounting. The wheels look great. Thanks again for having them delivered so soon. Duane 658945



- AM20422
by:

I can not say enough good about this company. The prices beat anything out there, the delivery was spot on, the quality is amazing and I will forever be a customer. Thank you for top notch service. It seems sometimes it is harder to find good service and you guys nailed it. I will definitely recommend you to all my family and friends. 646797



- AM20422
by:

AWESOME PEEPS AND CUSTOMER SERVICE 645109



- AM20422
by:

Not much to say about product. It's just a trailer wheel but the price was great and the shipping was extremely fast. Will use this company again. 643258



- AM20422
by:

Arrived on time as usual. Exactly what I needed. Great company to work with!! 641343



- AM20422
by:

I have mounted the tires on the wheels and wheels on trailer. I haven’t pulled the trailer yet but just moving the trailer around it seems great. The wheel measuring formula is essential to getting the right wheel. This was easy to use and very helpful. My overall experience was great. I will pass this site on too family and friends. 637560



- AM20422
by:

look great, fast shipping, great price 598015



- AM20422
by:

Excellent product! You can definitely tell they were made in America! 596622



- AM20422
by:

Excellent personal service 595539



- AM20422
by:

Great product for the money and best of all it has made in USA stamped on it. Would do business with them again. 595348



- AM20422
by:

Works as described. Arrived on time at a fair price. What more could one want. 594354


25
95
Show More Reviews

Ask the Experts about this Dexstar Tires and Wheels

  • Recommended Replacement 7.00x15LT Tire on Camper
    We do have the 7.00 x 15LT replacement tires. We have the Kenda Light Truck Tire K391M - 7.00-15 LT - Load Range E # AM10414 rated for 2,403 lbs at 70 psi. We alternatively have the Kenda 7.00-15LT Bias Trailer Tire - Load Range D # AM10412 rated for 2,156 lbs at 60 psi. Both of these are rated for 65 mph max speed. The previous has a 2 year warranty and is made for road use primarily and is a slightly better option for a camper. The latter has a 5 year warranty and is made for...
    view full answer...
  • What Does JJ Mean for a Trailer Wheel
    Your trailer wheels' JJ designation just refers to the shape of the bead seat, which is where the inside edge of the tire contacts the rim. You never really need to worry about this though since the correct 205/75-15 size tires you buy for these rims will automatically have that bead seat profile. If you buy new 15 x 5 rims they again will have this bead profile. The photos of your trailer's sticker shows us that your wheels are 15 x 5-inch size and you noted that you believe they are...
    view full answer...
  • How To Determine The Trailer Wheel Replacement Needed
    There are a few measurements needed to ensure you get the correct wheel replacement, but it is difficult to determine from just a picture. I've attached articles to help with the proper fit by measuring the bolt pattern of your wheel, the width from bead seat to bead seat, and the diameter. If you need further help, send me the photos and the dimensions you have and I'd be happy to assist.
    view full answer...
  • Comparison of Steel vs Aluminum Trailer Wheels?
    The actual weight of aluminum wheels versus steel wheels will depend on the design. For instance the Aluminum Sendel Series T02 Machined Trailer Wheel - 15" x 6" Rim - 6 on 5-1/2 # AM22654 will weigh 20 lbs and the Aluminum Bobcat Trailer Wheel # LHSO311B will be 17 lbs. Similarly, the Dexstar Steel Spoke Trailer Wheel - 15" x 5" Rim - 5 on 4-1/2 - White Powder Coat # AM20422 will be 17 lbs versus the 22 lbs of the Dexstar Conventional Steel Wheel - 15" x 6" Rim - 6 on 5-1/2 - Black Powder...
    view full answer...
  • Can Load Range D 145R12 Trailer Tire be Replaced with Load Range E
    There's no reason you couldn't install a Load Range E trailer tire part # AM10140 on your wheels that are 4 lug trailer wheels. As long as your valve stems are rated for the extra pressure you wouldn't have any issues at all. You won't get additional weight capacity though as basically all 4 lug, 12 inch trailer wheels are going to have a 1,250 lb capacity and the tire I mentioned is rated for 1,520 lb.
    view full answer...
  • 15 Inch Dexstar Steel Mini Mod Trailer Wheel 017-231 with 5 on 4-1/2 Bolt Pattern
    We have a lot of 15 inch wheels and wheel and tire combos with the 5 on 4-1/2 bolt pattern, see link. If you just need a basic steel mini mod wheel then # AM20443 is a great option and carries the 017-231 manufacturer designation. I have linked a video review of this wheel for you. It is also available in silver, # AM20436.
    view full answer...
  • What is the Bolt Pattern for Dexstar 15x5JJ Trailer Wheel 17-384
    Yes, for Dexstar wheel 17-384 it is a 5 on 5 bolt pattern. Not very common nowadays but we do have some options. Wheel # AM20428 is a spoke wheel with the 5 on 5 bolt pattern or the mini-mod version is # AM20446DX. We have other 15 inch wheels with the 5 on 5 pattern, see link. Some of them are 6 inch wide wheels so check the titles carefully! A handy tool to check bolt patterns is # BC-TEMP. This is a great product if you frequently work with tires and wheels. I have also included a...
    view full answer...
  • Is it Safe to Change the Wheel and Tire Size on a Trailer or Vehicle
    On a trailer it is permissible to change tire sizes provided there is enough clearance all around the old size to use the larger size. On passenger vehicles including motorhomes changing tire sizes will affect the accuracy of the speedometer so it would have to be recalibrated in addition to making sure there is enough clearance.
    view full answer...
  • How is Trailer Wheel Width Measured
    Wheel width is measured from bead seat to bead seat so you cannot accurately measure it without removing the tire first. Typically the overall width will be 1 inch greater than the internal width. So for Dexstar wheel # AM20522 the actual width is 6 inches but the overall would be closer to 7 inches. Fora 15 inch wheel that would be 6 inches wide overall, 5 inches on the inside, with the same bolt pattern use # AM20422.I have linked a video that shows our resident tire and wheel expert...
    view full answer...
  • Cut Out Spacing and Material Thickness for Dexstar 15 x 5 Steel Spoke Trailer Wheel AM20422
    The Dexstar 15 x 5 Steel Spoke Trailer Wheel # AM20422 is shown in the linked photo. The distance between each triangular apex is 3-inches. The steel material the wheel is made of is 1/8-inch thick. This 15 x 5 wheel can accept two tire sizes, both an ST205/75-15 trailer tire like # AM10245 and an 7.00-15LT light truck tire like # AM10414.
    view full answer...
  • Difference Between Taskmaster Trailer Wheels # 560545WS2 and # TTW560545WS1
    The only difference between the two part numbers you mentioned is the pilot diameter of the wheels. The part # 560545WS2 has a pilot diameter of 3.19 inches and the part # AM20422 instead has a diameter of 3.31 inches. As long as either would fit there wouldn't be a difference really.
    view full answer...
  • Which Trailer Tires Fit on the 15 x 5 inch White Spoke Trailer Wheel and What is the Backspacing
    The backspacing for the Dexstar Steel Spoke Trailer Wheel, # AM20422 is 3 inches, which provides zero inches offset. This means that the point where the wheel studs go through the wheel is centered in the 5 inch width of the wheel. A 5 inch wide wheel will measure approximately 6 inches overall width with the wheel lip. This wheel is designed for 15 inch trailer tires up to 205/75-15, like the Karrier Radial Trailer Tire # AM10244. If you wanted to go with a larger tire like the Karrier...
    view full answer...
  • Trailer Tire vs. Trailer Wheel Weight Carrying Ratings
    If a trailer tire and wheel each have different weight capacities then the lower-rated item of the two determines the overall capacity of the combination. You can certainly run a tire with a lower or higher weight rating than the wheel its used on but you will be limited to the capacity of the lower-rated component. The key for safe and legal trailering is to ensure that the lowest-rated component is rated adequately for the load on it. Extra capacity in other components is fine but you're...
    view full answer...
  • Dexstar 15" x 5" Wheel with 2,150 lb Weight Capacity Needed for Trailer Spare Tire
    I have attached a link to our selection of Dexstar 15" wheels that you can filter through. You will want to make sure that the one you choose has the same 2,150 lb weight capacity, has the correct bolt pattern, and the correct width. For example, the popular Dexstar Steel Spoke Trailer Wheel # AM20422 is a 15" x 5" white powder coat wheel that has a 5 on 4-1/2" bolt pattern. It also features a 2,150 lb weight capacity and a limited 2-year warranty. If you send me a picture of your...
    view full answer...
  • What Info Is Needed to Upgrade a 15 inch Trailer Wheel and Tire to a 16 inch Wheel and Tire
    Assuming you have the clearance for a slightly larger wheel and tire on your cattle trailer all you really need to know is the bolt pattern of the wheels you currently have so that you can get a wheel that will bolt right up. If you are unsure of the bolt pattern you have on your wheels check out the FAQ article I attached that shows how to determine this. Your trailer will need to have an 8 on 6-1/2 bolt pattern or a 6 on 5-1/2 inch bolt pattern to go with a 16 inch wheel and tire combo...
    view full answer...
  • What Valve Stems To Order with the Dexstar Wheel part # AM20422
    The Dexstar Wheel part # AM20422 that you referenced does not come with valve stems. You would need to order them separately, part # AM20903.
    view full answer...
  • Replacement Boat Trailer Spare Wheel For 15x5 Inch Wheel and 1,820 lb Load Capacity
    If your trailer has a 5 on 4-1/2 bolt pattern then the item you selected, Dexstar Steel Spoke Trailer Wheel, part # AM20422 is a match. You will need to measure the bolt pattern of your trailer (see FAQ). The Dexstar Wheel # AM20422, is a 15x5 wheel, with a 5 on 4-1/2 bolt pattern and has a load capacity of 1,820 pounds at 50 PSI. If you have a 5 on 5 bolt pattern, you will need Dexstar Steel Spoke Trailer Wheel, part # AM20428, which is also a 5x15 wheel with a load capacity of 2,150...
    view full answer...
  • Additional Dexstar 15 by 5 Trailer Rim with 5 on 4-1/2 Bolt Pattern
    The Dexstar 17-143 trailer wheel that we carry is # AM20422. It's a 15 by 5 inch rim that has a 5 on 4-1/2 bolt pattern.
    view full answer...
  • Spare 15 Inch Trailer Wheel with 5 on 5 Bolt Pattern to Fit 7.00-15 Sized Tire
    A 7.00-15 sized tire can fit on a 5, 5-1/2, or 6 inch wide rim. If you're measuring the existing rim make sure you're measuring bead seat to bead seat. See the video I attached on meauring a wheel. If you're not measuring bead seat to bead seat, you likely have a 5 inch rim. For a 15 by 5 inch rim with a 5 on 5 bolt pattern, the Dexstar Steel Spoke Trailer Wheel # AM20428 is what you would look at instead of # AM20422 which is the same style wheel with a 5 on 4-1/2 bolt pattern.
    view full answer...
  • Recommended Wheel and Tire Combination for 15 Inch 5-on-4-1/2 Inch Bolt Pattern
    The Dexstar Steel Spoke Trailer Wheel - 15" x 5" Rim - 5 on 4-1/2 - White Powder Coat # AM20422 is not PSI rated. The tire you use will determine the PSI needed and the speed maximum for that combination. You will need a valve stem compatible with the max PSI of whatever tire you choose. For this particular wheel, I recommend the Provider ST205/75R15 Radial Trailer Tire - Load Range D # TR20515D which is rated for 65 PSI, a load range of 2150 max, and a speed rating of 81 mph. You...
    view full answer...
  • Picking Out Trailer Wheel for Tire Size 205/75-15 with Bolt Pattern 5 on 4-1/2 inch
    The 5 on 4-1/2 inch bolt pattern is very common so that would be what you'd have for sure. We have several 15 inch wheels that have this bolt pattern and will fit your tire size of 205/75-15 well. I attached a link to a page that has all of them, but for a standard white wheel that matches what you need we have the Dexstar part # AM20422 which would work well. I also attached a review video for this wheel too.
    view full answer...
  • Can 15 Inch Trailer Tires be Replaced with 16 Inch Trailer TIres
    The first thing you will need to check is if there is enough space around the existing tires to use the larger size. Based on the old size you have, 235/75-15 (which isn't a common trailer tire size) the tires are approximately 28.8 inches tall and 9.25 inches wide. The nearest size up in a 16 would be a 235/80-16 which is 30.9 inches tall and 9.4 inches wide. So the new size would be 2 inches taller and about 3/16 inches wider. The width is probably fine but you will need to make sure...
    view full answer...
  • How to Determine the Bolt Pattern of a Trailer Wheel
    I am glad to hear that we have been able to help you. I can certainly help you with finding the correct wheel and tire combo. There are actually a couple of ways you can measure for the bolt patter of a trailer wheel. I have provided a link to our FAQ article that explains both methods. You can also find this information if you scroll down on the product page for Trailer Wheel # AM20422. Basically, You can use the number of lugs and the bolt circle. If there is an EVEN number of lugs,...
    view full answer...
  • Measuring Bolt Pattern for 5 Lug Wheels for the Correct Fit with Axle Hubs
    The Dexstar Steel Spoke Trailer Wheel - 15" x 5" Rim - 5 on 4-1/2 - White Powder Coat # AM20422 is most likely what you need. Your dimensions are not a normal measurement, so I recommend you measure from the center of one lug to the center of the next closest to assist. If that measurement is 2-5/8 inches then the bolt pattern you ordered is correct. If it is 2-3/4 inches instead then you will want 5 on 4-3/4 inch wheels which we currently do not carry. I've attached an article...
    view full answer...
  • How to Choose the Correct Replacement Rim for Trailer
    We have a large selection of rims that are going to work for you, but in order to choose the correct one for your Comet camper you are going to need to know the diameter and bolt pattern of your current rim. For example, the Dexstar Steel Spoke Trailer Wheel # AM20422 is 15" diameter and has a 5 on 4-1/2" bolt pattern. I have added a link to a help article on how to determine wheel bolt pattern as a well as link to our selection of rims for you to take a look at.
    view full answer...
  • What Size Trailer Tires Will Fit 15 x 5-Inch Dexstar Steel Spoke Trailer Wheel # AM20422
    The Dexstar 15 x 5-Inch Steel Spoke Trailer Wheel # AM20422 can be fitted with a 205/75-15 size tire in either a radial or bias ply type and in a choice of weight load ranges. The link at right will show you all tire options in this size. For the highest Load Range D weight rating we offer the Kenda # AM10245. This is a radial tire with a load capacity of 2150-lbs at its rated 65-psi pressure. The tire's overall diameter when mounted and inflated will be 27.3-inches. Trailer tires...
    view full answer...
  • Will 215/70R15 Tires Fit 15x5 Wheels
    A 215/70R15 size tire can be fitted to a 15-inch wheel whose width is either 5-1/2, 6-, 6-1/2-, or 7-inches. It will not fit a 15 x 5-inch wheel like the Dexstar Steel Trailer Wheel, Item # AM20422. I have added links to additional information about trailer wheels and tires as well as a link to our 15-inch tires and wheels section to help you with your project.
    view full answer...
  • Tires Wearing Out On 6 Month Old Travel Trailer
    If you haven't done a lot of towing with your trailer, it seems the tires you had wore out much too soon. If the tires wore out on the inside, it is almost always due to excessive weight on the trailer. Be sure to check the trailer capacity and stay within the trailer limits. The capacity is set by the axle and other components on the trailer. I recommend checking with the dealer you got the trailer from to see what wheels were placed on the trailer, because trailer wheel capacities...
    view full answer...
  • Availability of Wheel and Tire in Size 225/75R15 with 5 on 4-1/2 inch Bolt Pattern
    Sounds like you might be looking for a wheel replacement for your tire size of 225/75R15 installed on a wheel with a 5 on 4-1/2 inch bolt pattern. For that you'd want the part # AM20422 for a standard white wheel. This is the correct diameter and width too for your tire size. For a wheel and tire in this size we have the Contender ST225/75R15 Radial Trailer Tire w/ 15" White Mod Wheel # A225R645BMPVD which comes with basically the same wheel as what I mentioned earlier but also with...
    view full answer...
  • 15 Inch Wheels With 5 On 4-1/2 Bolt Pattern To Be Used As Spares For Trailer
    I have attached links to a couple of helpful articles for tires and wheels you can check out. I am also attaching a link to our product page that has the 15 inch wheels we offer with a 5 on 4-1/2 bolt pattern. The dimensions you mentioned from the front and back edge sound like you are talking about wheel offset. Most of the wheels we offer have a zero offset like part # AM20422. This wheel is a 15 inch with a 5 inch rim and has a 5 on 4-1/2 bolt pattern.
    view full answer...
