Dexstar Steel Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - White Powder Coat

Dexstar Steel Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - White Powder Coat

Item # AM20132
Our Price: $47.06
Trailer Tires and Wheels
Orders above $50 qualify for Free Shipping
Shipping Weight: 11 lbs
Quantity:
In Stock
AM20132 - 5 on 4-1/2 Inch Dexstar Wheel Only
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Need help with installation?
Locate installers near me

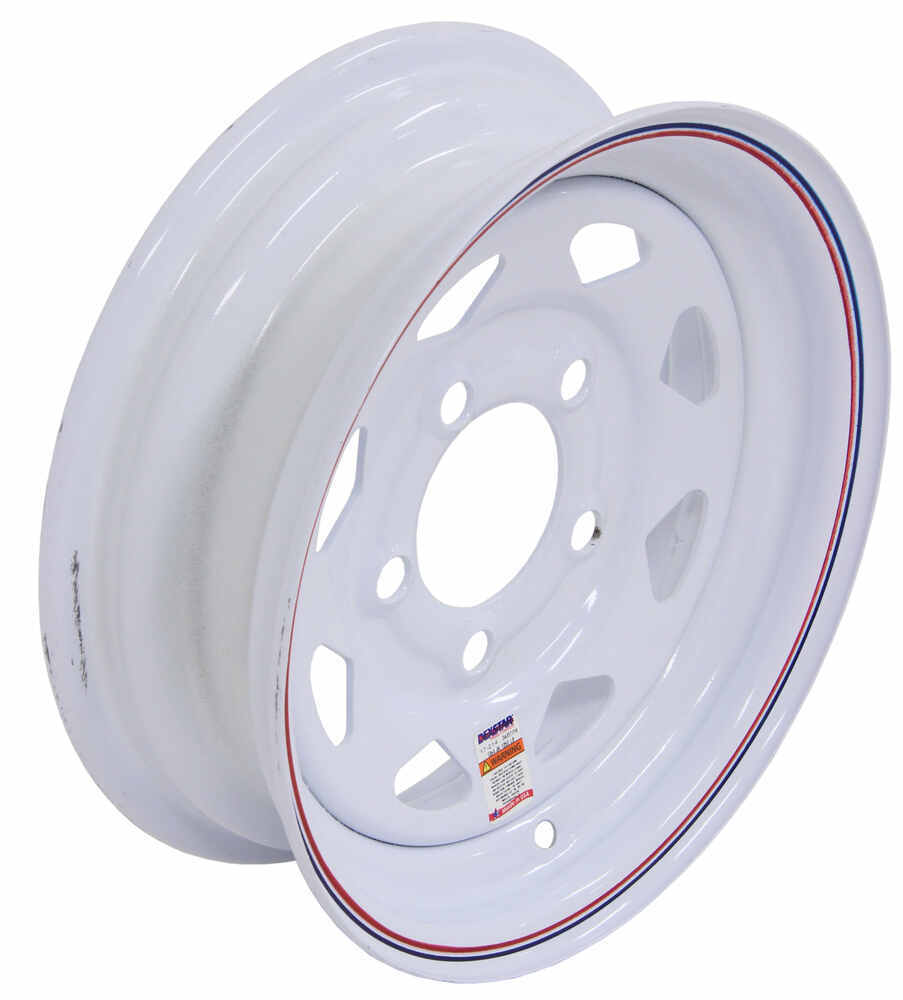

White power coated, 12" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards. Great Prices for the best trailer tires and wheels from Dexstar. Dexstar Steel Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - White Powder Coat part number AM20132 can be ordered online at etrailer.com or call 1-833-496-1390 for expert service.
  • All Info
  • Reviews (1469)
  • Q & A (0)
  • Photos
  • Why etrailer?

Dexstar Trailer Tires and Wheels - AM20132

  • Wheel Only
  • 12 Inch
  • 5 on 4-1/2 Inch
  • Steel Wheels - Powder Coat
  • Dexstar

White power coated, 12" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards.


Features:

  • Sturdy steel construction
  • Excellent corrosion resistance
    • White powder coat finish over e-coat primer
  • 8-Spoke pattern
  • High-quality wheel meets DOT specifications
  • Made in the USA


Specs:

  • Rim dimensions: 12" diameter x 4" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 3.19"
  • Offset: 0
  • Capacity: 1,250 lbs
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




20132 Dexstar 8-Spoke White Wheel - 12"

017-214-1X

Replaces Americana 20132DX
