Tow Ready J-Pin Stabilization Pin and Barrel Lockset for 2" Trailer Hitches

Tow Ready J-Pin Stabilization Pin and Barrel Lockset for 2" Trailer Hitches

Item # 63201

lowest price pledge

Retail:$72.53

Our Price: $32.95

You Save: 55%
Hitch Locks

Orders above $50 qualify for Free Shipping

Shipping Weight: 1.7 lbs

Arrives before Christmas with Ground or 3 Day Shipping.
Quantity:
In Stock, Ships Today
Tow Ready Universal Anti-Rattle Lock - 63201
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

3d view icon
Tow Ready Universal Anti-Rattle Lock - 63201
Tow Ready J-Pin Stabilization Pin and Barrel Lockset for 2" Trailer Hitches J-Pin 63201
Hitch Locks 63201 - Keyed Unique - Tow Ready
Tow Ready Keyed Unique Hitch Locks - 63201
Tow Ready Keyed Unique Hitch Locks - 63201
Tow Ready Keyed Unique Hitch Locks - 63201
Hitch Locks 63201 - Keyed Unique - Tow Ready
Tow Ready Fits 2 Inch Hitch Hitch Locks - 63201
Tow Ready Hitch Locks - 63201
63201 - Fits 2 Inch Hitch Tow Ready Universal Anti-Rattle Lock

Customer Photos


  • Fits 2 Inch Hitch
  • Universal Anti-Rattle Lock
  • Tow Ready
  • Keyed Unique
  • J-Pin
Tow Ready J-Pin locking anti-rattle device for 2" trailer hitch receivers. Call 800-298-8924 to order Tow Ready hitch locks part number 63201 or order online at etrailer.com. Free expert support on all Tow Ready products. Guaranteed Lowest Price and Fastest Shipping for Tow Ready J-Pin Stabilization Pin and Barrel Lockset for 2" Trailer Hitches. Hitch Locks reviews from real customers.


  • All Info
  • Reviews (166)
  • Q & A (142)
  • Videos (2)
  • Photos
  • Why etrailer?

Tow Ready Hitch Locks - 63201

Tow Ready J-Pin locking anti-rattle device for 2" trailer hitch receivers.


Features:

  • Feel secure with a theft-preventing lock and being rattle free
  • Ideal for bike carriers and hitch mounted cargo carriers
  • Tow Ready J-Pin compatible hitch required (See Below)
  • Packaged complete with J-Pin, lock and 2 keys, wrench (Pictured Below), and Cap
  • Works with hollow or solid shank ball mounts and hitch accessories


Tow Ready's exclusive J-Pin ready receiver design allows for the most confident and secure hookup in today's towing market by compressing the hitch mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.

Tow Ready's J-Pin quickly and confidently secures ball mounts and other hitch mounted accessories, eliminating the sway and rattle caused by necessary part clearance issues.

Product Detail

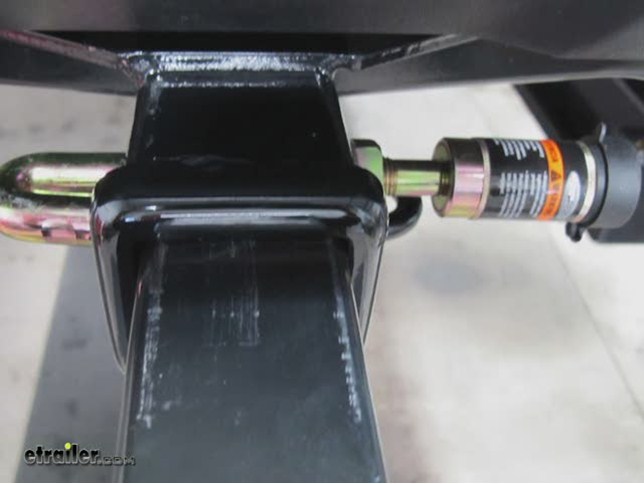

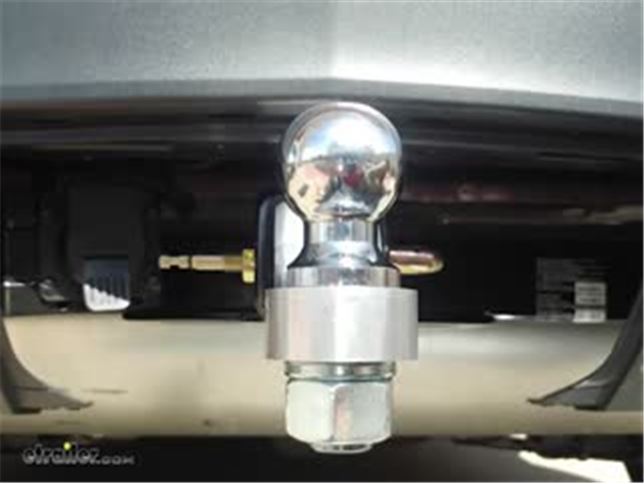

J-Pin Installed
J-Pin Installed

J-Pin Installed
J-Pin Compatible Hitch
J-Pin compatible hitch
Similar to 7651; Replaces 8322



63201 Tow Ready J-Pin Stabilization Pin and Barrel Lockset for 2" Trailer Hitches






Video of Tow Ready J-Pin Stabilization Pin and Barrel Lockset for 2" Trailer Hitches


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Tow Ready J-Pin Stabilization Pin and Barrel Lockset Review

Speaker 1: Today you're going to be taking a look at the tow ready J-pin stabilization pin and barrel lock set for two-inch trailer hitches. Part number 63201.The typical issue that we may run into when we start putting accessories on our hitch, is we start driving down the road, chances are it's going to start rattling around, making a lot of noise, which can get pretty annoying. That's because there's not going to be anything holding it in place, mainly just keeping it from coming out. So that's where our J-pin stabilization device is going to come into play, because a regular pin is just meant to hold it in place. With our J-pin, we're gonna take the threaded section and go through the hitch pin hole. And then that hook here is gonna go through the secondary hole.

Then we can take the flange nut and we can thread it on to the end of it. We take our included tool, and we're gonna make sure it's nice and snug.I can already see that there's a whole lot less play in there and if I actually shake the ball mount, the whole vehicle's starting to move. Our J-pin also is going to be a locking device. So we can take our key and make sure that section is sticking out, push it all the way in, and push in on the tab. Now our ball mount or whatever other accessory we have will be nice and secure.Our J-pin's not only gonna be good for ball mounts, it's gonna be good for any kind of accessory that doesn't have a threaded hole, and that doesn't have a built in anti-rattle, like our cargo carrier here.I do wanna mention that our J-pin is only gonna work with hitches that have a secondary hole towards the back of the receiver.

They'll have a standard 5/8 pin hole, but then another smaller hole towards the receiver tube; just like we have here in our Draw Tite hitch, and some of the older hidden hitch or Reese hitches.One of the nicest things about our J-pin is the simple design and how easy it is to use. Unlike some other anti-rattle devices, like this one here, we have Let's Go Arrow, but a lot of other companies have this simple design to them. We're gonna have a block and a spring and a threaded hole. The block and spring is gonna go into your accessory so we have to compress the spring and feed the spring and block into the accessory until it lines up with the pinhole on the side. Now as you can see, it can be a little bit of a hassle sometimes, and sometimes it just doesn't wanna cooperate.

And if we have a solid shank, we're not gonna be able to use on of these.Now once you do have the block and spring in place, you would take the threaded bolt, and you insert your accessory into the hitch, and hope that it doesn't fall out. Then go through your pin hole, sliding your threaded bolt through, and you would tighten it down. And once you tighten that bolt down, it's gonna push that block and the spring, which is gonna push the accessory to one side, just like our J-pin. This particular model isn't a locking one, but there are some that are locking, so you do get the best of both worlds, of having an ant-rattle and a locking device.Again, our J-pin is just gonna be a lot easier to use. You're just gonna have to put it into our hitch pinhole, and then thread a nut on and not have to worry about putting something inside of our accessory and hoping that it doesn't fall out when we put it into our receiver.One other benefit our J-pin has over the other style ant-rattle device, is that this is gonna work with solid shanks.

We're not gonna have to put it on the inside of our accessory, and it's gonna work with virtually any accessory whether it's a hollow or solid shank.Our J-pin is gonna come with everything we need to get it in place, including a wrench, two keys, and a dust cover to keep dirt and debris out of the lock zone.Paul H. wrote in saying, "Simple to install, everything needed is included. And now my trailer ball and bar has zero slack. it feels like it is welded straight into my frame. Those rattle and unexpected clunks going down the road are a thing of the past."If you're looking to get rid of that annoying rattle when you're driving down the road from the accessories inside your trailer hitch, our J-pin stabilization device is gonna be doing a great job of that, while being extremely easy to use. And that'll finish up your look as a tow ready J-pin stabilization pin and barrel lock set for two-inch trailer hitches. Part number 63201.
