Curt Drawbar for 1-1/4" Hitches - 5-3/8" Rise, 6" Drop - 5-9/16" Long - 2K

Curt Drawbar for 1-1/4" Hitches - 5-3/8" Rise, 6" Drop - 5-9/16" Long - 2K

Item # C45028
lowest price pledge
Retail:$30.92
Our Price: $21.63
You Save: 30%
Trailer Hitch Ball Mount
Orders above $99 qualify for Free Shipping
Shipping Weight: 5 lbs
Quantity:
In Stock
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Corrosion-resistant, black powder coated ball mount measures 5-9/16" from center of hitch pin hole to center of ball hole. Use it in either the drop or the rise position to fit your application. Hitch pin and clip sold separately. Lowest Prices for the best trailer hitch ball mount from Curt. Curt Drawbar for 1-1/4" Hitches - 5-3/8" Rise, 6" Drop - 5-9/16" Long - 2K part number C45028 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (83)
  • Q & A (26)
  • Videos (1)
  • Photos
  • Why etrailer?

Curt Trailer Hitch Ball Mount - C45028

  • Fixed Ball Mount
  • Fits 1-1/4 Inch Hitch
  • Drop - 6 Inch
  • Rise - 5-3/8 Inch
  • No Ball
  • Class I
  • 2000 lbs GTW
  • Curt
  • Steel Shank

Corrosion-resistant, black powder coated ball mount measures 5-9/16" from center of hitch pin hole to center of ball hole. Use it in either the drop or the rise position to fit your application. Hitch pin and clip sold separately.


Features:

  • Ball mount lets you hook up your trailer to your tow vehicle
    • Shank slides into your vehicle's hitch receiver
    • Ball platform provides mounting point for hitch ball (sold separately)
  • Both drop and rise positions available to ensure level towing
  • Sturdy steel construction
  • Corrosion-resistant, high-gloss black powder coat finish
  • Hitch pin and clip or hitch lock sold separately
  • Assembled in the USA


Specs:

  • Application: 1-1/4" x 1-1/4" trailer hitch receivers
    • Class I and Class II compatible
  • Gross towing weight: 2,000 lbs
  • Tongue weight: 200 lbs
  • Length: 5-9/16" from center of hitch pin hole to center of ball hole
  • Rise: 5-3/8" from top of inside of hitch opening
  • Drop: 6" from top of inside of hitch opening
  • Ball hole diameter: 3/4"
  • Pin hole diameter: 1/2"
  • Limited lifetime warranty


45028 Curt Class 1 and 2 Ball Mount - Standard Duty 1-1/4" Square Ball Mount - 5-3/8" Rise, 6" Drop

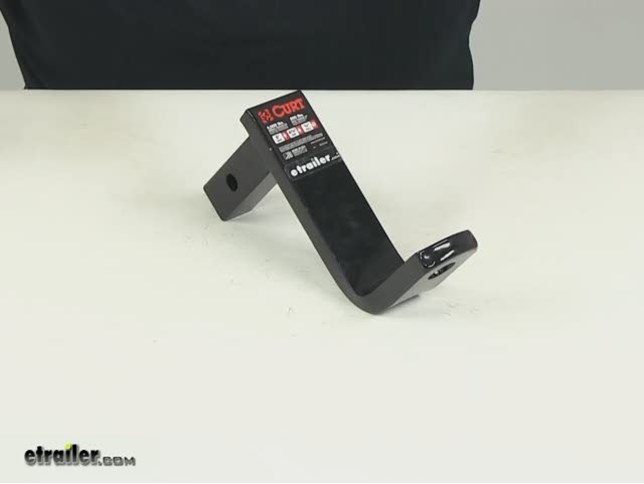

Video of Curt Drawbar for 1-1/4" Hitches - 5-3/8" Rise, 6" Drop - 5-9/16" Long - 2K

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt Ball Mounts - Fixed Ball Mount - C45028 Review

Today we're going to be taking a look at part number C45028. This is the Curt Drawbar for 1 1/4" Hitches. This ball mount is going to let you hook up your trailer to your tow vehicle. It's going to have the shank right here, it's a nice solid shank. This is going to slide into the receiver tube of your hitch on your vehicle. Then your ball platform is going to provide a good mounting point for your hitch ball.

Hitch balls are going to be sold separately. You can use this in either the drop or rise position, so both are available to help ensure a more level tow. It's made from a sturdy steel construction. It's going to have a corrosion-resistant, high-gloss black powder coat finish. Now to secure this inside of your hitch, you are going to need a hitch pin and clip or a hitch pin and lock. The diameter of this hole's going to measure a 1/2".

Those are going to be sold separately, you can refer to our website. We offer a lot of different options when it comes to a pin and clip or a pin and lock for 1/2" diameter pin holes. Curt's going to make this in the USA. Again, it is designed for 1 1/4" x 1 1/4" trailer hitch receivers. This is class 1 and class 2 compatible. It's going to offer a gross towing weight of 2,000 pounds.

With a maximum tongue weight capacity of 200 pounds. A few measurements to go over with you real quick. If we take a measurement from the center of the hitch pin hole to the center of the hitch ball hole, that measurement is going to measure right at 5 9/16". Now, again, this can be installed in either the drop or the rise position. This would be your drop position, if we measure from the top of the shank to the top of the ball platform, it's going to give us a drop of 6". Then if we take a measurement of the rise, measuring from the top of the shank to the top of the ball platform, that's going to give us a rise of 5 3/8".

Now, the ball hole diameter on this particular mount is going to measure 3/4 of an inch. Keep that measurement in mind when choosing the hitch ball, you want to make sure the shank of the hitch ball matches the ball hole diameter of the mount that you want to install it on. Curt's also going to cover this with a limited lifetime warranty. Again, you're going to have the solid shank, 1/2" diameter pin hole and the drop 6", rise is at 5 3/8. That's going to do it for our review of part number C45028. This is the Curt Drawbar for 1 1/4" x 1 1/4" Trailer Hitch Receivers. .


Customer Reviews

Curt Drawbar for 1-1/4" Hitches - 5-3/8" Rise, 6" Drop - 5-9/16" Long - 2K - C45028

Average Customer Rating:  4.8 out of 5 stars   (83 Customer Reviews)

Corrosion-resistant, black powder coated ball mount measures 5-9/16" from center of hitch pin hole to center of ball hole. Use it in either the drop or the rise position to fit your application. Hitch pin and clip sold separately.

- C45028
by:

This product came exactly as described and is the perfect fit for my hitch to allow me to pull a trailer. 409907



- C45028
by:

Just what I expected. 766980



- C45028
by:

Quality construction and very rapid response in shipping 766018



- C45028
by:

Great quality. Very strong and well bui lt. 762246



- C45028
by:

All shipped fast and JP was really help ful! 758619



- C45028
by:

I use it to raise the hitch ball on my Honda Fit 734757



- C45028
by:

This works great for sprayer and lawn sweeper. Levels them out. 705500



- C45028
by:

received in very excellent condition and fit as described. I am a very happy camper! 671435



- C45028
by:

I placed my order the price was extremely reasonable they let me know when it left there establishments came to my house within a couple of days no scratches no flaws of any kind very happy 664155



- C45028
by:

I had one already need another one great product 660787



- C45028
by:

I wish the insert was a bit longer. The short depth is causing me to get an extension. 655854



- C45028
by:

Installs easily. Works great. 655177



- C45028
by:

The hitch brought up the ball level so that the trailer sat level while hauling my zero turn. 654106



- C45028
by:

Product was exactly what I ordered and arrived earlier than expected. would recommend this product to anyone 652722



- C45028
by:

Perfect fit. Gave me the right amount of rise to get past the bumper and up to level out my trailer. 649858



- C45028
by:

I got the ball mount I needed very quic kly. 646369



- C45028
by:

Little disappointed in the gouges in the paint that will rust quickly. 628122



- C45028
by:

This drop worked excellently! Great price and very effective. Highly recommend 621651



- C45028
by:

No more jury rigging or adapters! This will allow me to pull my ATVs to a campsite on a trailer THEN pull the trailer around the campsite with my ATV! Great for gathering firewood, moving inflatable boats, etc.. Very well made and looks great. 621588



- C45028
by:

good product plan on using it on my side by side 613543



- C45028
by:

Locating 11/4" hitch drawer bar in this area had negative results. Your company came thru for this self employed handyman with easy ordering and timely delivery of exactly what I needed. Great build and finish. You are now on my phone list. 611396



- C45028
by:

Great experience. Hitch was just what we wanted. 604108



- C45028
by:

Works great. 595244



- C45028
by:

Was exactly what I needed and was very happy with how quick it came 575420



- C45028
by:

Draw bar arrived sooner that expected and was packaged great for the weight. My current draw bar was not low enough for the trailer and this bar drops the trailer down to a great working and traveling height. 574546


26
84
Show More Reviews

Ask the Experts about this Curt Trailer Hitch Ball Mount

  • Selecting Ball Mount for Yakima Trailer with 22" Coupler Height and Ford Focus with 10" Hitch Height
    If you measured a distance of 10 inches from the ground to the top of the inside of the Draw-Tite # 24872 hitch receiver on your 2015 Ford Focus, the Curt Drawbar # C45028 is going to put the ball platform at 15-3/8" above the ground. With the hitch ball actually in place you are looking at a ball height of around 17-3/8", which is still quite below the ideal 22" ball height for the Yakima trailers such as the Rack and Roll # Y08107. With this setup the Yakima trailer is going to be...
    view full answer...
  • Recommended Ball Mount with 7 Inch Rise for Class I Trailer Hitch
    I recommend looking at the Curt Class II Drawbar # C45028 for the 1-1/4 inch receiver opening on your 2014 VW Jetta Sedan. This ball mount provides the highest rise at 5-3/8 inches currently available on a ball mount that is compatible with Class I trailer hitches like what is installed on your vehicle. This won't quite get you to the 7 inches needed to tow your trailer perfectly level, but it will be sufficient. I also recommend making sure you are correctly measuring for the needed...
    view full answer...
  • Recommend Ball mount with High Rise for a 2013 Chevrolet Sonic Hatchback
    The distance from the center of the hitch pin hole to the backside of the vertical plate is 2.39". I have attached a photo with the measurement for you as well. In order to determine if this ball mount will work with the Draw-Tite Sportframe Trailer Hitch Receiver part # 24878 on your 2013 Chevrolet Sonic Hatchback you will need to measure from the center of the hitch pin hole to the outer edge of the bumper. When we installed this hitch on a similar 2014 Chevrolet Sonic Hatchback we found...
    view full answer...
  • Available Drawbars for 1-1/4 Inch Hitches with at Least a 5-inch Rise in the Shank
    The Curt bar # C45028 (5-3/8 inch rise or 6-inch drop) you referenced is one of 3 Curt drawbars we currently offer that will have a 5 inch or more rise in the shank. The reason other shanks may have a different rise is because it may have a different Class rating. I also pulled this drawbar from our warehouse and made a short video and diagram for you. Please note you can only use Class-I rated crossbars because your 1998 Volkswagen Cabrio only works with Class-I hitches. The two...
    view full answer...
  • What is the Actual Rise of Curt Class I Ball Mount # C45028
    Curt measures rise differently and everyone else just goes by the specs Curt provides. All of our rise and drop measurements are taken the same way (unless otherwise noted). Curt estimates rise and drop. We measure from the top of the receiver opening to provide the exact. So from the top of the receiver opening to the top of the ball platform it is 5-3/8 inches when ball mount # C45028 is in the rise position and 6 inches in the drop position. Like you said that is the highest available...
    view full answer...
  • Ways to Steady Bike Rack Mounted on Ball Mount
    A 1-1/4-inch hitch can be either a Class I or a Class II type. Your hitch should have a sticker that tells you which you have. In our Class I ball mounts the most rise is indeed 5-3/8-inches, with Curt ball mount # C45028. For a Class II ball mount the most rise, 5-1/2-inches, comes from Brophy ball mount # BM96. A ball mount with more rise will tend to wobble more than one without rise since the actual weight load on the hitch is moved further away by that rise. You can help immobilize...
    view full answer...
  • How to Determine Correct Class I Drawbar for Trailer Hitch
    Since you already know you need a Class I drawbar (which fit 1-1/4" receivers and have a capacity of 2,000 lbs), you'll just need to determine the rise or drop you need. To do this, you'll want to make sure your tow vehicle and trailer are parked on level ground. Then measure from the ground to the top of the receiver opening on your tow vehicle, and measure from the ground to the bottom of the coupler on your trailer. If the height of your hitch receiver is greater than the height...
    view full answer...
  • Is Class l Ball Mount Available With 6-Inch Rise
    The biggest rise we offer in a 1-1/4 inch ball mount is 5-3/8 inches, and that is part # C45028. This ball mount is a Class l and also features a 5-9/16 inch drop. This ball mount is rated for a gross towing capacity of 2,000-lbs. The hitch pin and clip I recommend is part # F-4. For a 1-7/8 inch hitch ball I recommend part # C40001 and for a 2-inch ball I recommend part # C40018.
    view full answer...
  • 5-3/8 inch Rise Ball Mount Recommendation to Fit 1-1/4 inch Hitch on 2017 Ford Fusion
    Since you need a 5-3/8 inch rise the Curt ball mount part # C45028 would be a perfect fit. Then for a 2 inch hitch ball you would want the # C40018 which would fit the ball mount perfectly.
    view full answer...
  • Availability of Ball Mount with 10 inch Rise for Class I Trailer Hitch on 2005 Jeep Liberty
    The highest rise on a ball mount we currently offer that is compatible with a Class I trailer hitch is the Curt # C45028, which has a rise of 5-3/8 inches. Higher rise ball mounts are only compatible with higher rated hitches. If you need this additional rise to tow your trailer level with your 2005 Jeep Liberty, I recommend changing to a Class III trailer hitch like the Draw-Tite Max Frame # 75128. This will give you a tongue weight capacity of 500 pounds and a towing weight capacity...
    view full answer...
  • Recommended Brake Controller For 2008 Subaru LLBean Outback
    The best brake controller for your 2008 Subaru Outback is the Tekonsha Prodigy P3 # 90195. This brake controller is similar in size to many others, but the functions are much easier to understand with the LCD screen. This controller runs constant diagnostics and will allow you to see issues without needing to decipher codes. It is customizable to driver perferences and has 3 levels of boost. For your 2008 Outback, you will need to use the Universal Brake Controller Wiring Kit #...
    view full answer...
  • Recommended Towing Setup For 2017 Audi Q7
    For your 2017 Audi Q7, if you don't already have a hitch I recommend the Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" # 76076. This hitch receiver is a black powder coat finish over and e-base coat for excellent rust protection. For your wiring, I recommend the ZCI Circuit Protected Vehicle Wiring Harness w/ 4-Pole Flat Trailer Connector and Installation Kit # 119250KIT if you don't have the factory tow package. This harness uses zero-contact-interface...
    view full answer...
  • Can I Tow a Malone MicroSport Trailer with a Nissan Altima
    What that means is that the Malone MicroSport trailer, part # MPG460G, is level when the bottom of the coupler is 18 inches off the ground. To tow the trailer level you need a ball mount with a rise. Park your Nissan Altima on level ground and measure from the ground the inner top of the receiver hitch. When we installed the Draw-Tite hitch on an Altima we measured 10-1/4 inches. You'll likely be close to this but measure your car so you're sure. Then subtract your measurement from...
    view full answer...
  • Tallest Rise 1-1/4 inch Hitch Ball Mount Availability
    When measuring for ball mount rise/drop needed you have to measure from the bottom lip of the coupler to the ground and not from the top like you mentioned. That means your trailer height is going to be more like 20 inches instead of 22 inches. That being said the closest ball mount we offer to what you need is going to be the part # C45028 which can do a rise of 5-3/8 inches. Then for a 2 inch ball you would want the part # C40018.
    view full answer...
  • Recommendation for 1-1/4 Inch Ball Mount with 8 Inch Rise
    Based on the measurements you took on your trailer hitch and trailer coupler, you will technically need a ball mount that features a rise of around 8-1/2 inches for a completely level setup. Between the two ball mount options you mentioned, the Curt Class II Drawbar # C45014 will be the better option, as it provides a greater 5 inch rise. The highest rise ball mount we currently have available that will be compatible with your existing 1-1/4 inch Curt trailer hitch receiver is the Curt...
    view full answer...
  • Drawbar Recommendation with 5 Inches of Rise for 2012 Honda Civic with Draw-Tite Hitch Receiver
    The Draw-Tite Sportframe # 24763 is confirmed to fit your 2012 Honda Civic. Once installed the measurement you'll want to use is from the inside top of the receiver tube which on our install was about 11 inches. You'll want to compare that 11 inches with the distance from the ground to the bottom of your trailer's coupler. A better drawbar for your Civic is the Curt # C45028 that will give you a 5 inch rise. For a hitch ball use either the 1-7/8 ball # C40001 or the 2 inch ball # C40018....
    view full answer...
  • Recommended Towing Package for a 2011 Mazda 3 Sedan
    We have everything you are looking for, but I must warn you that Mazda does not recommend towing with this vehicle, so you would be doing so at your own risk. The other complication is that there is no stated towing capacity for your vehicle because it is not recommended for towing. You will want to be very careful if you choose to tow. For a trailer hitch I recommend the Draw-Tite Class I Hitch # 24842. This hitch as a Gross Trailer Weight Capacity of 2,000 lbs. and a Tongue Weight...
    view full answer...
  • Availability of Ball Mount w/ Large Drop for 1-1/4 Inch Receiver on ATV
    None of our manufacturers offer an adjustable ball mount for a 1-1/4 inch hitch receiver. The Curt # C45028 ball mount has the largest rise/drop of any of the Class I, 2000 lb capacity ball mounts we offer, it has a 5-3/8 inch rise or a 6 inch drop. For a Class II ball mount with a 3500 lb capacity, with the same rise/drop, use part # BM96.
    view full answer...
  • Hitch, Wiring and Ball Mount to Equip 2003 Honda Odyssey and 2015 Toyota Prius for Towing
    We can help you get your two vehicles, the 2003 Honda Odyssey and the 2015 Toyota Prius, ready to tow your Yakima Rack-and-Roll trailer, whether it is the 66-inch model # Y08106 or the 78-inch model # Y08107. Let's start with hitches for the cars. For your 2003 Honda Odyssey both 2-inch and 1-1/4-inch hitches are offered. To keep things simple and compatible with the Prius I suggest the 1-1/4-inch Class II hitch # C12031 which offers no-drill installation; it comes with all required...
    view full answer...
  • Trailer Hitch and Wiring Recommendations for a 2014 Kia Forte
    The owner's manual for your 2014 Kia Forte EX only states that they do not recommend towing a trailer. It doesn't say you can't but it also doesn't give any capacity information. But given that the weight of your trailer is all of 400 to 500 pounds even your small car would be fine towing it. With Curt trailer hitch # C11368 installed the top of the receiver opening will be about 1 inch or so below the bottom of the rear fascia. Measure up from the ground to a point about 1 inch below...
    view full answer...
  • How to Carry 300 lb Motorcycle with 2007 Nissan Altima
    The only hitch we offer for your 2007 Altima is a Class I hitch, which has a 2000 lb towing/ 200 lb tongue weight (the maximum amount of weight that can be suspended from the hitch) capacity. Using an adapter would lower the tongue weight capacity by half. It's a matter of the structure of the vehicle where the hitch attaches not being strong enough. Attempting to carry that kind of tongue weight would most likely result in the fasteners tearing out of the vehicle and the loss of the hitch...
    view full answer...
  • Using a Ball Mount with More Rise Instead of a Hi-Rise Hitch Ball on a Class I or II Hitch
    Like you said all of the hi-rise hitch balls have a larger shank diameter than 3/4 inches. They are all either 1 inch or 1-1/4 inch. But depending on how much total rise you need there may be a ball mount you can use that will get you close if not at the height you need. I have included a link below to our help article that shows how to measure to select a ball mount with the correct rise or drop. The Class I ball mount with the most rise is # C45028 with 5-3/8 inches rise. But it has...
    view full answer...
  • Availability of 1-1/4 Inch Ball Mount with 7-1/2 Inch Rise
    The highest rise ball mount we currently have available for 1-1/4 inch receivers is the Curt Drawbar # C45028, which features a rise of 5-3/8 inches. While this isn't the 7-1/2 inches you are needing to get you to a total of 17-1/2 inches from the ground, it is currently the best option available. I do recommend verifying the rise you are needing by taking a couple measurements on your vehicle and trailer. To do this, you will measure from the ground to the top of the hitch receiver...
    view full answer...
  • Ball Mount With Most Rise for Curt Class II Trailer Hitch On 2007 Volvo S60
    The Class II ball mount we offer with the tallest rise is the Curt # C45028. This ball mount has a rise of 5-3/8 inches. This gives you a height of 18-3/8 inches, still short of your 22-3/4 inch coupler height. Even if you used a hitch ball similar to the Curt # C40034 with a 2 inch rise, you would still be a couple of inches shy of your coupler height. Ideally, you want to tow level to avoid sway and traction issues, but this is as close as you may be able to get to towing your boat...
    view full answer...
  • Ball Mount with the Most Drop for a 1-1/4 Inch Trailer Hitch
    I have not seen a 1-1/4 inch ball mount that offered 12 inches of drop. The most that we have is a 6 inch drop # C45028 (Class I or II) or # BM96 (Class I). If this is for a 2008 Jeep Grand Cherokee I recommend switching to a Class III, 2 inch trailer hitch, # 13251, so you can use a ball mount with more drop such as # AMSC12.
    view full answer...
  • Ball Mount for a 2014 Toyota RAV4 to Tow a Yakima Rack and Roll Trailer Level
    The ball mount that you use is going to depend on the trailer hitch you have on your 2014 Toyota RAV4. If it has a 2 inch receiver opening then it will not be a problem. But if it is a 1-1/4 inch opening that makes it a Class I or II hitch and you are supposed to use a specific ball mount indicated by the hitch manufacturer. Since Yakima is measuring that 22 inches to the top of the ball and all of the ball mounts are based on measuring to the bottom of the coupler instead you would...
    view full answer...
