Optronics/
Tail Lights/
Rectangle/
Kit/
LED LightItem # TLL16RK
Retail:$86.91
Our Price: $65.26
You Save: 25%This item qualifies for Free Shipping

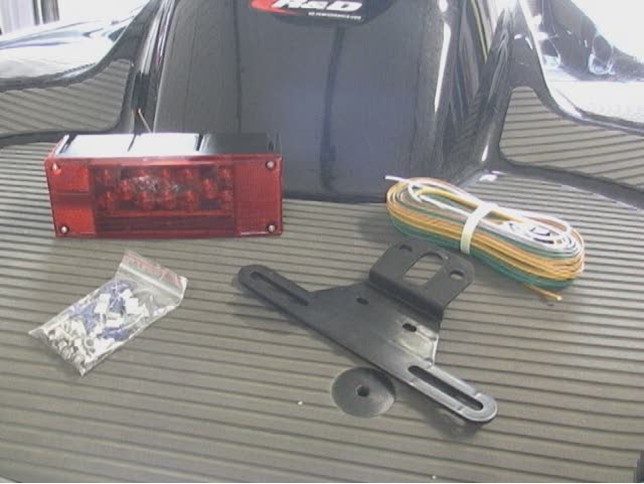

8-1/16" x 2-7/8" Rectangle. Waterproof lights act as brake, tail, turn, side marker, side reflex, rear clearance, rear reflex, and license plate light for trailers. Surface mount - hardware included. 3-Wire pigtail. 25' Wiring harness.
Features:
Specs:
The waterproof construction of these lights make them ideal for use on trailers that may be submerged, like a boat trailer. Each circuit board is sealed, which means that water will not damage the diodes or circuit board.
If a trailer is 80" or wider at its widest point, then it requires rear clearance lights in addition to basic trailer lights. These clearance lights indicate the width of the trailer when it is viewed from the back.
To meet these requirements on a flatbed utility trailer where the bed extends past the wheels, you can install combination trailer lights that include the rear clearance function. For proper mounting, the lights must be installed at the widest points on the rear of the trailer - one on each corner.
A PC-rated light produces a 90-degree angle of light to either side of its centerline for a total of 180 degrees of coverage. This beam pattern can be clearly seen when you are standing directly in front of the light, as well as when you are standing on either side of the light. When properly installed, this type of light can function as both a front clearance light and a side marker light or as a rear clearance light and side marker light.
Video of LED Combination Trailer Tail Lights - Submersible - Driver and Passenger Side - 25' Wire Harness
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Speaker 1: Today we'll be having a look at and showing you how to install the Optronics waterproof, over-80-inch LED trailer light kit with a wiring harness, part number TLL16RK.Here's what our lights look like installed. As you can see, our taillight function is exceptionally bright and illuminates our license plate very nicely, making sure we're safe and legal as we're towing our trailer at night. Our license plate bracket is made of plastic, so we don't have to worry about it corroding or rusting out over time.One of the things that sets these lights apart from other options on the market is that these are waterproof LED assemblies. By being waterproof, they're a great solution for boat trailers such as this one. And by being LED the lights themselves are a lot brighter, they draw less power from your towing vehicle, and they last a lot longer. There's no brittle filaments inside like incandescent light fixtures, where you're gonna have to worry about the bulb breaking as you're driving over rough terrain.
These last up to 50 times longer than your standard incandescent lights.As you can see, our kit comes with light assemblies for both the driver and passenger side of your trailer. These lights are DOT-approved, and they have several reflectors built into them to help drivers know where you're at even if you have your lights turned off. You'll still have light reflecting off of your reflectors to alert them of your presence.Now we'll test out our trailer wiring. We'll start out with testing out our taillights. We'll do our left brake light now, followed by our right.
To begin our install, we routed our wires down our trailer frame. We made sure we left enough slack at the front where our four-pole connector is, to be able to connect to our towing vehicle. We went down the channel of the frame of our trailer on each side. Our yellow and brown wire is on the left or the driver's side. And we took our green and brown wire and went down the right or passenger's side of our trailer.Our trailer has these grommets that we can run the wires through to secure them into place.
Yours may not have that, so you may need to find an alternative method to secure the wiring so they don't drag on the ground. Our trailer has a removable tongue, so our white wire is our ground wire. We need to attach this to our trailer's frame. But since we have a removable tongue we want to be able to still remove it if need be, we're going to attach our ground wire further back the actual frame. So in order to do that, we'll need to extend the wire.Strip back some insulation.
Take a heat-shrink butt connector that we have available on our Website. This is a 14- to 16-gauge connector. And crimp it. We'll take some extra 16-gauge wire. We put this up on our Website as part of our 16-1-1, sold by the foot. You may or may not need it, depending on your application. Put that in the butt connector. And we'll crimp it.And now we use a heat gun to shrink down our butt connector. You'll want to use a heat gun over using a lighter or torch, because this is a source of indirect heat and not a direct, open flame. An open flame will damage the connector.And now we'll take some electrical tape and tape up our wiring harness here, running down the length of it. This will help protect the wires and keep them from pulling apart. Okay, we wrapped our core pole all the way down to where our channel splits off into the A. This will give us a nice, clean look and help protect our wiring. And now we'll put zip ties on to secure our wiring. That way, if we need to remove our tongue of our trailer, all we have to do is cut the zip ties off and we don't have to worry about the wires staying with the channel.Now our white wire here is our ground wire. We need to attach this to our trailer frame. As discussed earlier, we need to go in our A frame. We're gonna need to do it right in this area here on the permanent part of our frame, not the removable tongue. Measure off how much we're gonna need. Trim off the excess. And we'll strip back some insulation.Now we're gonna use the ring terminal that comes in the kit. I'm gonna use one that we have available on our Website. This one has a yellow plastic sleeve over it for 10- to 12-gauge wire. It's got a small hole here where we can put a self-tapping screw in to secure it.Now we'll drill a pilot hole for our self-tapping screw. Now we'll take our self-tapping screw, insert it through the ring terminal, and go into our pilot hole. That gives us a nice, solid ground.And we have our driver-side taillight assembly since we're on the driver's side. We can tell it's the driver's side because we have a yellow wire and the clear spot at the bottom for our license plate light. We'll now pass our wires through these three slots here so they don't get pinched. Take our bolts and slide them through this slot and this slot. Our ground wire with the ring terminal in it will slide over this stud here. And we'll take our other two wires and go through the slot here.So they'll look like this once it's done. We'll pass our two wires, the yellow and the brown one, through this hole here. And our bolts will go through these two holes here.Now we'll take our license plate bracket, place it over our bolts, place on our lock washers and then our nuts, and now we'll tighten down the hardware. And now we're gonna measure off how much of our yellow and brown wire that we're gonna need that we brought back from the front and we'll cut off the excess. We will then separate those two wires and strip back insulation from both ends.We'll now take our heat shrink butt connectors, place them on our wires. We repeated this same process on the passenger's side of the trailer. We only have two differences on the passenger's side from the driver's side. The first one being, instead of having a yellow wire for our turn signal and brake light, we have a green wire. So we match the two green wires up together with our butt connector.The other difference being we don't have to worry about having a license plate bracket on the passenger's side. That's only on the driver's side. We went ahead and attached our license plate to our license plate bracket using some of our own supplied bolt, washers, and nuts.And that completes our inaudible 00:07:37 in showing you how to install the Optronics waterproof over-80-inch LED trailer light kit with wiring harness, part number TLL16RK.
